Advanced 4-Channel Emg System with CE Certification for Clinical Use

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG

Product Description

📋 Basic Information
Model NO.
CMS6600B
Certification
CE
Group
Middle-aged and Old
Product Name
4 Channel Emg/Ep System - Electromyography
Warranty Period
18-Month
Channel
4
Transport Package
Carton
Specification
CE
Origin
China
Production Capacity
50/Week
✨ Key Features
⚡ Professional Platform
EMG/EP operation platform with perfect test items, completing tests in the shortest time.
🧭 Navigation System
Neuro and muscle navigation system for convenient selection of test parts.
📊 Data Analysis
Powerful normal values system with automatic contrast against normal data.
🛡️ High Quality Signal
High-speed data collection with electromagnetic interference suppression and low noise.
⚙️ Technical Performance
A/D Resolution
16 Bit
Sampling Ratio
200kHz
Analysis Time
5-5000ms
Stimulating Freq.
0.1-50Hz
Channels
4-Channel
Sensitivity
0.05μ V-20mV/Grid
Common-mode Rejection
>= 100dB
Gain Amplifies
25x - 400,000x
📸 Detailed Photos

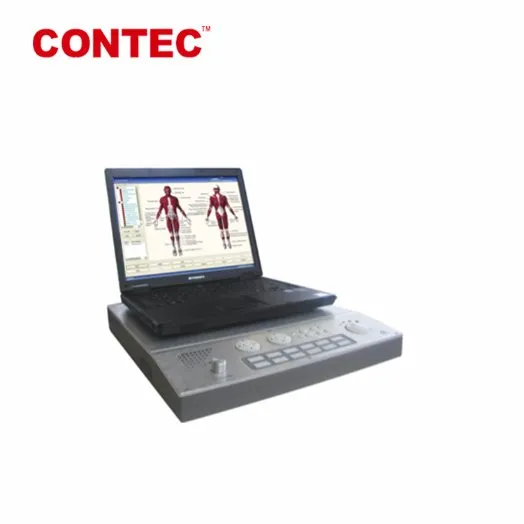

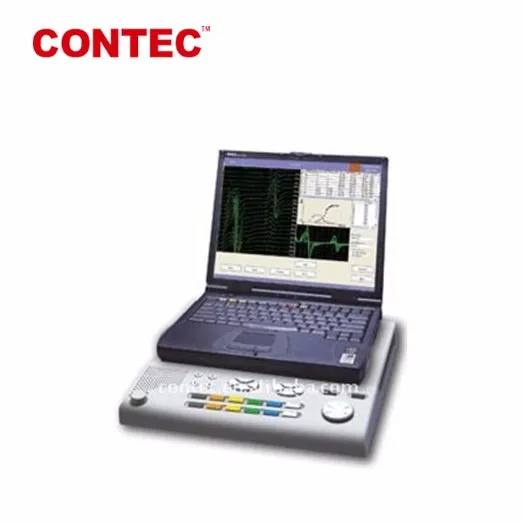

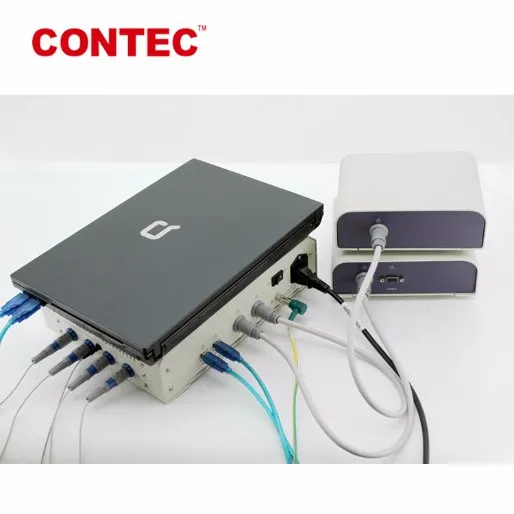

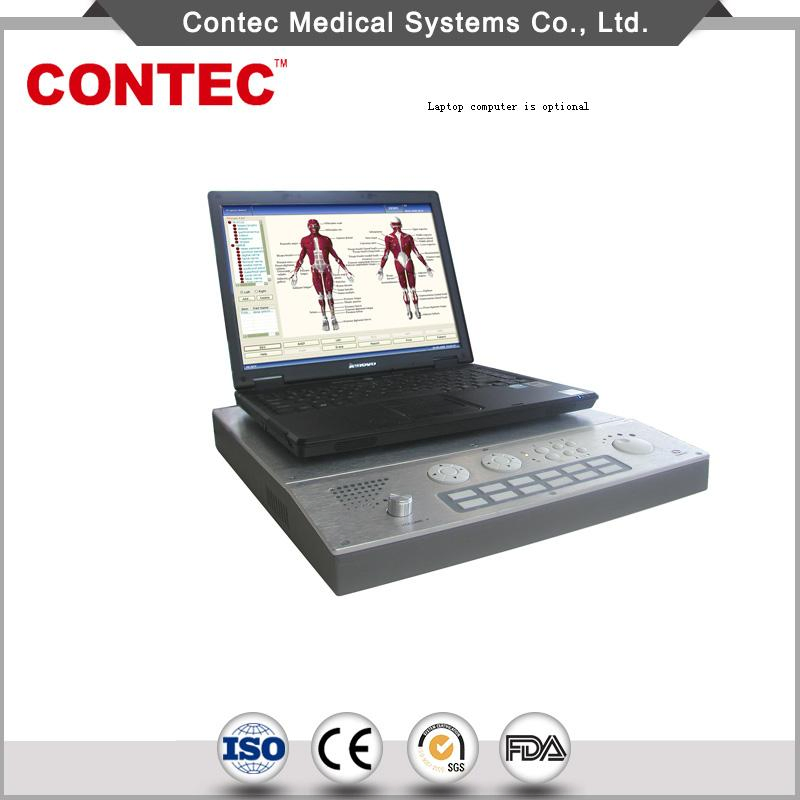

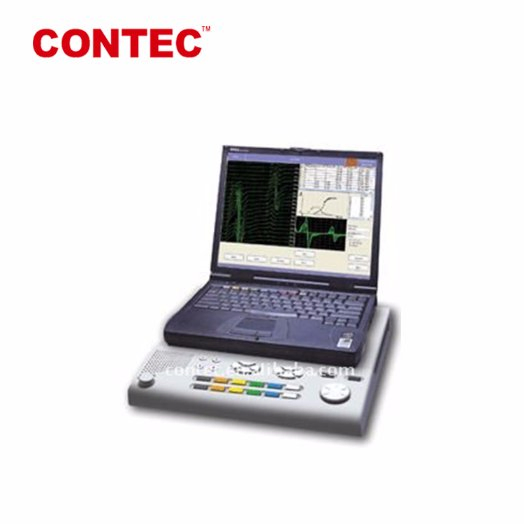

4-Channel Emg System View 1 4-Channel Emg System View 2 4-Channel Emg System View 3

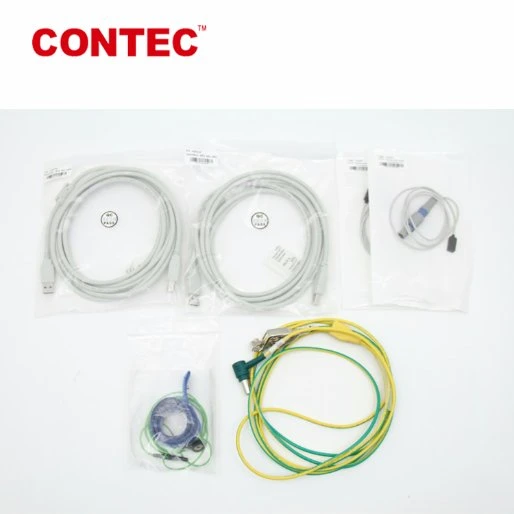

📦 Included Accessories
Disk, Power Cord, Power Adapter, USB Cable, Audio Cable, Earth Cable
Current Stimulator, Flash Stimulator, Audio Stimulator
One-off & Reusable Bipolar Needle Electrodes
Concentric Needle Connecting Wire, Disc/Ring/Surface Electrodes
Ground Electrode, Unipolar Needle Electrode, Conversion Cables
📏 Physical Specifications
Dimension 420mm * 350mm * 46mm (L×W×H)
Net Weight 6KG
🔍 Related Product Range
• Telemedicine Products
• Pulse Oximeter & ECG Machine
• Patient Monitoring & EEG
• Ultrasound Imaging & Fetal Doppler
• Blood Pressure Monitor (ABPM)
• Infusion & Syringe Pumps
• Veterinary Products
Product Layout Clinical Application Product Highlights System Interface Certified Medical Device
❓ Frequently Asked Questions
1. What is the primary use of the CMS6600B EMG/EP System?
It is a professional platform designed for Electromyography (EMG) and Evoked Potential (EP) testing, used to evaluate the health of muscles and the nerve cells that control them.
2. How many channels does this system support?
The system is equipped with 4 high-performance channels for data collection.
3. Does the software include comparative data?
Yes, it features a powerful normal values system that automatically contrasts test results with standard clinical data.
4. What type of stimulators are included with the device?
The system includes a current stimulator, an auditory stimulator (sound strength 40-120db), and a visual stimulator (tessellation, bars, and flash modes).
5. Is the equipment portable?
Yes, the hardware system is integrative and compact, designed for easy movement within clinical environments, weighing only 6KG.
6. What certifications does this EMG machine hold?
The system is fully CE certified, ensuring it meets international standards for medical device safety and performance.
