Accurate 96 Real-Time PCR System

Customization:	Available
Warranty:	One Year
Trademark:	HKE

Send Inquiry

Product Description

Basic Information

Model NO. Accurate 96

Origin Chinese

HS Code 9027509090

Production Capacity 5000

Product Description

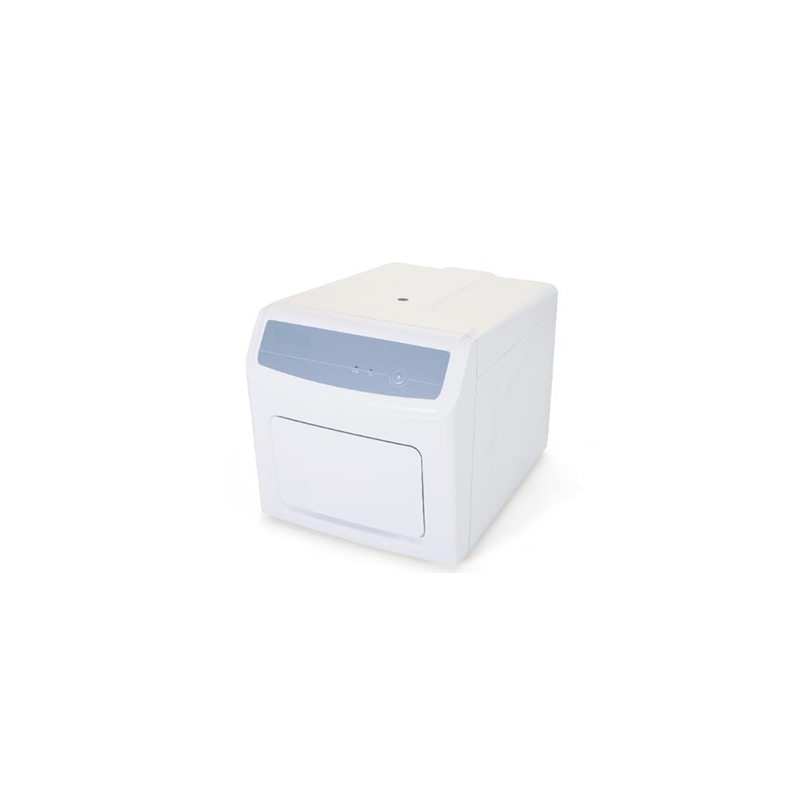

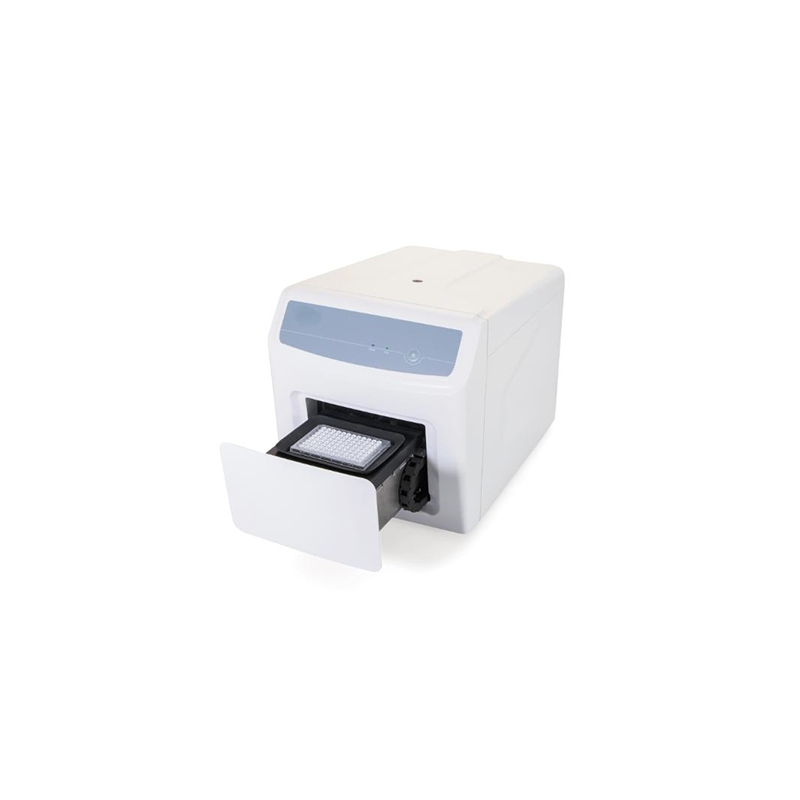

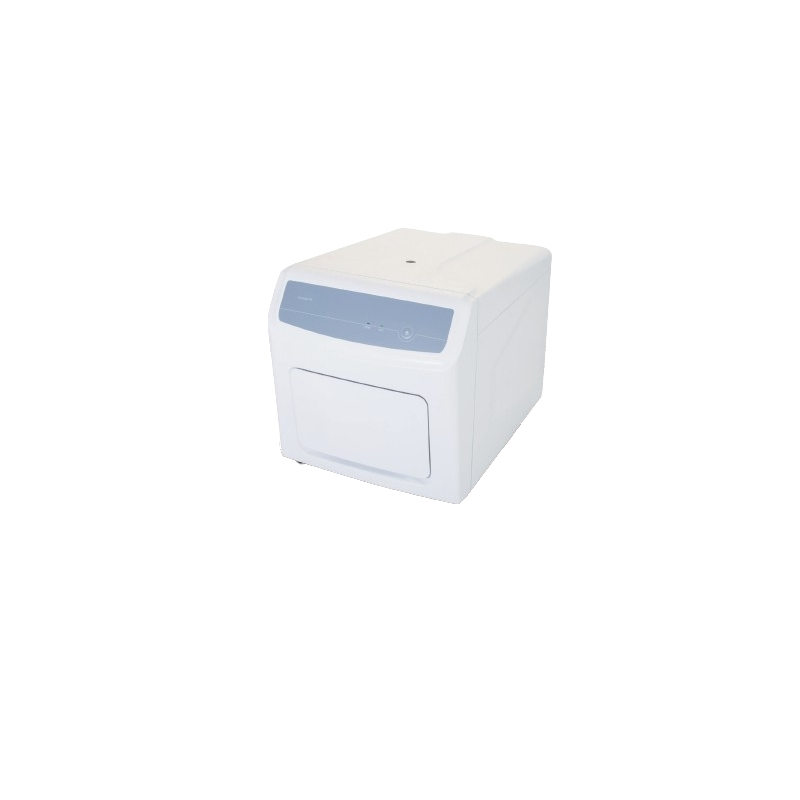

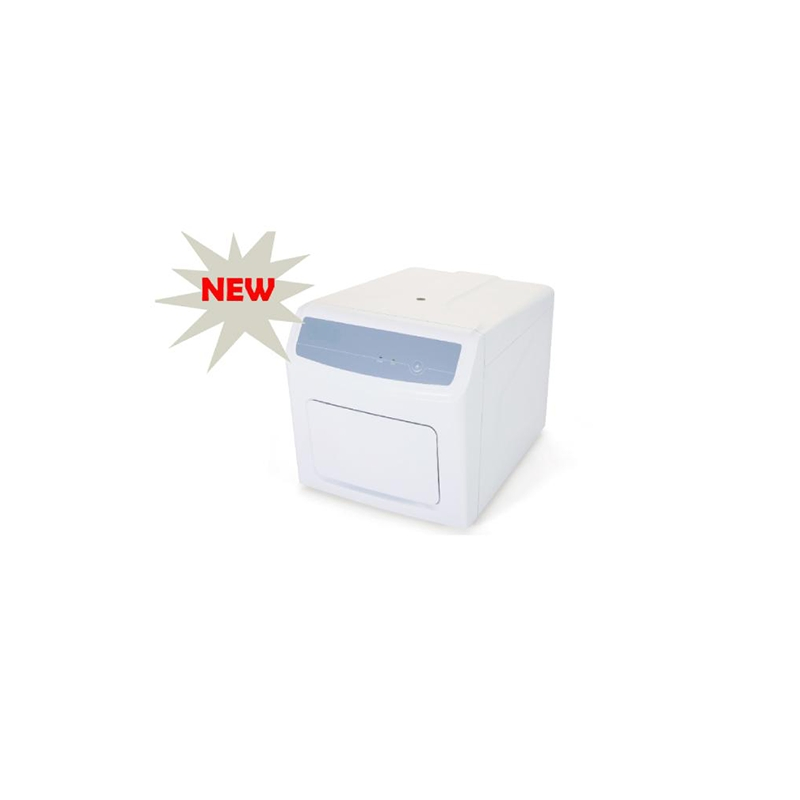

Accurate 96 Real-Time PCR System

As a necessary choice for quantitative analysis of molecular biology, the real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.

Key Features

Up to 6 fluorescence detection channels allowing multiplex PCR.
Effectively reduce multi-color crosstalk and edge effect, no ROX correction required to reduce sample and reagent use.
Innovative scanning method and time-resolved signal separation technology to improve detection sensitivity.
Unique edge temperature compensation technology to minimize "edge effect".
User-friendly software interface.
Innovative technology with long-lasting LED light provides reliability results.

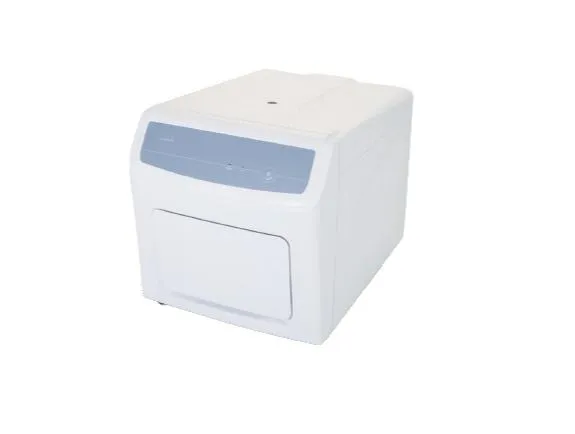

Accurate 96 Real-Time PCR System Main View

Technical Specifications

Temperature Control System		Detection System
Sample capacity	0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1	Excitation light source	5/6 monochrome high efficiency LEDs
Reaction volume	10-50 μl	Detection device	PMT
Thermal cycle technology	Peltier	Detection mode	Time-resolved signal separating technology
Max. Heating/Cooling rate	6.0° C/s	Excitation/detection range	455-650nm/510-715nm
Heating temperature range	4 – 100 °C	Fluorescent channels	4/6 channels
Temperature accuracy	± 0.2°C	Supported dye	FAM/SYBR Green, VIC/HEX, ROX, Cy5, Cy3
Temperature uniformity	±0.2℃ @60℃, ±0.2℃ @95℃	Sensitivity	Single copy gene
Gradient range	30–100°C	Resolution	1.33 folds copy number difference
Gradient difference	1 – 36°C	Dynamic range	10 orders of magnitude

Channel 6 / 3	Channel 5 / 2	Channel 4 / 1
NED/Cy3/TAMRA 543±20/584±20	ROX/Texas Red 571±20/610±20	FAM/SYBR 480±10/518±10
VIC/HEX/TET/JOE 532±10/564±20	CY5/Quasar 670 640±20/692±40	FAM/SYBR 480±10/518±10

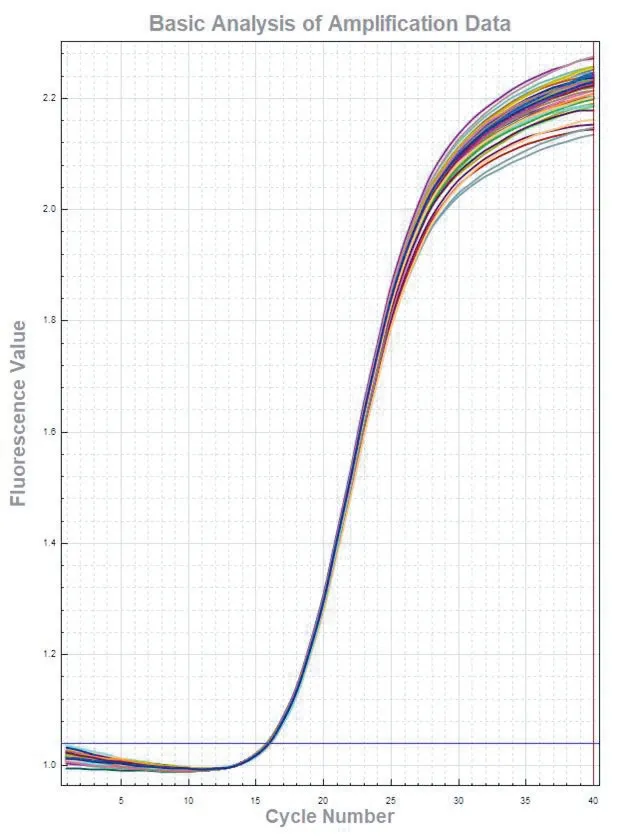

Accurate 96 Detailed Specifications Chart

Frequently Asked Questions

What is the sample capacity of the Accurate 96 system?

The system accommodates 0.1ml PCR tubes (96 tubes), 8×12 PCR plates, or a standard 96-well plate.

How many fluorescence channels are available for multiplexing?

The system supports up to 6 fluorescence detection channels, allowing for efficient multiplex PCR analysis.

Does this PCR system require ROX correction?

No, the system effectively reduces multi-color crosstalk and edge effects, meaning no ROX correction is required, which helps save samples and reagents.

What is the maximum heating and cooling rate?

The Accurate 96 features a maximum heating and cooling rate of 6.0°C/s, powered by Peltier thermal cycle technology.

What detection technology is used in the Accurate 96?

It utilizes an innovative scanning method with a PMT (Photomultiplier Tube) and time-resolved signal separation technology to enhance detection sensitivity.

What is the temperature uniformity of the heating block?

The system maintains excellent temperature uniformity of ±0.2℃ at both 60℃ and 95℃, minimizing the "edge effect."
