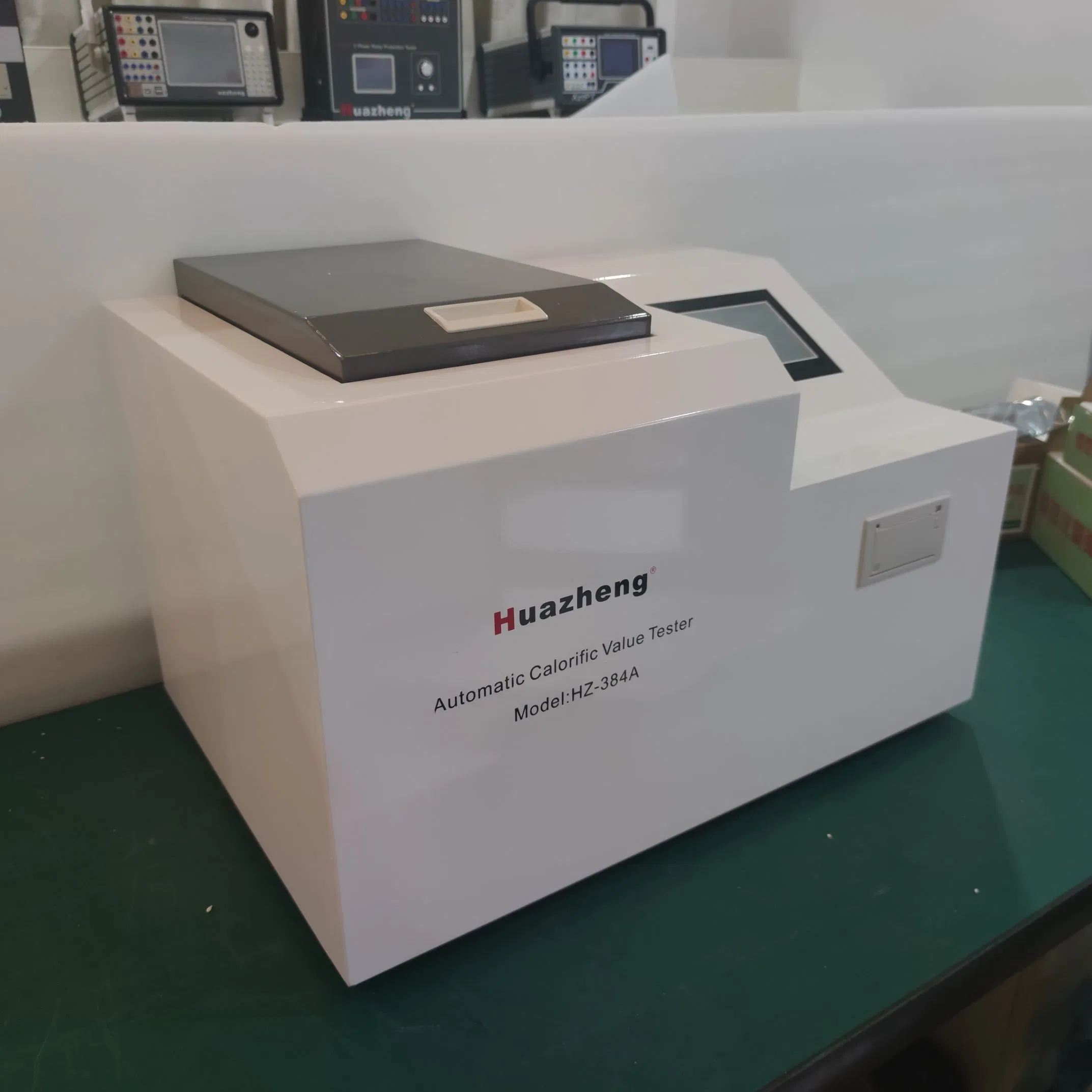

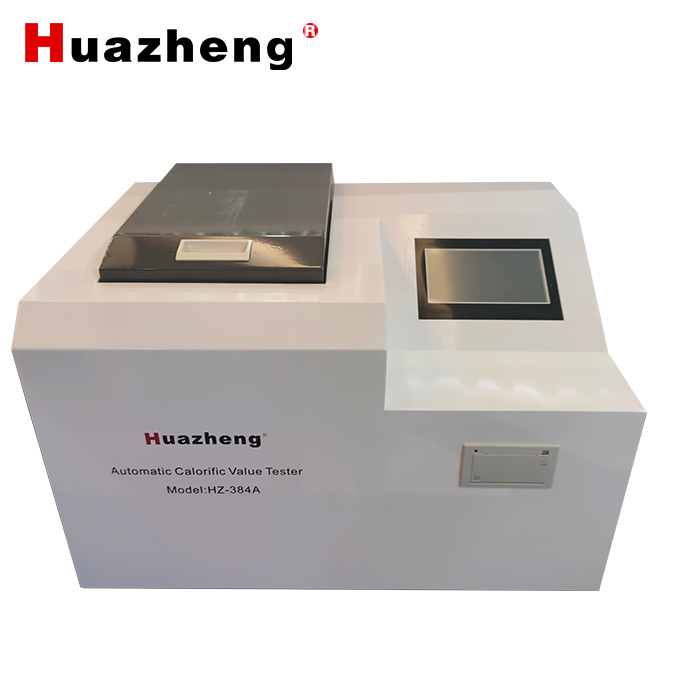

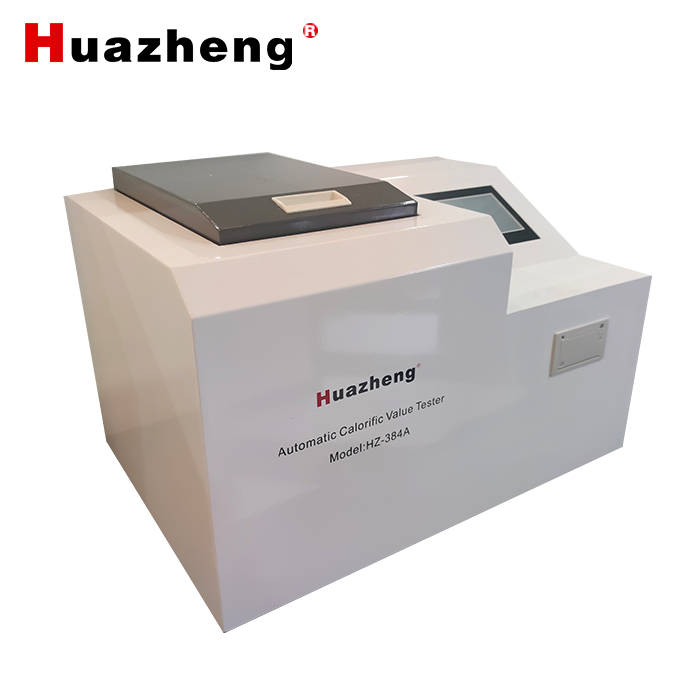

This automated calorimeter is designed to measure the calorific value of solid, liquid, and other combustible materials including coal, petroleum food, wood, and biomass.
It is a new type of energy-saving analysis instrument utilizing advanced calculation programs to improve measurement accuracy. The measurement process is fully automated to minimize human error.
Simple structure with strong anti-interference ability ensuring long-term stable operation.
Automatic flushing, discharging, ignition, calculation, and printing steps to avoid human error.
Unique calibration technology ensures high accuracy even in relaxed environmental conditions.
| Parameter | Specifications |
|---|---|
| Heat capacity | About 10500 J / K |
| Oxygen bomb capacity | 300ml |
| Oxygen charging pressure | 2.8 ~ 3.2 MPa |
| Pressure resistance | Water pressure 20MPa |
| Overall dimension | 650 * 450 * 500 mm |
| Temperature range | 0 ~ 40 ºC |
| Response time | < 4 S |
| Linearity | < 0.08% per 5 ºC rise |
| Power supply | AC220V ± 10%, 30W |
| Ignition voltage/time | AC24 V / 5S |
| NO. | Name | Quantity |
|---|---|---|
| 1 | Calorimeter host | 1 |
| 2 | Power cord | 1 |
| 3 | Oxygen bomb | 1 |
| 4 | Oxygen flushing instrument | 1 |
| 5 | Pressure gauge | 1 |
| 6 | Ignition wire | 2 |
| 7 | Benzoic acid / Cotton | 1 |
| 8 | Crucible | 3 |
