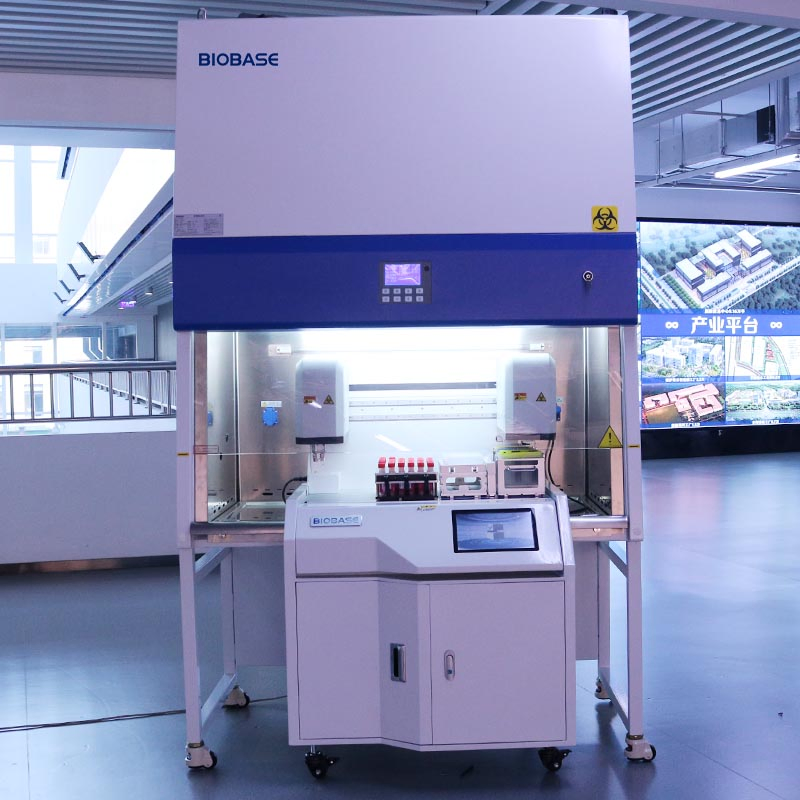

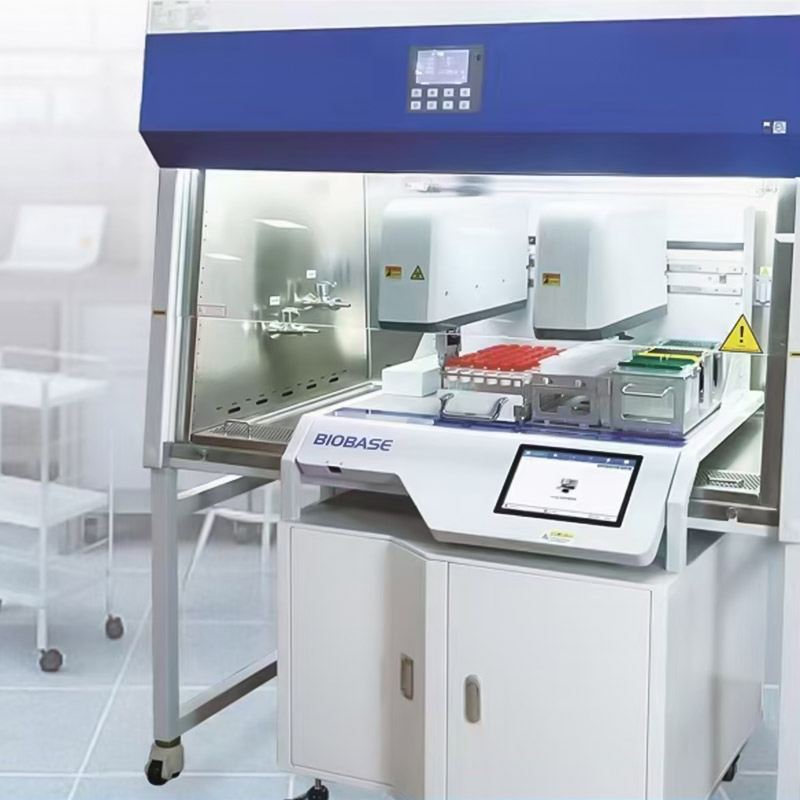

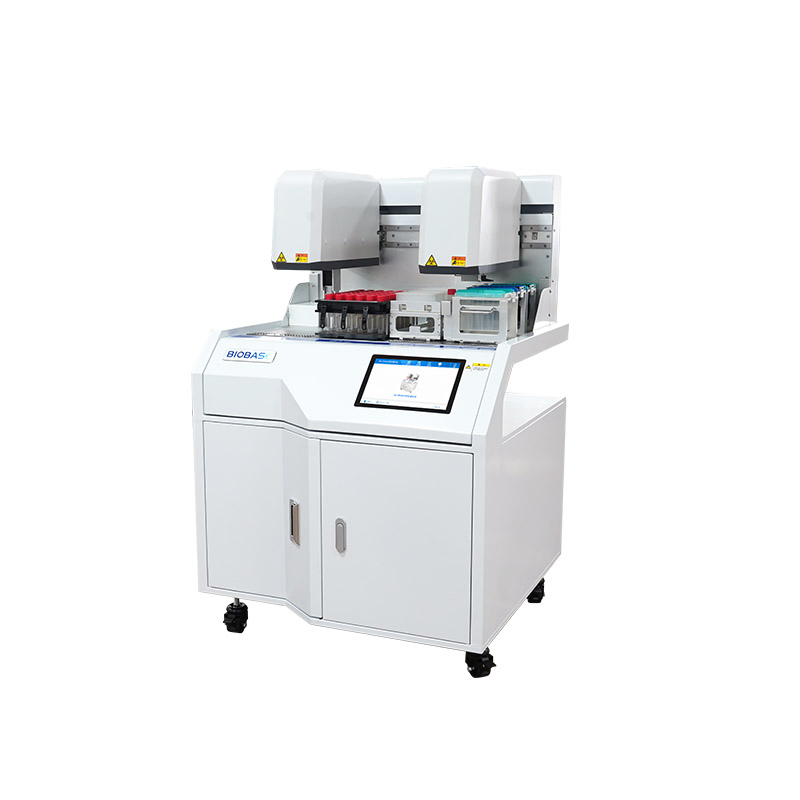

Equipped with a high-efficiency filter and built-in UV lamp. Can be used within a biological safety cabinet to prevent aerosol pollution.

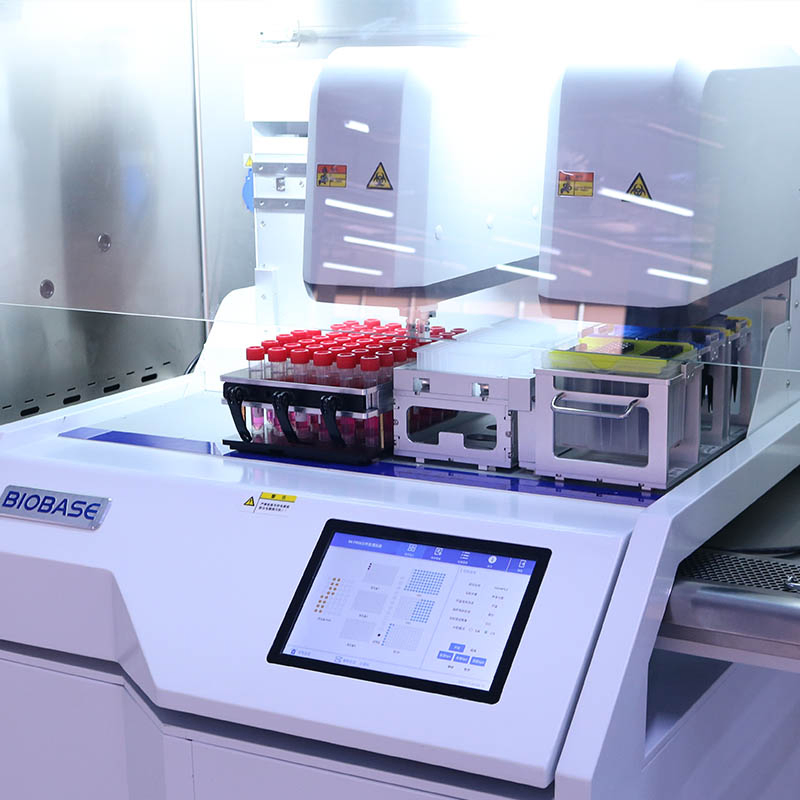

Cooperative processing with dual robotic arms significantly speeds up laboratory workflows.
Visual interface operation ensures the system is easy to learn and simple to operate.

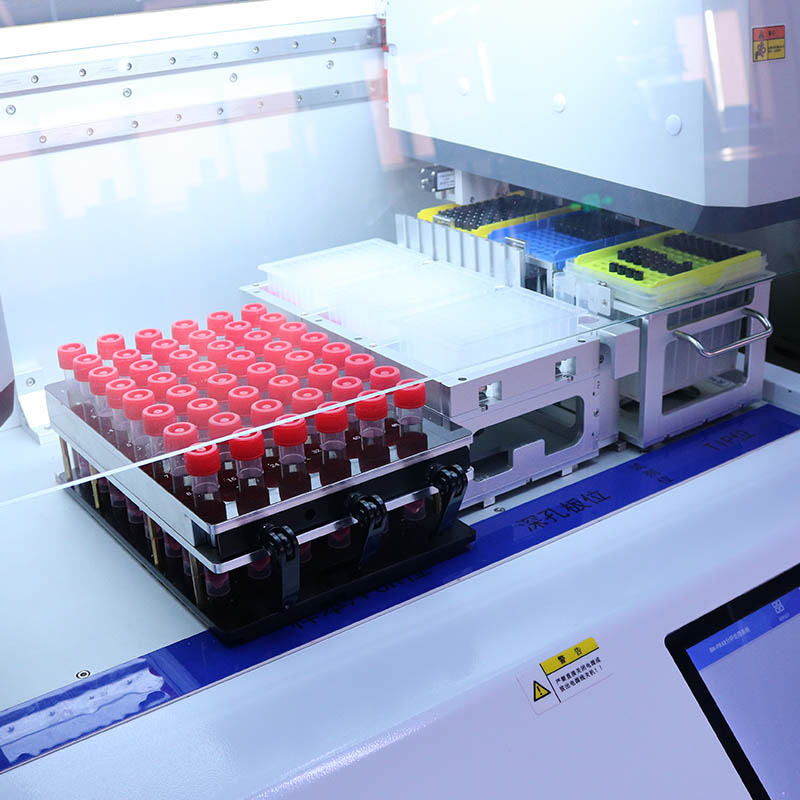

Compatible with a variety of pipette tips, deep well plates, and sampling tubes (including blood collection tubes).
Features one-key operation and intelligent dispensation for precise sample handling.
| Model | BK-PR32 | BK-PR48 |
|---|---|---|
| Throughput | 1-32 | 1-48 |
| Processing Time | 32 samples/10min | 48 samples/16min |
| Sample Type | Plasma, serum, whole blood, swab solution and others | |
| Robot Arm | 1 pcs (Dispensation) | 2 pcs (Dispensation & Screw cap) |
| Plate Position | 2 pcs | 3 pcs |
| Liquid Detection | Pneumatic liquid level principle, blocked needle detection | |
| Pipetting Accuracy | 10μl: CV≤1.5%; 50μl: CV≤1.0%; 100μl: CV≤0.5% | |
| Power Supply | 220V, 50/60Hz; 110V, 60Hz | |
| External Size (W*D*H) | 540*637*1113mm | 827*794*1223mm |
| Net Weight | 56kg | 100kg |

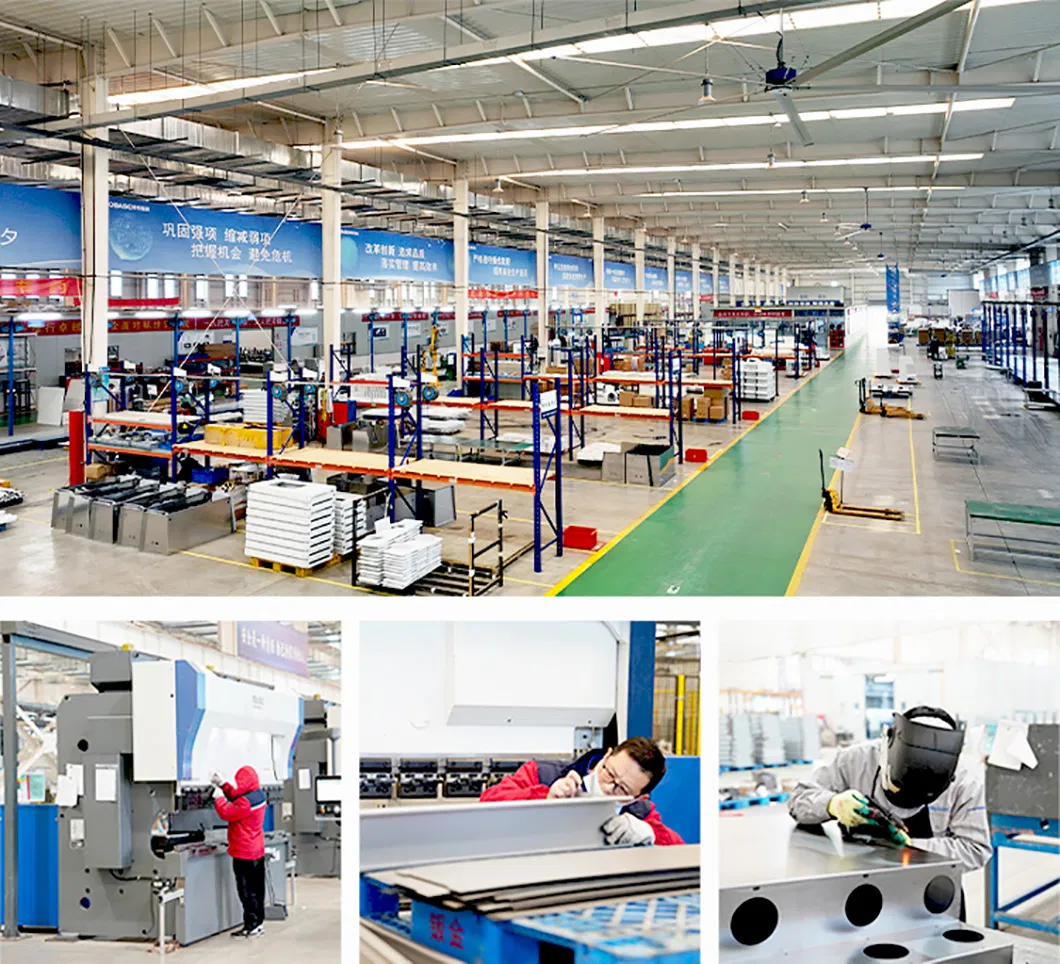

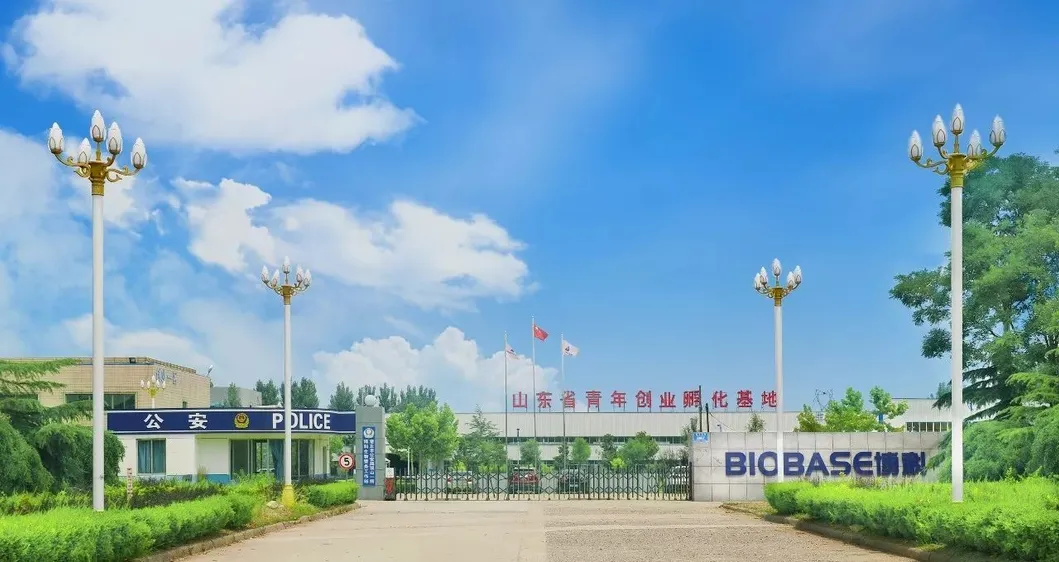

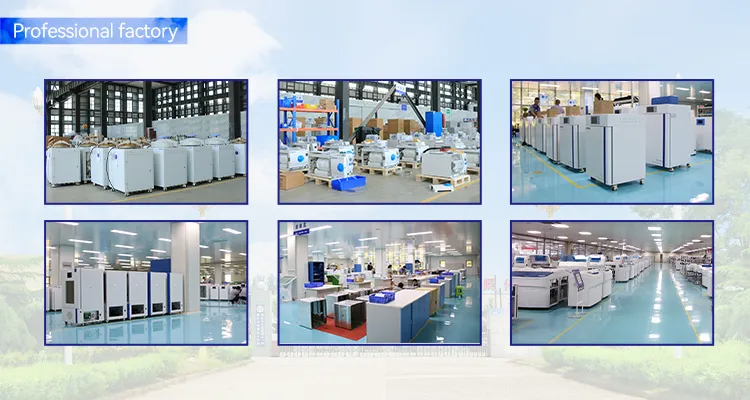

Our production base focuses on the development and production of scientific equipment and In Vitro Diagnosis (IVD) instruments. We specialize in biosafety protection, disinfection, sterilization, and cold chain products.
