Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
1 / 5
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry
Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry

Biobase Fully Automatic Chemistry Analyzer Open System Biochemistry

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
BK-280
Certification
CE, ISO13485
Name
Chemistry Analyzer
Throughput
200 Tests/Hour
Analysis Method
End-Point, Fixed-Time, Rate(Kinetic)
Sample Positions
49 Sample Positions
Reagent Position
56 Reagent Positions
Temperature Control
37+0.1℃, Real-Time Monitoring
Cuvettes
120 Reusable Cuvettes
Stat Function
Yes
Production Capacity
200 Sets/Month
Detailed Presentation
⚙️

Core Capabilities:

• 49 Sample positions | • 56 Reagent positions
• 120 Reaction cuvettes | • 200 Tests per hour
• Probe anti-collision & liquid level detection

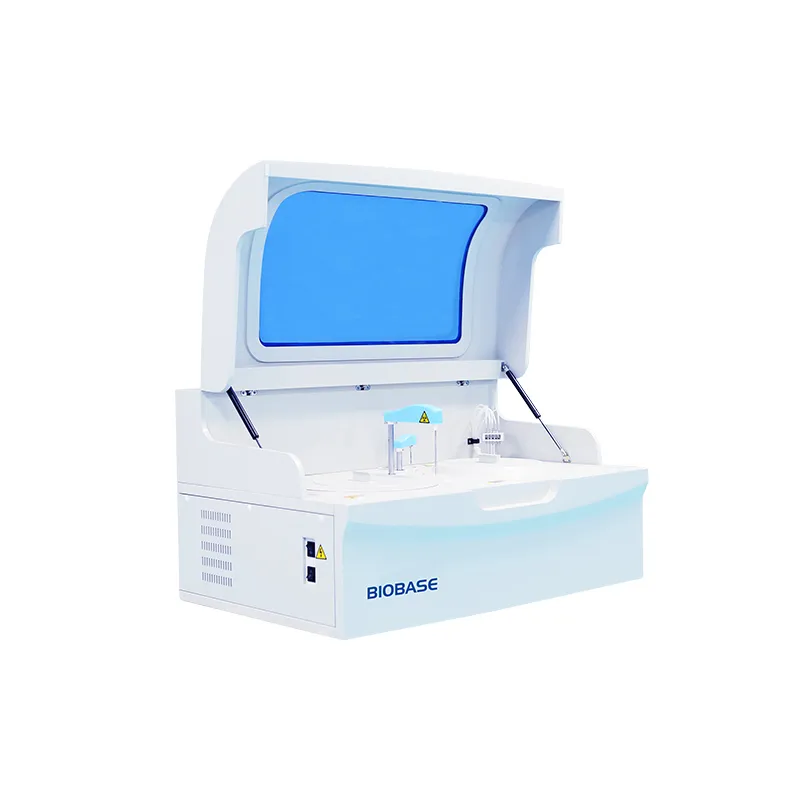

Chemistry Analyzer View
Product Features

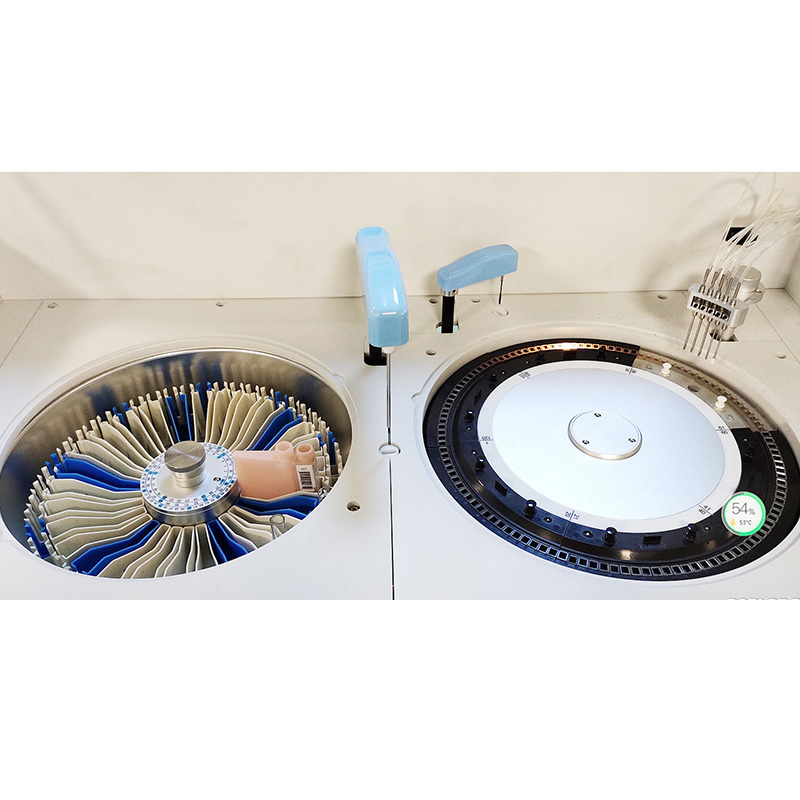

Overall Appearance One probe for reagents and sample; One mixer; Washing probe.
Reaction Tray 37ºC±0.1ºC precision with real-time monitoring.

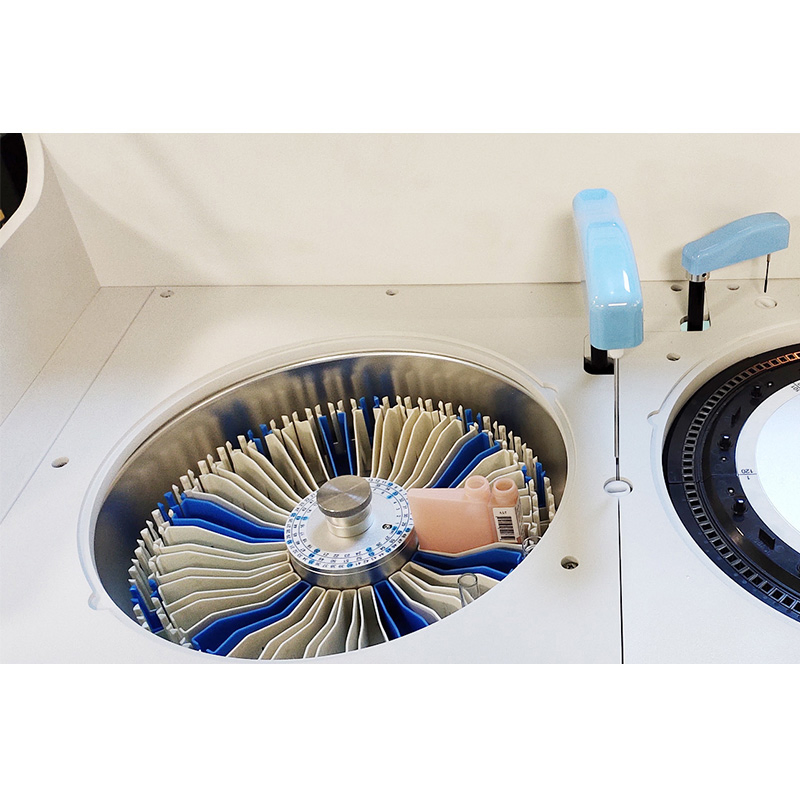

Reagent Tray Refrigerated tray equipped with an independent switch.

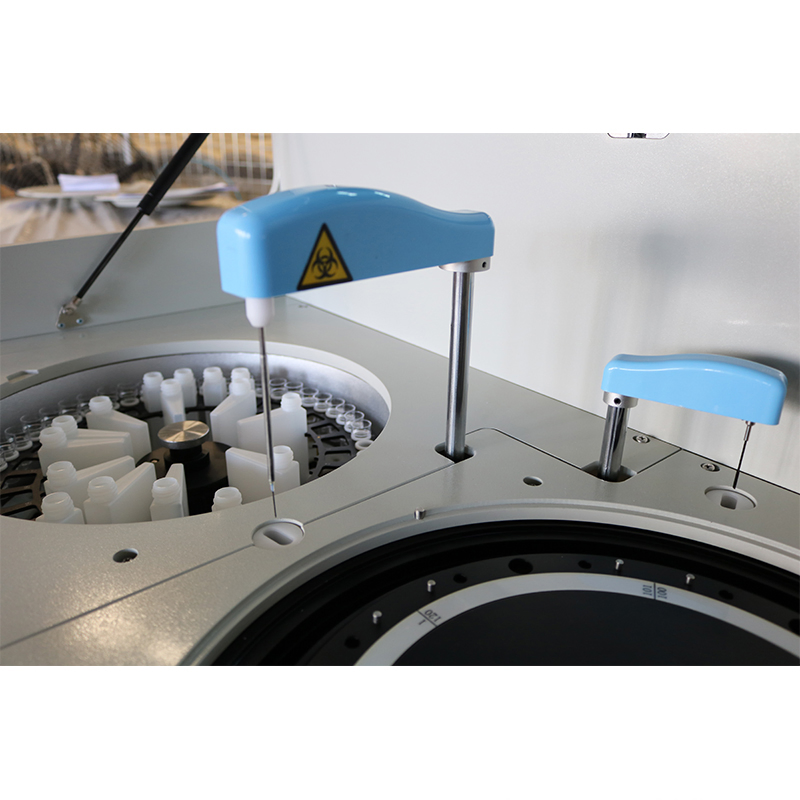

Sample Needle Liquid level sensor, anti-collision, and real-time reagent volume detection.
Washing Probe Features an independent 2-step washing system.
Product Parameters
Model BK-200 (NEW BK-280)
Performance Throughput 200 Tests/Hour
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certificates CE, FDA, ISO9001, ISO14001, ISO13485
Sample & Reagent Positions 49 Sample / 56 Reagent
Probe Washing Automatic interior and exterior washing
Cooling Refrigerated tray with independent switch
Optical System Light Source 12V/30W Halogen lamp
Wavelength 340, 405, 450, 510, 546, 578, 630, 700nm
Absorbance 0~3.0Abs

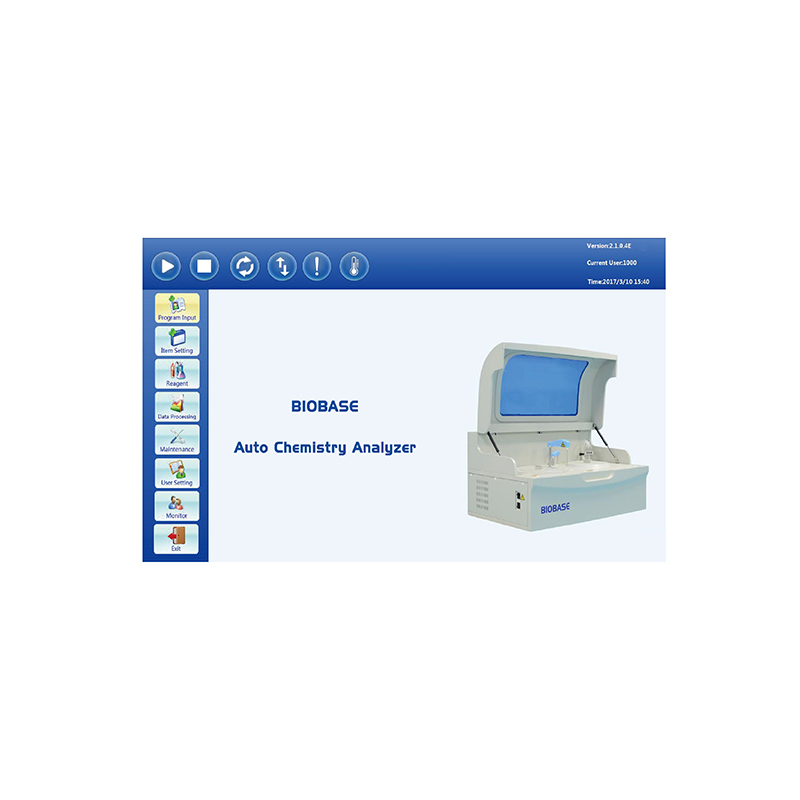

Data System Software Windows 7/8/10, LIS system available
Interface LAN port access, Bi-direction HL7 protocol
Size & Weight External Size 950*612*510mm
Net Weight 75kg
Technical Overview & Production
Analyzer Detail
Workshop
Equipment Setup
Professional Support
Service and Support
Frequently Asked Questions
What is the testing capacity of the BK-280 Chemistry Analyzer?
The analyzer provides a throughput of 200 tests per hour, making it efficient for medium-sized clinical laboratories.
What analysis methods does this equipment support?
It supports multiple analysis methods including End-point, Fixed-time, Rate (Kinetic), and Turbidimetry.
How is the reagent stability maintained?
The BK-280 features a refrigerated reagent tray with an independent switch to ensure reagents are kept at optimal temperatures.
Does the system include automatic cleaning?
Yes, it features automatic interior and exterior probe washing, as well as automatic cuvettes washing to ensure accurate results and low maintenance.
Is it compatible with Laboratory Information Systems (LIS)?
Yes, the software supports Windows 7/8/10 and is LIS system available with bi-directional HL7 protocol support.
What type of cuvettes are used in the reaction system?
The system utilizes 120 reusable cuvettes with an optical length of 6mm, providing an economical and environmentally friendly solution.
