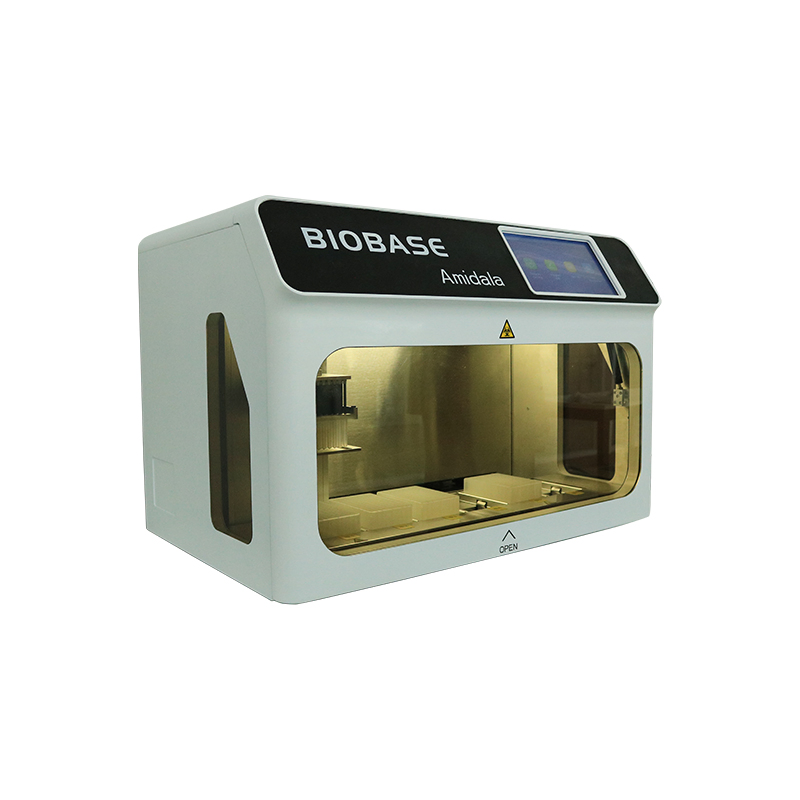

Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
1 / 5
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System
Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System

Biobase Automatic Nucleic Acid Analyzer Extraction Testing Product System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
BNP8
Certification
CE, ISO13485
Product Name
Nucleic Acid Extraction System
Throughput
1-8
Processing Volume
20μl-1000μl
Magnetic Bead Recovery
>98%
Extraction Time
15-40 Min/Round
Origin
China
Product Description

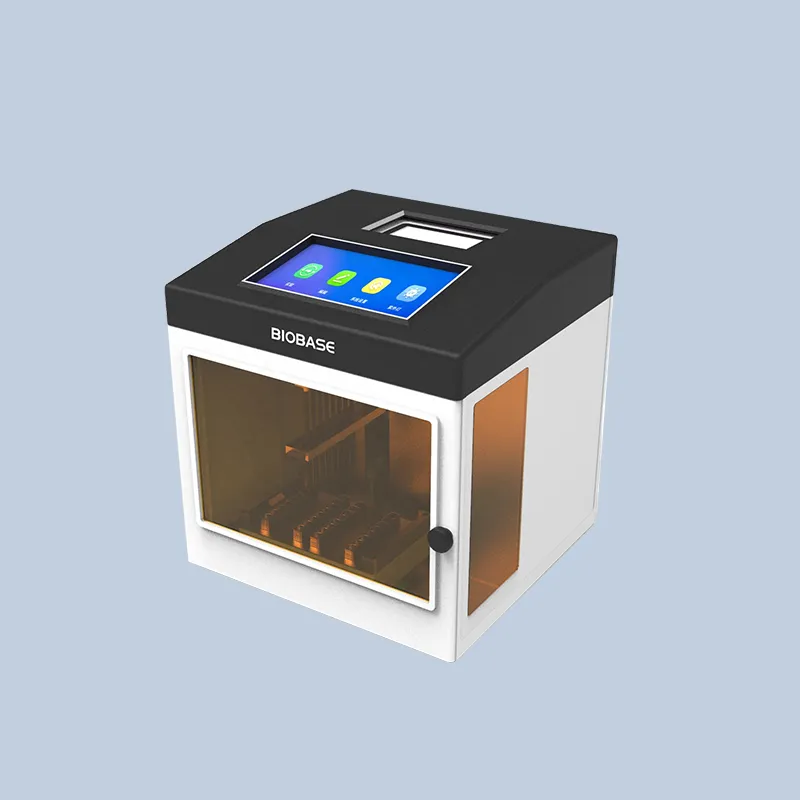

Extraction System View 1

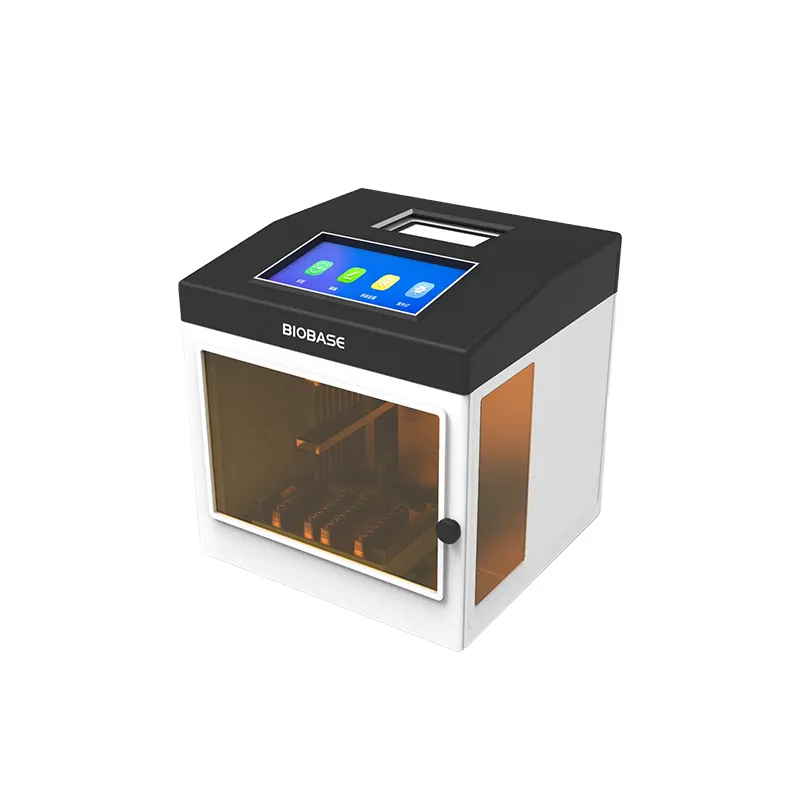

Extraction System View 2
Automatic Nucleic Acid Extraction Instrument Bnp08
✓Open system, fully automatic, stable results and good repeatability.
✓7-inch touch screen, easy to use, fast response.
✓Automatic control system, connect to computers wirelessly.
✓User-defined cracking and elution temperature.
✓Free programming to meet the needs of different reagent.
✓Extract rapidly 15-60 minutes, 32 samples can be extracted at the same time.
✓Optimized purification scheme to achieve higher extraction efficiency and purity.
✓Built-in UV disinfection and air duct, avoid cross contamination.
Product Parameters
Model BNP08 BNP32
Sample Quantity0848
Processing Volume20µL-1000µL
Sample Volume20-500µL
Sample Throughput1-32
Magnetic Bead Recovery>98%
Extracting Difference Between HolesCV≤3%
Heating Temperature8 independent heating modules, customizable range
Oscillating MixingAdjustable low, medium, and high gears
Reagent TypeMagnetic bead open platform
Extraction Time12-18 min/round (reagent dependent)
Internal ProgramStore >100 groups of programs
Safety Door DesignAuto-suspend when opened, resume when closed
Built-in Air DuctNoYes
Ultraviolet IrradiationYes
Gross Weight (kg)3580
Production & Packaging
Production Facility Quality Control
Packaging & Shipping
Packaging Details
Frequently Asked Questions
What is the extraction efficiency of the BNP series?
The system utilizes magnetic bead technology with a recovery rate of over 98% and a high consistency between holes (CV≤3%).
How many samples can be processed at once?
Depending on the model, the system can handle a throughput of 1 to 32 or up to 48 samples per round.
Is the system compatible with different reagents?
Yes, it features a magnetic bead open platform and allows for free programming to meet the requirements of various reagent brands.
How does the system prevent cross-contamination?
The instrument is equipped with built-in UV disinfection and specific models include air ducts to ensure a sterile working environment.
Is the operation interface user-friendly?
Yes, it comes with a 7-inch high-response touch screen and supports wireless connection to computers for advanced program management.
What happens if the safety door is opened during operation?
The safety door design ensures that the program operation will automatically suspend if the door is opened and will resume once it is closed.
