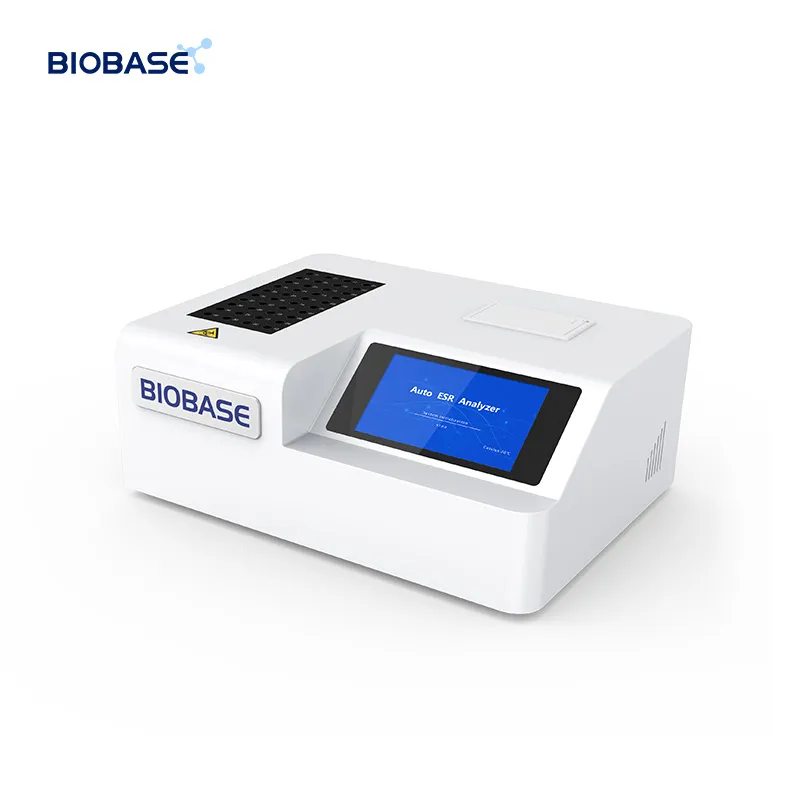

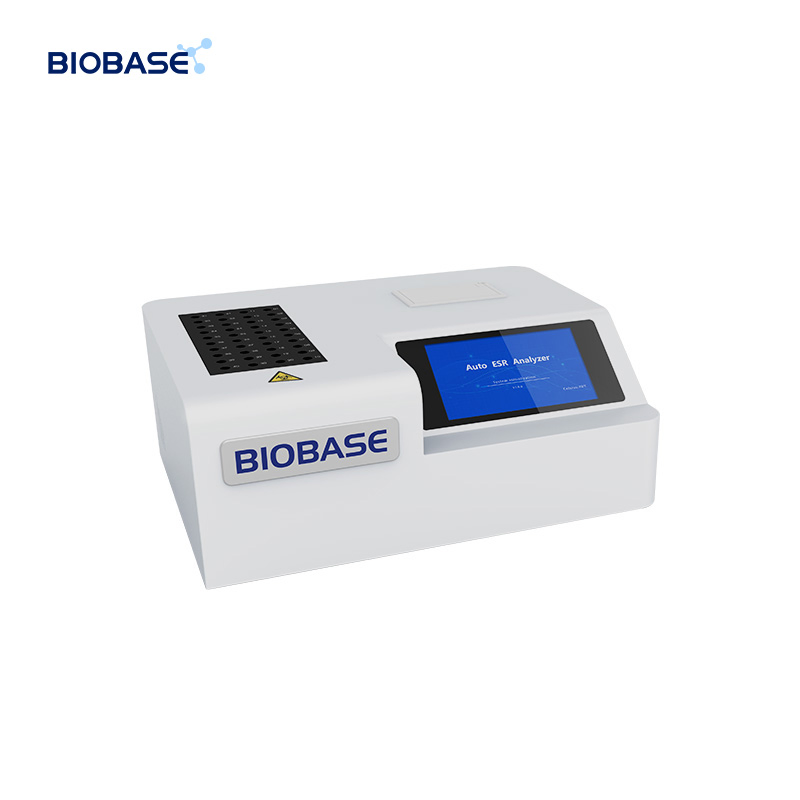

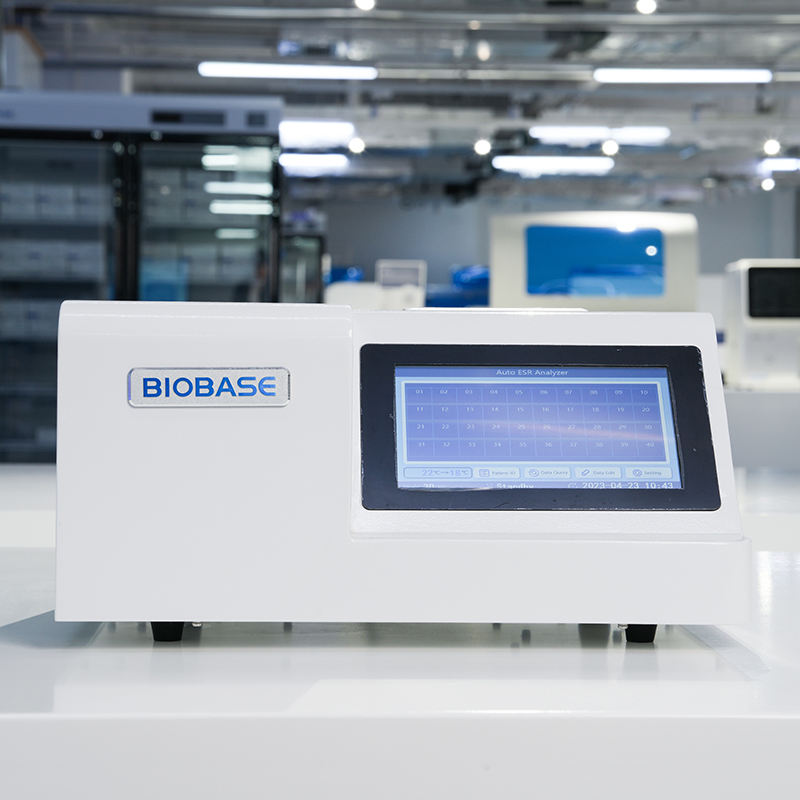

Biobase Bk-ESR40 Blood Sedimentation Auto ESR Analyzer for Hospital Laboratory

📊 Basic Info.

Model NO.BK-ESR40

CertificationCE, MSDS, ISO13485, ISO9001

Product NameAuto ESR Analyzer

ApplicationErythrocyte Sedimentation Rate Analysis

MeasurementInfrared Detection

ThroughputMaximum 80 Tests/Hour

Channels40 Channels

Analysis Time30 or 60 Minutes Selectable

Range0~150mm/H

OriginChina

🔬 Product Description

Introduction:
ESR testing is vital for clinical diagnosis. The Auto ESR Analyzer utilizes advanced infrared light color difference technology to scan red blood cell sedimentation automatically within 30 minutes, providing accurate results compatible with the standard Westergren method while avoiding cross-contamination.

Key Features:

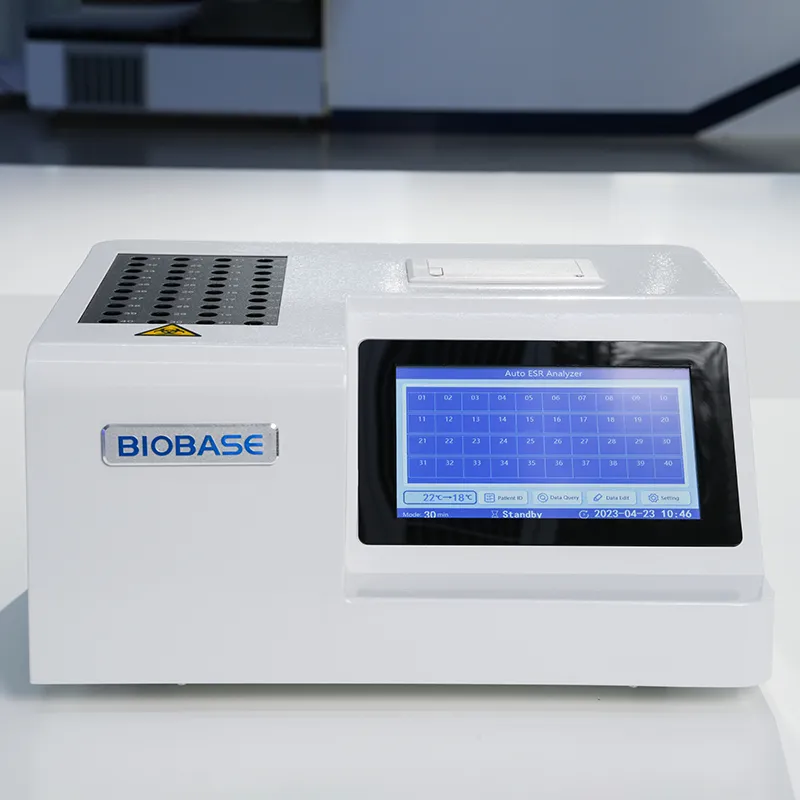

7-inch color touch LCD screen with high resolution
High throughput: 80 samples/hour for rapid detection

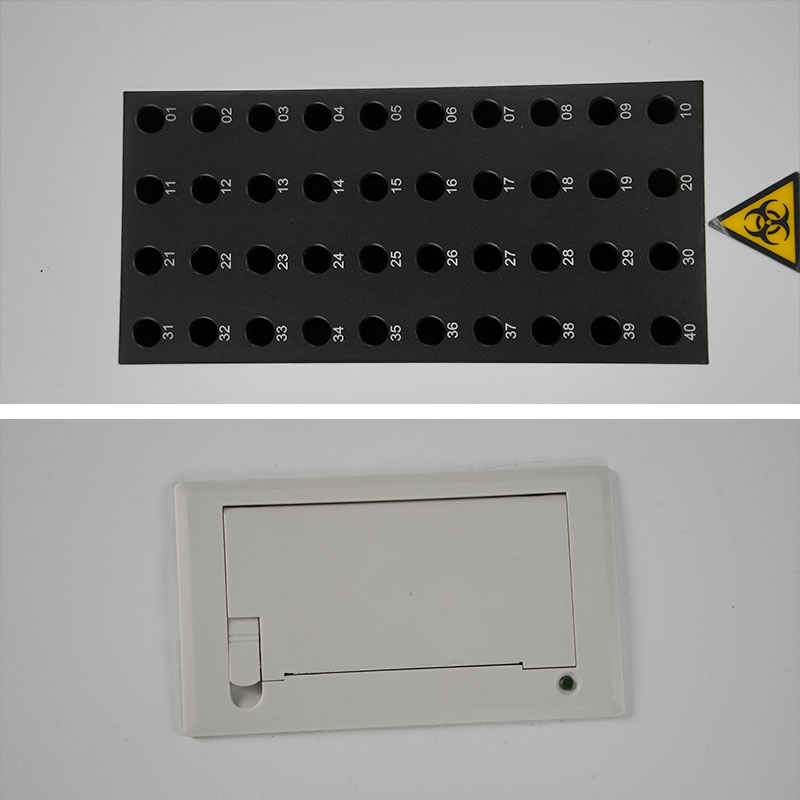

Random access: Insert samples at any position at any time
Built-in thermal printer for instant data reporting
Automatic temperature compensation to 18°C standards
Advanced optical principles to eliminate manual reading errors
Power-off protection: Automatically saves test results

📋 Product Parameters

Model	BK-ESR20	BK-ESR40
Throughput	Maximum 40 tests/hour	Maximum 80 tests/hour

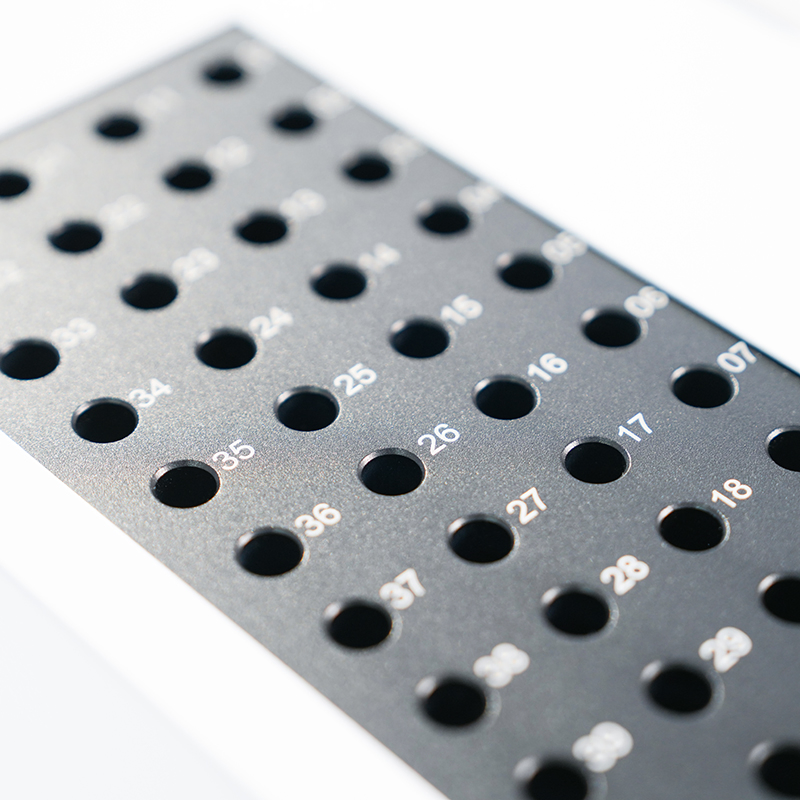

Analysis Channels	20 Channels	40 Channels
Measurement Range	0~150mm/h
Analysis Time	30 or 60 minutes selectable
Sampling Interval	3 min
Temperature Comp.	Corrected to 18°C automatically
Reading Accuracy	0.2mm
Display	7-inch color LCD touch screen
External Size	260230190mm	360300180mm
Net Weight	4.9kg	7.3kg

🛠️ Laboratory Solutions

Air Protection	Biosafety Cabinet, Fume Hood, Laminar Flow
Cold Chain	Medical Refrigerator, -86°C Ultra-low Freezer
Analytical	Chemistry Analyzer, Hematology Analyzer, ELISA Reader
General Lab	Autoclave, Centrifuge, Incubator, Drying Oven

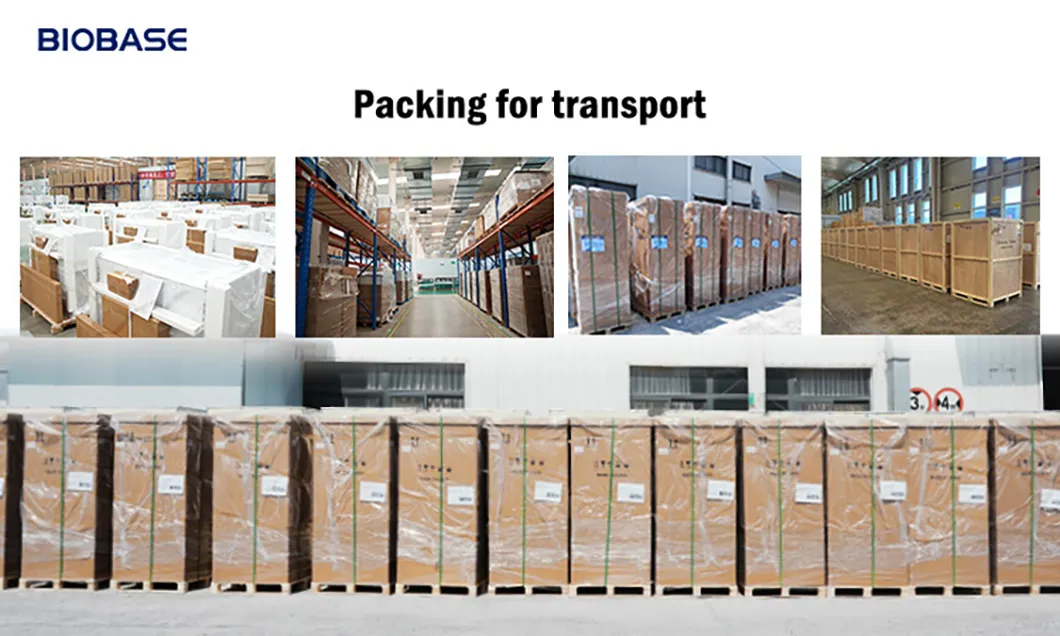

📦 Packaging & After-Sales

We provide a comprehensive 1-year warranty period and full technical support, including installation training and usage guidance. Engineers are available for overseas machinery service to ensure reliable operation.

❓ Frequently Asked Questions

What technology does the Auto ESR Analyzer use for measurement?

The analyzer uses advanced infrared light color difference interpretation technology to automatically scan the sedimentation process of red blood cells.

How many samples can be tested at once with the BK-ESR40 model?

The BK-ESR40 is equipped with 40 channels, allowing you to load and analyze up to 40 samples simultaneously with a maximum throughput of 80 tests per hour.

Is the analysis result compatible with standard manual methods?

Yes, the device refers to the standard Westergren method to measure the standard curve, ensuring accurate results that are clinically recognized.

Can I add samples while the machine is already running?

Absolutely. The device supports random sample positioning, meaning you can insert and measure samples at any time without waiting for a batch to finish.

Does the analyzer handle temperature variations?

Yes, the results are automatically temperature-compensated and corrected to the equivalent result at 18°C.

What is the warranty period for this equipment?

The product comes with a 1-year warranty period, along with professional training on installation and operation.
