Magnetic Bead Recovery
>98%
Hole Extraction Difference
CV<=3%
Reagent Type
Magnetic Bead Open Platform
Extraction Time
12-18 Min/Round
Power Supply
AC110/220V 10%
- Open system, fully automatic, stable results and good repeatability.
- 7-inch touch screen, easy to use, fast response.
- Automatic control system, connect to computers wirelessly.
- User-defined cracking and elution temperature.
- Free programming to meet the needs of different reagent.
- Extract rapidly 15-60 minutes, high throughput capabilities.
- Optimize purification schemes to achieve higher extraction efficiency and purity.

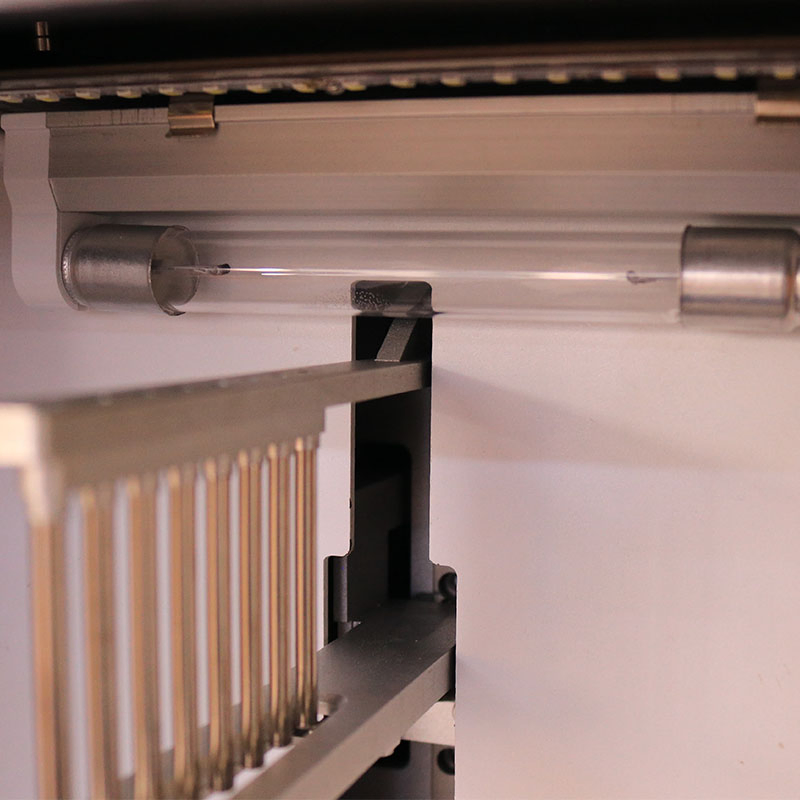

- Built-in UV disinfection and air duct, avoid cross contamination.
| Model |
BNP08 |
BNP32 |
| Sample Quantity |
8 |
48 |
| Processing Volume |
20µL-1000µL |
| Sample Volume |
20-500µL |
| Sample Throughput |
1-32 |
| Magnetic Bead Recovery |
>98% |
| Heating Temperature |
8 independent heating modules, customizable lysis and elution |
| Oscillating Mixing |
Low, medium and high gears adjustable |
| Reagent Type |
Magnetic bead open platform |
| Extraction Time |
12-18 min/round |
| Internal Program |
Store >100 groups |
| Safety Door |
Automatic suspension when opened |
| Ultraviolet Irradiation |
Yes |
| Gross Weight(kg) |
35 |
80 |
Frequently Asked Questions
What is the extraction efficiency of this system?
The system features a magnetic bead recovery rate of over 98%, ensuring high efficiency and purity for your samples.
How long does it take to complete one round of extraction?
Depending on the reagent used, the extraction time typically ranges between 12 to 18 minutes per round.
Does the system support different types of reagents?
Yes, it is a magnetic bead open platform, allowing for free programming to meet the requirements of various different reagents.
How does the system prevent cross-contamination?
The unit is equipped with a built-in UV disinfection system and an integrated air duct to maintain a clean environment and avoid contamination.
Is the operation interface user-friendly?
Absolutely. The system features a 7-inch touch screen with a fast-response interface for easy operation and monitoring.
What happens if the safety door is opened during a run?
The safety door design ensures that program operation is automatically suspended if the door is opened and resumes once it is closed.
