Biobase China High Performance Liquid Chromatography System for Lab and Qualitative and Quantitative Analysis with Various Detectors Bk-100HPLC

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year

Product Description

🔍 Basic Information

Model:
BK-100HPLC
Appliance:
The Analysis of Environmental Samples
Detector:
DAD, FLD
Pump Type:
Dual-Piston Reciprocating Parallel Pump
Flow Rate:
0.001~10ml/Min
Max Pressure:
42MPa
Chromatography:
Liquid Chromatography
Power Supply:
AC220/110V, 50/60Hz

📦 Product Description

HPLC System Overview
Introduction:

Liquid chromatography is a technique that uses a liquid as the mobile phase to separate mixtures through a stationary phase. It utilizes the differences in partition coefficients and adsorption capacities of various components between the two phases, achieves separation through repeated distribution equilibrium, and combines with detectors for qualitative and quantitative analysis.

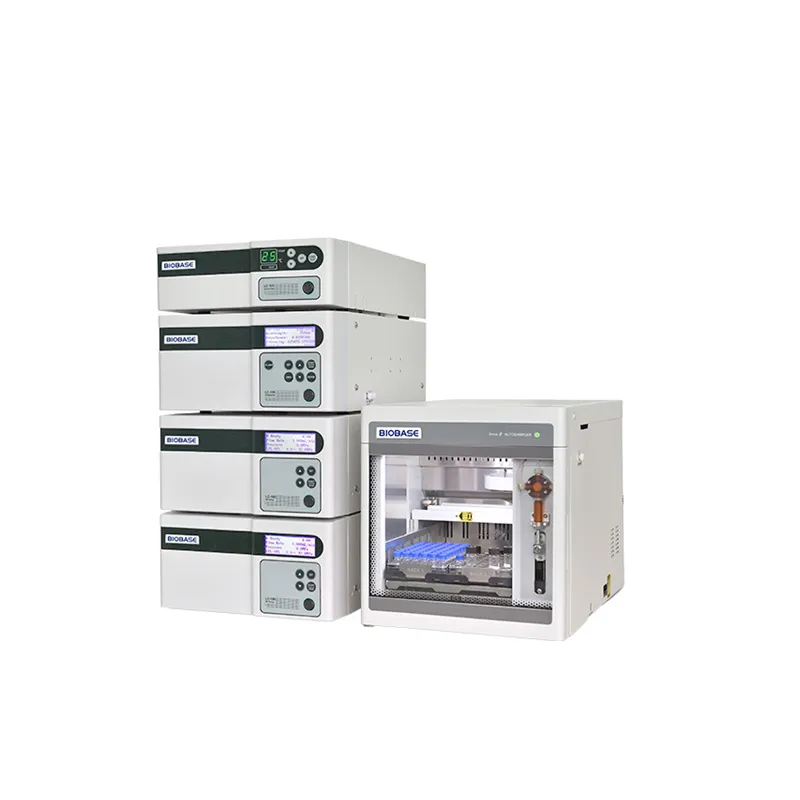

Unit Detail 1

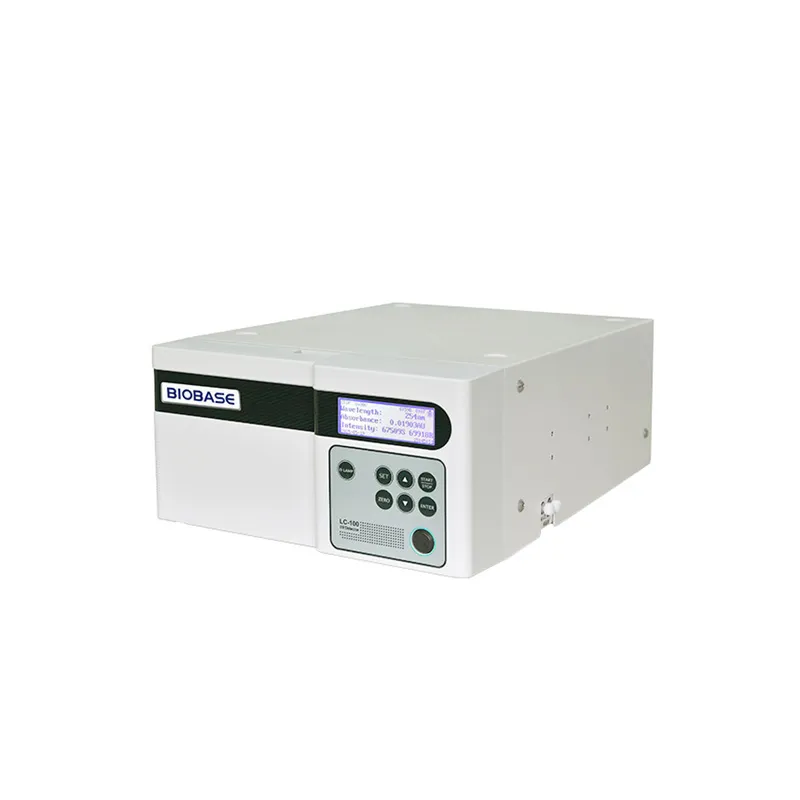

Unit Detail 2

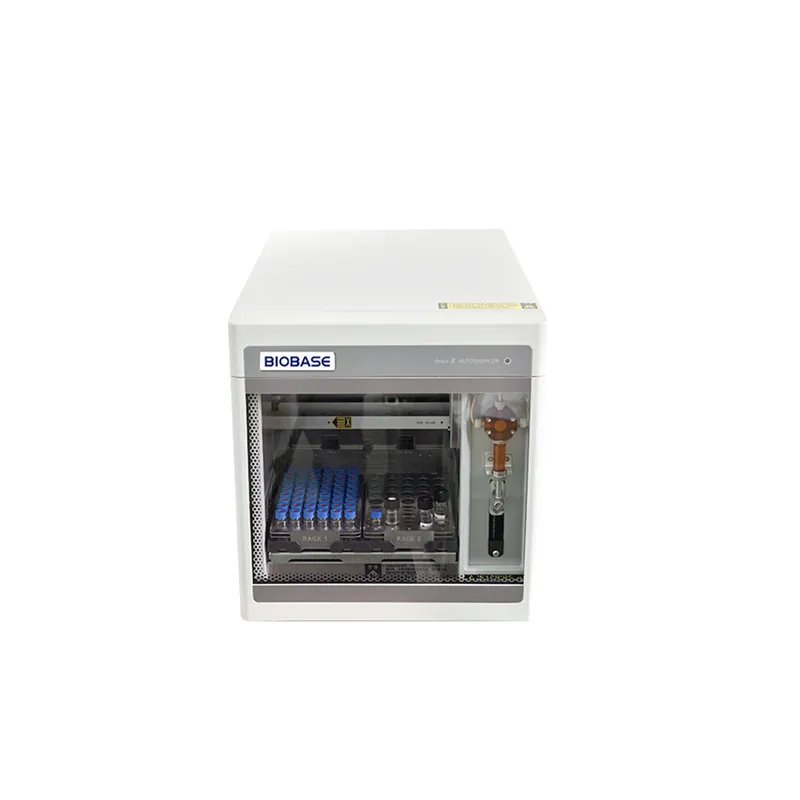

Unit Detail 3

⚙️ Key Features

  • The system offers a comprehensive and flexible isocratic mode; a binary gradient system is also available. Detection capabilities include DAD, UV/Vis, FL, RI, and ELSD.
  • Optional solvent manager units allow for easy switching between 4 to 8 kinds of solvents based on a binary gradient system.
  • Real-time solvent pressure compensation control enhances detection precision. Integrated check valves ensure stable fluid delivery and simplify maintenance.
System Interface
Module Layout

📊 Technical Specifications

Model BK-100HPLC Type I (Isocratic) Type II (Gradient) Type V (PDA Binary)
Software Audit Trail No No Yes
UV Detector Yes Yes PDA Available
Manual Sampler 7725i 7725i 7725i
Flow Accuracy ≤±1% ≤±1% ≤±1%
Pressure Range 42MPa 42MPa 42MPa

🚢 Packing & Delivery

Packaging 1
Packaging 2
Shipping Logistics

We provide a variety of transportation methods, including door-to-door service, bubble film, cotton, and standard export wooden cases for maximum protection.

🛠️ After-sale Service

  • Comprehensive training on how to install and operate the machine.
  • Qualified engineers available to service machinery overseas.
  • In-time response to all customer technical inquiries.
  • Standard 12-month warranty included.
Service Support

Frequently Asked Questions

How are the samples handled for testing?
We can process and send sample results, though freight and sample costs are typically charged.
What is the typical delivery timeframe?
Standard delivery occurs within 7-15 workdays after receipt of the deposit.
How long is a price quotation valid?
Quotations are generally valid for 30 days due to fluctuations in shipping costs and exchange rates.
What kind of packaging is used for international shipping?
We use a robust combination of bubble film, protective cotton, and standard export wooden cases.
What detectors are available for this system?
The system supports UV detector, RI detector, DAD100, ELSD, and FLD100 detectors.
What support is provided for installation?
We offer full training for installation and usage, with technical engineers available for overseas support.
