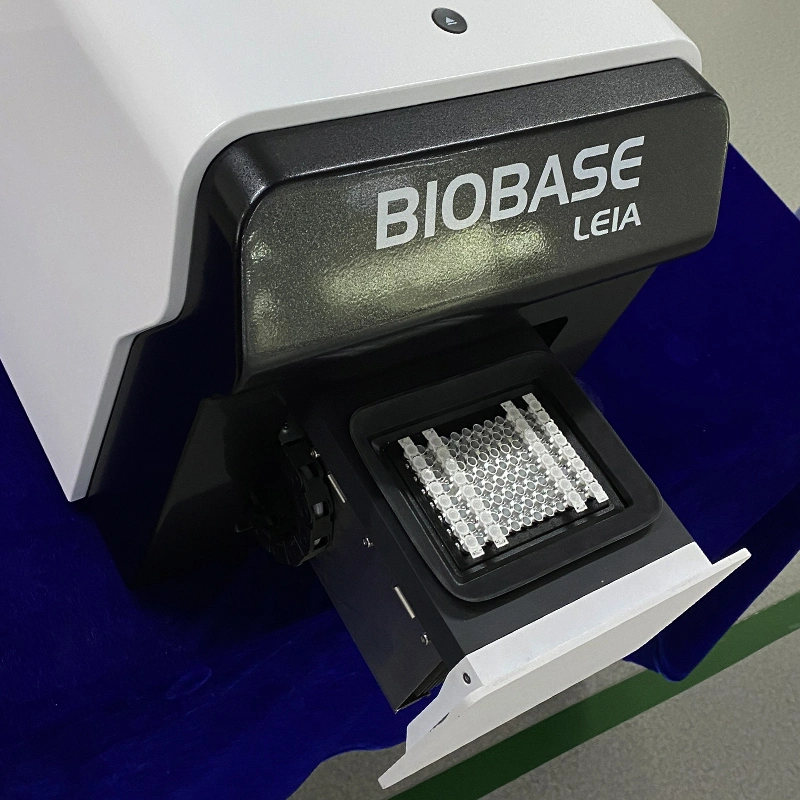

Biobase China Laboratory PCR System Medical Real Time PCR System for Labs

1 / 5

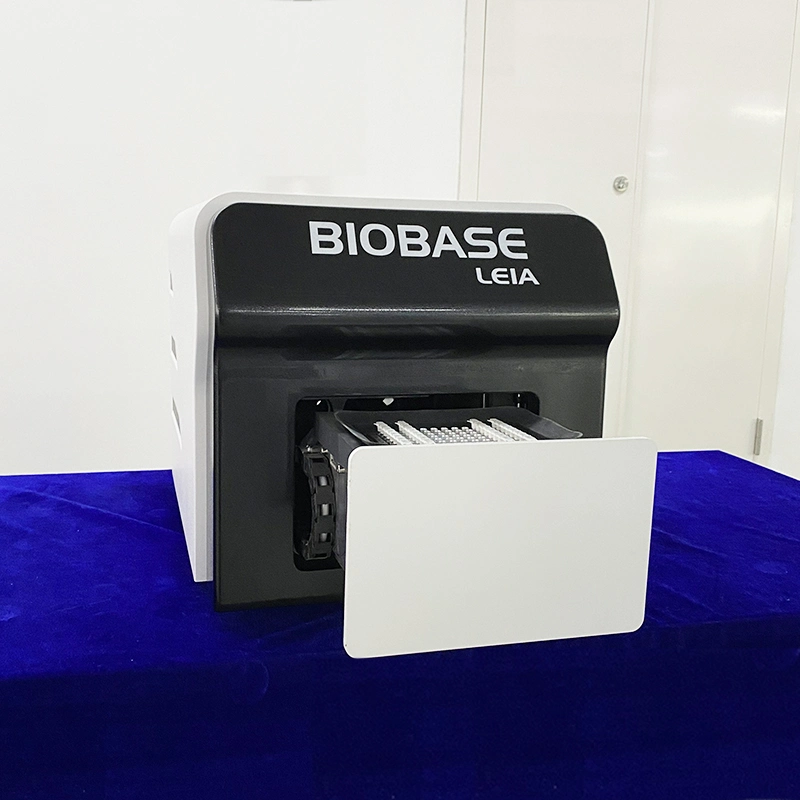

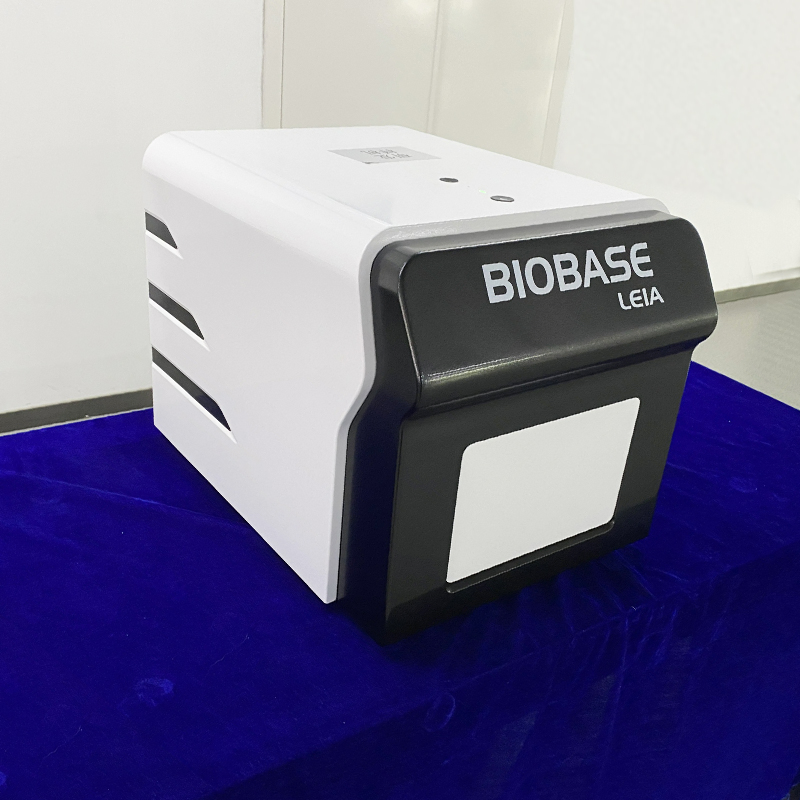

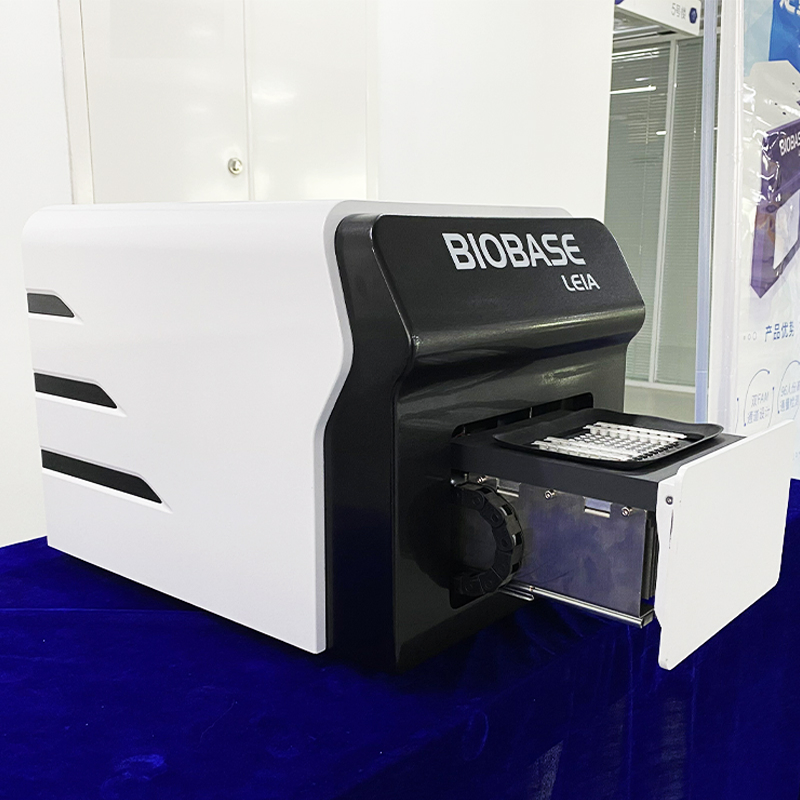

Biobase China Laboratory PCR System Medical Real Time PCR System for Labs

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

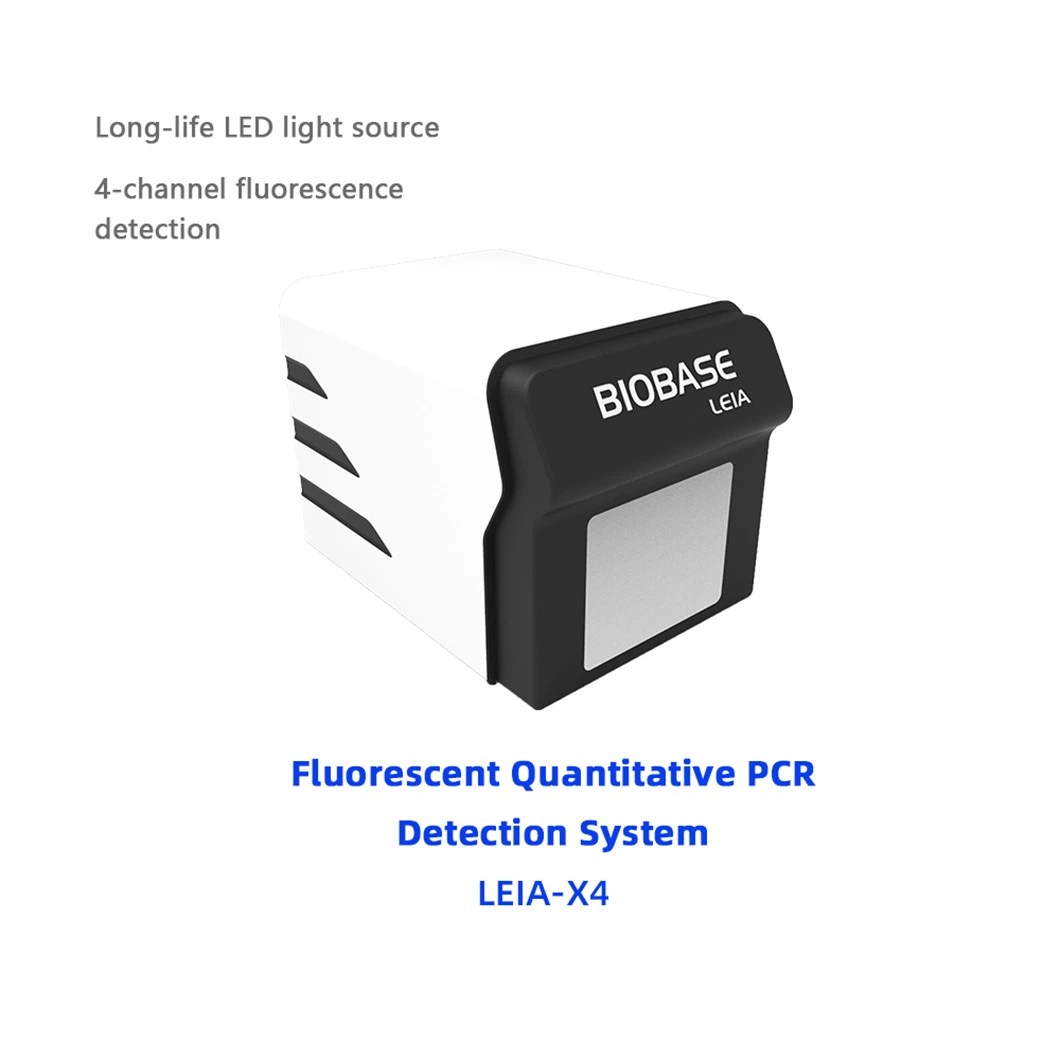

Model NO.

LEIA-X4

Product Name

Fluorescence Quantitative PCR Detection System

Sample Capacity

96X0.2ml PCR Plate, 12X8-Strip Tubes

Reaction System

5~100UL

Dynamics Range

1-10^10

Channel

Excitation Range

300~800nm

Ramprate

4.0c/S(Max)

Hot-Lid Temp.

30-110c

Origin

China

★

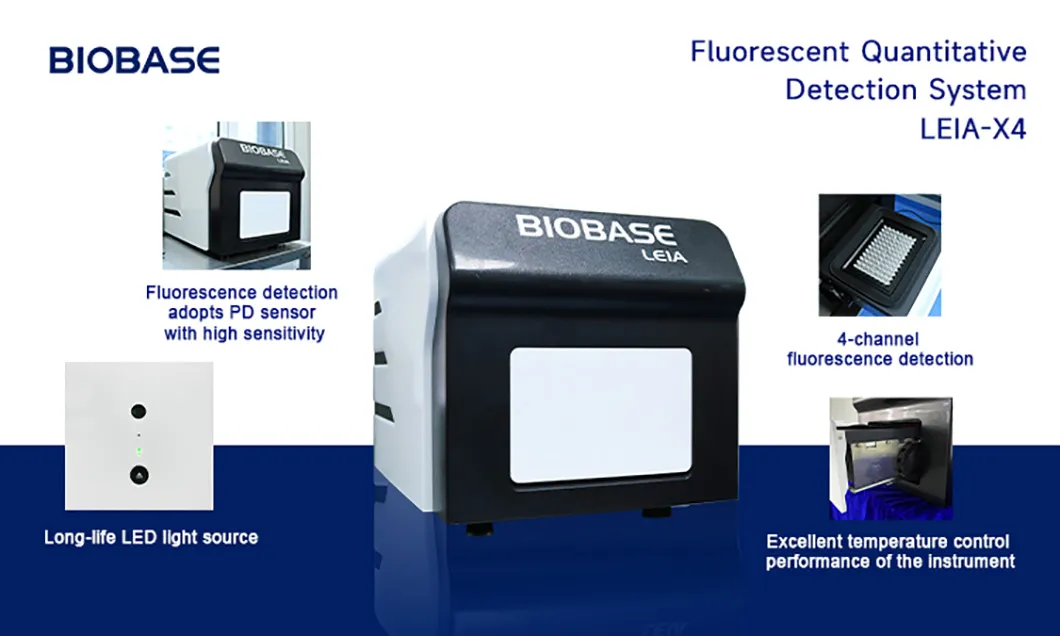

Key Features

Excellent temperature control performance, maximum rise/fall ≥7.0ºC/s.
No edge effect and no optical path correction required.

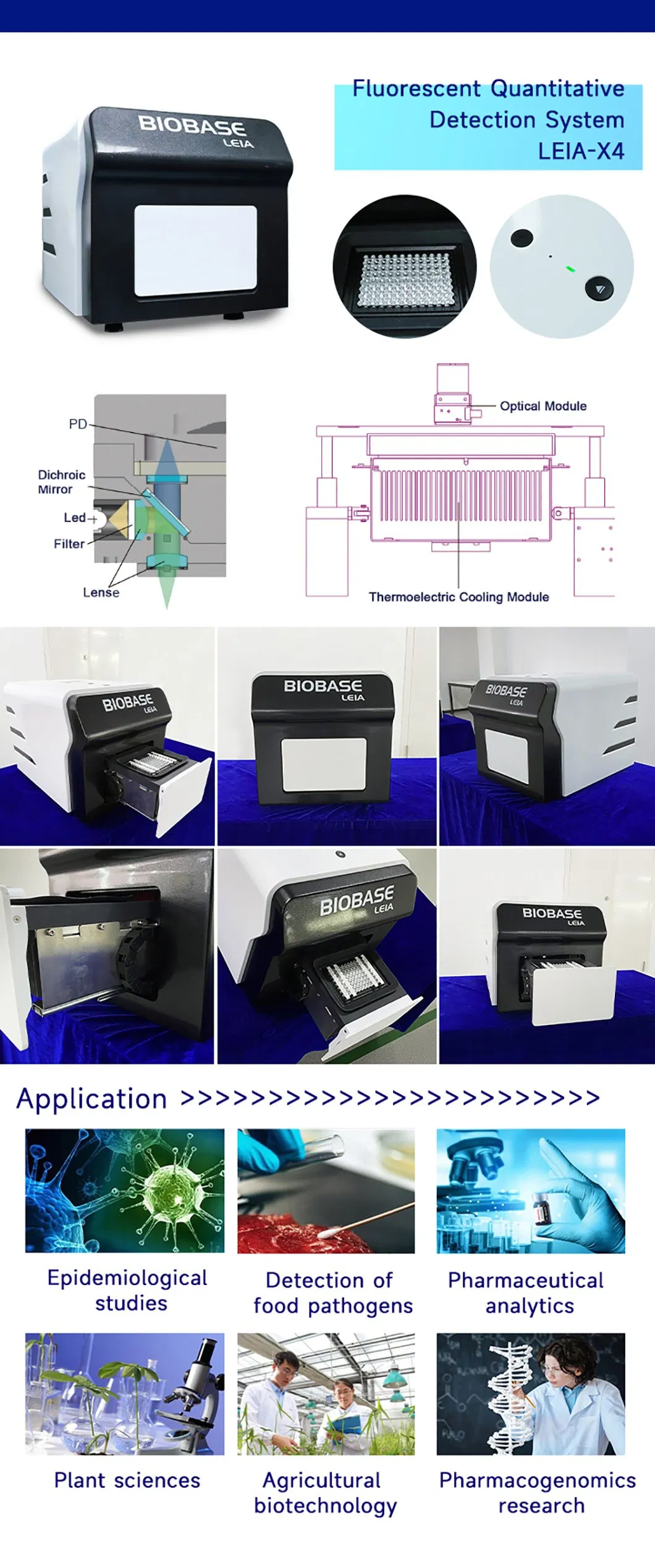

Top excitation/detection with non-contact measurement.
High sensitivity PD sensor for fluorescence detection.
Long-life LED light source with stable emission wavelength.
4-channel detection with zero cross interference.
User-friendly software with comprehensive analysis and reporting.

⚙

Technical Parameters

Product Name	Fluorescence Quantitative PCR Detection System
Model	LEIA-X4
Sample Capacity	96x0.1ml PCR plate, 12x8-strip tubes, 96*0.1ml single tube
Reaction System	10~50μl
Detection Path	F1: FAM/SYBR	F2: VIC/HEX	F3: ROX	F4: Cy5
Ramp Rate	7.0ºC/s (max)
Temp. Accuracy	±0.3ºC
Scanning Time	8.5s
Power Supply	AC 100V~240V, 50/60Hz
Dimensions (mm)	375 * 505 * 375

📦

Packaging & Shipping

🏭

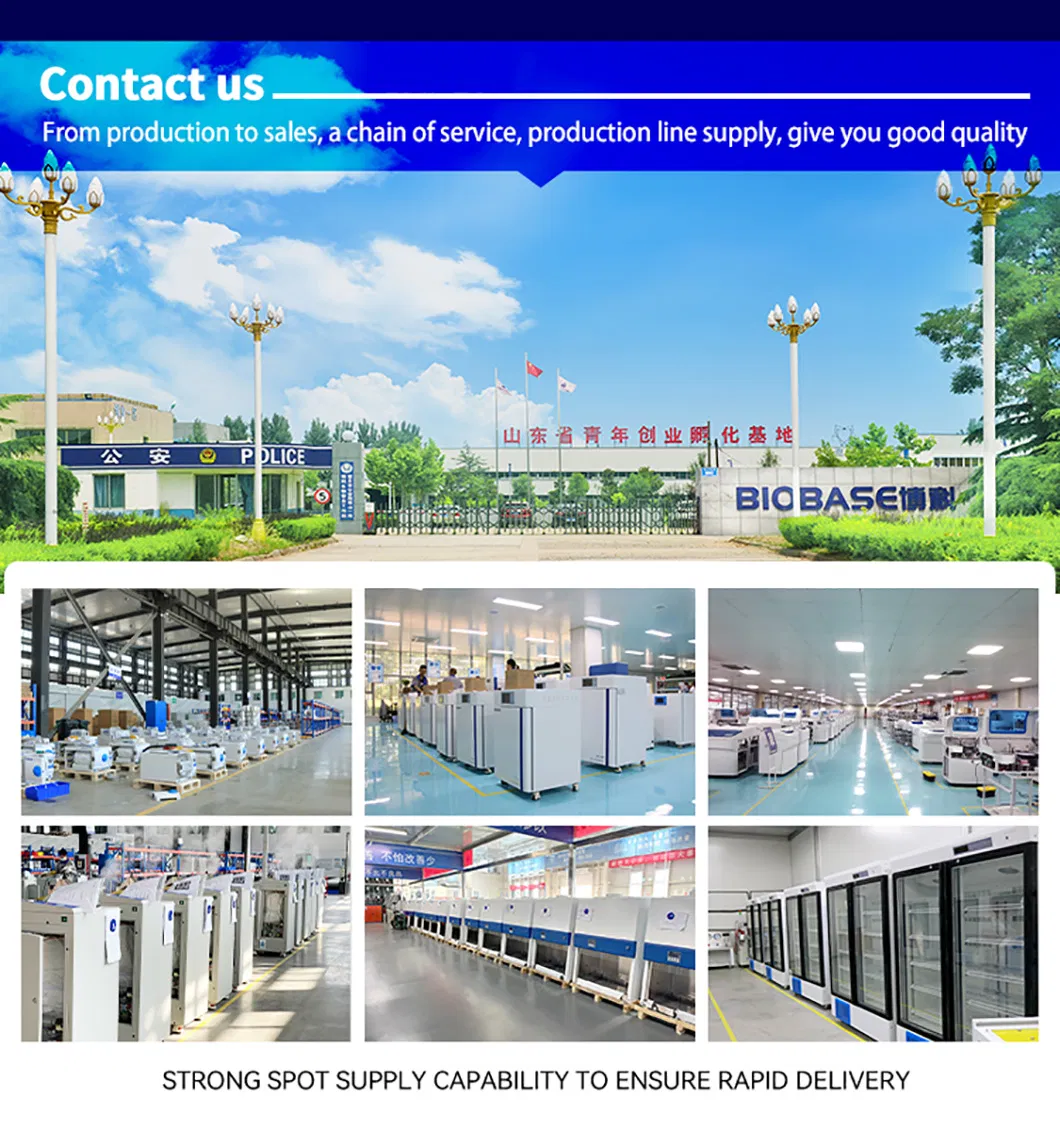

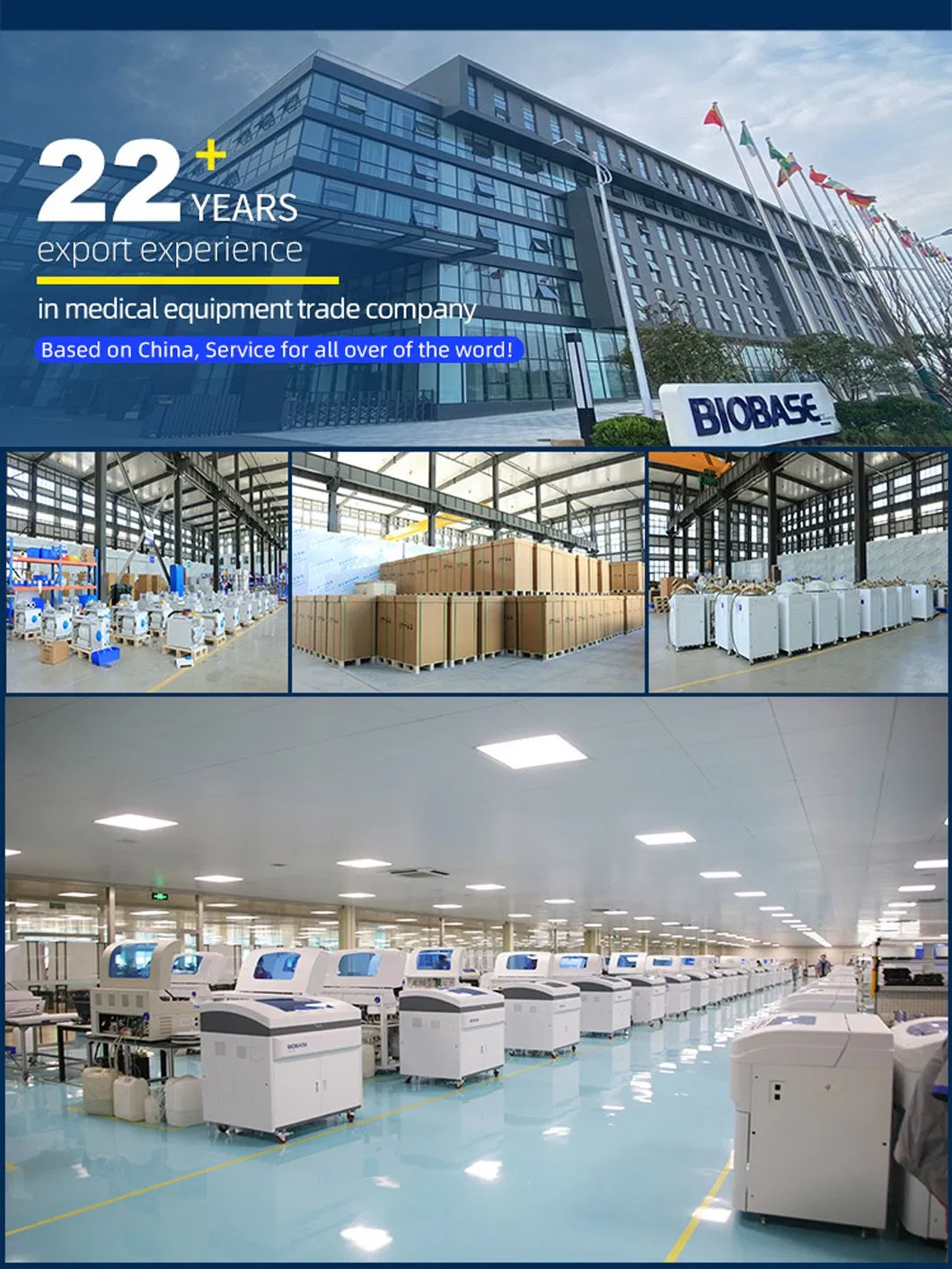

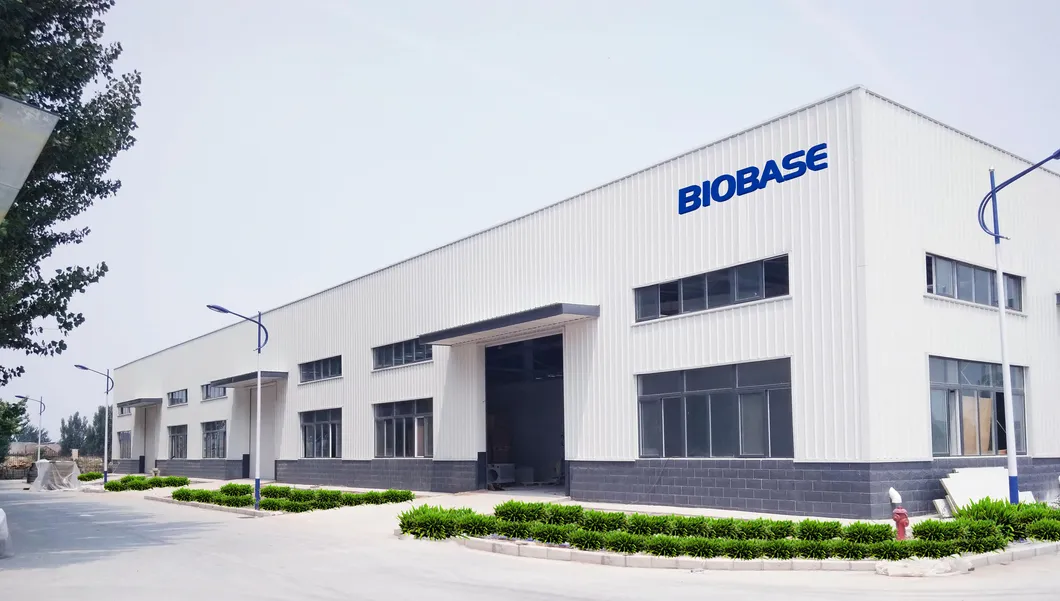

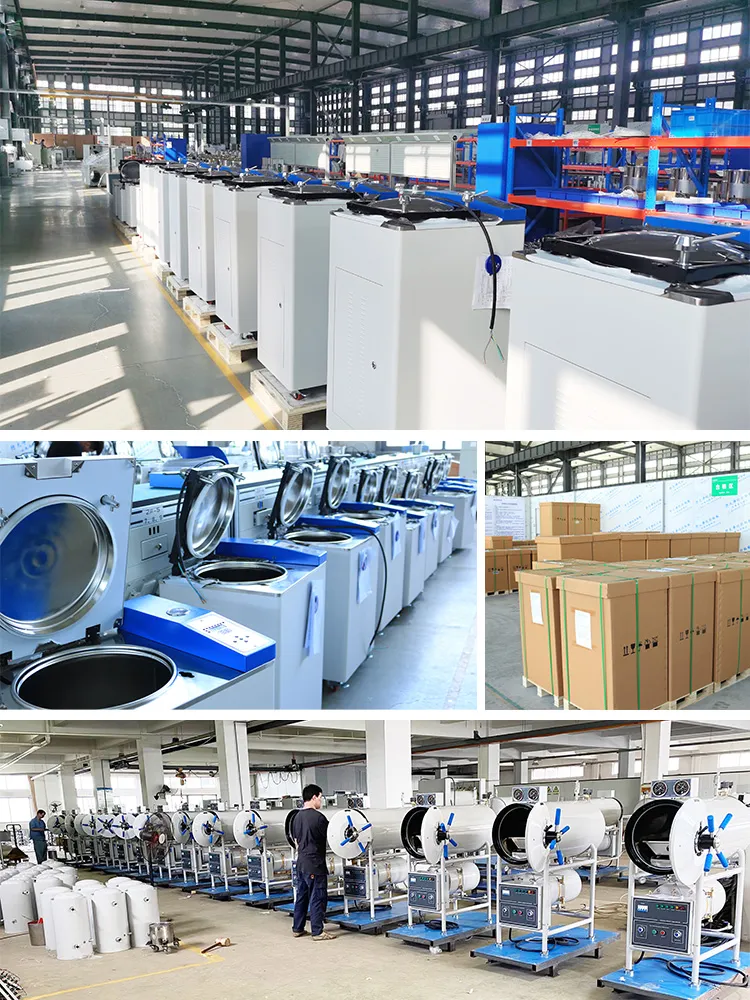

Production & Quality

Specialized in products including medical diagnosis, biosafety protection, disinfection and sterilization, water purification systems, and cold chain products.

🎧

Service & Support

Frequently Asked Questions

Q1: What is the maximum ramp rate of the LEIA-X4 PCR system?

The system features a high-performance thermal block with a maximum ramp rate of up to 7.0ºC/s, ensuring rapid and efficient thermal cycling.

Q2: How many channels does the system support for fluorescence detection?

The system is equipped with 4-channel fluorescence detection (F1-F4), supporting common dyes like FAM, SYBR Green, VIC, JOE, HEX, TET, ROX, TEXAS-RED, and Cy5.

Q3: Does the system require optical path correction?

No, the system utilizes top excitation and detection with a PD sensor, which eliminates the edge effect and the need for frequent optical path calibration.

Q4: What types of consumables are compatible with this PCR machine?

It is compatible with 96x0.1ml/0.2ml PCR plates, 12x8-strip tubes, and 96*0.1ml/0.2ml single tubes with transparent covers.

Q5: What are the main analysis functions of the included software?

The software supports absolute quantitative automatic analysis, relative quantification, melting curve analysis, and flexible program settings for comprehensive reporting.

Q6: Is the light source maintenance-free?

Yes, it uses a long-life LED light source which provides stable emission wavelengths and requires no regular maintenance compared to traditional halogen lamps.
