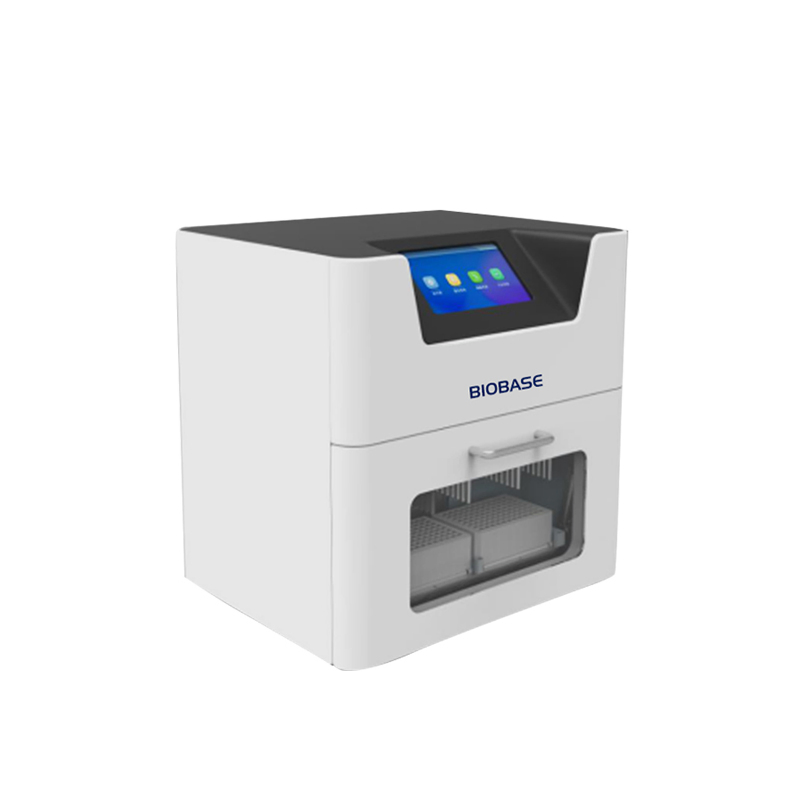

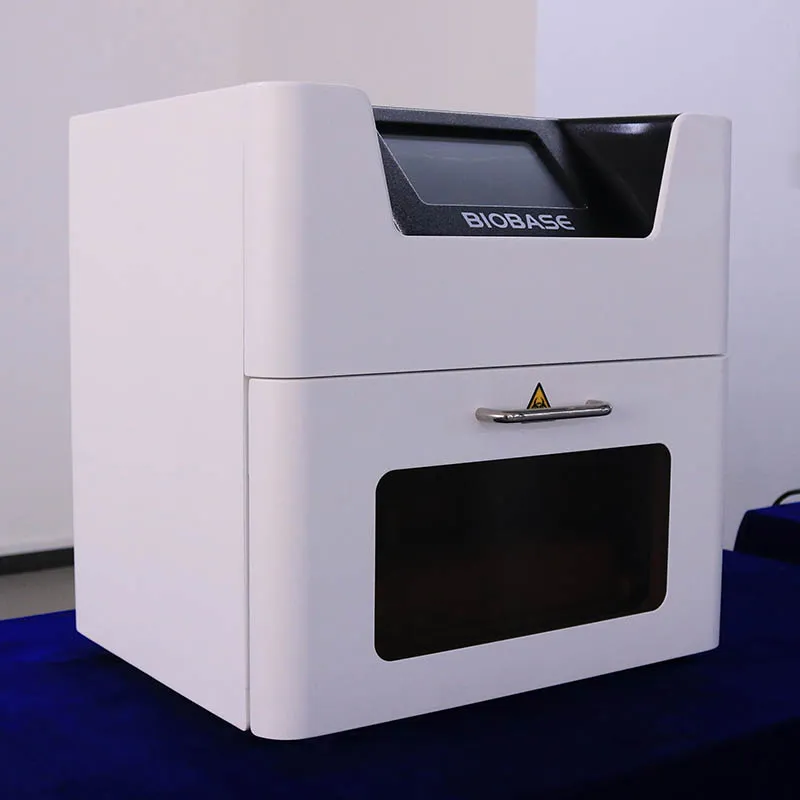

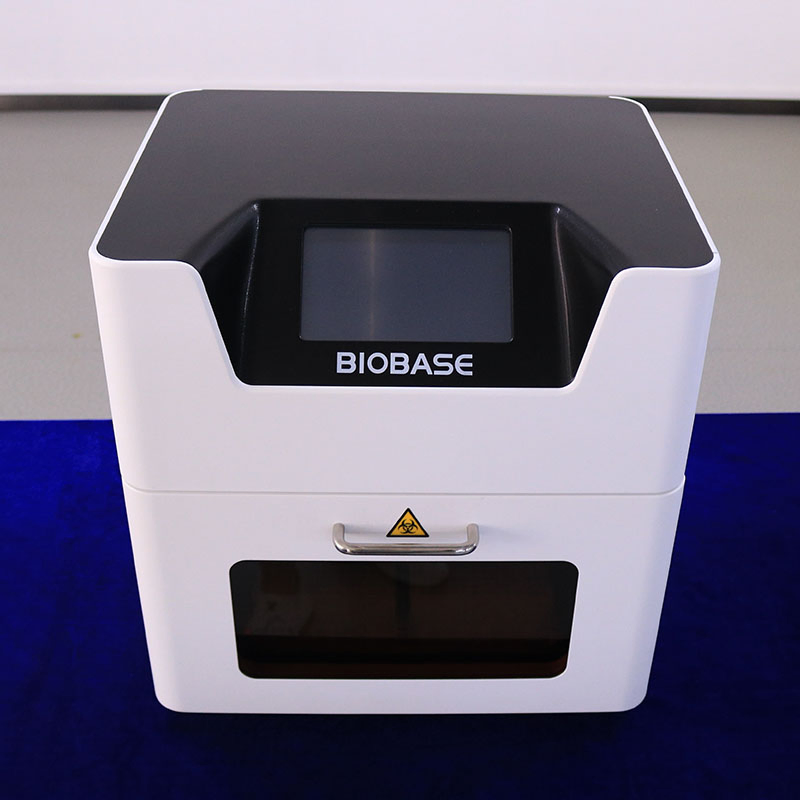

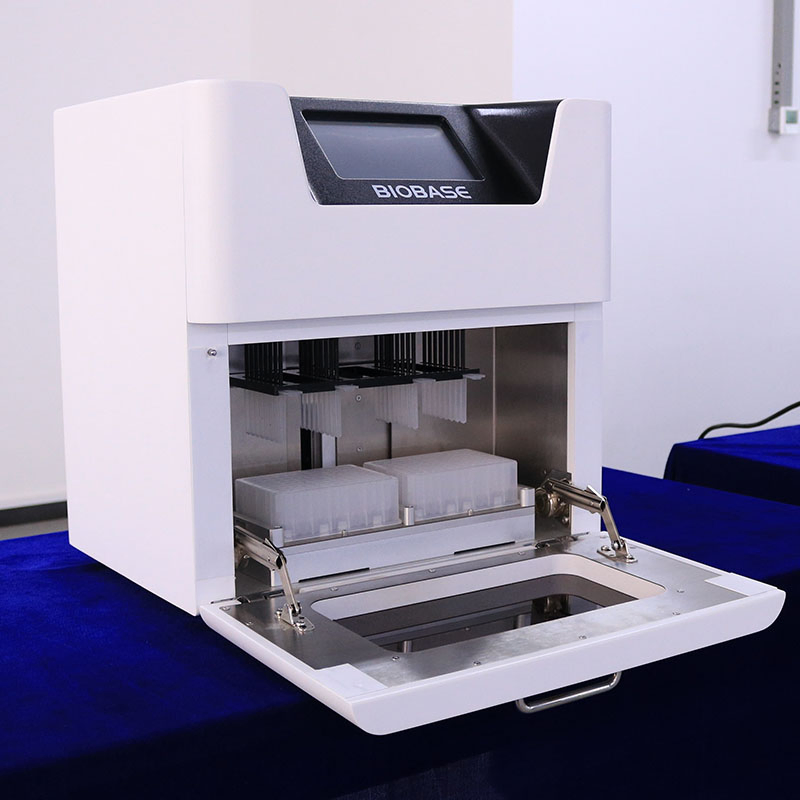

Biobase China Medical 32 Samples Extractor Nucleic Acid Extraction System for Labs

Product Overview

Model NO.

BNP32

Product Name

Nucleic Acid Extraction System

Sample Quantity

32

Processing Volume

20μL-1000μL

Sample Volume

20-500μL

Magnetic Bead Recovery

98%

Extraction Time

15-40 Min/Round

Reagent Type

Magnetic Bead Open Platform

Ultraviolet Irradiation

Yes

Key Features

✔

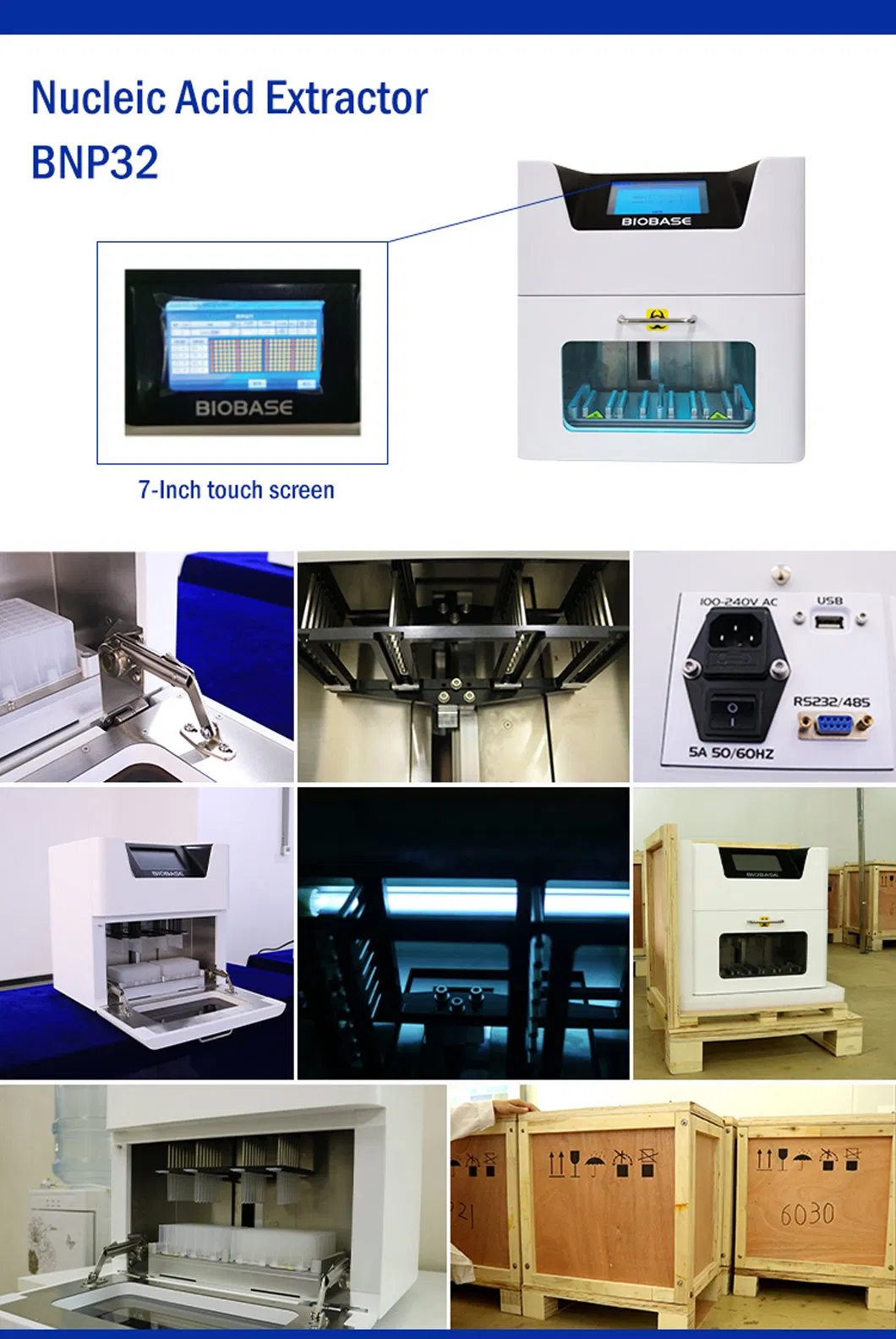

Intuitive Interface: 7-inch touch screen, easy to use with fast response times.

✔

Customizable Parameters: User-defined cracking and elution temperature settings.

✔

Safety First: UV disinfection function with a time range of 1min to 24 hours.

✔

Standalone Operation: Fully automatic control system; no computer connection required.

✔

High Efficiency: Rapid extraction in 15-40 minutes; 32/48 samples can be extracted simultaneously.

✔

Versatile Platform: Open system for various reagents with stable results and high repeatability.

Technical Parameters

Model	BNP32	BNP48
Sample Quantity	32	48
Processing Volume	20μL-1000μL
Sample Volume	20-500μL
Magnetic Bead Recovery	>98%
Difference Between Holes	CV≤3%
Heating Temperature	8 independent modules, customizable lysis and elution
Oscillating Mixing	Low, medium, and high gears adjustable
Internal Program	Stores >100 groups of programs
Safety Door Design	Automatic suspension when opened
Ultraviolet Irradiation	Yes
Gross Weight (kg)	51	80

Packaging & Shipping

Production & Capability

Focusing on development, production, and management of scientific equipment, medical diagnosis instruments, and reagents. Specialized in biosafety protection, disinfection, and cold chain products.

Frequently Asked Questions

How many samples can the BNP32 system process simultaneously?

The system can extract up to 32 samples at the same time, with a throughput range of 1 to 32 samples per run.

What is the efficiency of the magnetic bead recovery?

The system achieves a high magnetic bead recovery rate of over 98%.

Is this an open system for different reagents?

Yes, it is a magnetic bead open platform, allowing for free programming to meet the needs of different reagents.

How long does the extraction process take?

Depending on the reagent used, the rapid extraction process typically takes between 15 to 40 minutes per round.

What safety features are included in the design?

The system includes a safety door design that automatically suspends the program when opened, and it features built-in UV disinfection for contamination control.

Can programs be exported or imported?

Yes, the system supports U-disk program import and export, facilitating easy management and sharing of protocols.
