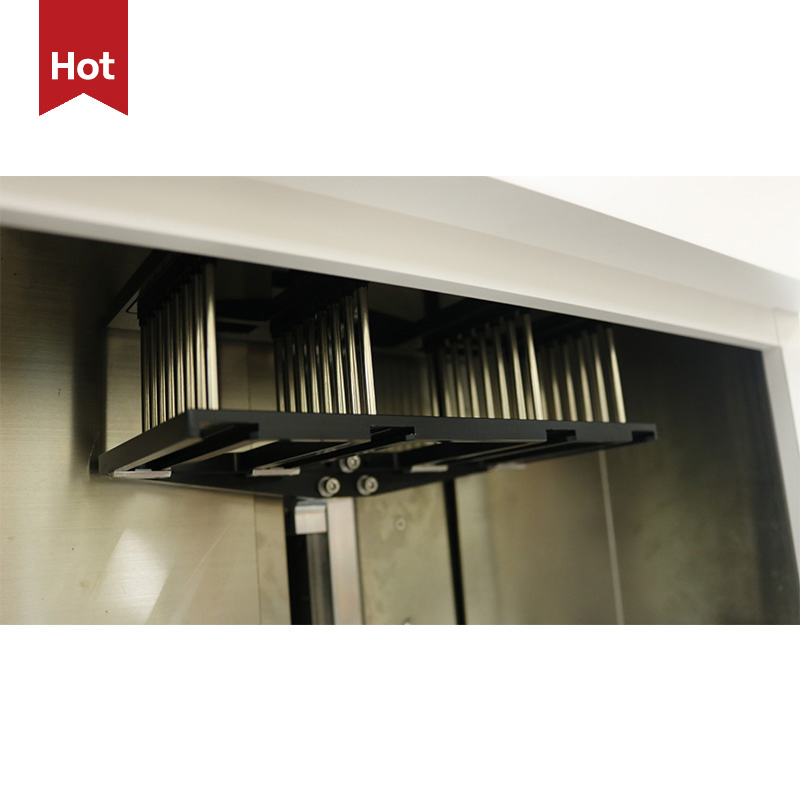

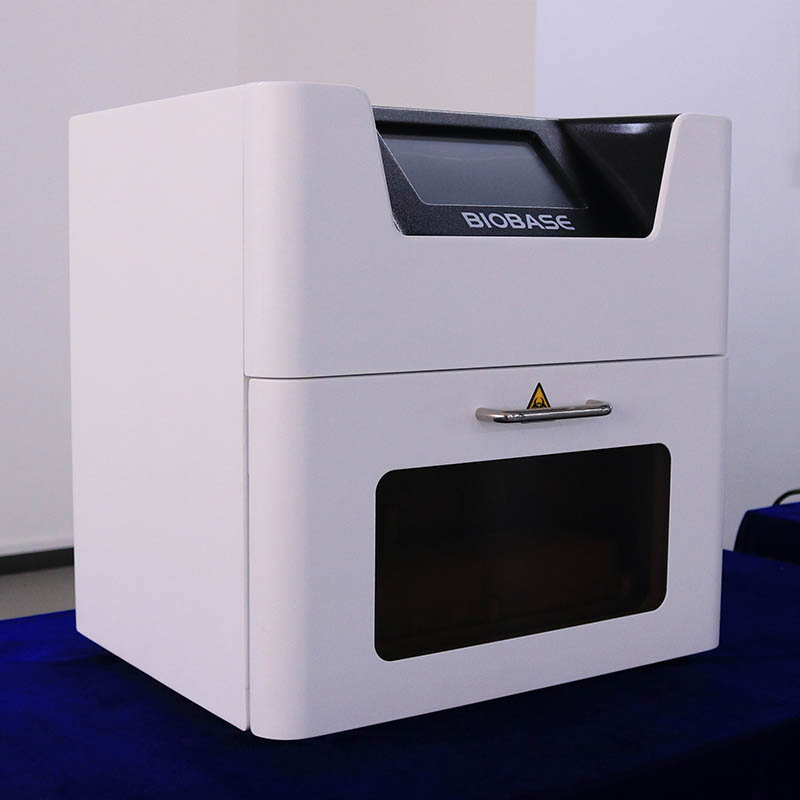

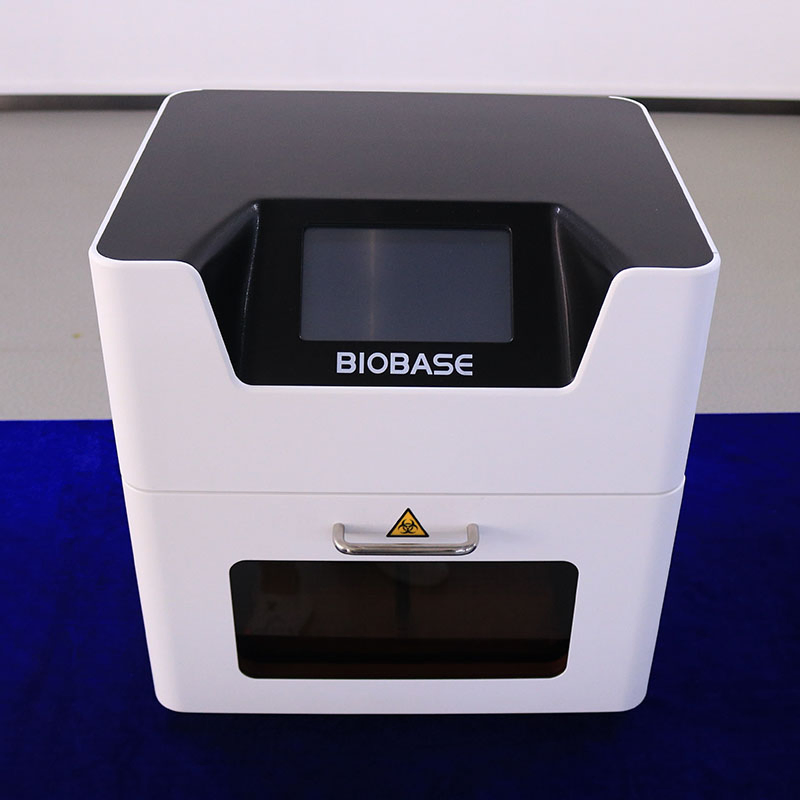

Biobase L Automatic DNA/Rna Nucleic Acid Extraction System Use for Lab

1 / 5

Biobase L Automatic DNA/Rna Nucleic Acid Extraction System Use for Lab

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	BNP32
Product Name	Nucleic Acid Extraction
Sample Quantity	32
Processing Volume	20UL-1000UL
Sample Volume	20-500UL
Magnetic Bead Recovery	>98%
Extraction Accuracy	CV<3%
Reagent Type	Magnetic Bead Open Platform
Extraction Time	15-40 Min/Round (Depending on The Reagent Used)
Program Storage	>100 Groups of Programs

Product Features

7-inch touch screen, easy to use, fast response.

User-defined cracking and elution temperature.

UV disinfection function, time range 1min-24hour.

Automatic control system, no need to connect to computer.

Free programming to meet the needs of different reagents.

Open system, fully automatic, stable results and good repeatability.

Technical Parameters

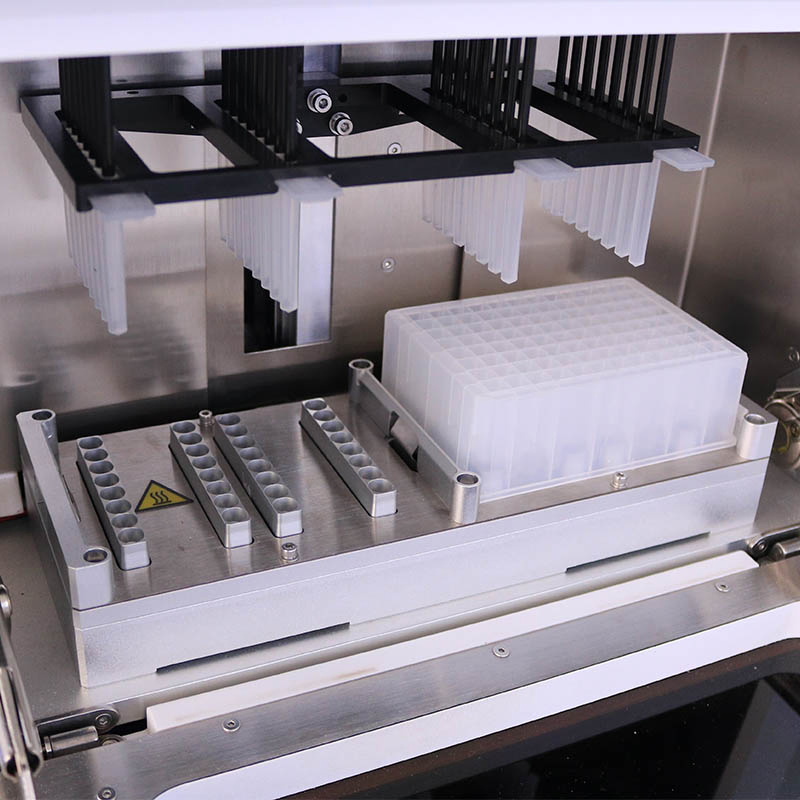

Heating Temperature	8 independent heating modules, customize lysis and elution temperature according to your needs
Oscillating Mixing	Low, medium and high third gears are adjustable
Program Management	Powerful editing capabilities; U disk program import and export supported

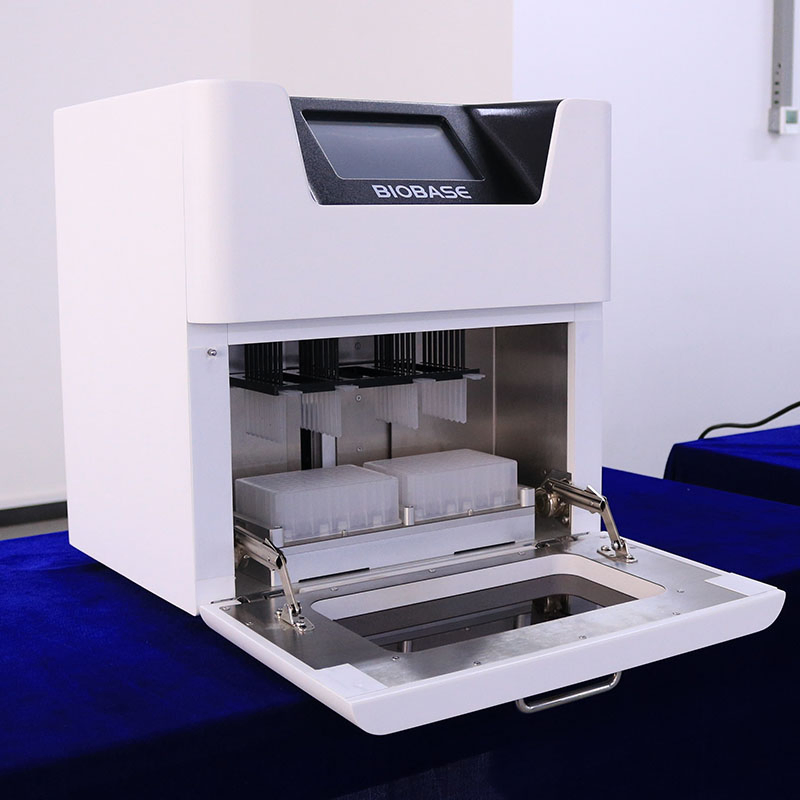

Safety Door Design	Program automatically suspends when door is opened for safety
Ultraviolet Irradiation	Yes
Packing Size (WDH)	580510700 mm
Gross Weight	51 kg

Process & Logistics

Frequently Asked Questions

How many samples can be processed in one run?

The BNP32 model is designed to process 1 to 32 samples simultaneously.

What is the extraction time for each round?

Depending on the reagents used, the extraction process typically takes between 15 to 40 minutes per round.

Does the system support different types of reagents?

Yes, it is a magnetic bead open platform, allowing for free programming to meet the needs of various different reagents.

What safety features are included in the equipment?

It features a safety door design that automatically suspends program operation when opened, along with a built-in UV disinfection function.

Is the temperature adjustable for lysis and elution?

Yes, the system includes 8 independent heating modules that allow users to customize lysis and elution temperatures according to specific protocol requirements.

How efficient is the magnetic bead recovery?

The system achieves a high magnetic bead recovery rate of over 98%.
