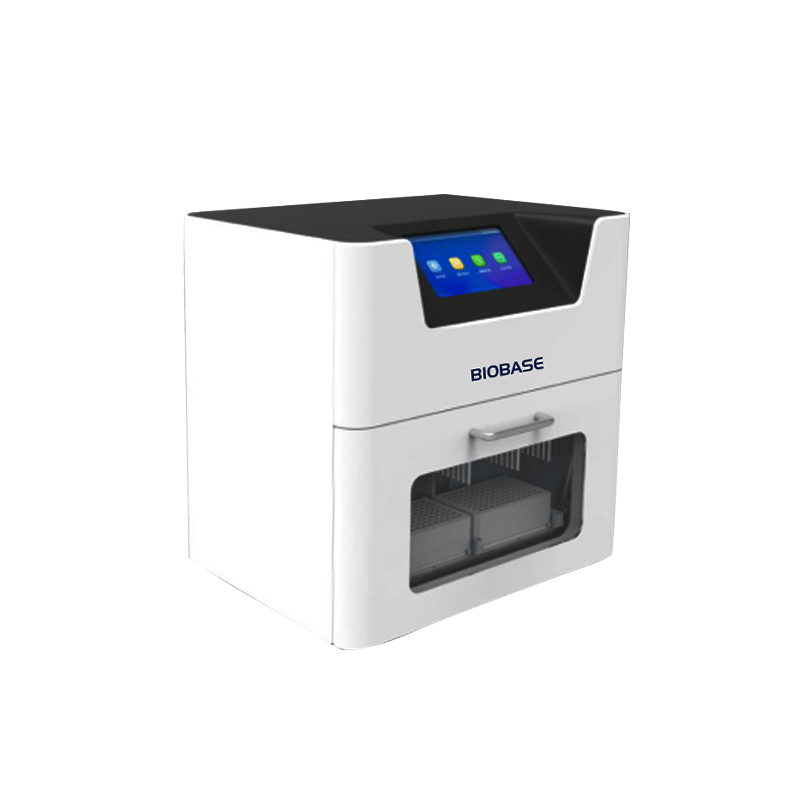

Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
1 / 5
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab
Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab

Biobase Nucleic Acid Extraction System Bnp32 Automatic Control System for Lab

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Overview
Model
BNP32
Certification
CE, ISO13485
Product Name
Nucleic Acid Extraction System
Sample Quantity
32
Processing Volume
20μL-1000μL
Sample Volume
20-500μL
Magnetic Bead Recovery
>98%
Extraction Time
15-40 Min/Round
⚙ Product Description

Nucleic Acid Extraction System

An automated solution designed for high-efficiency nucleic acid purification using magnetic bead technology. It offers precise control and consistent results for laboratory environments.

Nucleic Acid Extraction System
📷 Detailed Photos

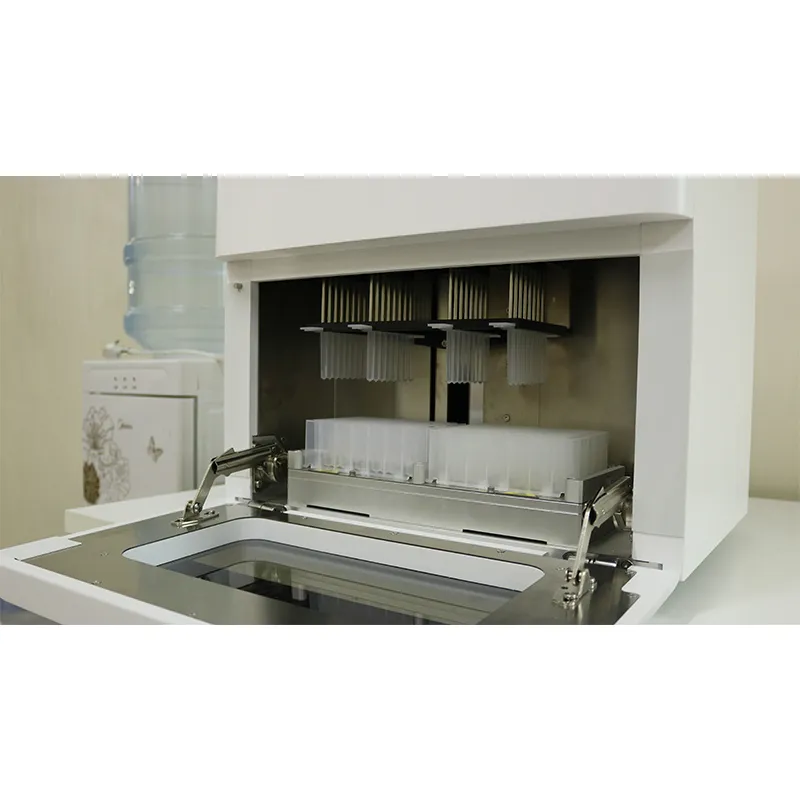

Detailed View 1

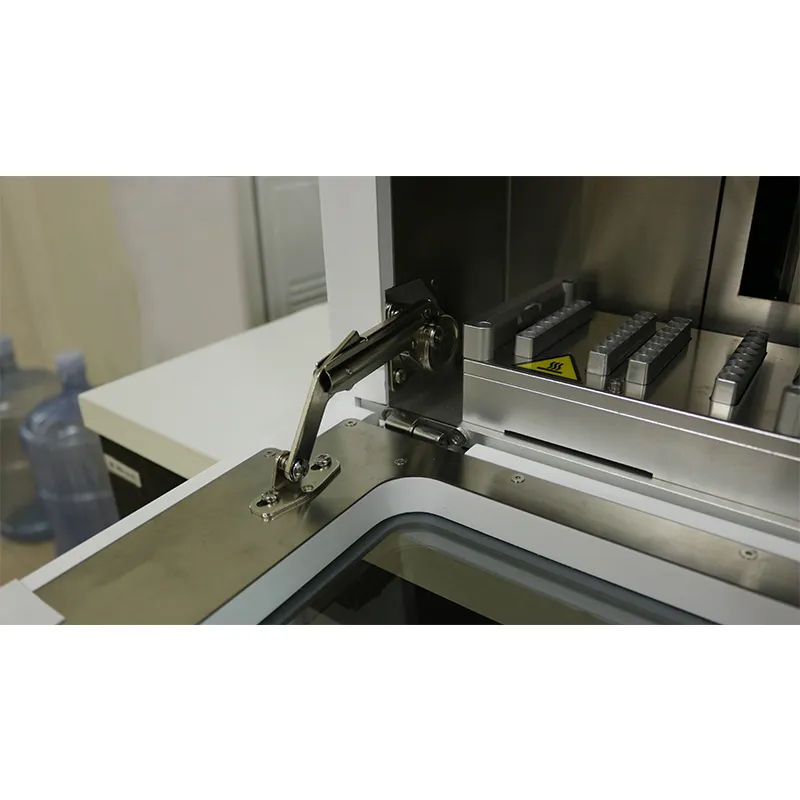

Detailed View 2

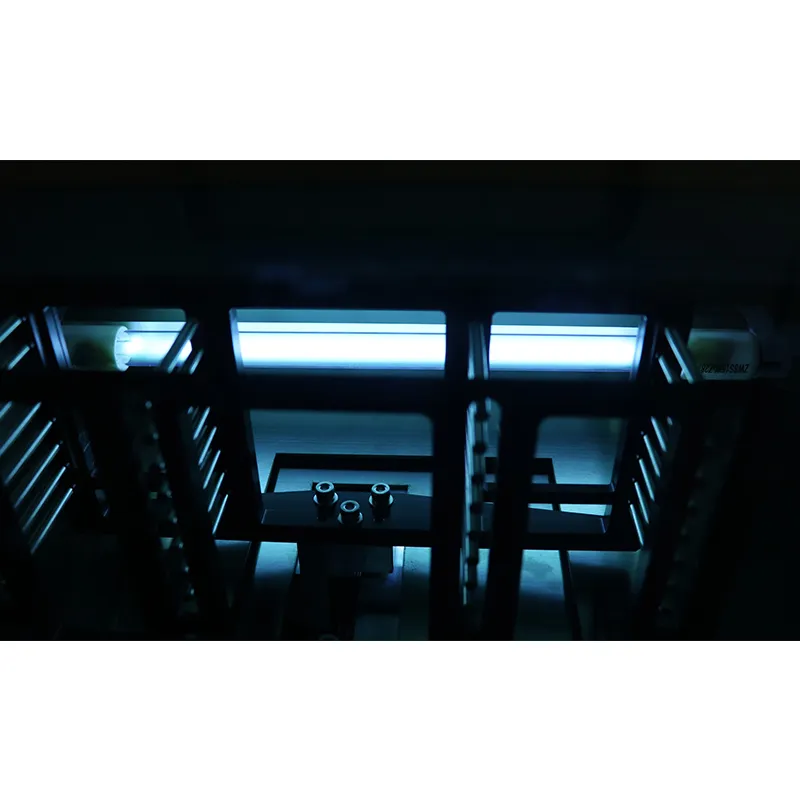

Detailed View 3

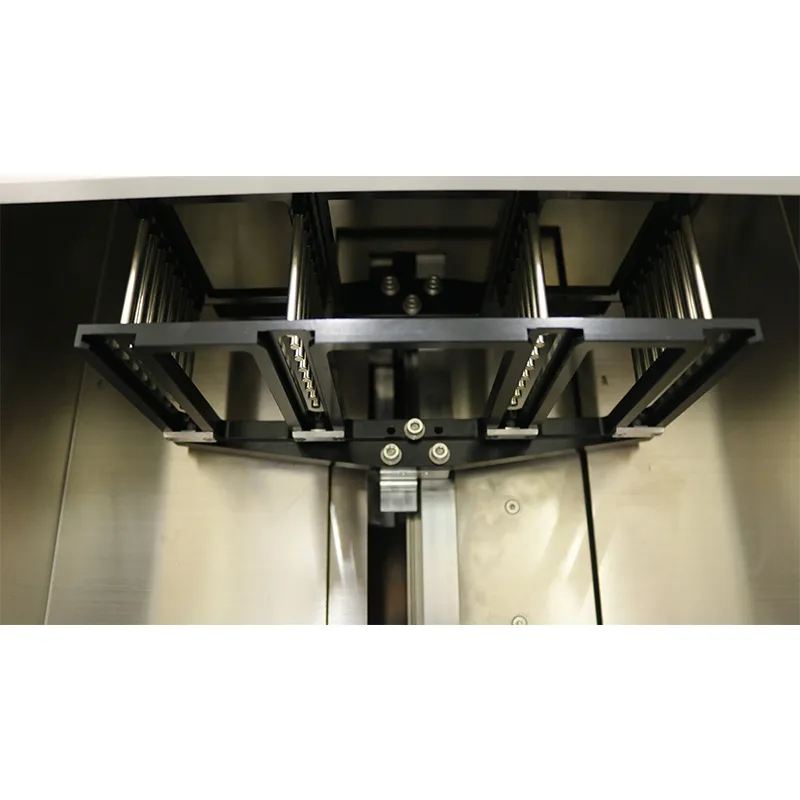

Detailed View 4

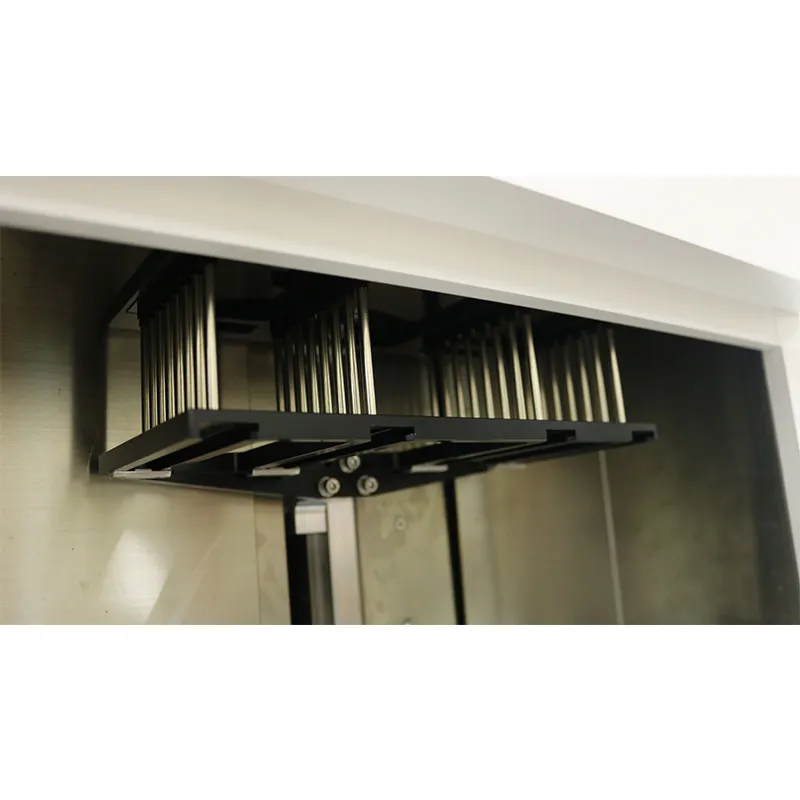

Detailed View 5

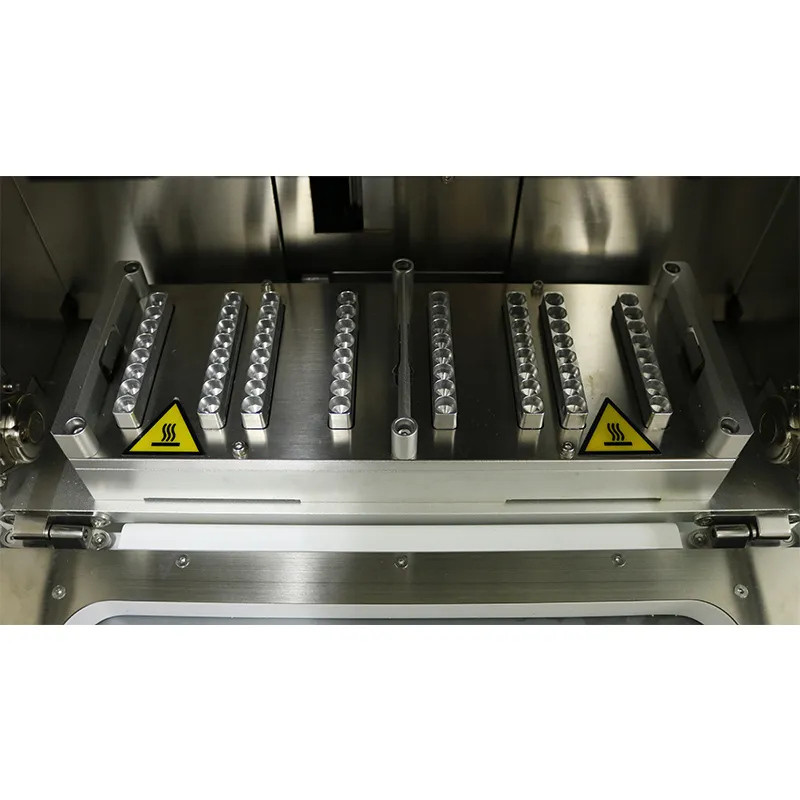

Detailed View 6
📊 Product Parameters
ModelBNP32
Sample Quantity32
Processing Volume20μL-1000μL
Sample Throughput1-32
Magnetic Bead Recovery>98%
Extracting Difference Between HolesCV≤3%
Heating Temperature8 independent heating modules, customize lysis and elution temperature
Oscillating MixingLow, medium and high third gears are adjustable
Reagent TypeMagnetic bead open platform
Internal ProgramStore >100 groups of programs
Safety Door DesignAutomatic suspension when door is opened
Ultraviolet IrradiationYes
Packing Size (W*D*H)mm580*510*700
Gross Weight (kg)51
🏭 Production & Quality
Production Process
📦 Packaging & Shipping
Packaging Details
📜 Certifications
Certifications
❓ Frequently Asked Questions
How many samples can the BNP32 process at once?
The system can process between 1 to 32 samples simultaneously in a single run.
What is the recovery efficiency of the magnetic beads?
The system achieves a high magnetic bead recovery rate of over 98%.
Can I use different reagents with this system?
Yes, it features a magnetic bead open platform, making it compatible with various reagent types.
How long does a typical extraction round take?
Depending on the reagent used, the extraction time typically ranges from 15 to 40 minutes per round.
Is the system equipped with any sterilization features?
Yes, the system includes built-in Ultraviolet (UV) irradiation for sterilization and contamination control.
How are the programs managed on the device?
The system can store over 100 groups of programs. It also supports U disk import and export for powerful program editing and management.
