Product Description

Basic Specifications

Model NO.

BNP32

Product Name

Nucleic Acid Purification Extraction System

Sample Quantity

Processing Volume

60µl-1000µl

Sample Volume

20-500µl

Reagent Type

Magnetic Bead Open Platform

Extraction Time

8-60 Min/Round

Production Capacity

20000 Box/Month

★

Product Highlights

✔ 7-inch touch screen, easy to use, fast response.

✔ User-defined cracking and elution temperature.

✔ UV disinfection function, time range 1min-24hour.

✔ Automatic control system, no need to connect to a computer.

✔ Free programming to meet the needs of different reagents.

✔ Open system, fully automatic, stable results and good repeatability.

✔ Extract rapidly within 15-40 minutes; 32/48 samples simultaneously.

📷

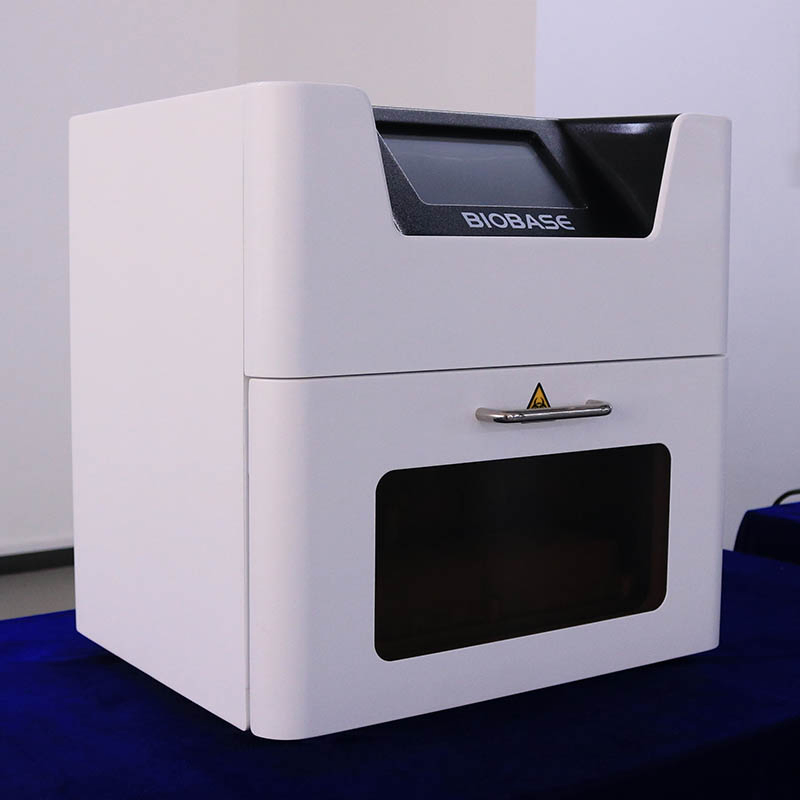

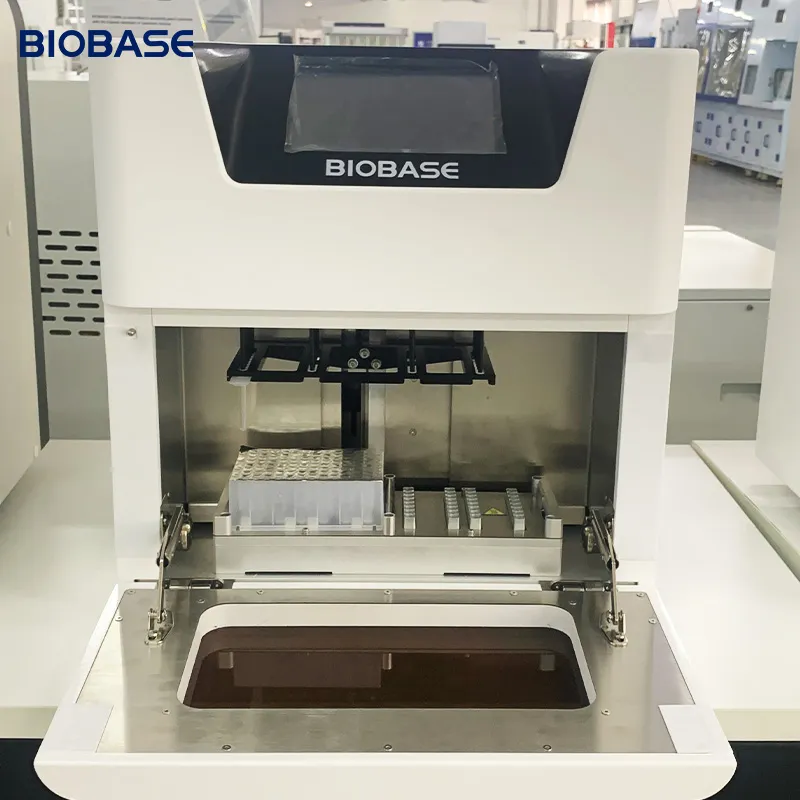

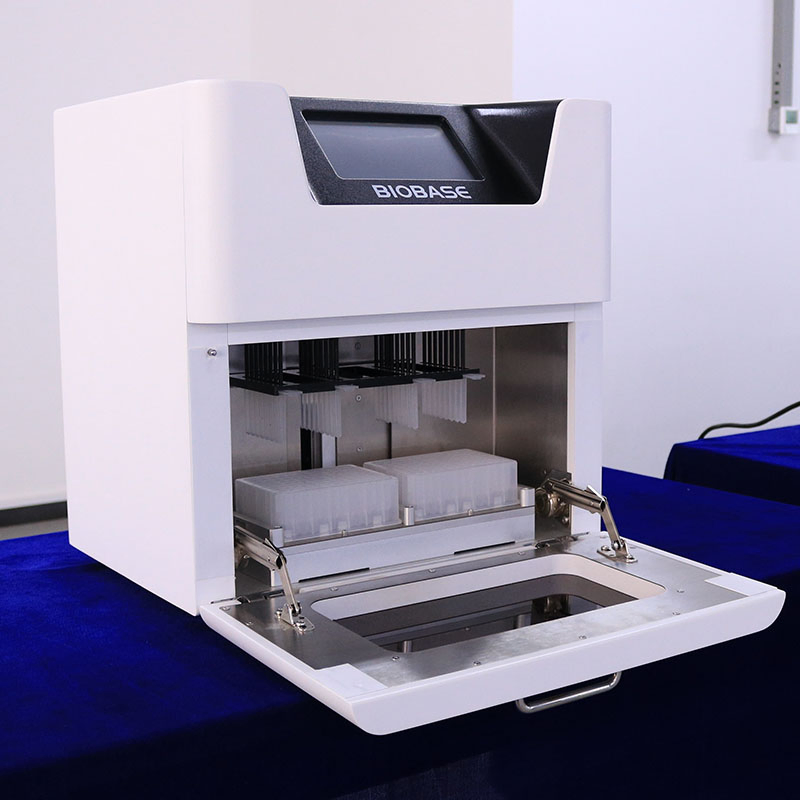

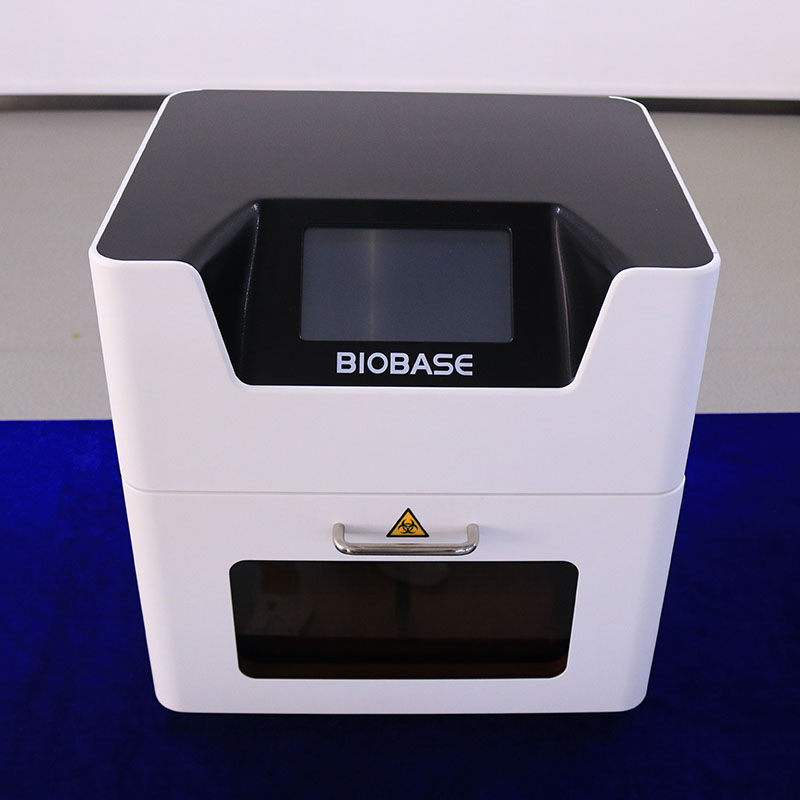

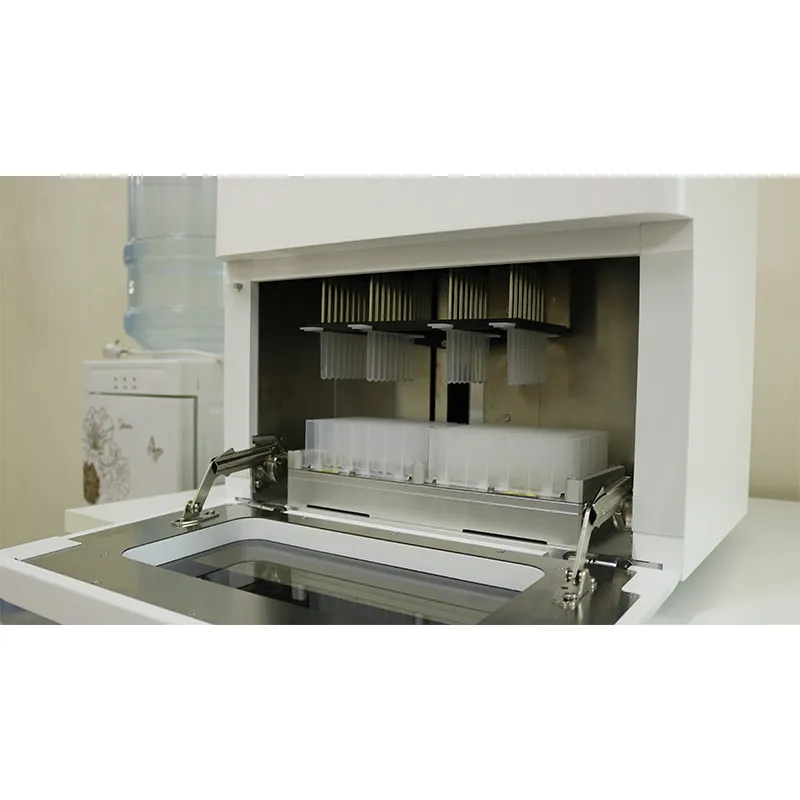

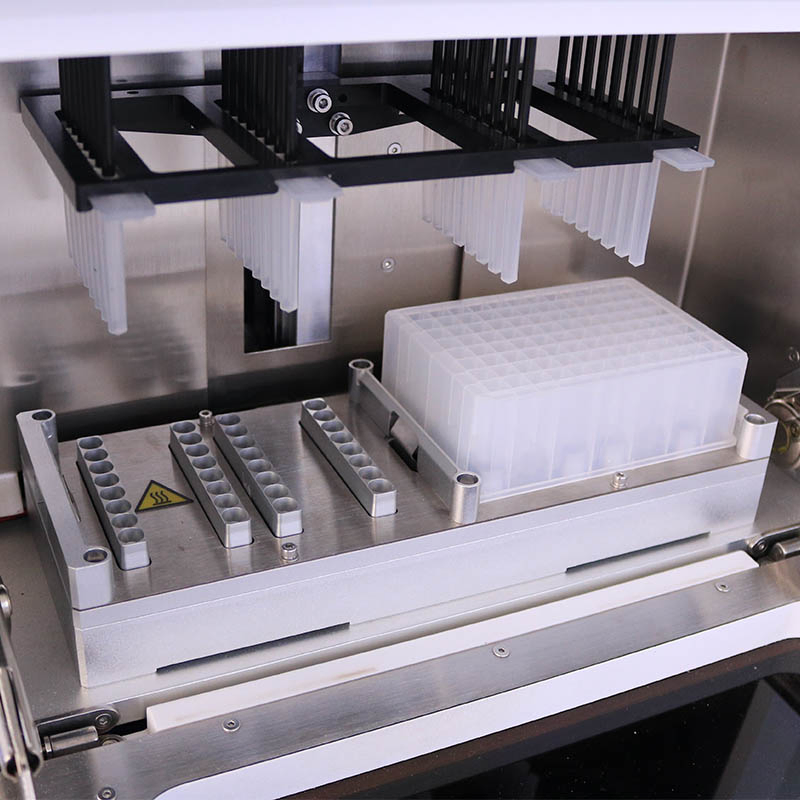

Detailed Visuals

⚙

Technical Parameters

Magnetic Bead Recovery	>98%
Extracting Difference Between Holes	CV≤3%
Heating Temperature	8 independent heating modules, customizable lysis and elution
Oscillating Mixing	Low, medium, and high gears adjustable
Internal Program	Stores >100 groups of programs
Program Management	USB disk import/export capabilities

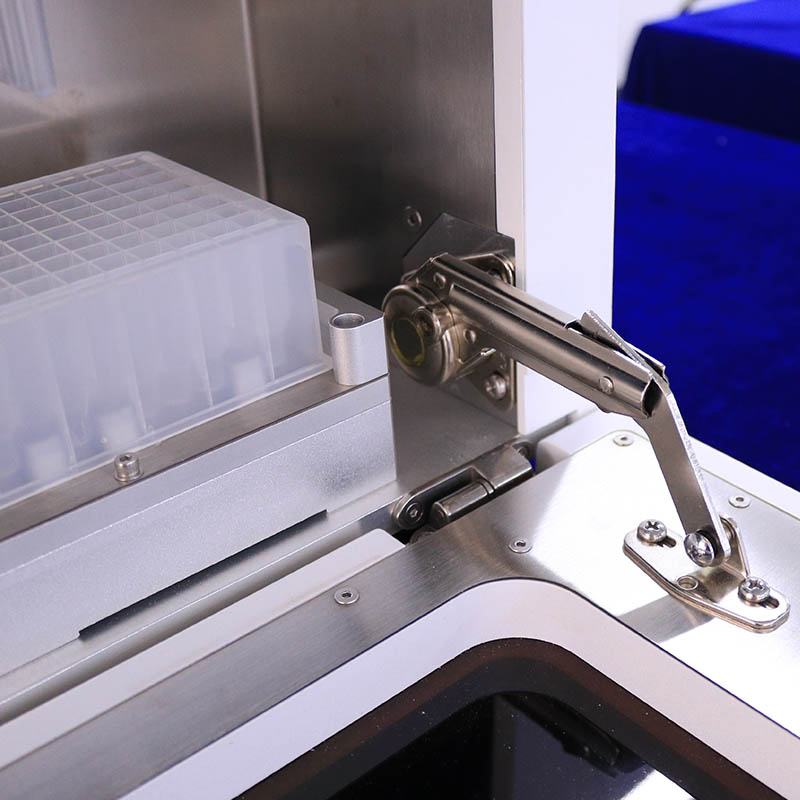

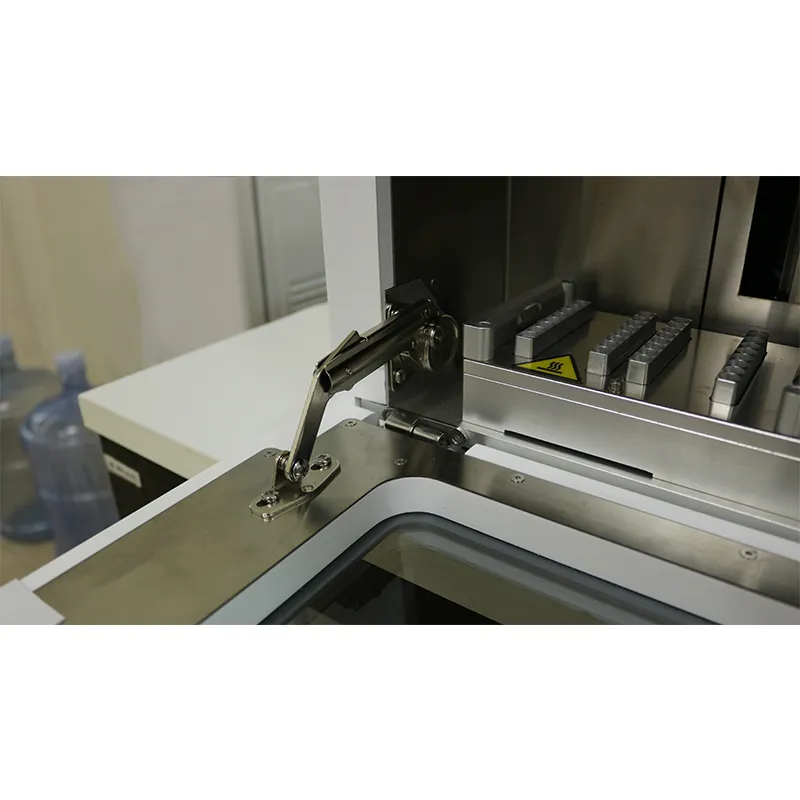

Safety Door Design	Automatic suspension when opened
Ultraviolet Irradiation	Yes
Gross Weight (kg)	51
Packing Size(WDH)mm	580510700

Frequently Asked Questions

How many samples can the BNP32 process at once?

The system is designed to handle between 1 to 32 samples per round, making it ideal for various laboratory throughput requirements.

What is the typical extraction time for a cycle?

The extraction process is very rapid, typically taking between 15 to 40 minutes per round depending on the specific reagent used.

Is the system compatible with third-party reagents?

Yes, it features a Magnetic Bead Open Platform, which allows for free programming to meet the needs of different reagent kits.

Does the machine require a computer connection?

No, the unit features an automatic control system with a built-in 7-inch touch screen, allowing for completely standalone operation.

How is contamination prevented during operation?

The system includes a built-in UV disinfection function and a safety door design that automatically pauses the program if opened, ensuring a sterile and safe environment.

Can the temperature be adjusted for different protocols?

Yes, there are 8 independent heating modules that allow users to customize lysis and elution temperatures according to their specific laboratory protocols.
