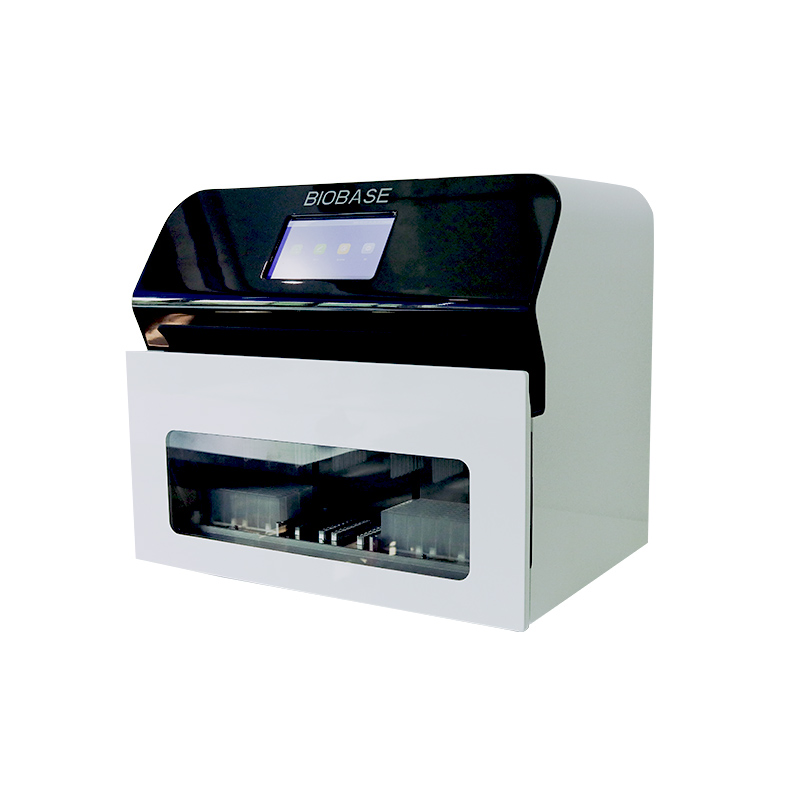

Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
1 / 5
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab
Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab

Biobase Nucleic Acid Extractor System Bnp48 Fully-Automated Clinical Nucleic for Lab

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
BNP48
Certification
CE, ISO13485
Product Name
Nucleic Acid Extraction System
Sample Quantity
48
Processing Volume
20μL-1000μL
Magnetic Bead Recovery
>98%
Extraction Time
15-40 Min/Round
Origin
China
🔬 Product Description

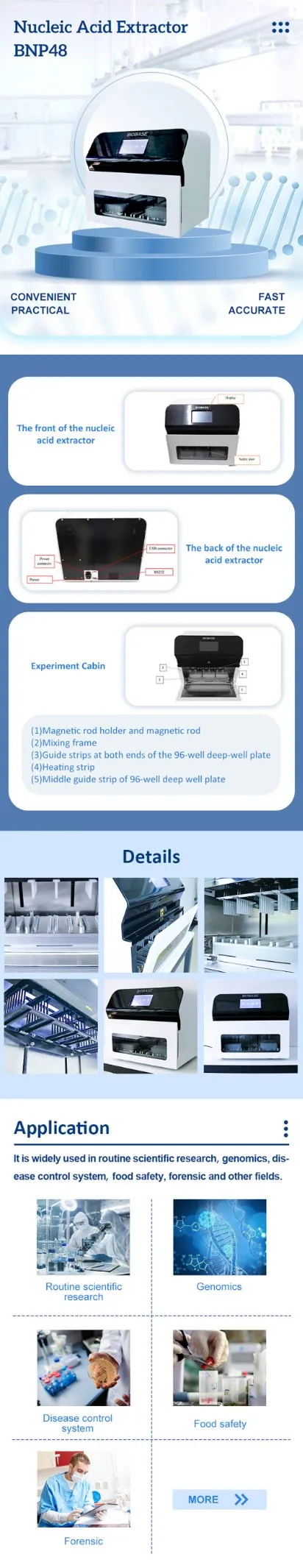

Nucleic Acid Extraction System
BNP32 / BNP48 System is a fully-automated clinical nucleic acid extraction system that brings you walk-away automation, designed to minimize user intervention and extraction-to-extraction variability.

In addition to providing quality purified eluates, the BNP32 / BNP48 System offers onboard primary-sample handling and mixed-batch sampling for up to 32 or 48 samples per run.

🌟 Key Features
Smart Interface 7-inch touch screen, easy to use, fast response
Temperature Control User-defined cracking and elution temperature
Safety Design UV disinfection function (1min-24hour) and safety door protection
Independence Automatic control system, no need to connect to computer
Flexibility Free programming to meet the needs of different reagents
Efficiency Extract rapidly 9-40 minutes; 32/48 samples simultaneously
⚙️ Product Parameters
Model BNP32 BNP48
Sample Quantity3248
Processing Volume20μL-1000μL
Sample Volume20-500μL
Magnetic Bead Recovery>98%
Extracting DifferenceCV≤3%
Heating Temperature8 independent heating modules, customizable lysis/elution
Oscillating MixingLow, medium, high gears adjustable
Reagent TypeMagnetic bead open platform
Internal ProgramStore >100 groups of programs
Built-in Air DuctNoYes
Gross Weight (kg)5180
Packing Size (mm)580*510*700700*520*750
🖼️ Gallery & Packaging
System View 1
System View 2
Packaging
Frequently Asked Questions
How many samples can the system process at once?
The system comes in two models: the BNP32 handles up to 32 samples, and the BNP48 handles up to 48 samples per run.
What is the extraction time for each round?
The extraction process typically takes between 15 to 40 minutes per round, depending on the specific reagent kit used.
Is the system compatible with reagents from other brands?
Yes, it features a magnetic bead open platform, allowing for flexible programming to meet the needs of different reagents.
How does the system prevent cross-contamination?
It includes a built-in UV disinfection function with a timer and a safety door design that automatically suspends the program if opened.
What is the efficiency of magnetic bead recovery?
The system is highly efficient, achieving a magnetic bead recovery rate of over 98%.
Does the system require a separate computer to operate?
No, the system is fully automated with a built-in 7-inch touch screen control system, eliminating the need for an external computer.
