Product Description

Overview
Model NO.
FQD-96A
Certification
CE
Reaction System
5~100μL
Dynamics Range
1-10^10
Excitation Wavelength
300-800nm
Emission Wavelength
500-800nm
Detection Path
F1
Suitable Probe Dye
Fam, Sybr Green I
Product Description

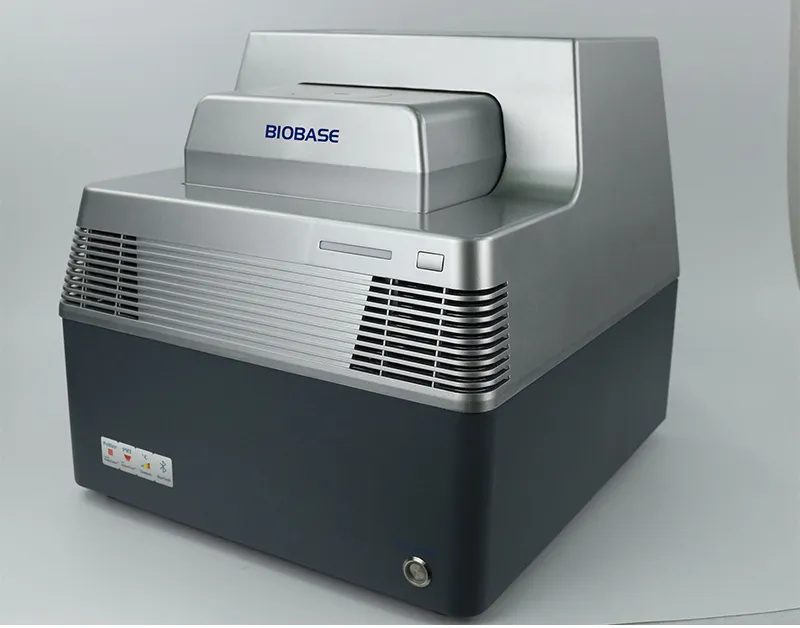

PCR Analysis System View 1

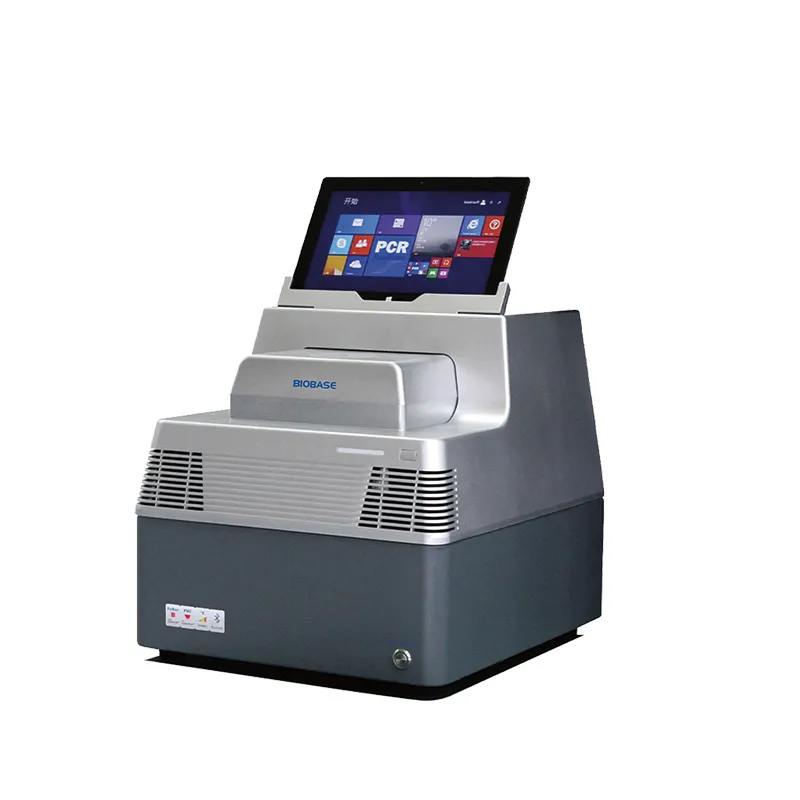

PCR Analysis System View 2

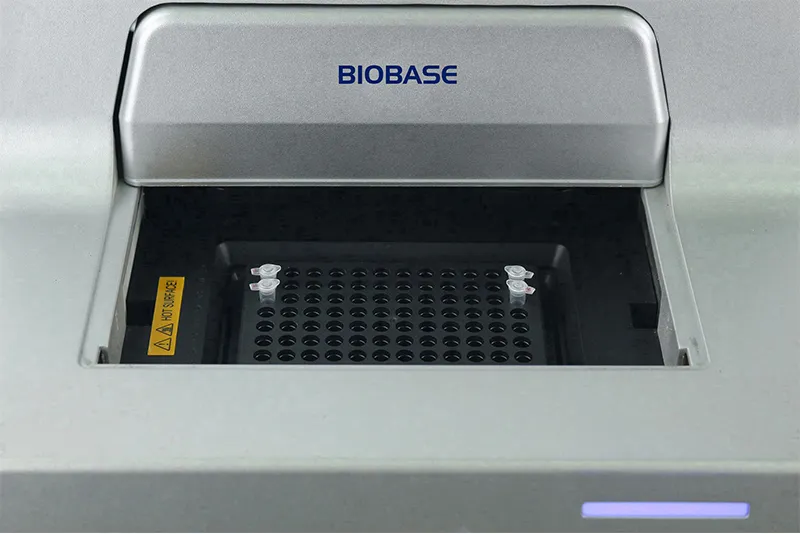

PCR Analysis System Feature View

Key Features

Whole block scanning and formulated line scanning mode, 96-well double-colour scanning takes only 5.5s.
6 channels fluorescence detection, no cross talk between different channels.
Unique bottom detection, compatible to reaction volume down to 5μl.
New automatic hot lid, automatic open and close which prevents reagent evaporation.
LED excitation light source with super long service life.
New TE module with special technique to ensure long service life.
Available for a variety of scientific research and clinical applications.
Product Parameters
Product Name Fluorescence Quantitative PCR Detection System
Model FQD-96A
Sample Capacity 96x0.2ml PCR plate, 12x8-strip tubes, 96*0.2ml single tube (Transparent Bottom)
Reaction System 5~100μl
Module Temp. Range 4-105ºC (resolution: 0.1ºC) with SOAK Low Temp. storage Function
Max Ramp Rate 4.0ºC/s
Temp. Uniformity ≤ ±0.3ºC
Gradient Temp. Range 1-36ºC
Hot-lid Temp. Range 30-110ºC (Adjustable, Default 105ºC, Automatic)
Scanning Time 5.5s
Special Functions Absolute/Relative quantitative analysis, SNP Analysis, Melting curve, HRM, crosstalk calibration, background correction
Dimensions (L*W*H) 410*386*352mm
Power Supply 100-240V 50/60Hz 600W
Detailed Specifications Chart
Frequently Asked Questions
What types of tubes are compatible with this system?
The system supports 96x0.2ml PCR plates, 12x8-strip tubes, and 96x0.2ml single tubes with transparent bottoms.
How fast is the fluorescence scanning process?
The system features high-speed scanning; a 96-well double-colour scan takes only 5.5 seconds.
What is the detection sensitivity and range?
The system offers a wide dynamics range of 1-10^10 and is compatible with reaction volumes as low as 5μl.
Does the device include temperature control features?
Yes, it includes a gradient temperature range of 1-36ºC, a high-precision TE module, and an automatic hot-lid (30-110ºC) to prevent evaporation.
What analysis modes are available in the software?
The software supports absolute and relative quantitative analysis, SNP Analysis, melting curve analysis, and HRM multi-channel crosstalk calibration.
What are the power and connectivity requirements?
It operates on 100-240V 50/60Hz and supports data transfer via USB, RS232, and Bluetooth ports.
