Customization: Available
Classification: Biological Diagnostics
Type: Urine Analyzer
Send Inquiry

Product Description

💠 Basic Information

Model NO.
MSLUD02
Certification
CE, ISO13485
Group
Middle-aged and Old
Flow Volume Range
0-1000ml
Package Dimension
83×79×190cm, 90kg
Transport Package
Standard Export Packaging
Origin
China
Production Capacity
100/Month

🔬 Product Description

MSLUD02 Urodynamic System make an objective assessment for urinary tract dysfunction by measurement and comprehensive analysis of patient. This measurement is useful for comprehensive diagnosis, it is the essential equipment for Urology department to do urodynamics study.

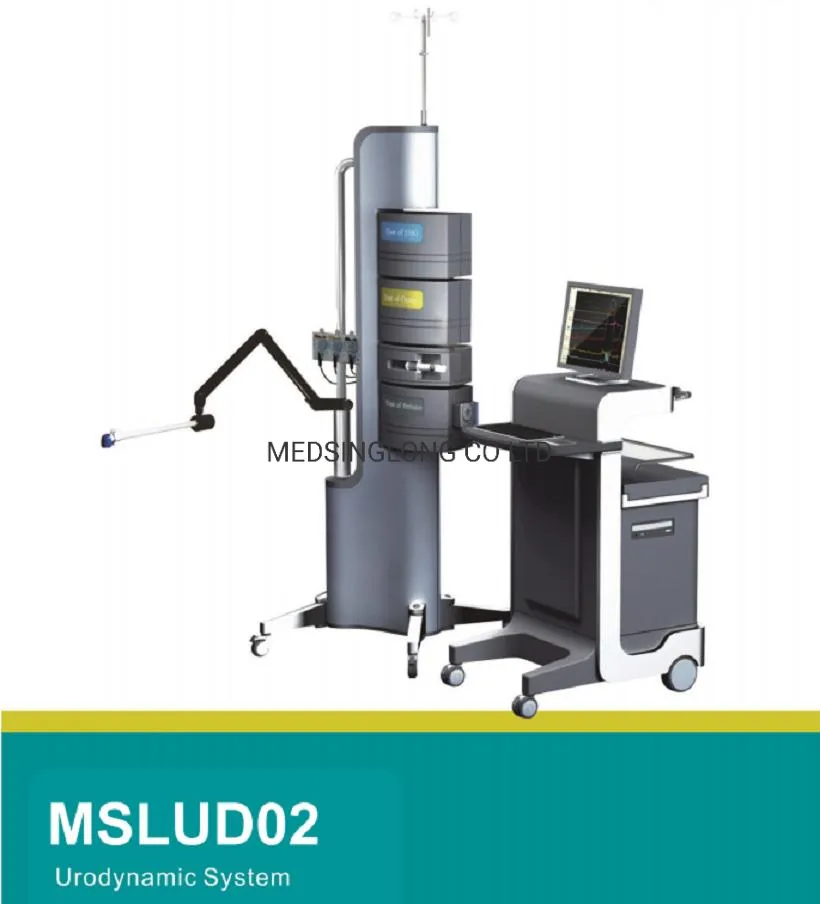

Urodynamic System Main Unit
Curves Analysis Display

📊 Comprehensive Curves Analysis

• Abdominal Pressure Curve
• Urine Flow Rate Curve
• Voiding Volume Curve
• Detrusor Pressure Curve
• Urethral Pressure Curve
• Bladder Pressure Curve
• Urethral Closure Pressure
• EMG Curve

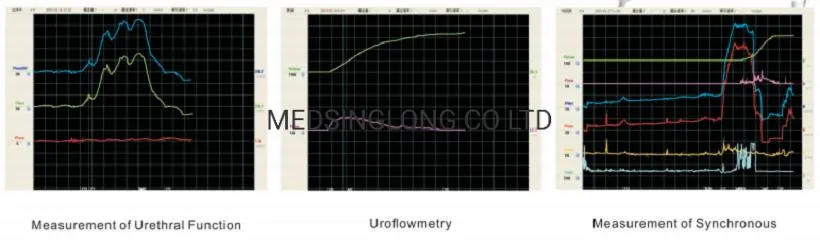

Urodynamic Curves Detail

📋 Clinical Applications

  • Uroflowmetry
  • Filling cystometry
  • Synchronous urodynamic detection
  • Pressure-flow study
  • Urethral pressure profiles (UPP)
  • Bladder compliance analysis
  • Valsalva leak point pressure (VLPP)

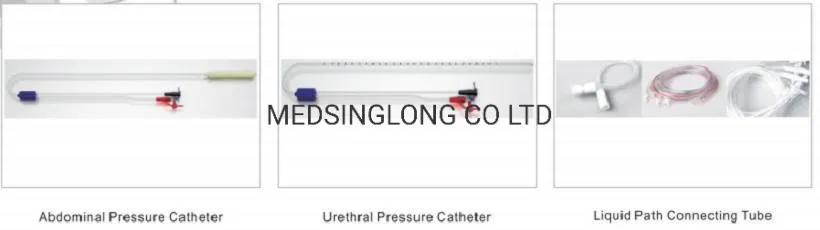

Clinical Application View

⭐ Key Features

  • Conforms with International Continence Society (ICS) standards.
  • Multi-window settings for convenient clinical comparison.
  • Support for real-time compression and amplification for academic exchange.

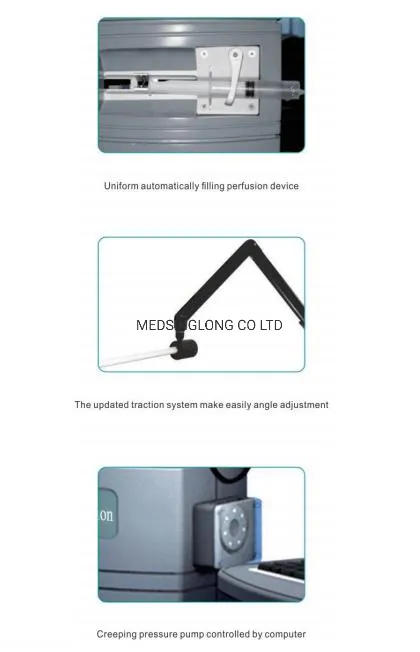

  • Injection pump technology eliminates artifactual signals.

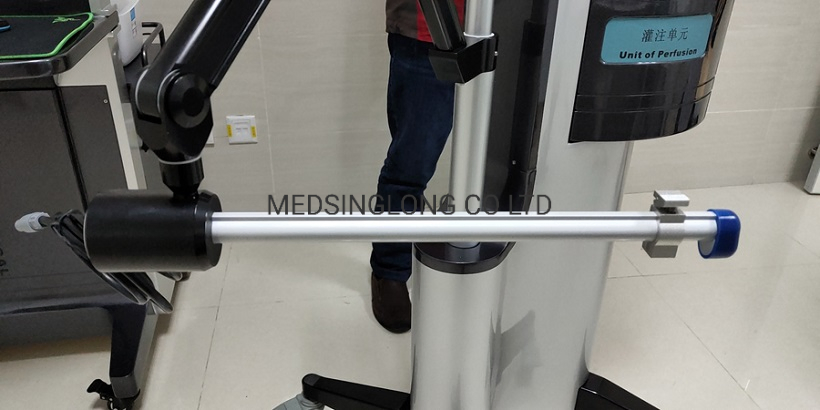

  • Advanced traction system with easily adjustable angles.
  • Computer-controlled creeping pressure pump.
Feature Highlight
Device Feature 1

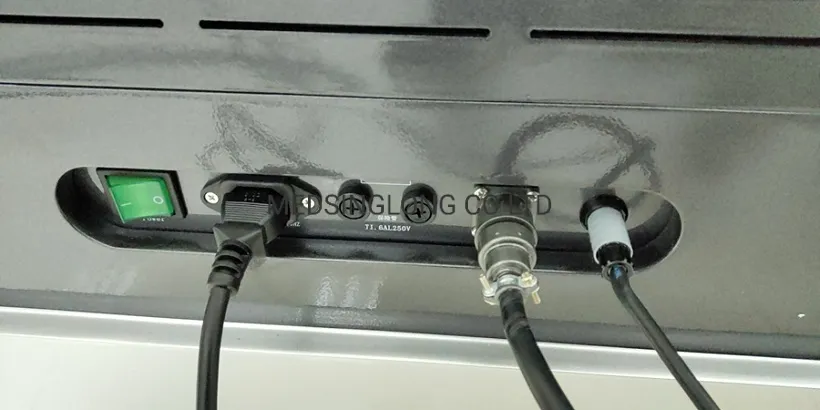

Device Feature 2

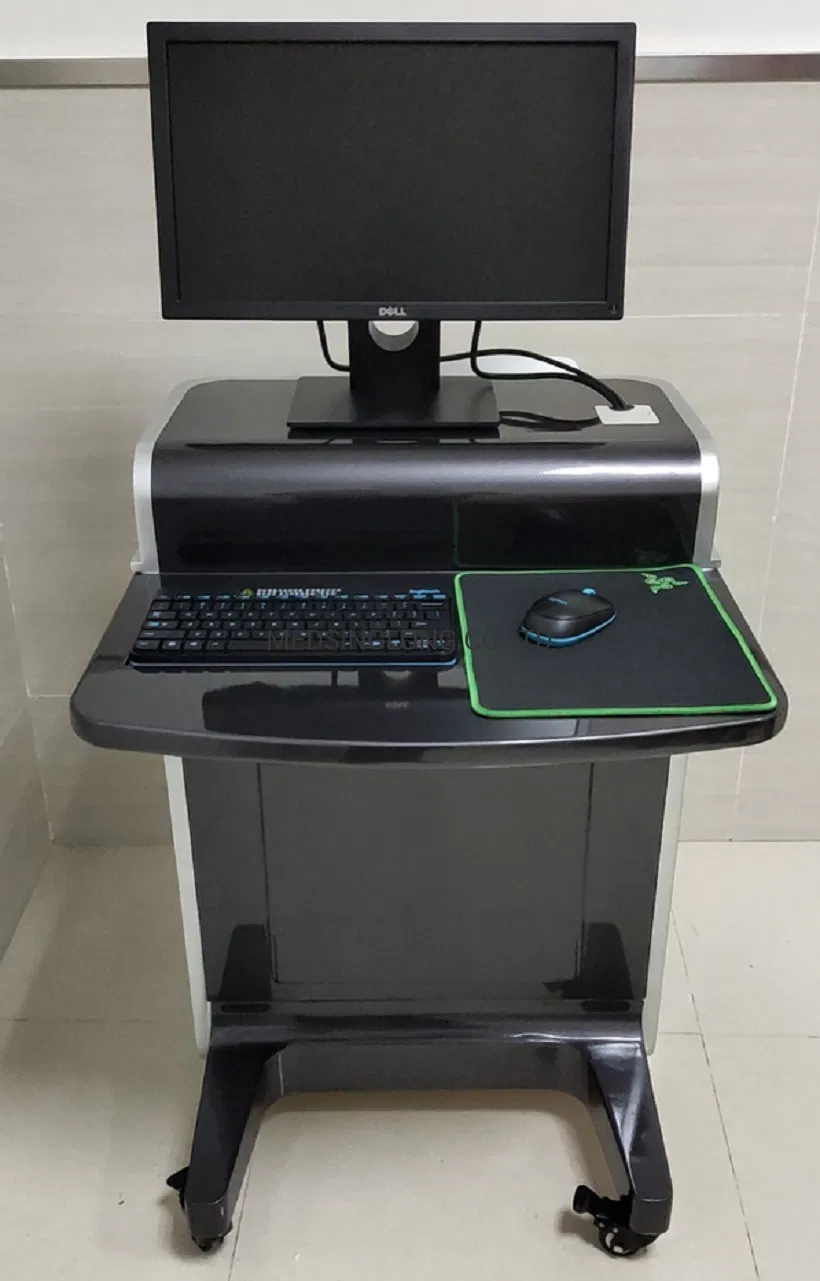

Internal Structure

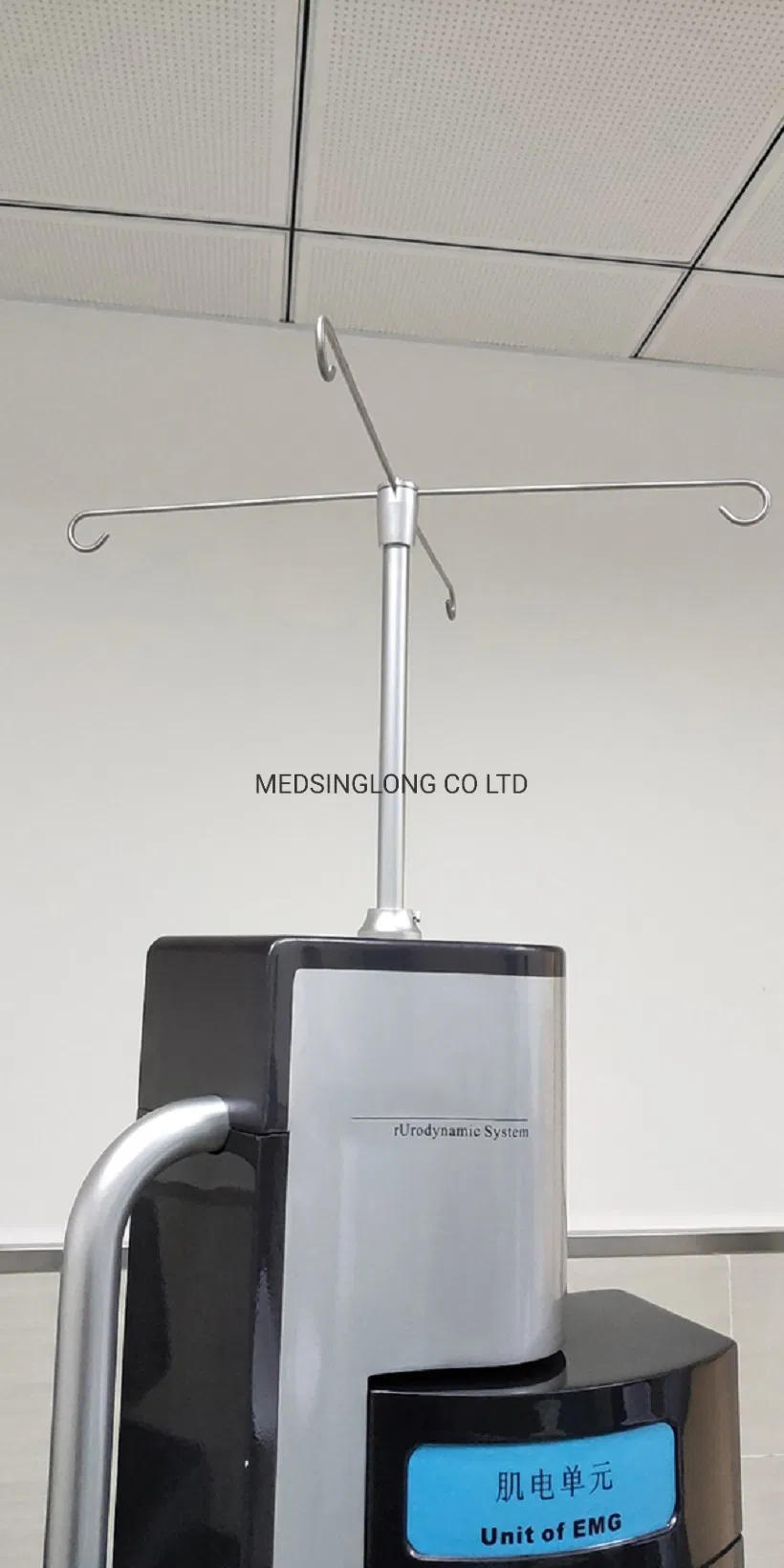

Full System Setup

⚙️ Product Parameters

Total urine flow volume range0mL ~ 1000mL, error ≤ 2%
Voiding time range0s ~ 240s, error ≤ 5%
Urine flow rate range0 ~ 50mL/s, error ≤ 5%
Pressure measuring range-4.9kPa ~ +19.6kPa (-50cmH2O ~ 200cmH2O), error ≤ 5%
Traction speed0.5mm/s, 1.0mm/s, 2.0mm/s, 4.0mm/s, error ≤ 5%
Traction length≥ 280mm
EMG test range20μV ~ 1mV
Dimensions & Weight83×79×190cm (90KG) & 84×98×130cm (120KG)
Parameter Chart

📜 Certifications

Certification 1
Certification 2

❓ Frequently Asked Questions

What is the primary function of the MSLUD02 Urodynamic System?
The system is designed to provide an objective assessment of urinary tract dysfunction through measurement and comprehensive analysis, aiding in diagnosis within Urology departments.
Does this equipment meet international medical standards?
Yes, all measurement items and protocols are conformed with the standards set by the International Continence Society (ICS).
What types of curves can the system display for analysis?
The system displays multiple curves including Abdominal Pressure, Urine Flow Rate, Detrusor Pressure, Urethral Pressure, Bladder Pressure, and EMG curves.
What are the traction speed options for the pressure profile?
The traction system offers four speed settings: 0.5mm/s, 1.0mm/s, 2.0mm/s, and 4.0mm/s, with an error margin of less than 5%.
What is the measuring range for urine flow volume?
The system can measure a total urine flow volume from 0mL up to 1000mL with a high precision error rate of ≤2%.
Which certifications does the MSLUD02 hold?
The MSLUD02 Urodynamic System is certified with CE and ISO13485, ensuring it meets strict quality and safety requirements for medical devices.
