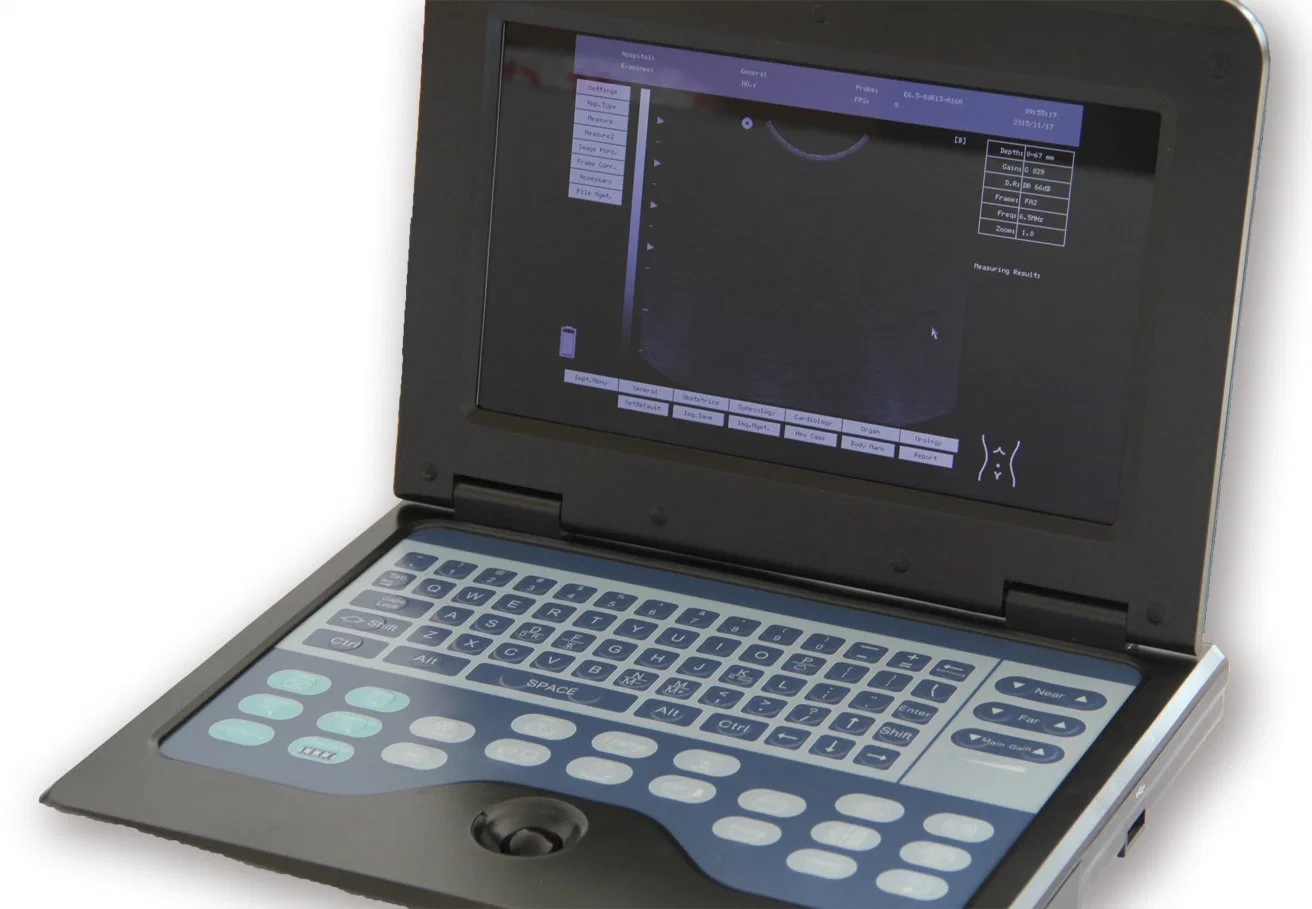

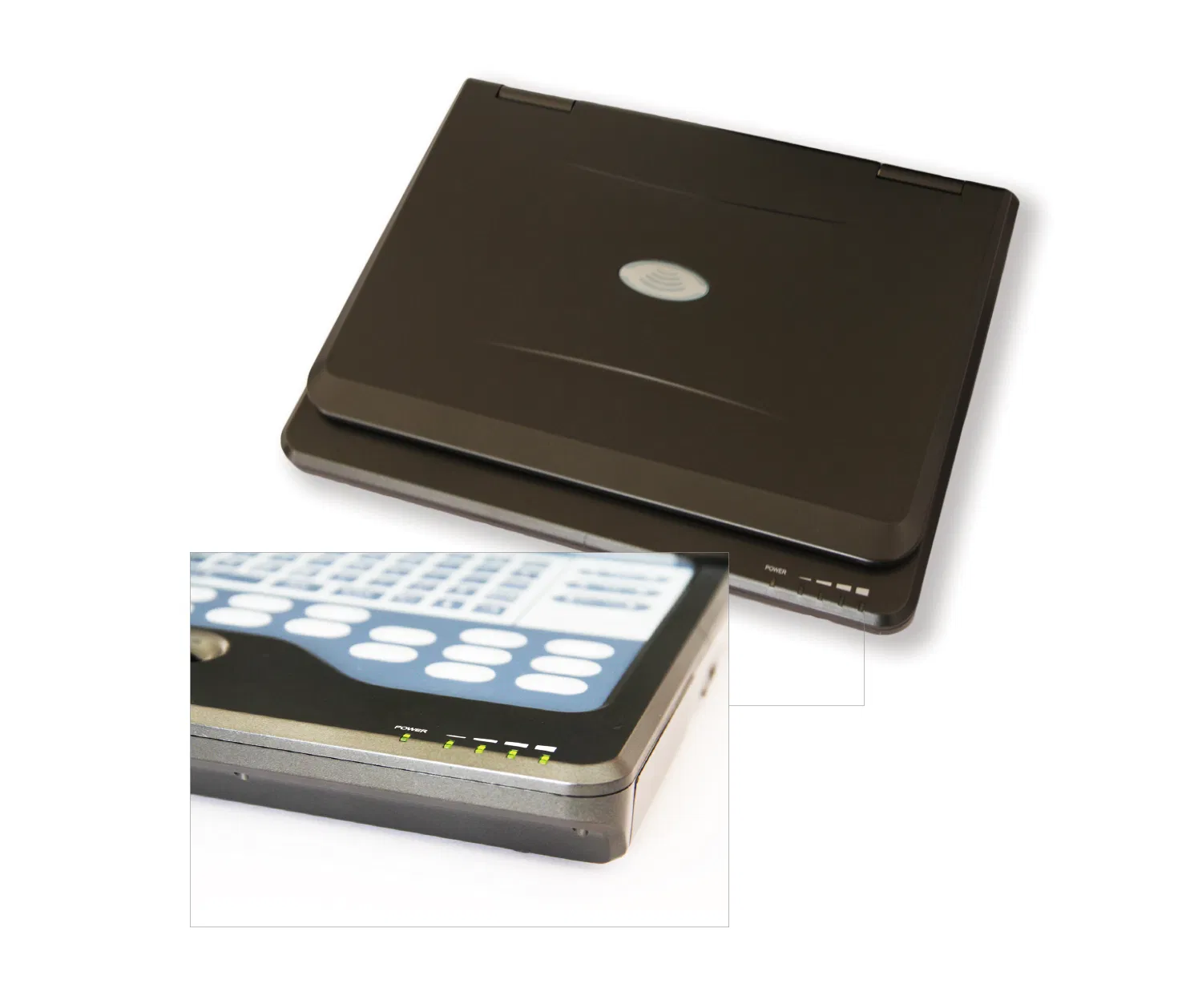

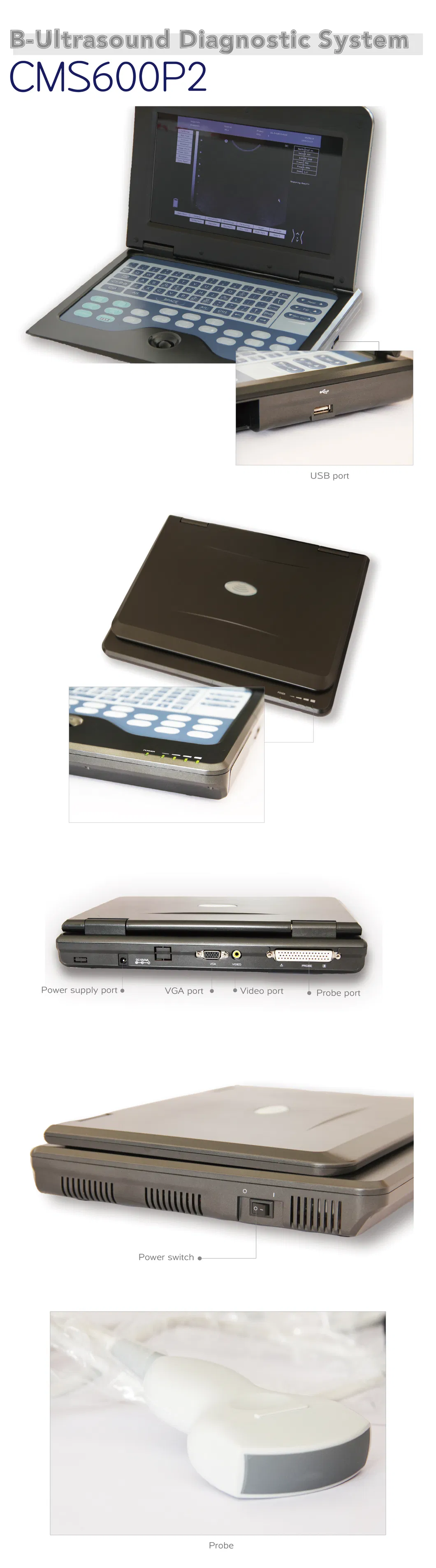

The notebook type CMS600P2 is a full digital B-Ultrasound diagnostic system. It adopts an embedded operating system, which greatly optimizes the product performance. The ultrasound system is designed for convenience with high-effective data processing ability, pop-up menus, and a functional keyboard design. This system includes rich measuring software packages that fully satisfy clinical diagnostic needs.
| Display mode | B, 2B, 4B, B/M, M |
| Image gray scale | 256 |
| Monitor | 10 inch TFT LCD |
| Display resolution | 1024*600 |
| Lateral resolution | 2 mm (near field), 4 mm (far field) |
| Axial resolution | 2 mm (near field), 2 mm (far field) |
| Dead zone | ≤3 mm |
| Display depth | ≤240 mm |
| Geometric precision | Horizontal ≤5%, Vertical ≤5% |
| Zoom | 0.9, 1.0, 1.1, 1.2, 1.3, 1.5, 2.0 |
| Cine loop | 600 frames |
| Image storage | 2048 frames |
| Body mark | 43 |
| Focus | Adjustable number and position |
| Assistant tool | Puncture guide, histogram, automatic reports for OB/GYN, Cardiology, etc. |
| Measurement | Distance, circumference, area, volume, angle, ratio, slope, etc. |

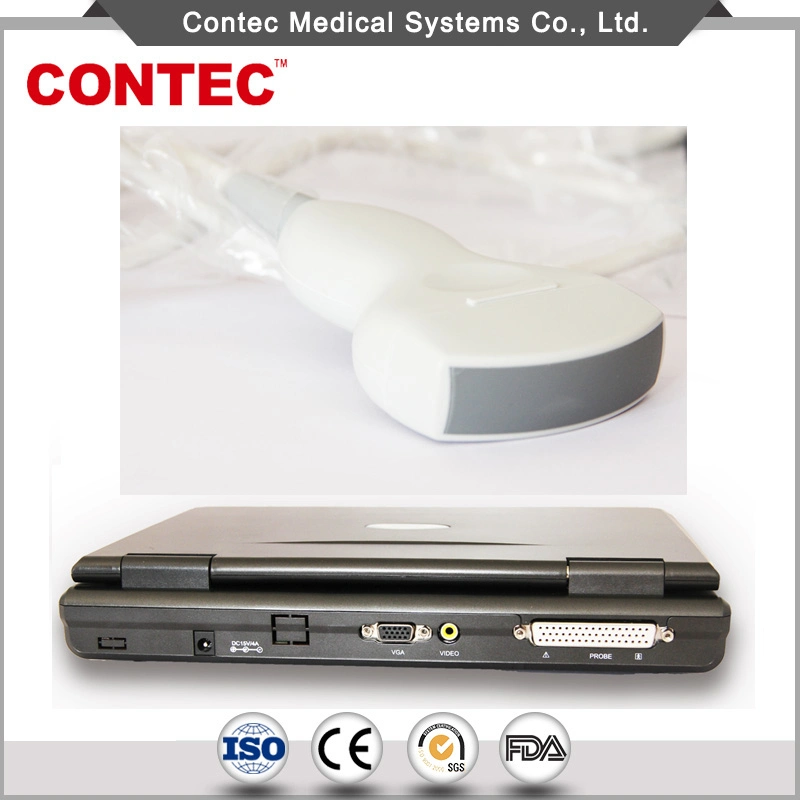

| Interface | USB, Video, VGA |
| Standard Configuration | 3.5 MHz convex probe (2.0 MHz~5.0 MHz) |
Standard Accessories:
Optional Accessories:
