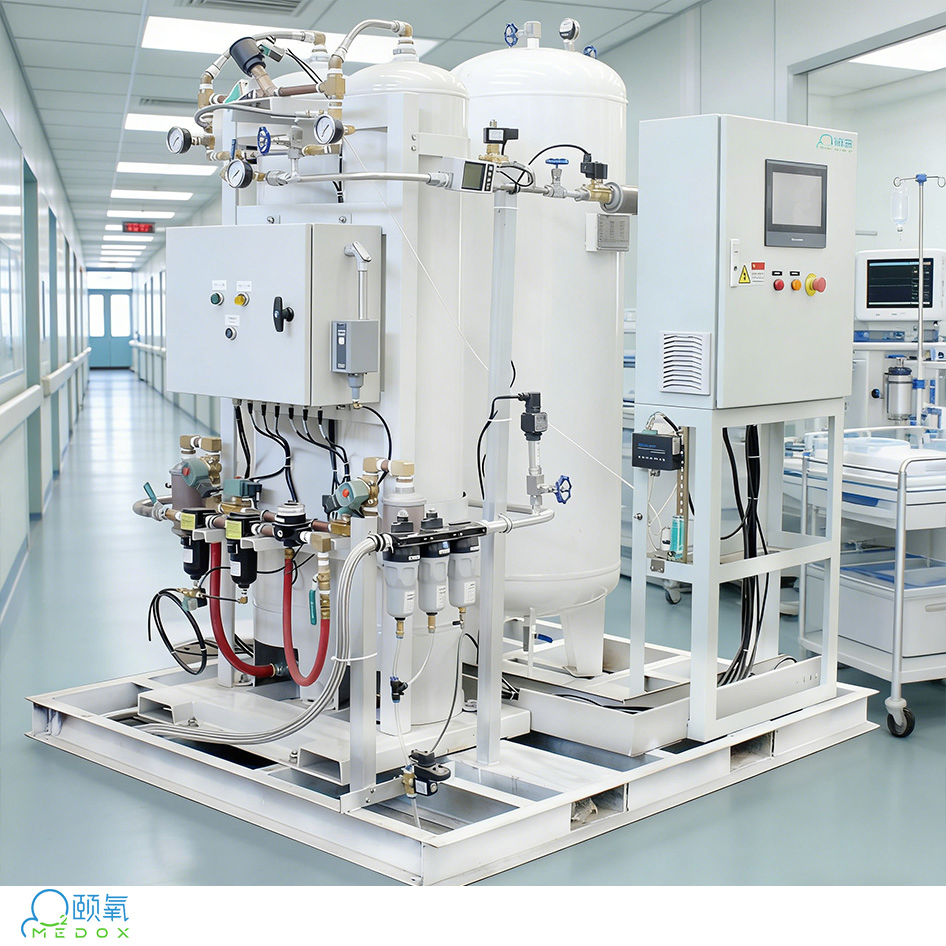

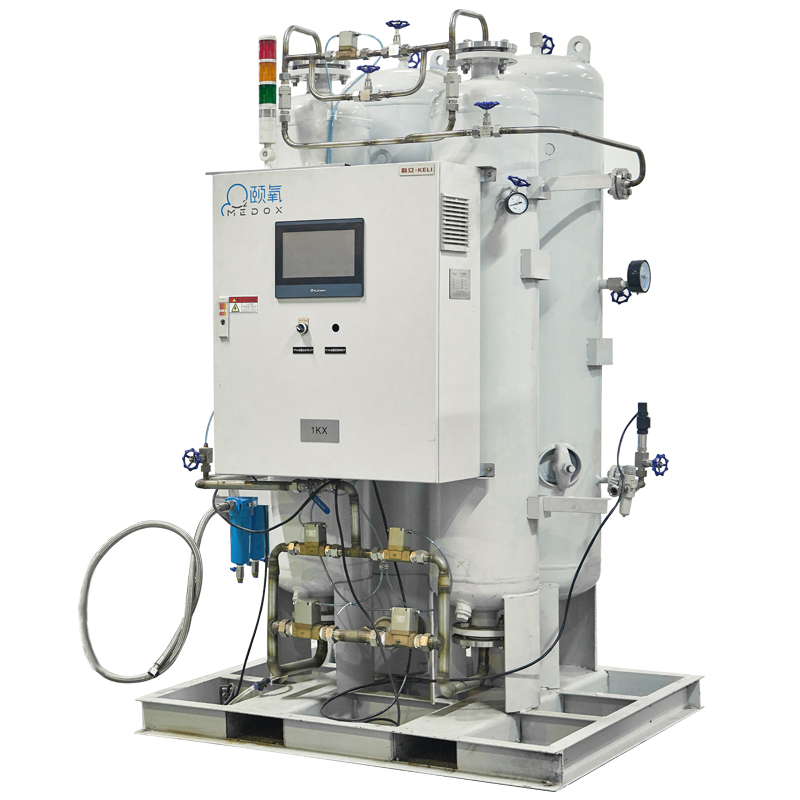

The MO series mini-plant oxygen generator set is a marvel in the realm of medical oxygen production. Positioned in cabins and containers, this state-of-the-art system assures an unmanned production of medical oxygen, seamlessly integrating into your healthcare facility's existing structure. Driven by the PSA process, this mini-plant is designed to deliver medical oxygen at a purity level of 93±3%, fully aligning with the stringent standards of both the European and US Pharmacopeia.

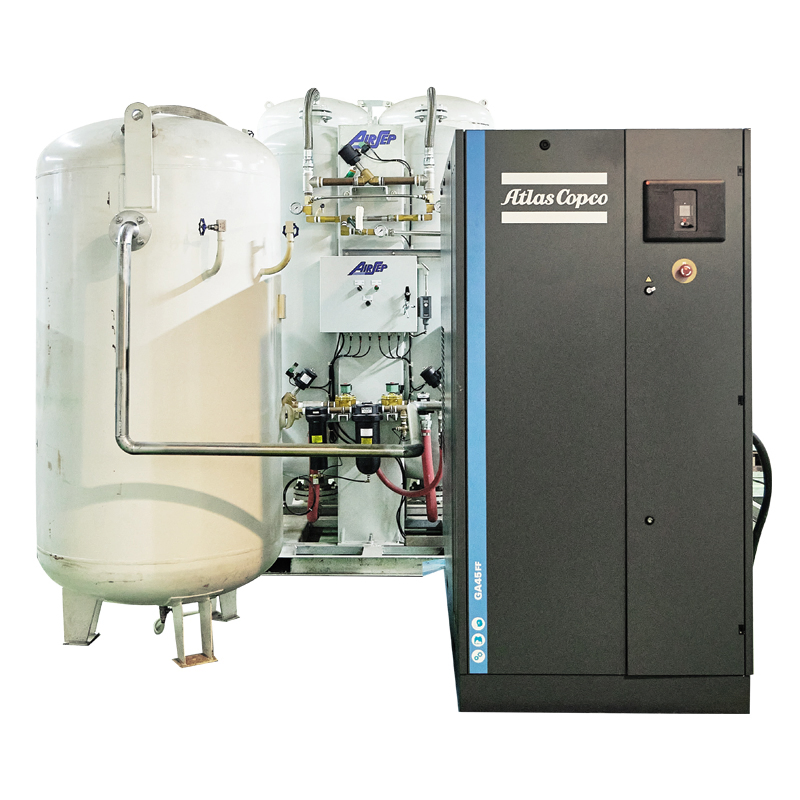

The Pressure Swing Adsorption (PSA) generator transforms air into pure oxygen through a sophisticated process of molecular sieve pressure swing adsorption. This cutting-edge system is the epitome of simplicity, practicality, and reliability, offering a cost-effective solution for in-situ oxygen production in medical institutions. Its dual tower design, coupled with advanced filtration and drying systems, ensures the delivery of contaminant-free air, perfectly suited for central oxygen supply.

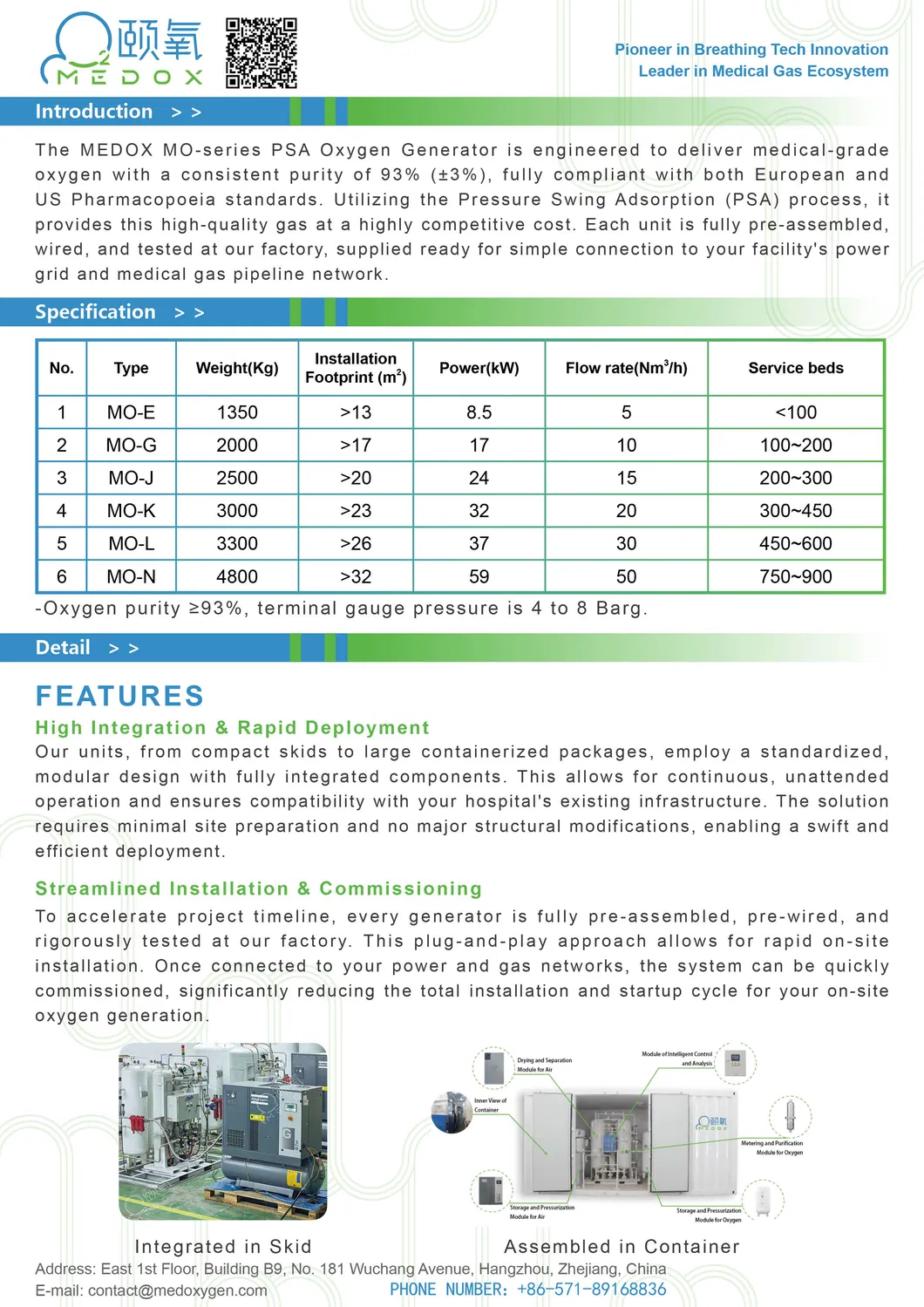

| No. | Type | Weight (KG) | Room (m2) | Power (kW) | Flow rate (Nm3/h) | Bed Capacity |
|---|---|---|---|---|---|---|
| 1 | Customizable MO | <1350 | <13 | <8.5 | <5 | Under 100 |
| 2 | MO-E | 1350 | >13 | 8.5 | 5 | Under 100 |
| 3 | MO-G | 2000 | >17 | 17 | 10 | 100~200 |
| 4 | MO-J | 2500 | >20 | 24 | 15 | 200~300 |
| 5 | MO-K | 3000 | >23 | 32 | 23 | 300~450 |
| 6 | MO-L | 3300 | >25 | 48 | 30 | 450~600 |
| 7 | MO-M | 4800 | >32 | 59 | 47 | 750~900 |
