Electric Lab Test Equipment Current Transformer Test System CT PT Testing Bench

1 / 5

Electric Lab Test Equipment Current Transformer Test System CT PT Testing Bench

Customization:	Available
After-sales Service:	Onsite and Video Call Remote Guidance
Warranty:	2 Years Free Warranty Long Life Service

Send Inquiry

Product Description

Technical Specifications

Model NO.

SXBZ-III

Max Diameter

2000mm

Mass Scope

1000kg

Type

Universal Testing Machine

Accuracy Grade

0.5

Display

LCD Display

Control

Computer Control

Power Source

AC380V

Core Function

CT/PT Comprehensive Test

Precision

Metrological Grade

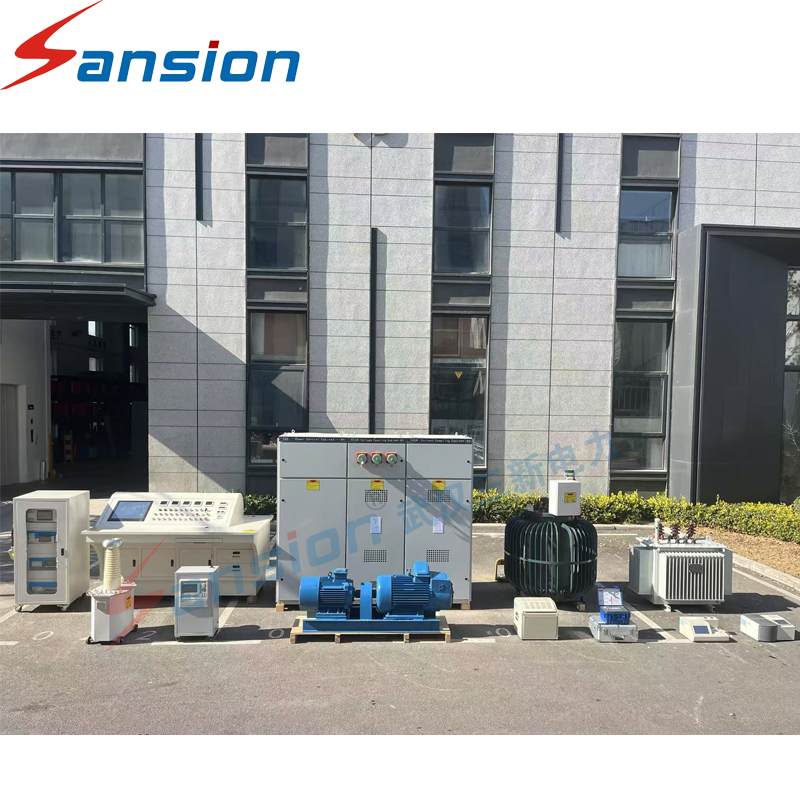

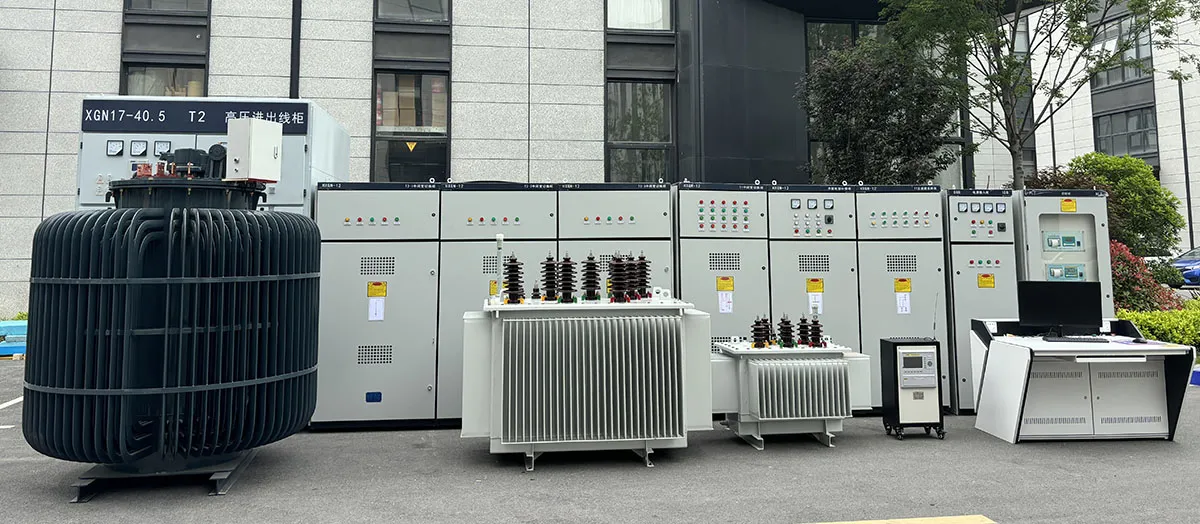

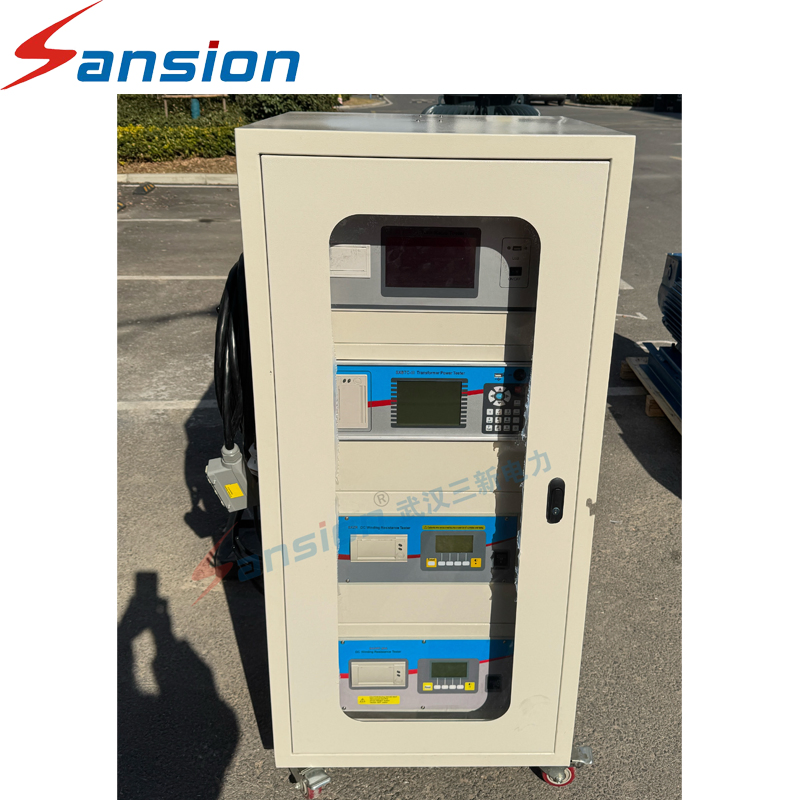

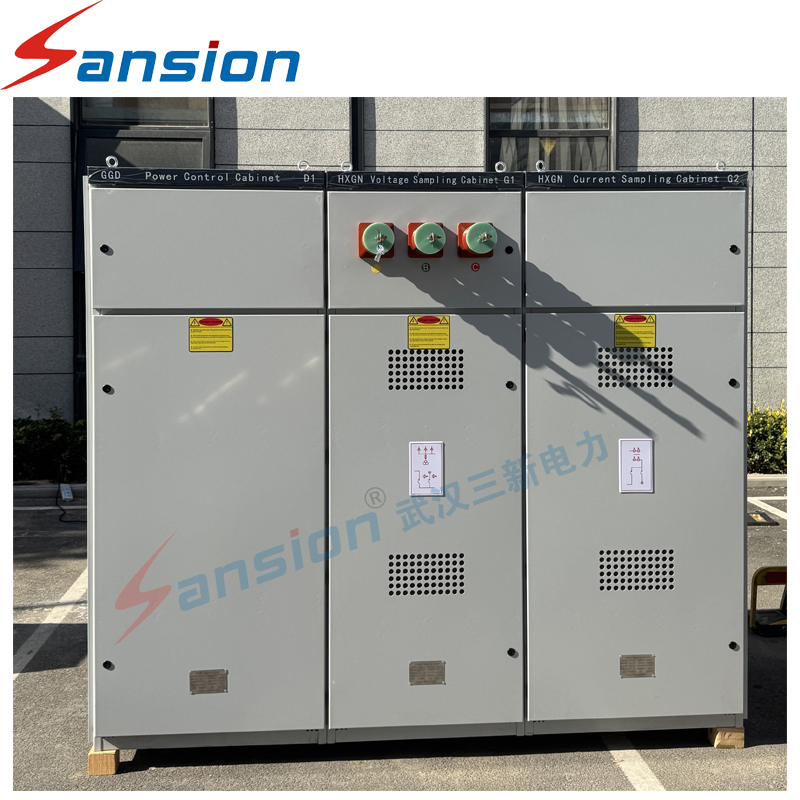

Current & Voltage Transformer Test System

The SXBZ series Transformer Test Bench is an advanced solution for ex-work and maintenance detection of various transformers. It is extensively utilized in power supply distribution, transformer manufacturing, and industrial maintenance centers.

Key Features

⚙️
Wide Application: Compatible with different voltage degree transformers, reactors, and HV switchgears.
🖥️
Integrated Control: Fully PLC controlled with primary wire connection circuit displaying, analysis processing, and report generation.
📊
High Precision: All data calculations are operated by IPC, showing real-time results directly on screen for maximum efficiency.

Comprehensive Testing Capabilities

Routine Tests:

✓ Insulation resistance & winding resistance testing
✓ Turns ratio & load/no-load current testing
✓ Capacitance & tan delta testing
✓ Power frequency and inductive withstand voltage testing
✓ Transformer oil analysis (acidity, dewpoint, flashpoint)

Specialized Tests:

✓ Temperature rising testing (Type test)
✓ Zero-sequence impedance testing
✓ No load current harmonic testing

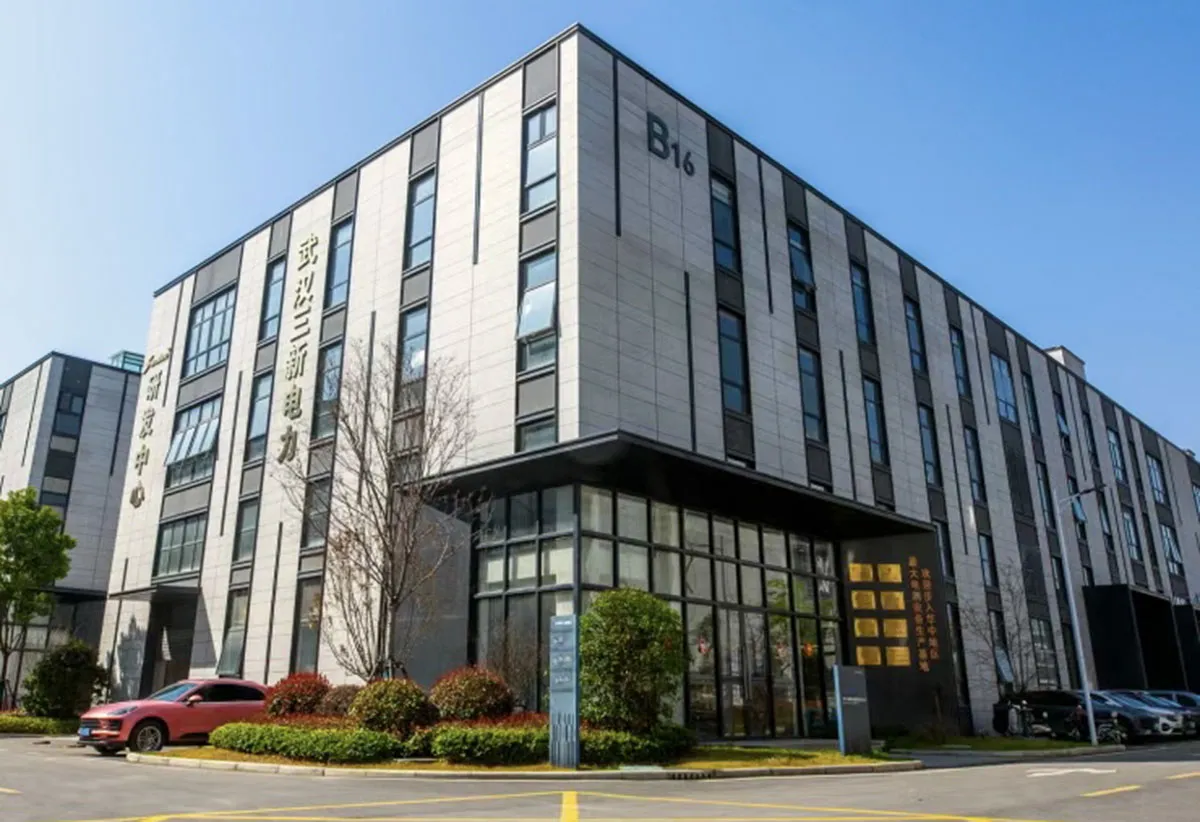

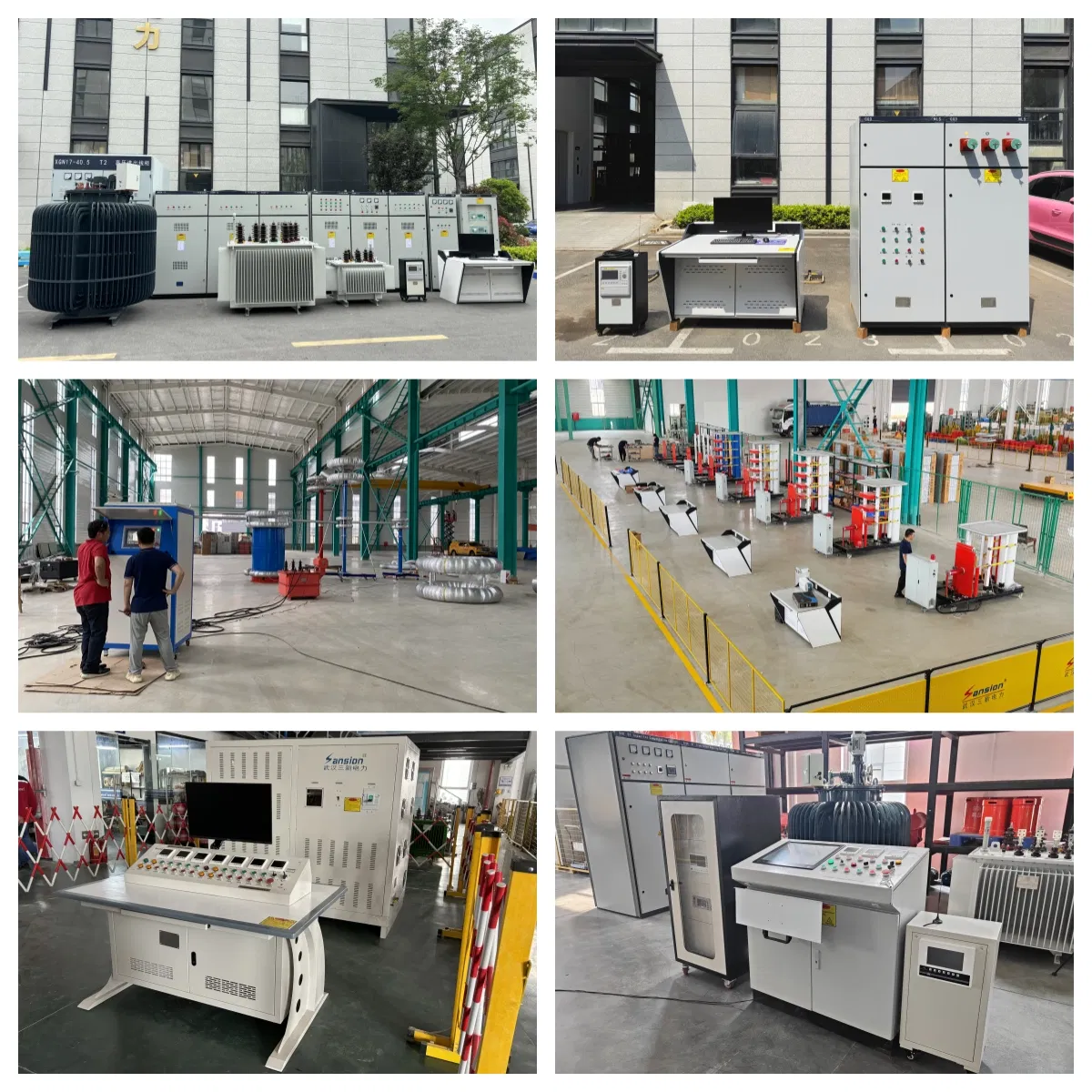

Manufacturing Excellence

Founded in 2005, the facility integrates R&D, HV workshops, and advanced testing laboratories. With over 20 years of experience in power electrical testing products, all manufacturing strictly conforms to international IEC standards.

Quality & Logistics

Global Cooperation

Frequently Asked Questions

Is the equipment customizable for specific laboratory requirements?

Yes, the system can be made-to-order according to special customer requirements using the latest technology and specific voltage degrees.

How is the quality of the components ensured?

We use high-quality components and perform three rounds of rigorous quality inspections before export. Products are packed in non-fumigation wooden boxes.

What is the typical delivery time for a testing bench?

Standard delivery time is usually within 10 working days, depending on customization requirements and order volume.

What kind of after-sales support do you offer?

We provide a one-year warranty and free consulting services via email, video calls, and technical door-to-door support if necessary.

Which international standards do your products meet?

All products strictly conform to international IEC standards and maintain ISO9001 quality system certification.

In which regions are these systems currently in use?

The equipment has been successfully exported to the United States, France, Brazil, Australia, Russia, Saudi Arabia, Indonesia, and many other regions globally.
