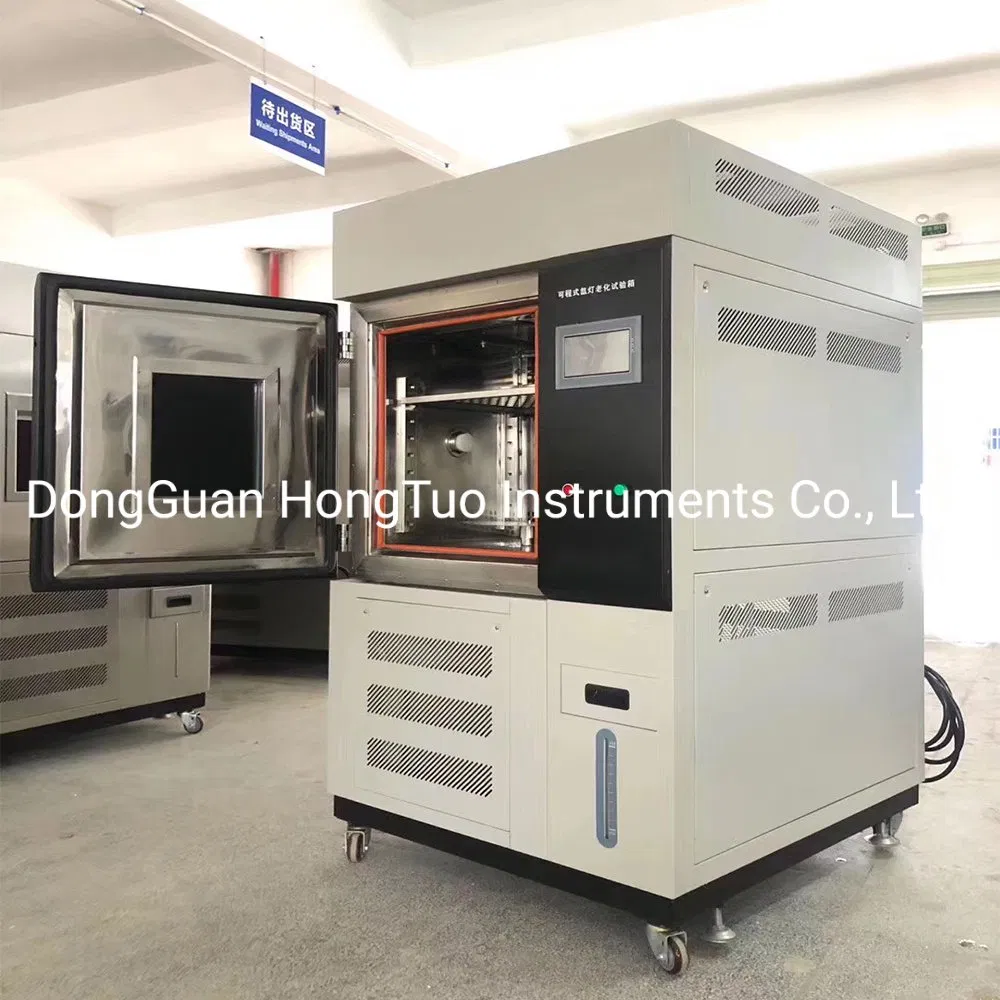

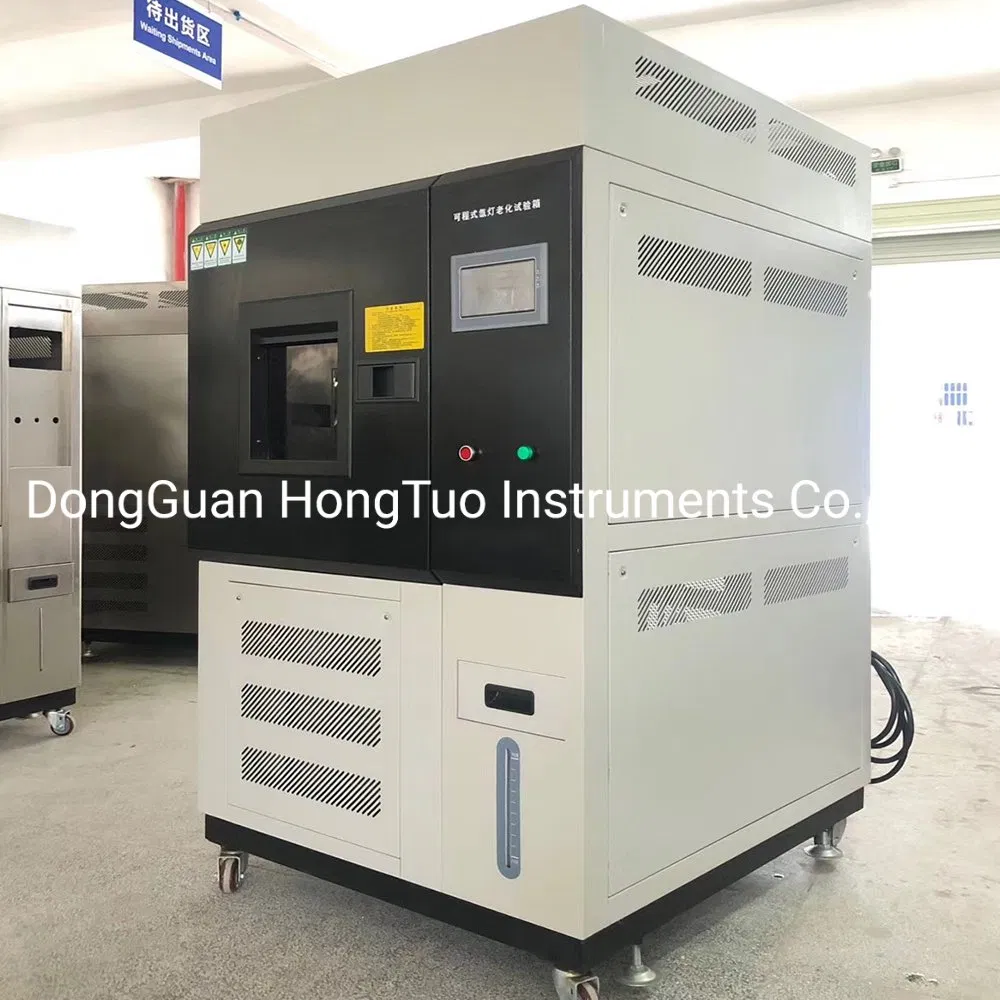

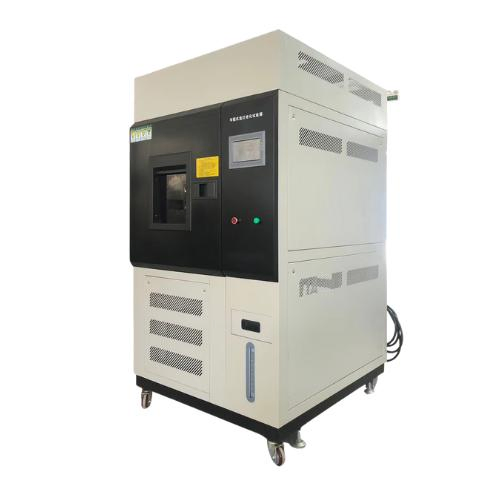

DH-XD-80 Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Equipment

1 / 3

DH-XD-80 Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Equipment

Customization:	Available
Certification:	CE
Usage:	Xenon Test Chamber

Send Inquiry

Product Description

Basic Specifications

Model NO.

DH-XD-80

Continuous Lighting

More Than 2000 Hours

Delivery Time

5-10 working days

Customized Service

Available

Testing Before Delivery

Yes, 100% Tested

OEM Service

Available

Transport Package

Standard Exporting Wooden Case

Production Capacity

300 Sets/Month

HS Code

9027809900

Product Overview

DH-XD-80 Lab Sun Simulation Accelerated Xenon Lamp Aging Testing Equipment utilizes a xenon arc lamp to simulate the full sunlight spectrum, combined with moisture condensation to replicate rain and dew. This advanced system subjects specimens to alternating cycles of light, temperature, and humidity, allowing for the rapid assessment of environmental damage that would typically take years to occur outdoors.

Key Features

Equipped with a long-axis fan motor and stainless steel multi-blade wheel for superior convection and vertical diffusion.
Double-layer high-temperature resistant sealing strips ensure complete leak-proof performance in the test area.
Non-counteractive door handle design for effortless operation.
High-quality fixable PU running wheels integrated at the bottom for easy mobility.
Multi-layer hollow tempered glass inspection window for clear real-time observation.
Versatile irregular-shaped sample holders for convenient specimen installation.
Easy-to-replace xenon lamps with an effective filter system ensuring the required spectrum output.

Technical Parameters

Model Series	DH-XD (-80 / -150 / -225 / -408 / -800 / -1000)
Inner Size (WHD cm)	405040	506050	607550	608580	10010080	100100100
Temp & Humidity Uniformity	± 2°C; ± 3%RH
Temperature Range	0ºC ~ 80ºC (Adjustable)
Humidity Range	30% ~ 98% R.H
Wavelength	290nm ~ 800nm
Light Source	Imported air-cooled full solar spectrum long arc xenon lamp
Irradiance (340nm)	0.3 ~ 1.2 w/m2
Rainfall Cycle	1 ~ 240min (Interval adjustable)
Controller	TEMI programmable controller
Material	Stainless Steel SUS304#

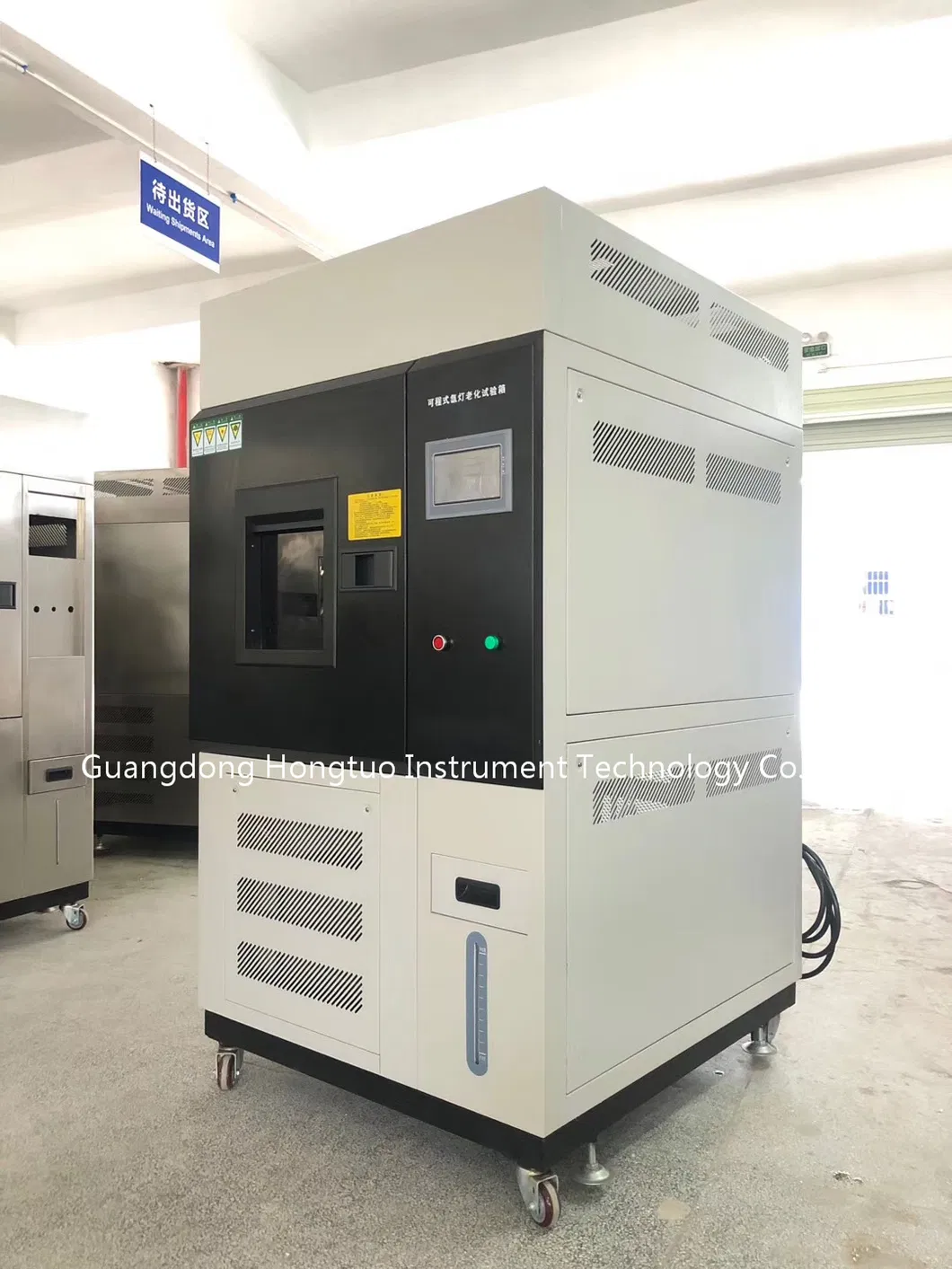

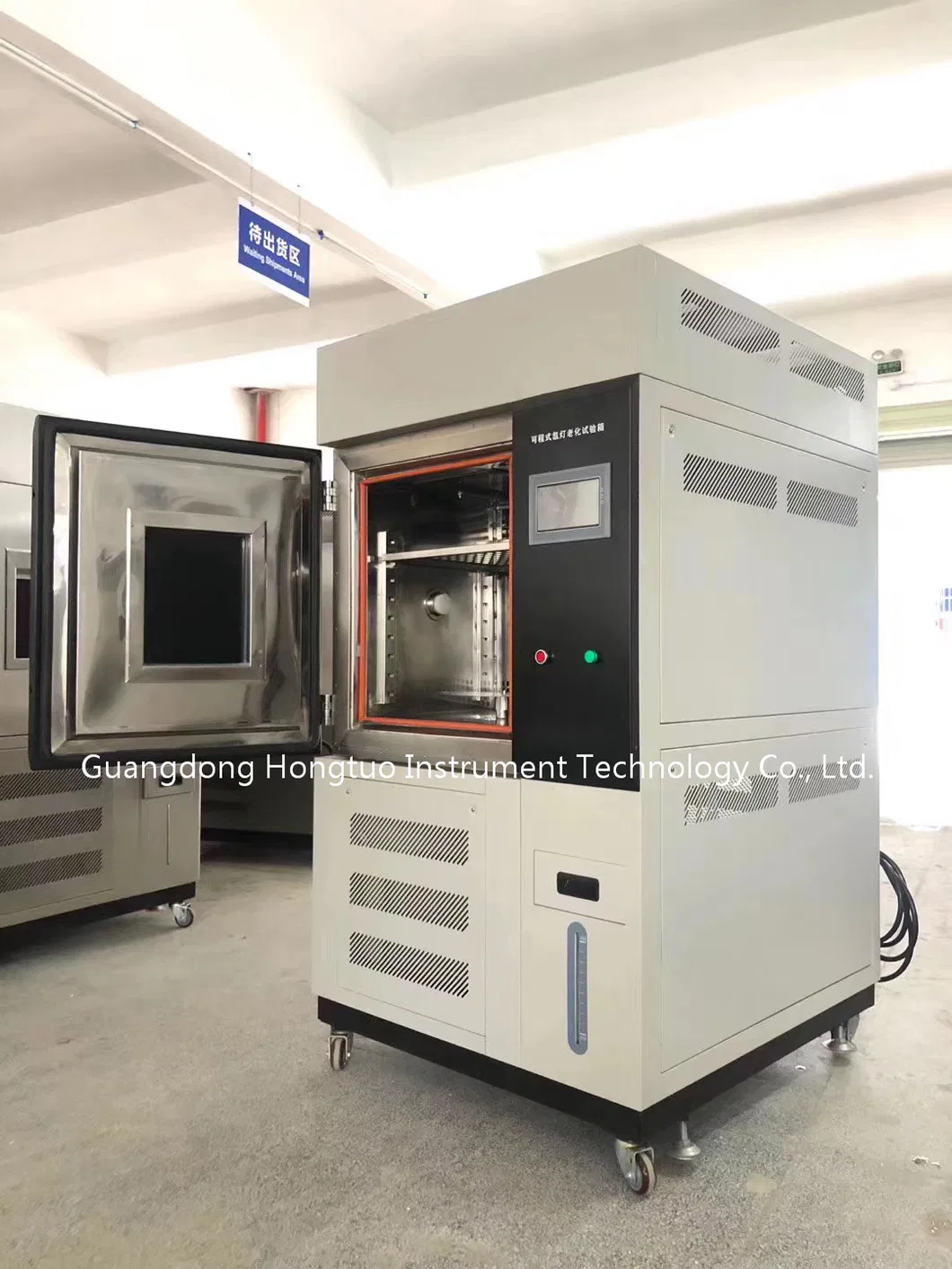

Detailed Images

Packaging & Shipping

Production Excellence

Certifications

Frequently Asked Questions

How does the xenon lamp simulate natural sunlight?

The equipment uses a long arc xenon lamp that reproduces the full spectrum of solar radiation, including UV, visible, and infrared light, providing the most accurate simulation of outdoor environmental conditions.

What is the expected lifespan of the xenon lamp?

The average service life of the air-cooled xenon lamp is approximately 1600 hours, depending on the radiation intensity levels used during testing.

Can the equipment handle rainfall and humidity simulations?

Yes, it features a programmable rainfall cycle (1-9999min) and a humidity control system (30%-98% R.H) to simulate wet weather and dew condensation.

Is the testing chamber easy to monitor?

Absolutely. The chamber includes a multi-layer hollow tempered glass inspection window, allowing operators to observe the specimens clearly without interrupting the testing cycle.

What materials are used in the construction of the chamber?

The interior is constructed from high-quality Stainless Steel SUS304#, ensuring durability and resistance to high temperatures and humidity during long-term testing.

How long does it take to see results compared to outdoor exposure?

The equipment can reproduce damage caused by months or years of outdoor exposure within just a few days or weeks by accelerating the aging process through controlled high-intensity radiation.
