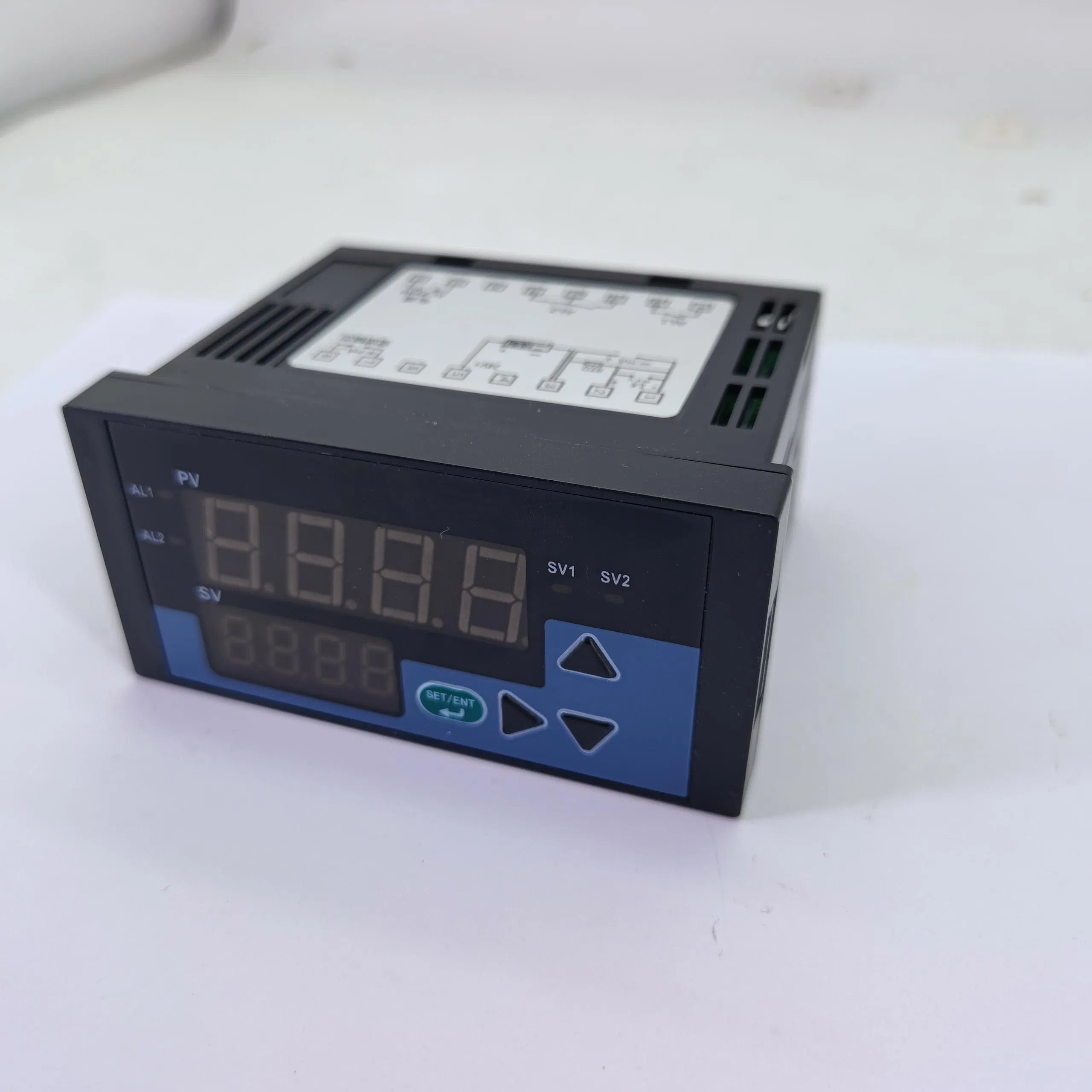

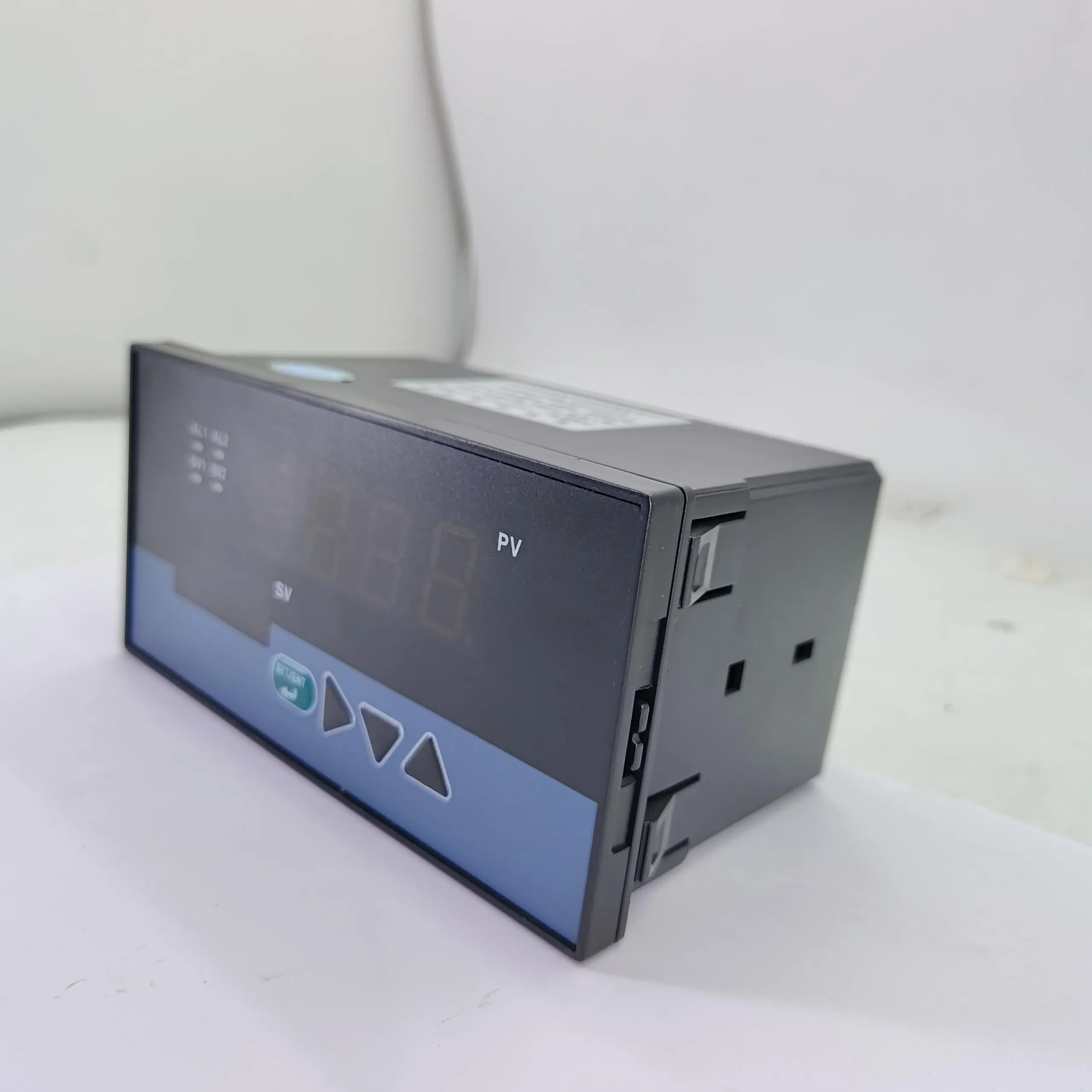

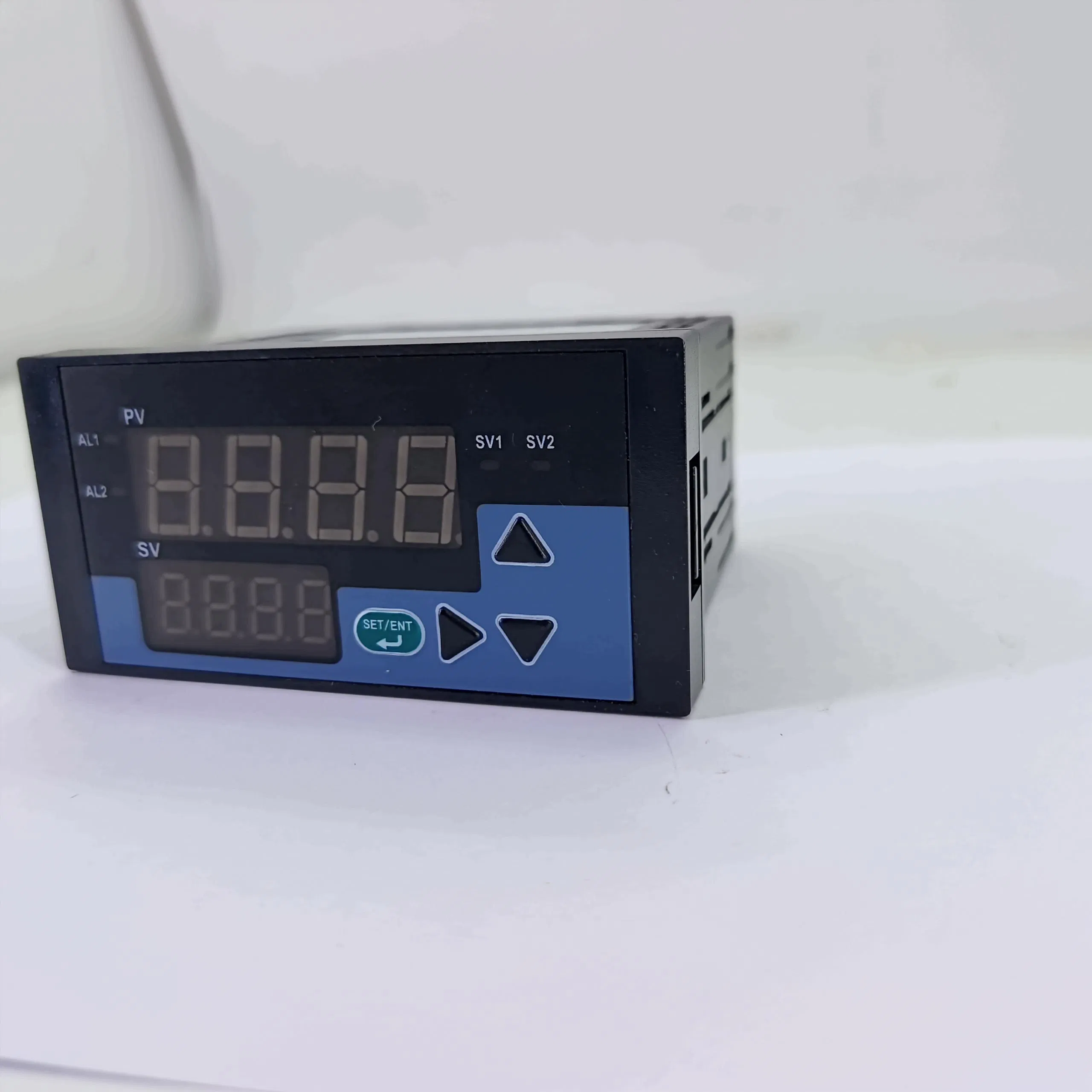

Advanced Dual Screen Temperature & Pressure Monitoring Logger

1 / 5

Advanced Dual Screen Temperature & Pressure Monitoring Logger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

CWP-C03

Measurement Speed

3 Times/Second

Measurement Accuracy

(25℃)0.5%Fs≤150ppm

Isolated RS485

64 Nodes Working

Working Environment

Temperature 0~50°C

Relative Humidity

≤85%Rh

Working Power

(5W) AC 220V, 50Hz

Isolated Transducer Output

(25°C) 0.5%Fs, Irl≤250Ω

Relay Contact Capacity

AC 220V/3A

Relay Contact Life

100,000 Times

Origin

China

HS Code

9026202000

📝

Product Description

Advanced Data Acquisition System

Compatible with 21 types of input signals including RTD, thermocouple, standard current, standard voltage, millivolt, and remote pressure gauge resistance, our Double Screen Data Acquisition for Temperature Pressure is designed for versatility.

Our sensor offers customizable zero display value, full point, and variable output ratio range, with a freely adjustable decimal point position for precise control.

Equipped with multi-stage digital filtering, it effectively filters out interference and eliminates non-critical jump words for clean and accurate readings.

Experience advanced features such as alarm triggers, control outputs, variable outputs, peak hold display, and peak variable output with our cutting-edge technology.

⚙️

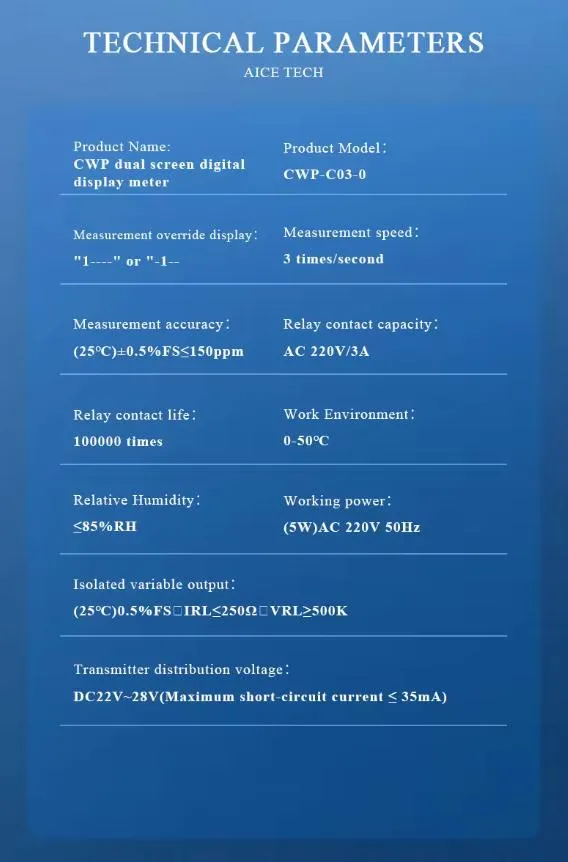

Technical Parameters

Input Resistance	Current ≤ 150Ω, Voltage ≥ 1MΩ, Electric Couple ≥ 1MΩ
Maximum Input Current	≤50mA
Resistance	Open circuit voltage is 2.5V, Excitation current is 0.25mA
Output Load Capacity	Current ≤250Ω, Voltage ≥250KΩ
Output Signal	AC220V/3A, DC24V/3A
Measurement Accuracy	0.5%FS ±1 byte
Setting Method	Panel touch key digital setting; password lock; permanent storage
Display Method	-1999~9999 measuring value display, LED status
Ambient Temperature	0~50ºC
Relative Humidity	≤85%RH
Operating Power	Default AC220V (50-60HZ); Customizable AC/DC 100-250V / DC24V
Communication Protocol	Standard MODBUS; RS485 up to 1 km; RS232 up to 15 meters
Structure	Standard snap-in type

🖼️

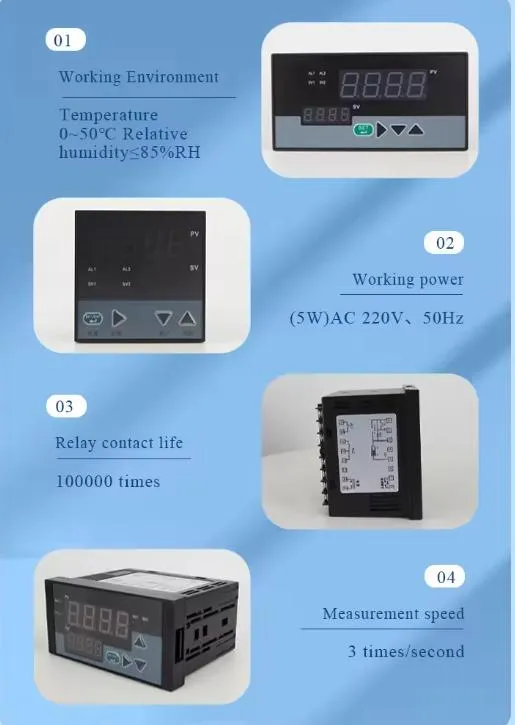

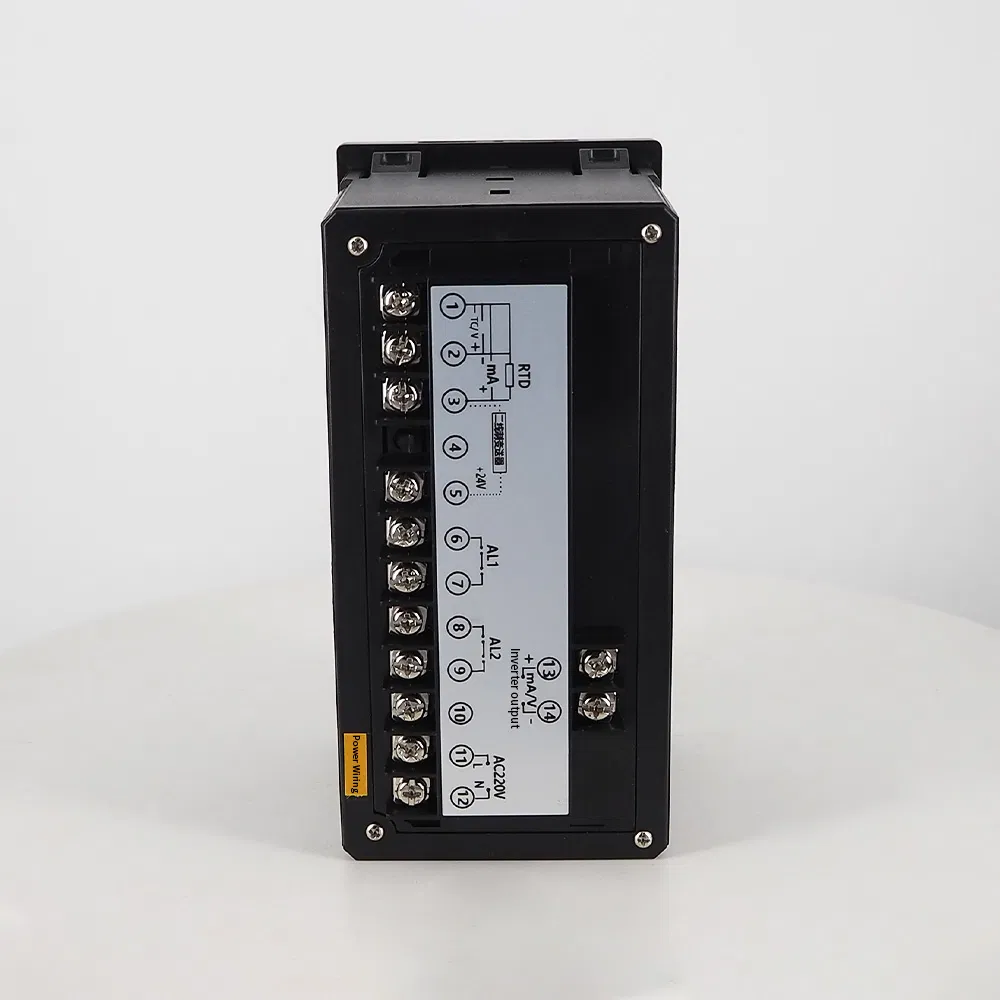

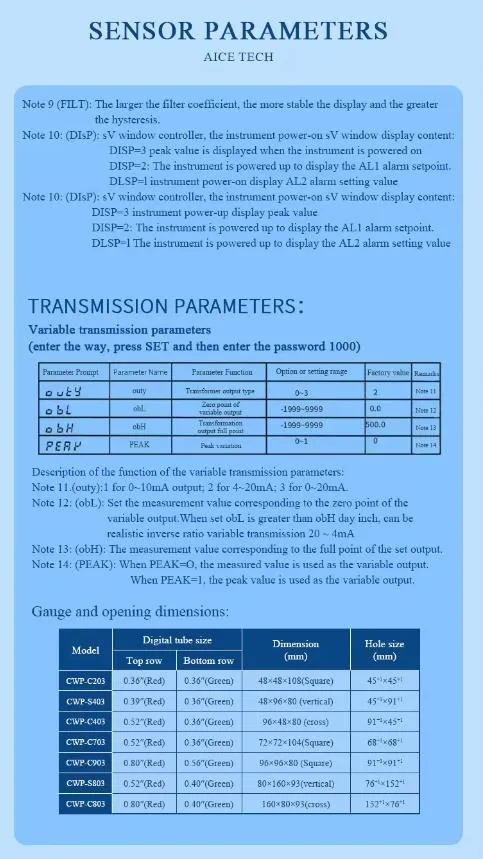

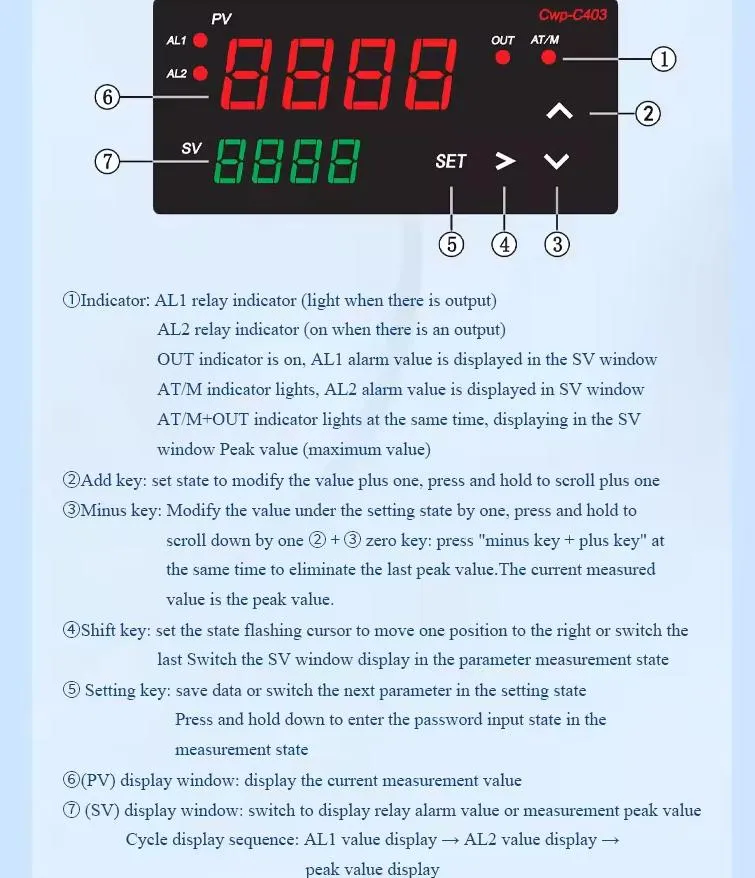

Detailed Photos

✨

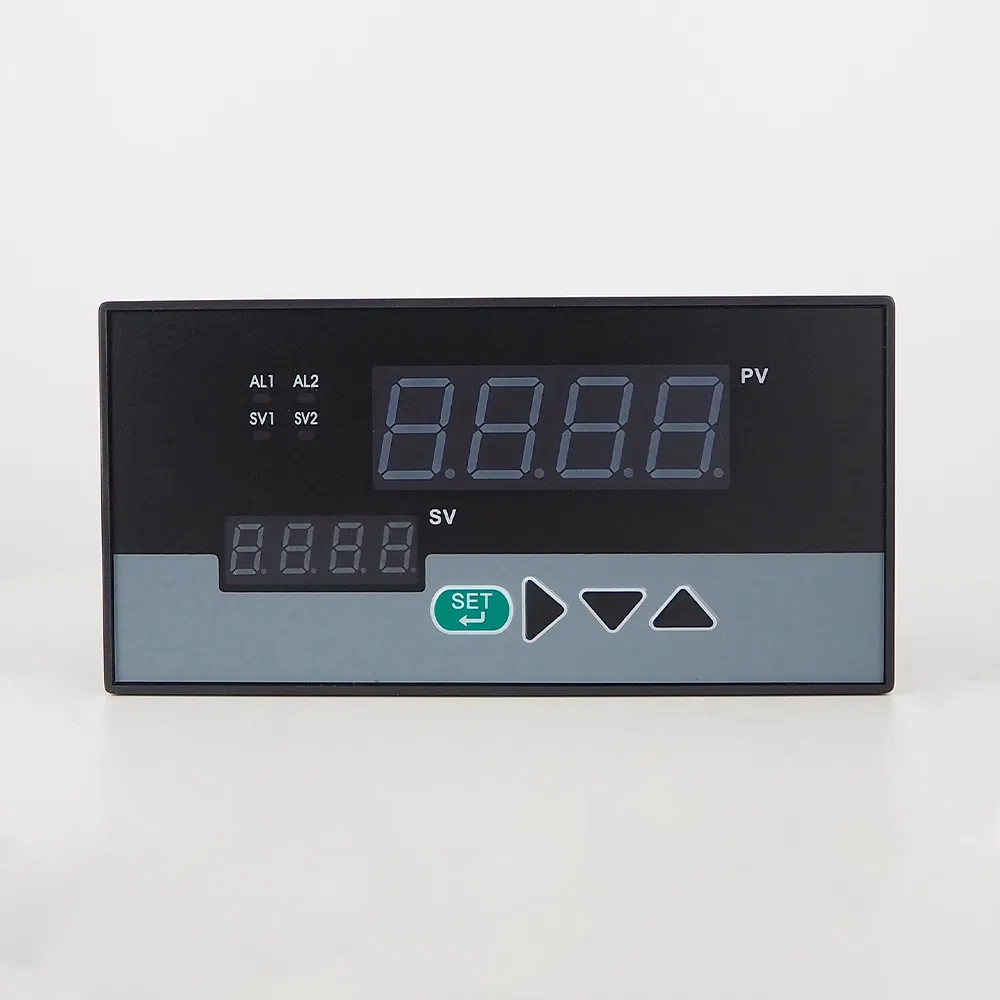

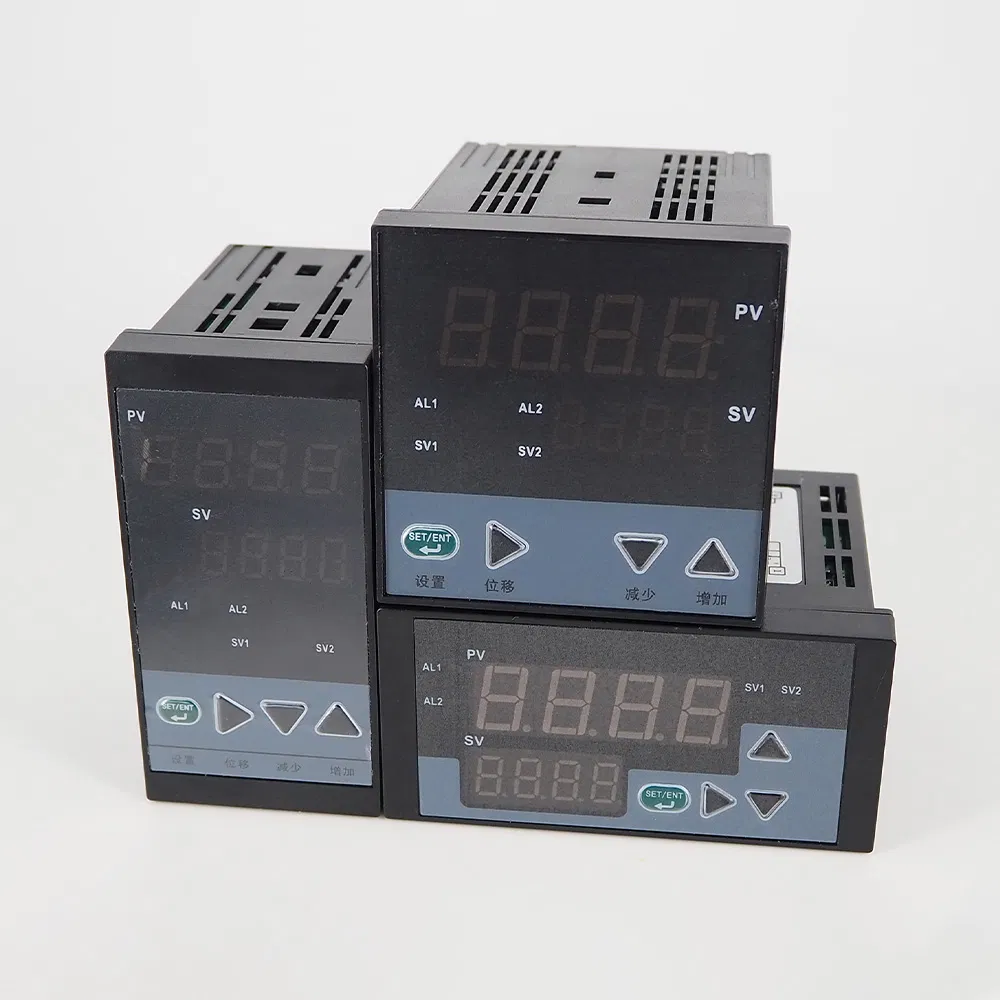

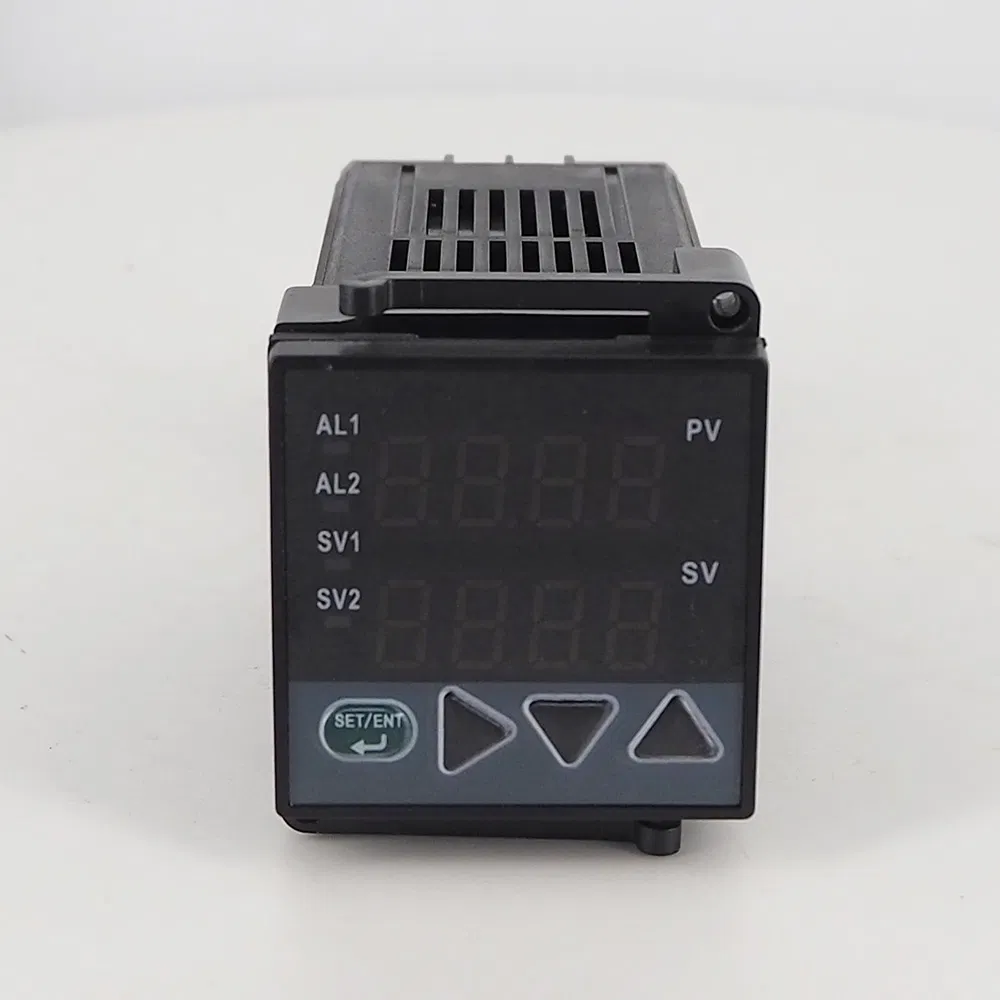

Product Display

📜

Certifications

❓

Frequently Asked Questions

What types of input signals does this device support?

The system is compatible with 21 different types of input signals, including RTD, thermocouples, standard current, standard voltage, millivolt, and remote pressure gauge resistance.

What is the measurement accuracy of the logger?

The instrument provides high precision with a measurement accuracy of 0.5%FS ±1 byte.

Does it support remote communication?

Yes, it supports standard MODBUS communication protocols. RS485 communication can reach up to 1 km, and RS232 can reach up to 15 meters.

Can I purchase specific accessories for the product?

Most accessories are available for purchase. However, some patented designs or specific intellectual property components may be restricted. Please consult our sales team for availability.

How does the digital filtering benefit the measurements?

The multi-stage digital filtering effectively removes external interference and eliminates non-critical "jump words," ensuring the display and outputs remain clean and stable.
