Equipped with image scanning, measurement, calculation, body mark, annotate, and medical records storage. Supports DICOM protocol for international standard medical imaging communication.
Connects easily to PACS (Picture Archiving and Communication System) as a terminal, facilitating hospital network management and remote diagnosis.
The display is highly adjustable—moving up, down, forward, backward, and turning left or right for optimal viewing comfort during examinations.
| Probe Type | Element | Radius (mm) | Frequency (MHz) |
|---|---|---|---|
| Convex Array Probe | 128 | R50 | 2.0 / 3.0 / 3.5 / 4.0 / 5.5 |
| Linear Array Probe | 128 | N/A | 6.0 / 6.5 / 7.5 / 10 / 12 |
| Trans-vaginal Probe | 128 | R10 | 5.0 / 6.0 / 6.5 / 7.5 / 9.0 |
| Phased Array Probe | 128 | R20 | 2.0 / 2.1 / 3.5 / 4.0 / 5.0 |
The system is versatile and can be used for abdominal, gynecological, vascular, urological, cardiac, and pediatric examinations, as well as small organ and surgical imaging.
Yes, it supports the DICOM protocol and can connect to PACS as a terminal, making it ideal for hospital network management and remote diagnosis.
The EW-C15 supports multiple modes including B, B/B, 4B, B/M, M, B+C (Color Doppler), B+D (PWD), B+C+D (Triplex), and PDI (Power Doppler Imaging).

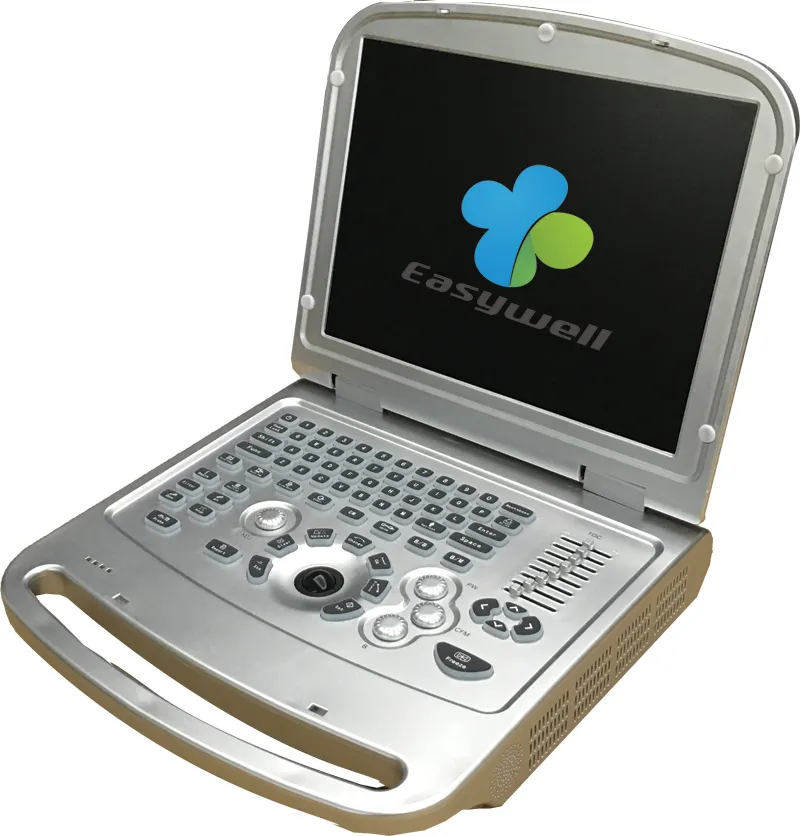

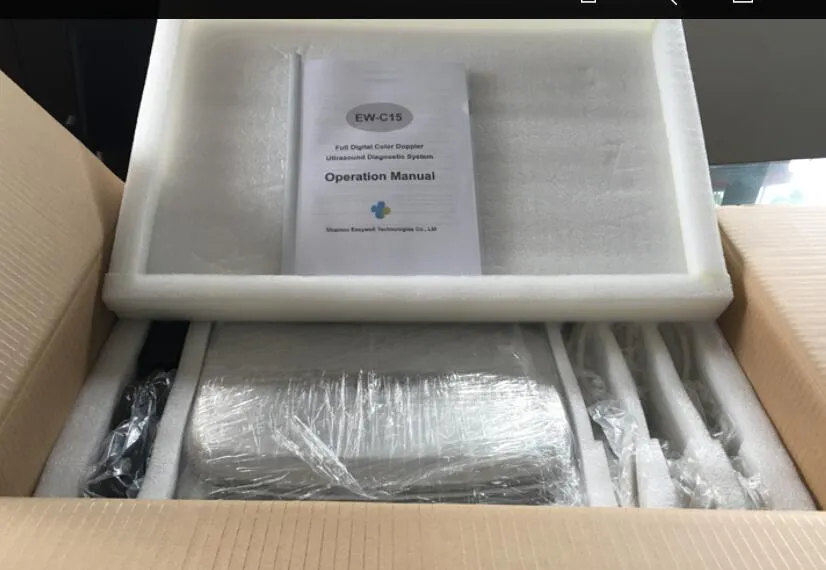

Yes, it is a laptop-style portable system that comes with an aluminum box for safe transport and is designed for easy operation in different clinical settings.
The system supports various optional probes including Convex, Linear, Trans-vaginal, Micro-Convex, and Phased Array probes to suit different diagnostic needs.
The system operates on AC 220V and supports continuous working hours of 8 hours or more, ensuring reliability during busy shifts.
