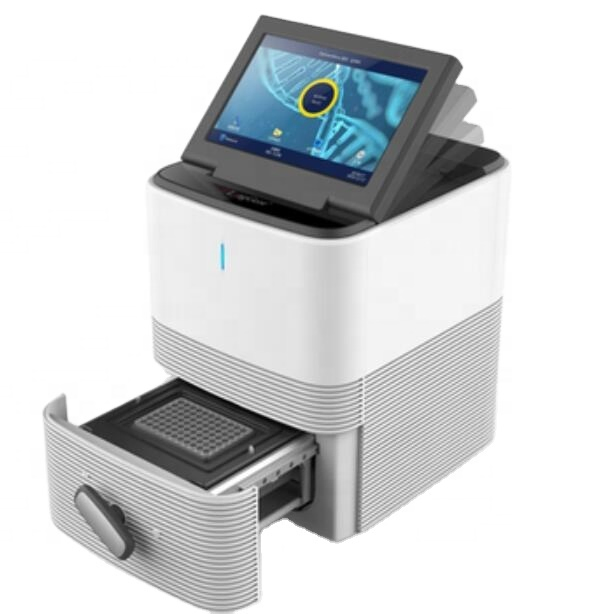

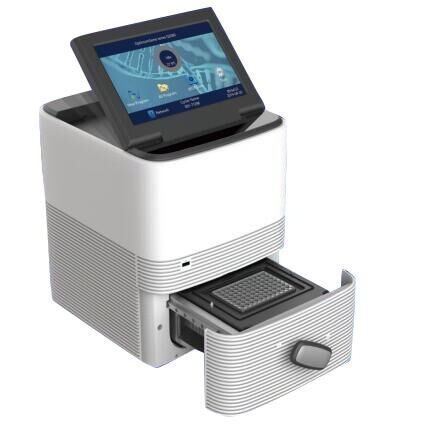

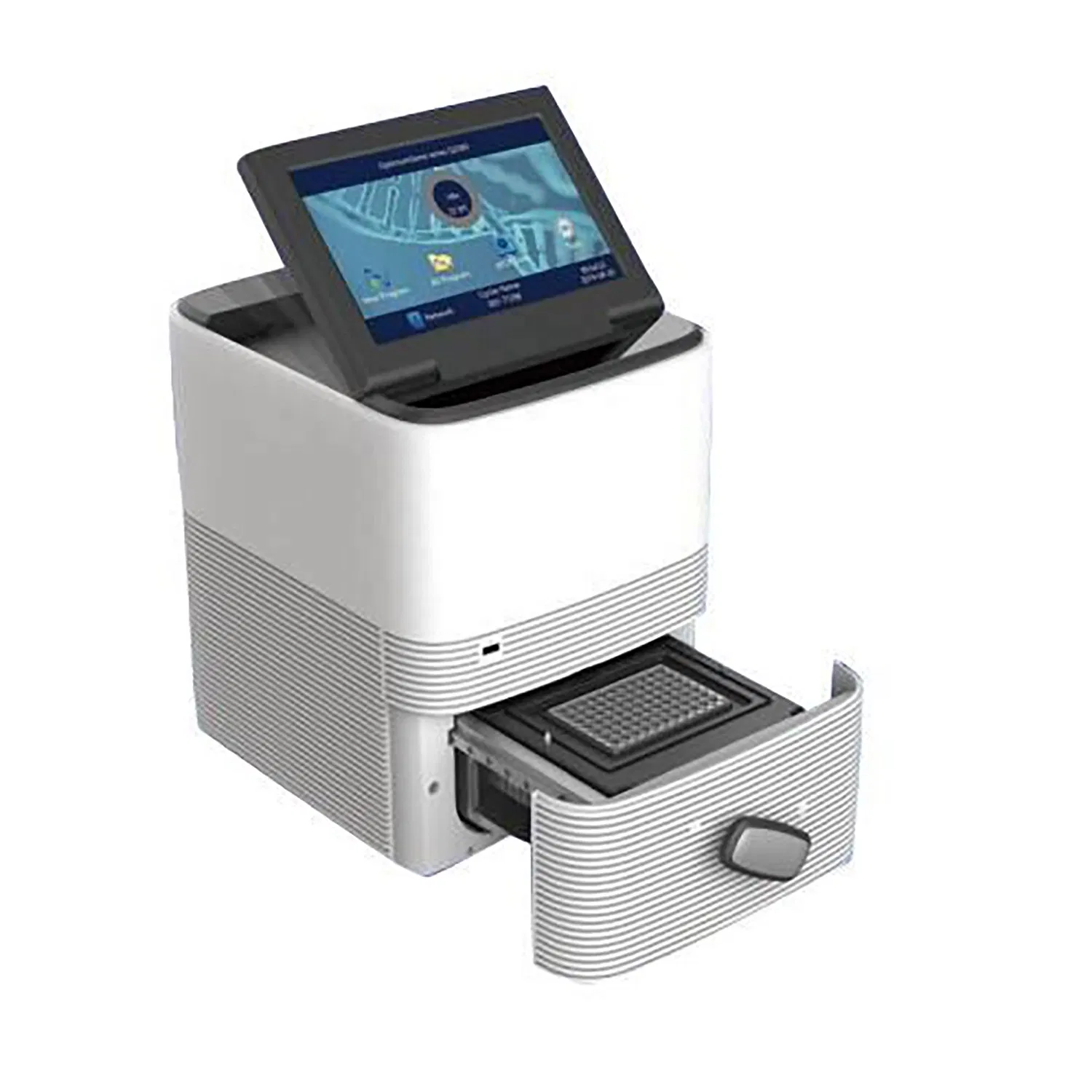

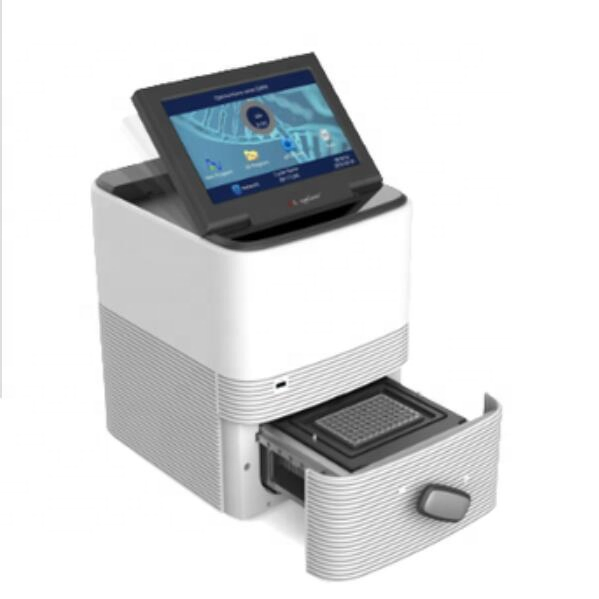

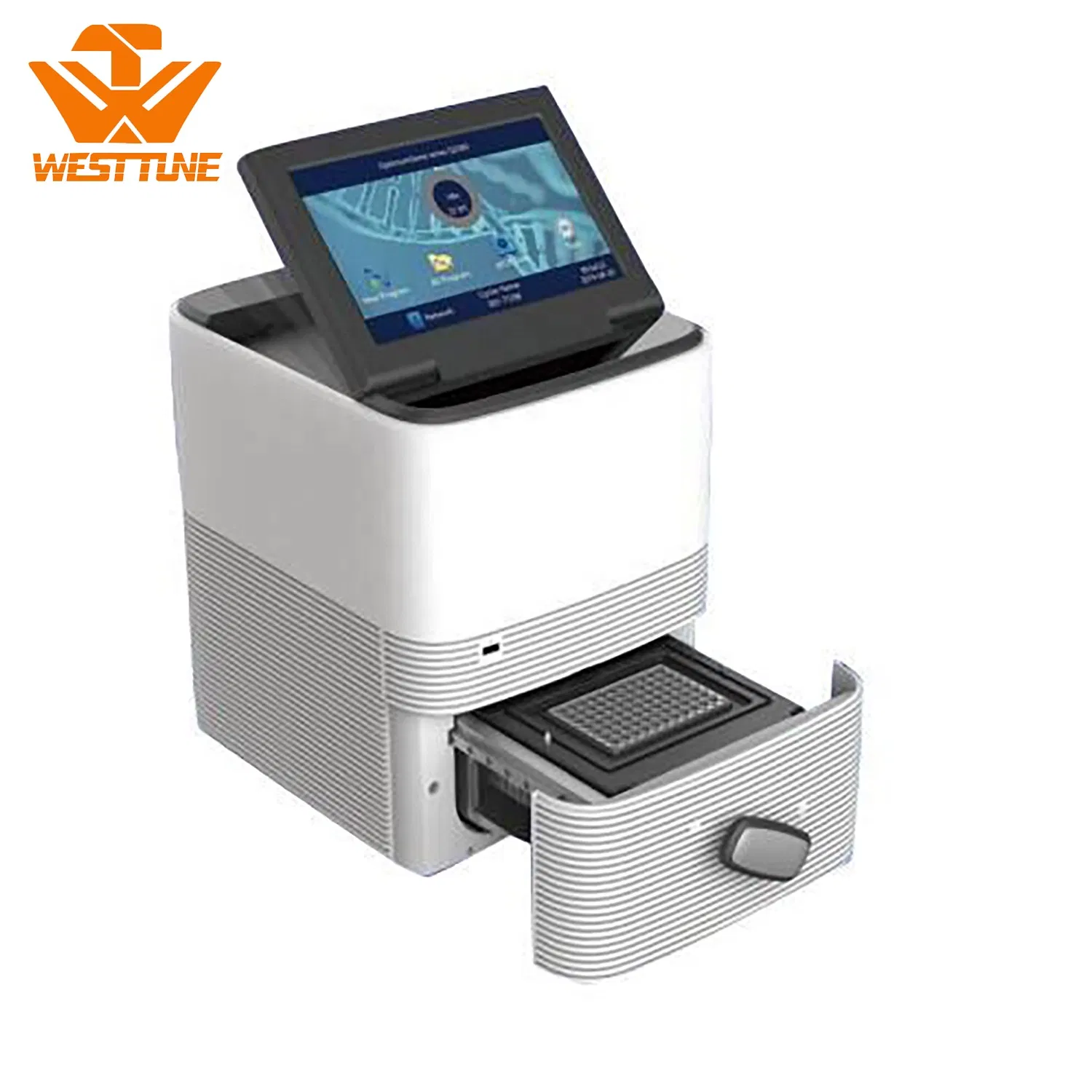

Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
1 / 5
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System
Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System

Factory Price 96 Wells Peltier Thermal Cycler Real Time PCR System

Customization: Available
Type: Blood Analysis System
After-Sale Service: Online Technical Support
Send Inquiry

Product Description

📊 Overview
Model NO. Q-2000C
Reaction Volume 10-50UL
Gradient Range 30℃-100℃
Warranty 1 Year
Heating&Cooling Peltier Technology
Sample Block 96wells*0.1ml
📝 Products Description
Powerful Peltier Technology
T-optical Technology
Articulating Display Screen
Synchronous Detection
Self-contained Touch Screen
Patented Optical Design
Long Life LED Excitation
Gradient Function Control
User-friendly Drawer Design
Lifetime Free Software Upgrades
🖼️ Details Images

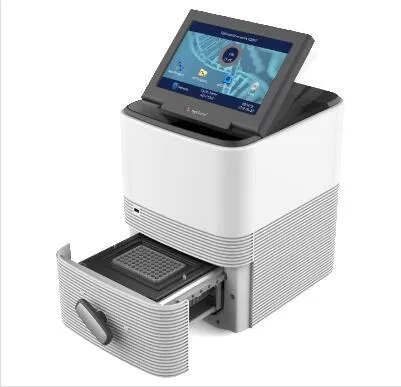

Peltier Thermal Cycler 1

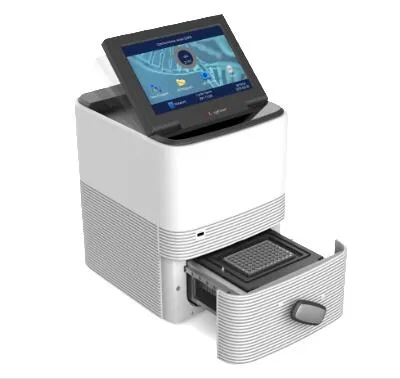

Peltier Thermal Cycler 2
💡 Key Features
Leading Peltier elements ensure long life of 1,000,000 thermal cycles and fast ramping rate up to 6℃/S.
T-optical™ technology reduces background noise and improves fluorescence signal sensitivity.
Adjustable display angle for the best viewing position during operation.
Simultaneous detection of wells avoids time delays inherent in sequential scanning.
Built-in 10" TFT LCD and touch screen for standalone protocol management.
Innovative SSLP™ CCD imaging technology avoids problems with moving parts and fiber breakage.
Long-life LED lamps for fluorescence excitation; no replacement required.
Temperature gradient function facilitates easy optimization of PCR conditions.
📋 Technical Specifications
System Performance
Model Q 2000C
Sample Block Capacity 96 wells * 0.1ml
Reaction Volume 10-50ul
Display 10" Color TFT LCD and Touch Screen
Communications USB 2.0 or LAN
Temperature Control
Block Temp. Range 0 ~ 105ºC
Max. Heating Rate 6ºC/sec
Max. Cooling Rate 5ºC/sec
Temp. Accuracy/Uniformity ≤±0.2ºC (at 90ºC)
Gradient Range 30ºC - 100ºC
Fluorescence Detection
Excitation Source Long life LED lamps
Detector CCDs
Detection Range 500 - 800nm
Calibrated Dyes F1: FAM, SYBR Green; F2: VIC, HEX, JOE, CY3; F3: ROX; F4: CY5; F5: CY5.5
🏭 Facilities & Gallery
Facility 1
Facility 2

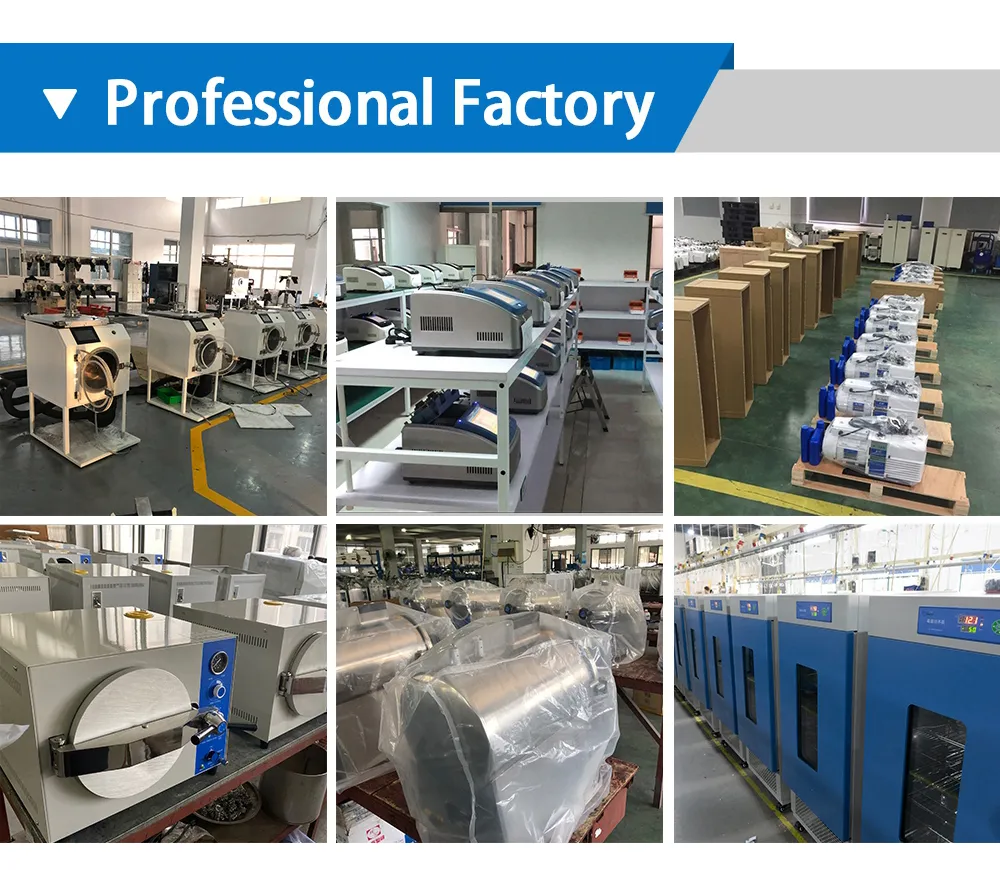

Facility 3
Facility 4

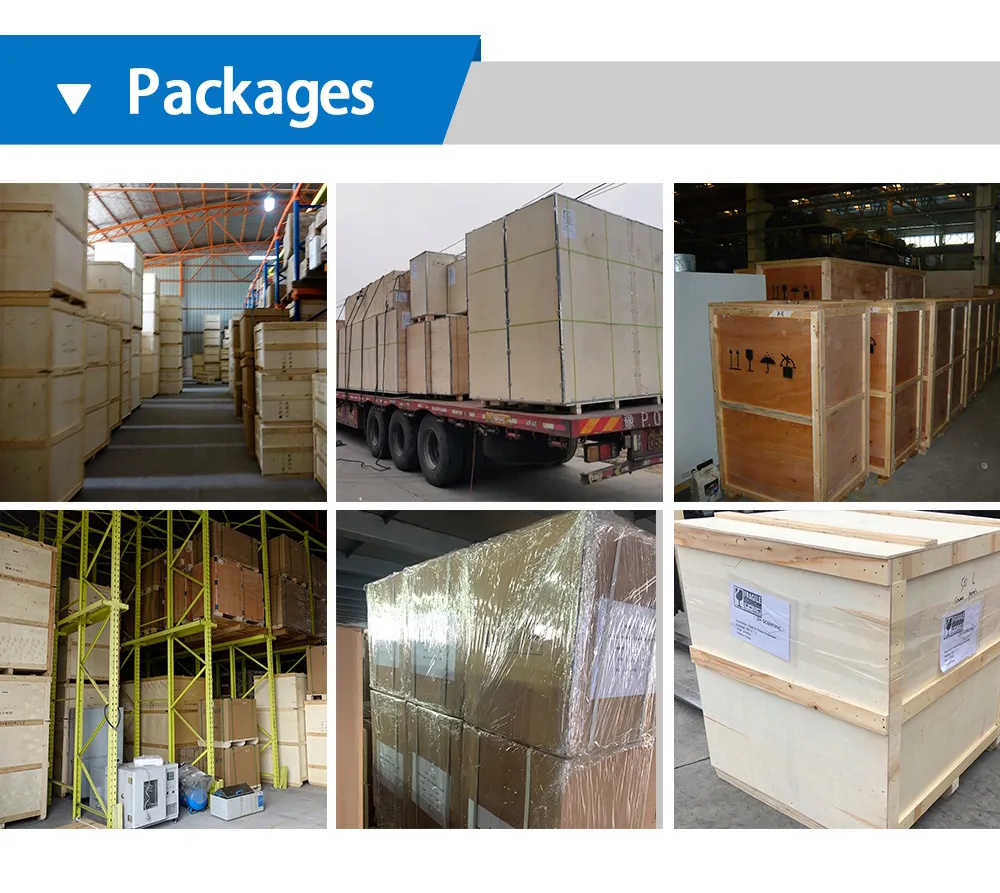

Facility 5
Facility 6
❓ Frequently Asked Questions
What is the sample block capacity for the Q-2000C?
The system features a sample block capacity of 96 wells, compatible with 0.1ml PCR tubes, strips, or plates.
What cooling and heating technology does the instrument use?
It utilizes Peltier technology, which is designed to withstand up to 1,000,000 thermal cycles for long-term reliability.
How many fluorescence channels are available for detection?
The system supports multiple channels calibrated for dyes including FAM, SYBR Green, VIC, HEX, ROX, CY5, and CY5.5.
Can the instrument be operated without an external computer?
Yes, the instrument features a self-contained 10-inch TFT LCD touch screen for standalone protocol operation and monitoring.
What are the maximum heating and cooling rates?
The system achieves a maximum heating rate of 6ºC/sec and a maximum cooling rate of 5ºC/sec, ensuring rapid thermal cycling.
Which operating systems are compatible with the analysis software?
The software is compatible with Windows 10, Windows 7, and Windows XP operating systems.
