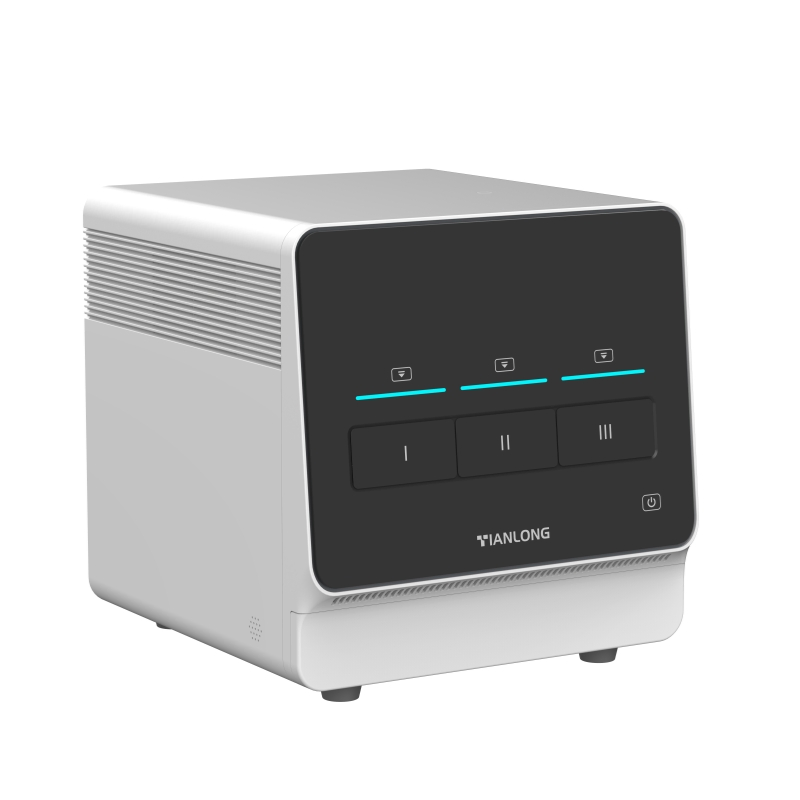

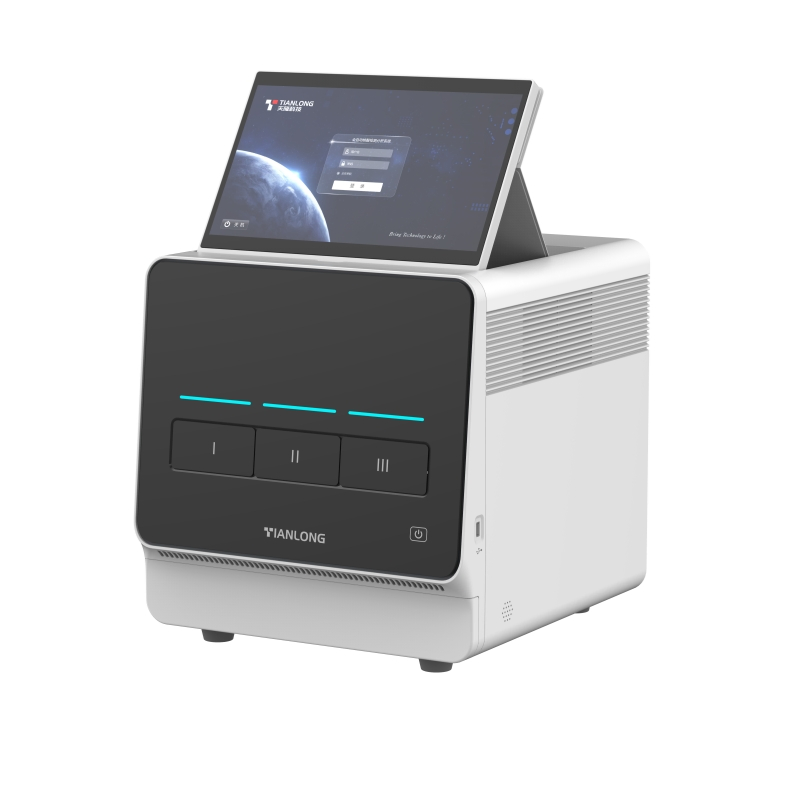

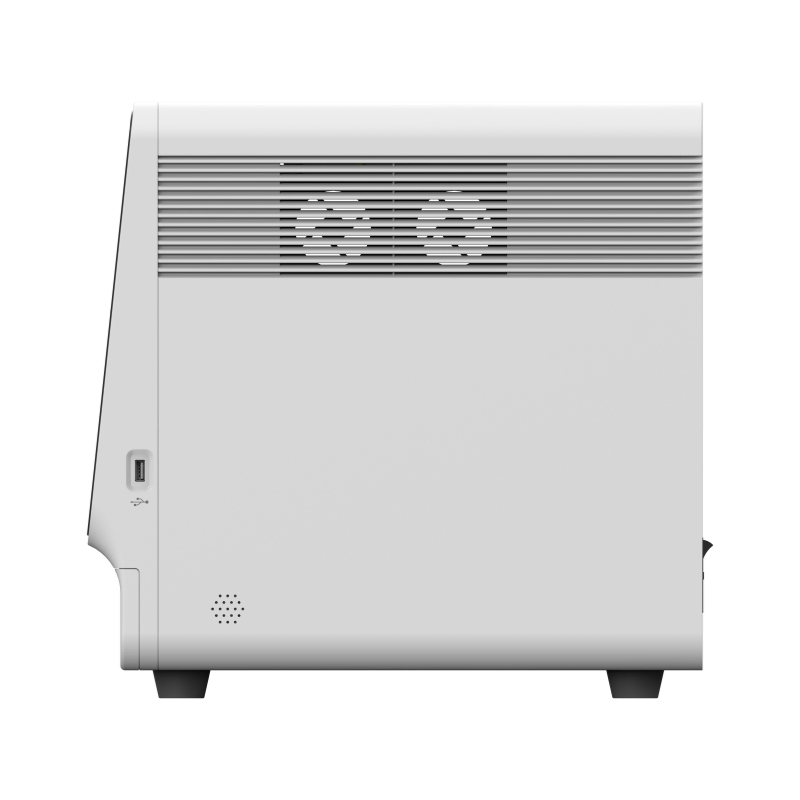

Gentier X3R Touch Screen 4 Fluorescence Channels Real-time PCR systems For PCR Lab Rt-PCR

1 / 5

Gentier X3R Touch Screen 4 Fluorescence Channels Real-time PCR systems For PCR Lab Rt-PCR

Customization:	Available
After-sales Service:	Online Support, Free Spare
Sample Type:	Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Gentier X3R

Processing Method

Mix

Warranty

2 Years

Environment

Laboratory

Display

Digital Display

Performance

Automatic

Power Supply

220V

Certification

Weight

34kg

Fluorescence Channels

4-6

Throughput

32x3

Specification

380mm(L) × 410mm (W) × 395mm (H)

Product Description

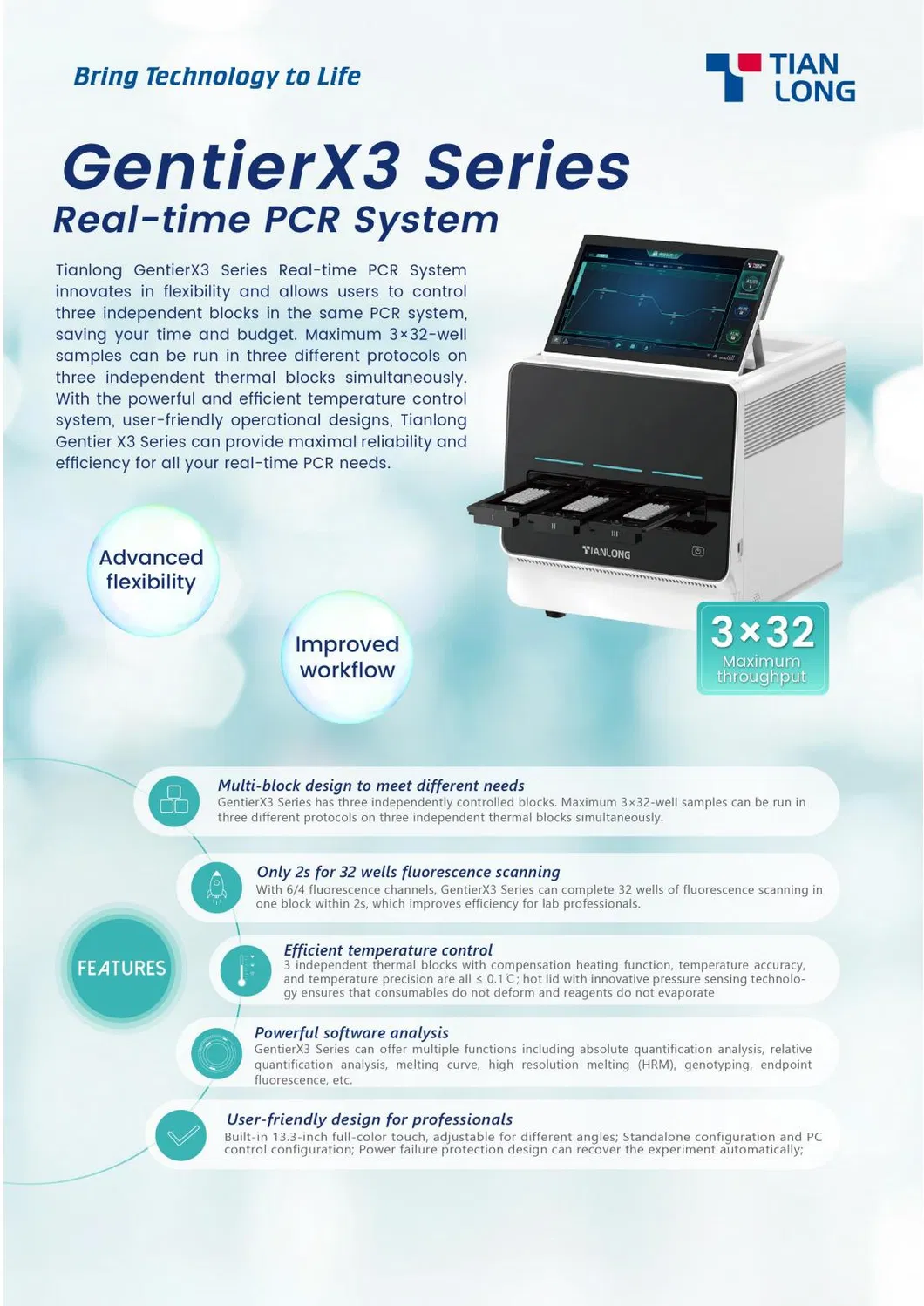

GentierX3 Series Real-time PCR System innovates in flexibility and allows users to control three independent blocks in the same PCR system, saving your time and budget. Maximum 3×32-well samples can be run in three different protocols on three independent thermal blocks simultaneously. With the powerful and efficient temperature control system, user-friendly operational designs, this series can provide maximal reliability and efficiency for all your real-time PCR needs.

Advanced flexibility Improved workflow Maximum 3×32 throughput

Key Features

Multi-block Design

Three independently controlled blocks. Run 3×32-well samples in three different protocols simultaneously.

Rapid Scanning

Complete 32 wells of fluorescence scanning in one block within only 2 seconds via 6/4 channels.

Efficient Temperature Control

3 independent thermal blocks with compensation heating; accuracy and precision are ≤ 0.1ºC.

Powerful Software

Offers absolute/relative quantification, melting curve, HRM, genotyping, and endpoint fluorescence.

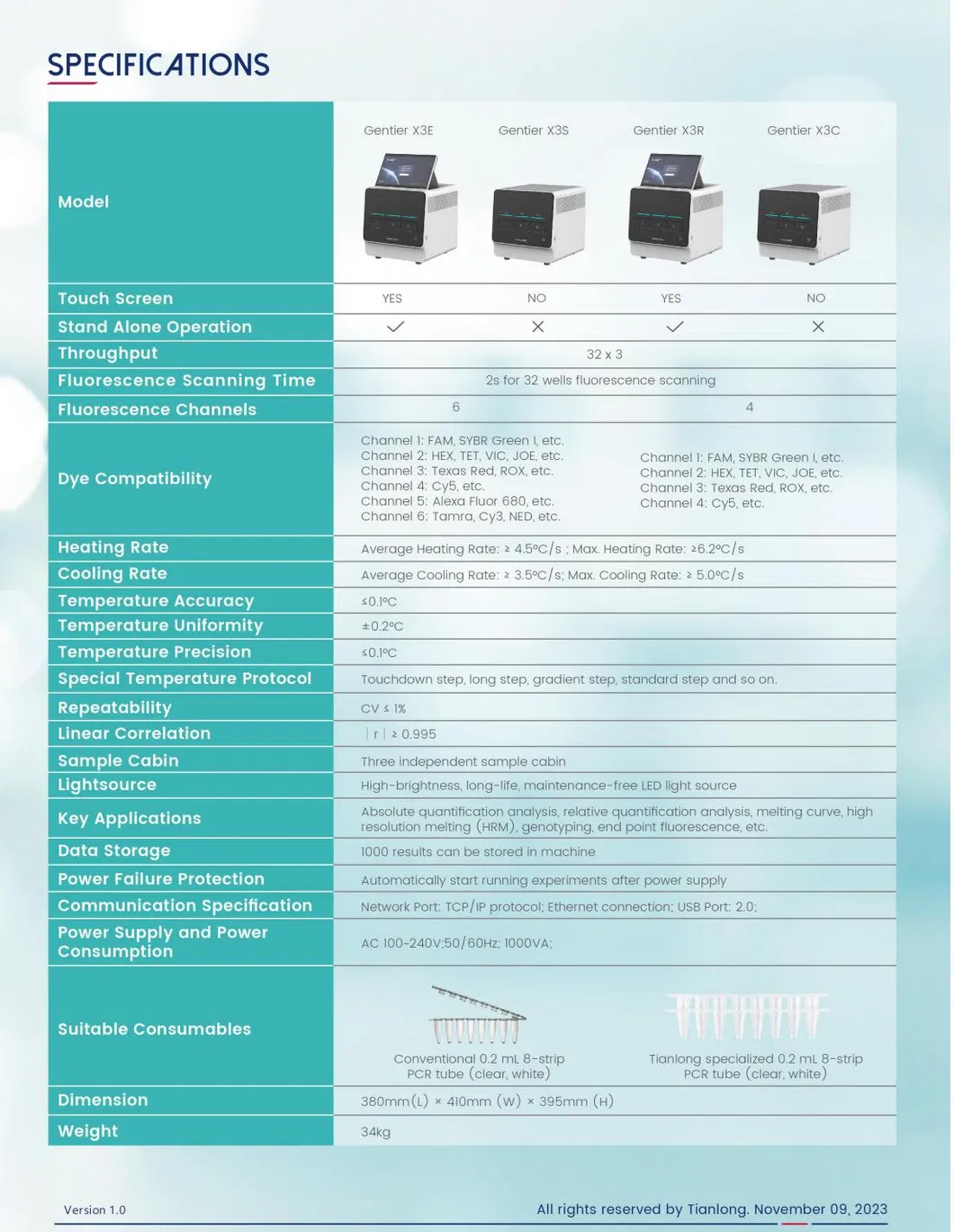

Technical Parameters

Model	Gentier X3E	Gentier X3S	Gentier X3R	Gentier X3C
Touch Screen	YES	NO	YES	NO
Stand Alone Operation	√	×	√	×
Throughput	32 х 3
Scanning Time	2s for 32 wells fluorescence scanning
Fluorescence Channels	6		4
Heating Rate	Avg: ≥ 4.5°C/s ; Max: ≥6.2°C/s
Temperature Accuracy	≤0.1ºC
Sample Cabin	Three independent sample cabins
Data Storage	1000 results stored in machine
Dimensions	380mm(L) × 410mm (W) × 395mm (H)

Application Areas

Third-party Testing Laboratory
Research Institute
Hospital & CDC
Customs & Food Factory
Blood Station
Animal CDC

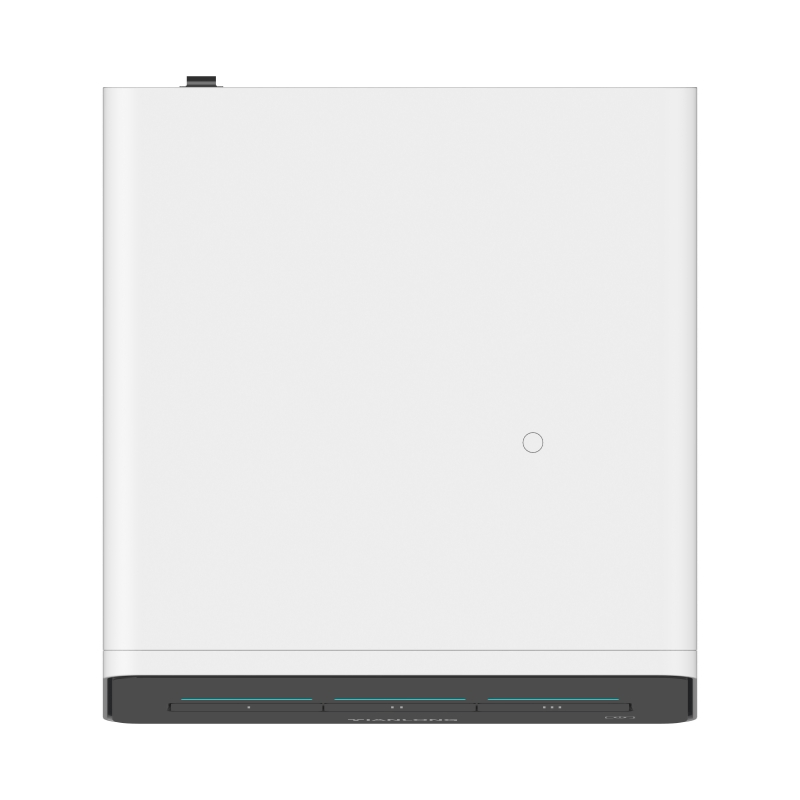

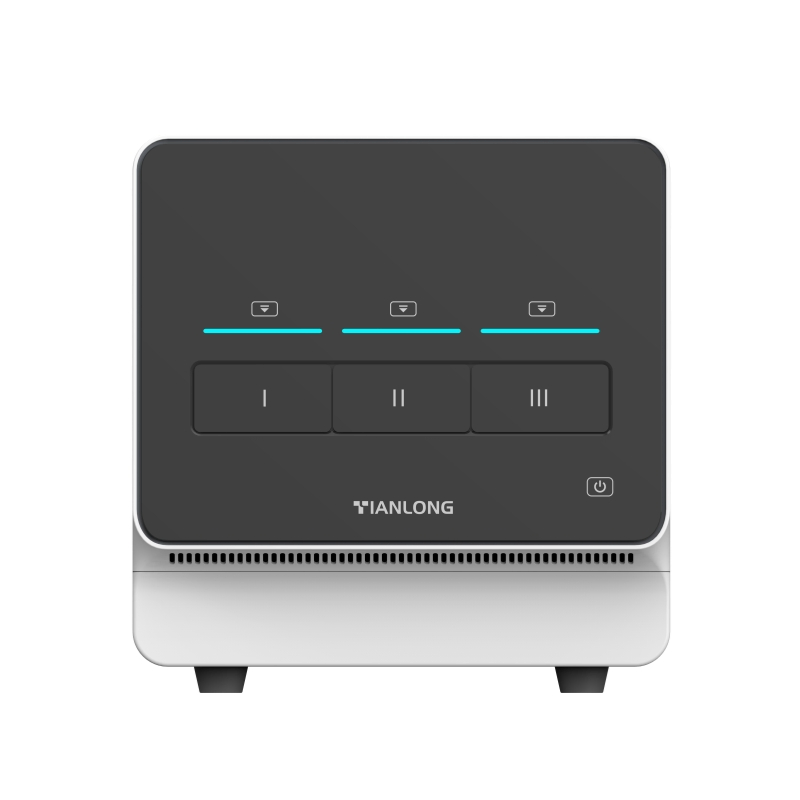

Product Visualization

Frequently Asked Questions

What makes the GentierX3 Series unique?

The system features a multi-block design with three independently controlled thermal blocks, allowing three different protocols to run simultaneously, which significantly improves lab throughput.

How fast is the fluorescence scanning process?

The system is highly efficient, completing a 32-well fluorescence scan in a single block within just 2 seconds.

What is the temperature control accuracy?

The system offers high-precision temperature control with accuracy and precision both maintained at ≤ 0.1ºC.

Does the system support data protection during power failure?

Yes, it includes a power failure protection design that allows the experiment to recover and resume automatically once power is restored.

What types of analysis can the software perform?

The powerful software supports absolute and relative quantification, melting curve analysis, high-resolution melting (HRM), genotyping, and endpoint fluorescence detection.

What consumables are compatible with this system?

It is compatible with conventional 0.2 mL 8-strip PCR tubes (both clear and white variants).
