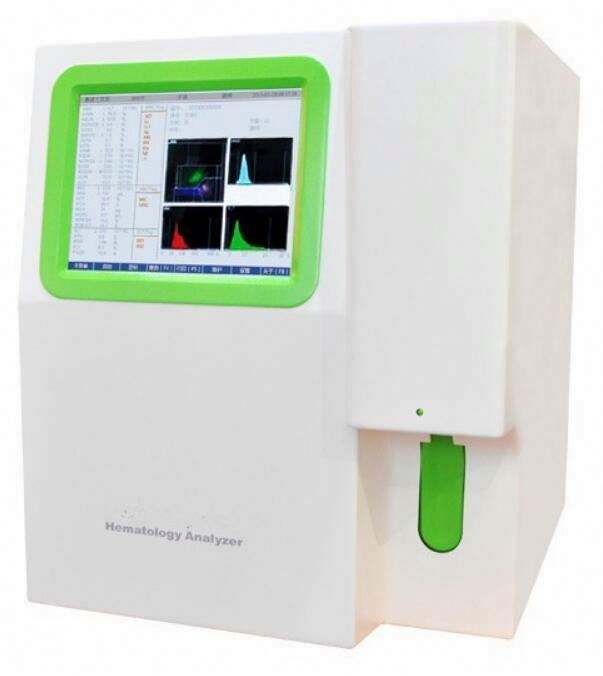

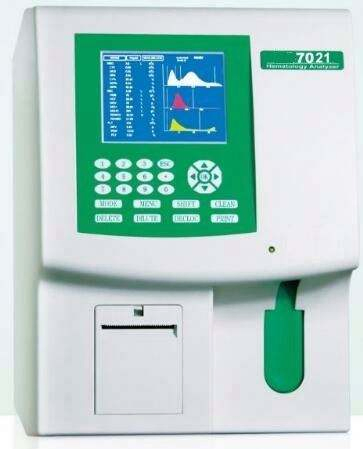

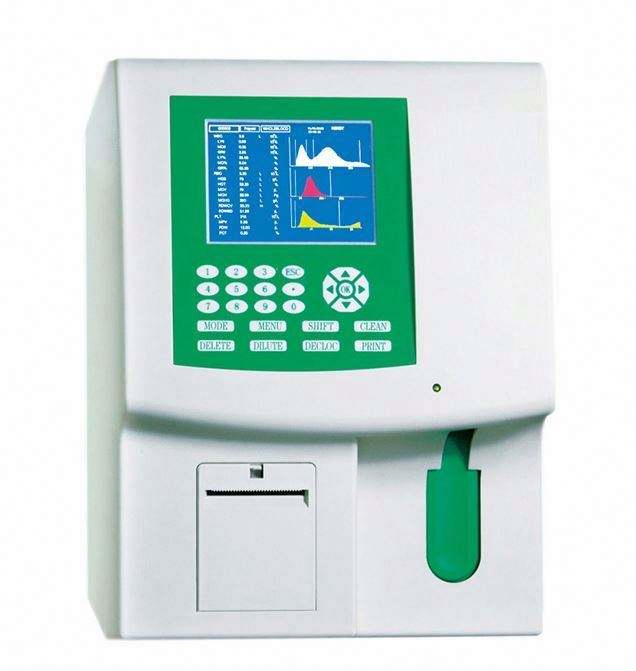

Clinical Analytical Instruments Haematology Analyzer Open System Price for Sale

Customization: Available
Classification: Biological Diagnostics
Type: Blood Analysis System

Product Description

📊 Overview & Basic Info

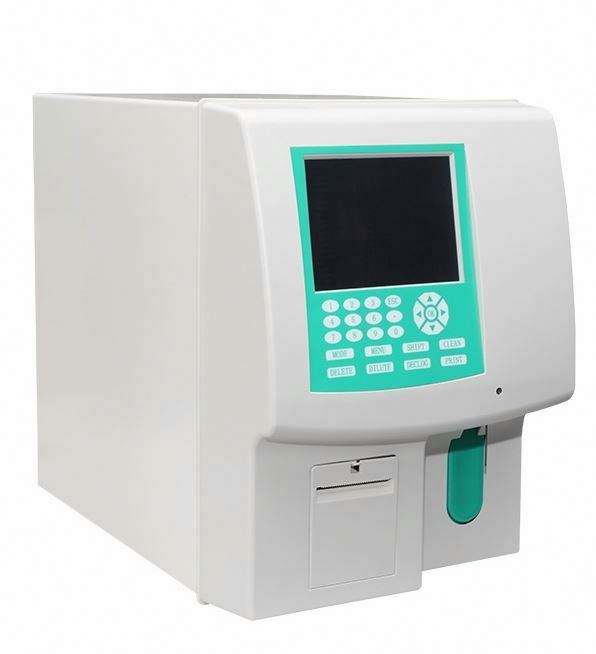

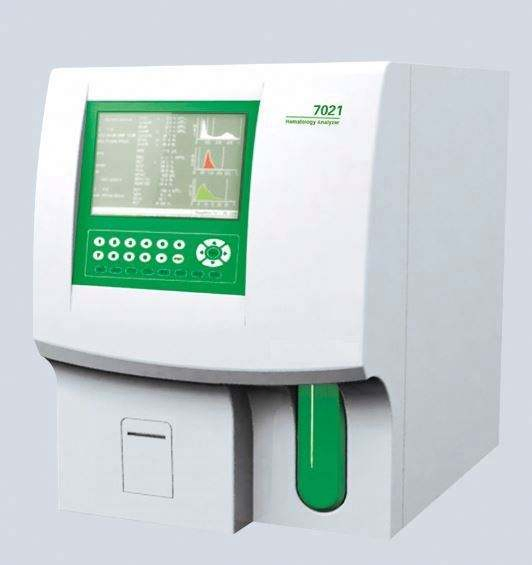

Haematology Analyzer Main View
Model NO.
AM-7021
Certification
CE, ISO13485
Warranty
24 Months
Throughput
60 Tests/Hr
Parameters
22 Parameters, 3 Parts Differential of WBC
Sample Volume
10ul Whole Blood, 20ul Prediluted
Classification
Class II
Design
OEM & ODM
Automatic
Fully Automatic
Storage
200,000 Results with Histograms
⚙️ Product Description

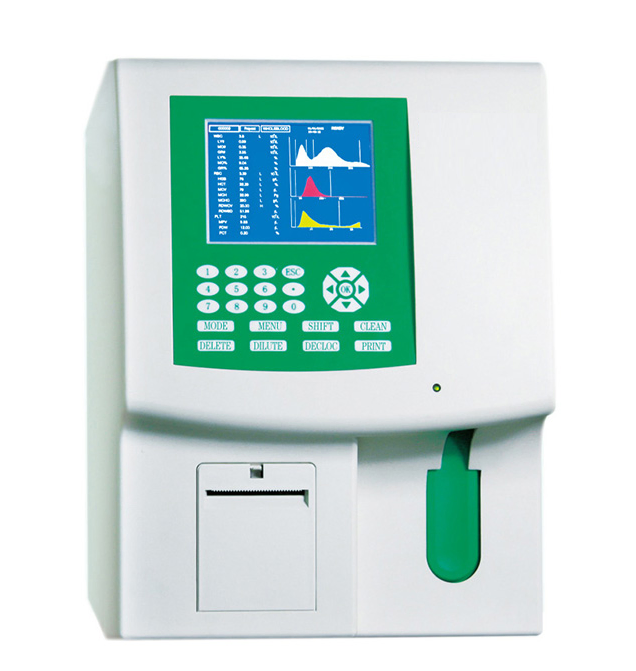

Clinical Analytical Instruments

General Features:

10.7'' Display: High-resolution screen for clear data visualization and easy operation.
Carry-over Protection: Automatic probe interior and exterior washing system.
Dual Test Modes: Supports both whole blood and prediluted blood modes.
Intelligent System: Automatic self-checking, warning, and standby functions.
Eco-Friendly: Safe reagents designed to minimize environmental impact.
Comprehensive Analysis: 22 parameters and 3-part differential of WBC.

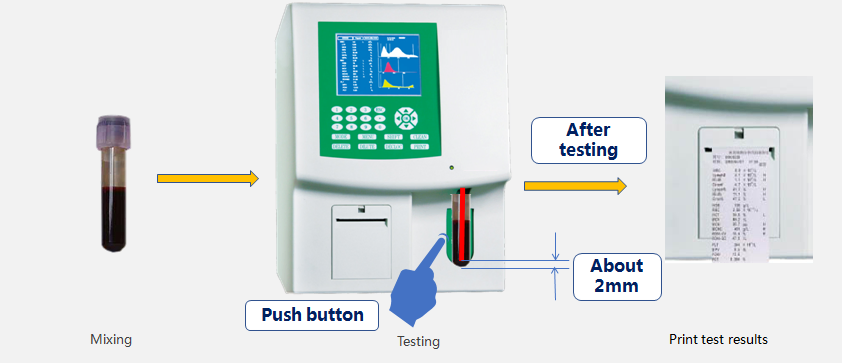

Interface Details
📋 Technical Specifications
Throughput60 tests/HR
Sample Volume13ul (whole blood), 20ul (prediluted blood)
Measuring PrincipleElectro-impedance, photometric analysis
Linearity RangeWBC: 0.0-99.9 (X 10^9/L), RBC: 0.0-9.99 (X 10^12/L)
HGB: 0.0-300 (g/L), PLT: 0-999 (X 10^9/L)
Accuracy (CV%)WBC≤2.0%, RBC≤1.5%, PLT≤5.0%, HGB≤1.5%, HCT≤2.0%, MCV≤1.0%
Output InterfaceOne RS232, one PS/2 and two USB. Available for LIS
PrinterBuilt-in thermal printer (USB external printer optional)
QC ManagementAutomatically calculates X, SD, CV% and saves data

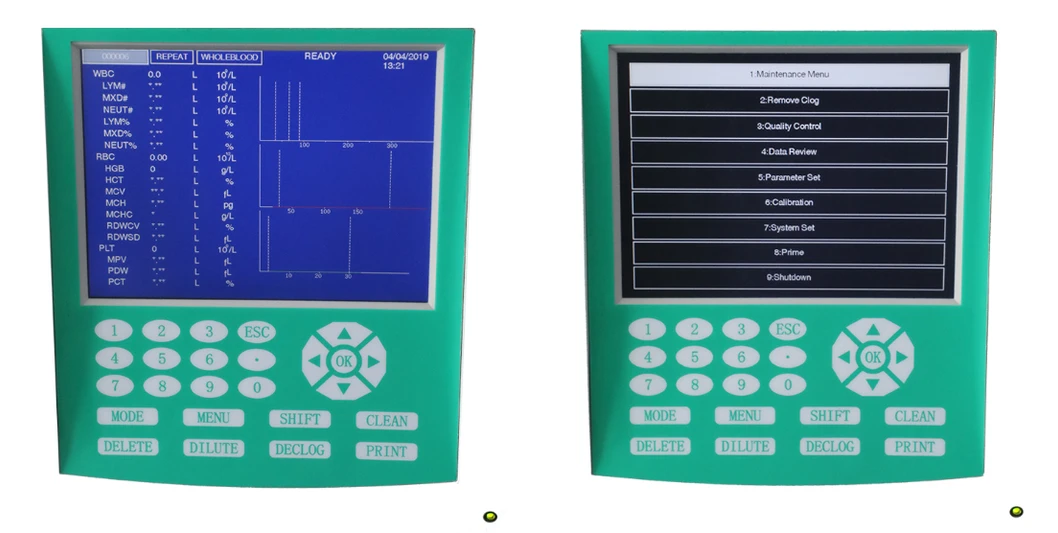

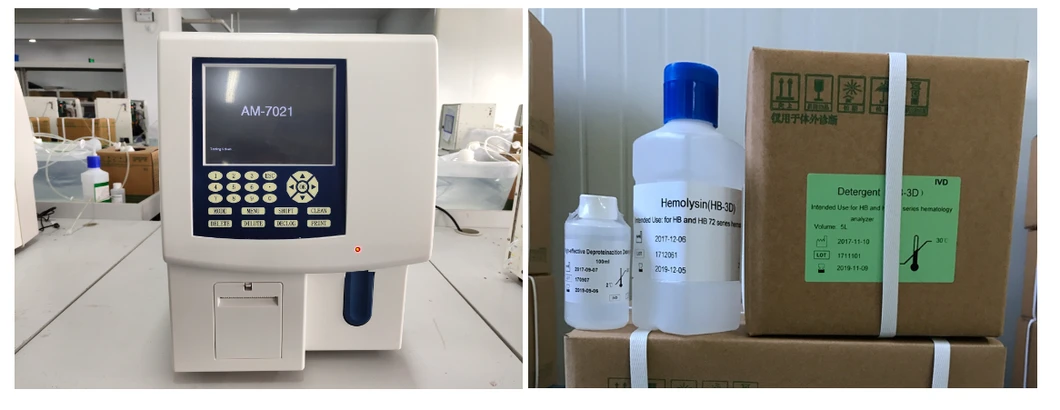

Analyzer Angle View Component Detail
📦 Packaging & Reviews
Wooden Case Packaging

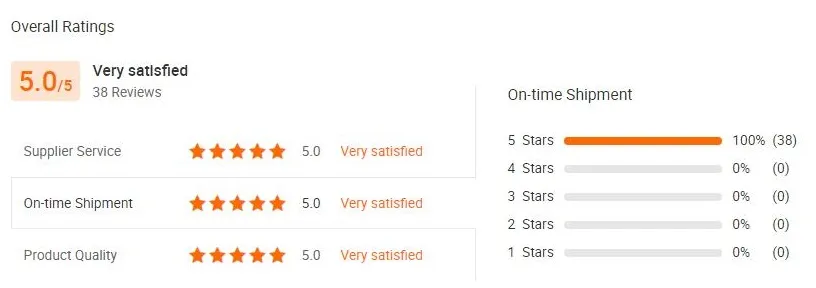

Customer Feedback 1 Customer Feedback 2
📜 Product Certification
CE ISO Certifications
❓ Frequently Asked Questions
What is the testing speed of the AM-7021?
The device offers a high throughput of 60 tests per hour, making it efficient for clinical laboratory use.
How many blood parameters can it measure?
It provides analysis for 22 parameters, including a 3-part differential of WBC (White Blood Cells).
What is the required sample volume for a test?
The system is highly efficient, requiring only 10μl for whole blood samples and 20μl for prediluted blood samples.
Does the analyzer include a built-in printer?
Yes, it features a built-in thermal printer. Additionally, it has USB ports to support external printers if required.
How many results can be stored in the memory?
The analyzer has a large internal storage capacity for up to 200,000 results, including full histograms.
What are the power and battery capabilities?
The system uses a large-capacity rechargeable lithium-ion battery (18650 cells), capable of 4-8 hours of continuous work with built-in power protection.
