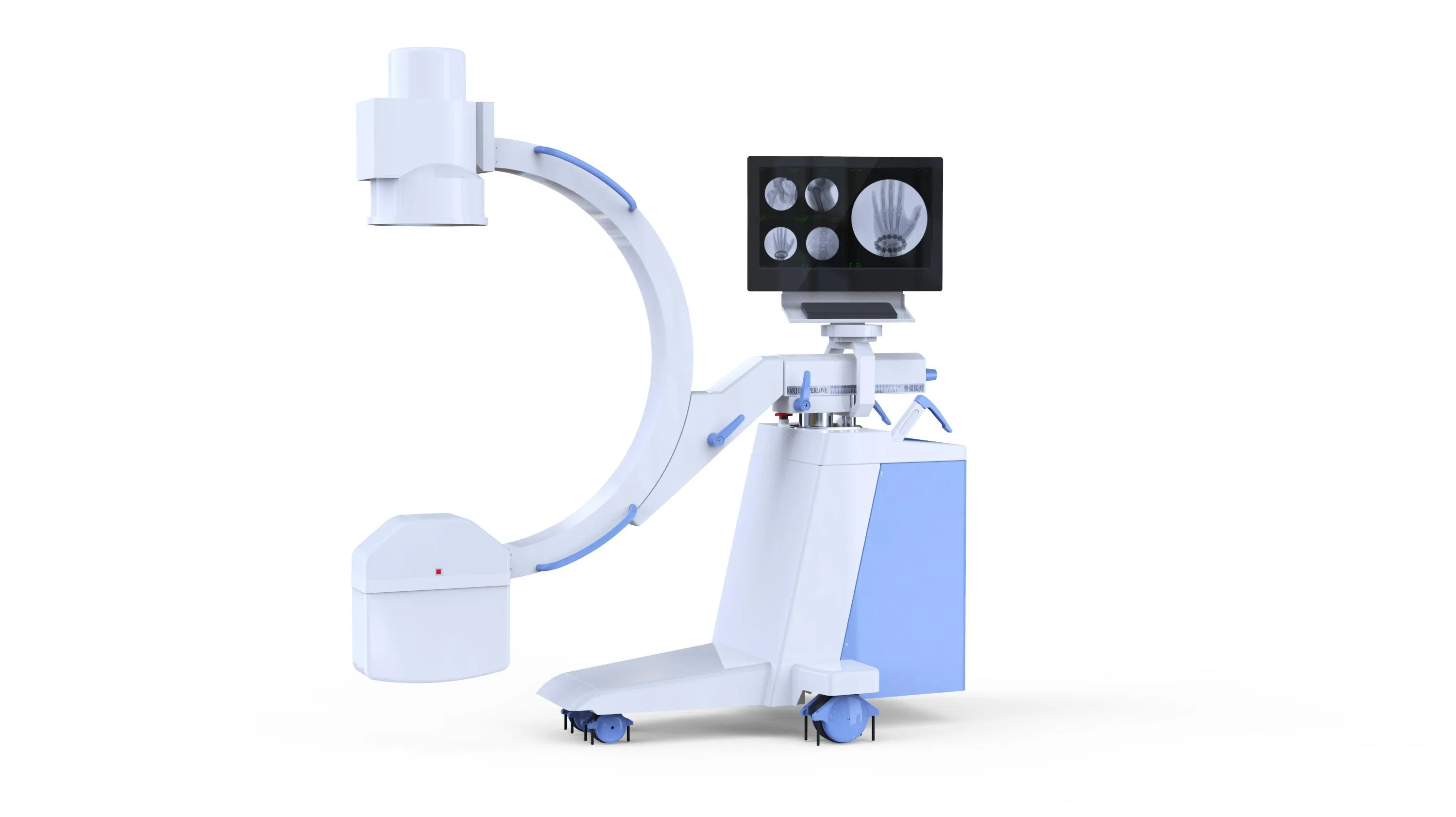

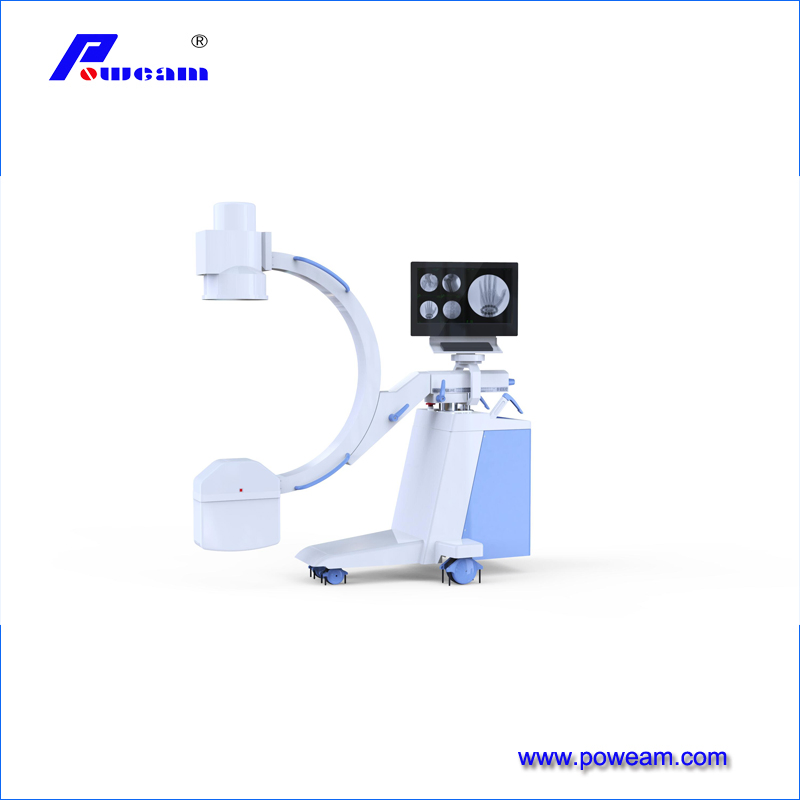

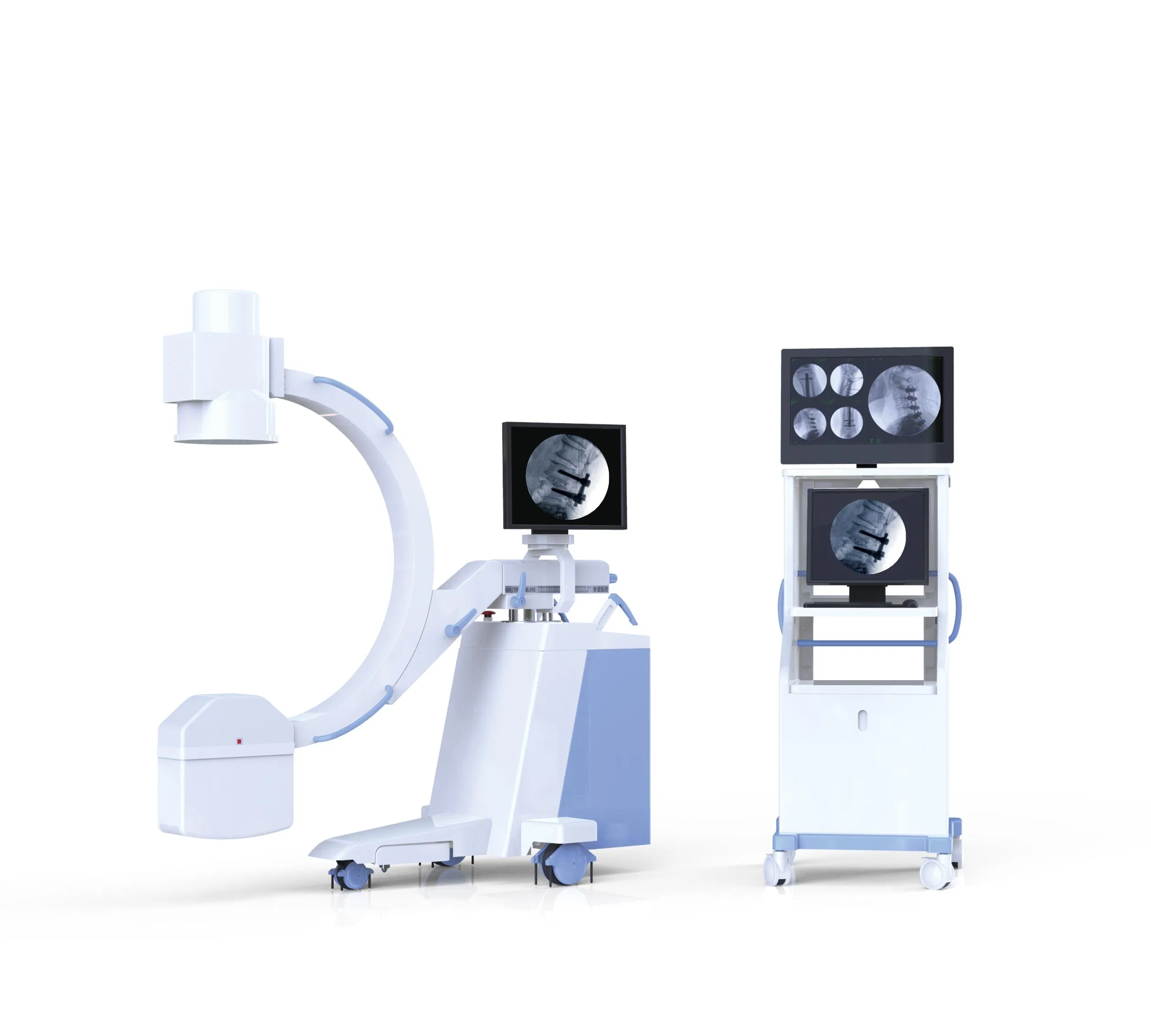

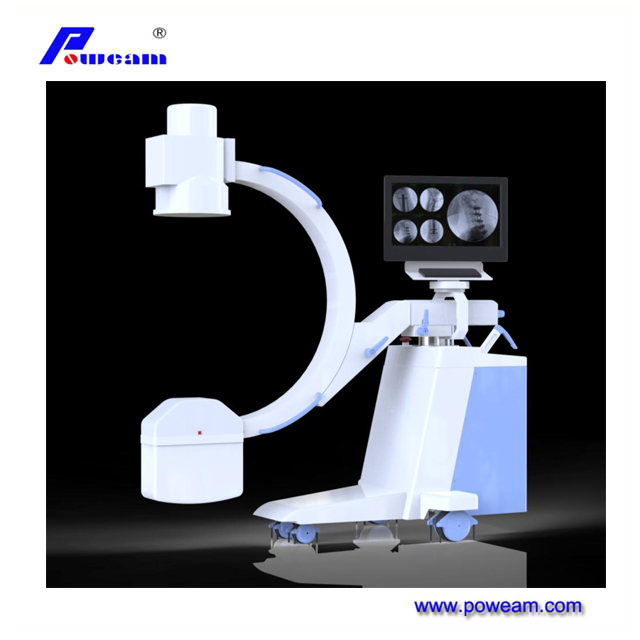

High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
1 / 5
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit
High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit

High Frequency Mobile Digital Fpd C-Arm System C-Arm X-ray Machine Operate Mobile X-ray Unit

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

📋
Basic Information
Model NO.
1200D
Certification
CE, ISO 7494-1
Model Name
Digital C-Arm System
X-ray Machine
C-Arm X-ray Machine in Surgery
Origin
China
Production Capacity
5000PCS/Year
🔬
Product Description
High Frequency Mobile Digital FPD C-arm System C-arm X-ray Machine Operate Mobile X-ray Unit

1. Monoblock Specifications

  • Focus: 0.6/1.8
  • Anode capacity: 35.5kJ (47kHu)
  • Tube Heat capacity: 650kJ (867kHu)
  • Power output: 3.5kW
  • Inverter Frequency: ≥40kHz
  • Tube voltage: 40kV~110kV
  • Tube current (Fluoroscopy): 0.3mA~4mA
  • Tube current (Pulse): 0.3mA~8mA
  • Radiography tube current: 63mA
  • Radiography mAs: 1.0mAs~125mAs
  • Beam limiter: Electric iris + linear symmetrical rotatable

2. Imaging System

  • Image intensifier: 9″ three field, center resolution 4.8lp/mm
  • Camera: Ultra low illuminance, megapixel black and white progressive scanning (1024x1024)
  • LCD: 24 inch ordinary LCD, resolution 1920x1200, 60Hz
  • DICOM function: DICOM browsing, network service
  • Gray level: ≥ 11
  • Line pair resolution: ≥ 2.0LP/mm
⚙️
Product Parameters
Name High Frequency Mobile Digital C-arm System
Model PM1200D
🖼️
Detailed Photos

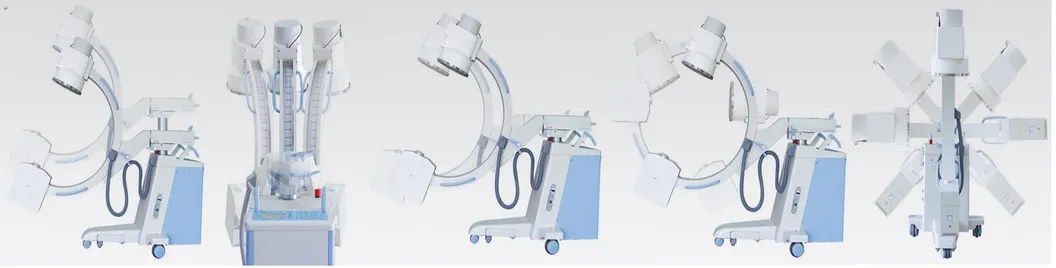

Digital C-Arm System Overview
C-Arm Unit Detail 1
C-Arm Unit Detail 2
C-Arm Unit Detail 3
C-Arm Unit Detail 4
C-Arm Unit Detail 5
C-Arm Unit Detail 6
C-Arm Unit Detail 7
🌟
Service & Support
  • One-stop-shop Solution: Providing a large range of professional medical products.
  • Excellent Quality Control: Strict QC steps taken to ensure products meet international quality standards.
  • Turn-key Projects: Extensive experience in handling certain institutional and aid projects.
  • Training & Technical Support: Qualified technical engineers available for equipment installation and ongoing backup.
  • Global Reach: Professional services provided to over 100 countries and areas worldwide.
❓
Frequently Asked Questions
What are the main applications of this C-arm system?
The Digital C-Arm System is designed for both diagnostic purposes and surgical procedures, providing high-frequency mobile imaging.
What is the resolution of the imaging camera?
The system features an ultra-low illuminance, megapixel black and white progressive scanning camera with a 1024x1024 pixel matrix.
Does the system support DICOM standards?
Yes, the imaging workstation includes DICOM browsing and network services for seamless medical data integration.
What are the power requirements for operation?
It requires a single-phase 220V ± 22V power supply at 50Hz±1Hz, with an internal resistance of no more than 1 Ω.
What certifications does the PM1200D hold?
The system is certified under CE and various ISO standards, including ISO 7494-1, ISO 13485, and IEC 80601-2-60.
