| Model NO. | NY-LB-I |
|---|---|
| Origin | China |
| Project | Content | Advantage parameter description |
|---|---|---|

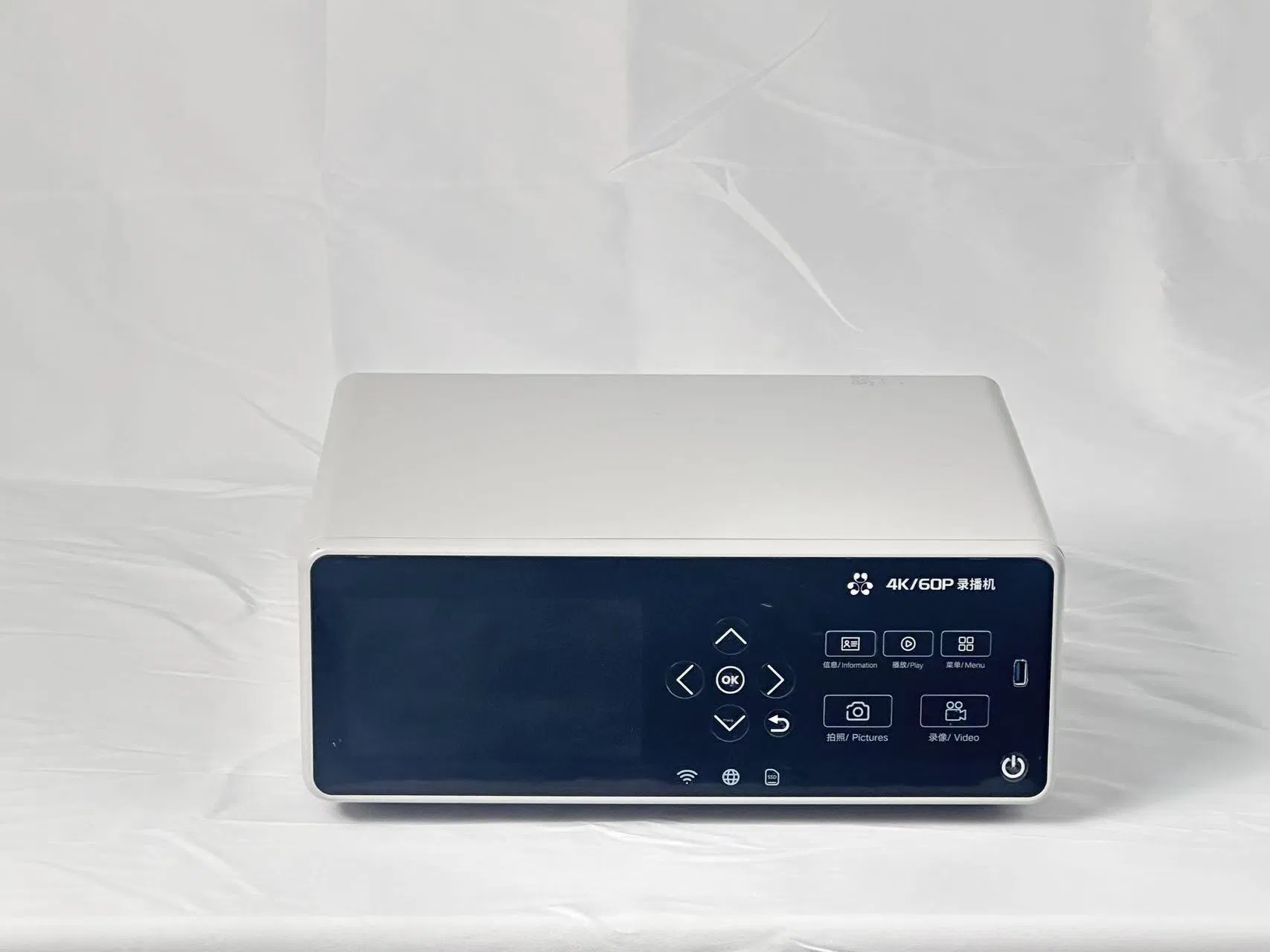

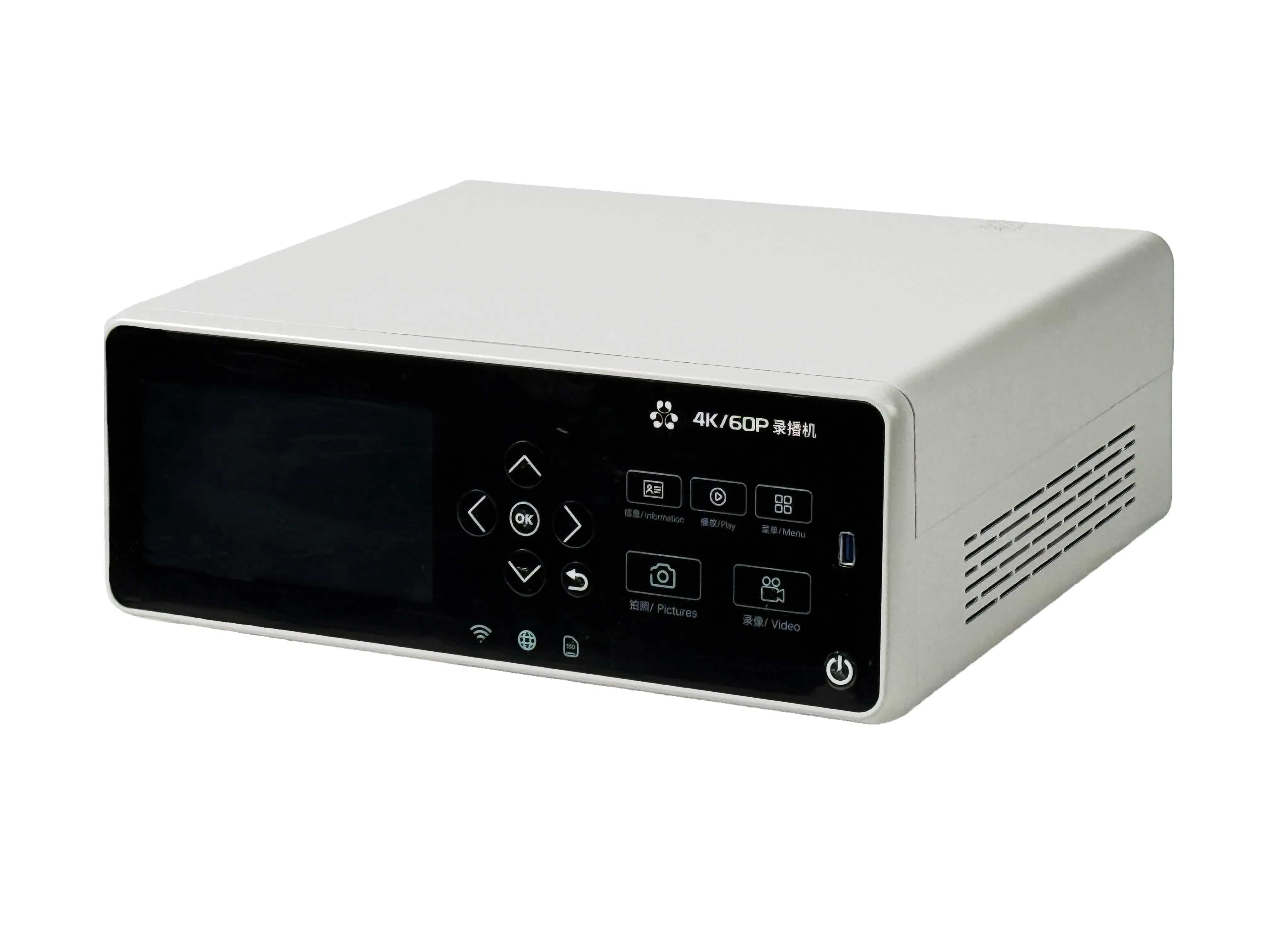

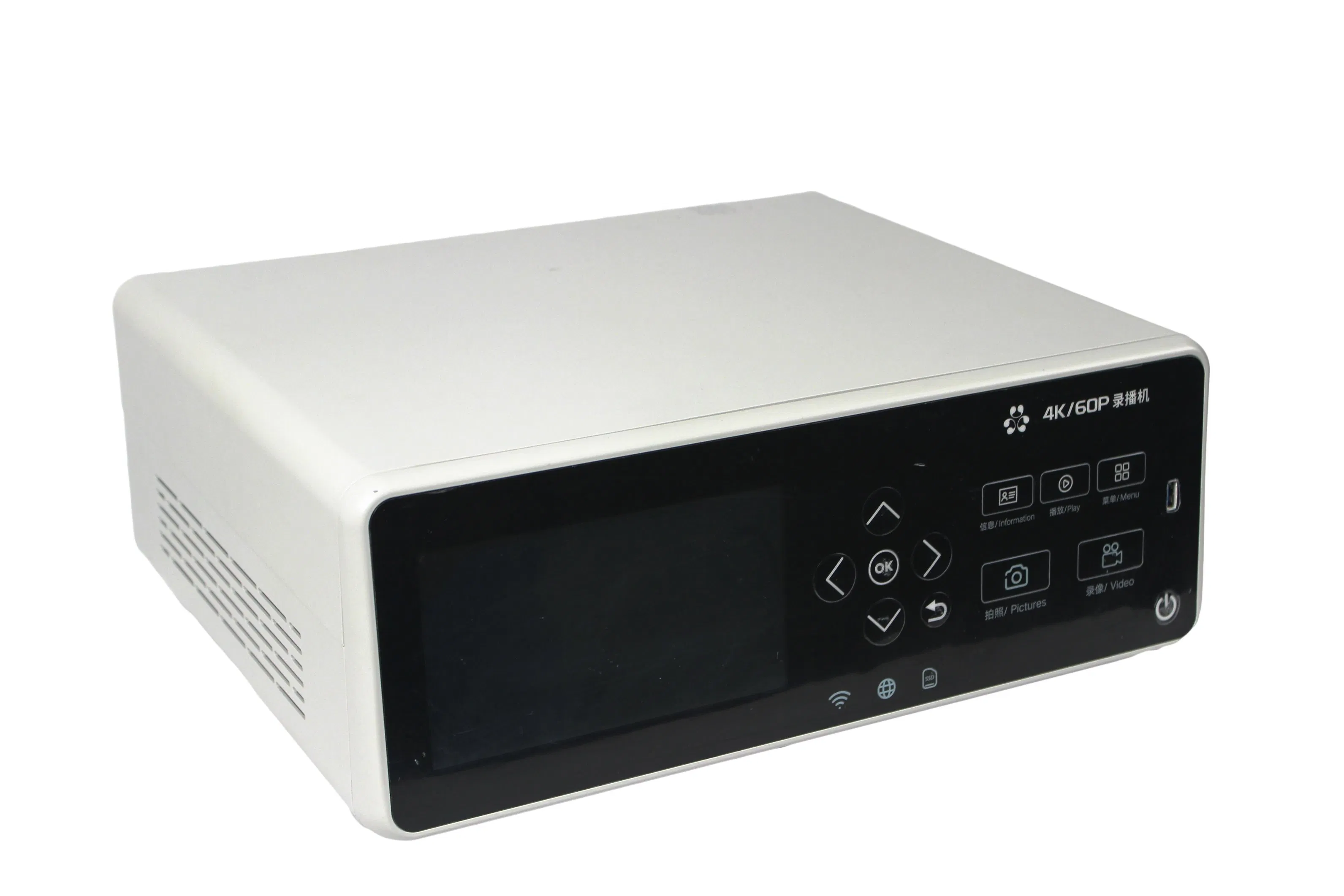

| Model | NY-LB-I | 4k Recorder is a medical imaging recording system developed based on FPGA architecture. The system integrates ARM CPU and embedded LINUX system, with a powerful and stable software and hardware platform, achieving perfect implementation 4k@60p Ultra HD image capture, video hardware coding, Internet real-time transmission and other functions can enable medical users to obtain high-quality video; Simultaneously using embedded architecture design and integrating high-performance acquisition and encoding chips, it can facilitate users to operate and set it using a browser. |
| Video format | MP4 | |
| Video quality | 4K 4096x2160, 100Mbps, 60fps | |
| Input interface | 3G-SDI (BNC type, dual support 12G) x4, HDMI x2 | |
| Output interface | 3G-SDI (BNC type, dual support 12G) x4, HDMI LOOPx1 HDMI OUTx1 | |

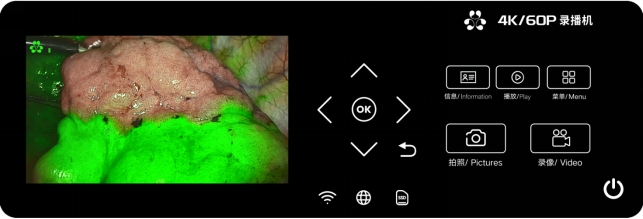

| Display interface | 7-inch LCD screen, supporting display preview, playback, and GUI; Support LCD screen and button configuration system parameters | |
| Networking | Wired, wireless, and connectable to live streaming rooms, supporting backend webpage registration of patient information | |
| Built in storage | Built in 2T SSD solid-state drive |
| Product composition | A 4K recorder consists of a motherboard, power supply, filter, and display screen. |
|---|---|
| Scope of application | Collect video signals below 8 million pixels |
| Product advantages | 4K image recording, quick data export, native image export, support for multiple interfaces, equipped with a small workstation |

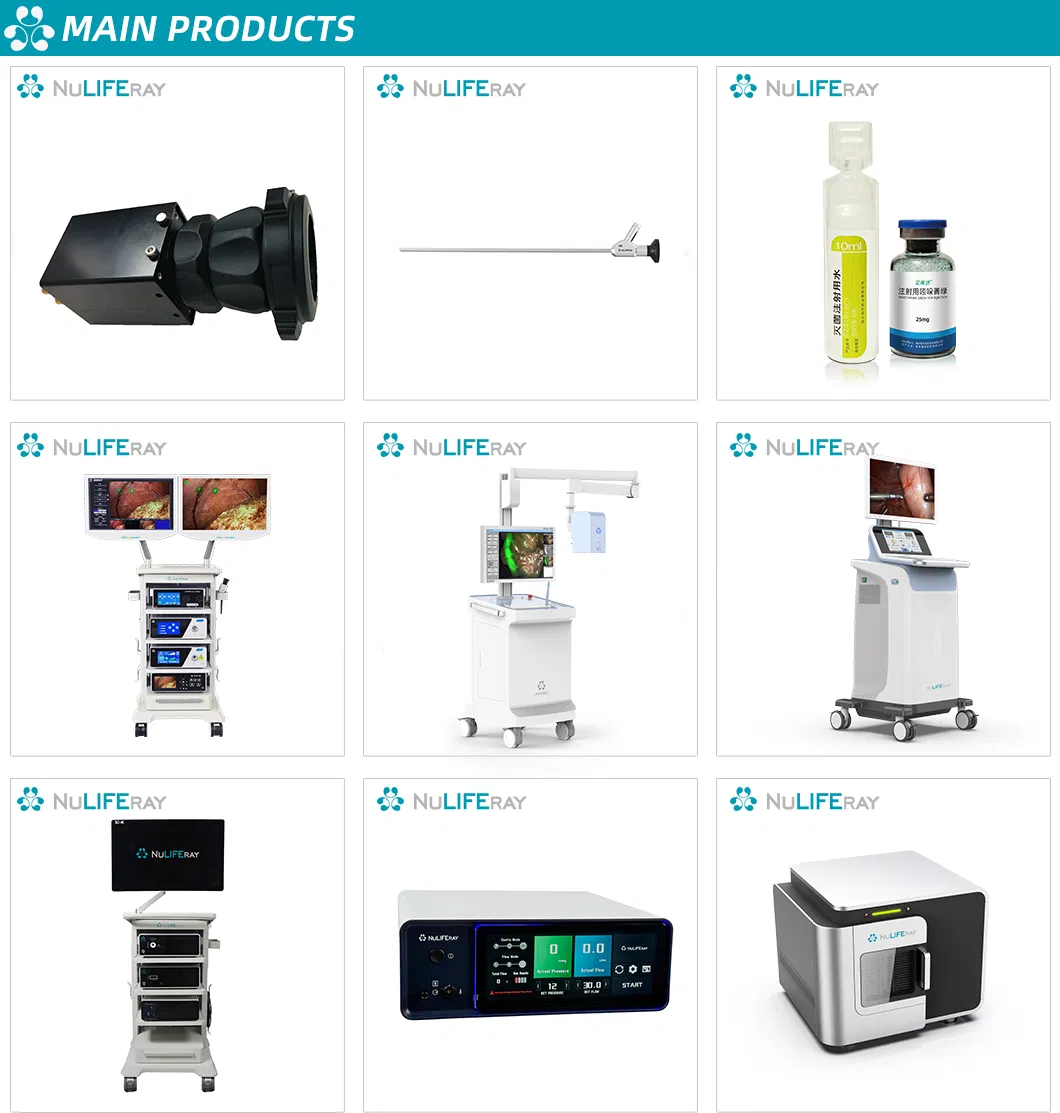

The product range includes research, development, production, and sales of high-end medical devices such as fluorescence imaging series, fluorescence contrast agent drugs (ICG, targeted contrast agent series), and core components like fluorescence CMOS camera modules and endoscopes, providing full-chain solutions.

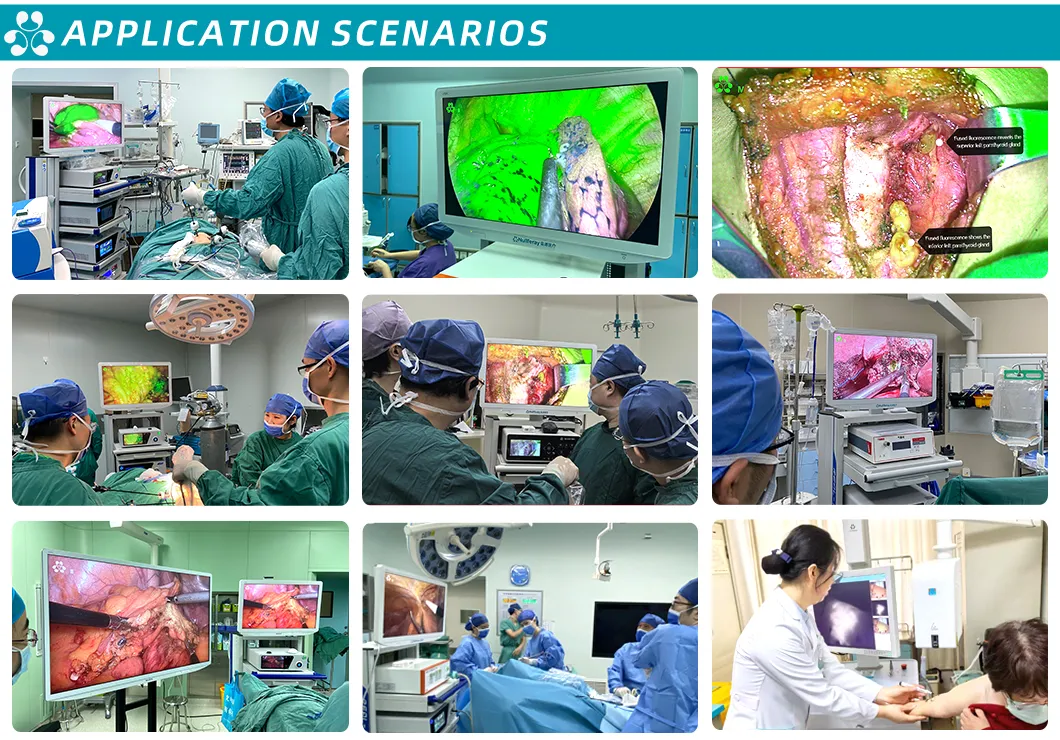

The series of products have been successfully implemented in more than 500 large hospitals, ensuring reliable performance in clinical environments.
Strategic partnerships have been established with international leading companies in Germany and Japan, with cooperative businesses spanning more than 10 overseas countries.
