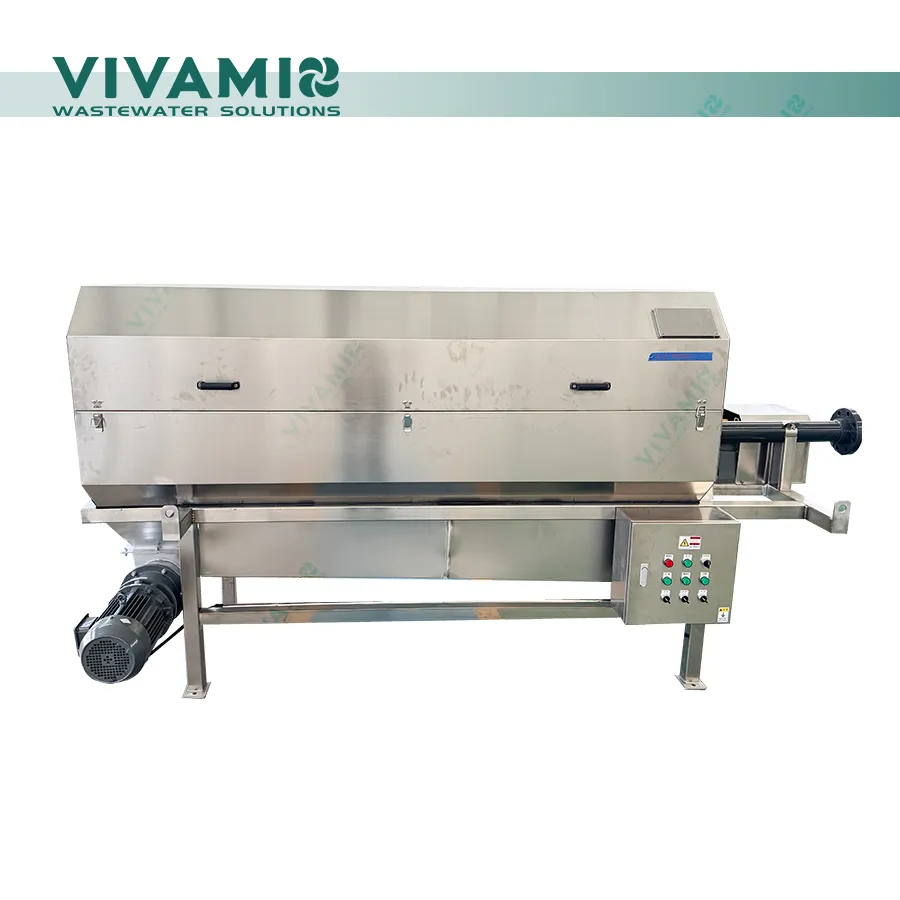

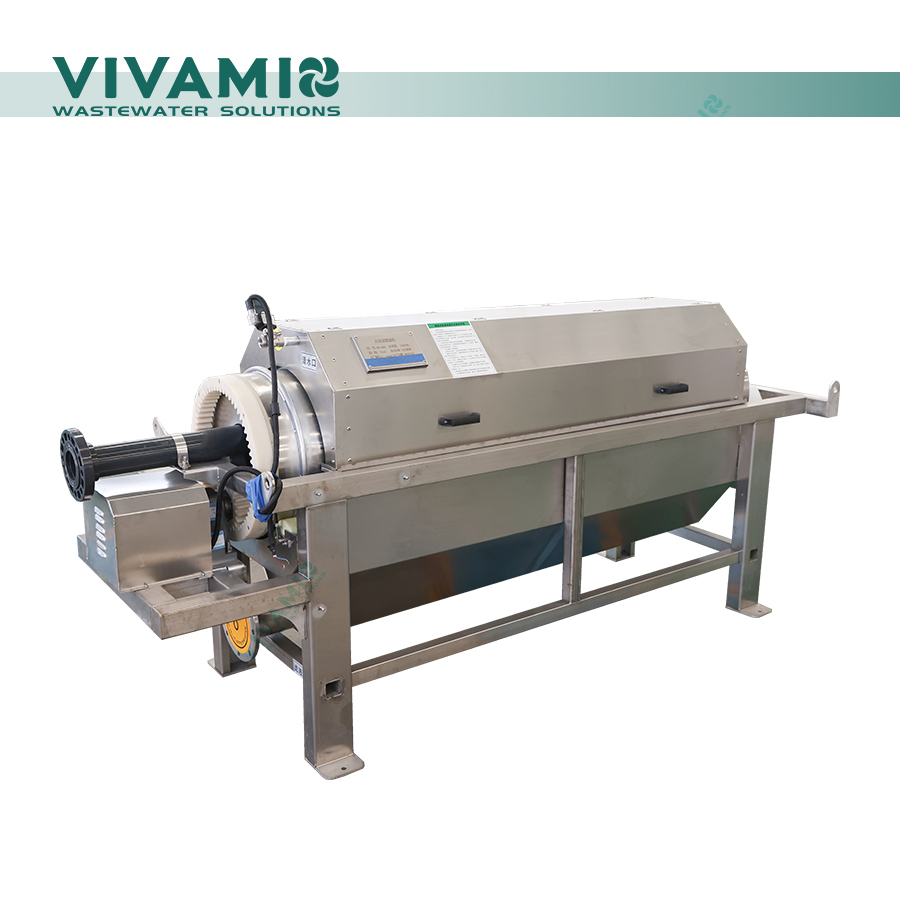

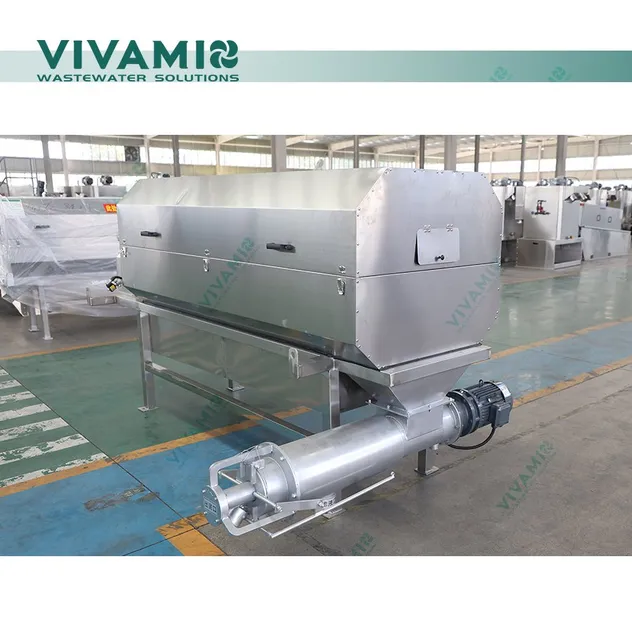

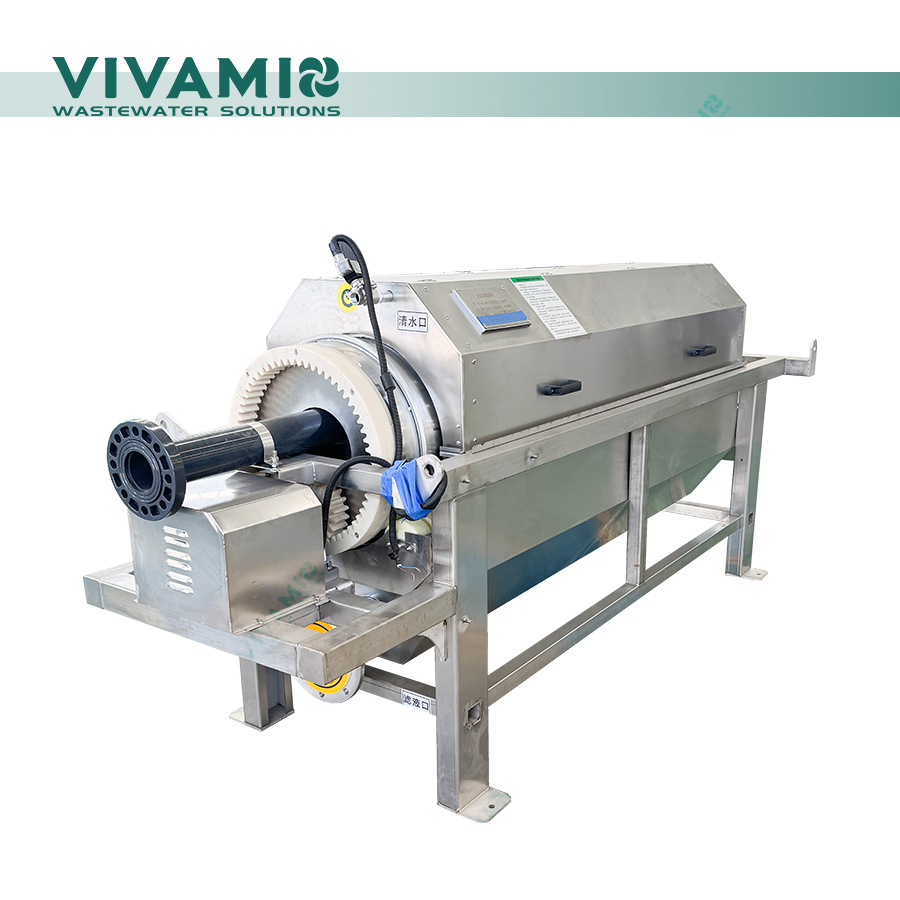

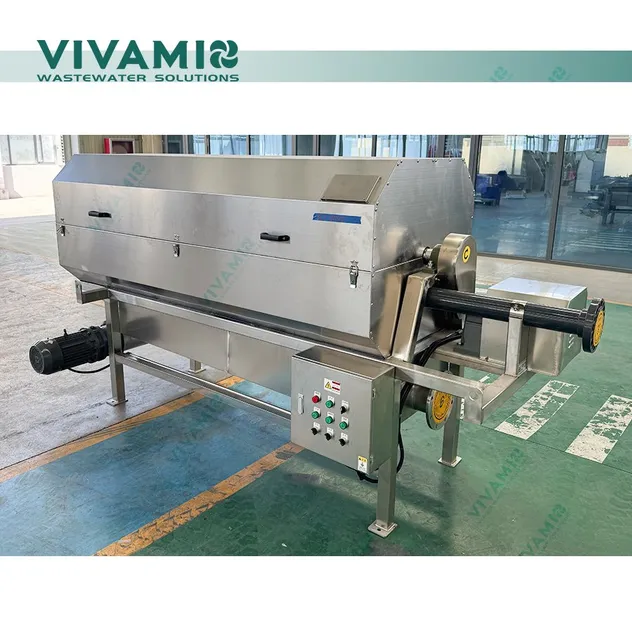

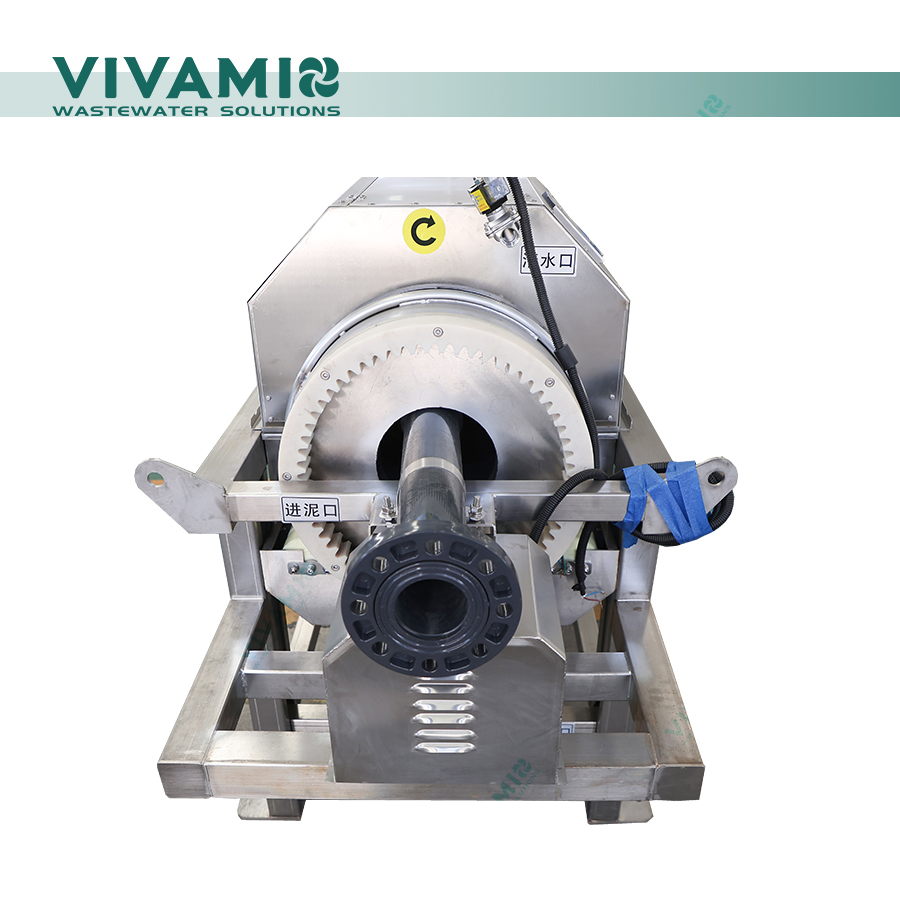

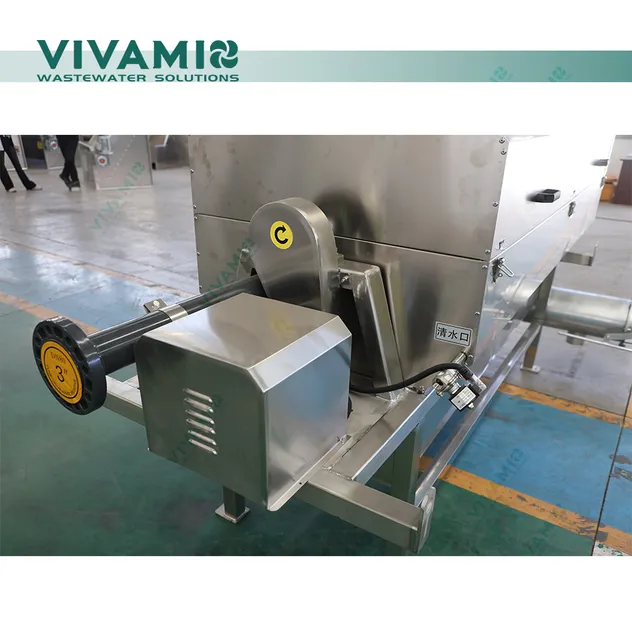

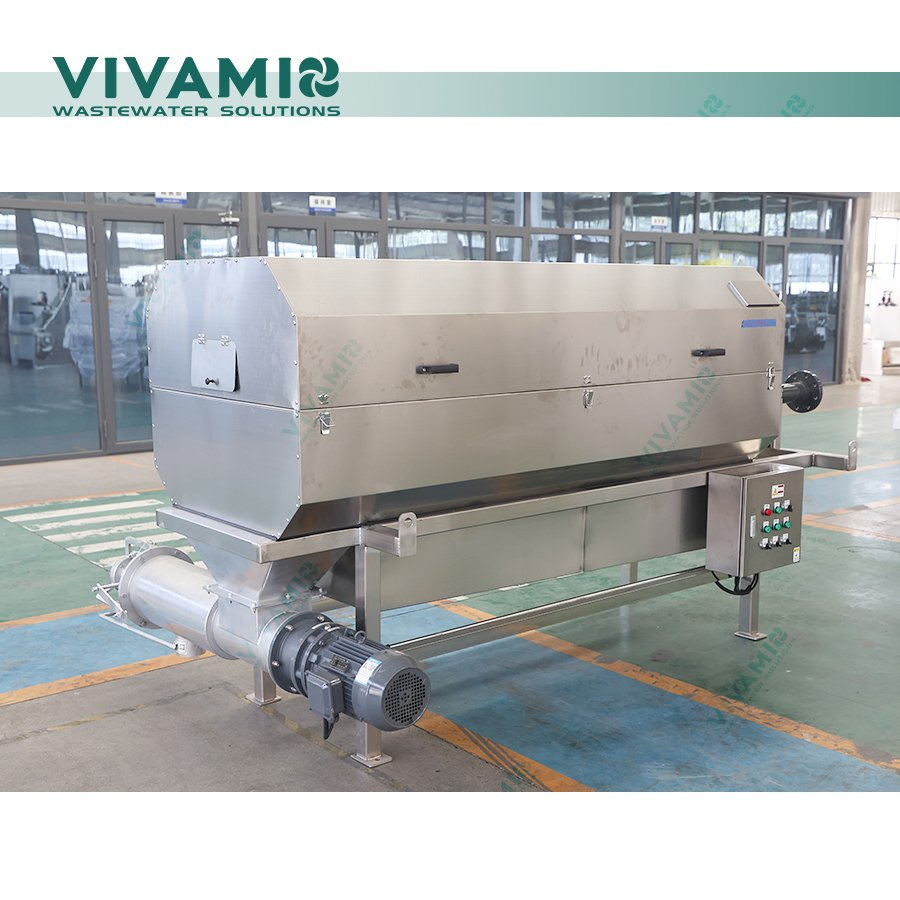

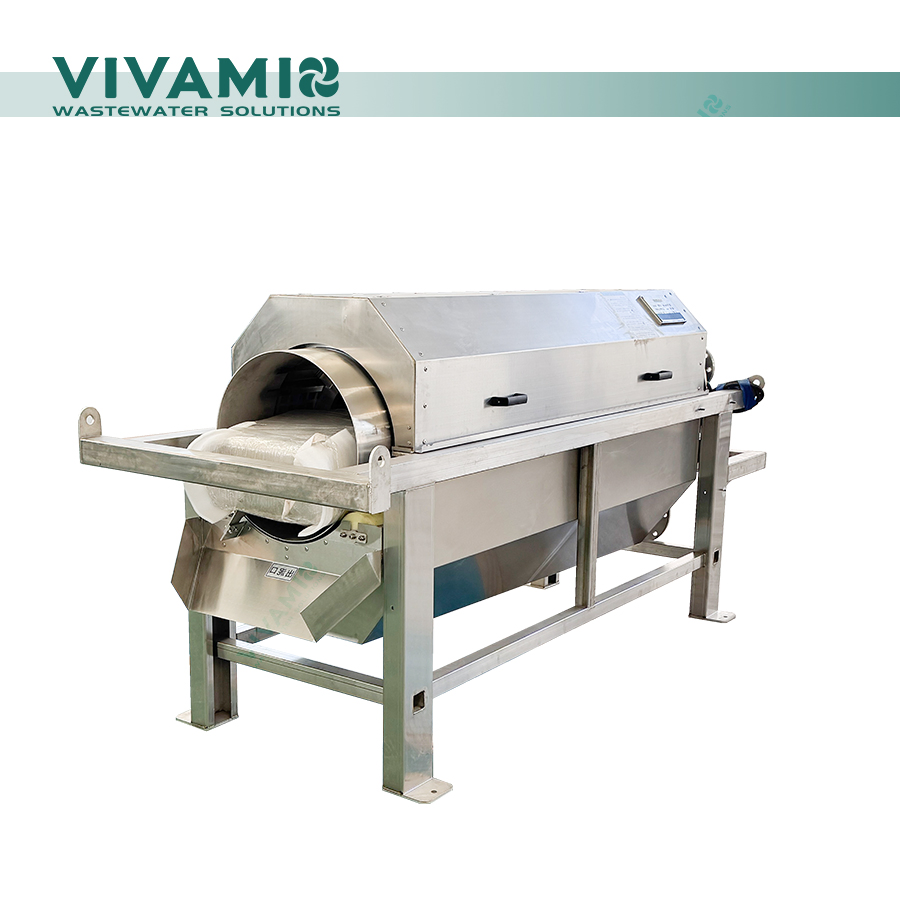

High-Precision Internally Fed Microfiltration Drum Screen Filtration and Anti-Clogging Technology

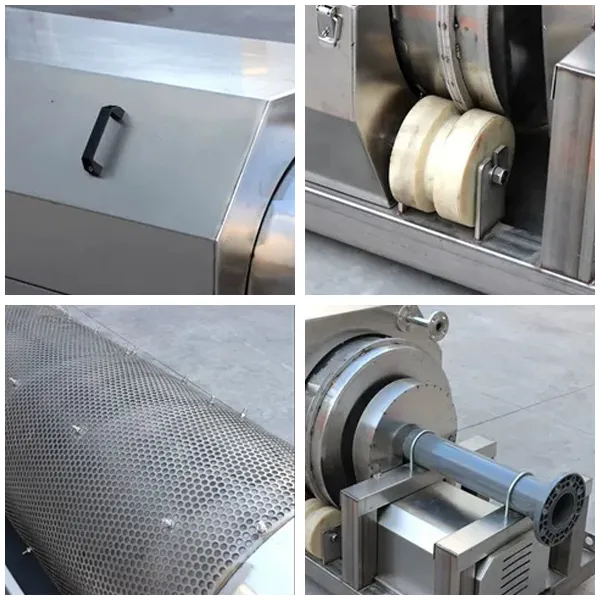

This system employs high-precision internally fed microfiltration drum screen technology with integrated anti-clogging capabilities. Its core lies in the precision micro-screen drum and internal feed design, enabling highly efficient capture of fine suspended solids and significantly improving effluent quality.
The innovative anti-clogging technology, combining optimized hydraulics with intelligent intermittent cleaning, automatically prevents and removes screen blinding. This ensures the system maintains high throughput and consistent filtration accuracy during prolonged operation. The solution is particularly suitable for advanced industrial wastewater treatment and high-quality water reuse applications.

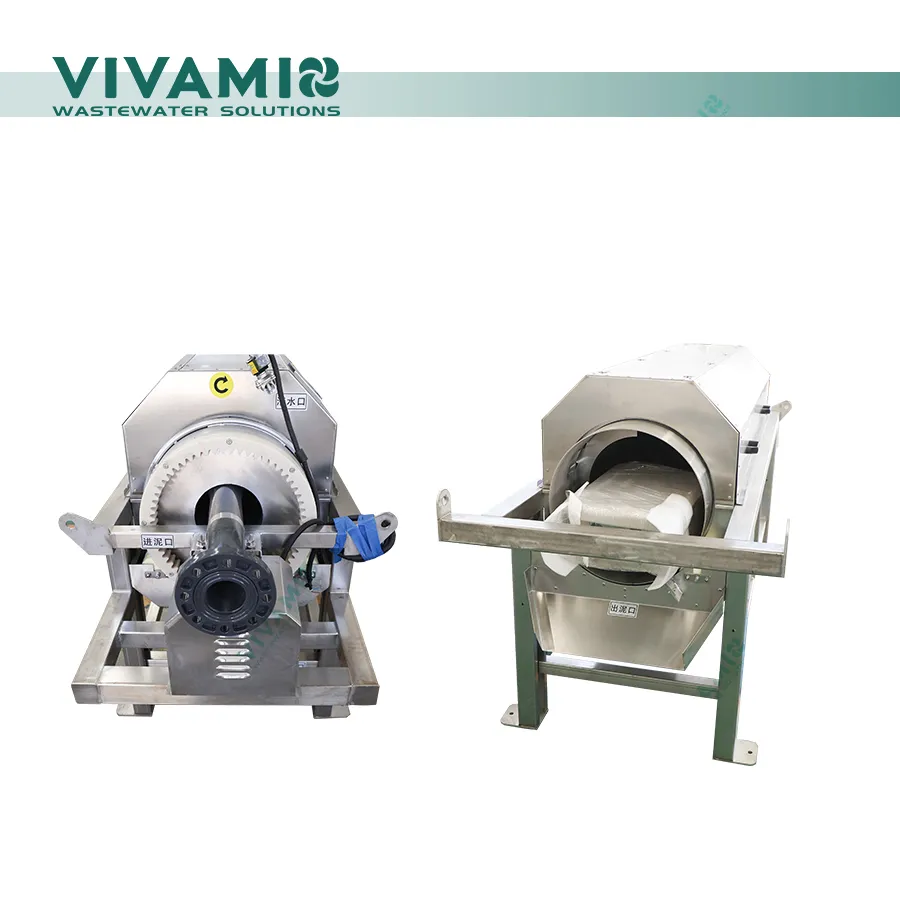

The working process is summarized as: gravity filtration + rotary backwashing. The process operates continuously and automatically through a four-step cycle:
| Model | LK-DS 500 | LK-DS 600 | LK-DS 700 | LK-DS 800 | LK-DS 1000 | LK-DS 1500 |
|---|---|---|---|---|---|---|
| Capacity (m³/h) | 5-10 | 10-30 | 30-50 | 50-80 | 120-150 | 200-300 |
| Drum Dia. (mm) | 500 | 600 | 700 | 800 | 1000 | 1500 |
| Drum Length (mm) | 1700 | 1700 | 1700 | 1700 | 2500 | 2500 |
| Power (KW) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
Screen Media Comparison:
Suitable for high filtration accuracy with limited budgets. Best for dry granular materials and simple water conditions.
Continuous linear slots with inwardly narrow design. Ideal for wastewater with high fiber, hair, or abrasive sand content.

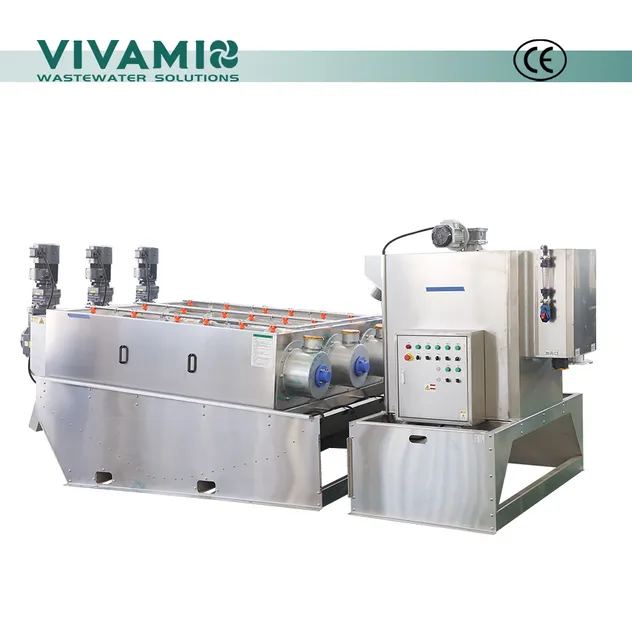

1. Dewatering Screw Press: Efficient thickening and dewatering of sludge.
2. Solid Liquid Separator: Advanced separation for aquaculture and biogas liquid.

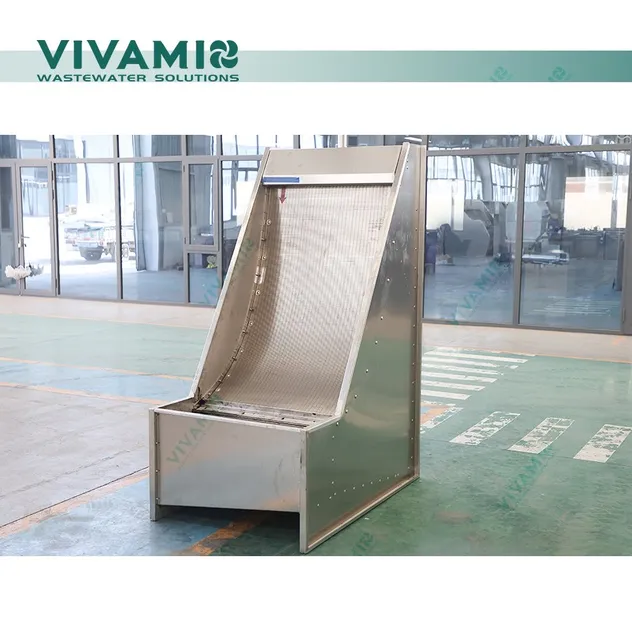

3. Wastewater Static Screen: Stationary screen filtration for impurity removal.

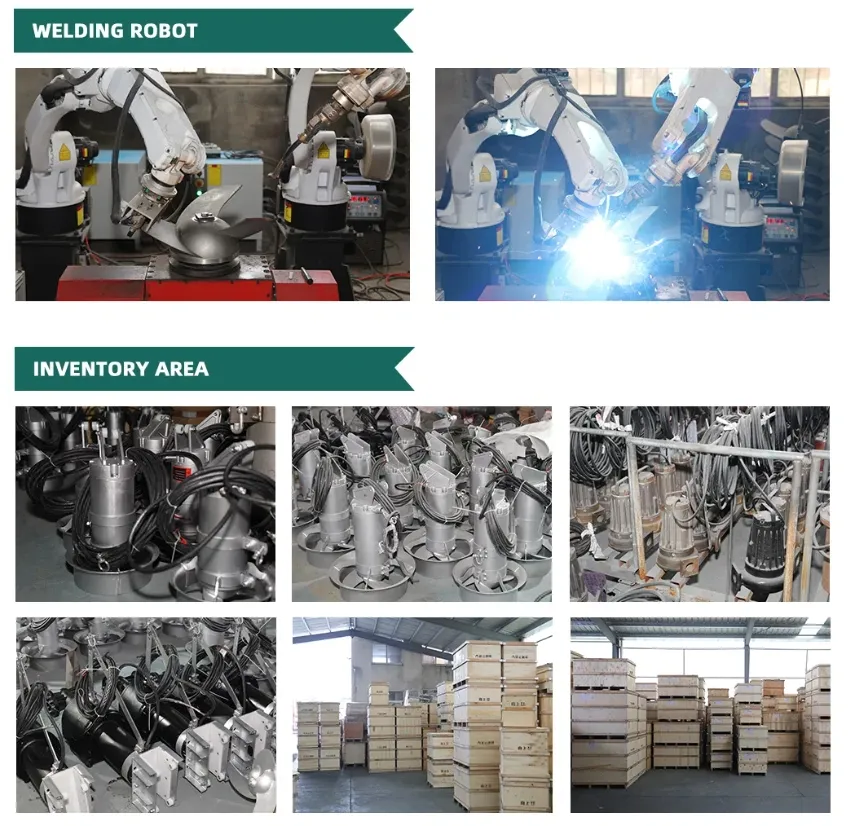

Our facility specializes in water and wastewater treatment devices, integrating development, sales, and engineering support. With over 10 years of export experience, we ensure stable and reliable performance for all our global partners.
