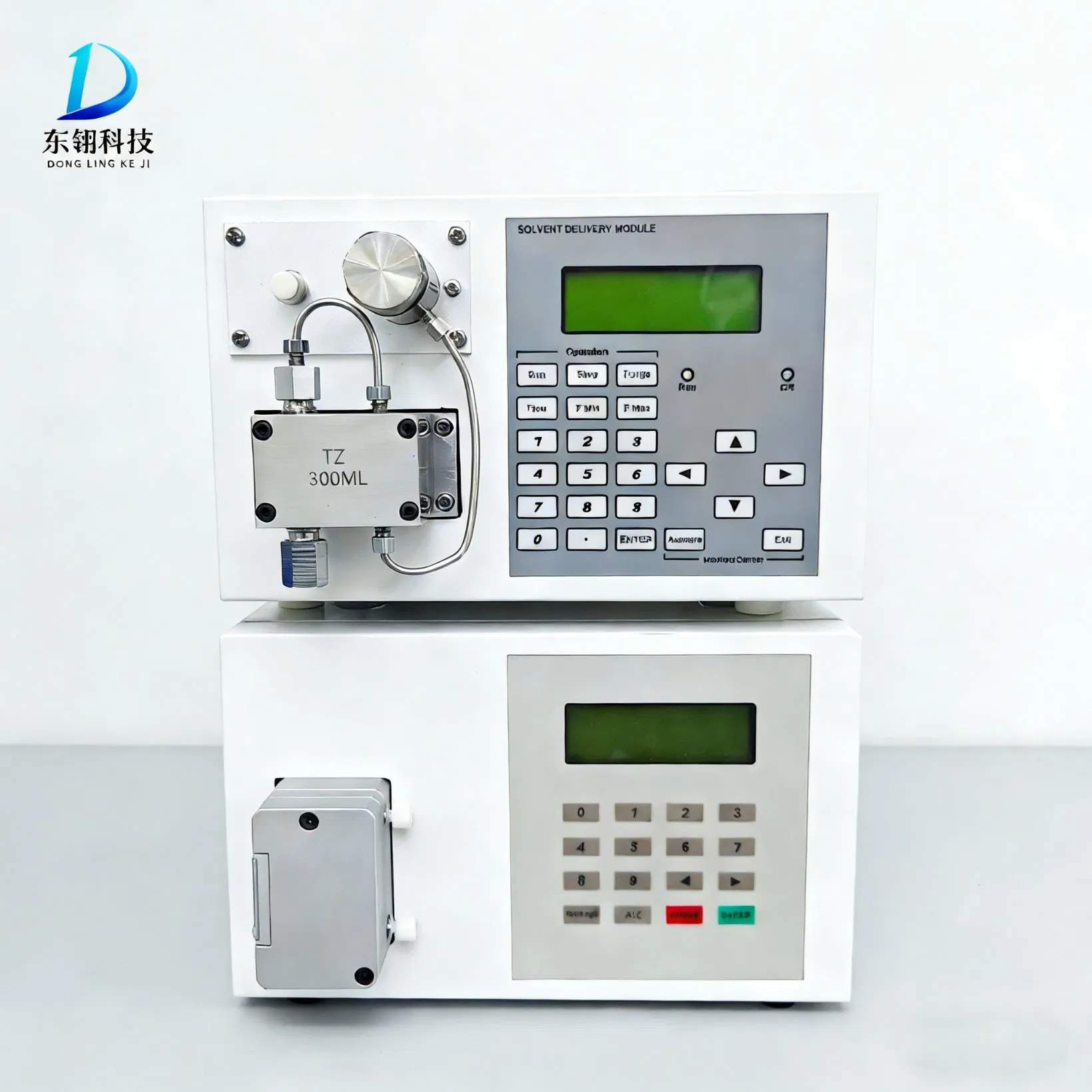

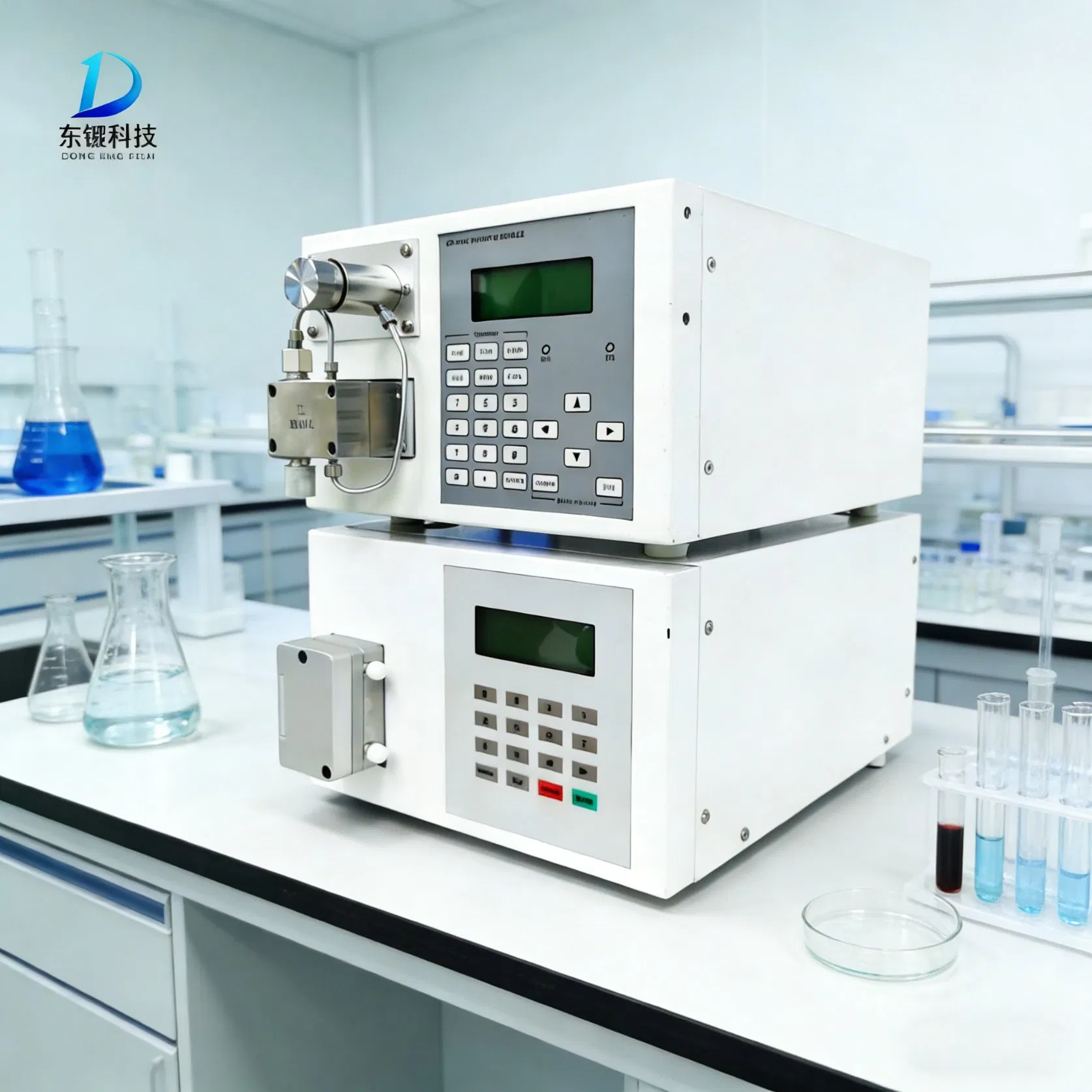

High-Pressure 15MPa Dac System for Lab & Industrial Quantitative Analysis

Basic Specifications

Model NO.	DAC-150	Detector	UV-Vis Dual-Wavelength
Gaspath System	Double	Stationary Phase	Liquid Solvent
Mobile Phase	Liquid	Chromatography Type	Liquid Chromatography
Column Length	650mm	Column Diameter	150mm
Working Pressure	10MPa	Liquid Contact Material	316L/PTFE
Sieve Plate Size	316L/3μm	Working Temp	5-60℃

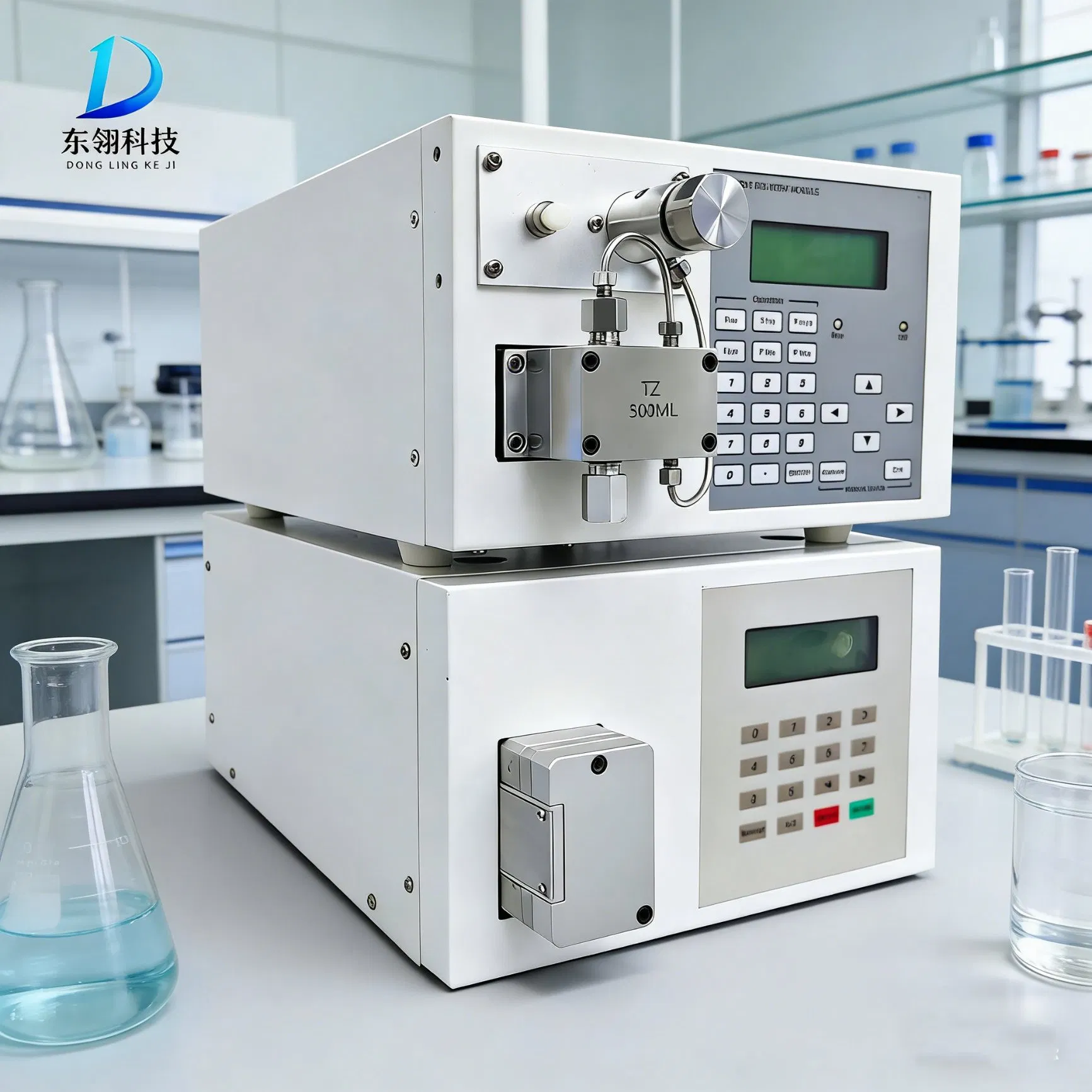

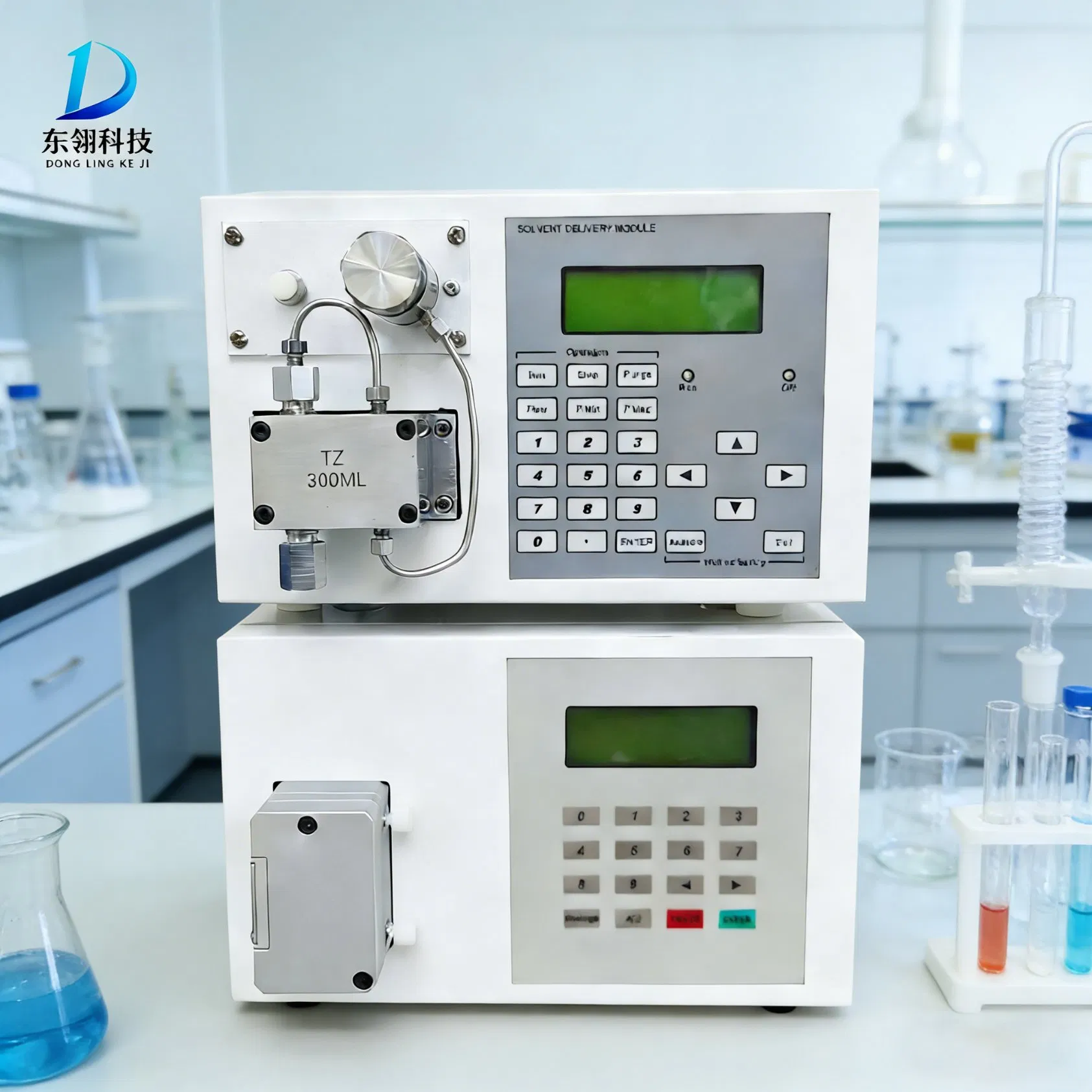

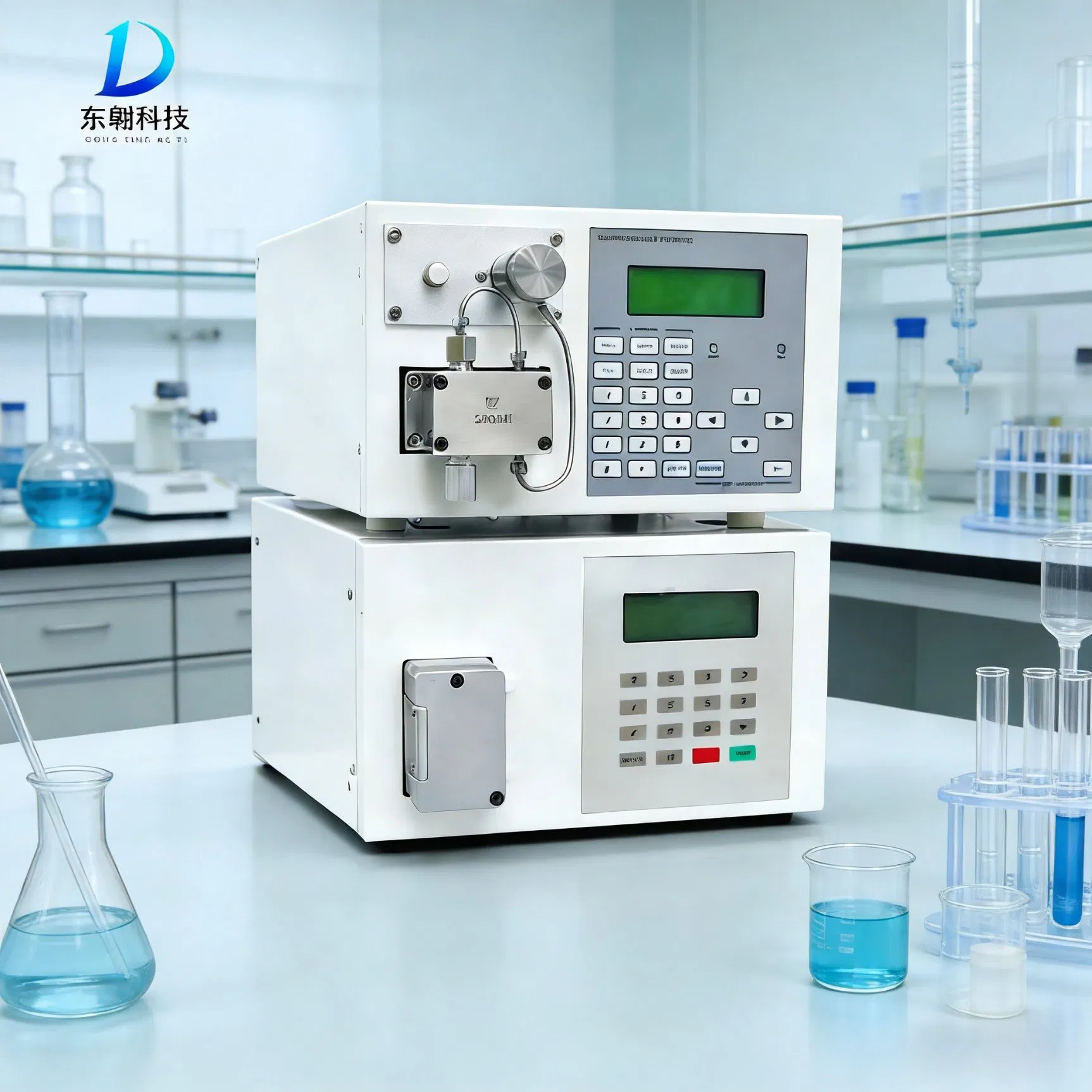

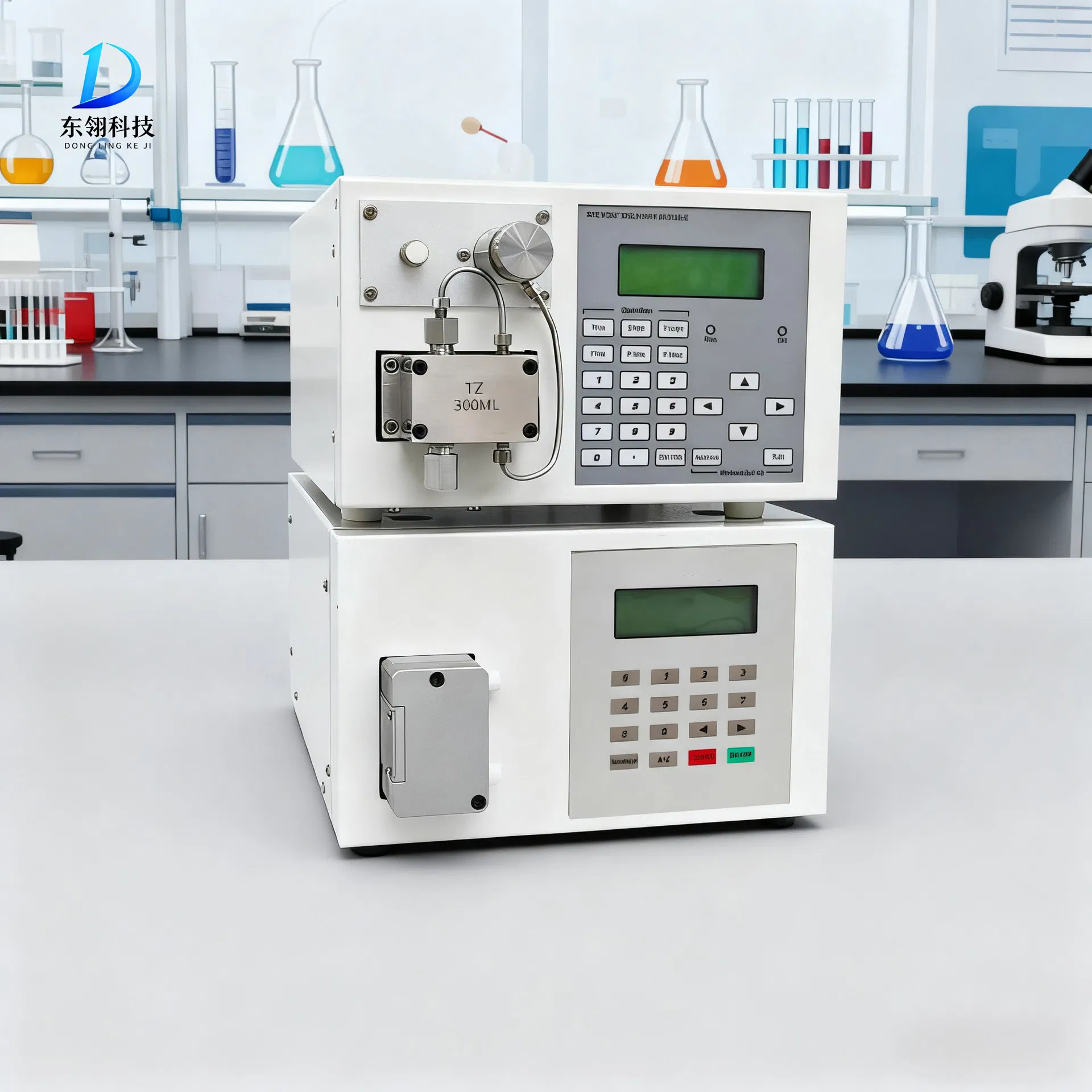

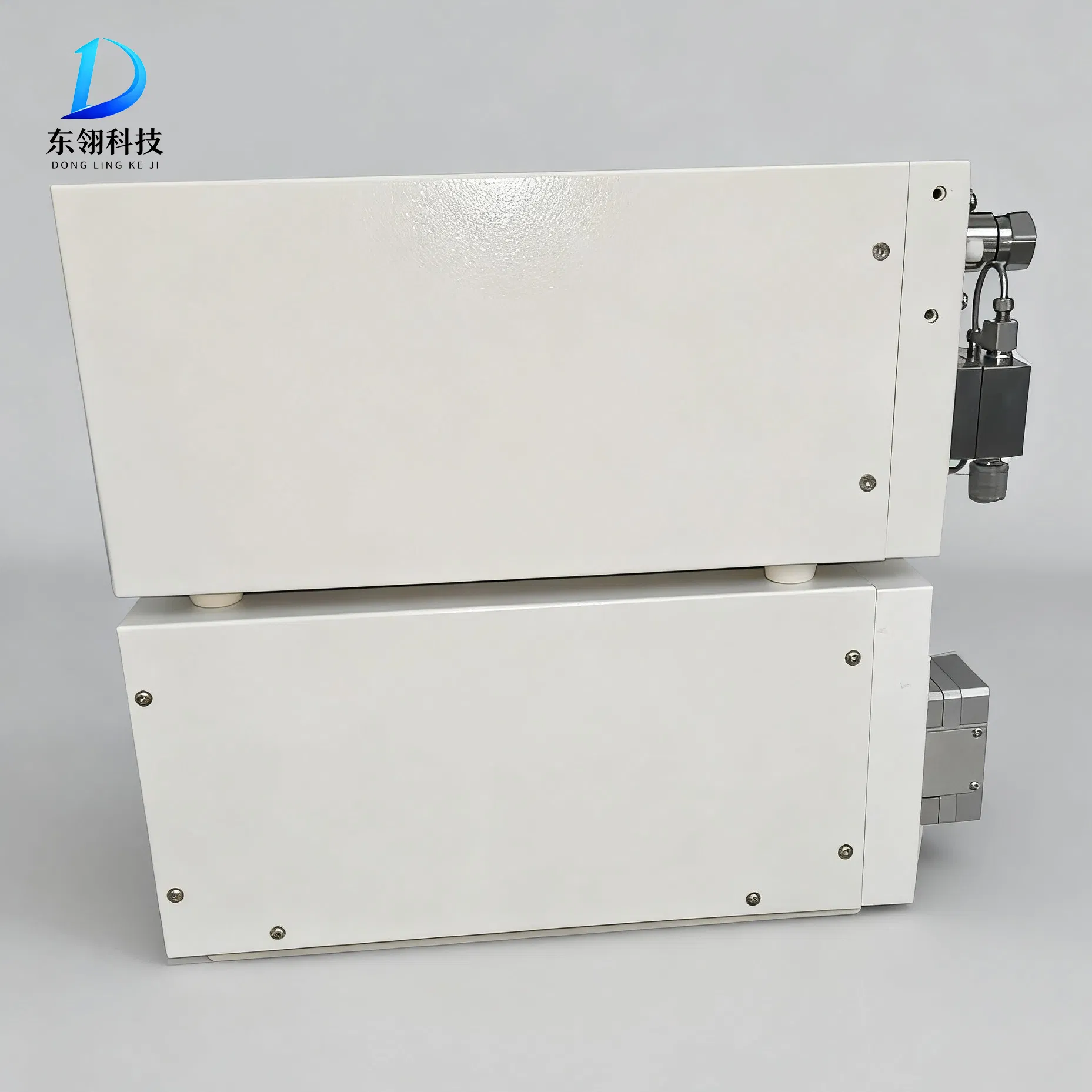

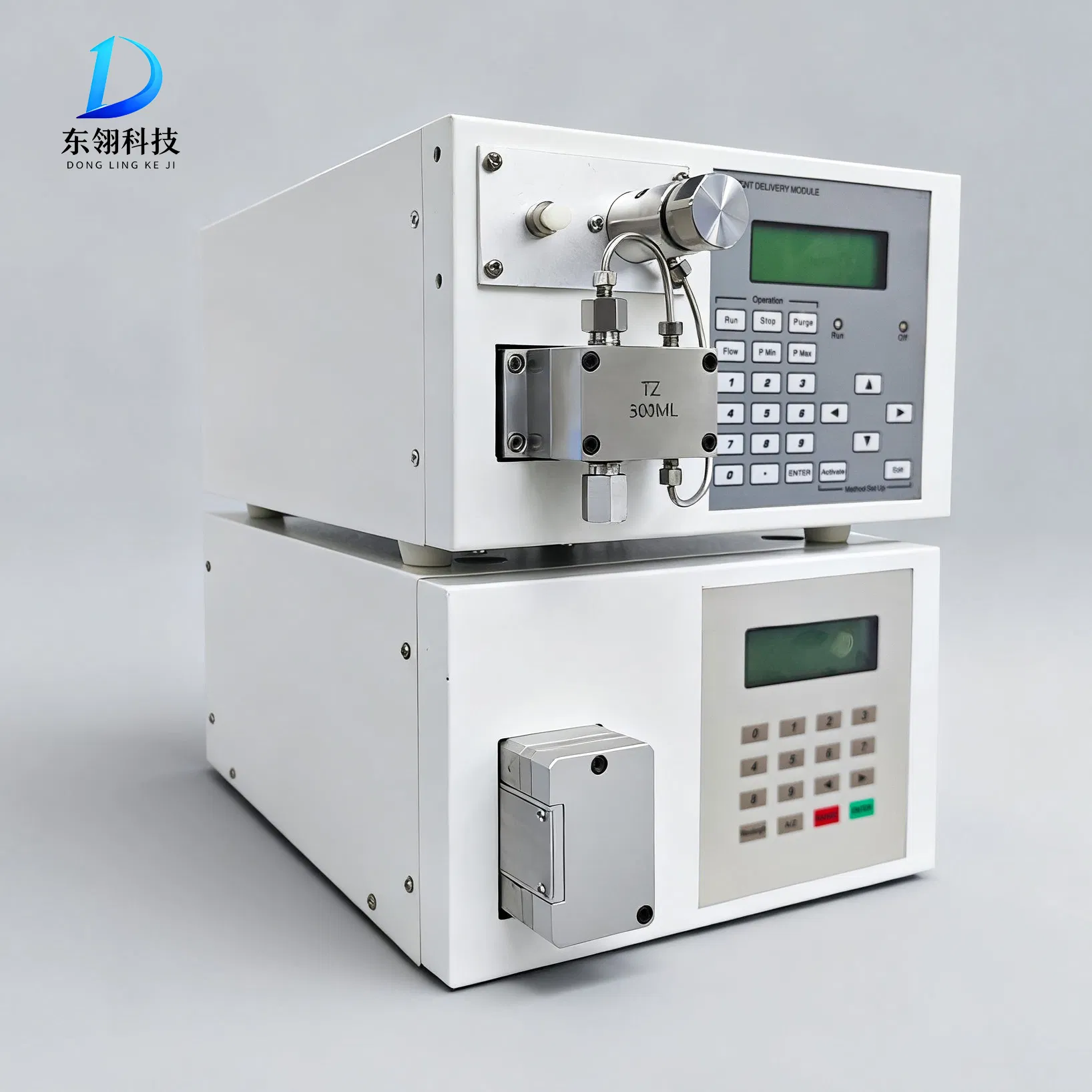

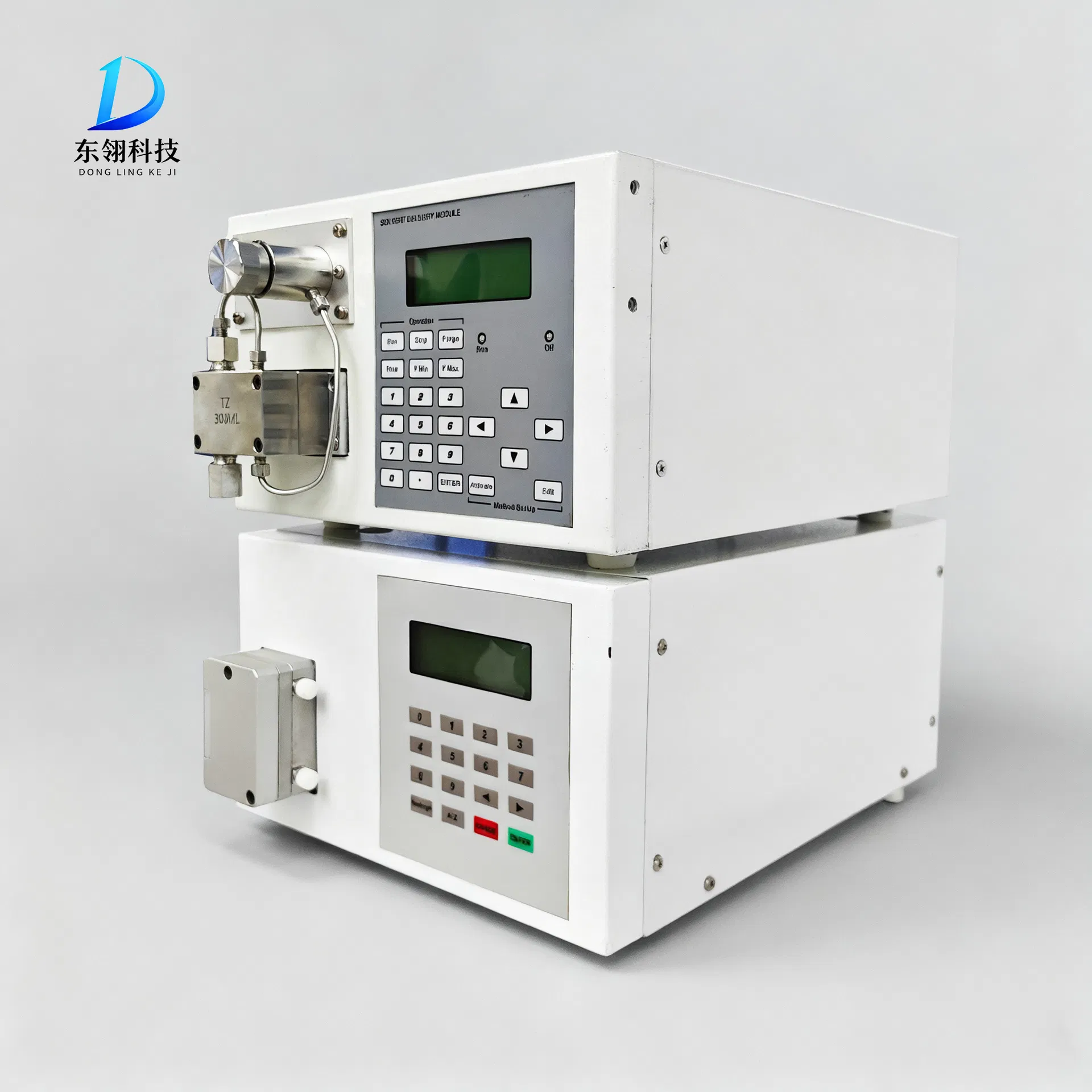

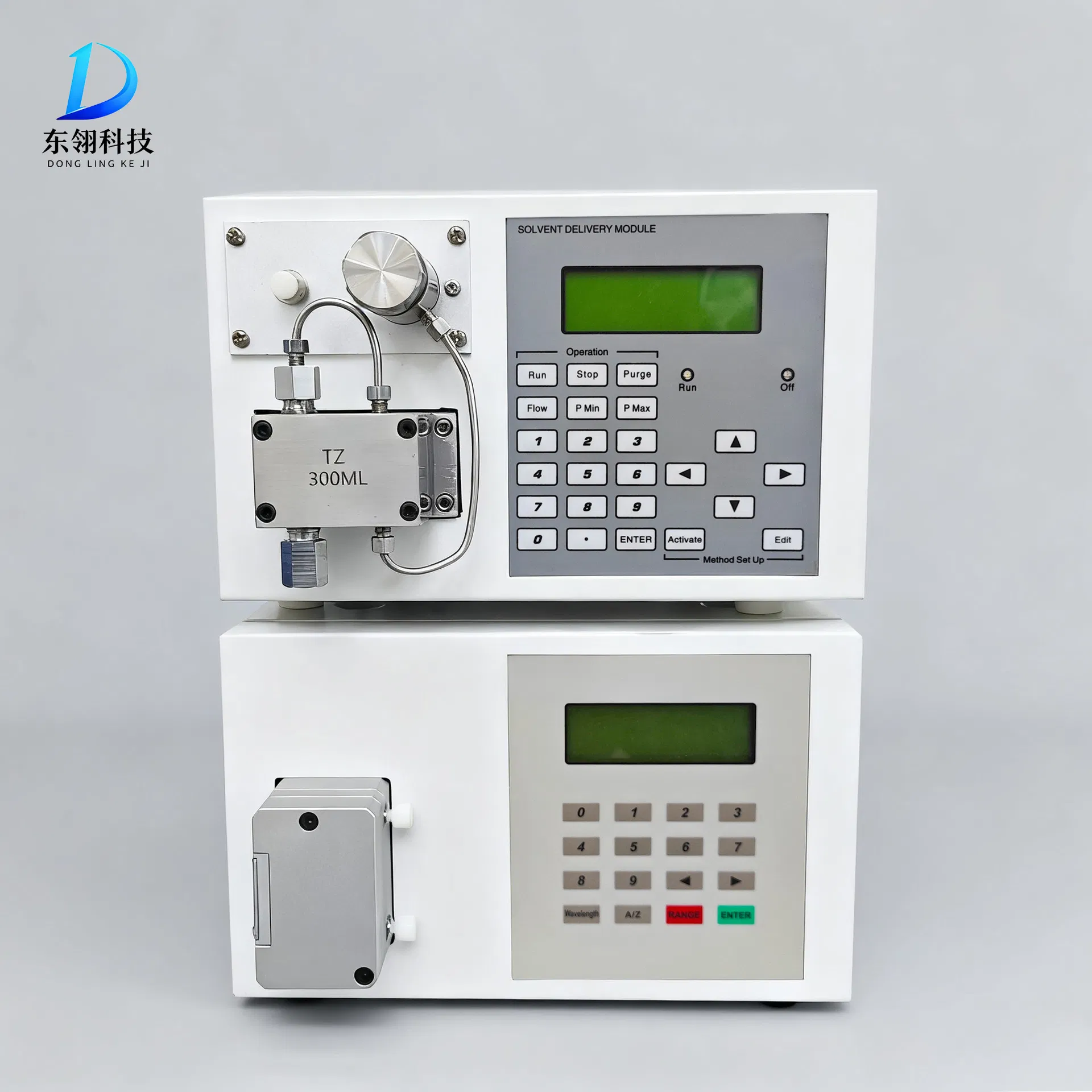

Product Gallery

Key Features & Advantages

✔

High-Efficiency Separation: Utilizes dynamic axial column technology for continuous redistribution and re-equilibration, ensuring superior purity of target compounds.

✔

Industrial Scale Capability: Suitable for large-scale preparation, handling kilogram-level samples for industrial production needs.

✔

Modular Design: Supports gradient elution using up to four solvents and on-line detection on a unified platform.

✔

Automation: Advanced automatic control systems improve work efficiency and significantly reduce operational errors.

This system is widely applied in separation, purification, drug development, natural product extraction, and environmental protection, providing critical data support for quality control and research.

Detailed Technical Data

System Components & Performance
Column Tube Diameter / Length	150mm / 650mm
Working Pressure / Temp	10MPa / 5-60℃
Infusion Mode	Dual-plunger Parallel
Flow Rate Range	(0~499.99)mL/min
Maximum Pump Pressure	15MPa
UV-Vis Dual-wavelength Detector
Light Source	Deuterium Lamp/Tungsten Lamp
Wavelength Range	190-700nm
Detection Range	(0~5)AU
Wavelength Accuracy	±1nm

Configuration List

◈ 1 Main Unit
◈ 1 Detector
◈ 2 Infusion Pumps
◈ 1 Set of Tool Kits
◈ 3 Power Cords
◈ Manual, Certificate & Warranty Card

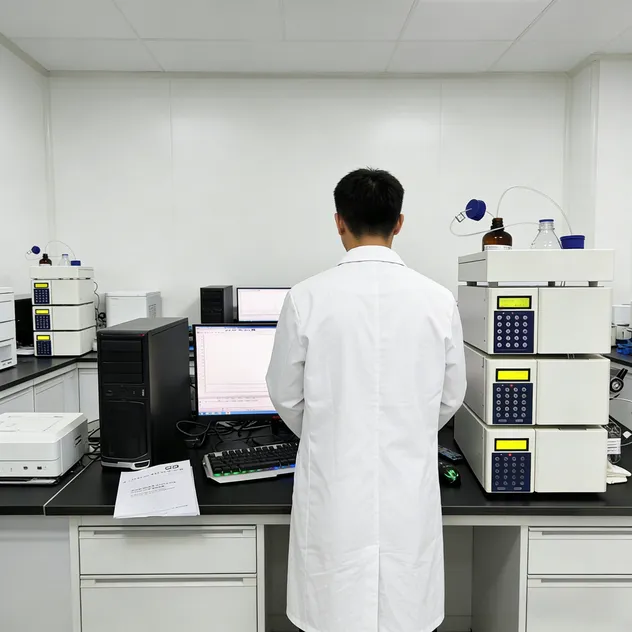

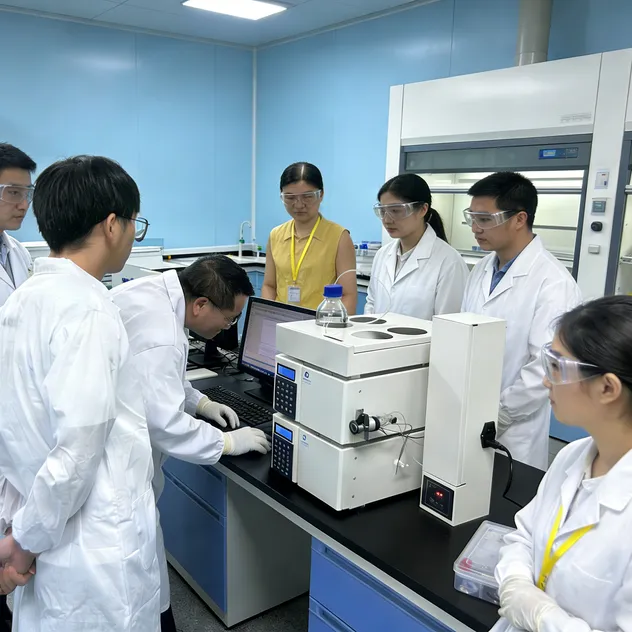

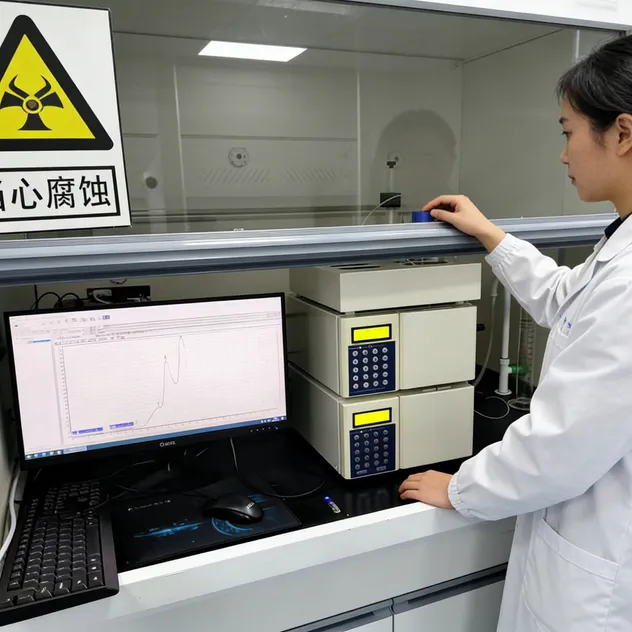

Project Cases

Expert Solution Provider

We are a technology-driven solutions provider specializing in analytical testing. We focus on professional, reliable, and cost-effective solutions for environmental monitoring, life sciences, and industrial quality inspection. Our team provides end-to-end technical support from solution design to installation and training.

Packing & Delivery

Frequently Asked Questions

What are the primary applications of the DAC-150 system?

The DAC dynamic axial column system is primarily used for the high-purity separation, purification, and quantitative analysis of complex mixtures, including synthetic compounds, natural products, and protein biopolymers.

What materials are used for liquid contact components?

The system uses high-quality 316L Stainless Steel and PTFE for all liquid contact surfaces to ensure chemical resistance and sample integrity.

Can this system be used for industrial production?

Yes, it is designed for scalability. It can handle kilogram-level samples, making it suitable for both laboratory research and large-scale industrial purification.

What is the detection range of the UV-Vis detector?

The UV-Vis Dual-Wavelength Detector offers a detection range of 0 to 5 AU with a wavelength accuracy of ±1nm, covering 190-400nm (Deuterium) and 400-700nm (Tungsten).

Is the system compatible with different types of columns?

Absolutely. The modular design supports various chromatographic columns, including stainless steel, rapid separation, and glass columns.

What kind of technical support do you provide?

We provide full-cycle technical services including solution design, system integration, professional installation, staff training, and 24-hour rapid response after-sales maintenance.
