Hospital High Quality Blood Testing Equipment Auto Chemistry Analysis System

Classification:	Biochemical Apparatus
Type:	Biochemistry Analyzer
Certification:	ISO13485

Basic Specifications

Model NO. CCL-C180

Warranty 1 Year

Package Standard Export Package

Origin China

Capacity 500 units/Month

Product Description

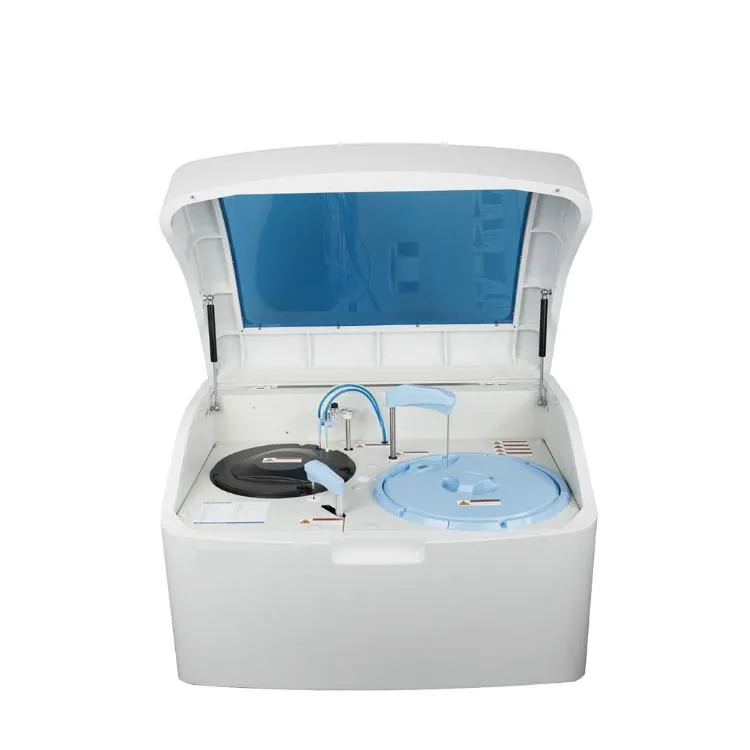

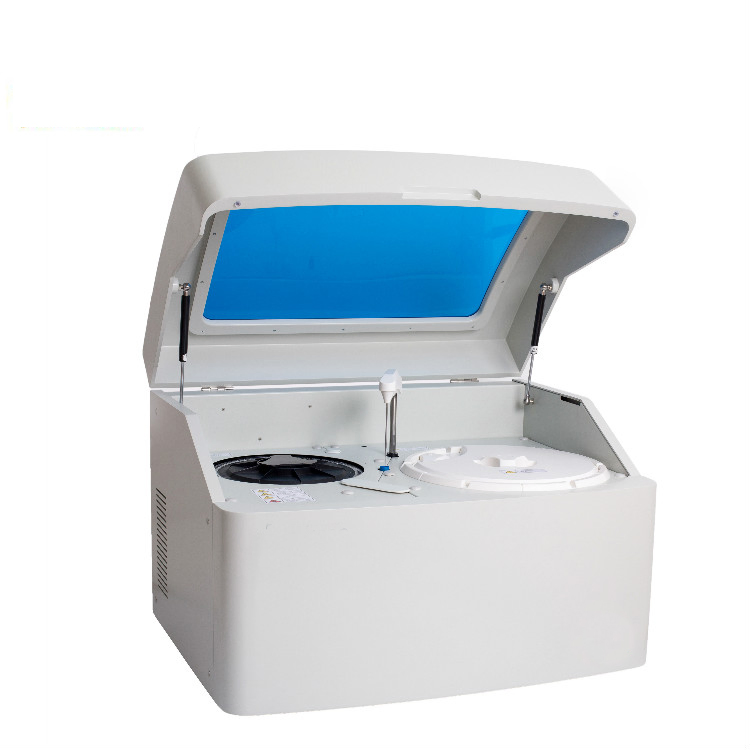

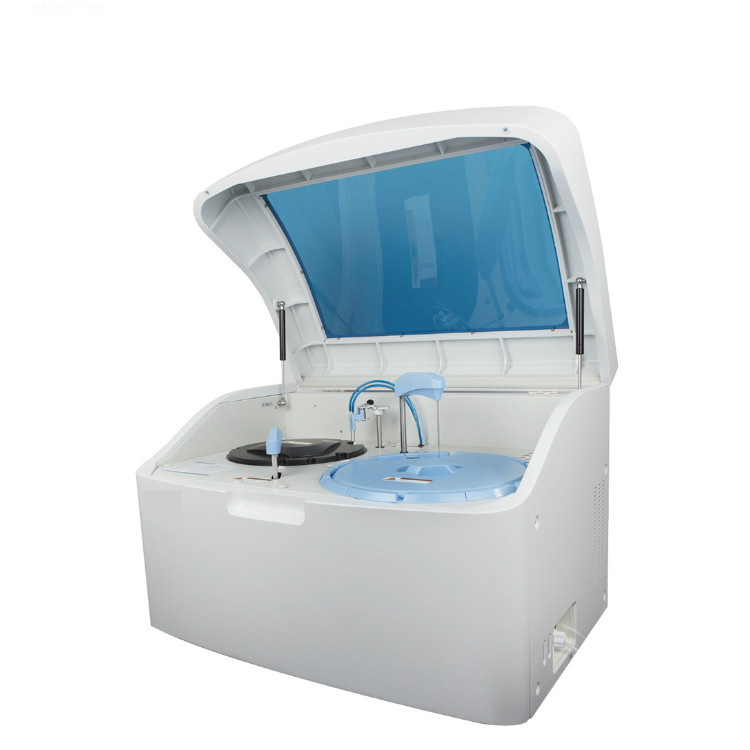

Hospital High Quality Blood Testing Equipment Auto Chemistry Analysis System

Model: CCL-C180

⚙️ Technical Parameters Overview

Throughput	Constant 180T/h (non-ISE)
Theory	Absorption spectrometry, transmission turbidimetry
Methodology	End-point, Fixed-time, Kinetic, Ion selective electrode
Reaction Plate	Contain 81 reaction cuvettes, Max reaction time 15 mins
Optical Unit
Light Source	Halogen-tungsten lamp
Wavelength	340nm-900nm option
Reagent & Sample Unit
Reagent Positions	60 positions, 2~10ºC storage temperature
Sample Positions	60 positions for human/animal serum, plasma, urine
Probe System	Liquid level detection; Collision protection; Automatic inside/outside washing
Operation & Data
Software	Windows XP/2000, SQL Server Database
Data Storage	Automatic store & copy; Lifetime preservation
Physical Specifications
Dimension	782mm × 581mm × 545mm
Net Weight	60kg
Water Consumption	< 6L/h

One-Stop Medical Equipment Solutions

Department	Available Equipment
X-Ray Room	X-ray machine, Processor, X-ray film, Cassette, Lead clothing (gloves, glasses, apron, etc.)
Ultrasound	B/W 2D Ultrasound, 2/3/4D Color Ultrasound
Laboratory	Chemistry analyzer, Hematology analyzer, ELISA reader/washer, Centrifuge, Pipette, Urine analyzer
Operation Room	Anesthesia machine, Ventilator, Operating lamp/table, Patient monitor, Defibrillator, Infusion pump, Autoclave

Frequently Asked Questions

What is the testing capacity of the CCL-C180?

The system provides a constant throughput of 180 tests per hour (180T/h), excluding ISE tests.

What types of samples can this analyzer process?

It is compatible with human and animal serum, plasma, urine, and other biological fluids.

What are the water consumption requirements?

The equipment is highly efficient, requiring less than 6 liters of water per hour during operation.

How is the reagent storage managed?

The unit features 60 reagent positions with an integrated cooling system that maintains a temperature between 2~10ºC.

Does the system include automatic cleaning features?

Yes, the system includes automatically checked probes with patent technology for liquid level detection and automatic washing for both inside and outside to prevent cross-contamination.

What are the software and data storage capabilities?

The system runs on Windows XP/2000 using an SQL Server database, offering automatic storage and lifetime preservation of data with no volume limits.
