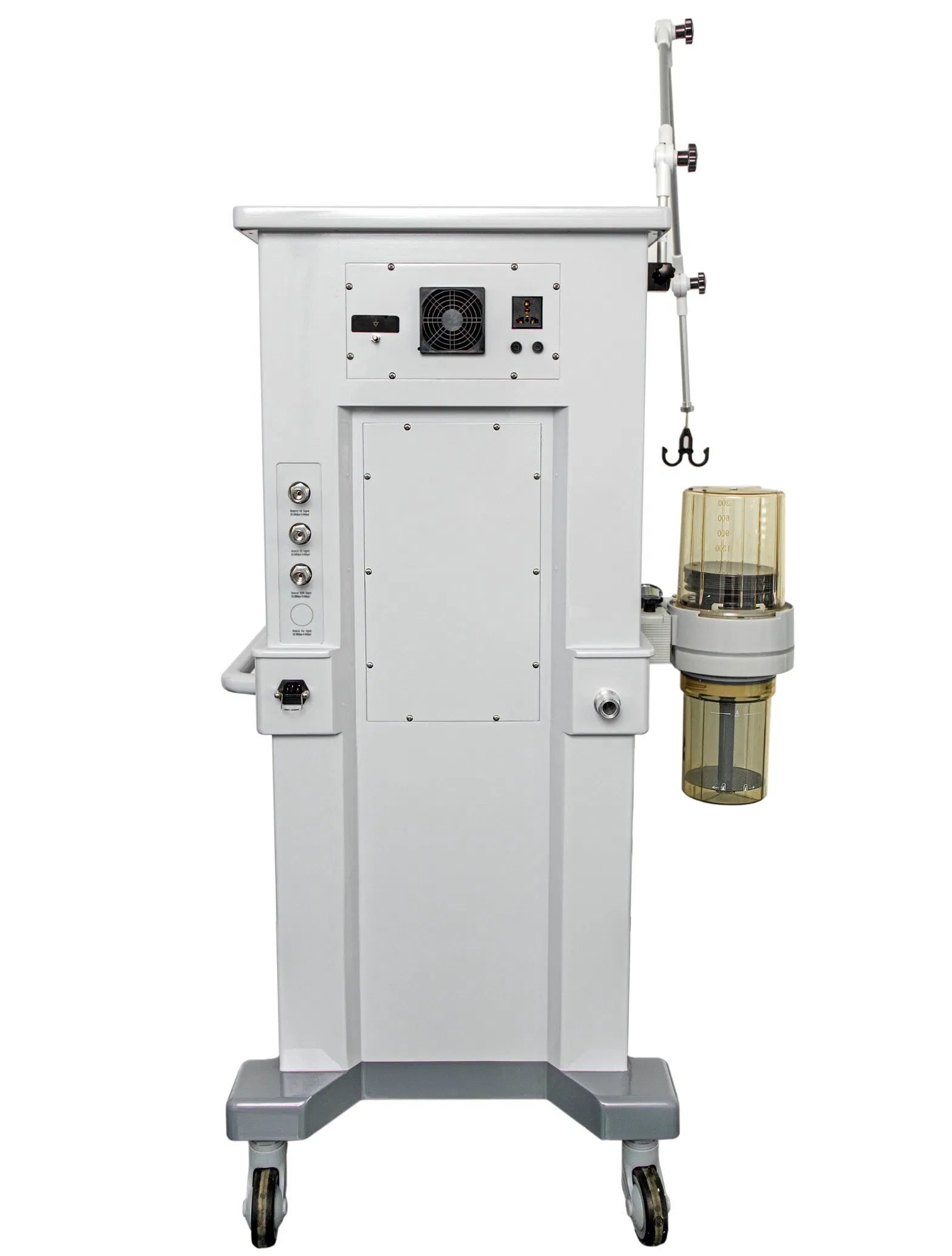

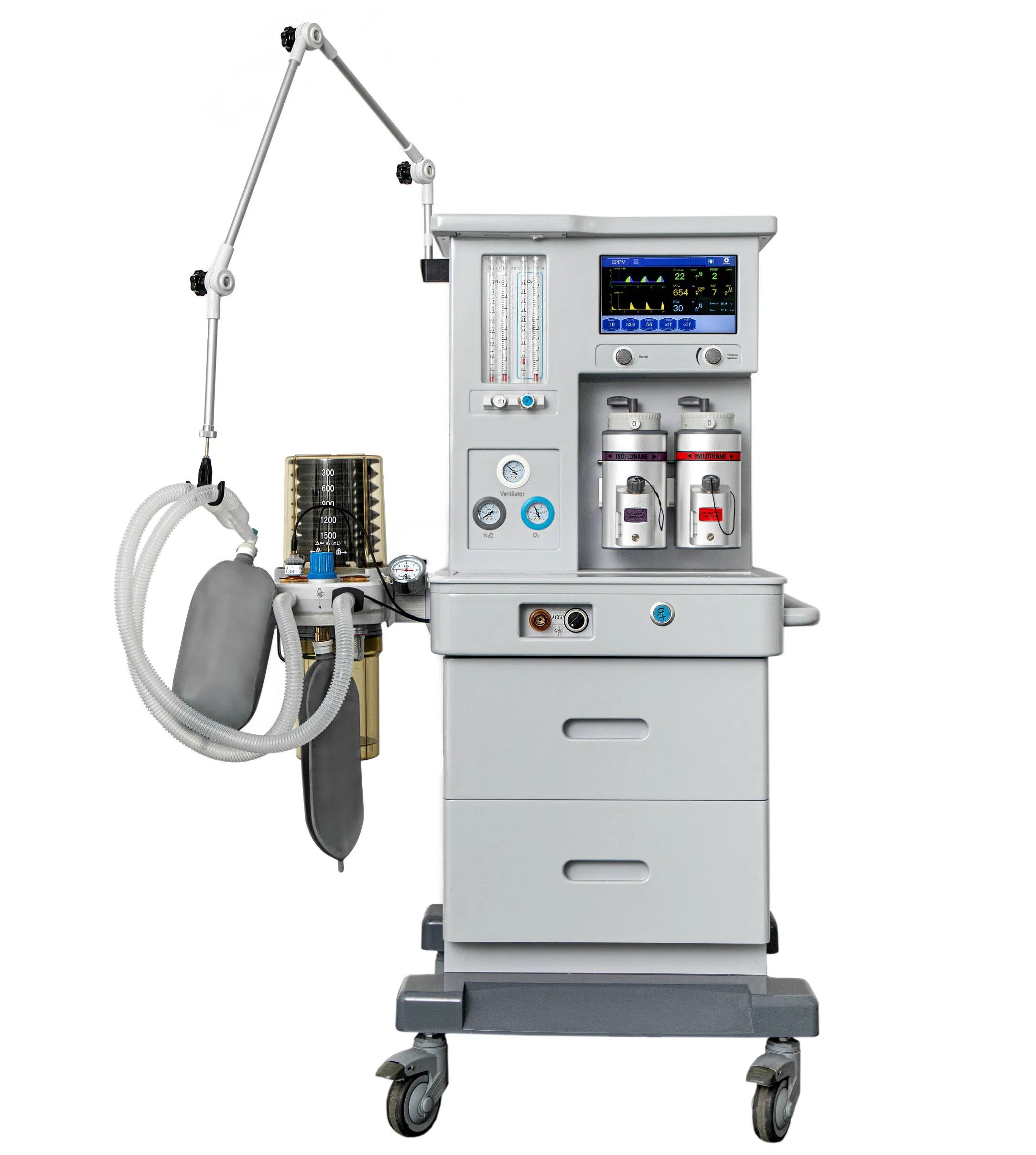

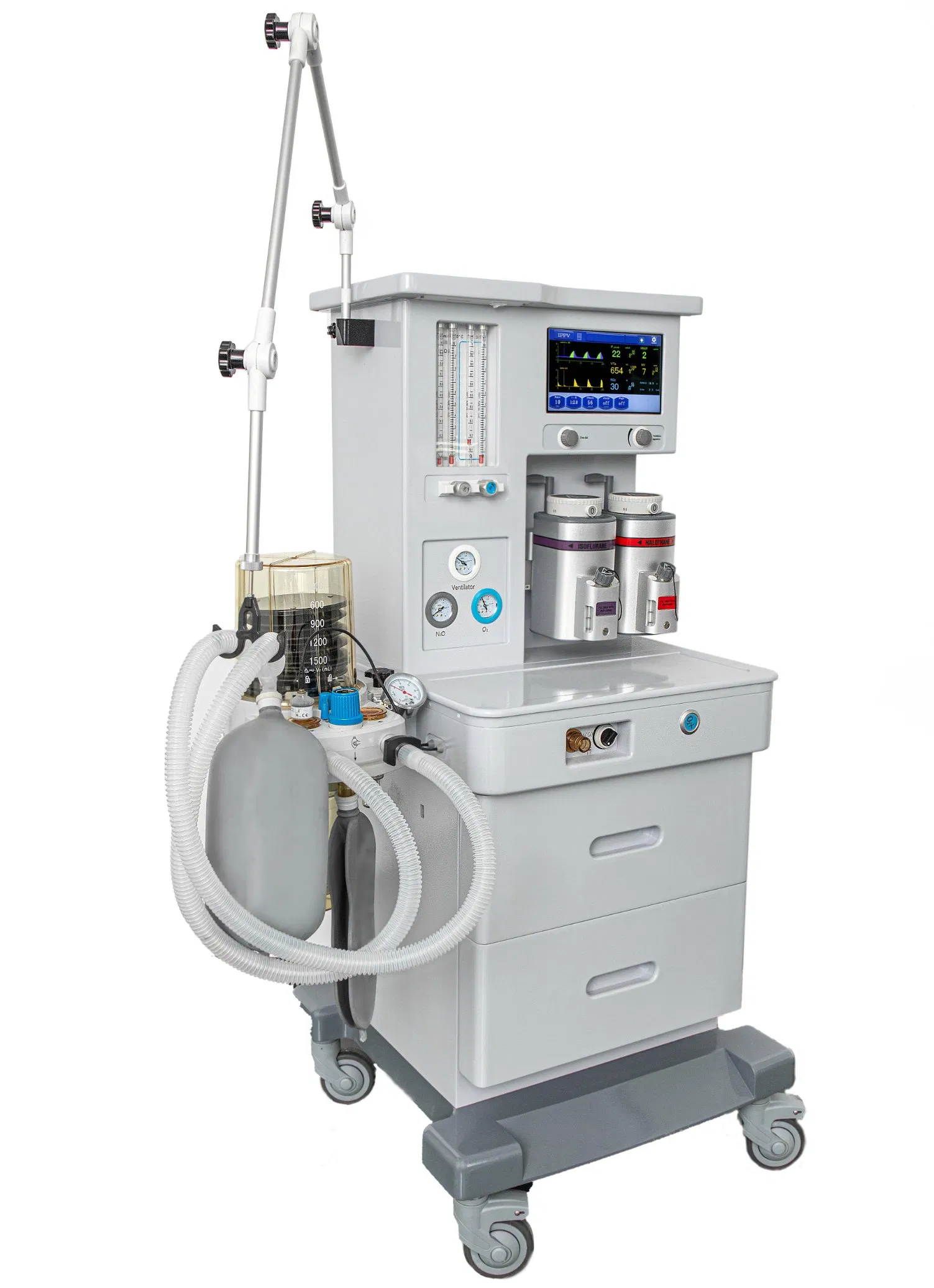

Intelligent Smart Anesthesia Suite All-in-One Monitoring and Management Solution

1 / 5

Intelligent Smart Anesthesia Suite All-in-One Monitoring and Management Solution

Customization:	Available
Type:	Anesthesia Machine
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns

Send Inquiry

Product Description

Basic Specifications

Material

Plastic

Feature

Reusable

Certification

CE, ISO13485

Group

Adult, Child

Tidal Volume

0-1500 Ml

Ventilation Mode

Ippv, Sippv, Simv, Peep, Sigh, Manual

Display

10.1inch TFT Color LCD Touch Screen

Power Supply

AC 100-240V, 50/60Hz

Origin

China

HS Code

9018907010

Intelligent Smart Anesthesia Suite

All-in-One Monitoring and Management Solution

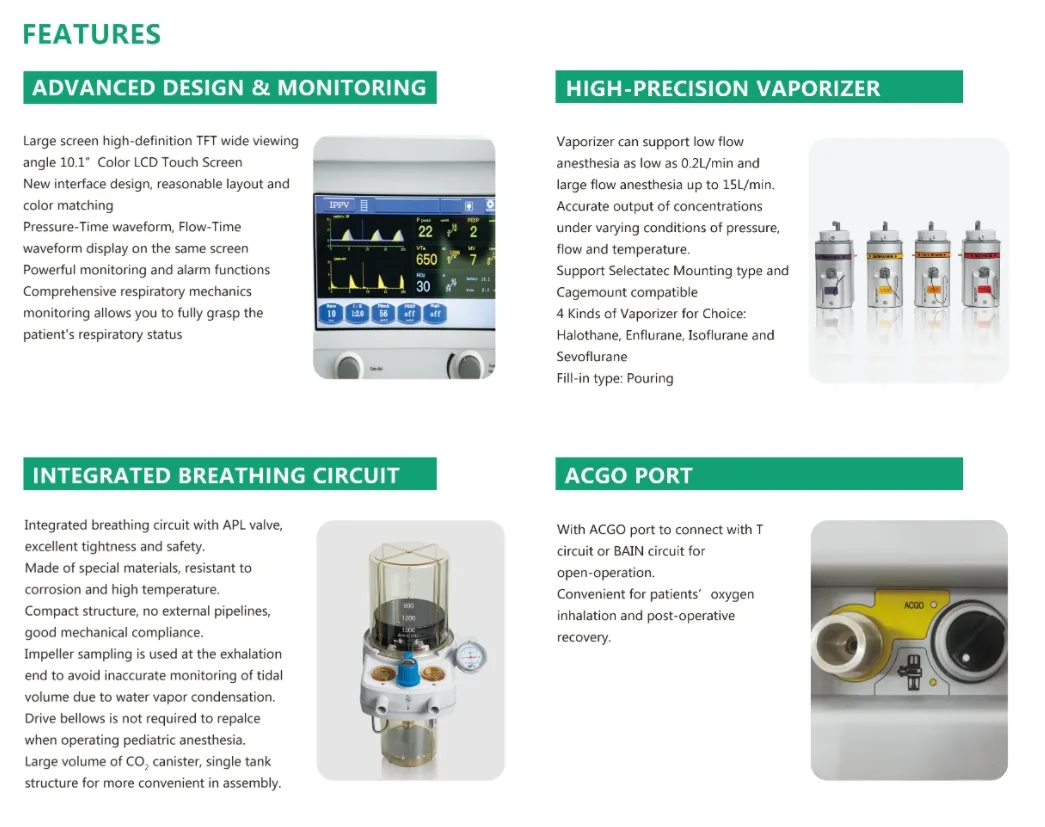

Key Features

◈ Large screen high-definition TFT wide viewing angle 10.1" Color LCD Touch Screen

◈ New interface design, reasonable layout and color matching

◈ Pressure-Time waveform, Flow-Time waveform display on the same screen

◈ Powerful monitoring and alarm functions

◈ Comprehensive respiratory mechanics monitoring for full patient status grasp

Technical Parameters

Anesthesia Machine Components
Gas Source	O2: 0.28~0.6MPa, N2O: 0.28~0.6MPa
Flow Meter	O2: 0.05~10L/min, N2O: 0.05~10L/min
Oxygen Supply	Rapid Flow Rate: 25~75L/min

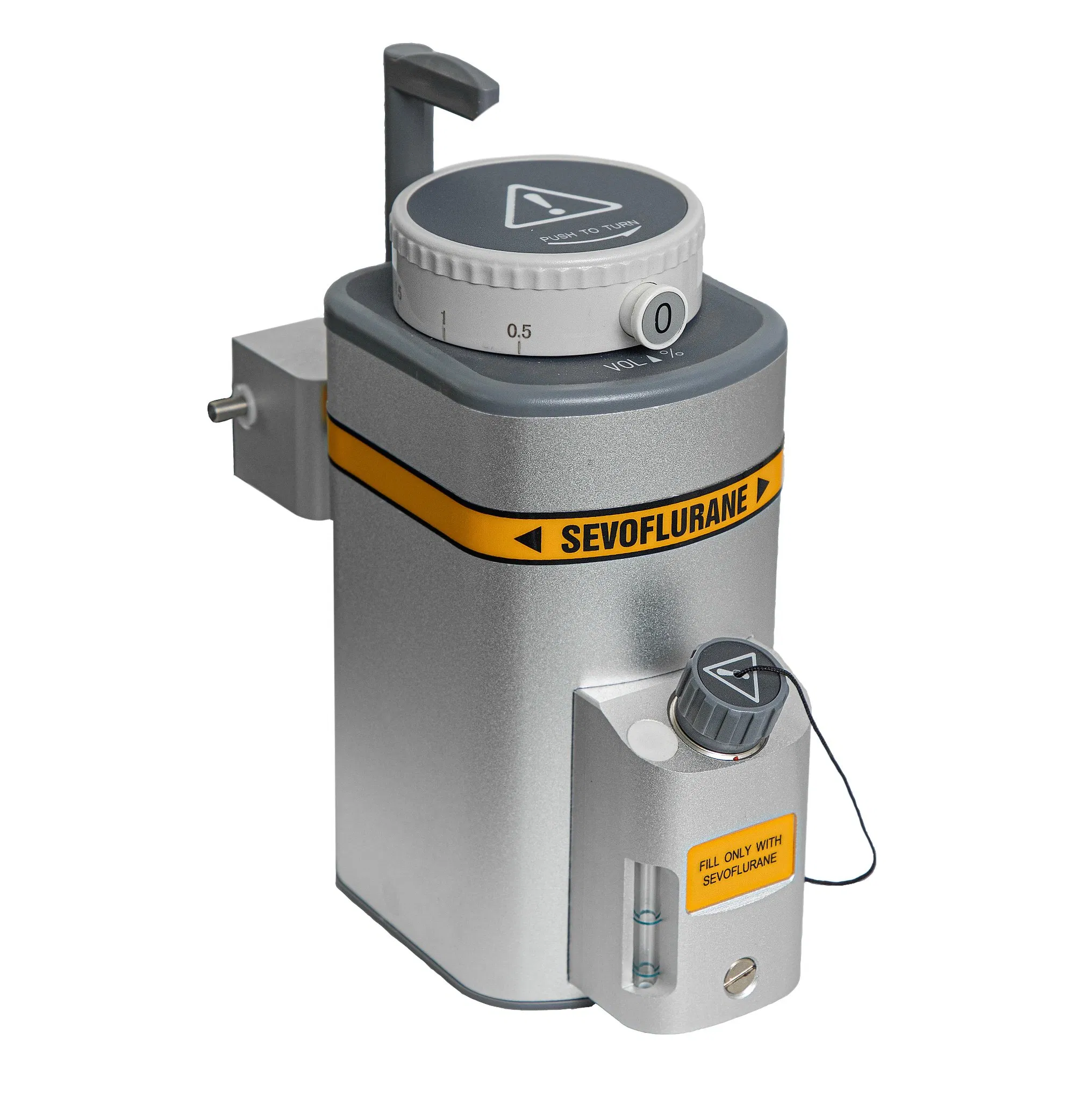

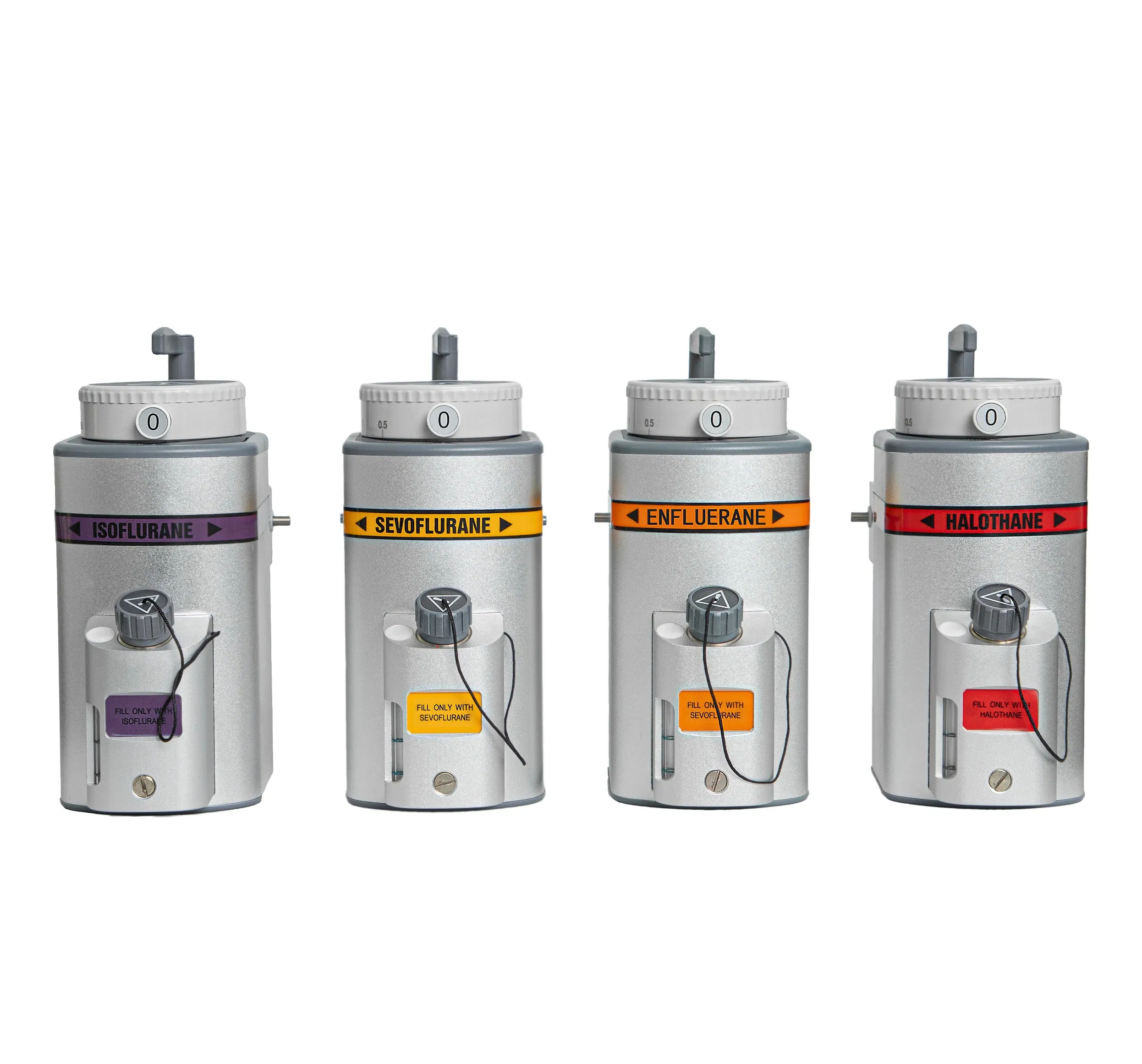

Vaporizer	Range: 0~5 vol%. Supports Halothane, Enflurane, Isoflurane, Sevoflurane
Respiratory Circuit	Working mode: All-close, Semi-close, Semi-open; APL: ≤12.5 kPa
Ventilation Modes	IPPV, SIPPV, SIMV, PEEP, SIGH, MANUAL
Tidal Volume	50 ~ 1500 ml
Battery	Built-in Li Battery (6-8 hours backup)

Security Alarm System

Oxygen Concentration: Upper: 21%-99%, Low: 18%-80%

Airway Pressure: Upper: 5-60 cmH2O, Low: 0-50 cmH2O

Sustained High Pressure: Alarm triggered if > 25 cmH2O for 15s

Suffocation Alarm: Triggered if pressure > 10 cmH2O and TV < 120ml for 15s

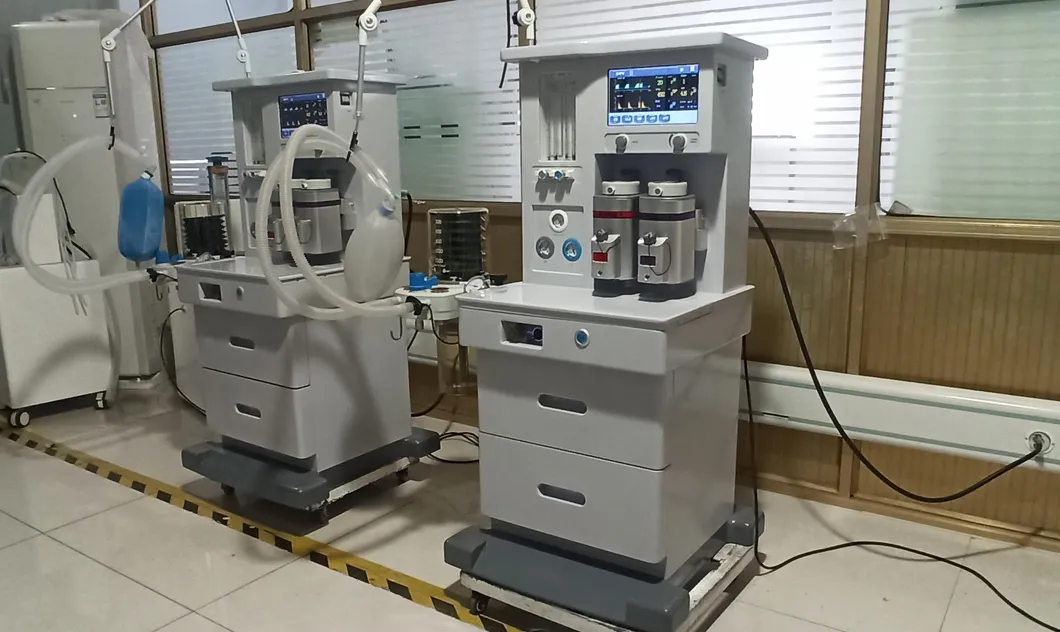

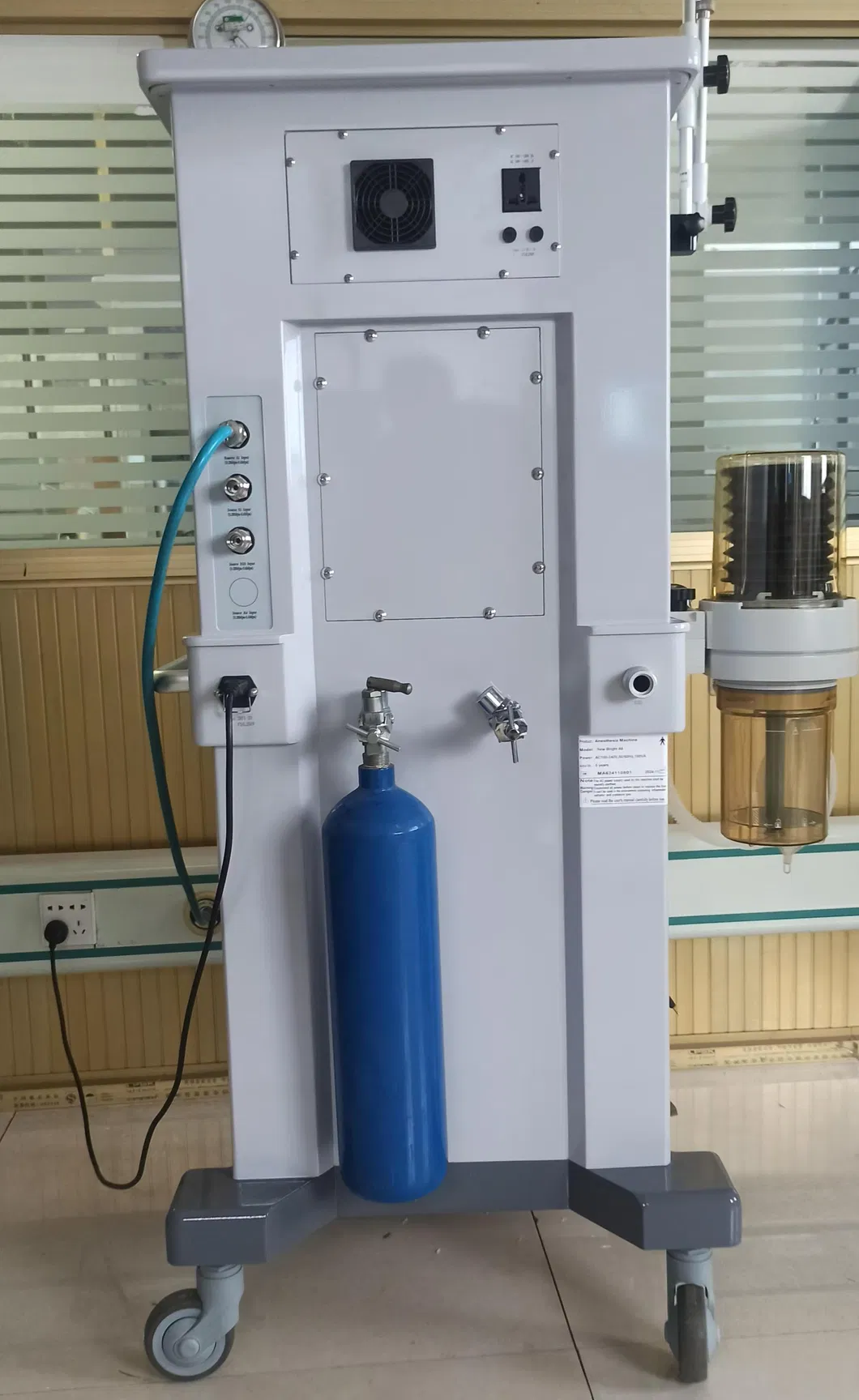

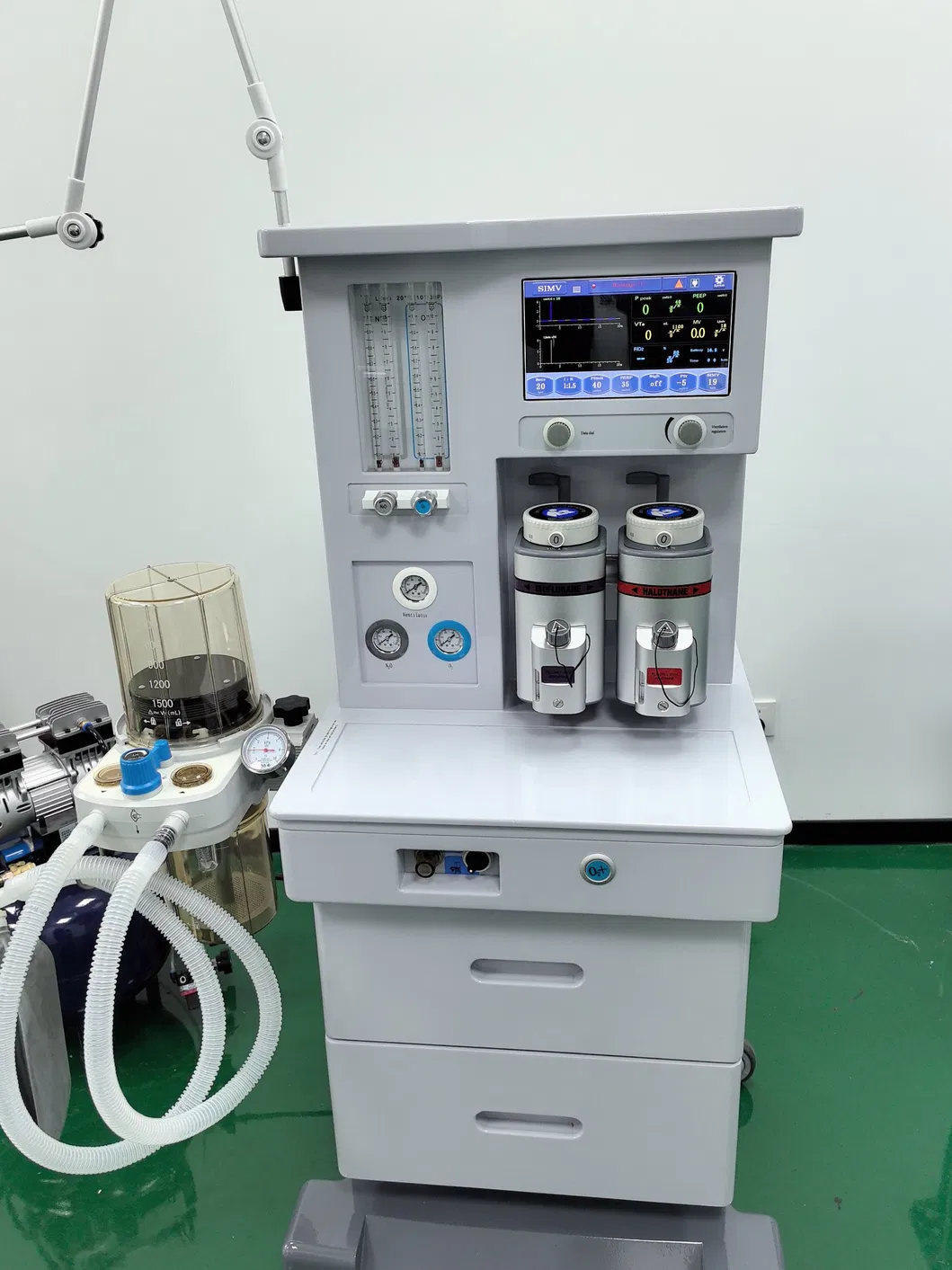

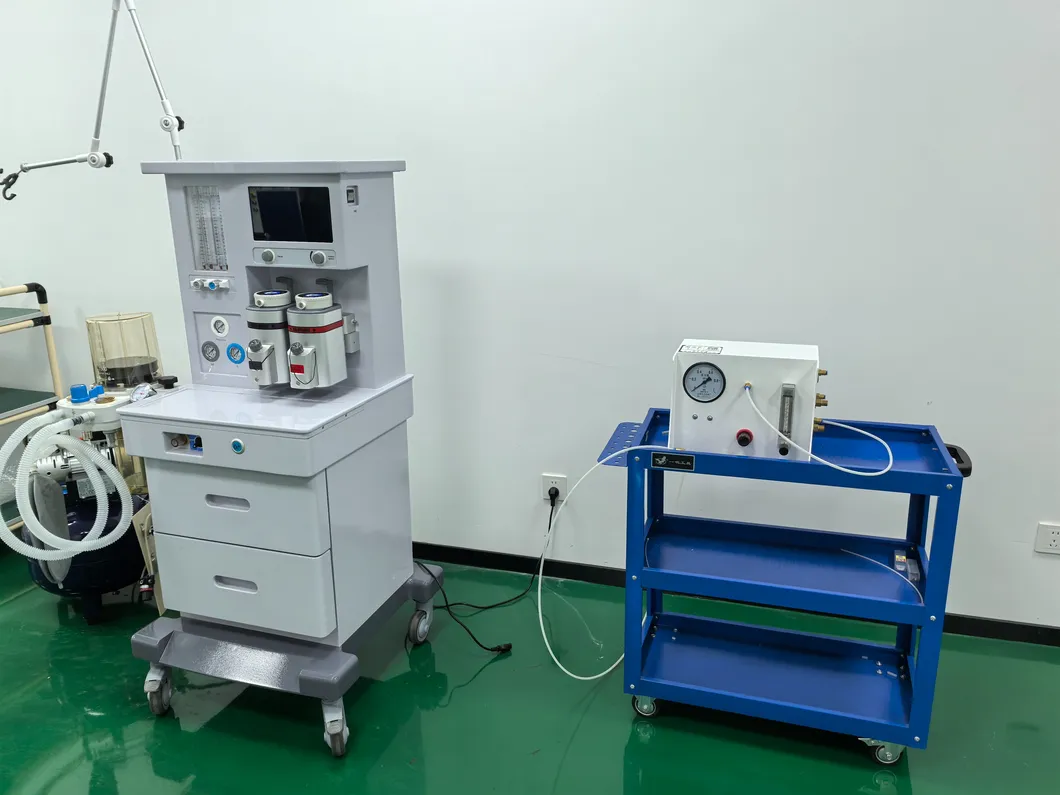

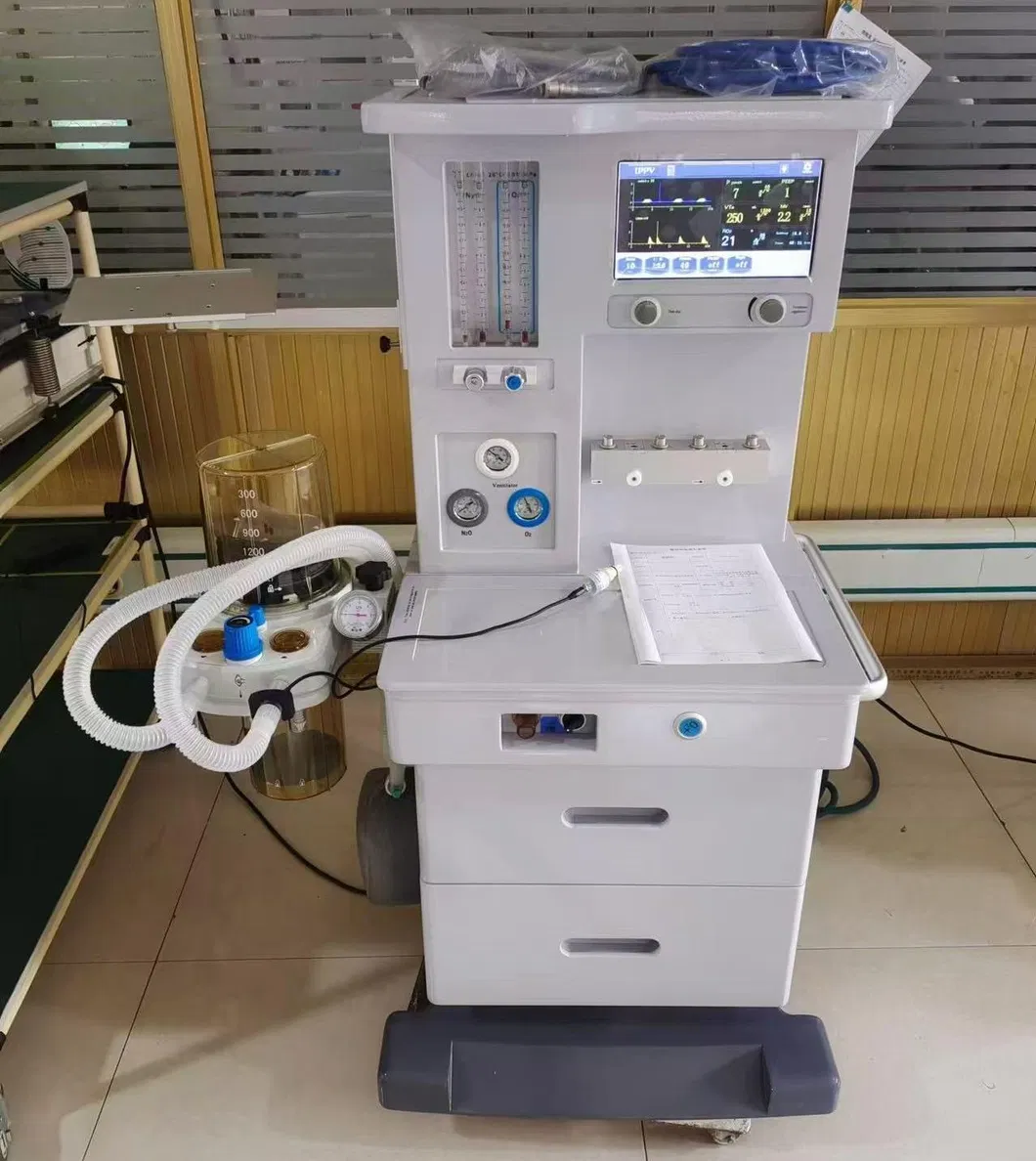

Product Details Gallery

Frequently Asked Questions

Q1: What is your payment term?

We accept T/T, L/C, Western Union, and other standard international payment methods.

Q2: What is the standard delivery time?

Generally, it takes 15-35 working days depending on the specific order quantity.

Q3: Can you provide Origin Certificates like FORM A or CO?

Yes, we can apply for these official certificates through the government for your customs requirements.

Q4: Do you support OEM services or custom branding?

Yes, we provide OEM items and can use your logo as we have our own professional R&D team.

Q5: Which regions do you currently supply?

Our products are distributed to over 70 countries, including regions in Africa, South America, Russia, the Middle East, and Southeast Asia.

Q6: Do you offer worldwide delivery?

Yes, we provide global delivery services for all orders regardless of the destination.
