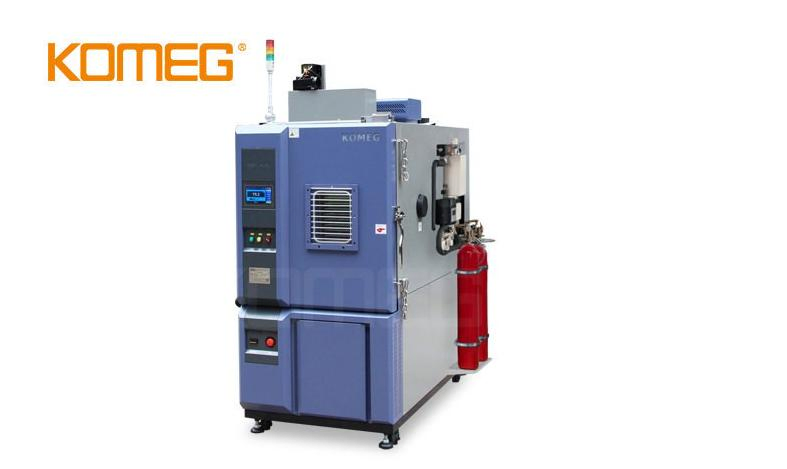

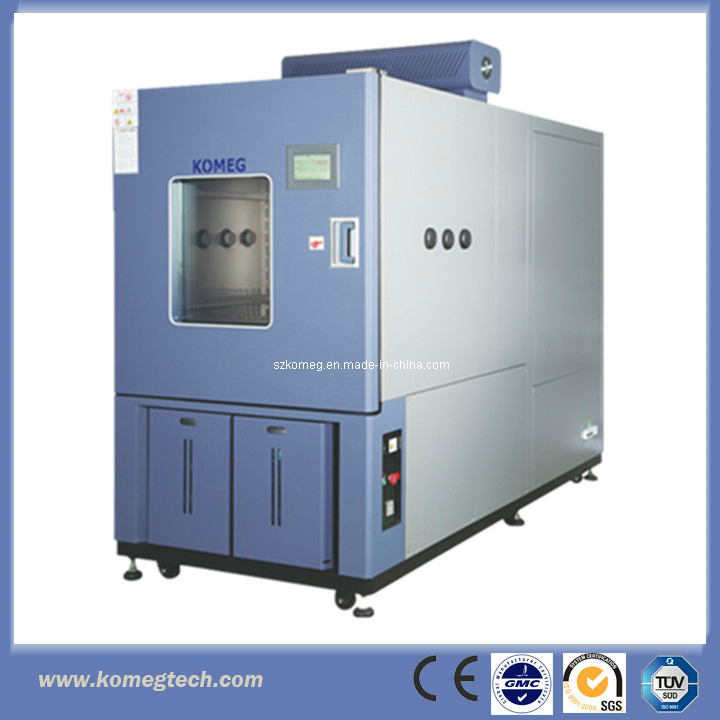

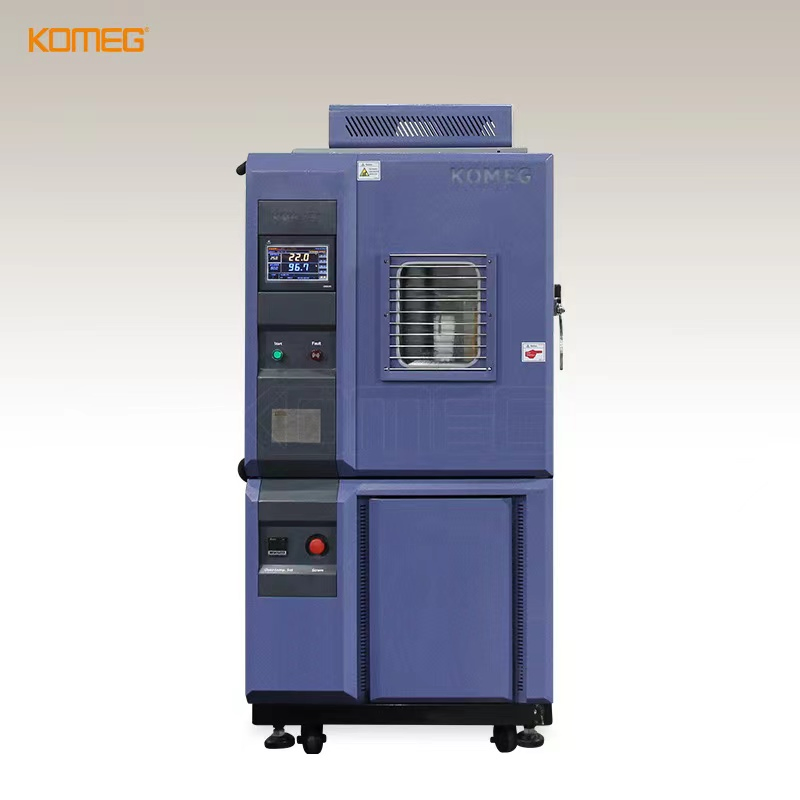

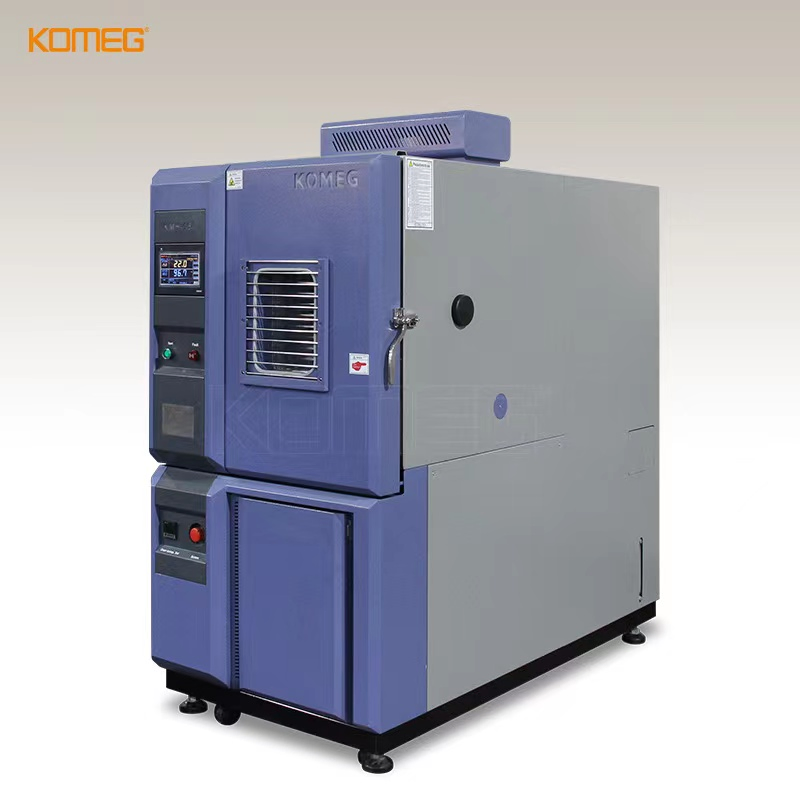

Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
1 / 5
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing
Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing

Komeg Programmable Rapid Temperature Change Chamber (equipment) for Laboratory Testing

Customization: Available
After-sales Service: 24 Hours on Line Services
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
ESS-408SL10
Type
Material Testing Machine
Weight
100-500Kg
Power Source
AC380V
Working Chamber Volume (L)
408
Temp. Rate of Change
10 °C/Min
Temp. Constancy
+/-3.0°C
Interior Material
Stainless Steel (SUS304)
Exterior Material
Baked Painting Steel / SUS304
Insulation
Rigid Polyurethane Foam
Compressor
Semi-Hermetic (France Tecumseh)
Cooling Mode
Water Cooled
Ambient Temp.
+5°C ~ +35°C
Production Capacity
1000 Sets/Year
P

Product Description

Programmable Rapid Temperature Change Chamber for Laboratory Testing

Main Applications:
Temperature adaptability tests under conditions of rapid change or gradient for electrical, electronic instruments, and spare parts. It is particularly designed for environmental stress screening tests (ESS).

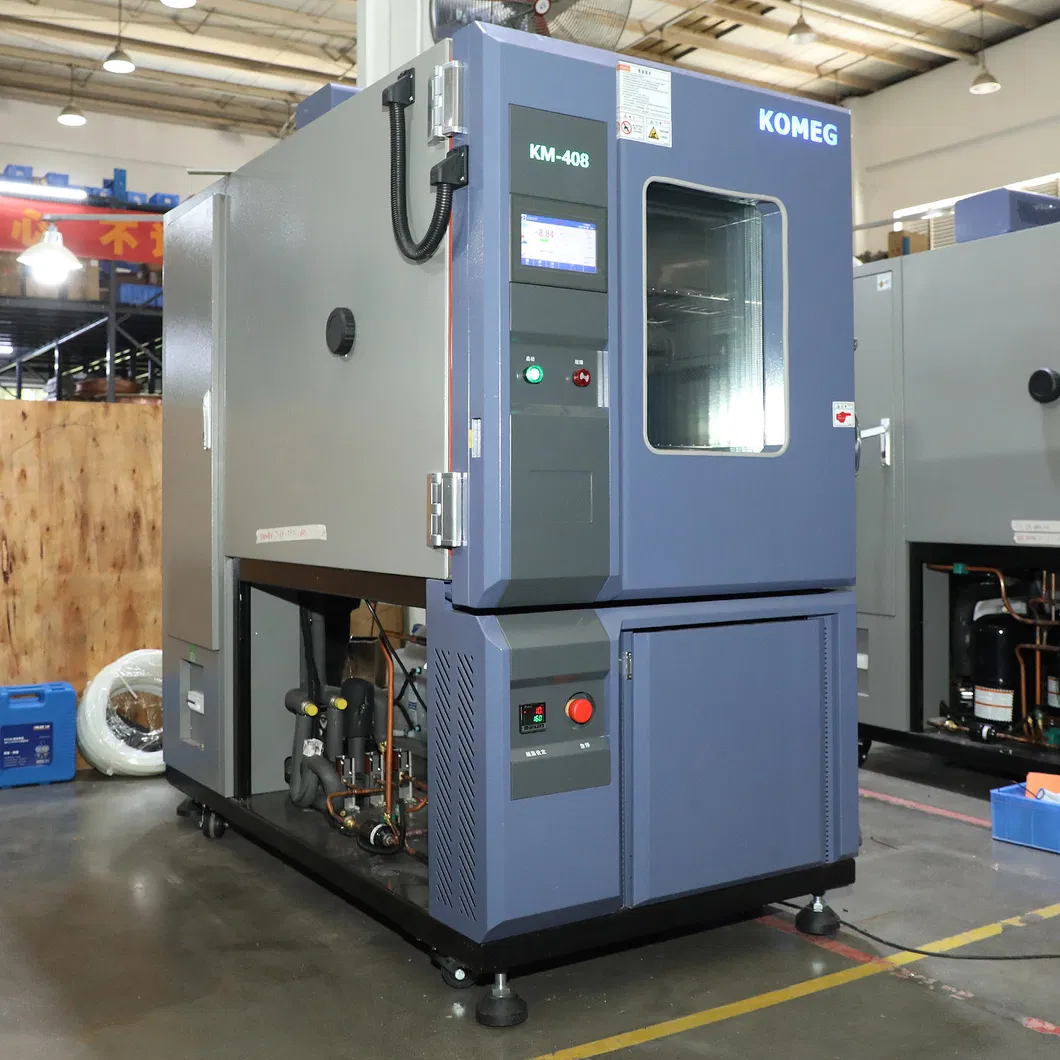

Rapid Temperature Change Chamber

We provide standard and custom environmental test chambers designed to simulate real environmental conditions such as temperature, humidity, pressure, vibration, rain, and dust. Our solutions serve various industries including electronics, automotive, renewable energy, semiconductor, and telecommunications.

Testing Equipment Detail
Chamber Interior

Our product range includes temperature humidity test chambers, environmental stress screening (ESS) chambers, walk-in rooms, battery test chambers, thermal shock chambers, and salt spray test chambers. All products are designed to meet international testing standards such as ASTM, DIN, ISO, and IEC.

T

Technical Specification

Model 225SL5 225SL10 408LS5 408SL10 1000SL5 1000SL10
Volume (L) 225 408 1000
Temp. Change Rate (°C/Min) 5 10 5 10 5 10
Temp. Range -70°C ~ +100°C (Rapid Change -55°C ~ +85°C Full Linear Control)
Temp. Constancy ± 3.0°C
Interior Material Stainless Steel Plate (SUS304)
Cooling Mode Water Cooled
Controller Touch screen programmable controller
Safety Devices Over pressure, over heat, over current protection, water lack protection, leakage protection.
Equipment View 1
Equipment View 2
System Interface
F

Frequently Asked Questions

What is the primary use of the Rapid Temperature Change Chamber?
It is primarily used for Environmental Stress Screening (ESS) tests to identify potential failures in electrical and electronic components by simulating rapid temperature fluctuations.
What cooling method does this equipment use?
This series utilizes a water-cooled system combined with a high-performance semi-hermetic compressor for efficient thermal management.
Is the temperature control linear?
Yes, the chamber features full linear control during rapid temperature changes within specific ranges (e.g., -55°C to +85°C), ensuring precise testing conditions.
Which materials are used for the chamber construction?
The interior is made of high-grade SUS304 stainless steel, while the exterior is available in baked painting steel or SUS304 stainless steel for durability and corrosion resistance.
What safety features are integrated into the system?
Safety features include over-pressure, over-heat, and over-current protection for the compressor, overload protection for blowers, water lack protection, and leakage protection.
Can the testing cycles be programmed?
Yes, the unit is equipped with a touch-screen programmable controller that allows users to set complex temperature profiles and monitor data in real-time.
