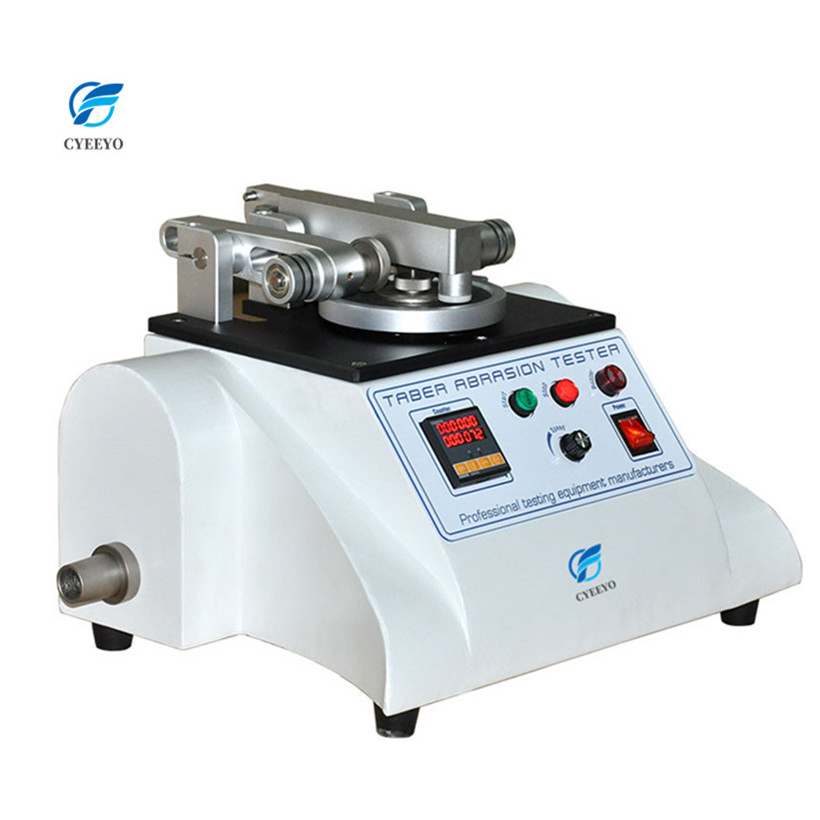

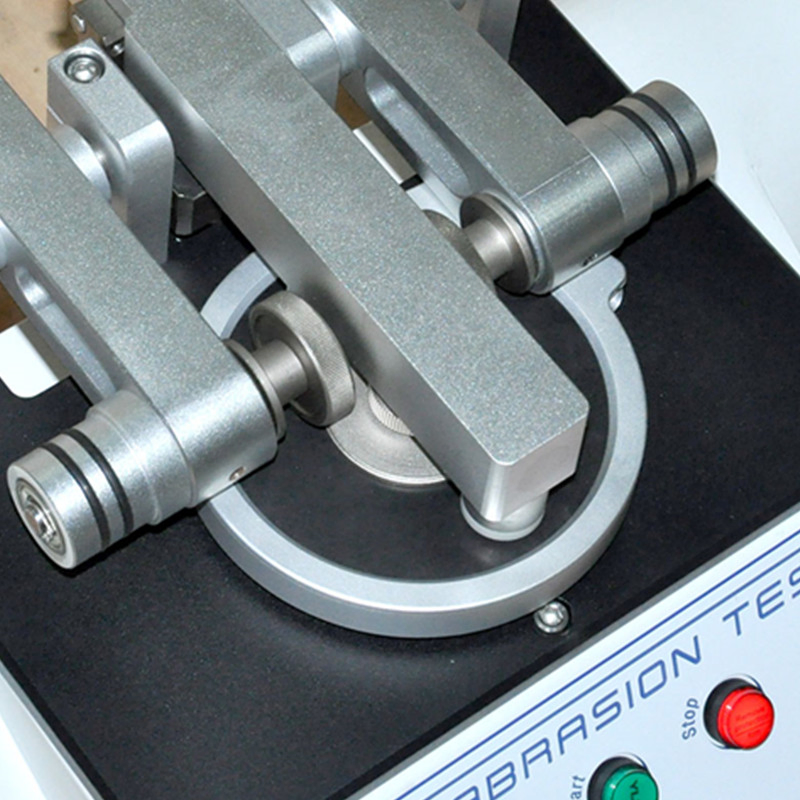

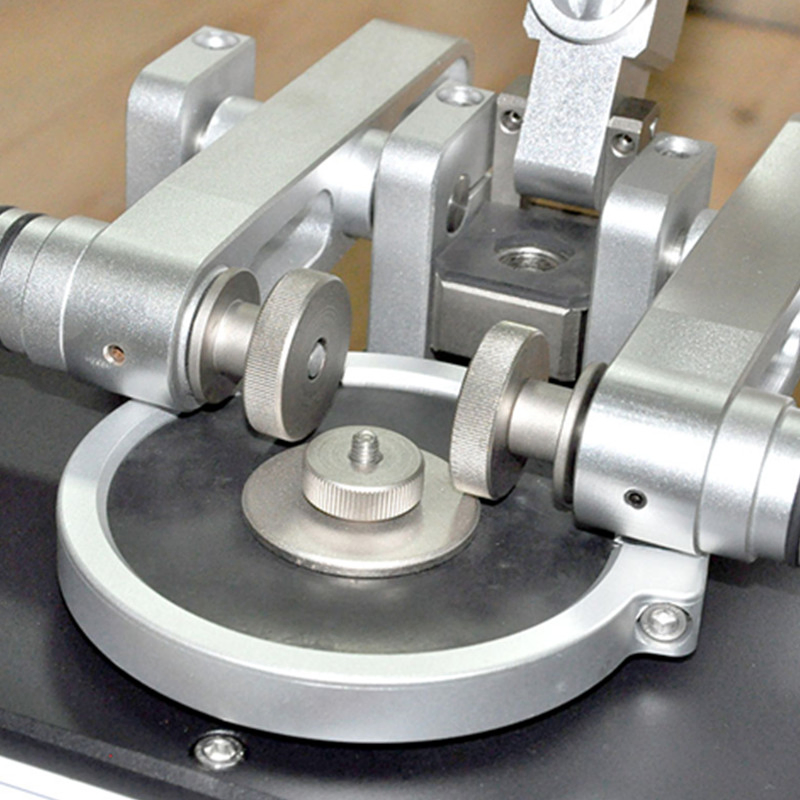

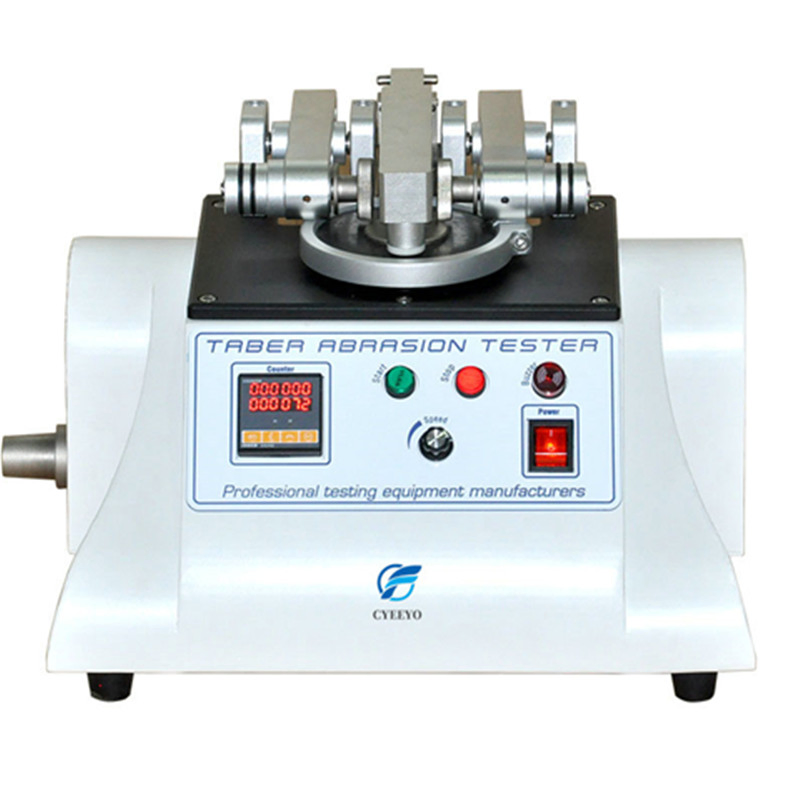

Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
1 / 5
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470
Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470

Lab Abrasion Resistance Tester Testing Equipment ASTM D3884 ISO5470

Customization: Available
Warranty: 1 Year
Usage: Technological Characteristic Testing
Send Inquiry

Product Description

Basic Specifications
Model NO.
CY-711
Automatic Grade
Automatic
Testing Type
Abrasive Resistance
Certification
CE, ISO9001: 2000
Condition
New
Working Plate Diameter
Φ115mm
Revolution Speed
50--120r/Min
HS Code
9027500090
Product Description

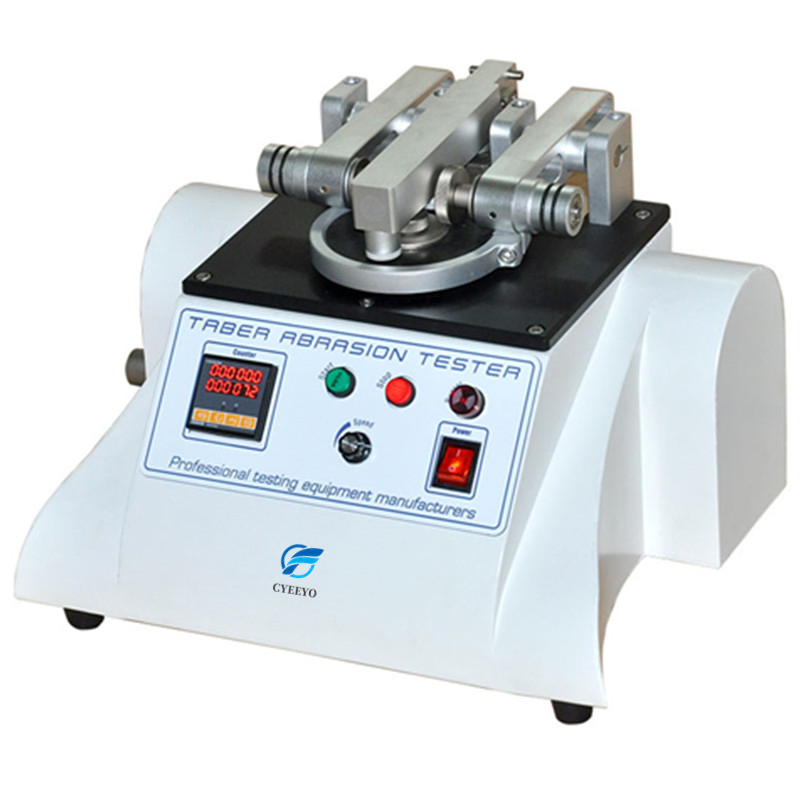

Rotary Abraser Resistance Taber Abrasion Tester

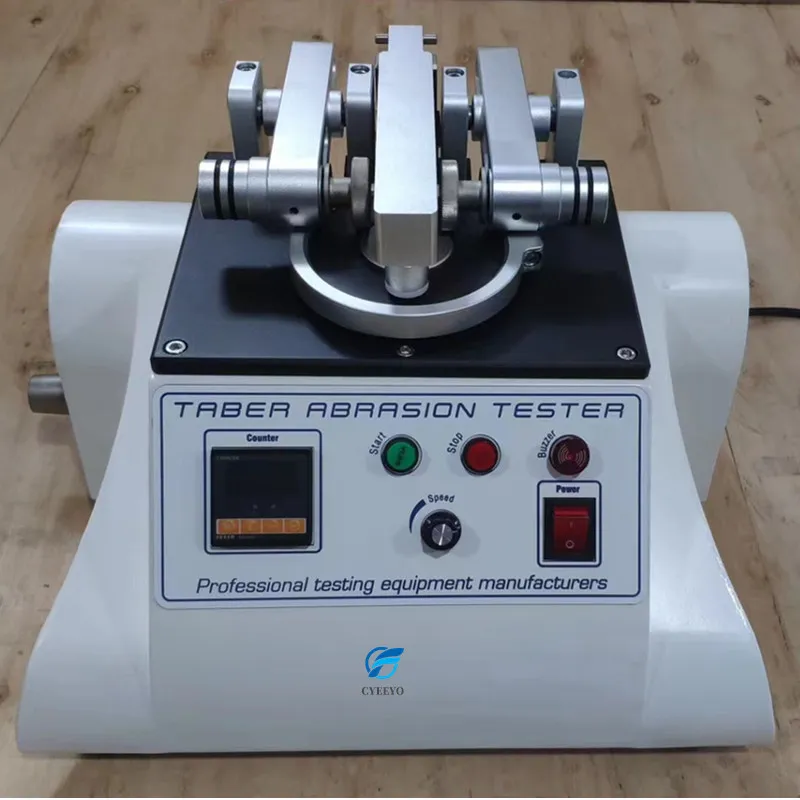

Lab Abrasion Resistance Tester
Testing Equipment ASTM D3884

Application

Used for testing abrasion resistance of all fabrics, leathers, carpets, rubbers, plastic sheets and other various materials.

Standard Compliance

ISO5470-1, ASTM D3884, DIN53863.2

Parameter Specification
Working plate diameterΦ115mm
Working plate speed of revolution50--120r/min
Grinding wheel dimensionDiameter Φ50mm, thickness 13mm
Counting range0~999999 times
Loading pressureSelf-weight: 250cN; Weights: 750cN, 250cN, 125cN
Sample max thickness20mm
Power consumption1400W (Max)
Power supply220V 50Hz
Dimension380×370×360 (L×W×H)mm
Net Weight30Kg (without cleaner)
Packaging & Shipping
Package Size
198.00cm * 79.00cm * 90.00cm
Gross Weight
98.000kg
Transport Package
Plywood Case
Packaging
Our Advantages
FAQ Details
Frequently Asked Questions
What materials can this machine test?
It is designed to test the abrasion resistance of various materials including fabrics, leathers, carpets, rubbers, and plastic sheets.
Which international standards does the tester follow?
The machine complies with ISO5470-1, ASTM D3884, and DIN53863.2 standards.
What is the maximum sample thickness supported?
The machine can accommodate samples with a maximum thickness of up to 20mm.
What are the available loading pressure options?
The tester uses a self-weight pressing sleeve of 250cN, with additional weights of 125cN, 250cN, and 750cN available for different testing requirements.
What is the counting range for the abrasion cycles?
The digital counter has a wide range from 0 to 999,999 cycles.
What are the power requirements for operation?
The machine operates on a standard 220V 50Hz power supply with a maximum consumption of 1400W.
