Our range includes Electronic universal material testing machines, Horizontal tension testing machines, Hydraulic universal testing machines, MFI, Charpy Impact, Izod Impact, HDT-Vicat testers, Hardness testers, Torsion testers, Metallographic series, and Ovens. Customization is available upon request.

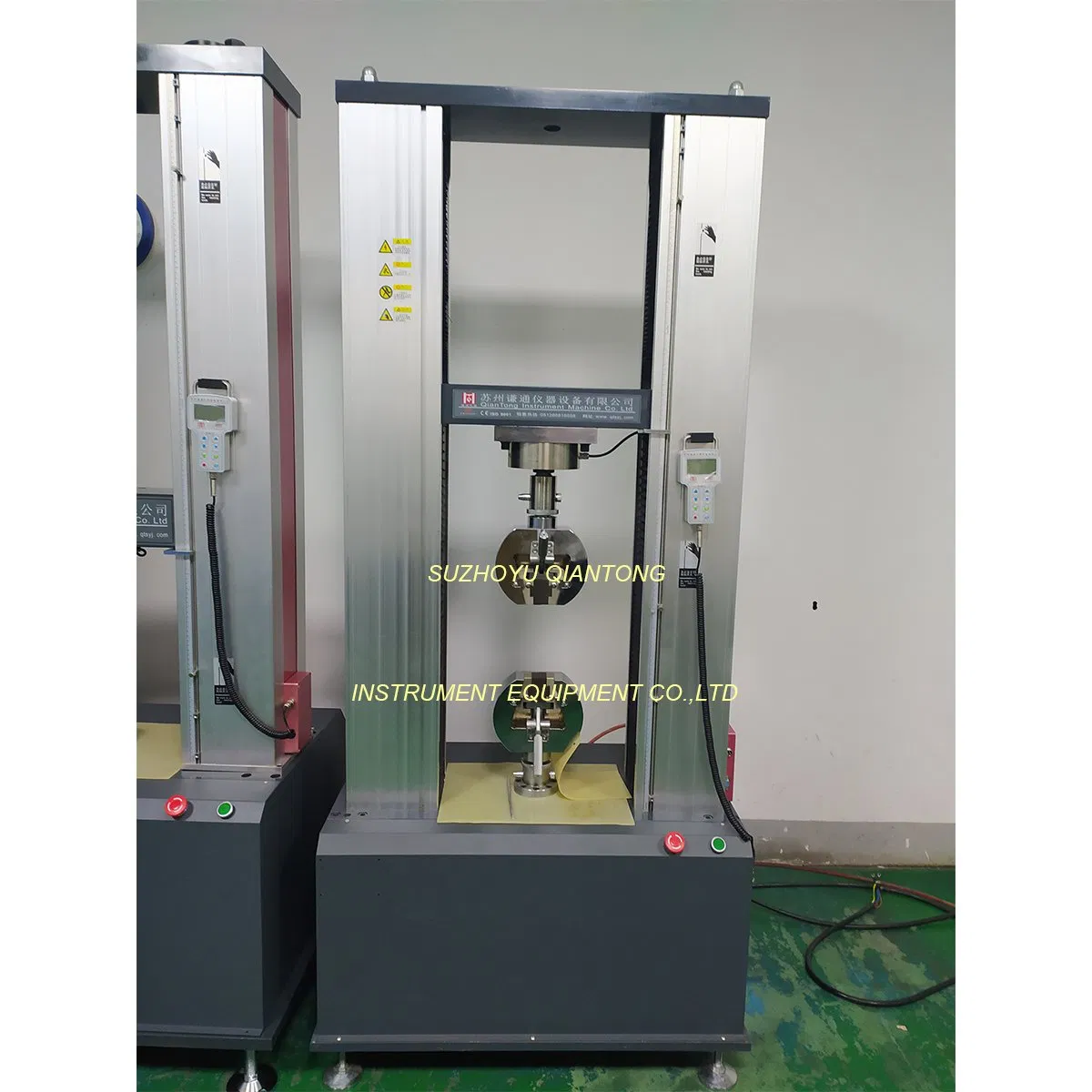

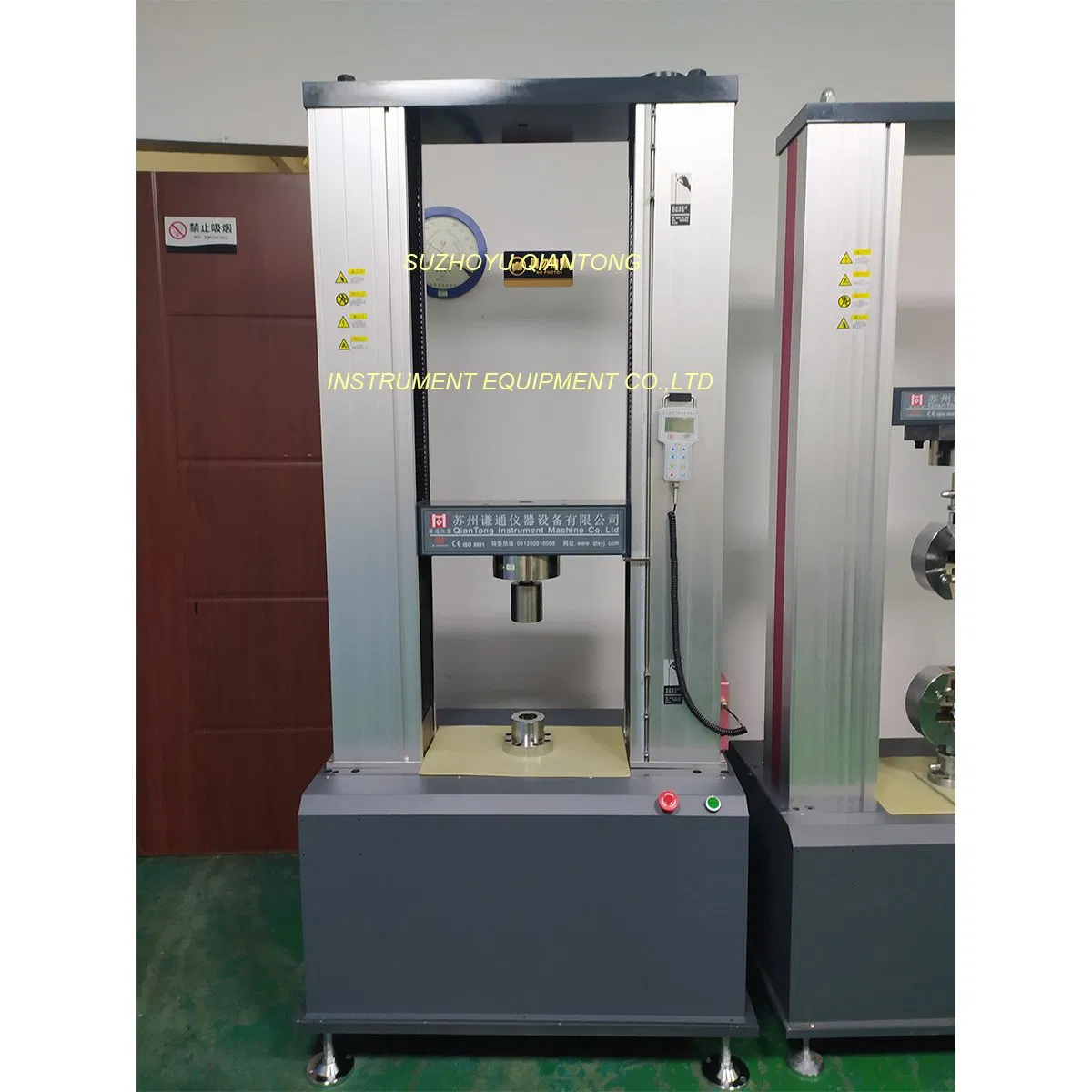

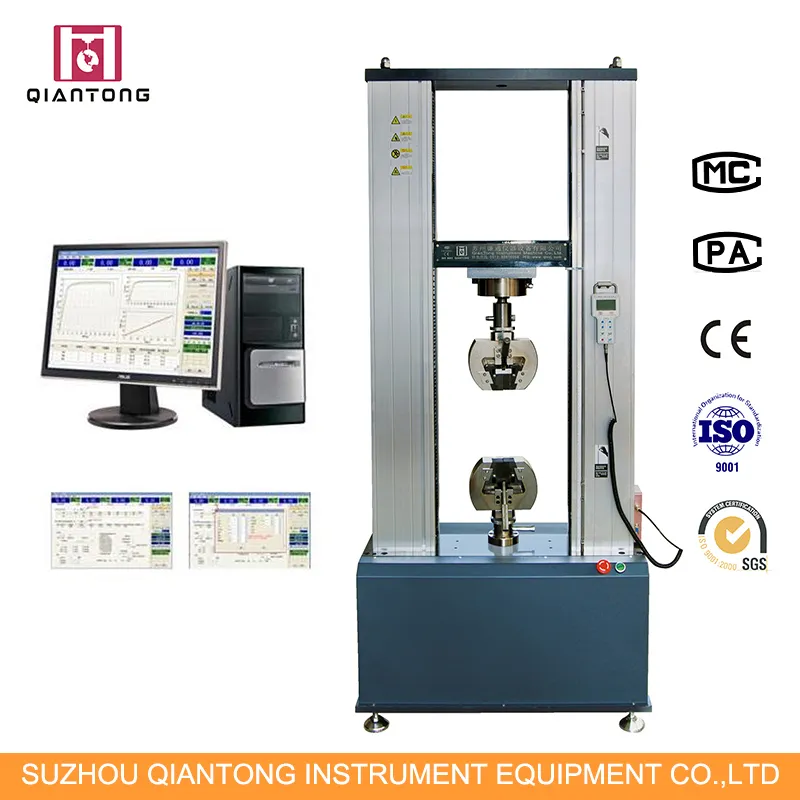

Brief: The system adopts full digital power, displacement, and speed three closed-loop control. It utilizes an AC motor and control drive system combined with a precision worm gear reducer and TBI precision screw drive to achieve optimal transmission efficiency and signal-to-noise ratio.
Function: This tester is designed to evaluate physical properties such as elongation, compression, peeling, tearing, 3-point bending, and shearing for both metallic and non-metallic materials.
Standards: Fully customizable to meet GB, ISO, JIS, ASTM, and DIN requirements, as well as specific client standards for testing and data processing.
Applications: Widely applied in material analysis across auto-parts, fastener, aerospace, cable and wire, plastic and rubber, and paper packing industries.
| Type | QT-6100S | QT-6100W | QT-6100S (High) | QT-6100W (High) |
|---|---|---|---|---|
| Load capacity | 5T | 5T | 10T | 10T |
| Precision level | 0.5 | 0.5 | 0.5 | 0.5 |
| Displacement resolution | 0.0005mm | 0.0005mm | 0.0005mm | 0.0005mm |
| Speed (mm/min) | 0.005-500 | 10-300 | 0.005-350 | 10-300 |
| Motor | Servo motor | Servo motor | Servo motor | Servo motor |
| Control method | Fully closed loop | Semi closed loop | Fully closed loop | Semi closed loop |
| Max stretch stroke | 1100mm | 1100mm | 1100mm | 1100mm |
| Weight | 600kg | 600kg | 650kg | 850kg |
