Laboratory Corrugated Carton Box Compression Strength Testing Equipment
Laboratory Corrugated Carton Box Compression Strength Testing Equipment
Laboratory Corrugated Carton Box Compression Strength Testing Equipment
Laboratory Corrugated Carton Box Compression Strength Testing Equipment
Laboratory Corrugated Carton Box Compression Strength Testing Equipment
1 / 5
Laboratory Corrugated Carton Box Compression Strength Testing Equipment
Laboratory Corrugated Carton Box Compression Strength Testing Equipment
Laboratory Corrugated Carton Box Compression Strength Testing Equipment
Laboratory Corrugated Carton Box Compression Strength Testing Equipment
Laboratory Corrugated Carton Box Compression Strength Testing Equipment

Laboratory Corrugated Carton Box Compression Strength Testing Equipment

Customization: Available
Type: Compression Testing Machine
Maxcapacity: <1000KN
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
XB-OTS-200
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Static Load
Display
Digital
Control
Computer Control
Capacity
2t
Power Source
AC220V
Test Space
1000*1000*1000 mm
Speed
10 +/- 3 mm/Min
📦 Product Description

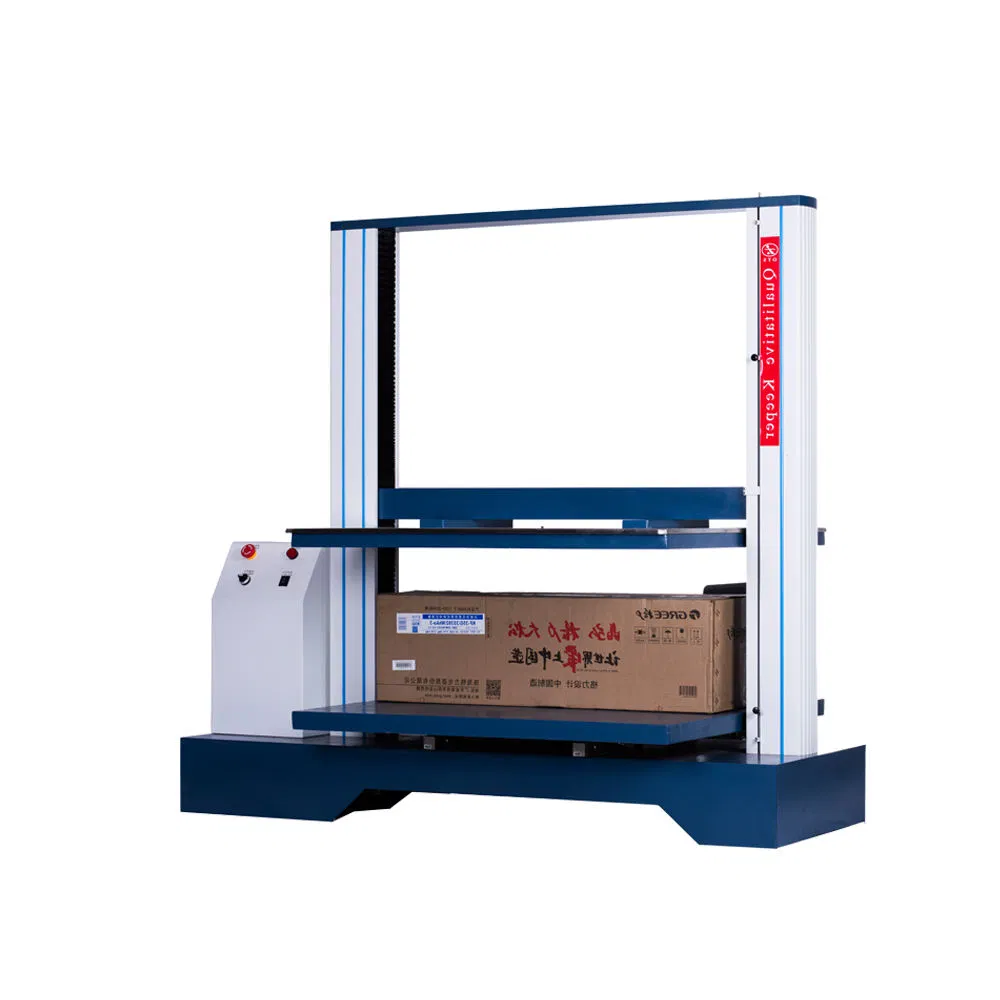

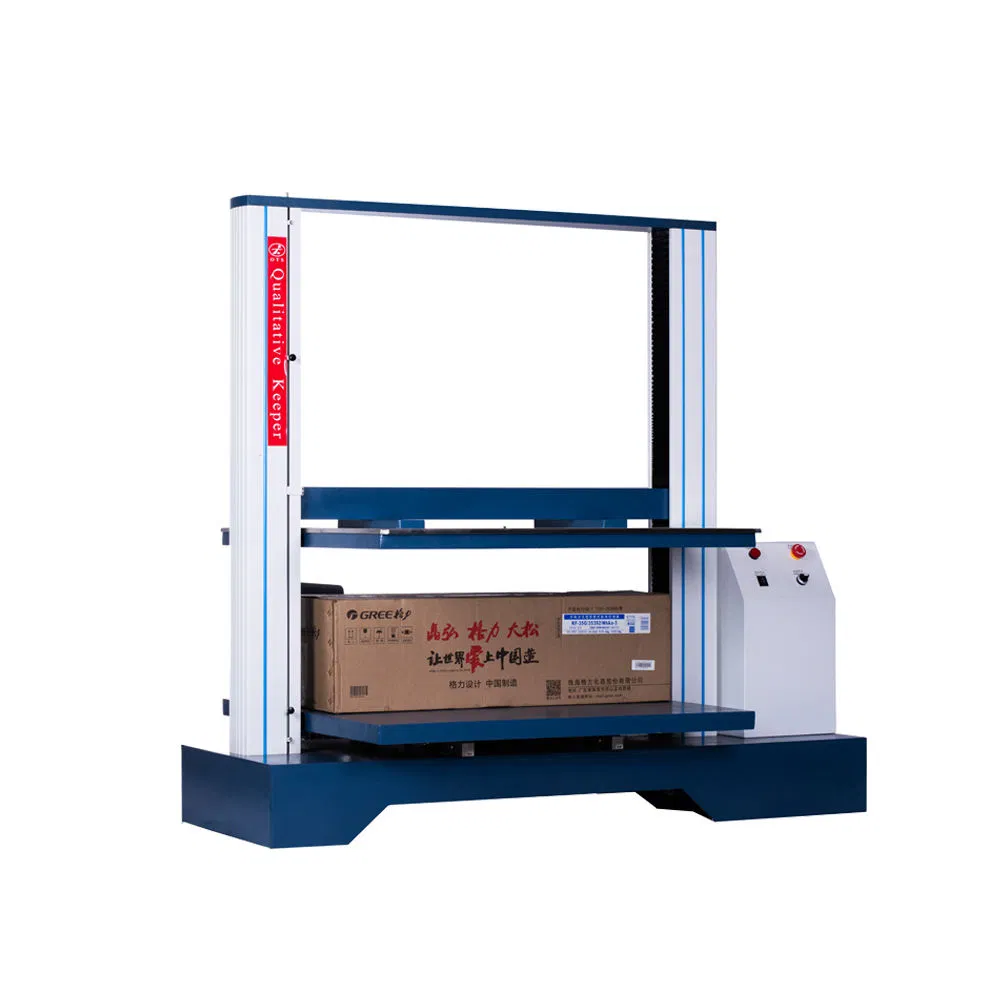

Carton Box Compression Strength Testing Equipment

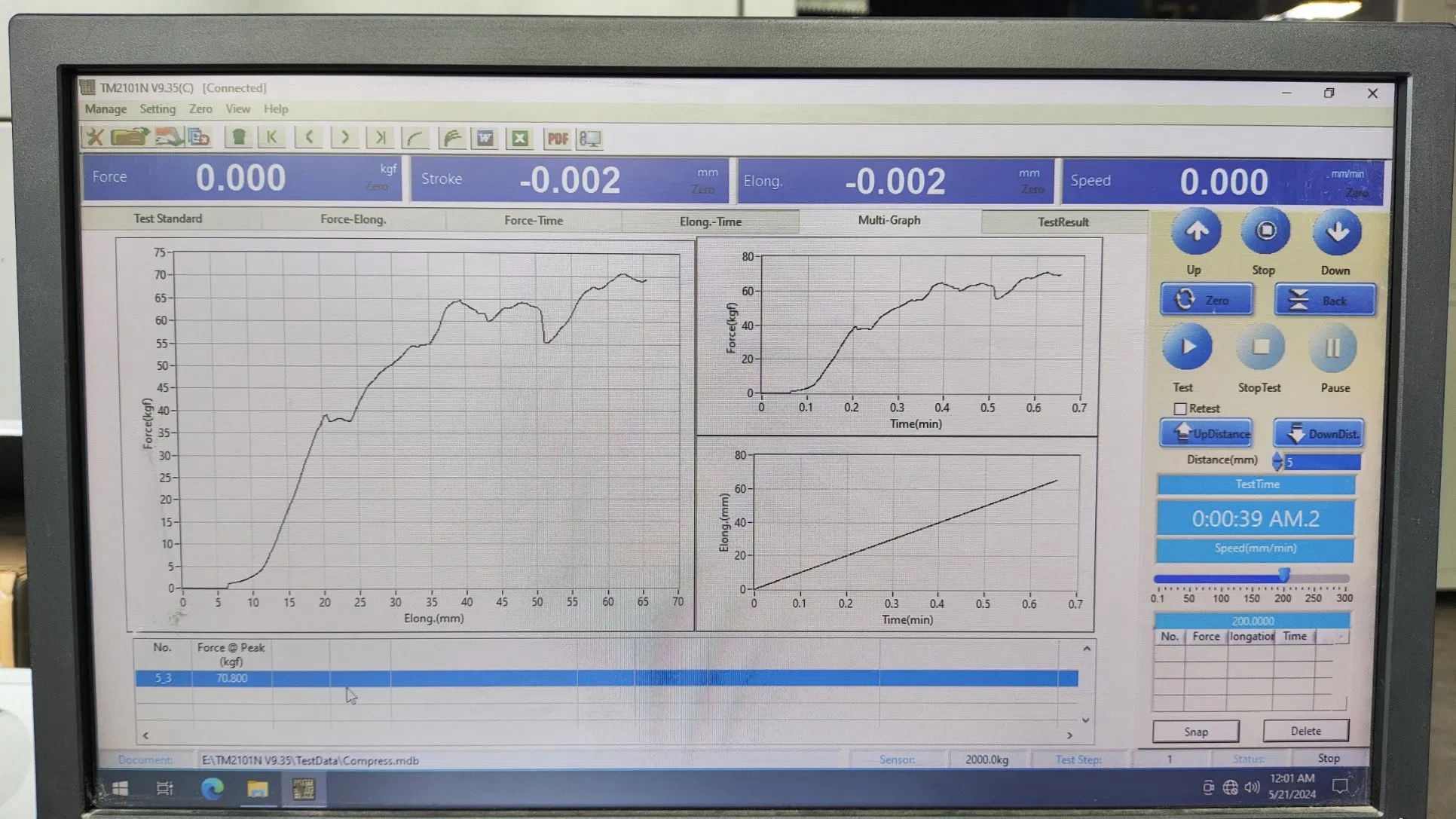

High Quality Carton Box Compression Tester Machine is used for measuring the pressure strength of boxes, cartons, and packaging containers. It inspects pressure-resistance and strike-endurance during transportation. Equipped with 4 precise Load Cells, testing results are displayed via computer.

Applications: Corrugated board boxes, Cartons, Plastic Packaging, Wooden boxes.

🚀 Key Features
📊 Strength Test

Destructive test to measure deformation when the sample is loaded with maximum pressure or crushing strength.

⚖️ Constant Value Test

Set load force and deformation values; the test completes when either parameter reaches the target.

🏗️ Stacking Test

Checks endurance under constant pressure over a set time period (Compessive strength and testing time).

✅ Design Standards

TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

📋 Technical Parameters
Unit (switchable)Kg, Lb, N
Load Resolution1/10,000
Load Accuracy≤0.5%
Return velocity250 mm/min (maximum)
Report ItemsSerial number, Peak value, Average value, Holding pressure value
StructureAC frequency conversion motor; Ordinary screw rod
Safety DevicesOverload, overvoltage & limited position protection
📷 Detailed Images

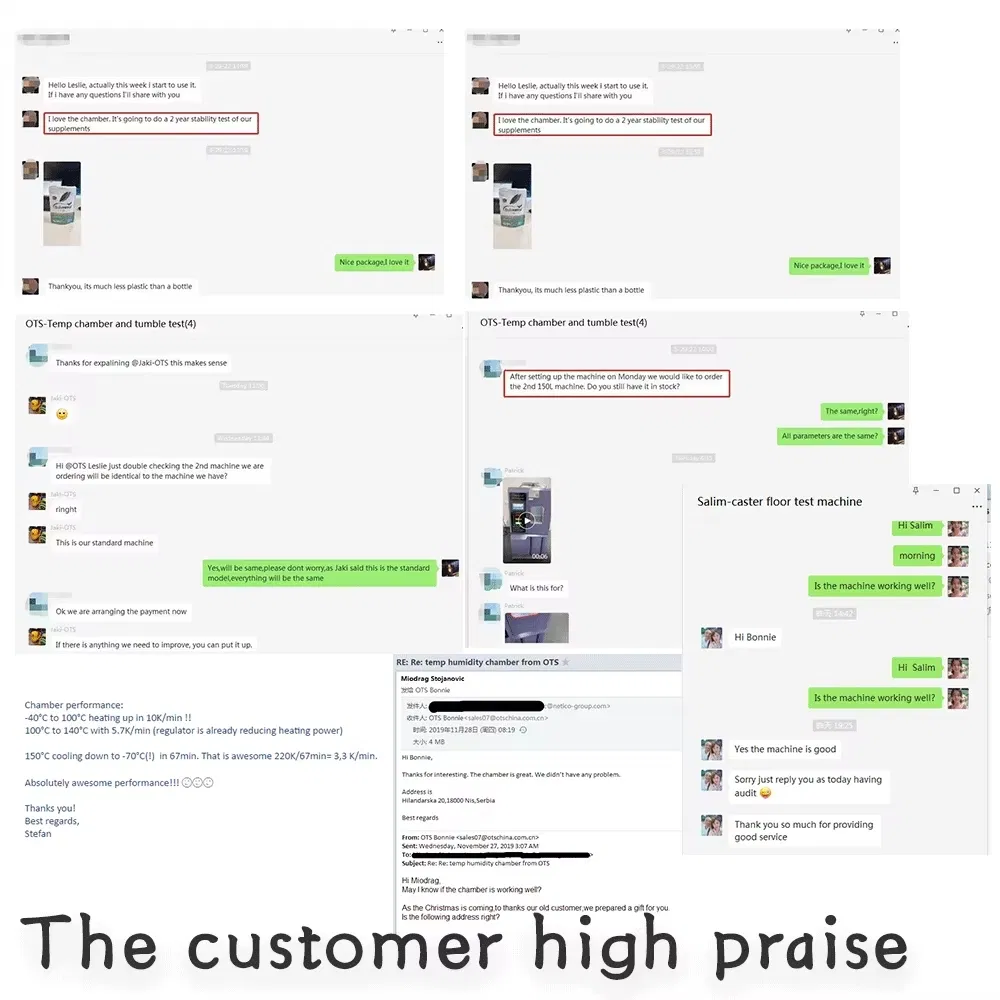

Testing Equipment Detail
🚚 Packaging & Delivery

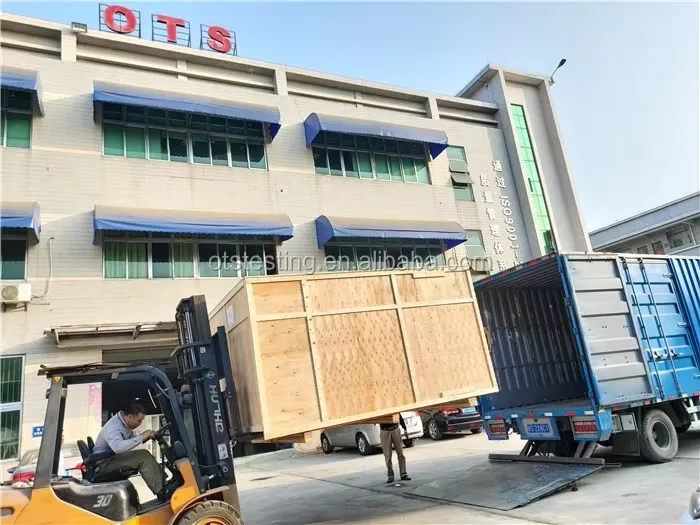

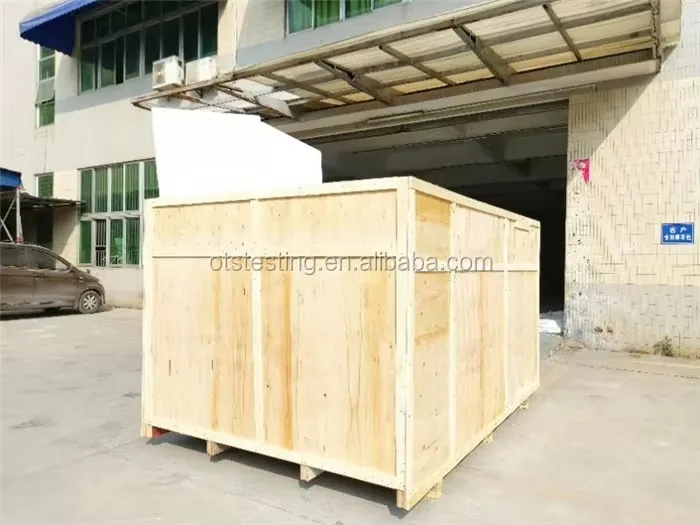

Packaging 1 Packaging 2
Package Size
185.00cm * 130.00cm * 173.00cm
Gross Weight
440.000kg
Transport Package
Strong Wooden Case
Delivery Time
Shipped in 15 Days After Payment
❓ Frequently Asked Questions
What is the primary application of this equipment?
It is primarily used to measure the compression strength and stacking endurance of corrugated boxes, cartons, and plastic or wooden packaging containers.
Which international standards does the machine comply with?
The equipment is designed according to TAPPI-T804, JIS-20212, GB4857.3.4, and ASTM-D642 standards.
What are the three main test modes available?
The machine supports Strength Testing (destructive), Constant Value Testing (target-based), and Stacking Testing (endurance over time).
How accurate are the load measurements?
The machine features a load accuracy of <0.5% and a load resolution of 1/10,000, ensuring highly precise data.
What safety features are integrated into the system?
It includes comprehensive protection devices such as overload protection, overvoltage protection, and limited position protection.
What is the maximum testing space and capacity?
The standard model offers a test space of 1000 x 1000 x 1000 mm and a maximum load capacity of 2 tons.
