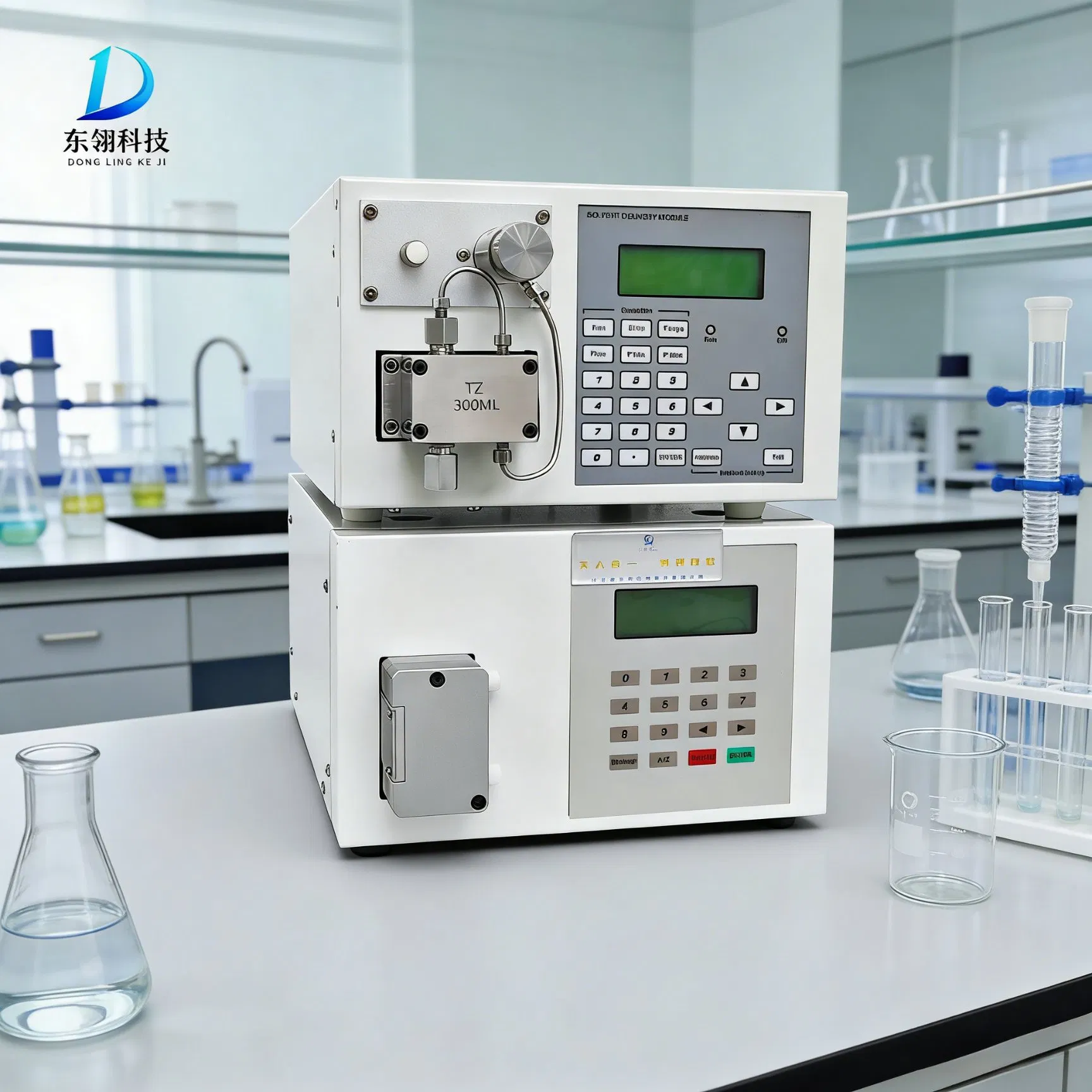

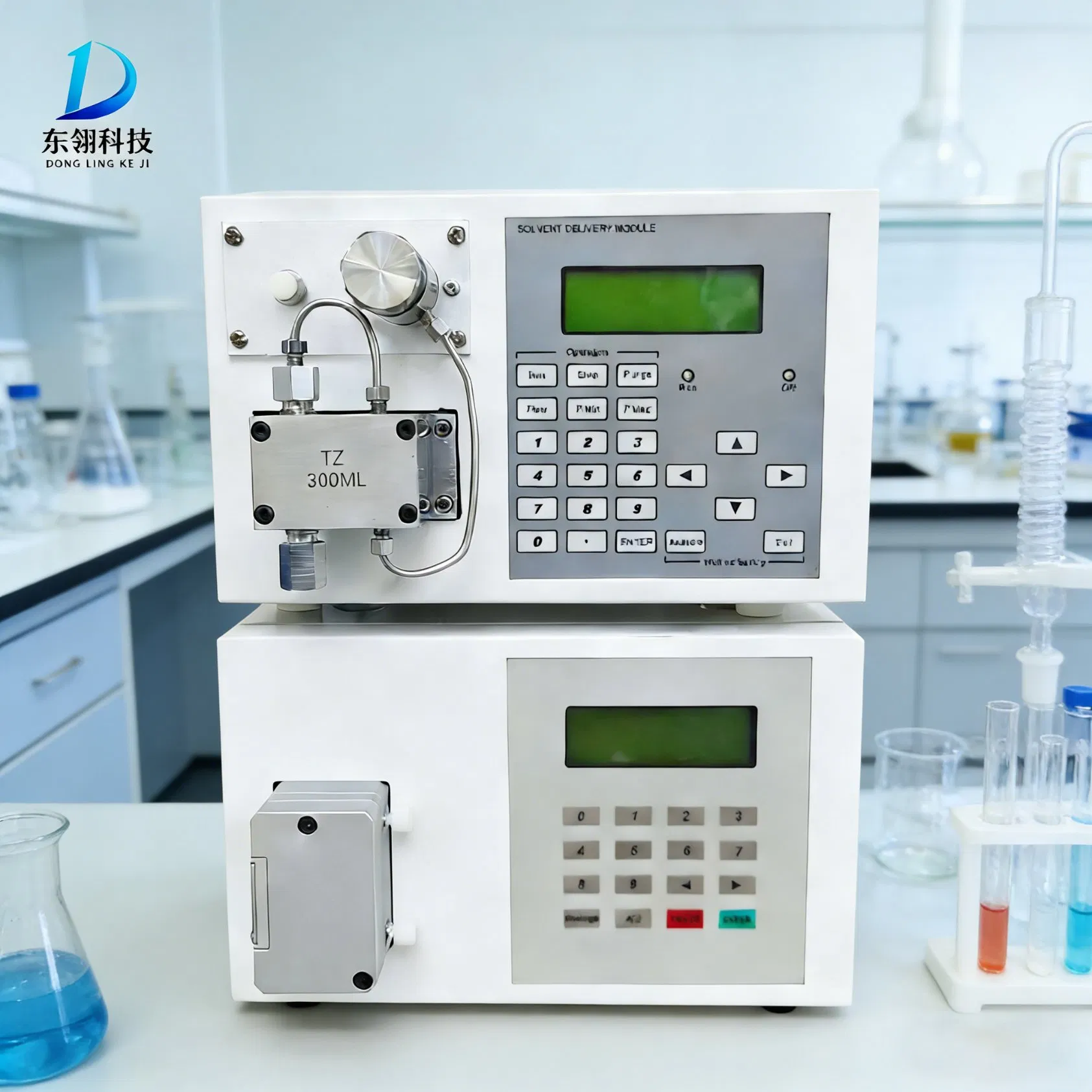

Low-Drift UV Dac System for Organic Synthesis & Environmental Monitoring

Basic Information

Model NO.

DAC-150

Gaspath System

Double

Detector

UV-Vis Dual-Wavelength

Stationary Phase

Liquid Solvent

Mobile Phase

Liquid

Chromatography Type

Liquid Chromatography

Column Length

650mm

Column Diameter

150mm

Working Pressure

10MPa

Material

316L/PTFE

Working Temp

5-60℃

Origin

China

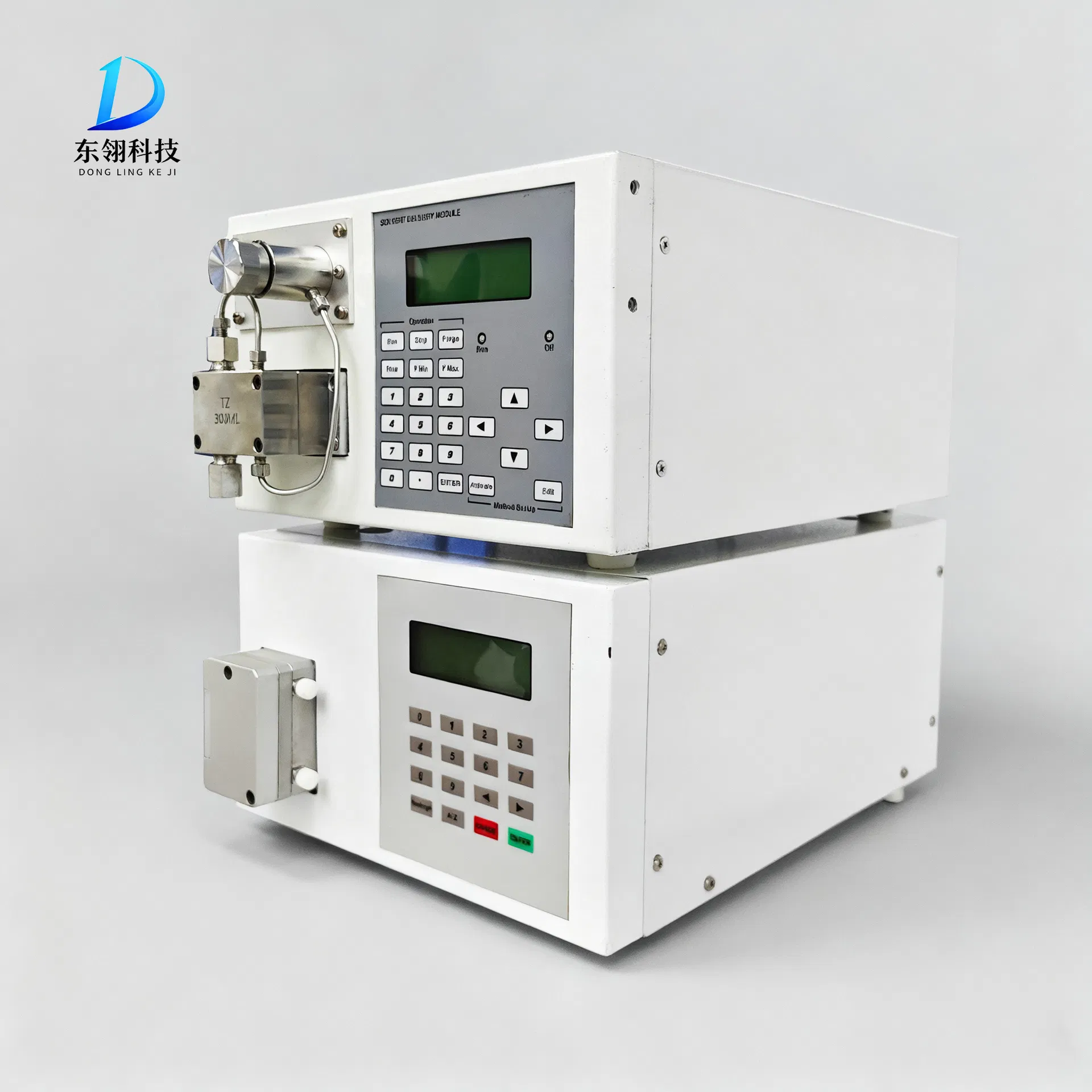

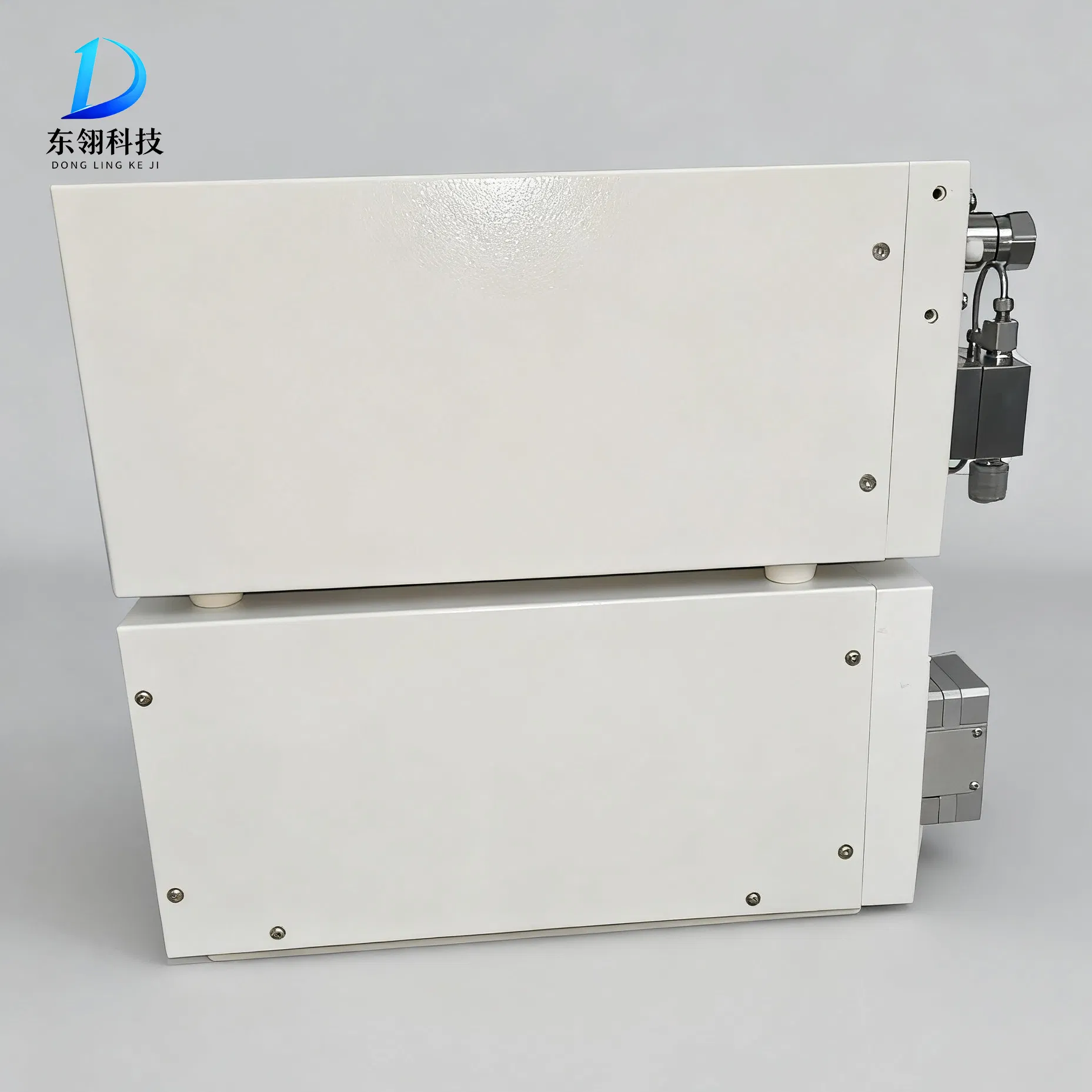

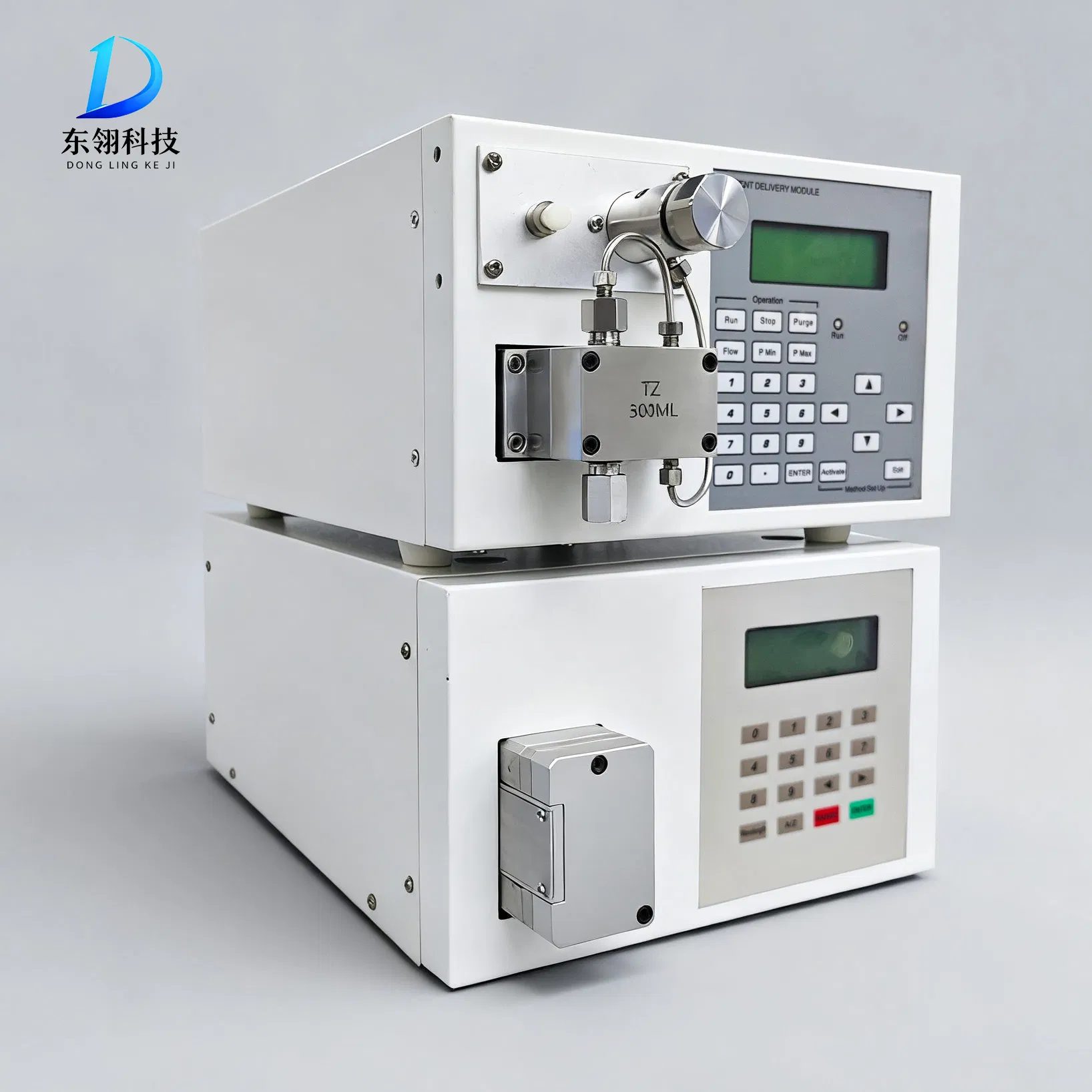

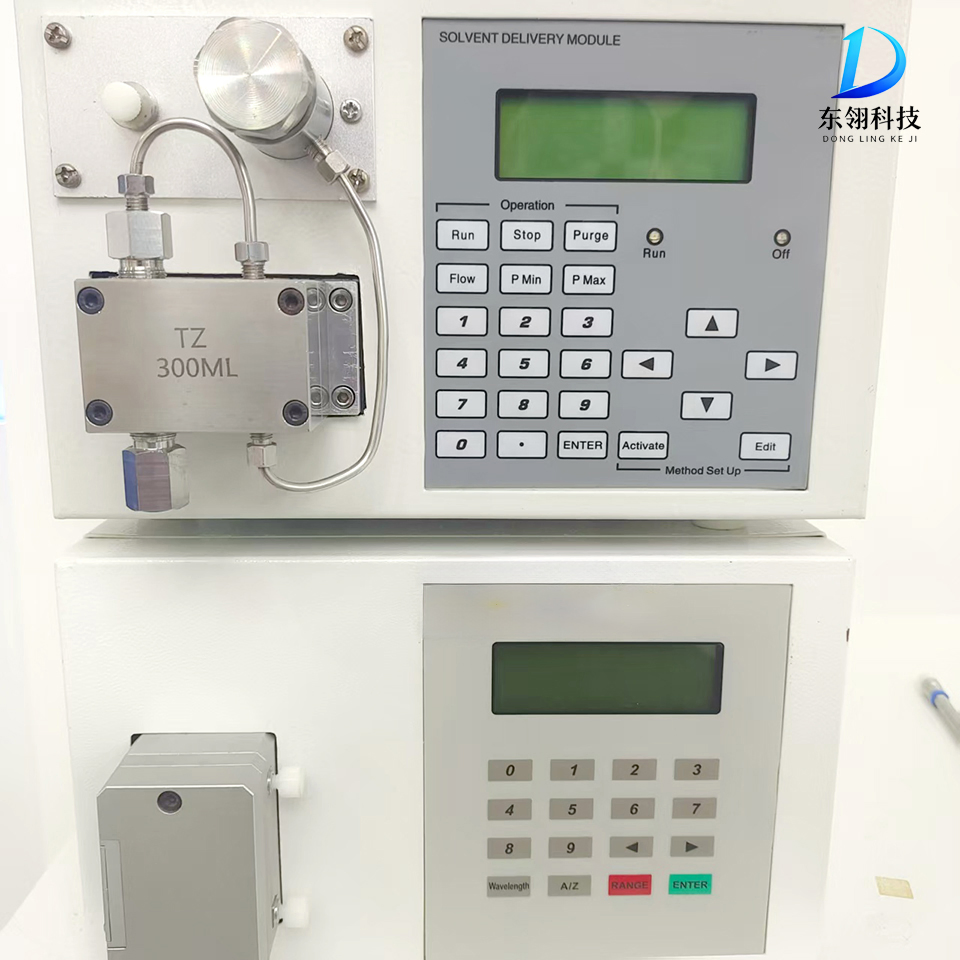

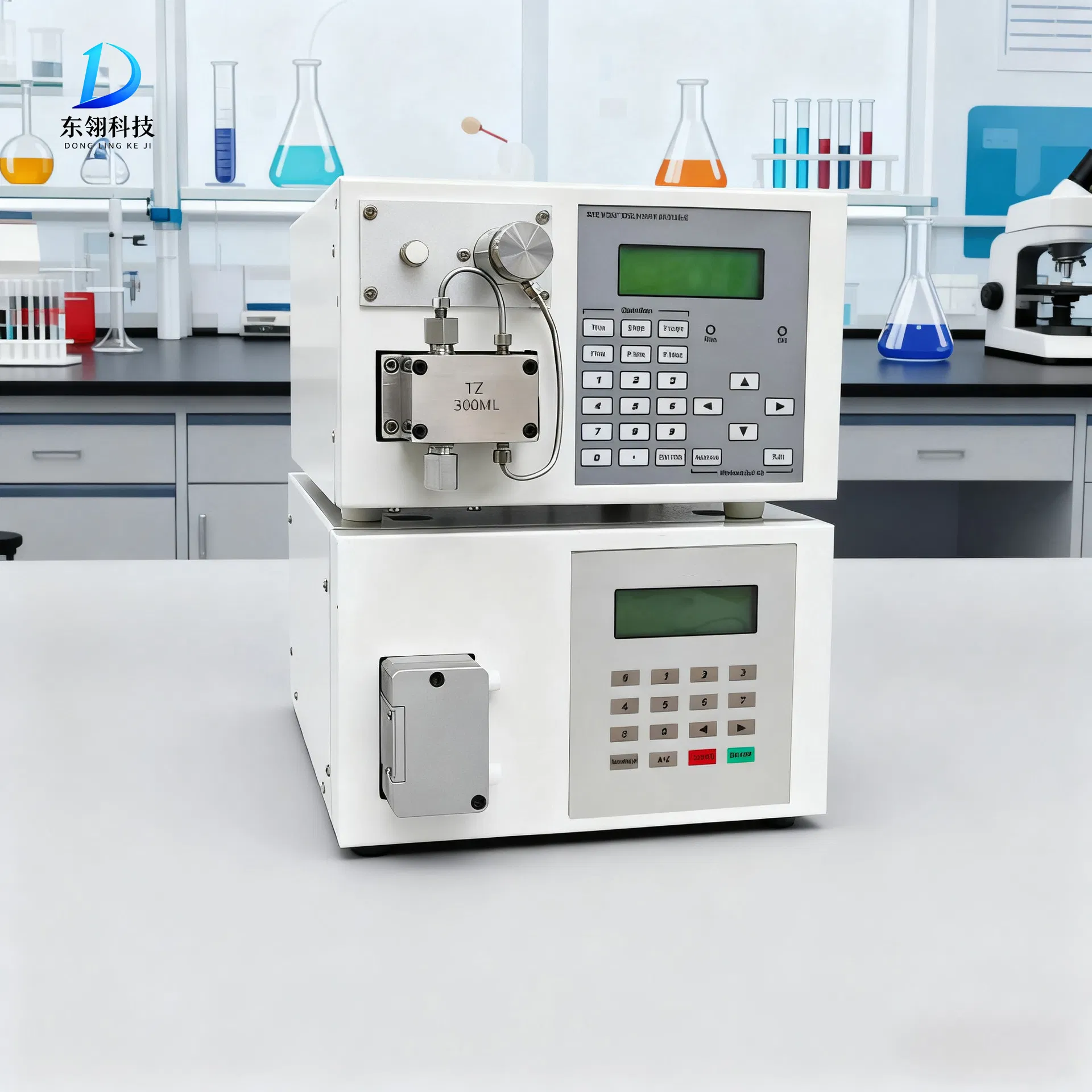

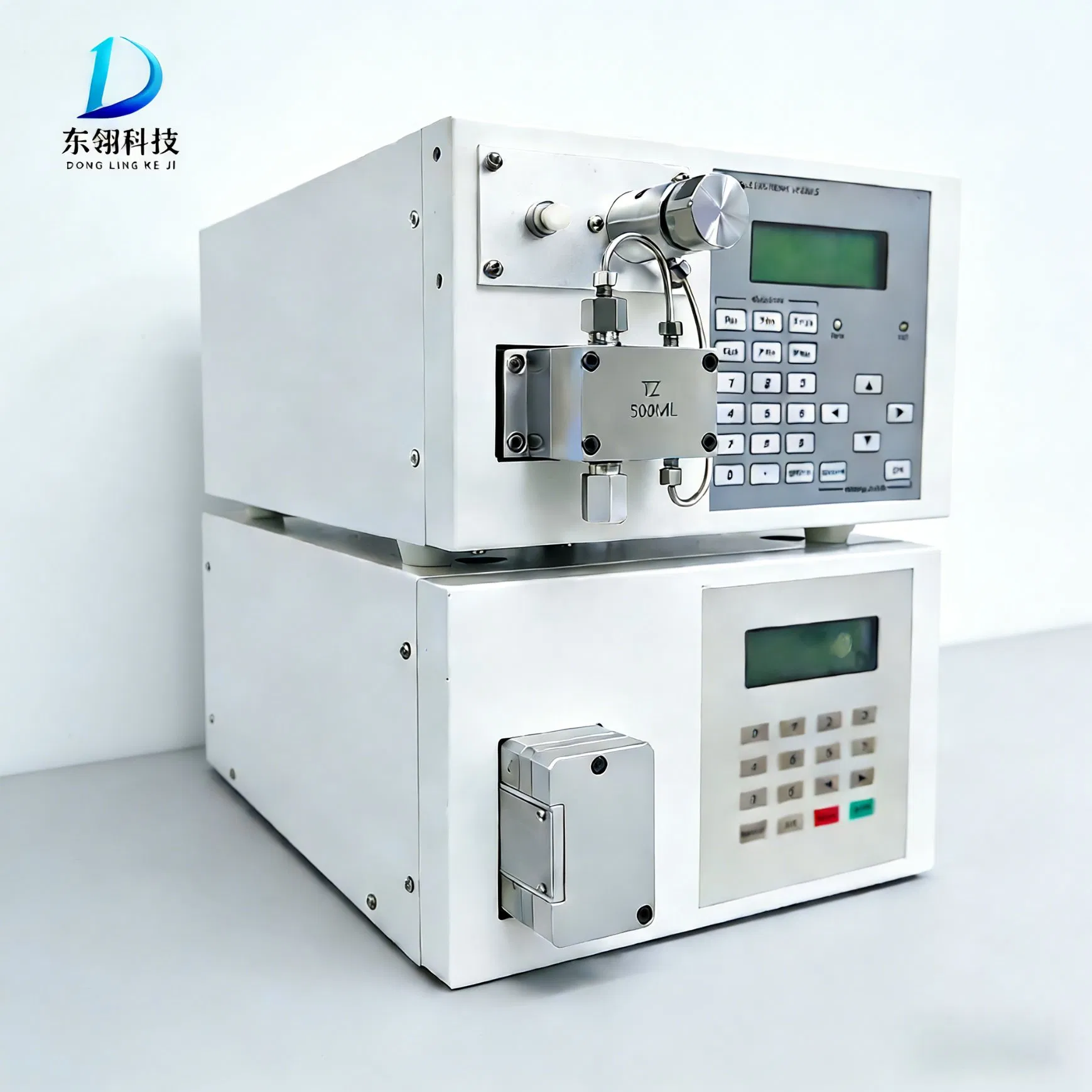

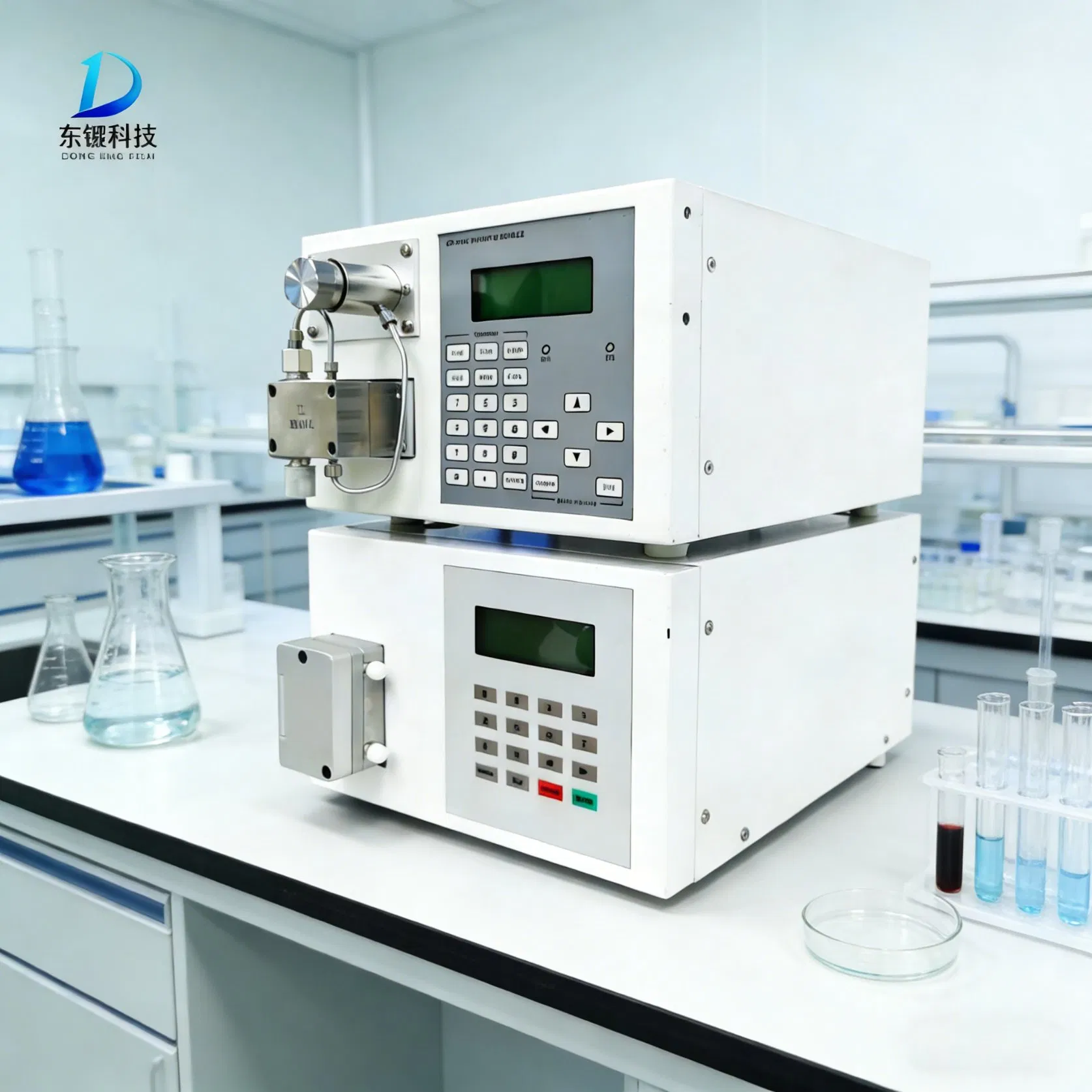

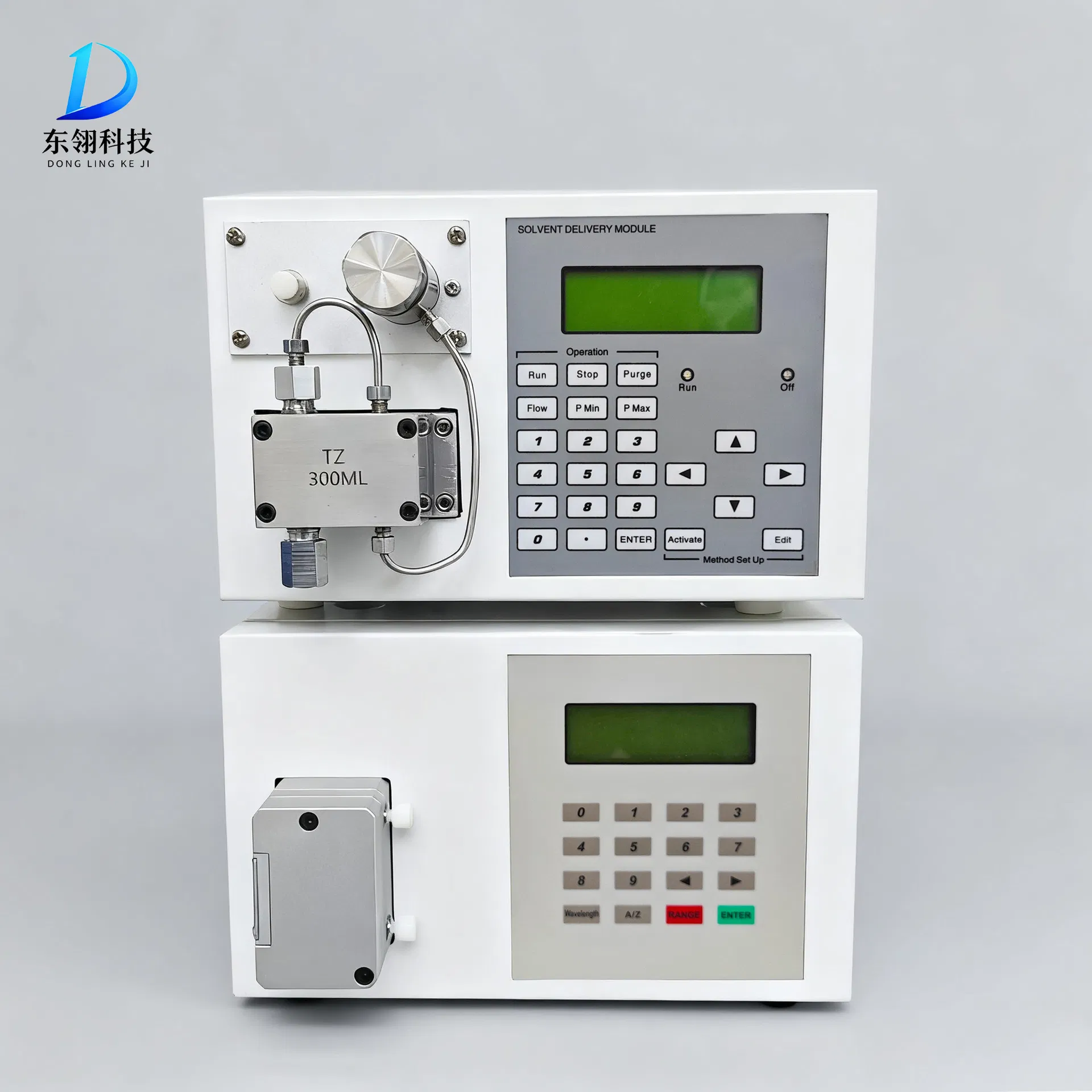

Main Product Images

Key Features & Advantages

The DAC dynamic axial column preparation system plays a crucial role in separation, purification, and analysis of compounds. It supports quality control, drug research, and environmental monitoring across laboratory and industrial scales.

✓

High-Efficiency Separation: Achieves higher purification effects using mechanism of continuous redistribution and re-equilibration.

✓

Modular Design: Powerful and easy to operate with gradient elution using up to four different solvents.

✓

Automation: Equipped with advanced automatic control systems to improve efficiency and reduce errors.

✓

Scalability: Applicable for handling kilogram-level samples, meeting industrial production demands.

Technical Specification

Column System Parameters
Column Diameter / Length	150mm / 650mm
Working Pressure	10MPa
Sieve Plate Pore Size	316L / 3μm
Distribution Mode	Forced Distribution
Infusion Pump Details
Flow Rate Range	(0~499.99)mL/min
Infusion Mode	Dual-plunger Parallel
Setting Step	0.01ml/min
UV-Vis Detector Details
Light Source	Deuterium Lamp / Tungsten Lamp
Wavelength Range	190-700nm
Detection Range	(0~5) AU
Drift	1×10⁴ AU/h

Standard Configuration

● 1 Main Unit
● 1 UV-Vis Detector
● 2 High-Precision Infusion Pumps
● 1 Set of Maintenance Tool Kits
● Documentation (Instruction Manual & Certificate)

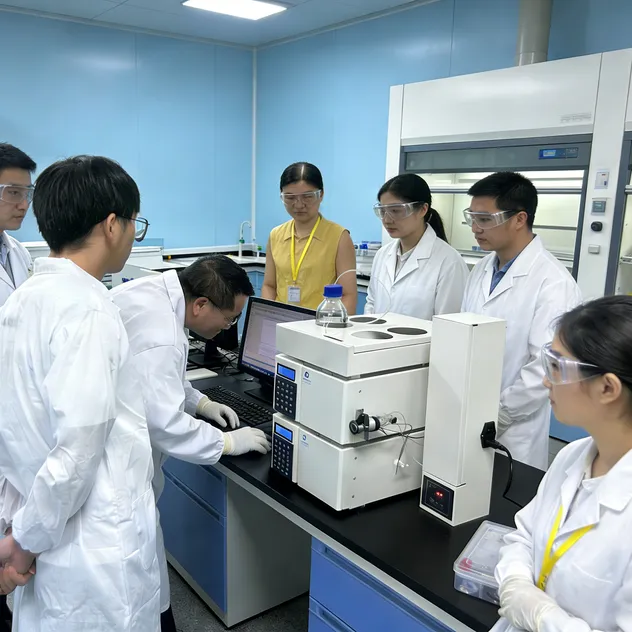

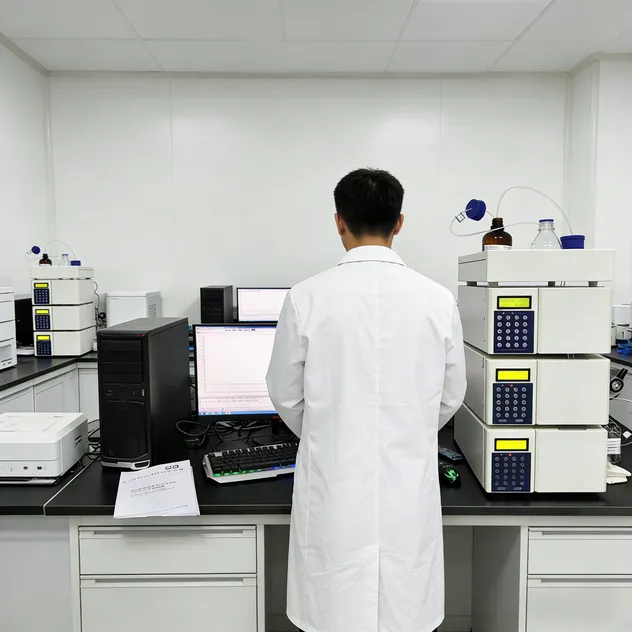

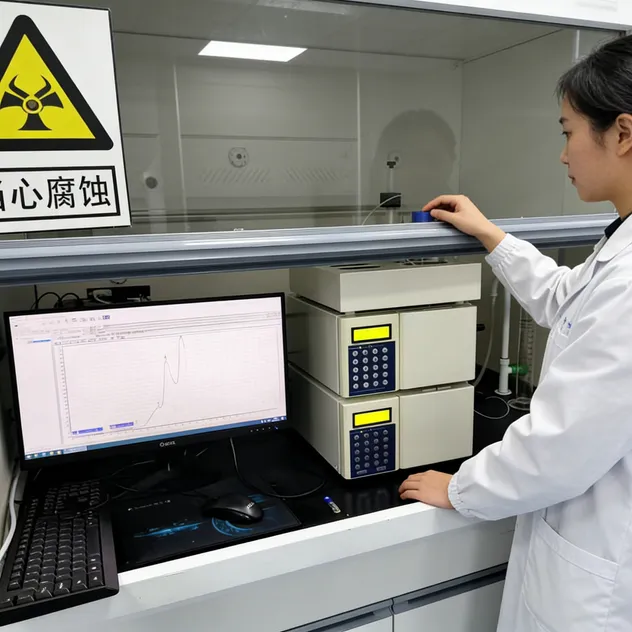

Project Cases

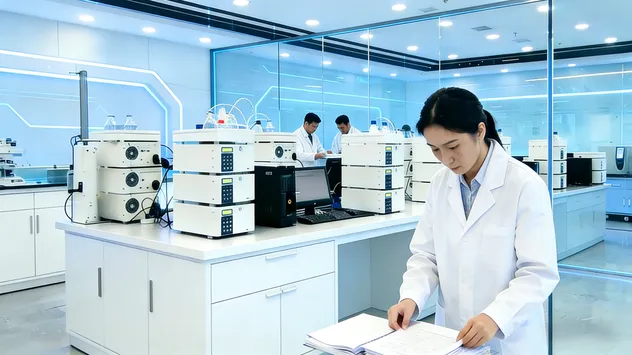

About Our Service

We are a technology-driven solutions and service provider rooted in the field of analytical testing. We focus on providing professional, reliable, and cost-effective complete solutions for laboratories in environmental monitoring, food and drug safety, life sciences, and industrial quality inspection.

Our Team Strengths:

Our team consists of industry expert advisors with deep insight into practical laboratory needs. We provide integrated technical support—from solution design and product selection to installation and training.

Packing & Delivery

Frequently Asked Questions

1. What kind of laboratory solutions do you provide?

We offer one-stop integrated solutions covering Liquid Chromatography, Gas Chromatography, Spectroscopy, Water Quality Analyzers, and various Sample Preparation Equipment for labs globally.

2. How do you ensure the quality of your systems?

We implement a three-tier assurance system: thorough requirement communication before delivery, strict performance inspection before shipment, and continuous technical follow-up after installation.

3. Why should we choose your technical team?

Our core team has over 10 years of industry experience, supported by 30+ technical solutions and intellectual property achievements. We provide localized service coverage and rapid response.

4. What trading terms and payment methods are supported?

We support FOB and EXW delivery terms. Payments are primarily accepted in USD via T/T or Western Union. We support both English and Chinese languages.

5. Can systems be customized for specific research needs?

Yes, our dynamic axial column systems and chromatography configurations can be adjusted according to production requirements, applicable for both laboratory research and industrial production.

6. Do you provide after-sales technical support?

Absolutely. We offer full-cycle technical services including system integration, installation training, and technical support provided within 24 hours of inquiry.
