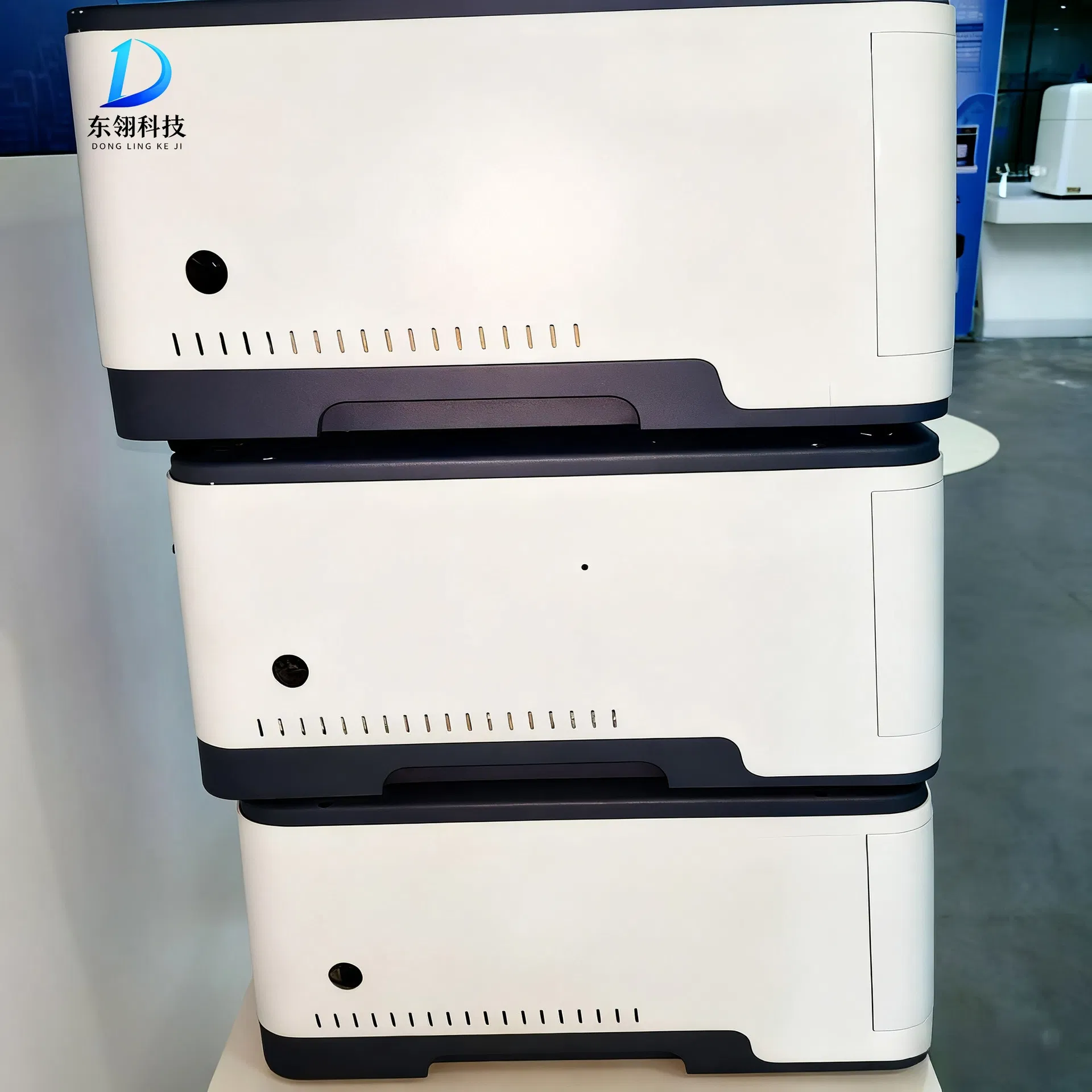

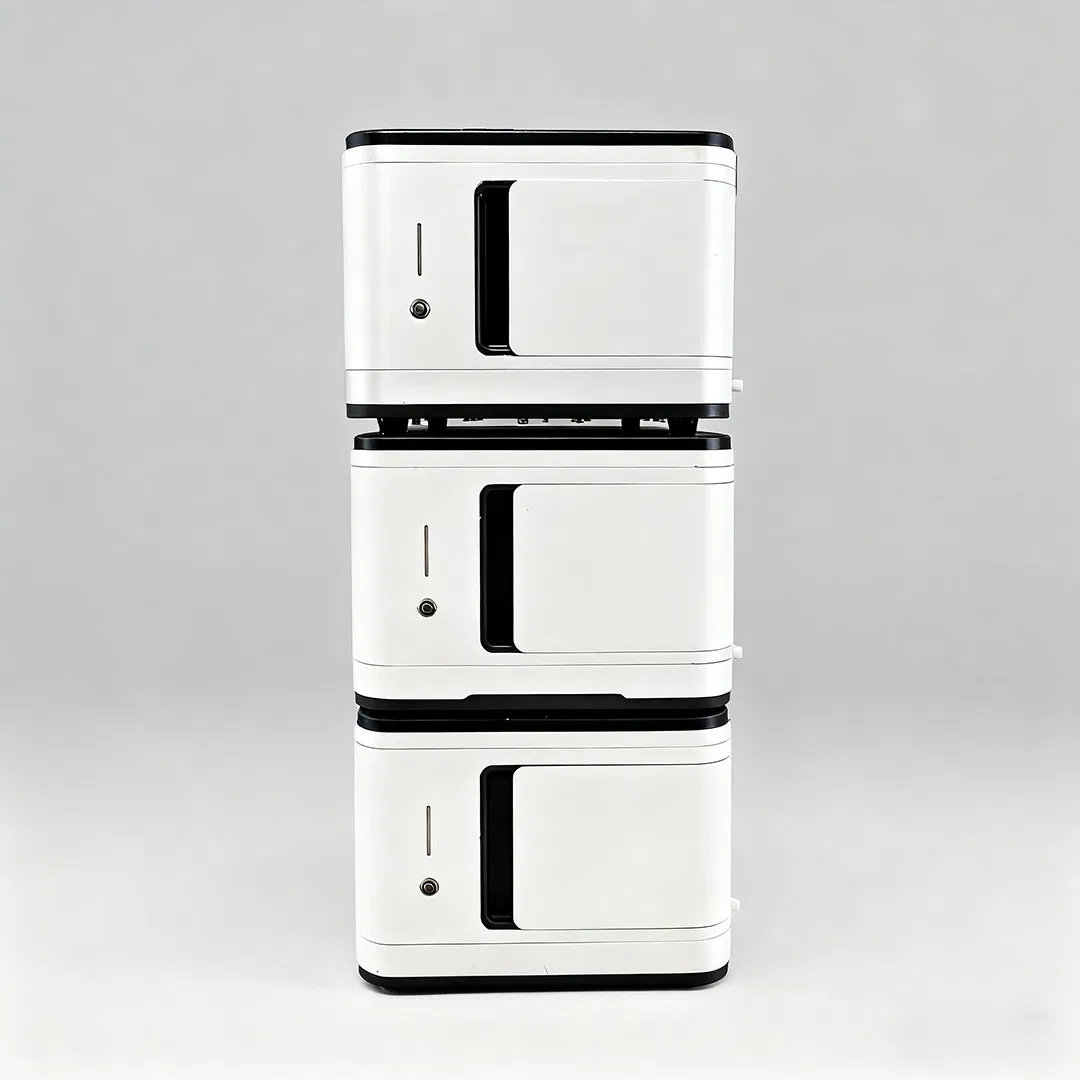

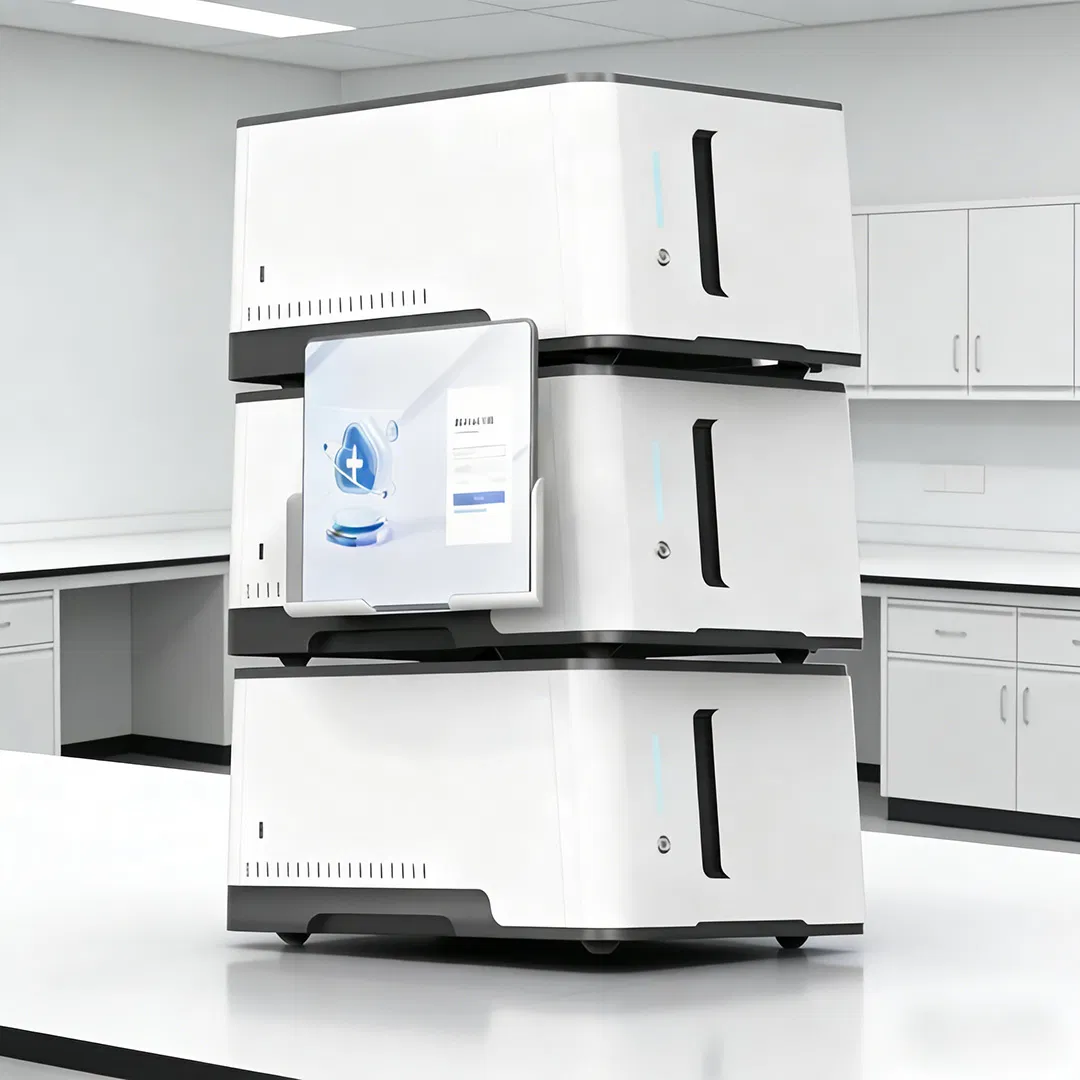

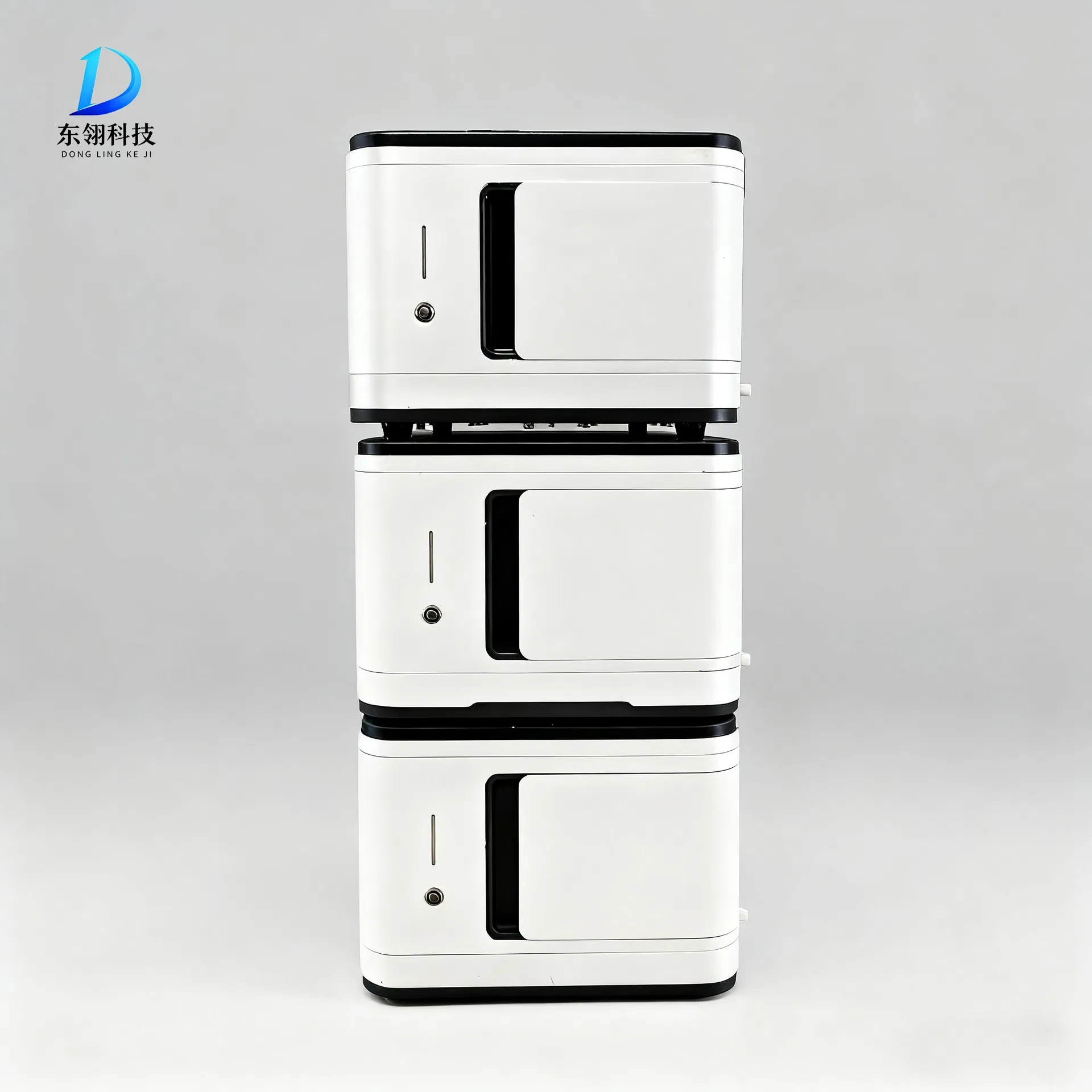

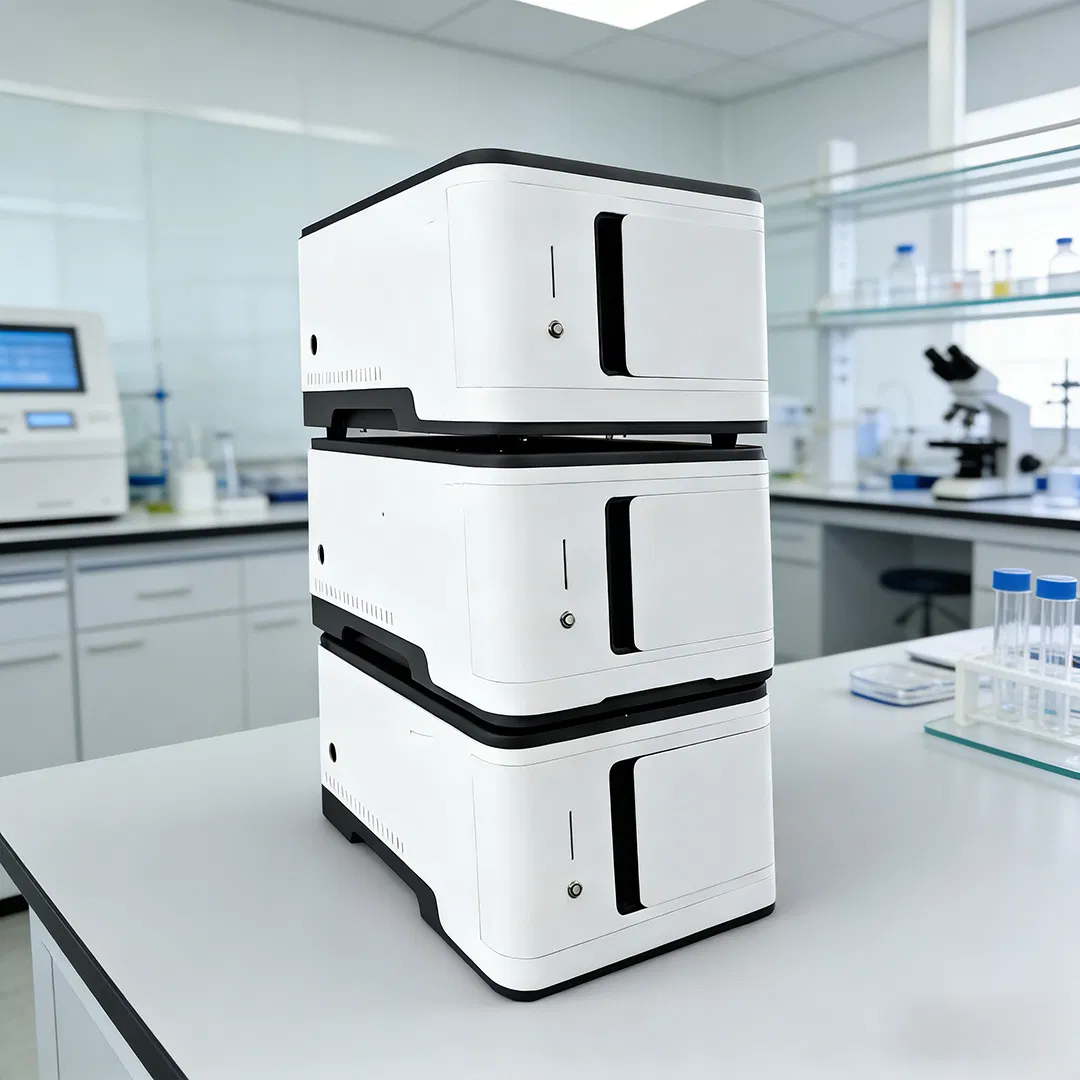

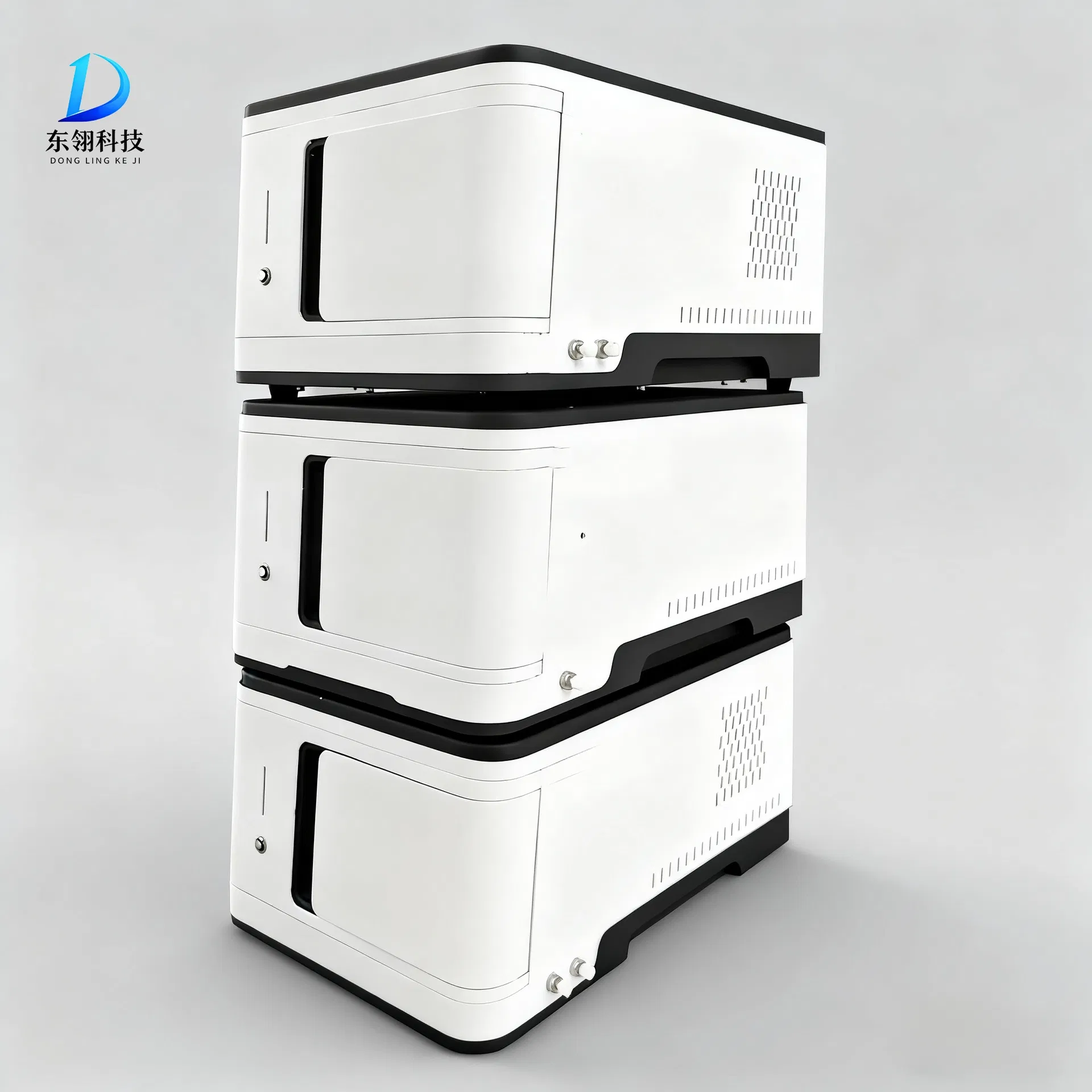

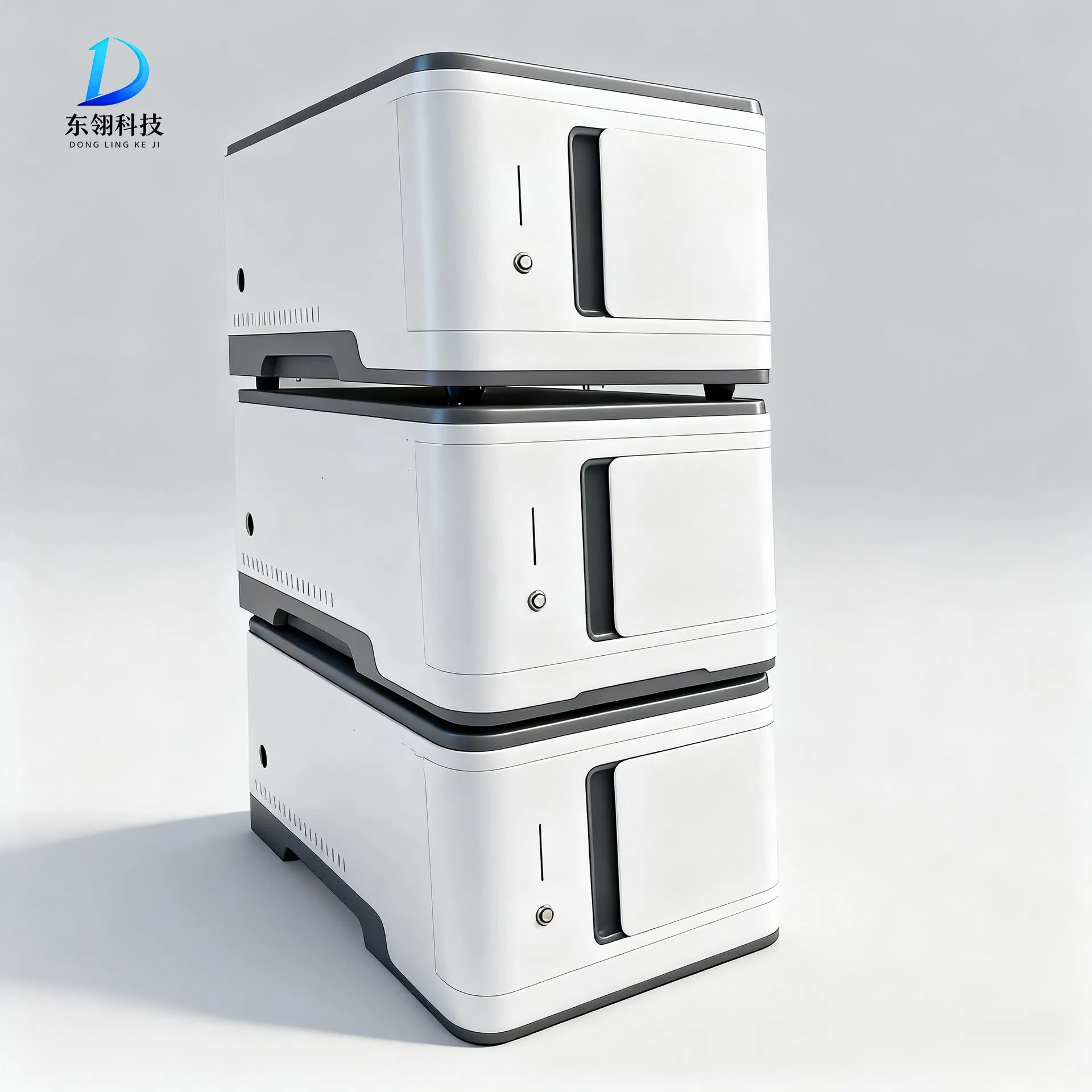

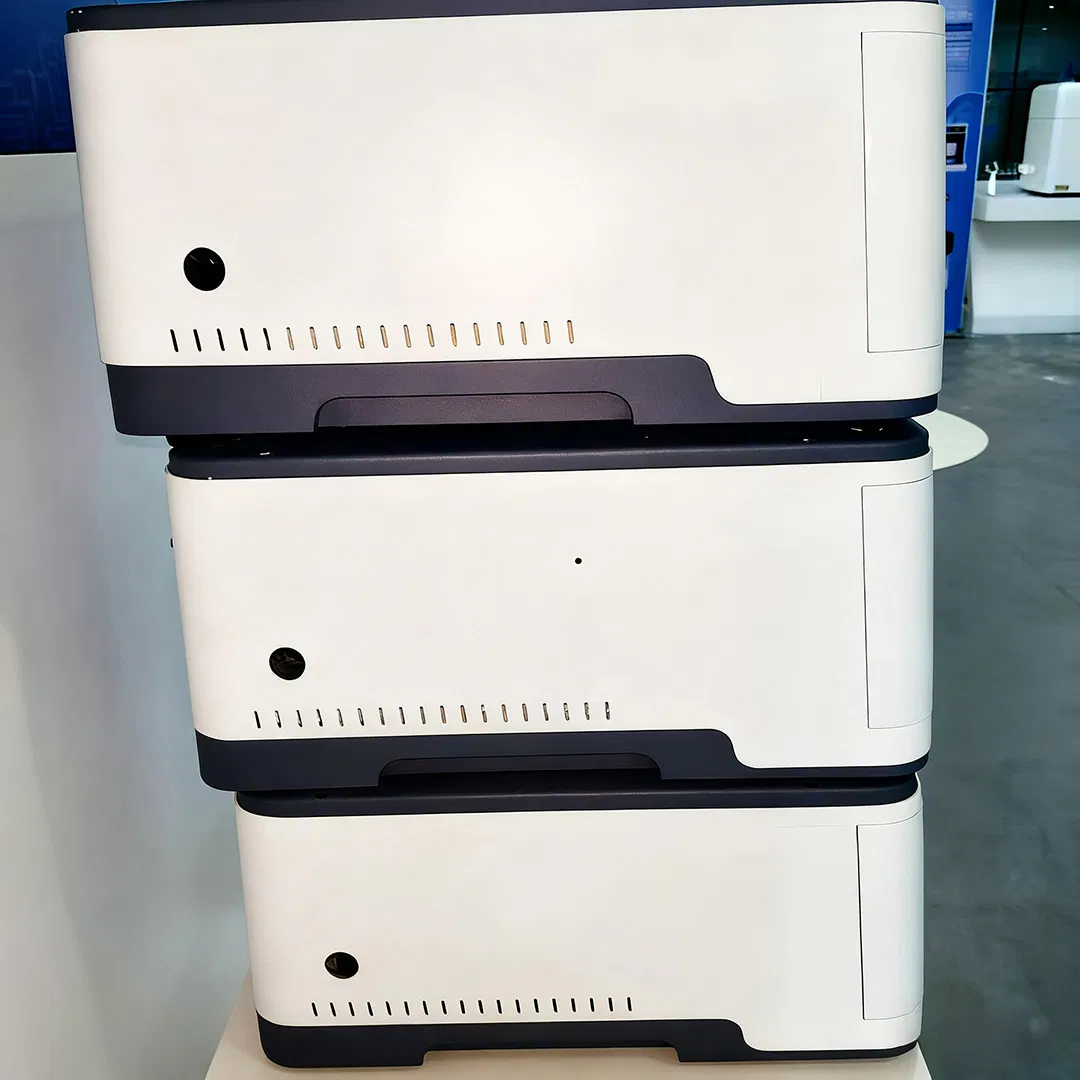

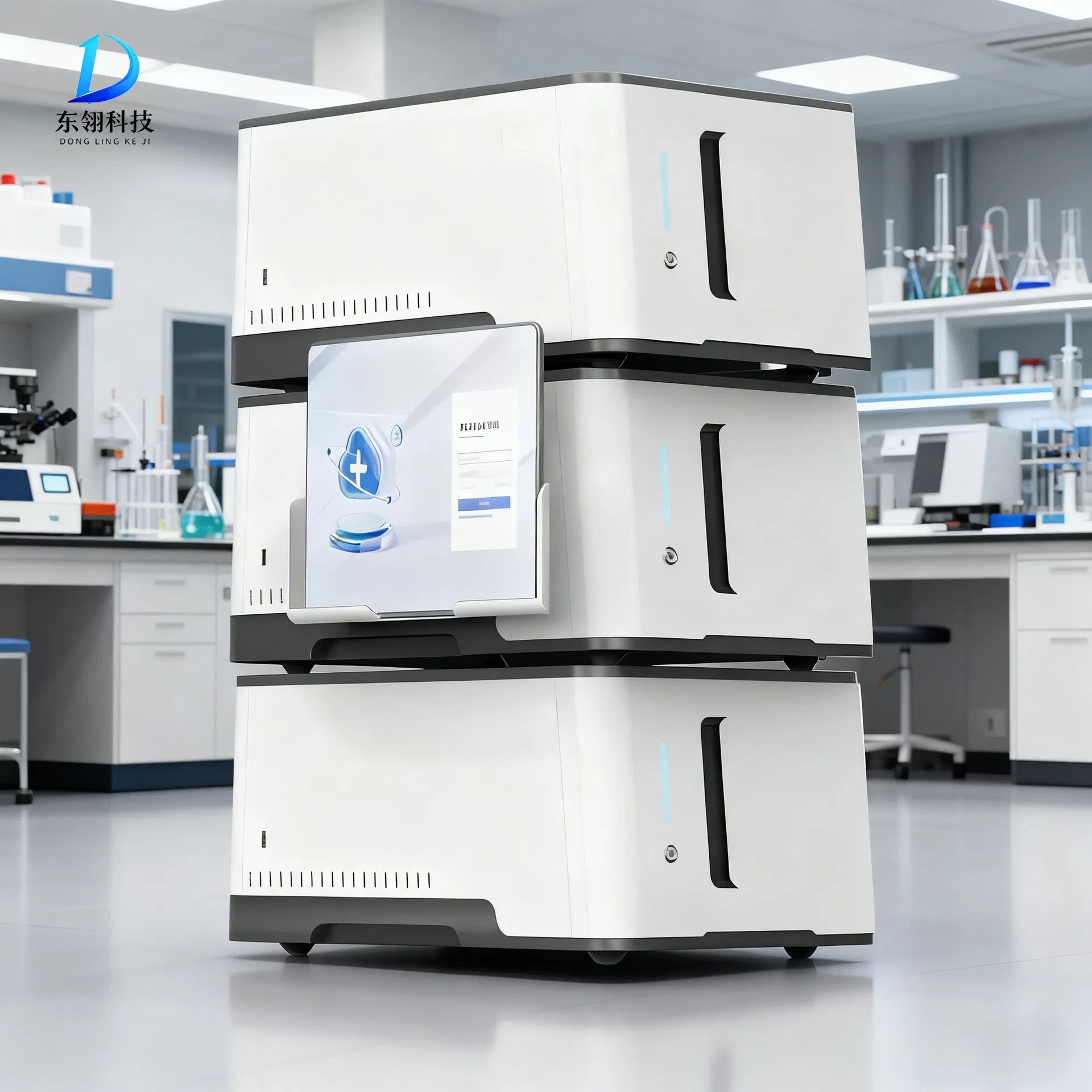

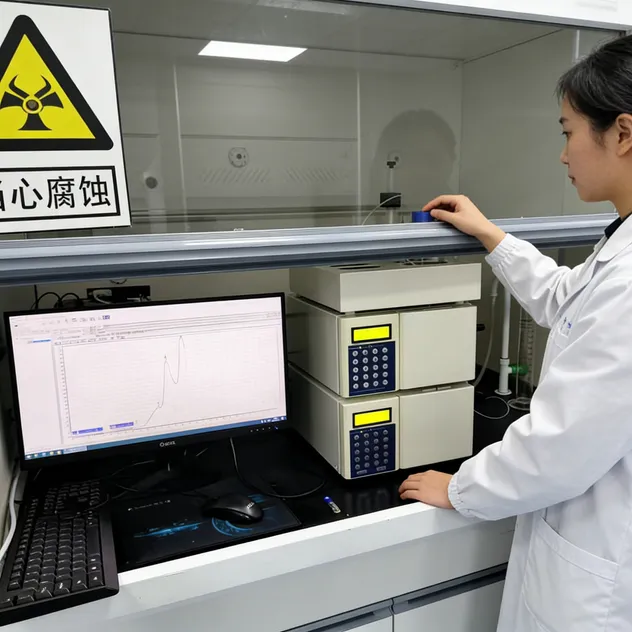

The XZLC-2050 Liquid Chromatography System is a high-performance analytical solution. In addition to the high-pressure infusion pump, it includes a detector, high-pressure injection valve, high-performance liquid chromatography column, and a data processing system.

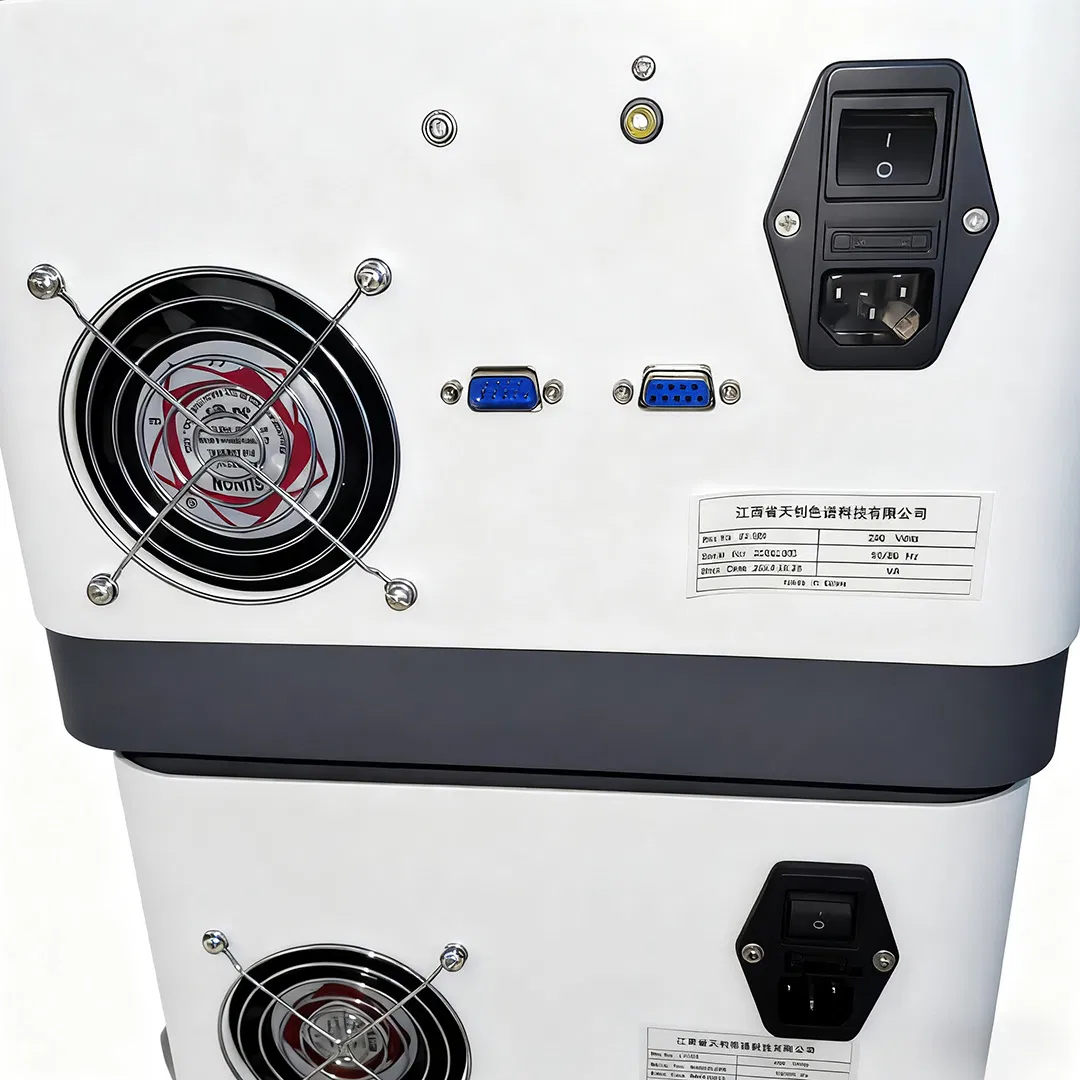

The UV/visible wavelength detector is an essential component, integrated with the analytical infusion pump SEV P10 (0.001mL/min ~ 10.000mL/min). This detector is designed for routine laboratory analysis and method development, featuring advanced digital data processing to minimize baseline noise and drift. It can be directly connected to a computer via a serial port without requiring additional data acquisition units.
| Parameter | Details |
|---|---|
| Flow Range | 0.001 - 10 ml/min (step: 0.001 mL/min) |
| Flow Accuracy | ≤ ±0.25% |
| Max Working Pressure | 42 MPa (with automatic alarm) |
| Pressure Pulsation | < 0.1 MPa |
| Flow Precision | RSD < 0.05% |
| Gradient Mode | Binary or Ternary |
| UV Detector Details | |
| Light Source | Deuterium lamp / Tungsten lamp |
| Wavelength Range | 190 - 700nm |
| Wavelength Accuracy | ±1nm |
| Baseline Noise | ≤ ±0.25 × 10⁻⁵ AU |
| Sample Cell | Analytical cell (10mm path, 10.0μl) |
