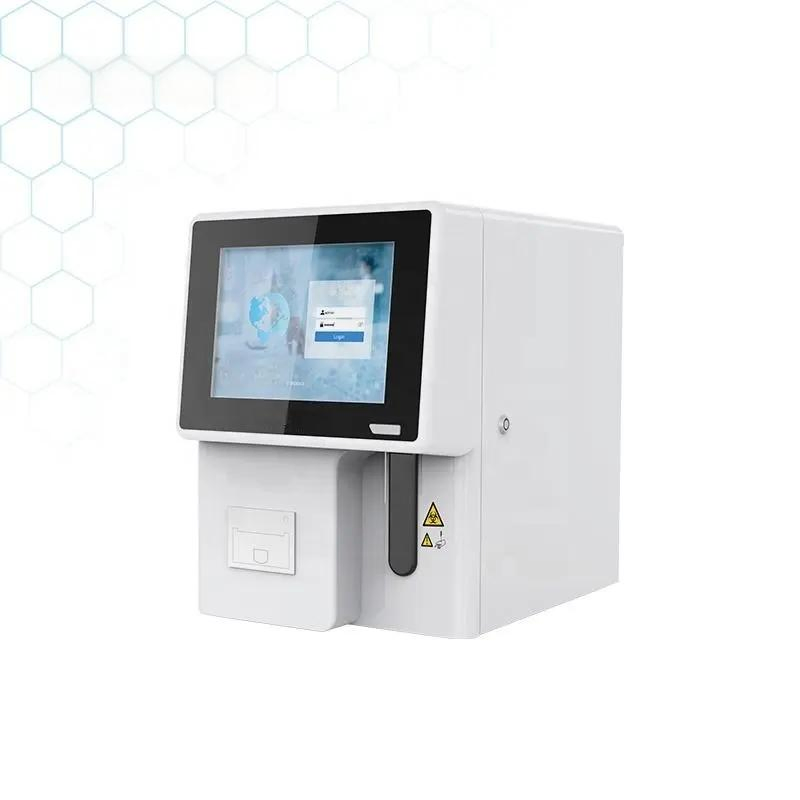

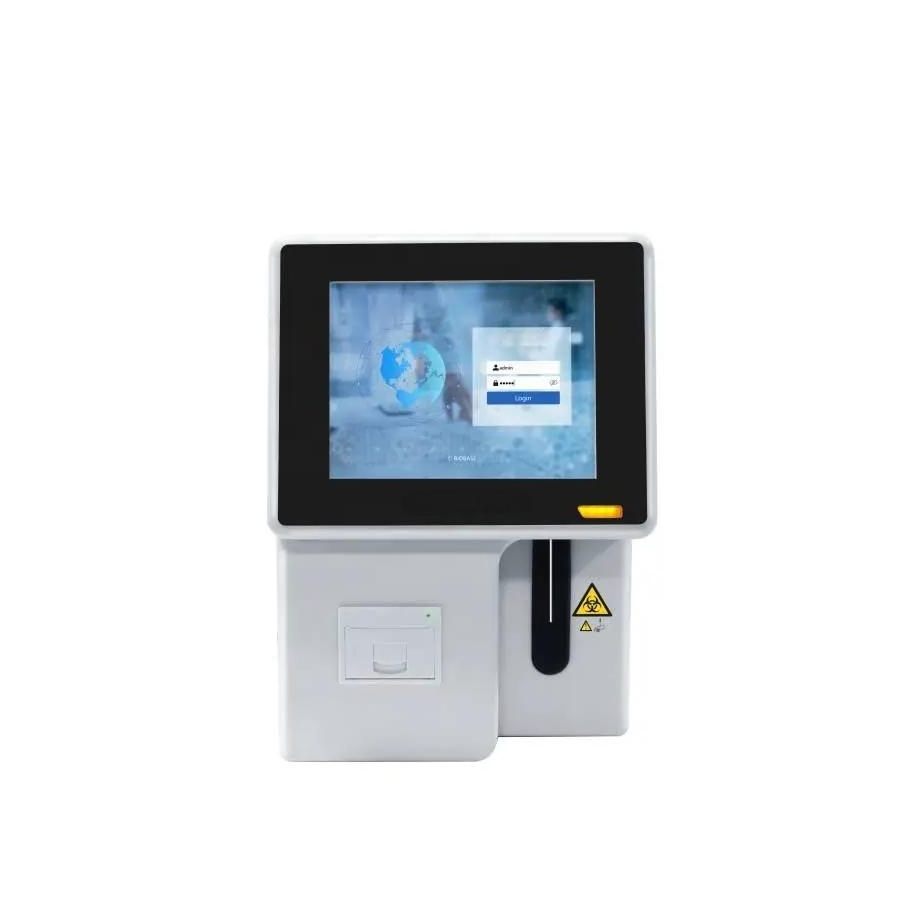

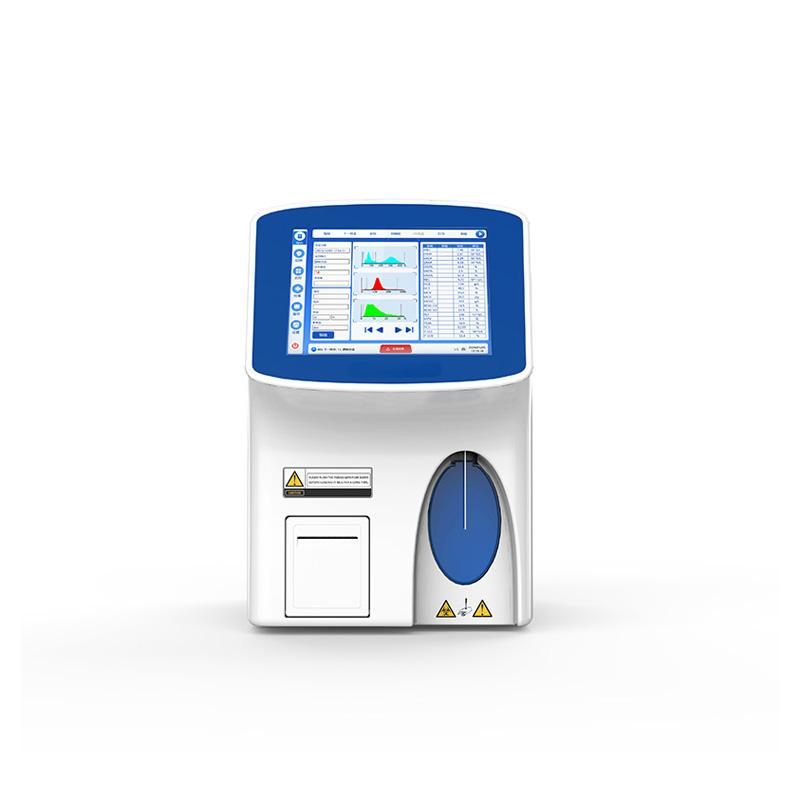

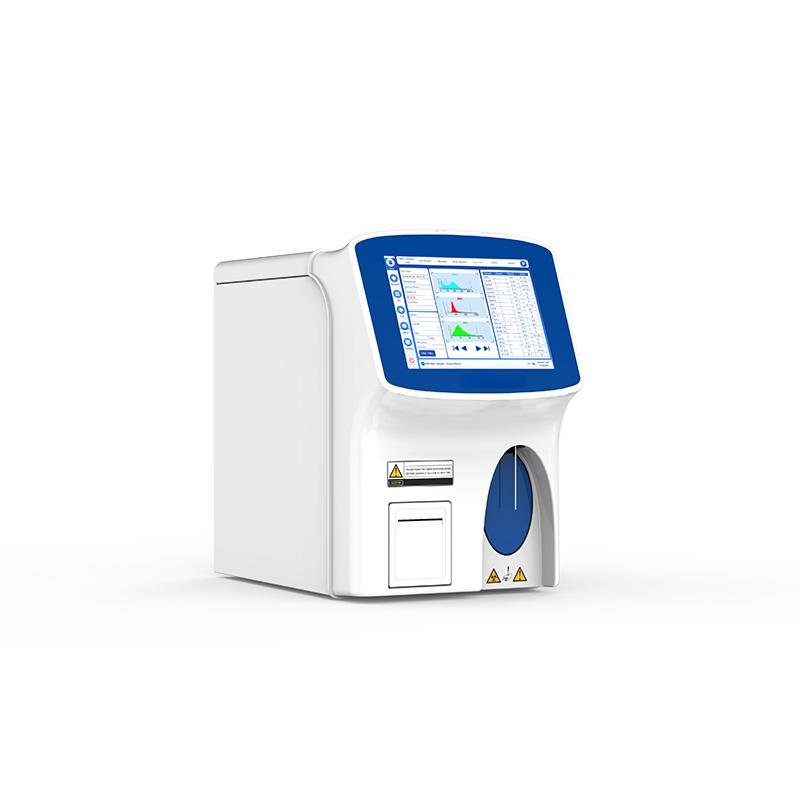

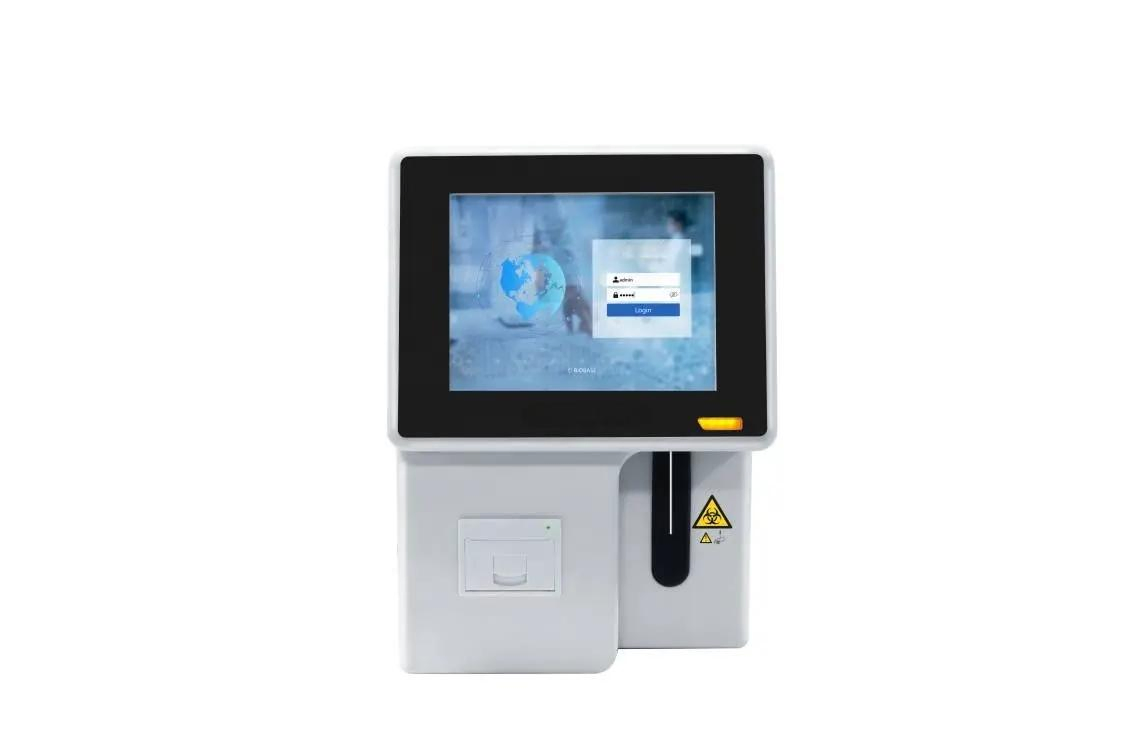

Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
1 / 5
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System
Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System

Medical Hematology Analyzer Blood Test Cbc Wbc Multiparameters Cbc Machine 3 Parts Blood Analysis System

Classification: Biological Diagnostics
Type: Hematology Analyzer
Certification: CE, ISO13485
Send Inquiry

Product Description

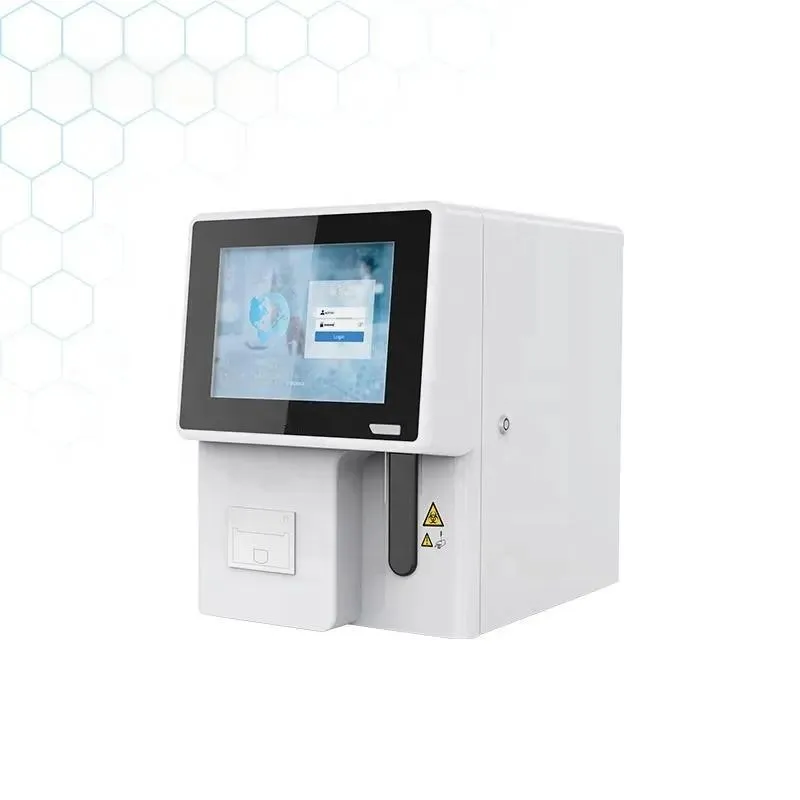

Medical Hematology Analyzer Blood Analysis System
Basic Specifications
Model NO. CCL-K3200
Warranty 1 Year
Transport Package Standard Export Package
Origin China
Production Capacity 500 units/Month
Product Introduction

Hematology Analyzer is a critical medical device used to detect and analyze the cellular components of blood, including white blood cells (WBC), red blood cells (RBC), and platelets. Utilizing advanced optical and electronic technologies, this system provides accurate counting, classification, and morphological observation of blood samples. It serves as an essential tool in clinical examinations, disease prevention, diagnosis, and treatment monitoring.

Key Features
✔ 9.7-inch color touch LCD screen with intuitive interface; displays all parameters and histograms simultaneously.
✔ Micro-sample technology: Venous blood (10μl), Capillary (10μl), Prediluted (20μl).
✔ High efficiency with a throughput of 60 samples per hour.
✔ Comprehensive analysis: 21 parameters + 3 histograms.
✔ Designed for heavy workloads: Supports continuous 24-hour operation.
✔ Automated maintenance: Self-cleans the sampler, counting pool, and pipelines upon startup.
✔ Flexible output: Built-in thermal printer with external printer connectivity.
✔ Advanced technology: Electrical impedance method and cyanide-free HGB detection.
✔ Intelligent system: Fully automated blockage removal and alarm functions.
✔ Calibration options: Both automatic and manual calibration available.
✔ Data integration: Full support for LIS (Laboratory Information System).
Technical Parameters
ModelCCL-K3200
Throughput60 samples/hour
PrincipleImpedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB
Parameters21 parameters (WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC)
Histograms3 histograms (WBC, RBC, PLT)
Sample VolumeVenous: 10μl, Capillary: 10μl, Prediluted: 20μl
Storage100,000 results with histograms
Interface4 USB ports, Network port, RS232 serial port
LanguageEnglish, Chinese, Spanish, French, Russian, Ukrainian
Dimensions295 * 467 * 418mm (Net Weight: 19kg)
Product Display
Hematology Analyzer Detail
Blood Test CBC Machine System

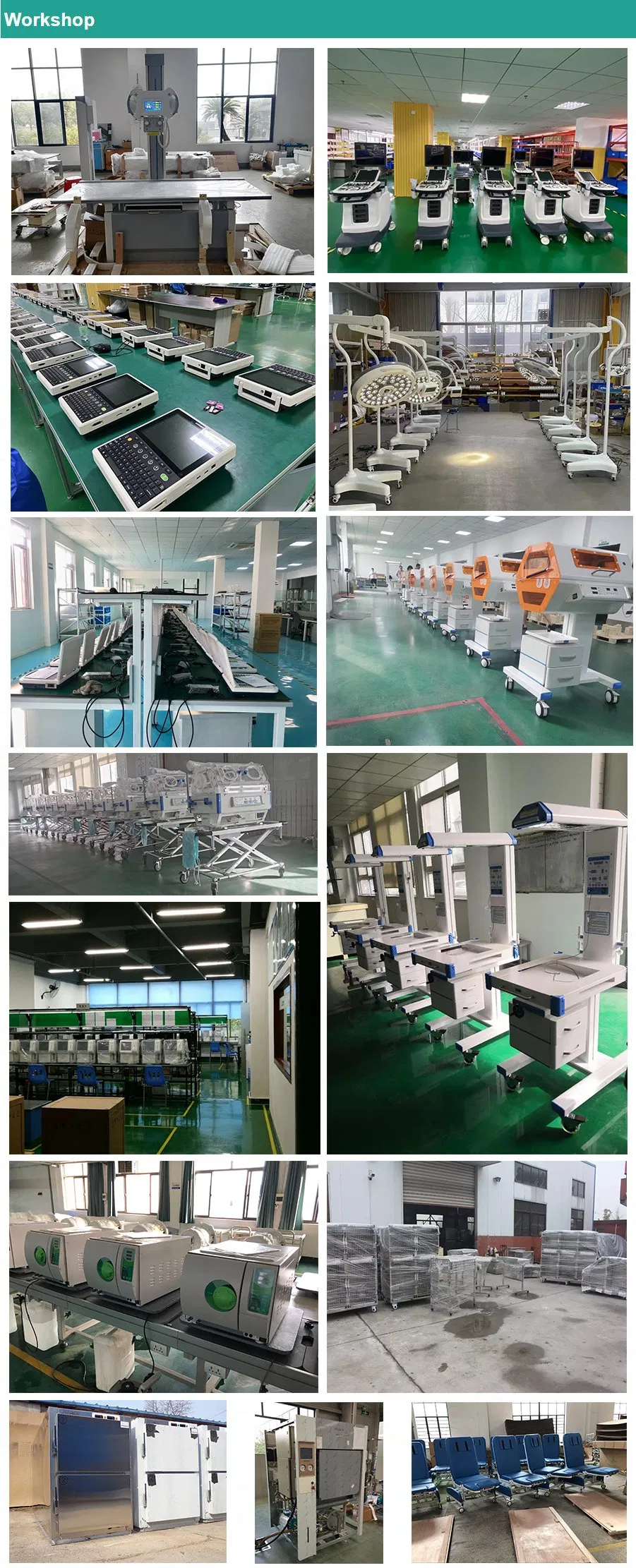

Complete CBC Analysis Range
One-Stop Medical Equipment Solutions
X-Ray Room
X-ray Machine, Processor, Film, Cassette, Lead Clothing (Apron, Gloves, Glasses).
Ultrasound
B/W 2D Ultrasound, 2D/3D/4D Color Ultrasound.
Laboratory
Chemistry Analyzer, Hematology Analyzer, Elisa Reader/Washer, Centrifuge, Urine Analyzer.
Operation Room
Anesthesia Machine, Ventilator, Operating Lamp/Table, Patient Monitor, Defibrillator, Autoclave.
Frequently Asked Questions
What is the testing speed of the CCL-K3200?
The analyzer features a high throughput of 60 samples per hour, making it efficient for clinical laboratory use.
How much blood sample is required for a test?
It requires very small sample volumes: only 10μl for venous or capillary blood, and 20μl for prediluted samples.
Can the data be integrated with hospital systems?
Yes, the system fully supports bi-directional LIS (Laboratory Information System) for seamless data management and transfer.
What parameters does the machine analyze?
It analyzes 21 parameters, including WBC, RBC, HGB, PLT, and provides 3 detailed histograms for WBC, RBC, and PLT.
Is the machine easy to maintain?
Yes, it includes automated cleaning of the sampler and pipelines during startup, and features high-voltage burning and reverse flush for unclogging.
What languages does the operating system support?
The system supports multiple languages including English, Chinese, Spanish, French, Russian, and Ukrainian.
