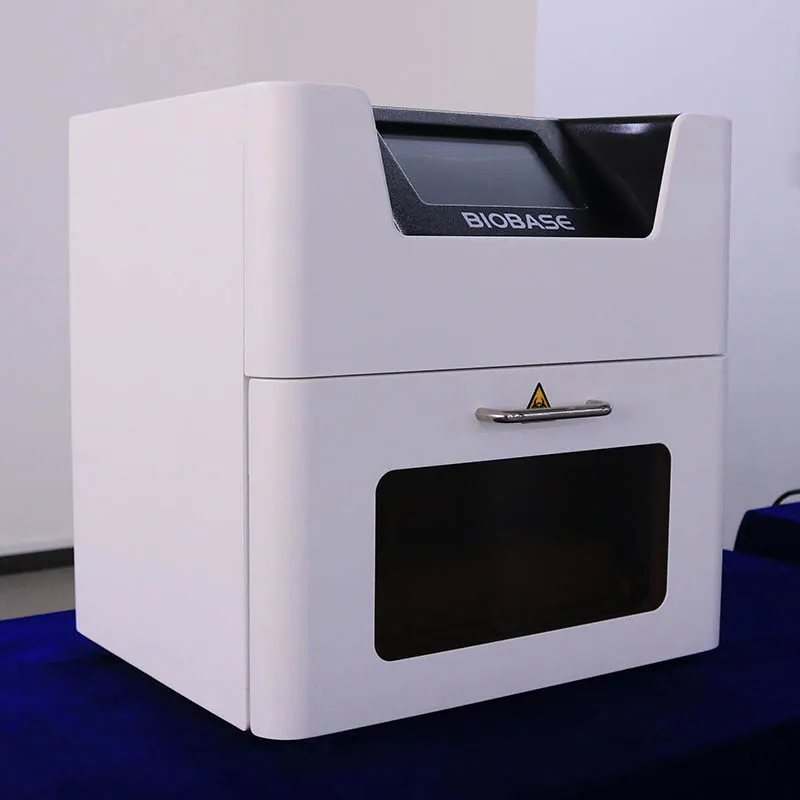

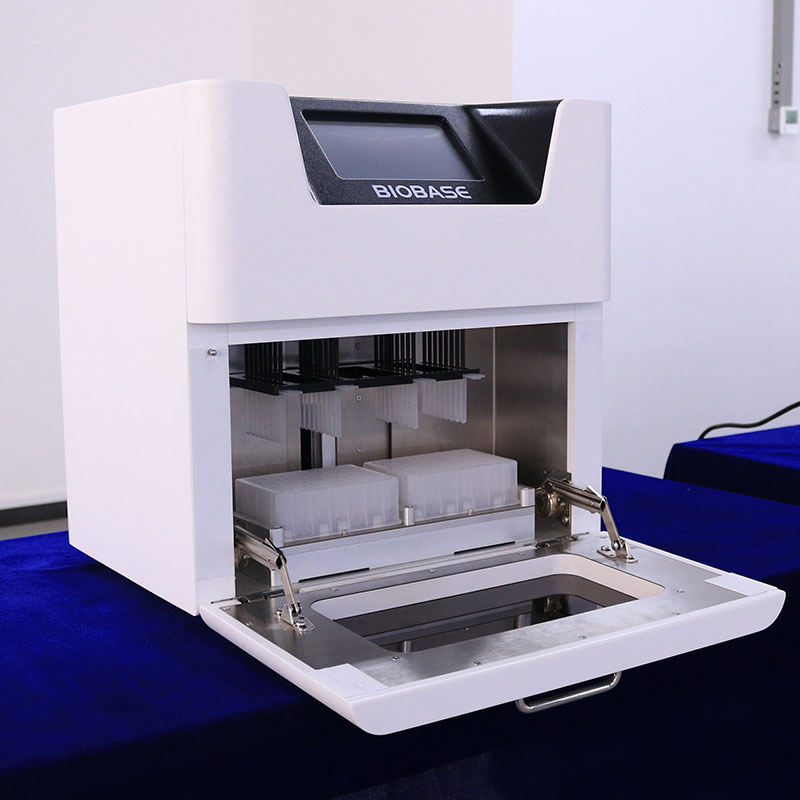

Molecular Diagnostics DNA Rna Nucleic Acid Extractor
Molecular Diagnostics DNA Rna Nucleic Acid Extractor
Molecular Diagnostics DNA Rna Nucleic Acid Extractor
Molecular Diagnostics DNA Rna Nucleic Acid Extractor
Molecular Diagnostics DNA Rna Nucleic Acid Extractor
1 / 5
Molecular Diagnostics DNA Rna Nucleic Acid Extractor
Molecular Diagnostics DNA Rna Nucleic Acid Extractor
Molecular Diagnostics DNA Rna Nucleic Acid Extractor
Molecular Diagnostics DNA Rna Nucleic Acid Extractor
Molecular Diagnostics DNA Rna Nucleic Acid Extractor

Molecular Diagnostics DNA Rna Nucleic Acid Extractor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview

Model NO.BNP32 CertificationCE, ISO13485
Sample Quantity32 Processing Volume20μL-1000μL
Sample Volume20-500μL Sample Throughput1-32
Magnetic Bead Recovery>98% Extracting DifferenceCV≤3%
Reagent TypeMagnetic Bead Open Platform
Extraction Time15-40 Min/Round (Depending on Reagent)
HS Code902780 Production Capacity1000unit/Month

Product Description

Auto Nucleic Acid Extraction System (BNP32)

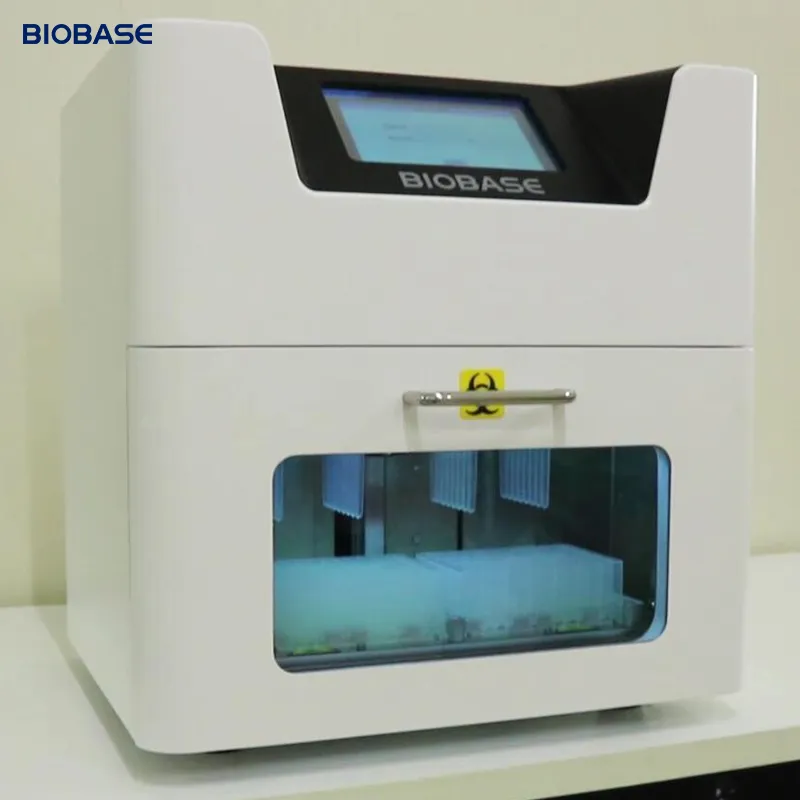

Nucleic Acid Extractor View 1

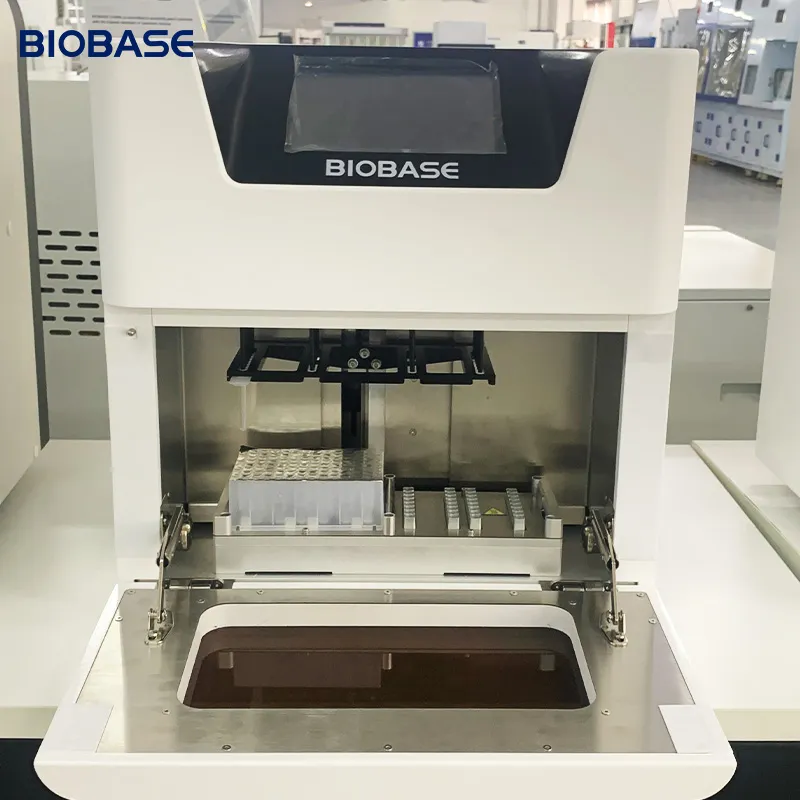

Nucleic Acid Extractor View 2

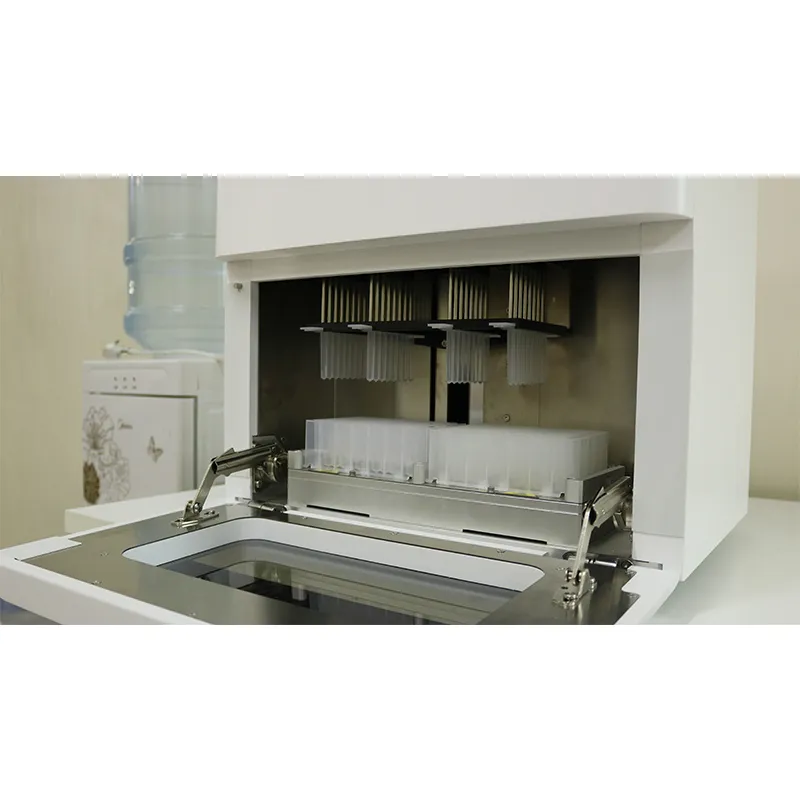

Detail 1

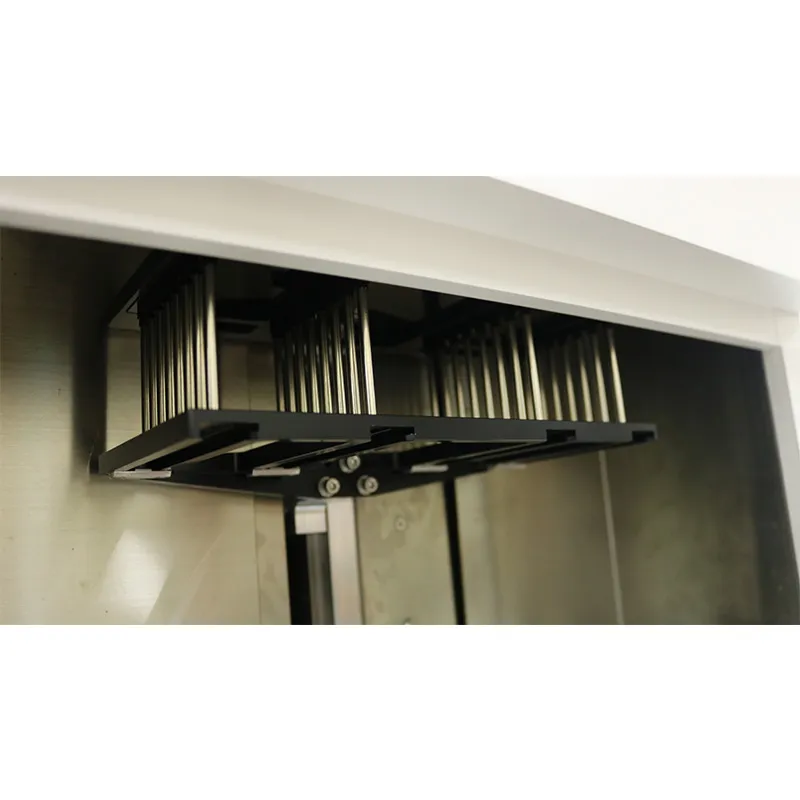

Detail 2

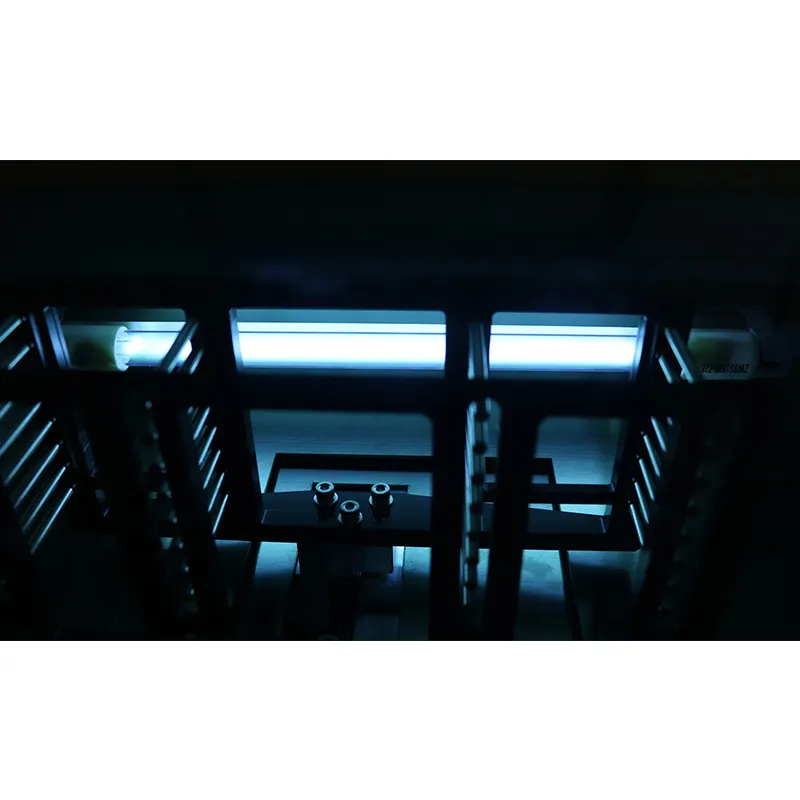

Detail 3

Technical Parameters

Model BNP32 BNP48
Sample Quantity3248
Processing Volume20μL-1000μL
Sample Volume20-500μL
Sample Throughput1-32 / 1-48
Magnetic Bead Recovery>98%
Heating Temp8 independent modules, customizable lysis/elution
Oscillating MixingLow, medium, high adjustable gears
Internal ProgramStore >100 groups of programs
Built-in Air DuctNoYes
Gross Weight (kg)5180
Parameter Chart

Key Features

01
7-inch touch screen, easy to use with fast response.
02
User-defined cracking and elution temperature control.
03

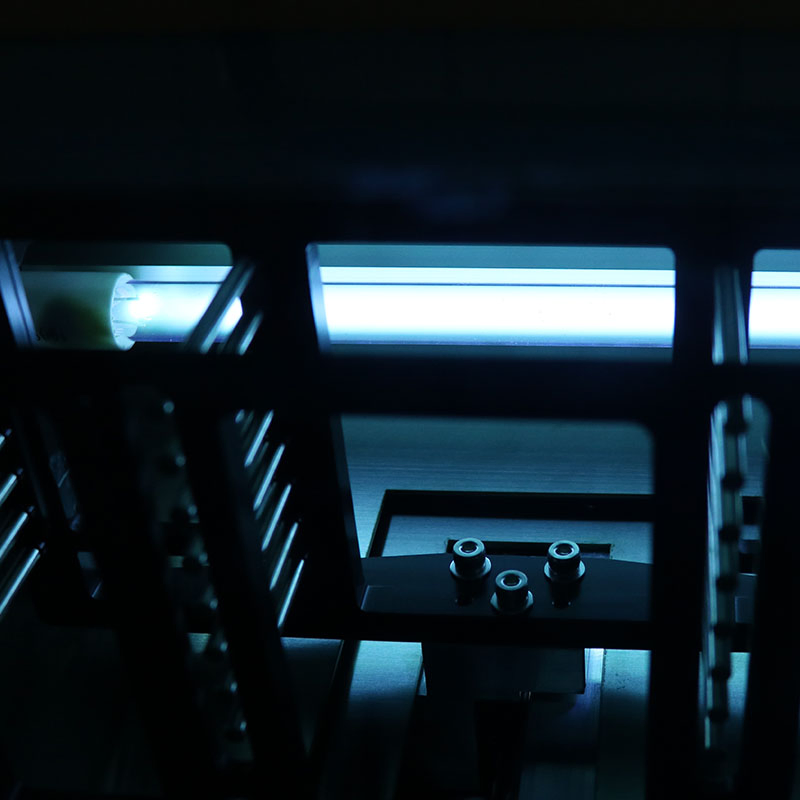

Integrated UV disinfection function (1min-24hour range).
04
Automatic control system, standalone operation without PC.
05
Open system with free programming for various reagents.
06
High efficiency: 15-40 minutes rapid extraction for up to 48 samples.

Certifications & Production

Professional Service: 20 years of experience in export products. Our professional after-sales team provides installation guides and problem-solving support.

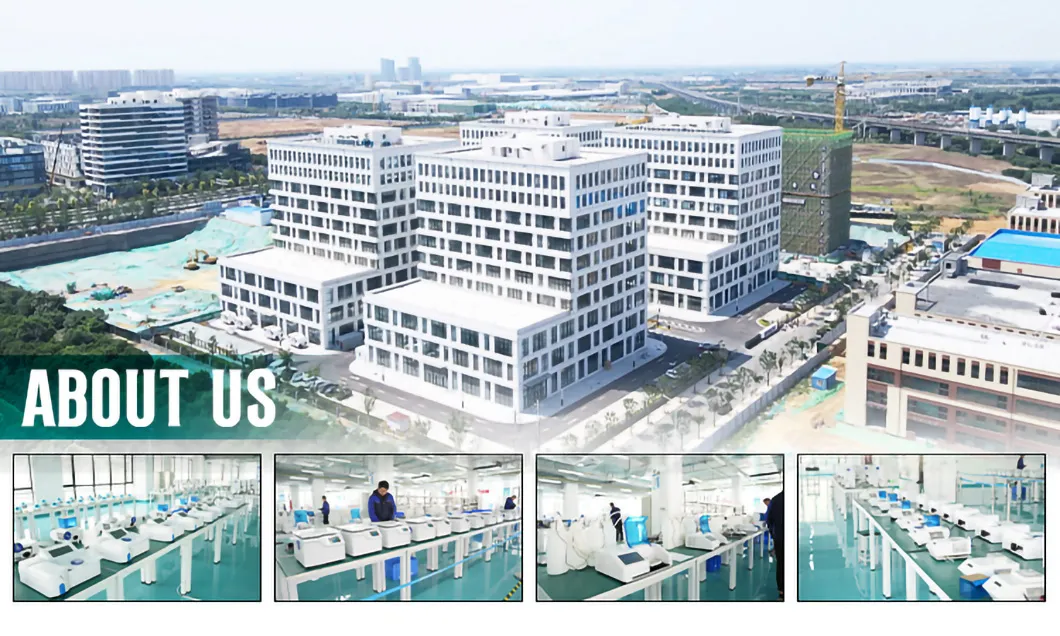

Factory Line 1

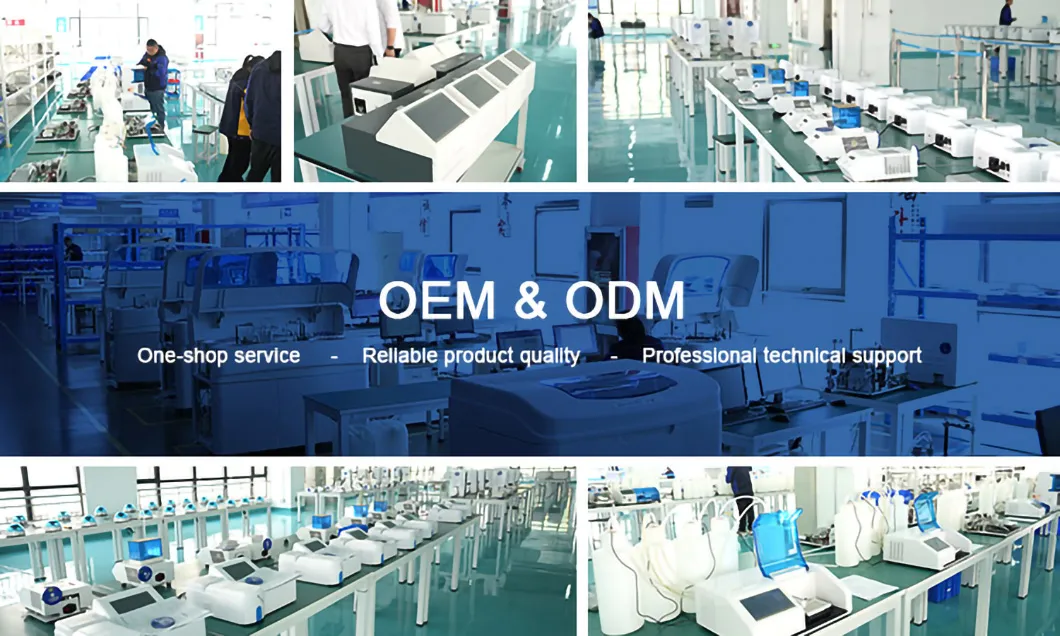

Factory Line 2

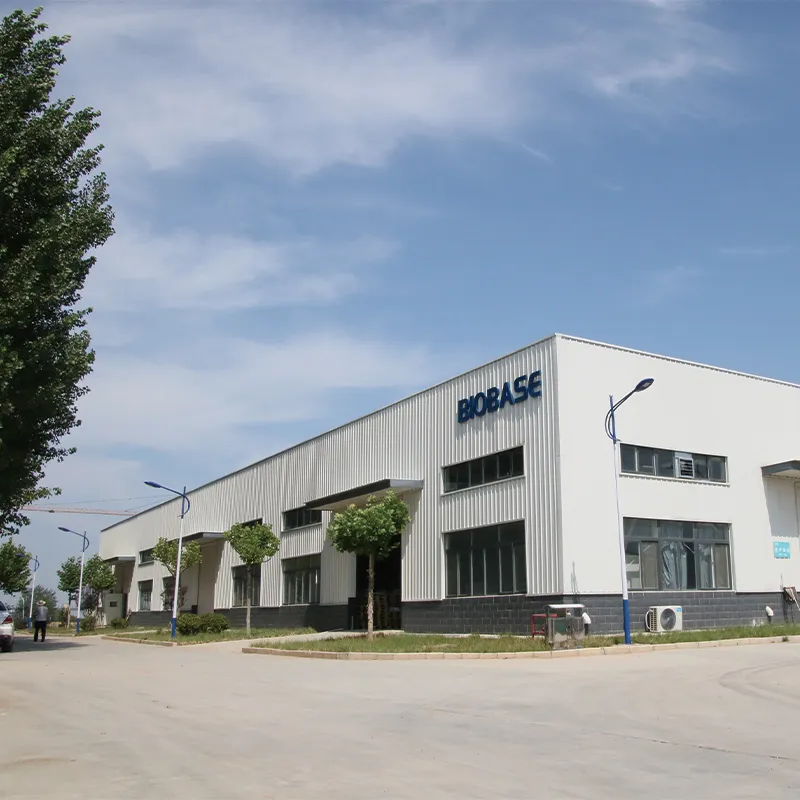

Cert 1
Cert 2

Main Products Portfolio

Our comprehensive range of laboratory equipment includes:

  • Biological Safety Cabinets
  • Fume Hoods
  • Laminar Flow Clean Benches
  • Laboratory Refrigerators
  • Incubators & Autoclaves
  • Centrifuges
Main Products Grid

Frequently Asked Questions

1. How many samples can the BNP32 extract at once?
The BNP32 model is designed for a throughput of 1 to 32 samples per round, while the BNP48 model can handle up to 48 samples.
2. What is the typical extraction time?
The process usually takes between 15 to 40 minutes per round, depending on the specific reagents and protocols used.
3. Is this system compatible with different reagent brands?
Yes, it features a magnetic bead open platform, allowing it to be compatible with various reagent kits through its customizable programming.
4. Does the system require a computer to operate?
No, the system is fully automated with a built-in 7-inch touch screen control, eliminating the need for an external computer connection.
5. How is contamination prevented within the system?
The system includes an integrated UV disinfection function with a wide timer range (1min to 24hours) to maintain a sterile environment.
6. What certifications does the equipment hold?
The product is fully certified with CE and ISO13485 standards, ensuring compliance with international quality and safety regulations.
