Basic Information
Certification
CE, ISO13485
Interface
4 USB Hosts, 1 USB Slave, 1 Ethernet Port
Memory
200,000 Results Storage
Printer
Built-in Thermal (57mm)
Display
7.0" TFT LCD Touch Screen
Product Description

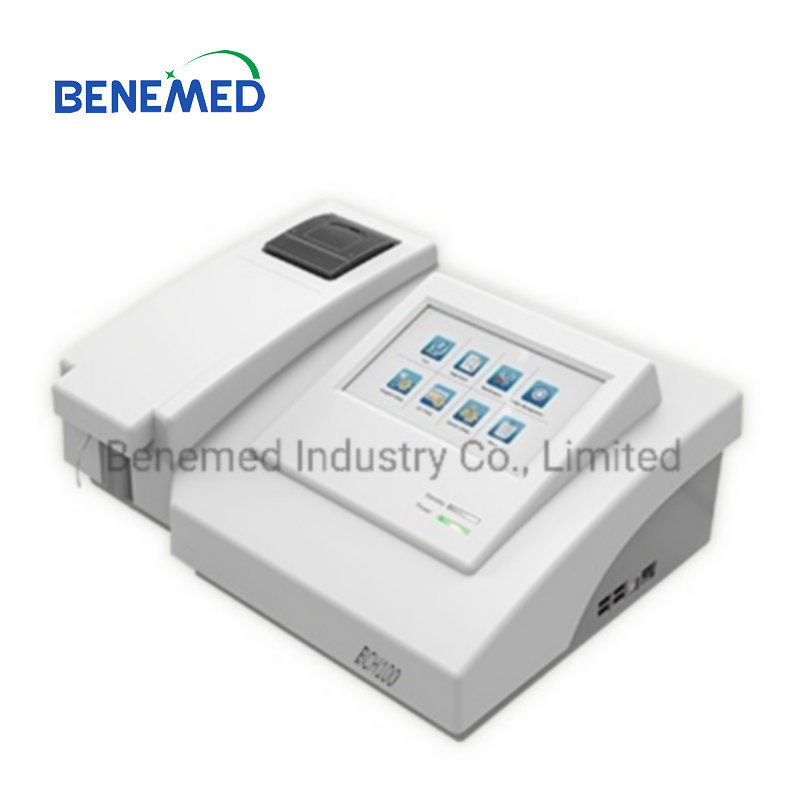

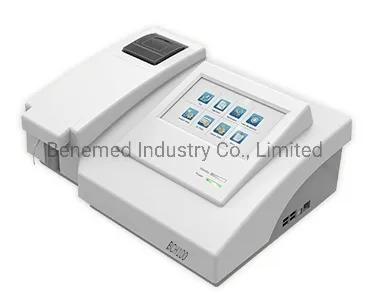

BCH100 Semi-auto Biochemistry Analyzer
Key Features

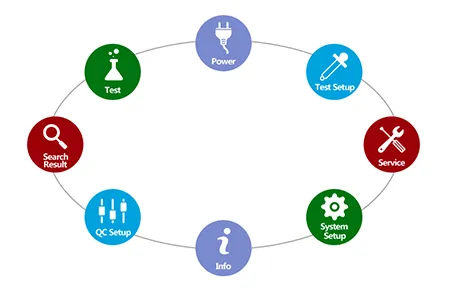

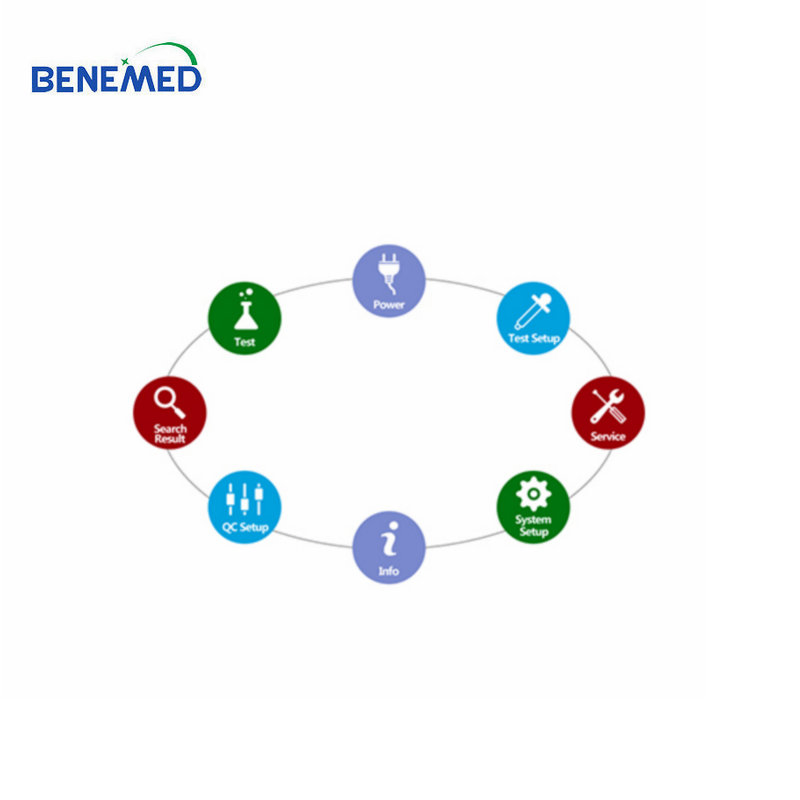

✓Windows based user-friendly interface
✓7.0-inch touchscreen LCD (800*480)
✓Auto sleep for lamp protection
✓5 USB ports & Ethernet connectivity
✓Up to 300 programmable tests
✓Database backup via USB port
✓Universal power supply
✓Optional Coagulation function
Technical Specifications

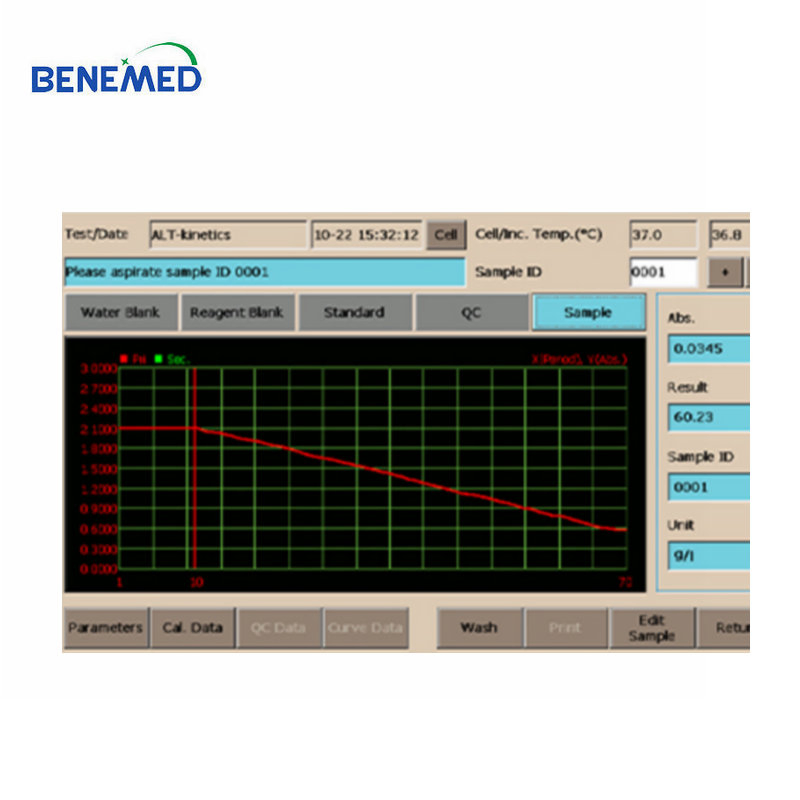

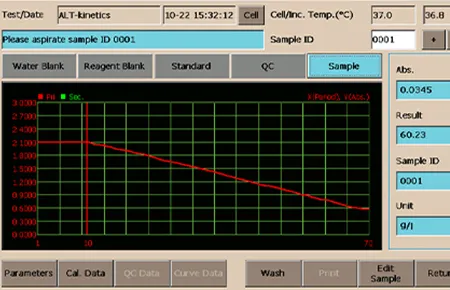

| Test Method | End Point, Kinetics, Fixed time, 2 Point Kinetic, Absorbance, Coagulation(optional) |
| Optics | 7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm; 2 optional |
| Lamp House | Long-life tungsten halogen lamp (6V/10W); auto-sleep function |
| Temperature | 25, 30, 37ºC and Room temperature (Peltier elements) |
| Flow Cell | 32u1 capacity, 10mm optical path |
| Resolution | 0.0001 Abs (Photometric range: 0.0000-3.0000 Abs) |
| Stability | ≤0.005 Abs/hour |
| Carry Over | ≤0.5% |
| Connectivity | USB Host (keyboard, mouse, U-disk, barcode reader), USB Slave (PC connection) |
| Environment | Temp: 10°C~30°C, Humidity: 30%~80% |
| Dimension & Weight | 400*300*160mm (L*W*H); 6.0kg |
Frequently Asked Questions
What test methods does the BCH100 support?
The analyzer supports End Point, Kinetics, Fixed time, 2 Point Kinetic, and Absorbance. An optional Coagulation function is also available.
How many test results can be stored in the memory?
The device has a massive internal storage capacity that can save up to 200,000 individual test results.
Does the device come with a built-in printer?
Yes, it features a built-in thermal printer that uses standard 57mm thermal printer paper for immediate reporting.

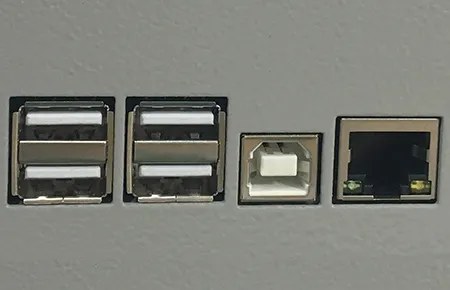

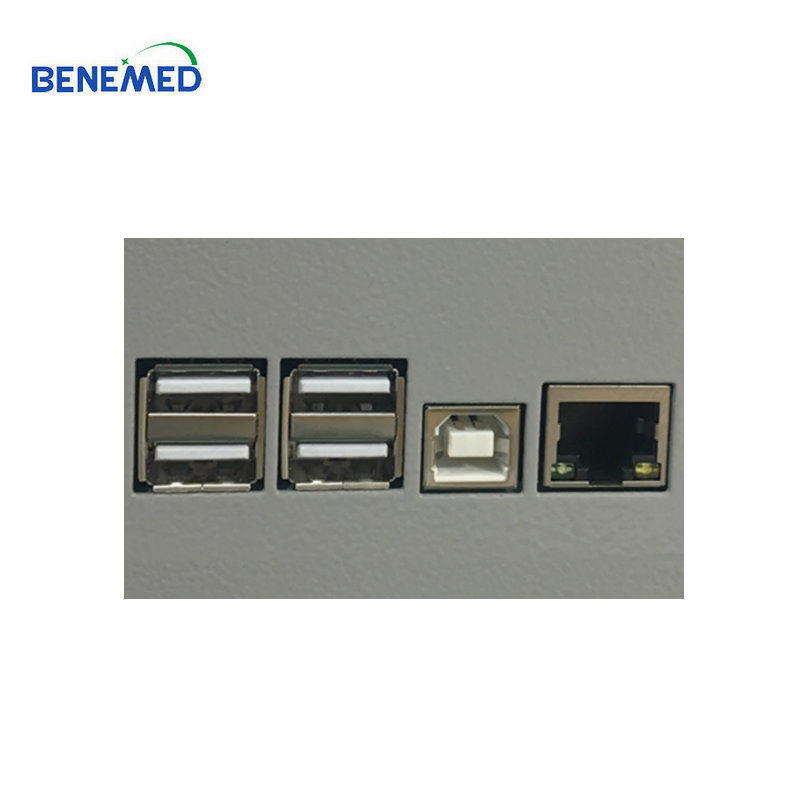

What are the connectivity options available?
The BCH100 is equipped with 4 USB Hosts (for keyboard, mouse, barcode reader, etc.), 1 USB Slave for PC connection, and 1 Ethernet port.
Is the display user-friendly for laboratory work?
Absolutely. It features a large 7.0" TFT LCD touch screen with 800*480 pixel resolution and a Windows-based interface for intuitive operation.
What is the power requirement for international use?
The analyzer uses a universal wide power supply (AC 100-240V, 50/60 Hz), making it compatible with power standards worldwide.
