Pallet Wrapping Machine Industrial Solution for Logistics

Customization:	Available
After-sales Service:	Online Video Support
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

Standard, Customized

Applicable Goods

Pallets, Cartons, Barrels, Irregular Loads

Type

Automatic Pallet Wrapping Machine

Driven Type

Electric

Application

Beverage, Food, Medical, Chemical, Textile, Electrical & Electronics, Machinery, Hardware, Commodity, Apparel

Automatic Grade

Automatic

Wrapping Structure

Fully Wrapped Winding, Pallet Wrapping

Min Load Size

500×500×500 mm

Max Load Size

200×1200×2000 mm

Max Load Weight

2000 Kg (Optional: 2500 Kg, 3000 Kg)

Turntable Speed

3-12 Rpm (Adjustable)

Wrapping Capacity

20-40 Loads/Hour

Pre-Stretch Ratio

300% Standard

Power Supply

220V/50Hz/1phase (Optional 380V)

Control System

PLC + Touch Screen HMI

Certification

CE / ISO9001 / EMC Compliant

Packaging & Delivery

Package Size

280.00cm * 180.00cm * 85.00cm

Gross Weight

720.000kg

Transport Package

Wooden Box

Lead Time

3-15 Days

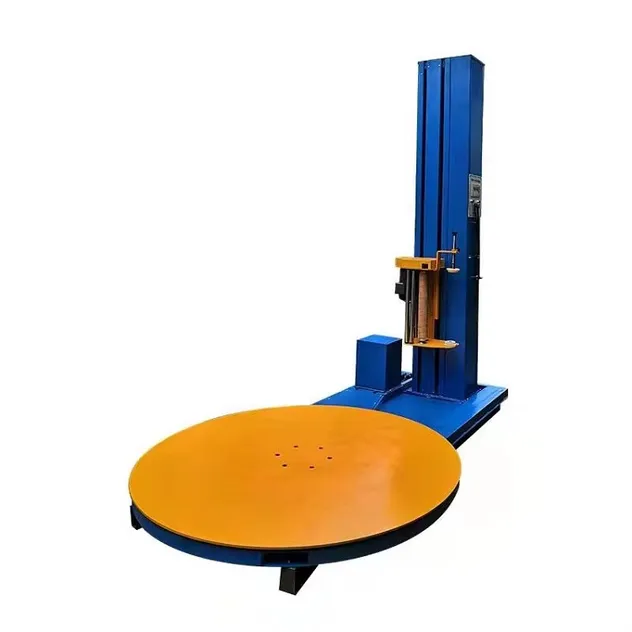

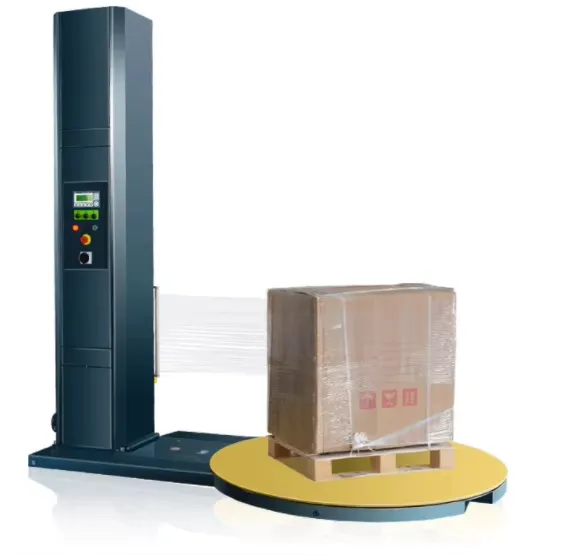

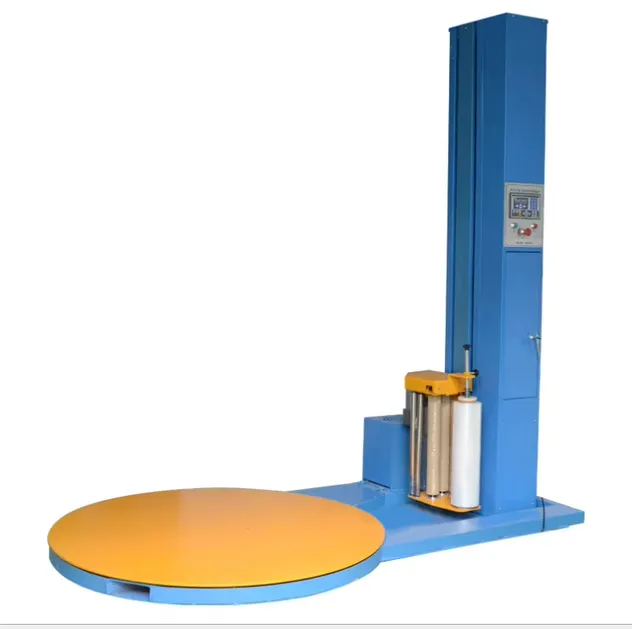

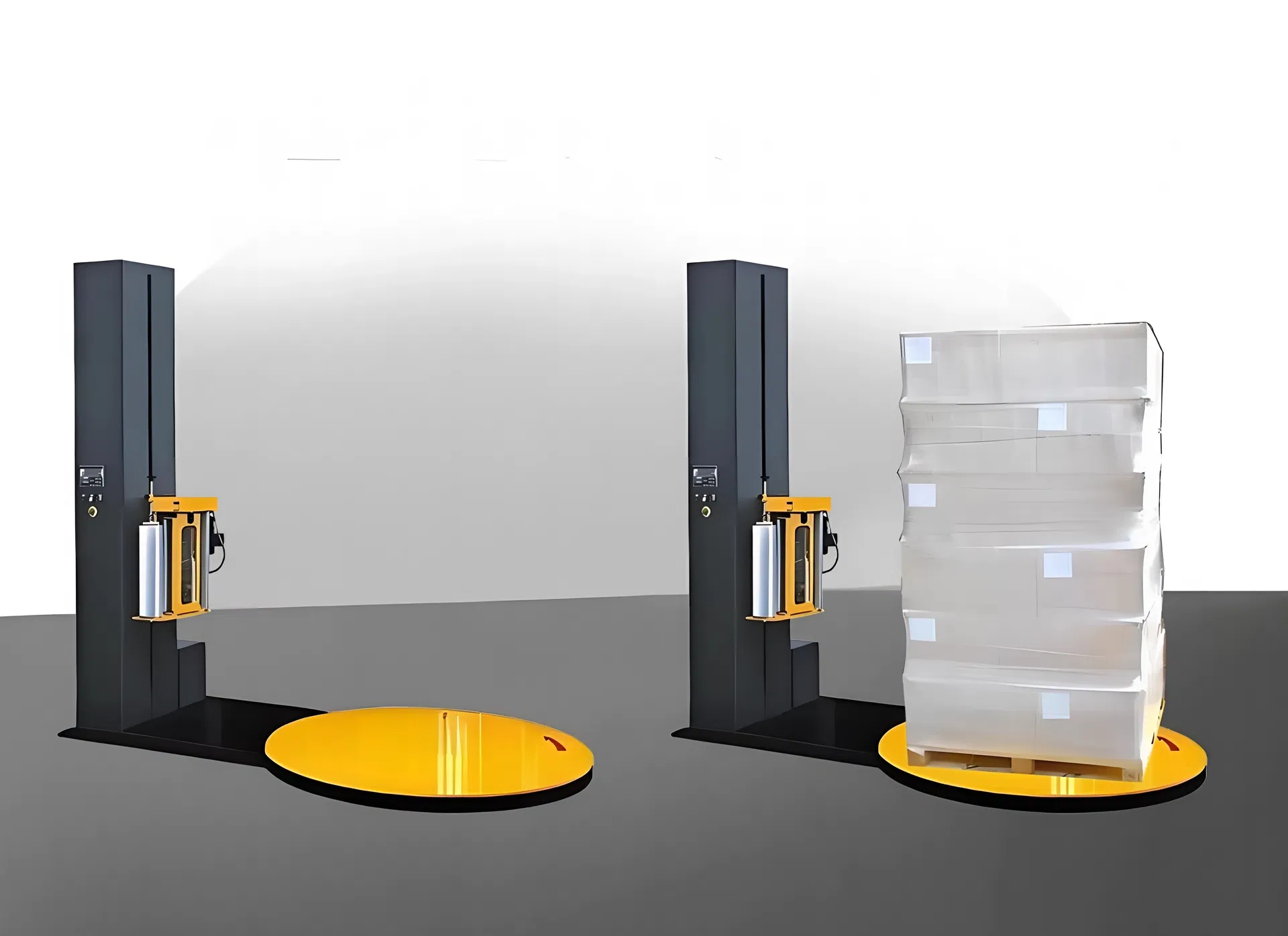

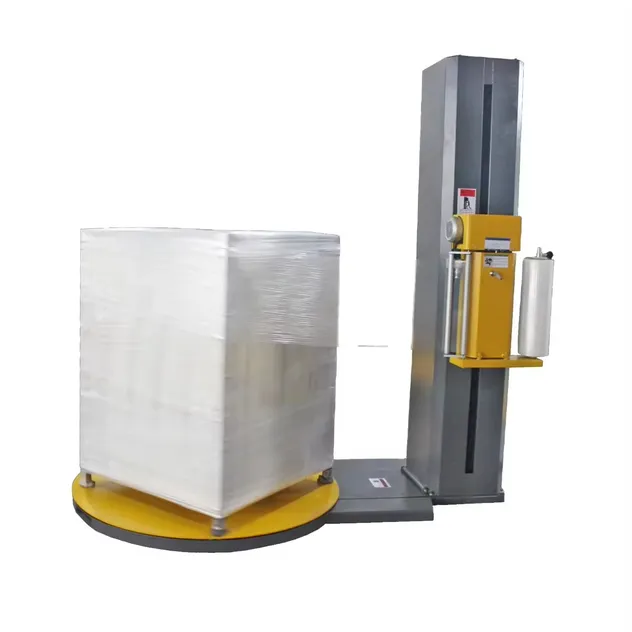

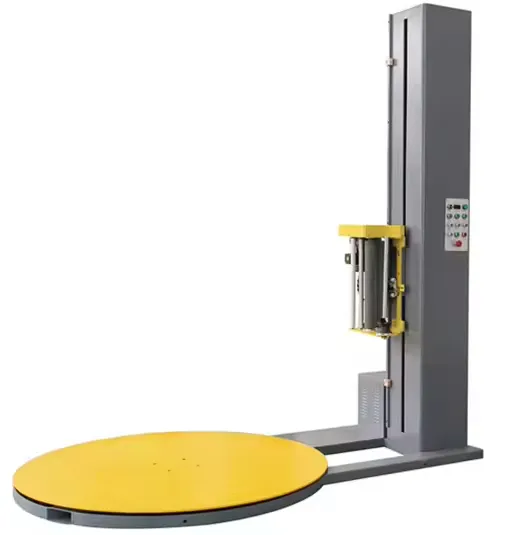

Product Presentation

Detailed Specifications

Category	Parameter	Specification	Buyer-Focused Description
Load Capacity	Maximum Load Size	1200×1200×2000 mm (optional 3000 mm)	Compatible with standard export pallets and tall loads
Load Capacity	Maximum Load Weight	2000 kg (options up to 3000 kg)	Heavy-duty design ensures stable wrapping for dense loads
Efficiency	Wrapping Speed	20–40 loads per hour	High throughput for busy warehouses
Efficiency	Film Pre-Stretch Ratio	300%	Reduces film usage by 30–50%
Control	Control Interface	PLC + Touchscreen	Easy to operate, multi-program support
Control	Height Detection	Photoelectric sensor	Automatic height detection for precise coverage
Assurance	Warranty	12-month warranty; CE / ISO9001	Reliable after-sales and proven quality assurance

Industrial Packaging Solutions

We are a professional supplier of packaging machinery and materials, dedicated to delivering efficient, automated, and customized packaging solutions for global customers. Our range covers stretch film, pallet wrapping machines, carton sealing machines, and carton forming machines — widely used in logistics, warehousing, food processing, and manufacturing industries.

We support customized full packaging line solutions, including unpacking, packing, sealing, strapping, and stacking equipment, helping customers improve packaging efficiency and reduce labor costs. With strong R&D capability and strict quality control, we provide reliable, durable, and cost-effective packaging solutions to meet diverse industrial needs.

Frequently Asked Questions

How can I be sure about product quality?

Every order goes through sample confirmation before production and final inspection before shipment. We use high-quality raw materials and test film strength, transparency, and machine stability in-house.

Do you provide customized packaging solutions?

Yes. We design tailor-made packaging systems. Whether you need special film thickness, logo printing, or a complete automatic wrapping line, our engineers adjust configurations to fit your workflow.

How long does production and delivery take?

Films typically take 3–7 working days after deposit. Machines require 7–15 days depending on customization. Real-time updates and tracking are provided throughout the process.

Can I request a factory inspection?

Absolutely. We welcome live visits or request a live video inspection to check materials, processes, and packaging before shipment to ensure transparency.

What are the main products supplied?

We mainly supply Stretch Film/Pallet Wrap, PVC Cling Film, Automatic Pallet Wrapping Machines, as well as carton sealing, strapping, and forming machines.

How is after-sales service supported?

Our technical team provides online video guidance, installation manuals, and spare parts supply. We assist with remote debugging and offer lifetime online support for all machines.
