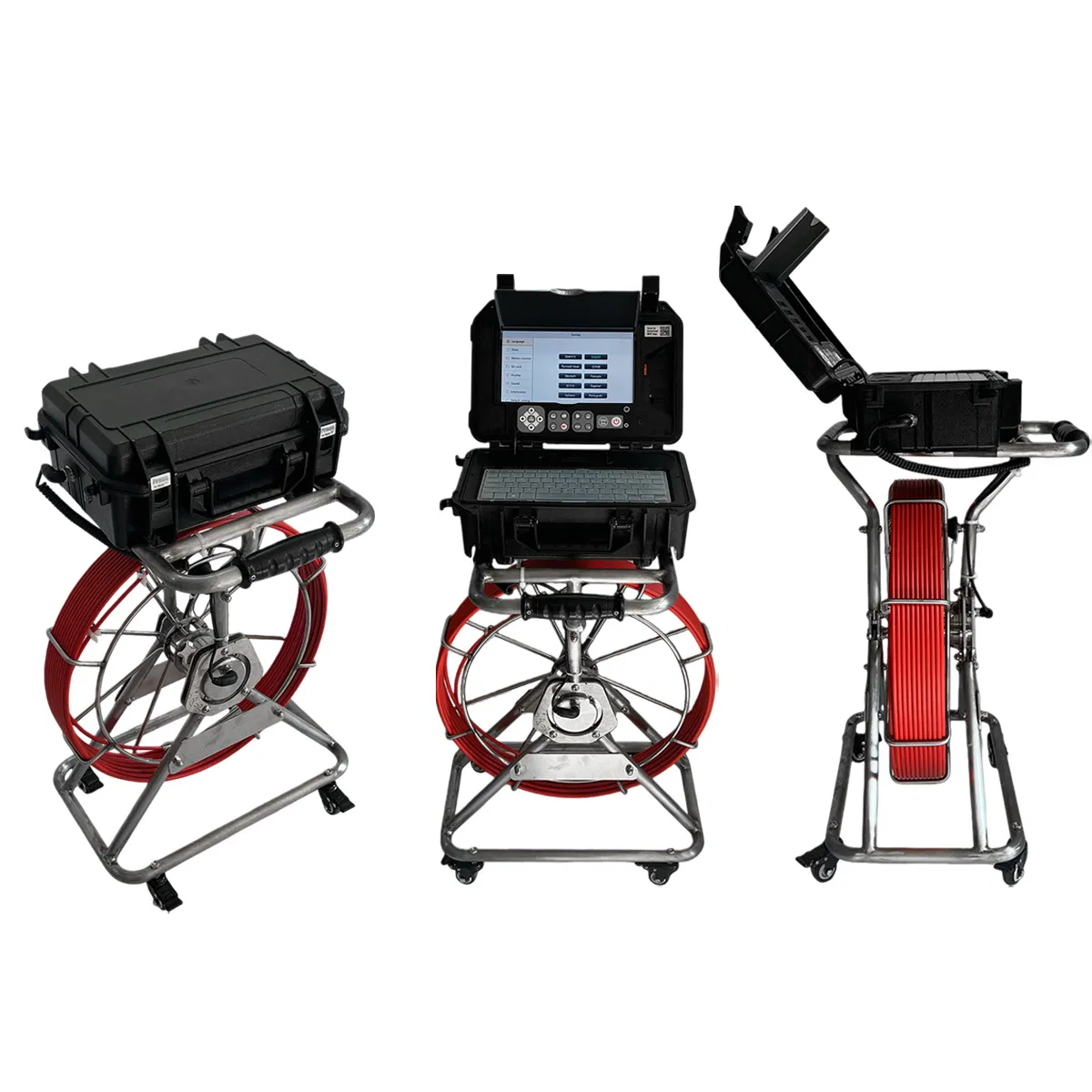

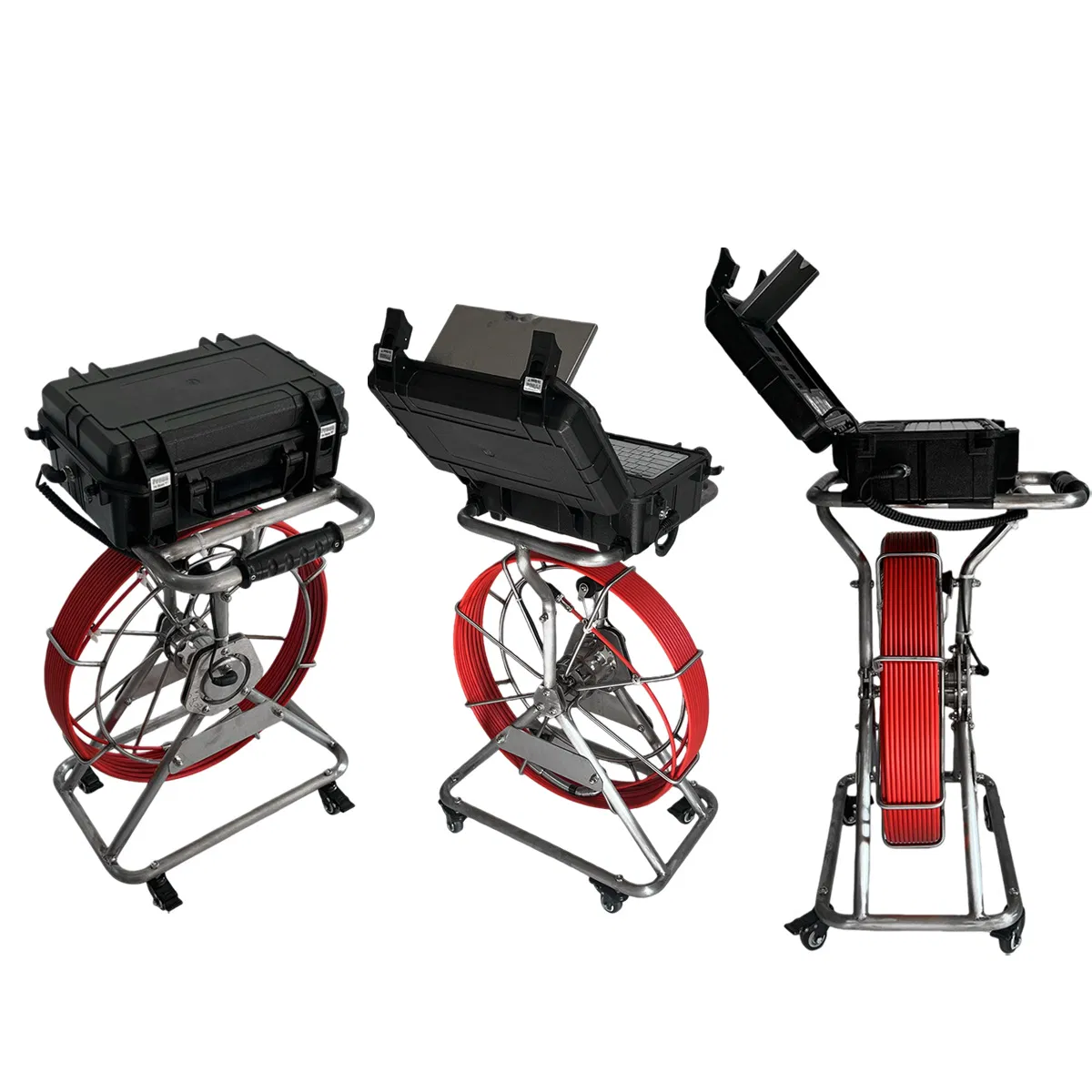

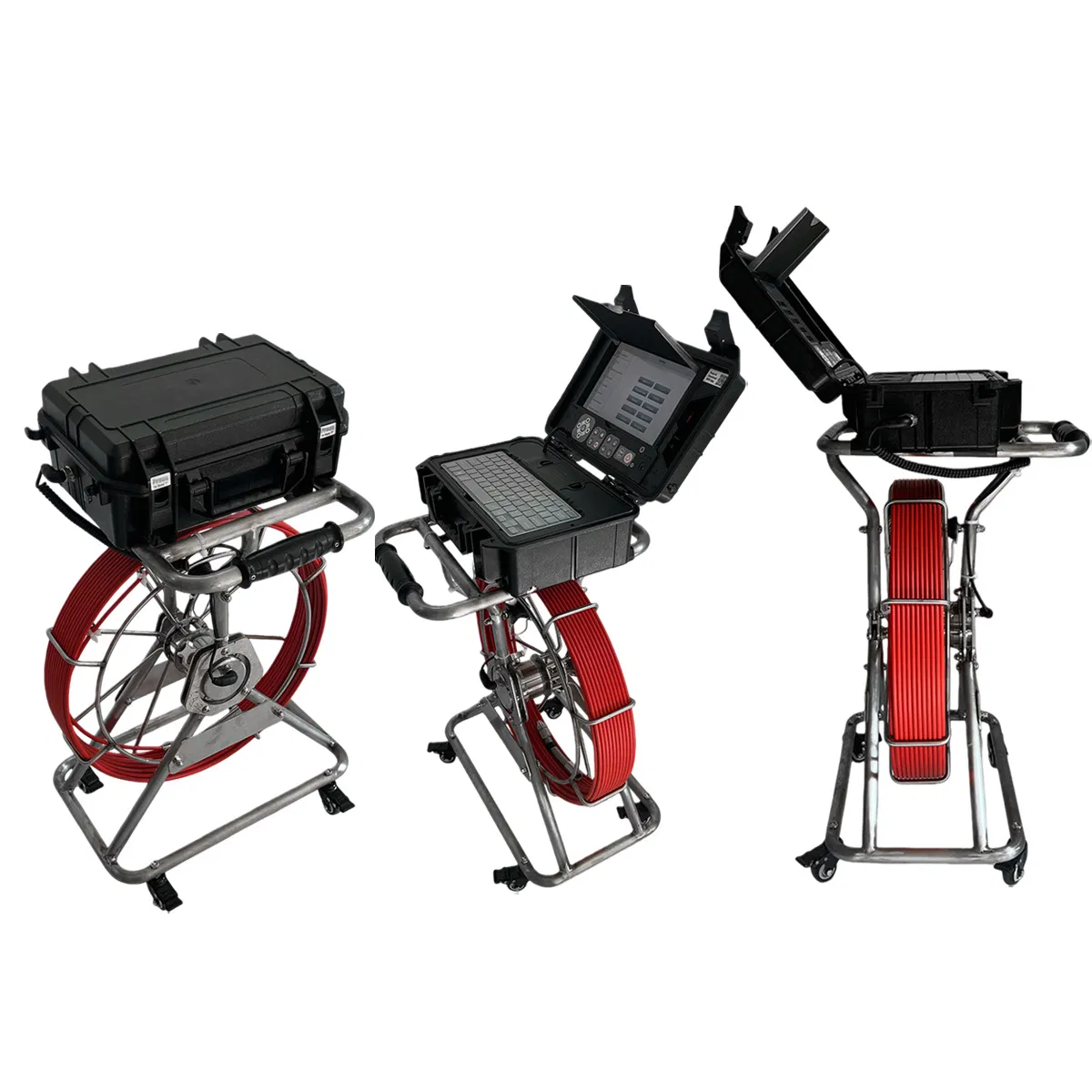

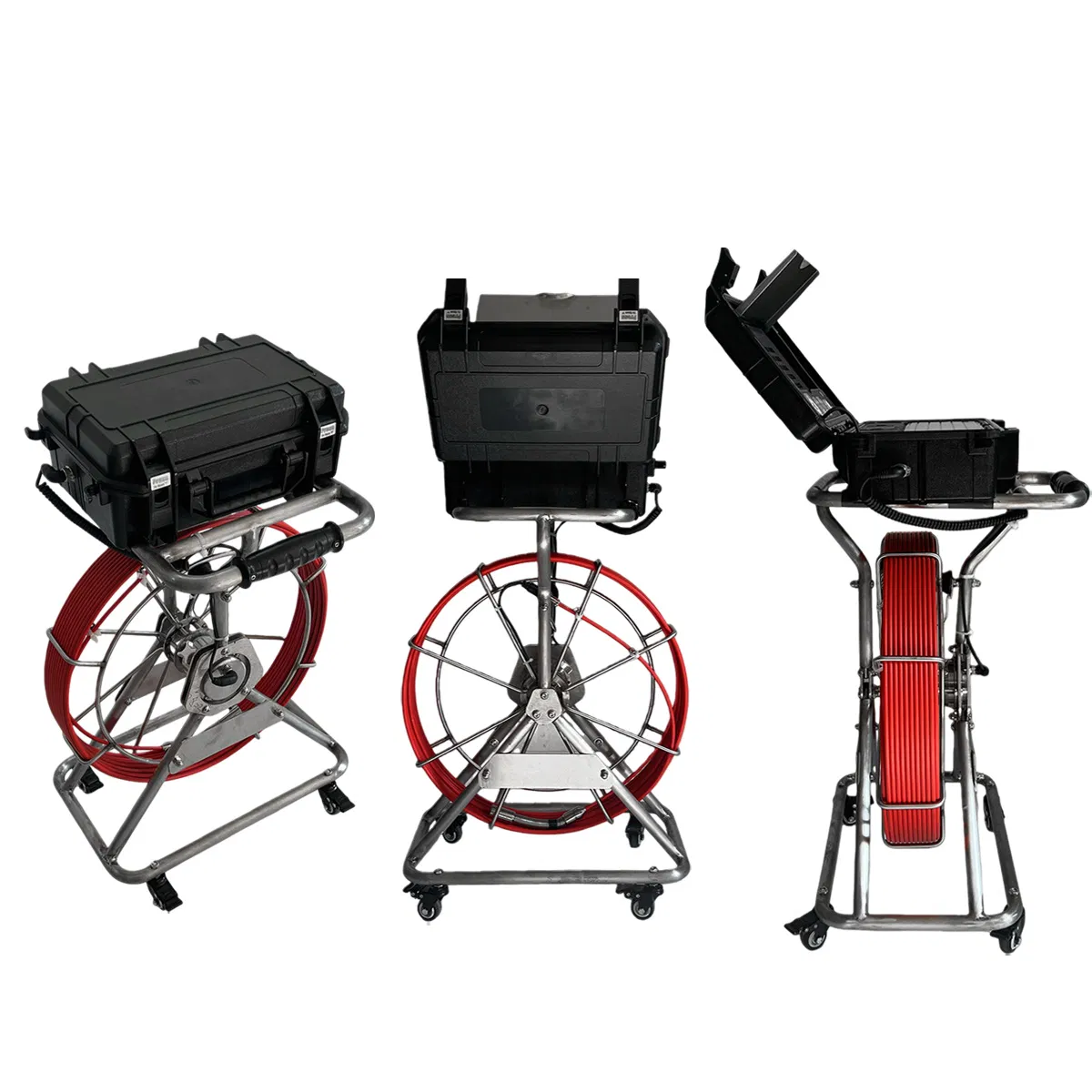

Pipeline Blockage and Debris Locator with 10" Video Screen Hikvision

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
3691HA
Type
Inspection, CRT Monitor
Application
Pipeline Inspection
Waterproof
IP68
HDMI Format
1080P
Sensor
CMOS
Battery
7.2V 9000mAh Lithium-Ion
Camera Head
Self-Leveling
Resolution
1080 * 1920
Memory
Supports 64G SD Card
Keyboard Input Parameters
FeatureDetails
Input LanguageEnglish
Maximum Page Count9 pages
Character Count Per Page500
Keyboard CompatibilityCompatible with specified PC Bluetooth keyboard
Meter CounterBuilt-in (Meter/Foot/Closed)
Meter ToleranceMaximum (± 10cm + 0.5%)

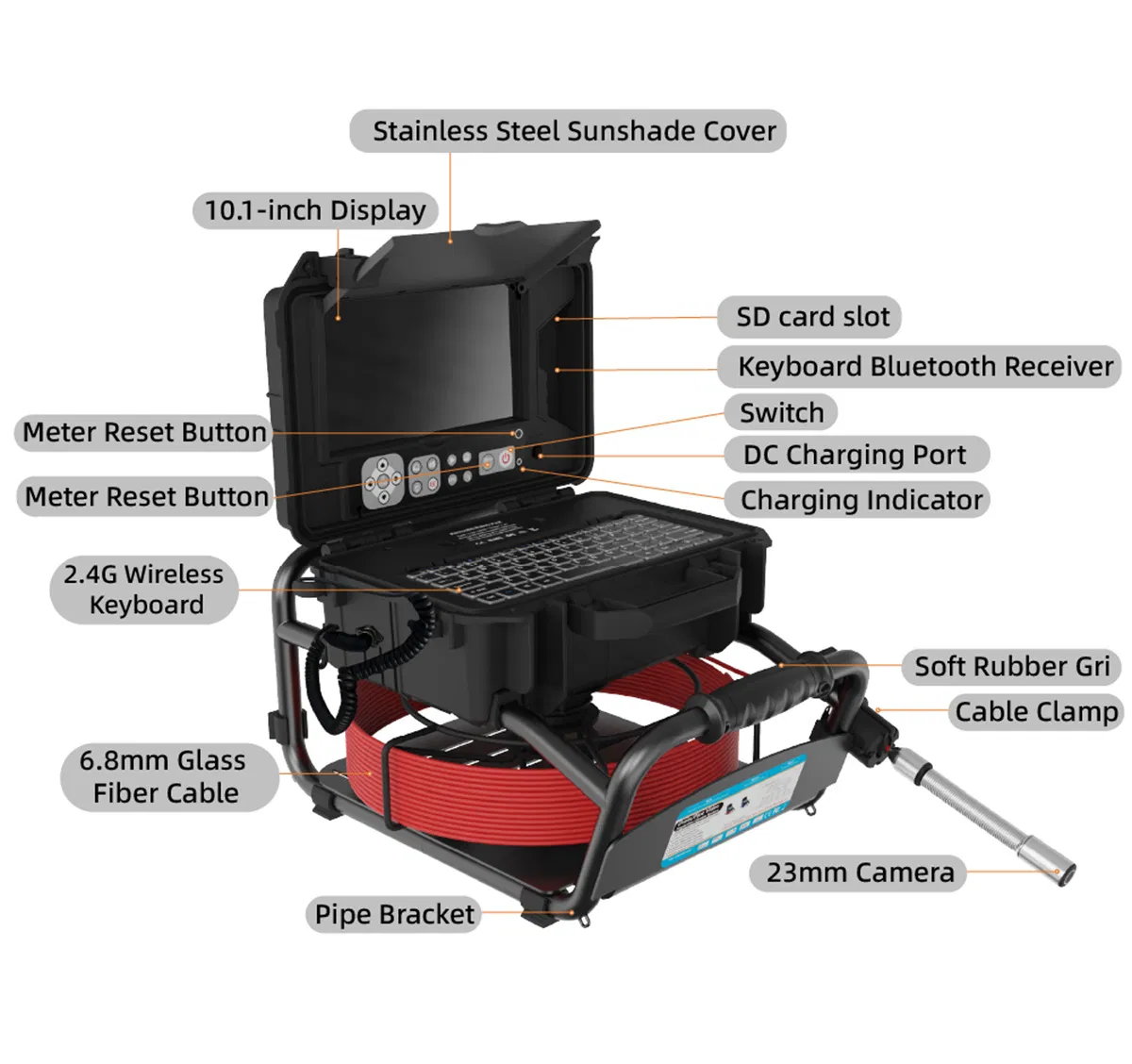

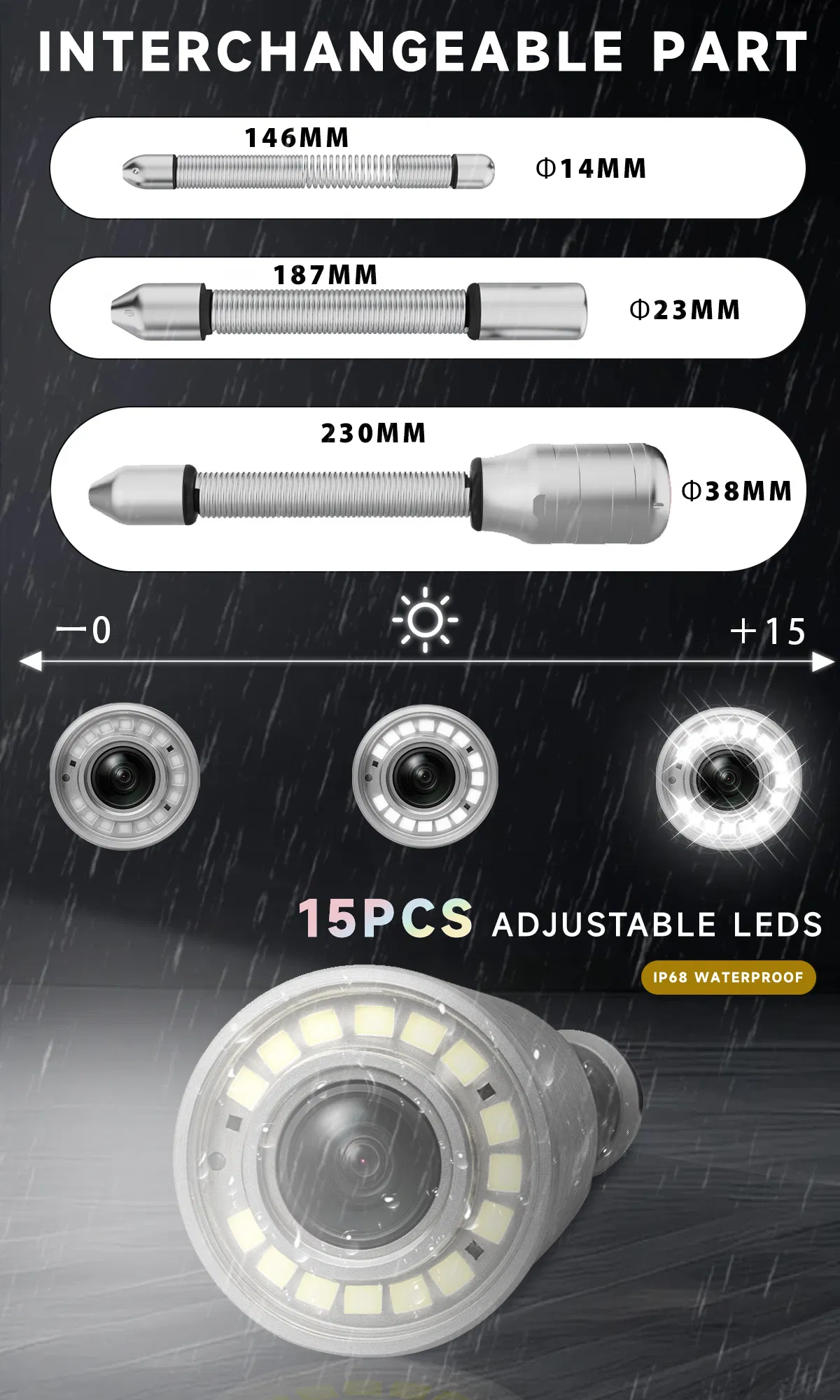

Camera Parameters (23mm)
ComponentSpecification
Sensor1/3” CMOS
ResolutionAHD 1920x1080
Field of View (FOV)130°
Lens MaterialSapphire Glass
Housing Material304# Stainless Steel
Light Source15 Built-in White LEDs
Waterproof Depth20m (Fixed on cable)

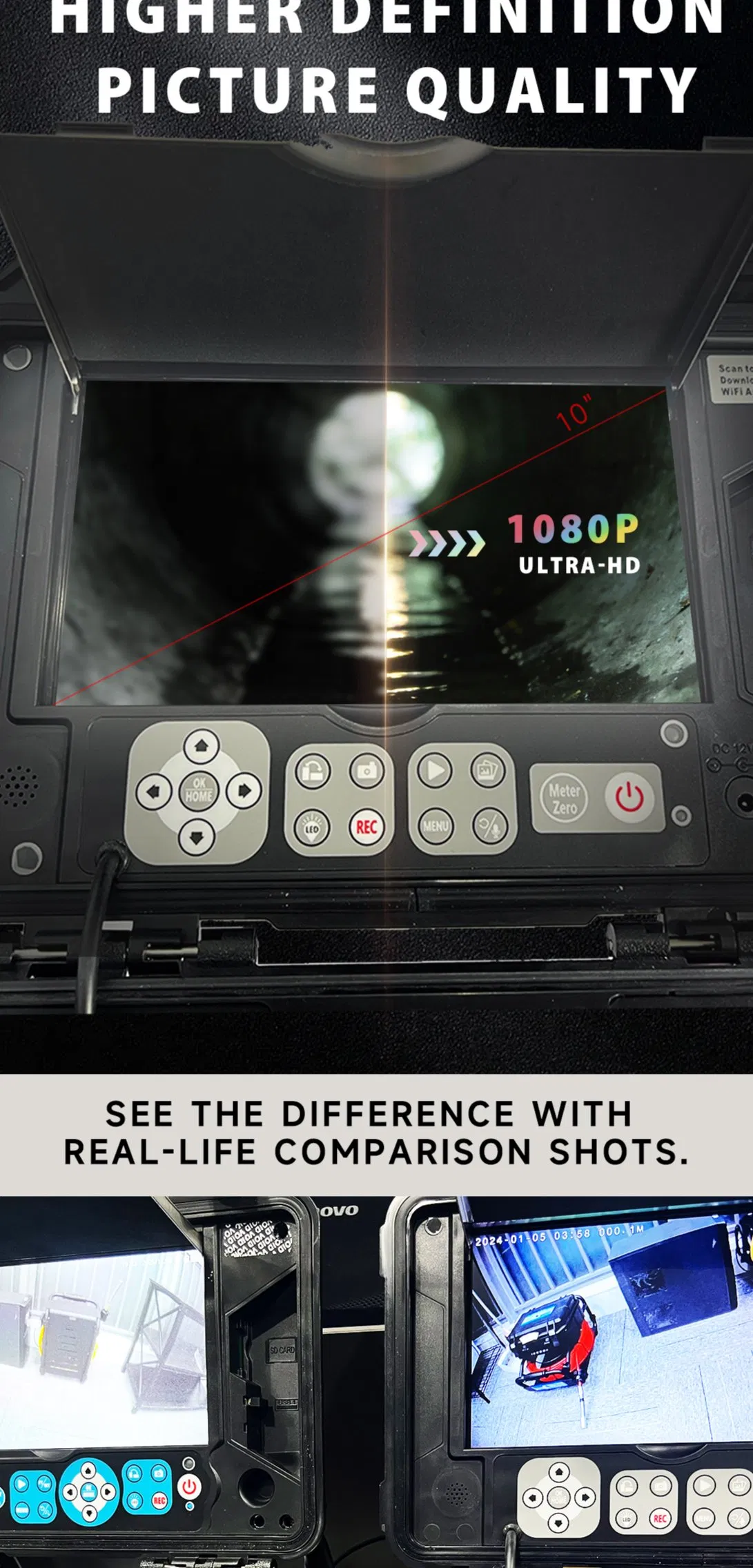

Display Parameters
FeatureSpecification
Screen TypeHigh-definition color LCD
Video ResolutionAHD 1080P, CVBS D1
Compression FormatH.264 High Compression
Operating Time10 - 12 Hours (Model dependent)
Charging TimeApproximately 10 Hours
Supported LanguagesEnglish, Japanese, Korean, German, French, etc.
Professional Features
Our equipment is engineered for professional grade performance. Featuring a replaceable 9000mAh battery, a true 1080P high-definition display, and a self-leveling camera head, every detail provides high efficiency and clear visuals. Unlike standard devices, this system offers faster controls, longer runtime, and smarter features designed for demanding industrial environments.
Product Gallery
Frequently Asked Questions
What is the waterproof rating of this camera?
The camera head is rated IP68, supporting waterproof depth up to 20 meters when fixed on the cable.
Does the system support distance measurement?
Yes, the system features a built-in meter counter that supports measurements in meters or feet with high accuracy.
How long does the battery last on a single charge?
The high-capacity 9000mAh lithium-ion battery provides 10-12 hours of continuous operating time depending on the screen size used.
Is the camera head self-leveling?
Yes, the camera head is equipped with a self-leveling feature to ensure the image remains upright during inspections.
What storage options are available for recordings?
The system supports local recording and is compatible with SD cards up to 64GB for storing videos and photos.
What are the camera's light source specifications?
The camera includes 15 built-in high-intensity white LEDs with adjustable brightness for optimal visibility in dark pipes.
