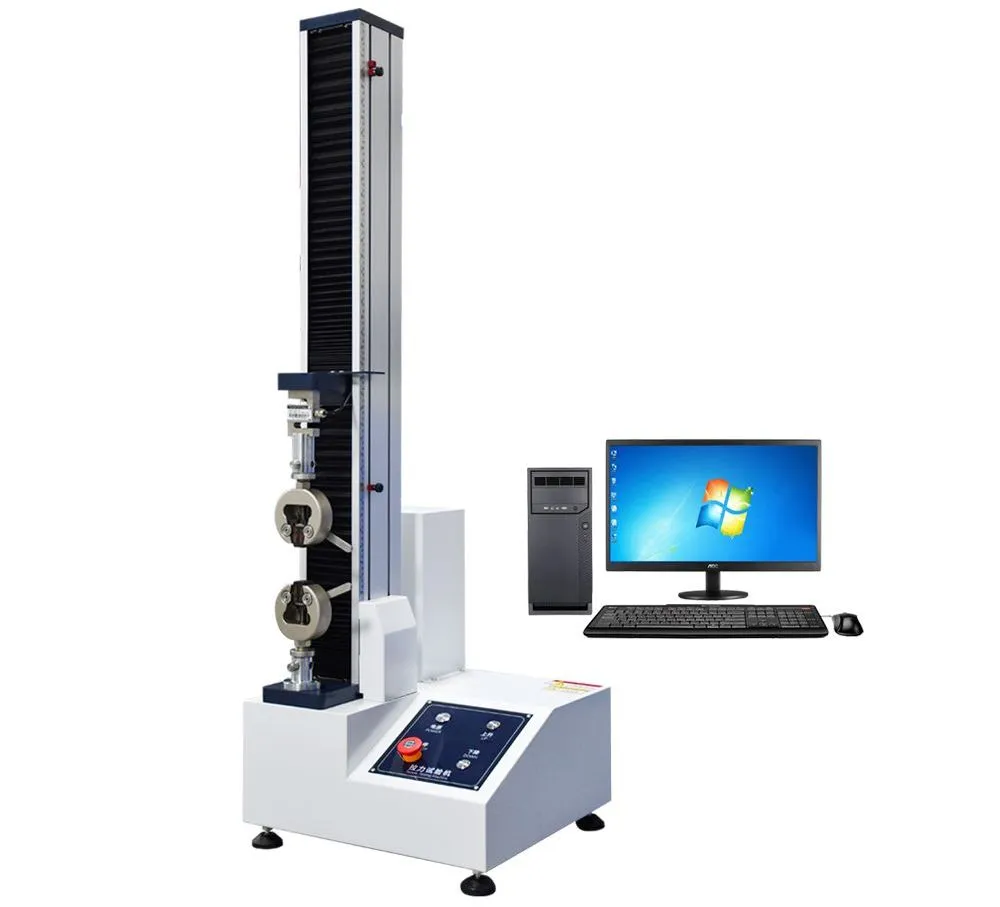

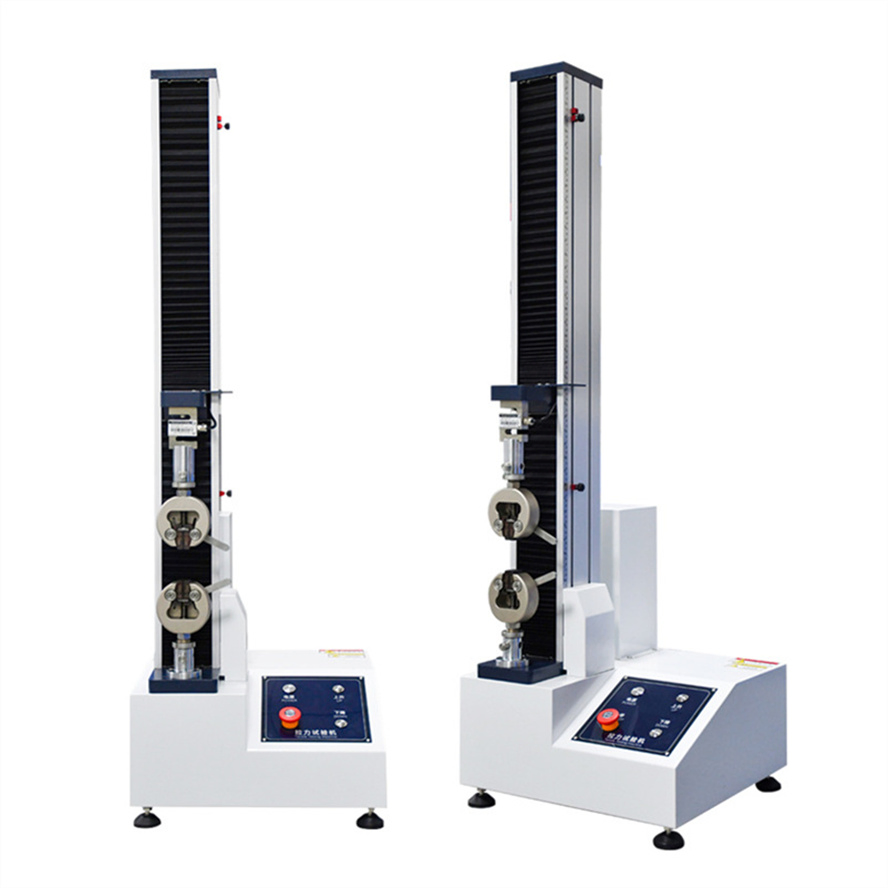

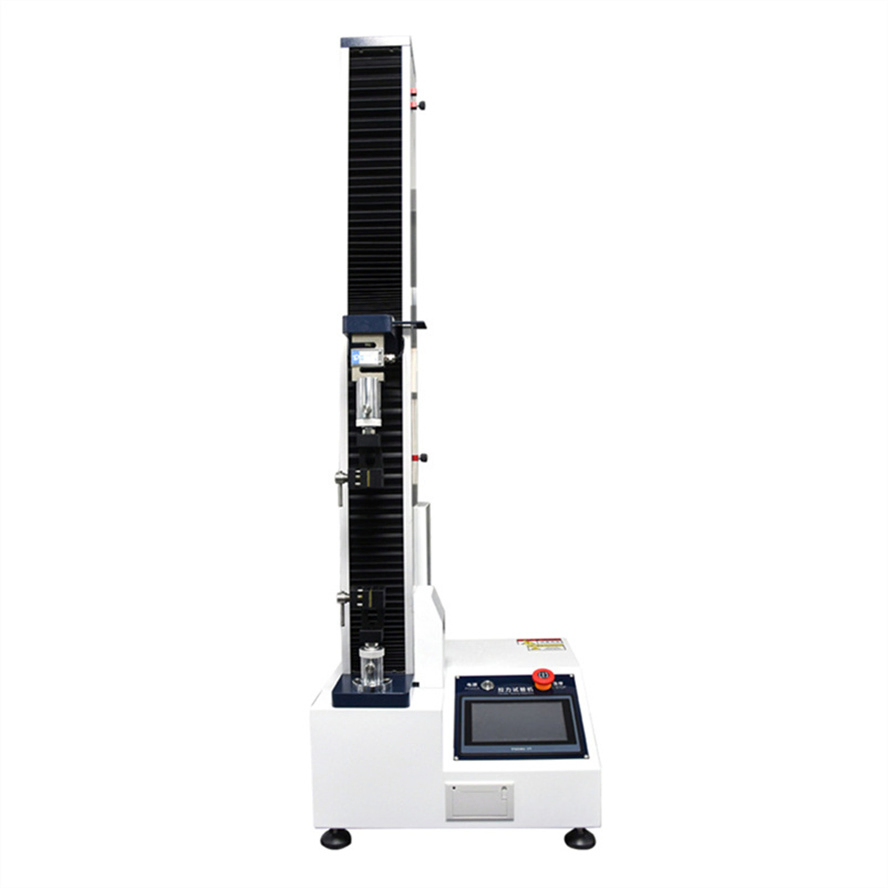

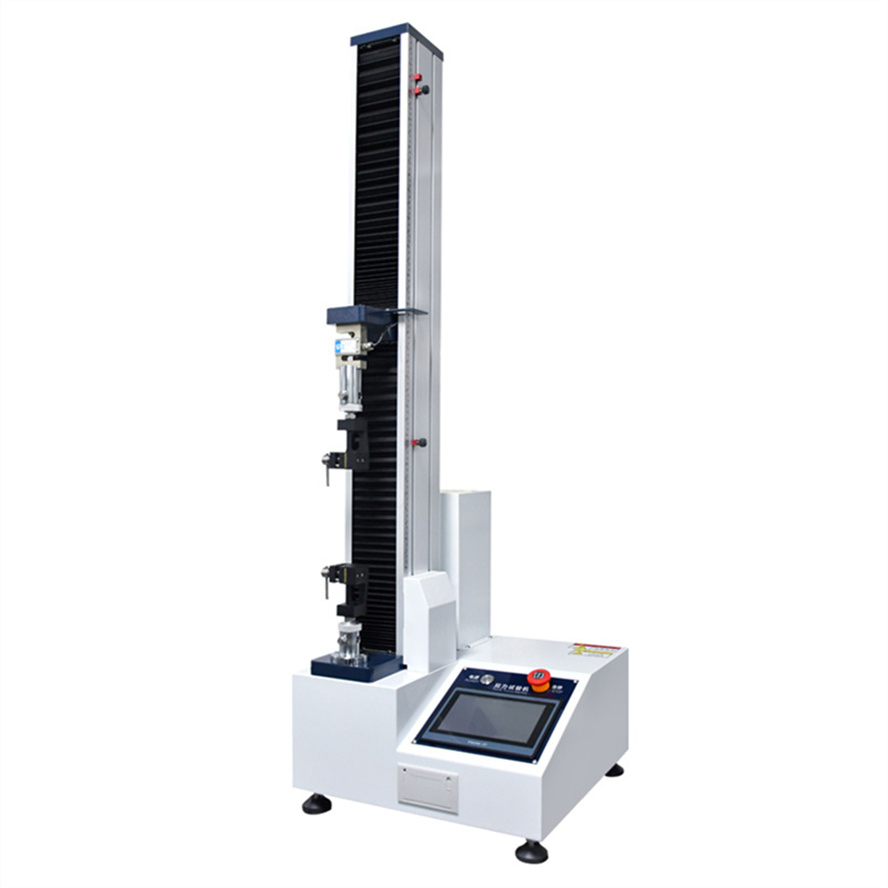

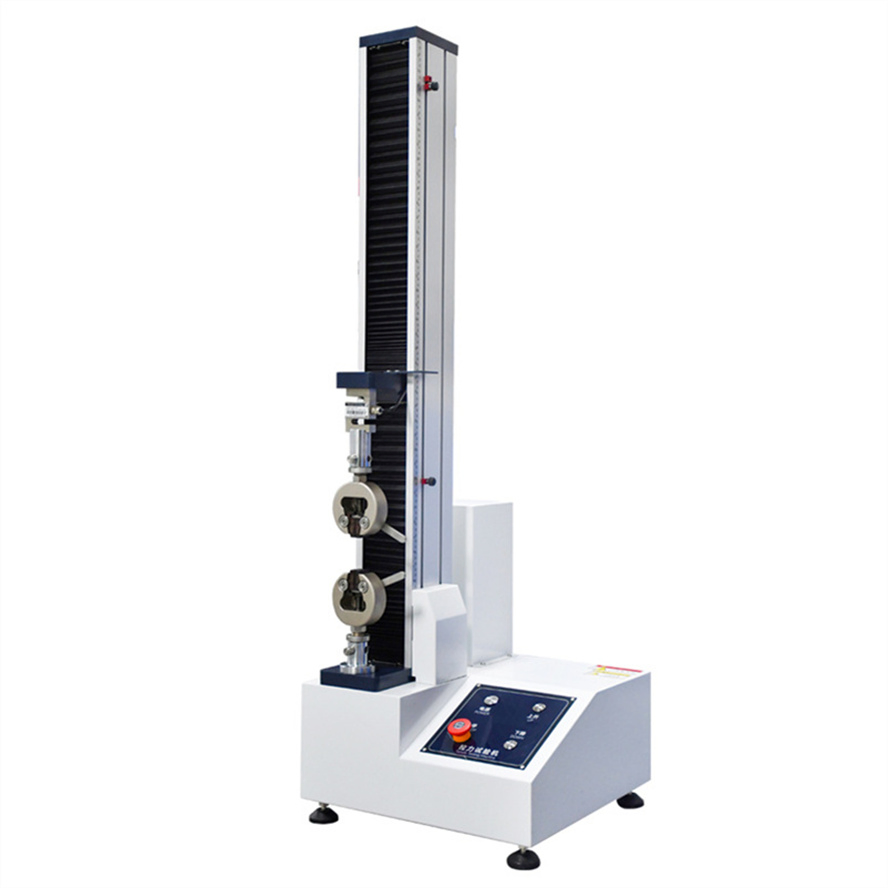

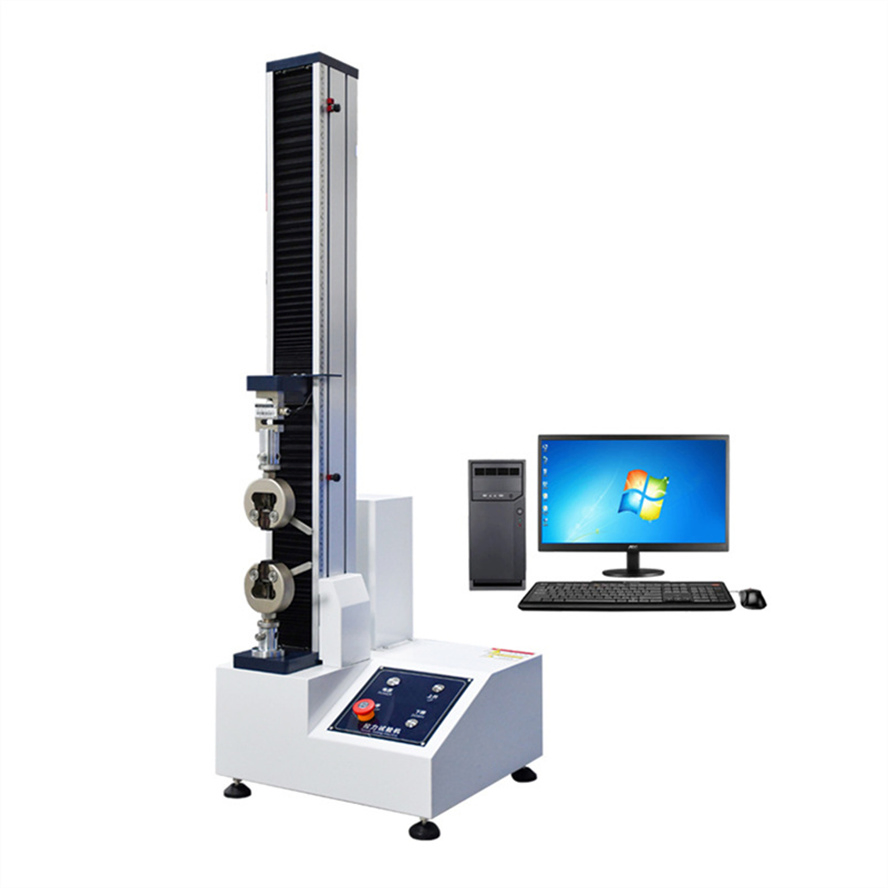

This type of universal material testing machine is specially designed for colleges, research institutes, and modern industrial labs. As a new generation of microcomputer-controlled electronic testing equipment, it features advanced international technology, professional design, and reliable performance. The computer system controls the AC motor and precision ball screw pair to achieve high-efficiency testing for tensile, compression, bending, and shear properties with low noise and no pollution.
The software provides real-time data processing, curve drawing, and report generation. It is widely used in aerospace, machinery manufacturing, cable, rubber, and textile industries for quality control and material analysis.
GB/T 1040-2006 (Tensile properties)
GB/T 9341-2008 (Bending properties of plastics)
ISO 527-1993 (Plastics tensile properties)
GB/T 13022-91 (Plastic films tensile test)
ISO 178-2004 (Plastics bending test)
ASTM D 638-2008 (Standard test method for tensile properties)
| Parameter | Description |
|---|---|
| Load cell | 20KN |
| Strength Resolution | 1/300000 |
| Strength accuracy | ≤0.5% |
| Power magnification | 7-segment automatic switching |
| Displacement resolution | 1/1000MM |
| Displacement accuracy | ≤1% |
| Speed range | 0.01-500mm/min |
| Test stroke | 600mm |
| Power supply | 220V 50HZ |
| Machine size | 500×500×1500 mm |
| System | Details |
|---|---|
| Power system | Servo motor + Planetary reducer + Ball screw + Linear bearing |
| Control system | Pulse command control (0.001~1000 mm/min range) |
| Data transmission | RS232 transmission |
| Safety devices | Overload emergency stop, travel limiting, leakage protection |
Our specialized product line includes melt flow index testers, pendulum impact testing machines, tensile testing machines, thermal deformation Vicat softening point testers, constant temperature humidity chambers, and aging test chambers. These are widely applied in auto parts, new energy, plastics, and scientific research.

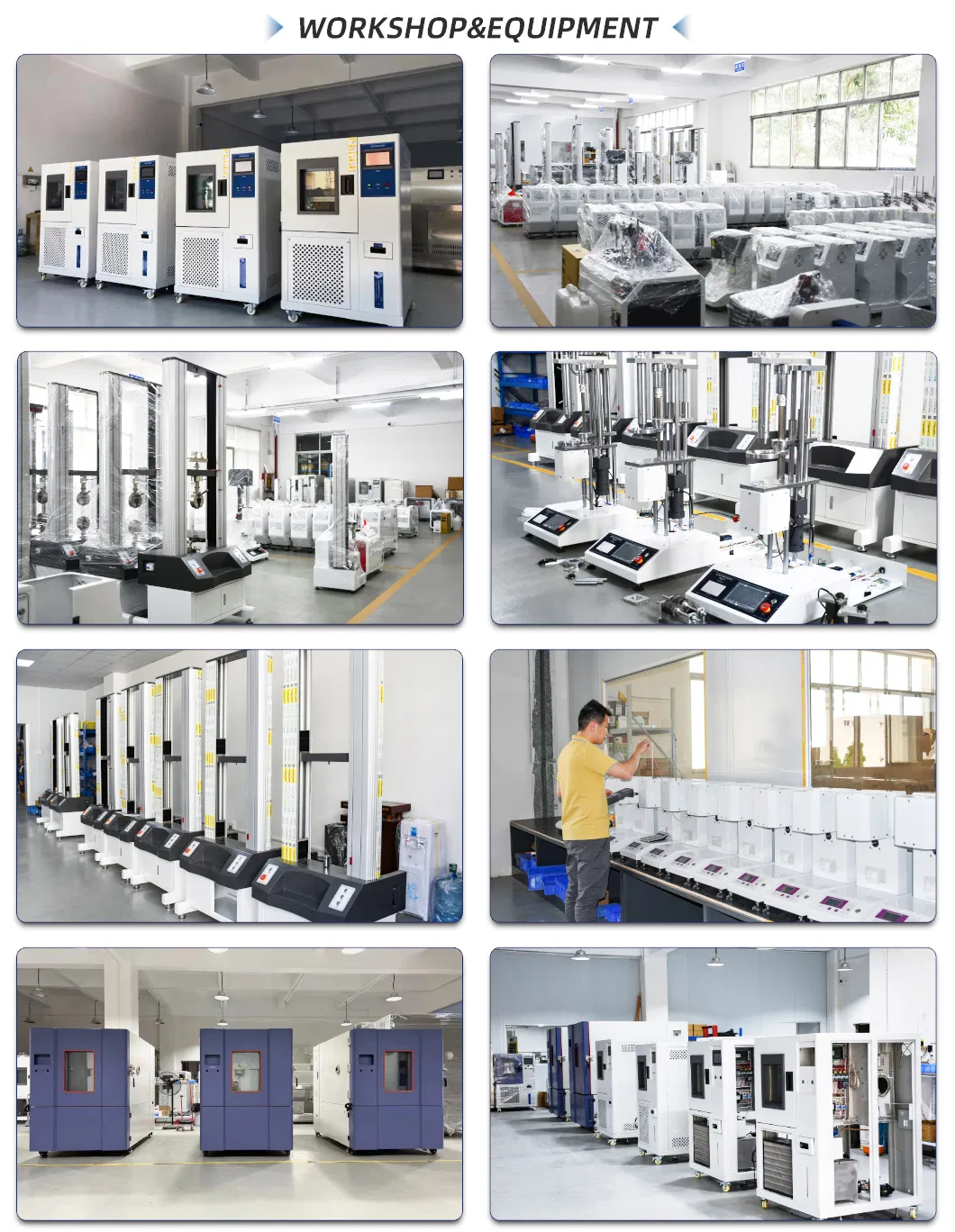

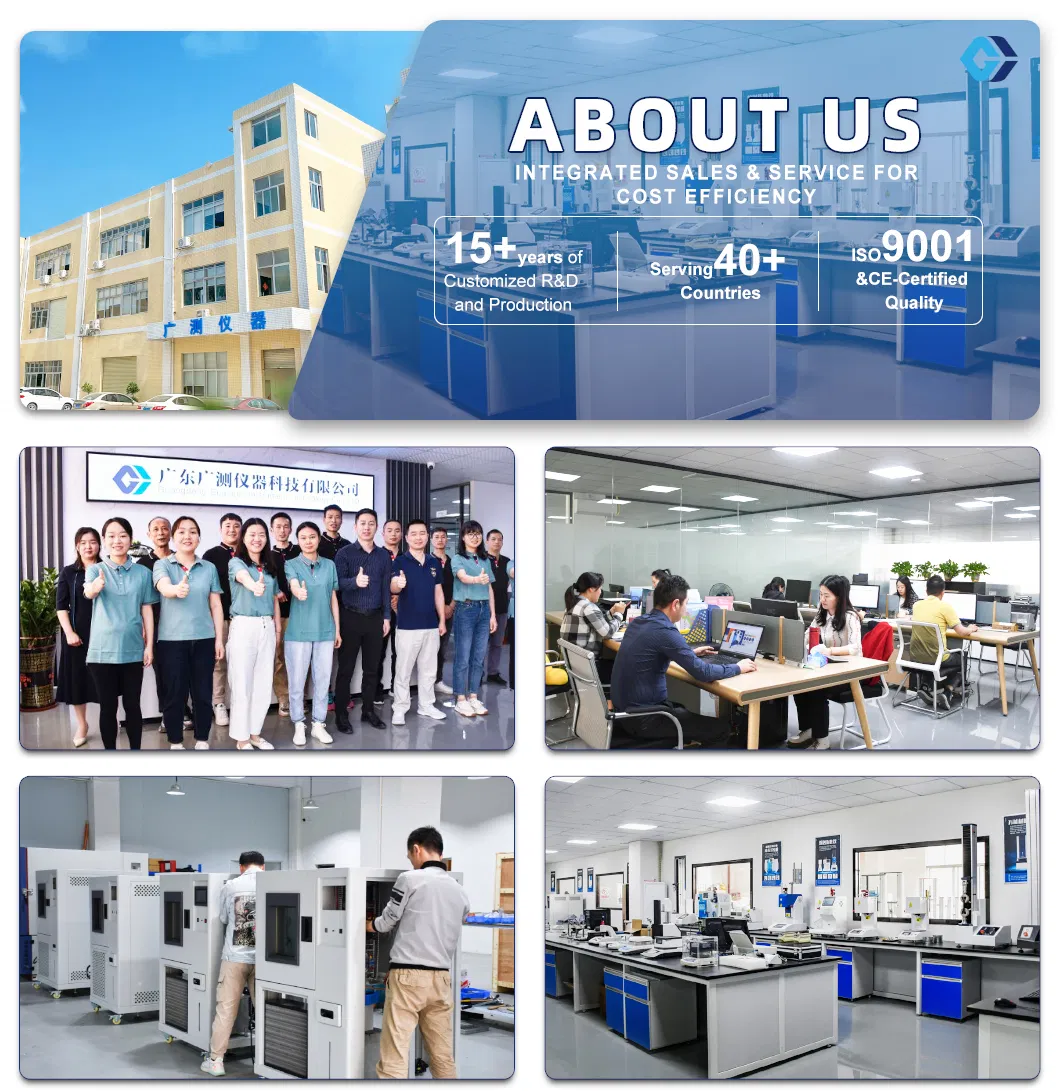

With 15 years of production experience, our facility covers 5,000 square meters and produces approximately 2,000 sets of equipment annually. Our R&D team ensures products comply with international standards including GB, ASTM, ISO, JIS, and UL. We have obtained numerous national utility model patents and software copyrights, serving customers in over 40 countries including the United States, Japan, Germany, and South Korea.
