Our Linear Dewatering Screen is meticulously engineered to achieve unrivaled high-efficiency solid-liquid separation. It's ideal for dehydration and classification, ensuring precision handling of fine-grained materials across various industries, including mining, construction, and environmental management. With cutting-edge vibration technology and a robust build, it promises exceptional dewatering capabilities while significantly minimizing operational expenses.
Employs synchronized dual-motor vibration technology that produces powerful linear motion (50Hz frequency, 8-10× gravitational acceleration), facilitating rapid water extraction and precise screening of particles ranging from 0.074-1mm. Features a negative-angle screen setup, effectively reducing moisture content in outputs like sand and tailings to below 15%.

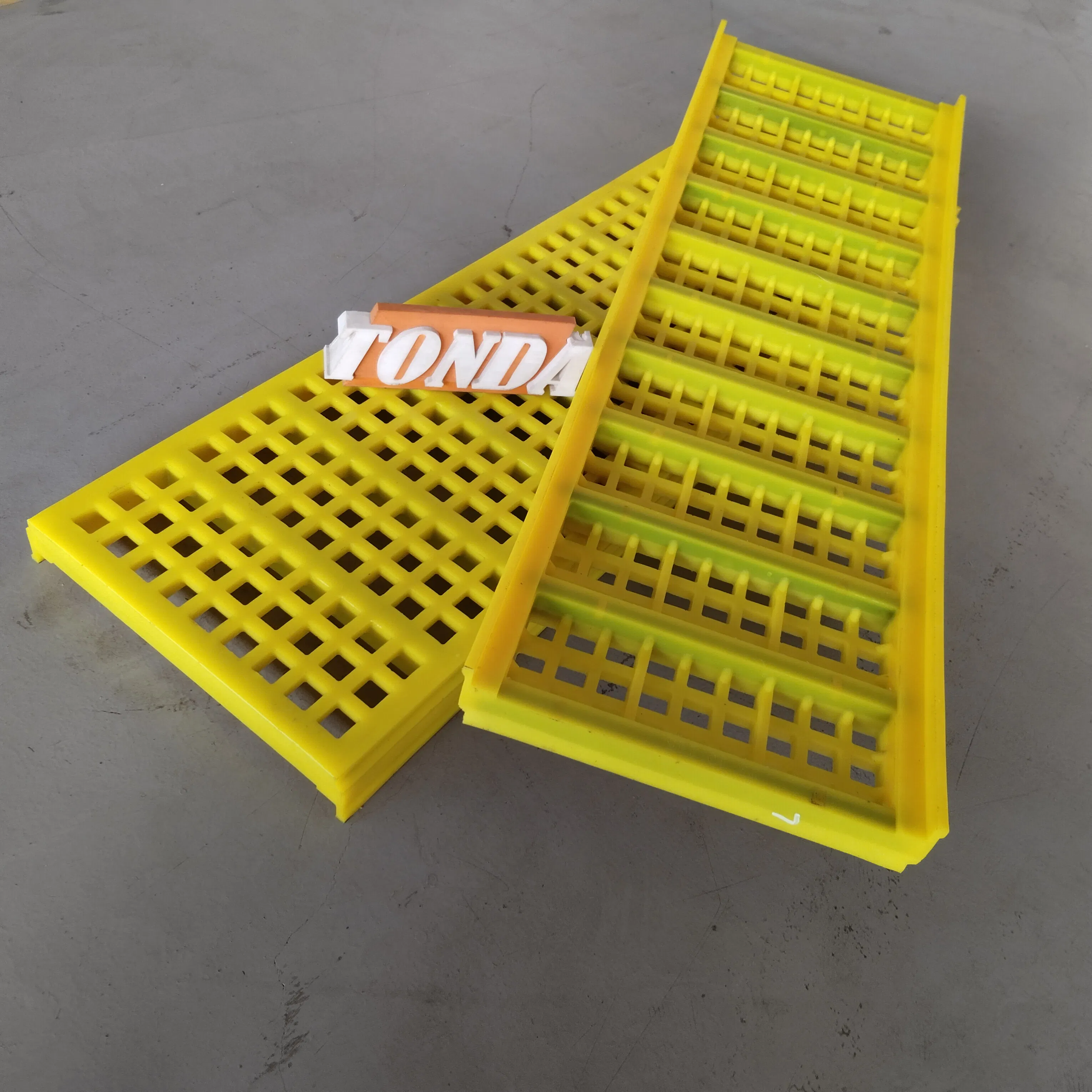

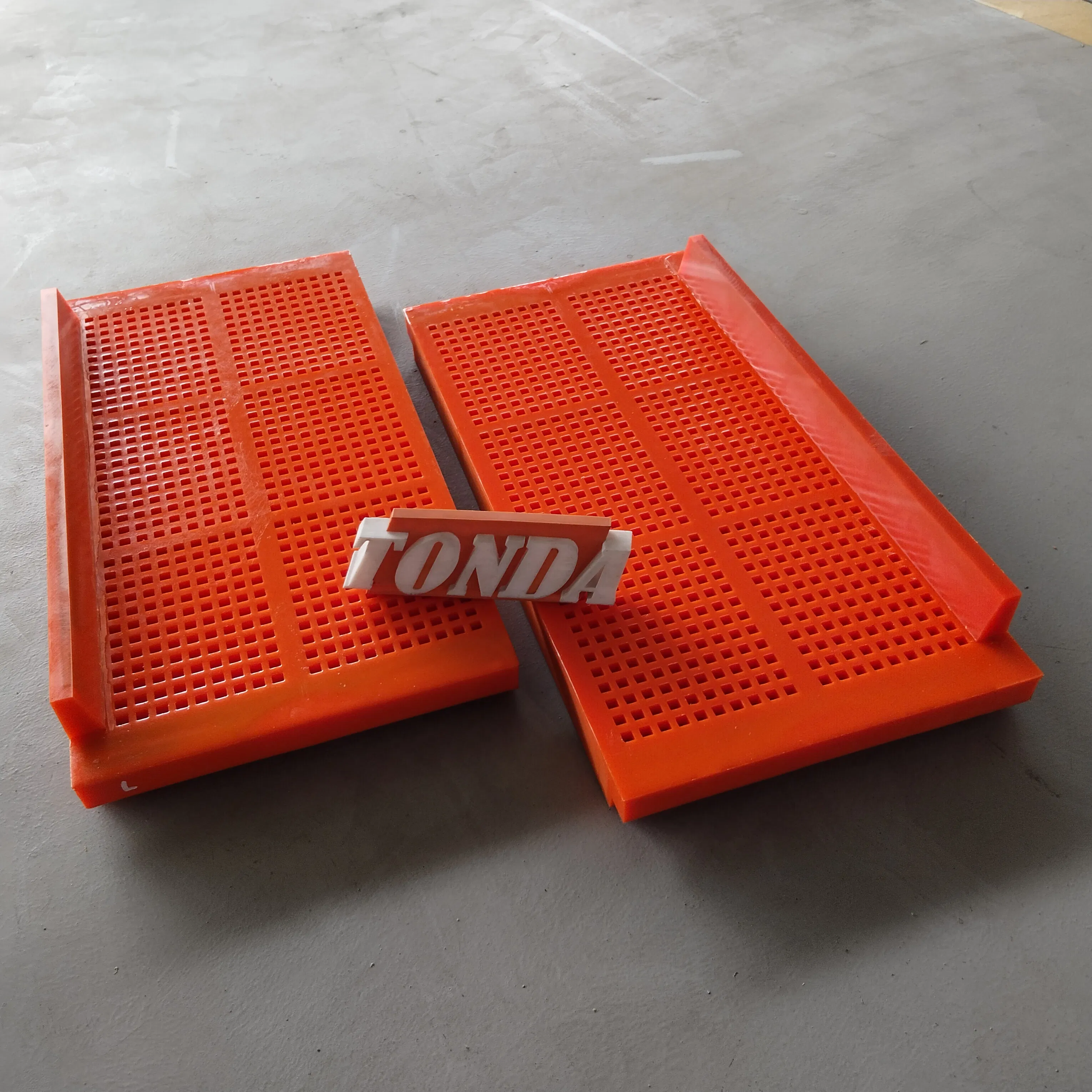

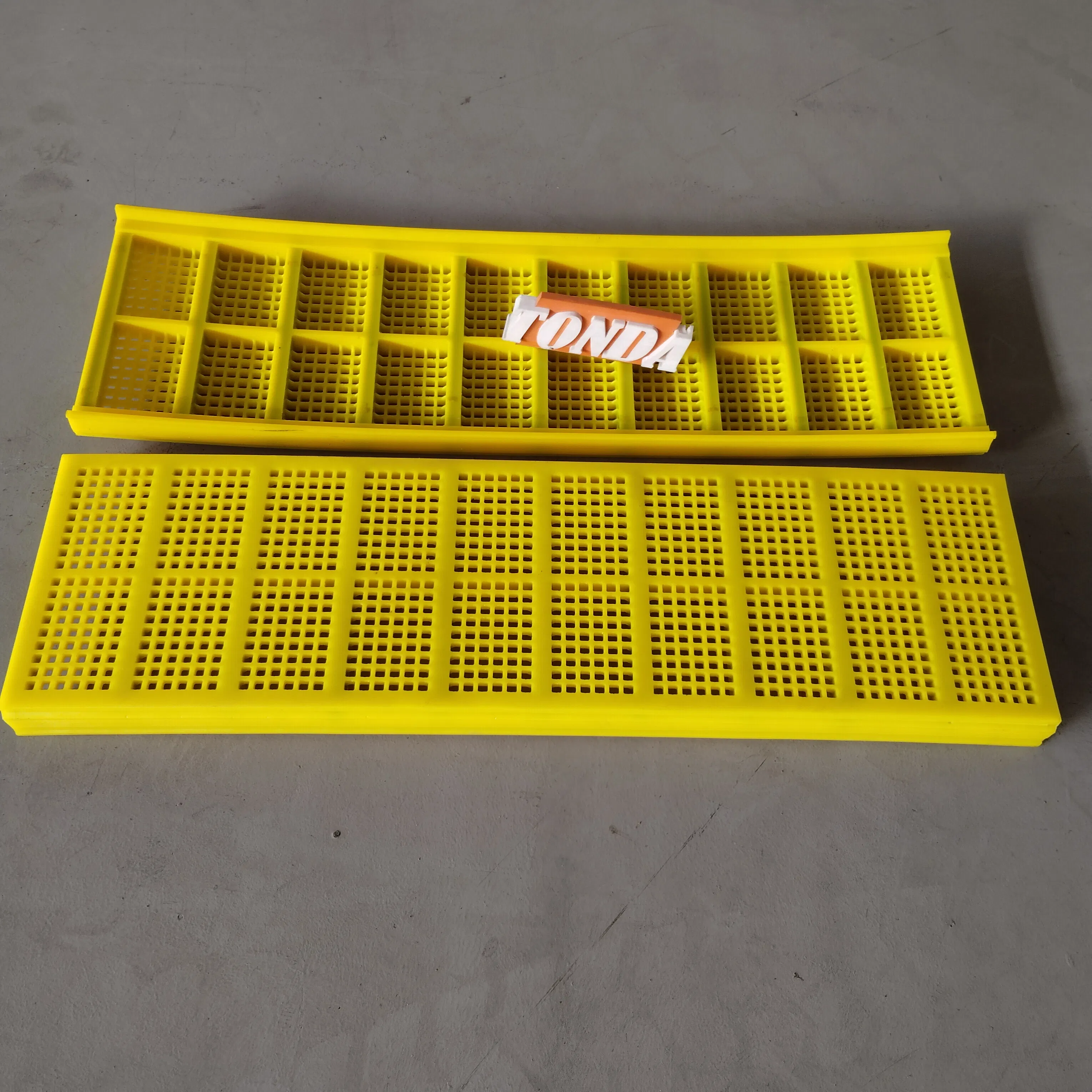

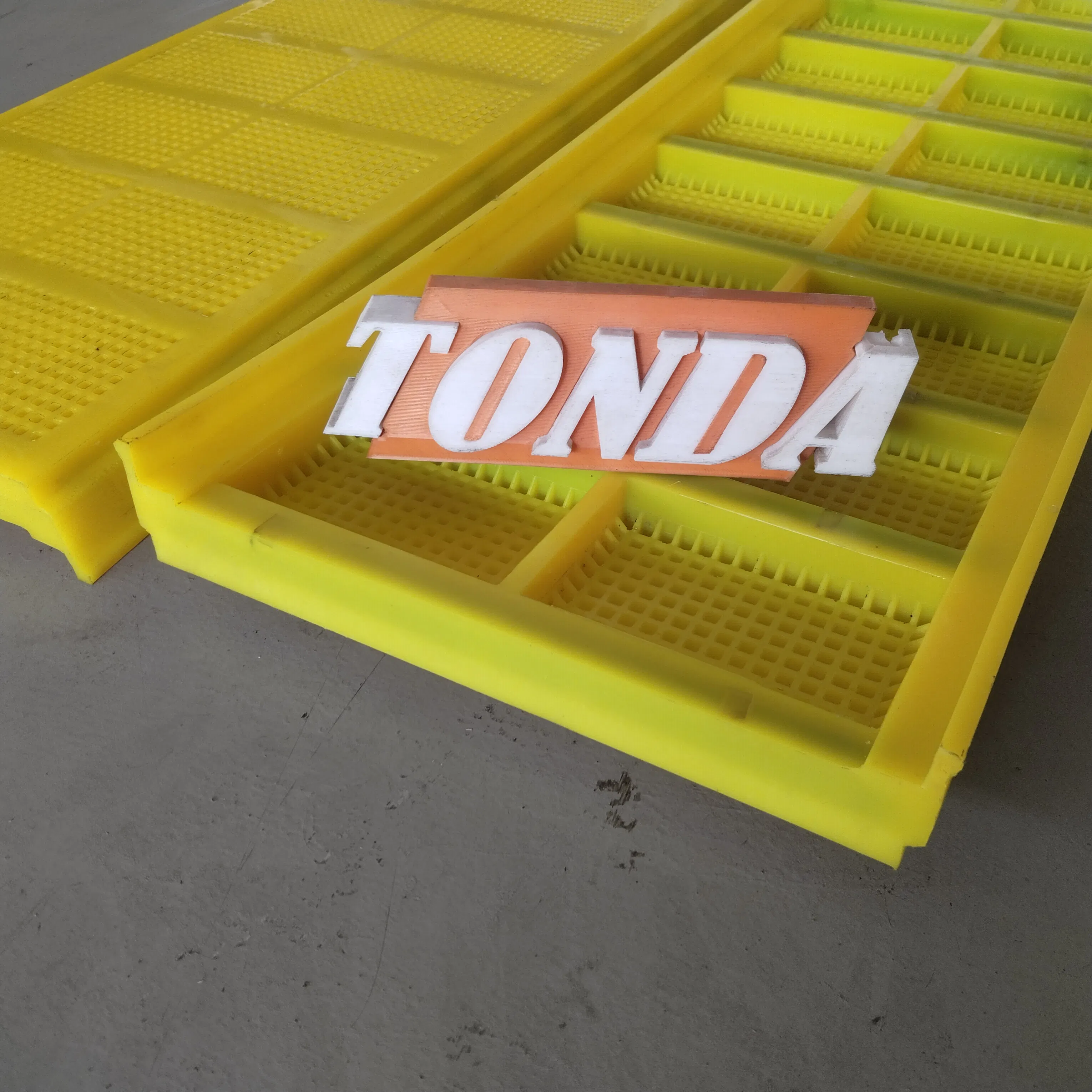

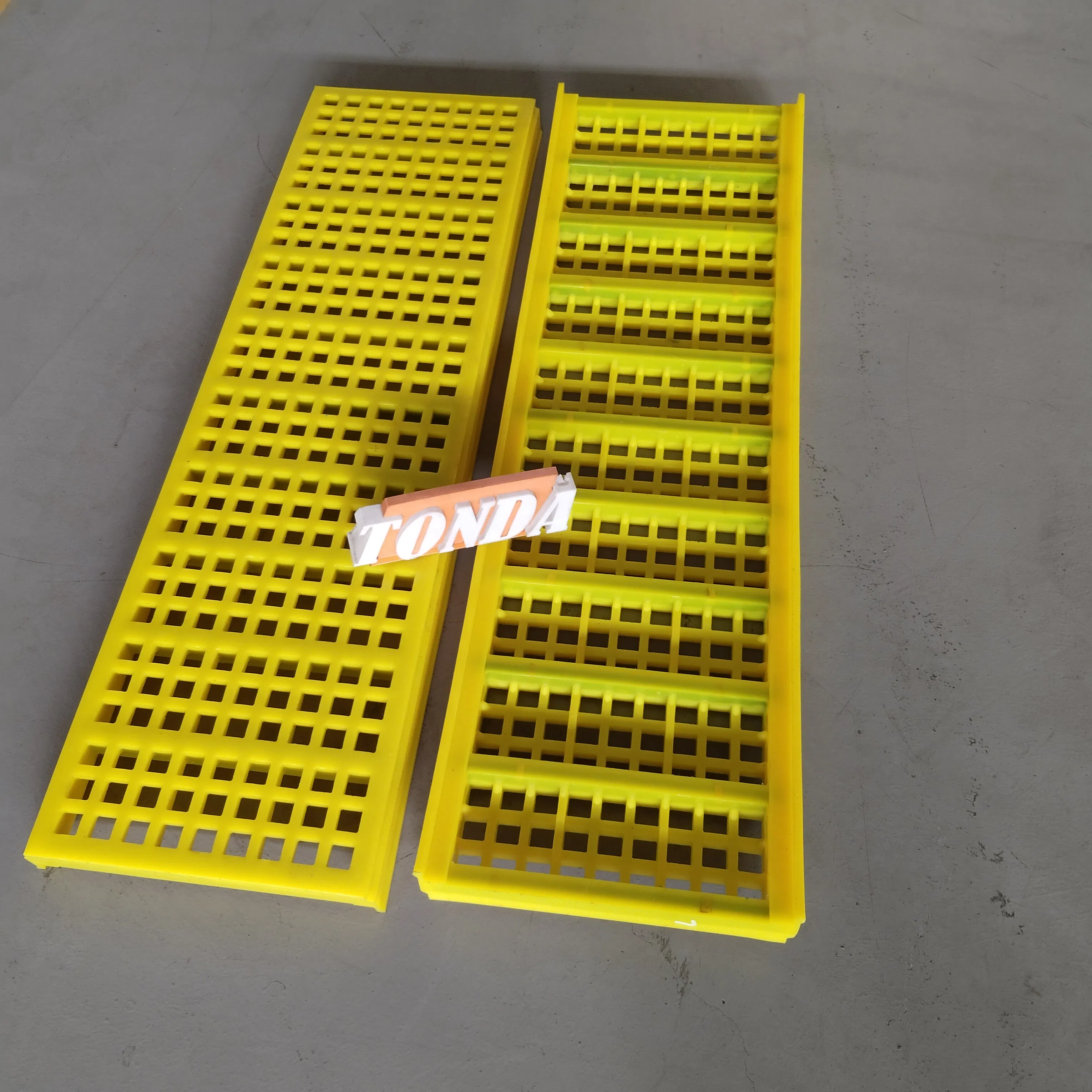

Polyurethane screens offer remarkable wear resistance, anti-clogging properties, and a longer service life. Reinforced frame crafted with HUCK rivet-assembled side panels and polyurethane-coated beams prevents deformation and stress cracks.
Features adjustable amplitude (0-2mm), screen aperture (0.25-50mm), and multi-layer setups to accommodate materials such as sand, coal, and ores. Offers optional stainless steel composite screens or welded slit panels.
Equipped with low-power motors (2×4kW to 2×30kW) and optimized vibration systems to achieve impressive throughput of up to 500 t/h. Frequency converters are included for real-time adjustment of vibration intensity.
| Type | Area(m²) | Angle(°) | Capacity(t/h) | Motor power(kw) |
|---|---|---|---|---|
| TDTS1236 | 4.5 | -5~0 | 20~35 | 2.25*2 |
| TDTS1536 | 5.5 | -5~0 | 20~40 | 2.2*2 |
| TDTS1836 | 6.5 | -5~0 | 30~50 | 3*2 |
| TDTS2142 | 8.9 | -5~0 | 30~60 | 5.8*2 |
| TDTS2148 | 10.2 | -5~0 | 30~-60 | 5.8*2 |
| TDTS2442 | 10.2 | -5~0 | 50~100 | 7*2 |
| TDTS2448 | 11.6 | -5~0 | 70~150 | 7*2 |
