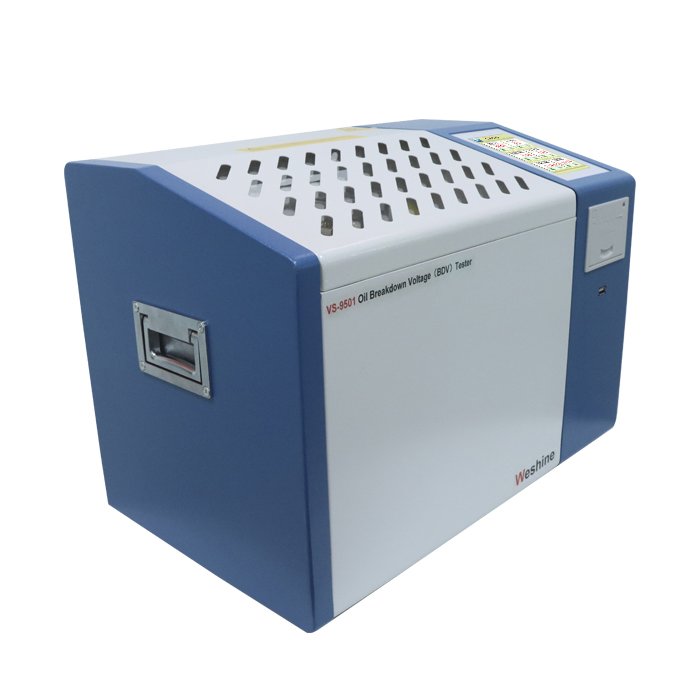

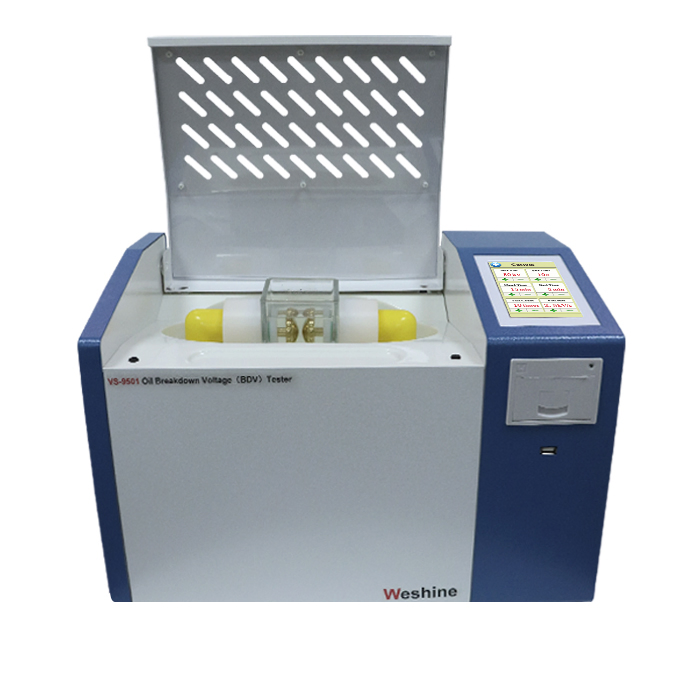

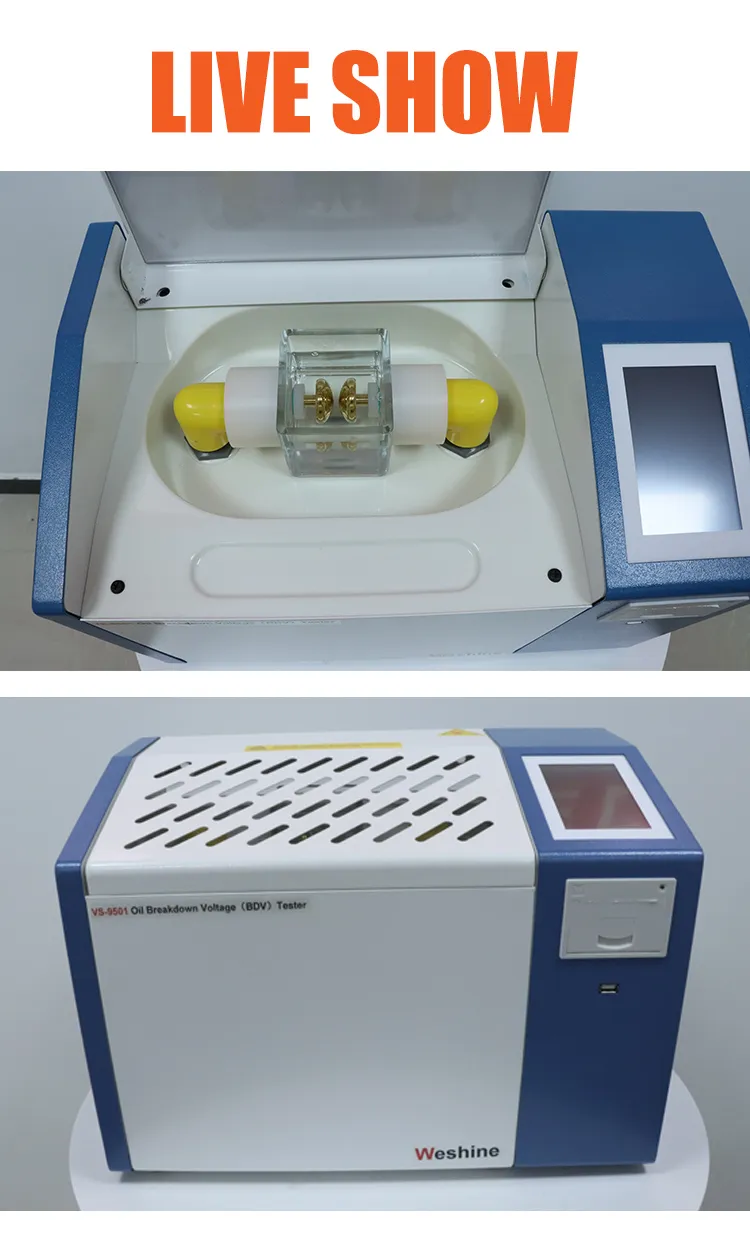

Breakdown Voltage BDV tester Transformer Oil BDV Tester
Many power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment whose internal insulation are mostly oil-filled insulation type. Therefore, testing on insulating oil dielectric strength is common and necessary. This instrument uses a single-chip microcomputer as the core, operating in full automation with high accuracy, greatly improving work efficiency and reducing labor intensity.
1

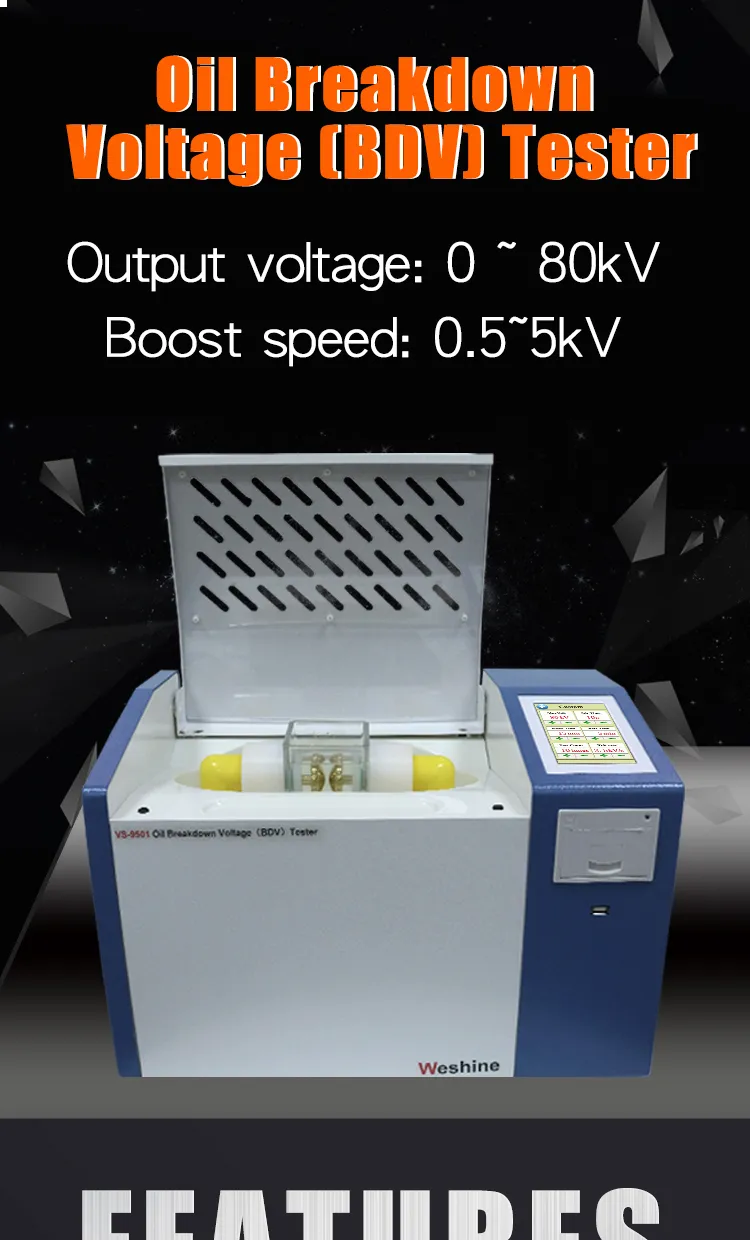

Fully automatic withstand voltage test for oil circulation with a range of 0~80KV (including boosting, maintaining, mixing, calculation, and printing).
2
Large-screen LCD display with a user-friendly prompt menu for simple operation.
3
Data Preservation: Automatically saves breakdown voltage values (1 to 9 times) and calculates average values; can save 100 historical tested results.
4
Advanced Safety: Equipped with over-voltage, over-current, and limit protections to ensure operator safety.
5

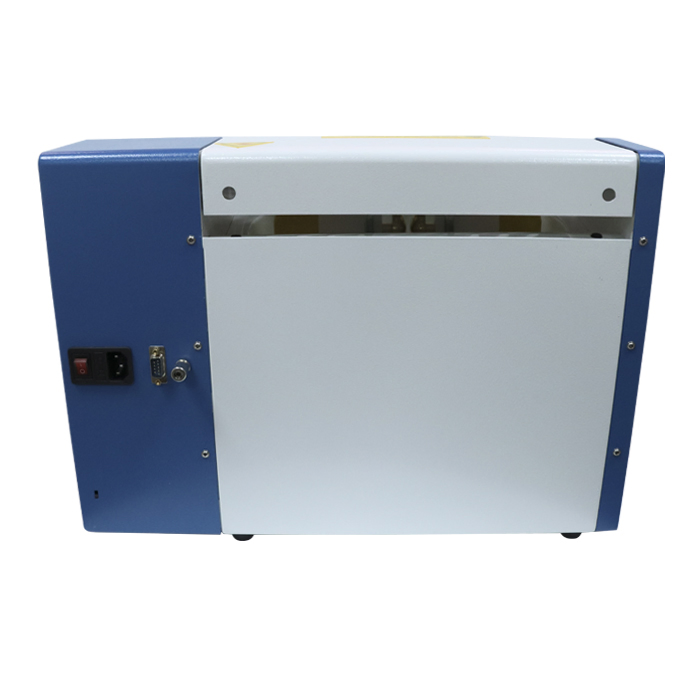

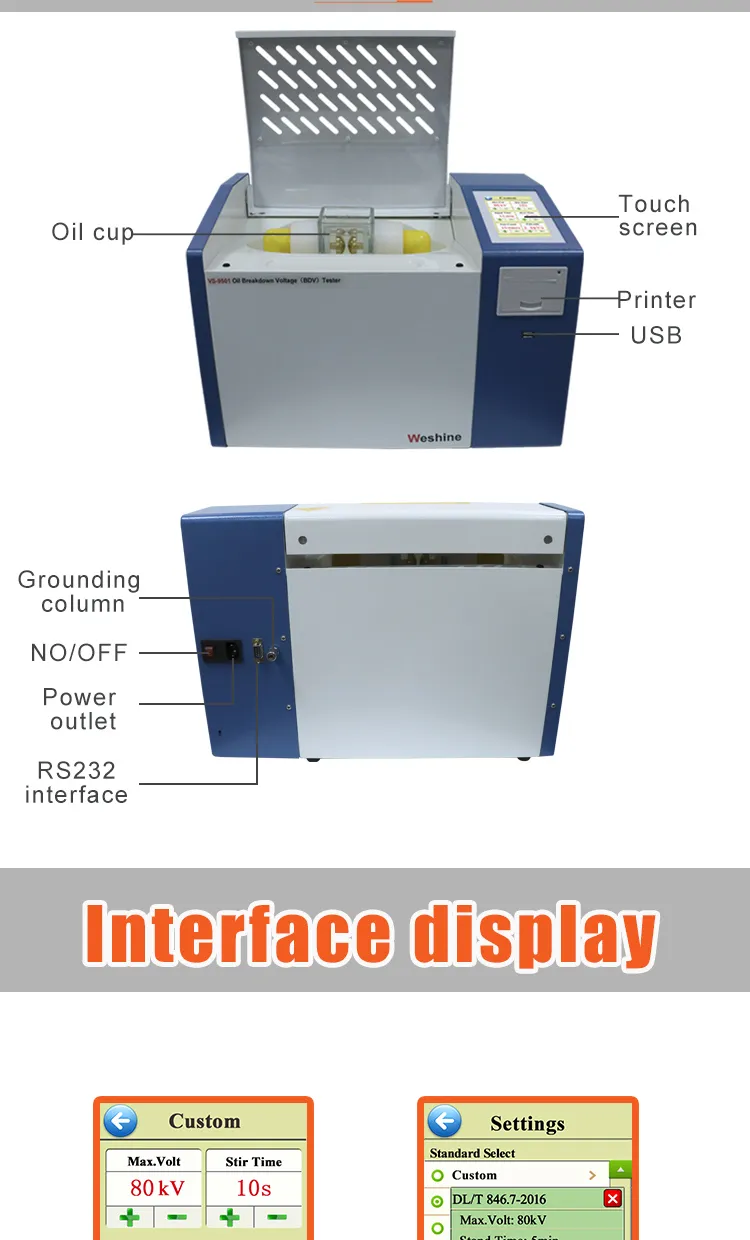

Connectivity: Standard RS232 interface for seamless communication with computers.
❓ Frequently Asked Questions

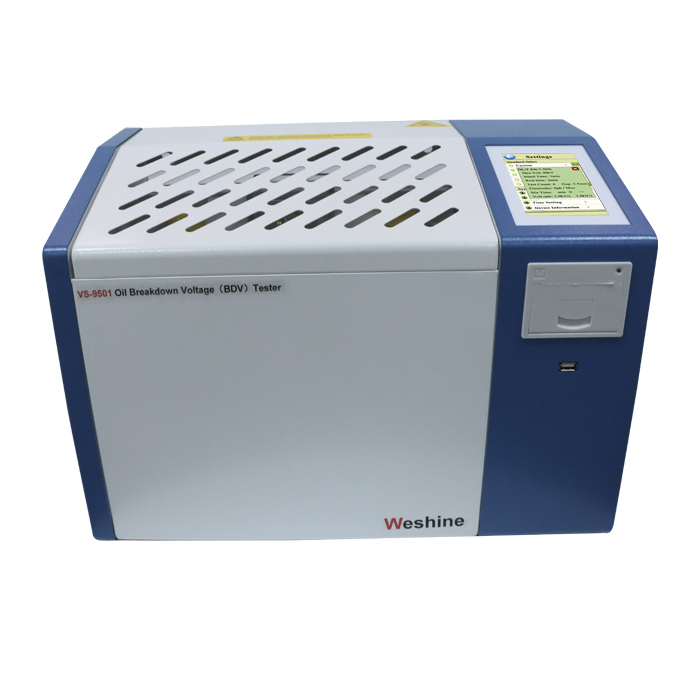

What is the primary use of the VS-9501 BDV Tester?
It is designed to test the dielectric strength (breakdown voltage) of insulating oils used in power systems, transformers, and other oil-filled electrical equipment.
What is the maximum output voltage for this device?
The standard output voltage range is 0 to 80KV, though a 0-100KV option is available upon request.
Does the machine support automatic data recording?
Yes, it features power-down preservation and can automatically save up to 100 test results, including breakdown voltage values and average calculations.
Is the tester portable for on-site inspections?
Yes, it is designed with portability in mind, featuring a compact size and weight suitable for field testing in various industrial environments.
What safety measures are integrated into the tester?
The device is equipped with comprehensive safety protections, including over-voltage, over-current, and automatic limit protections to ensure operator safety during high-voltage testing.
Can the test data be exported to a computer?
Yes, the unit is equipped with a standard RS232 interface, allowing for easy communication and data transfer to a computer system.
