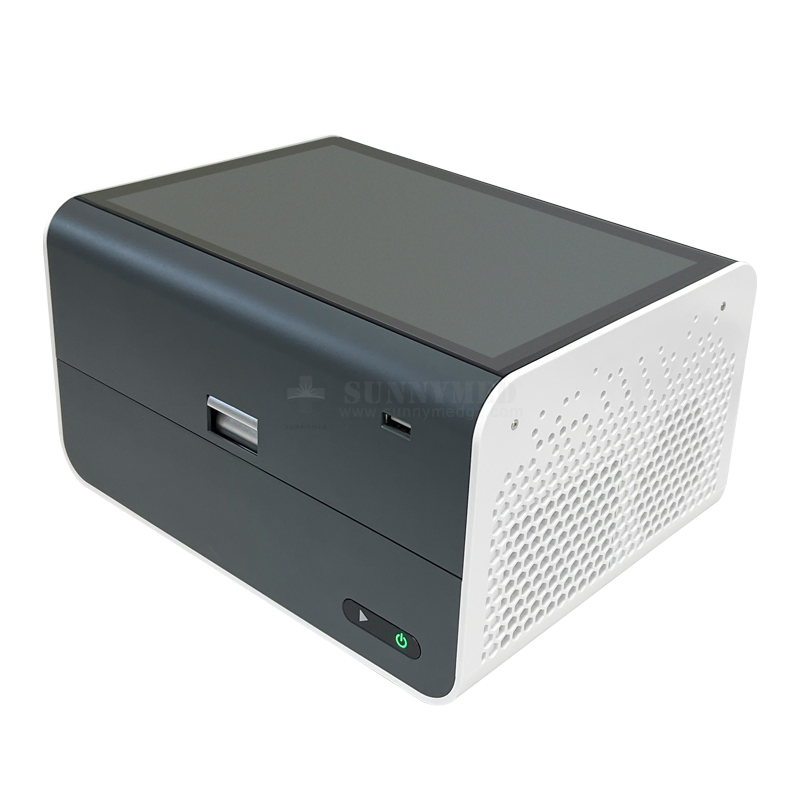

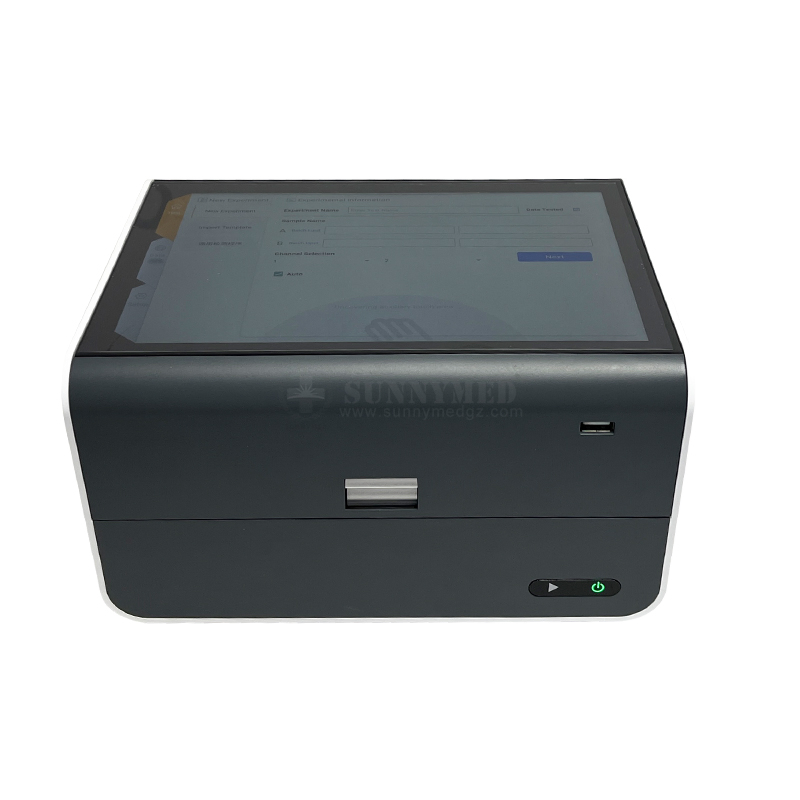

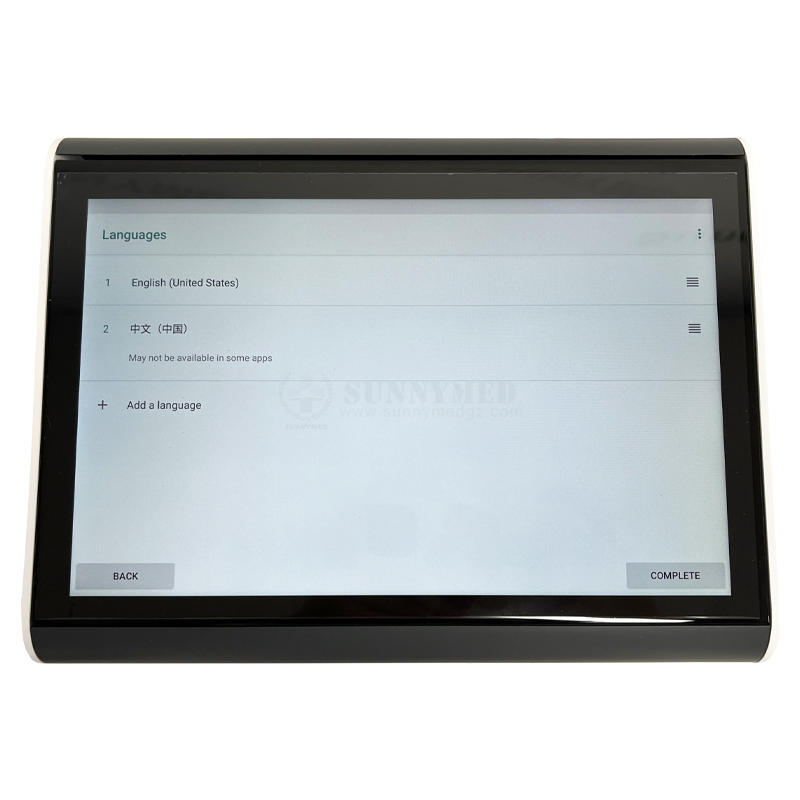

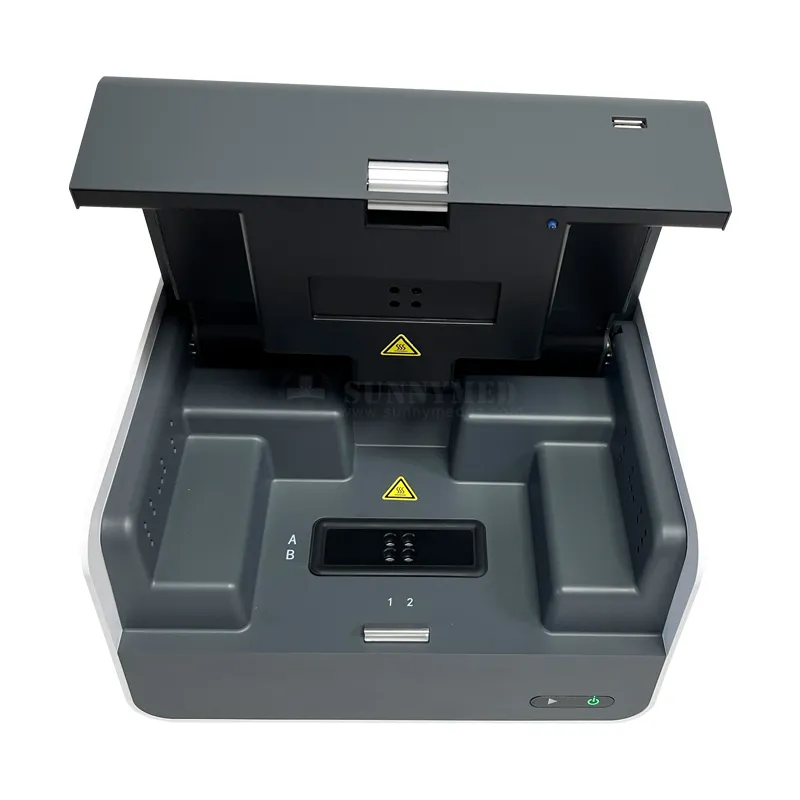

Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System

Send Inquiry

Product Description

📊

Model NO.

SY-W007-1

Multiplex Capability

up to 4 Targets Per Well

Detection Threshold

3 Copies

Dynamic Range

>1.0e9

Signal Interface

USB 2.0

Transport Package

Carton Box

Origin

China

Production Capacity

200 Set/Month

🔬

SY-W007-1 Portable qPCR Veterinary 4-Channel Direct Imaging Fluorescence PCR System

Capacity (# of wells)	8
Channels (# of Fluorophores per well)	Up to 4 (1. FAM/SYBR Green; 2. JOE/HEX/VIC/TET; 3. ROX/Texas Red; 4. CY5/LIZ/Cy5.5)
Multiplex capability	Up to 4 targets per well
Minimum detection threshold	3 copies
Dynamic range	>1.0E9
Signal Interface	USB 2.0
Excitation source	High endurance LED
Detector	Ultra-low-light CMOS bio-imaging chip
Thermal system	Solid-state, Peltier-based

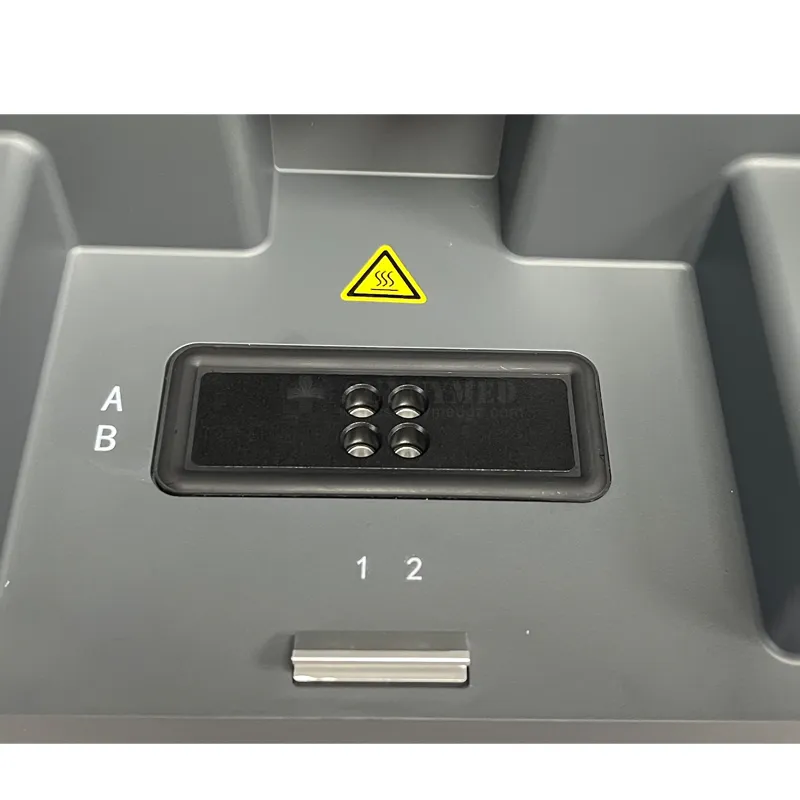

Tube/plate formats	0.2mL, 4 or 8-tube strip
Reaction volume	10uL - 60uL
DNA probes supported	DNA binding dyes (e.g. SYBR-Green), hydrolysis probes (e.g. TaqMan probe) and hybridization probes (e.g. FRET probes)
Excitation Range	460nm - 670nm
Emission Range	510nm - 720nm

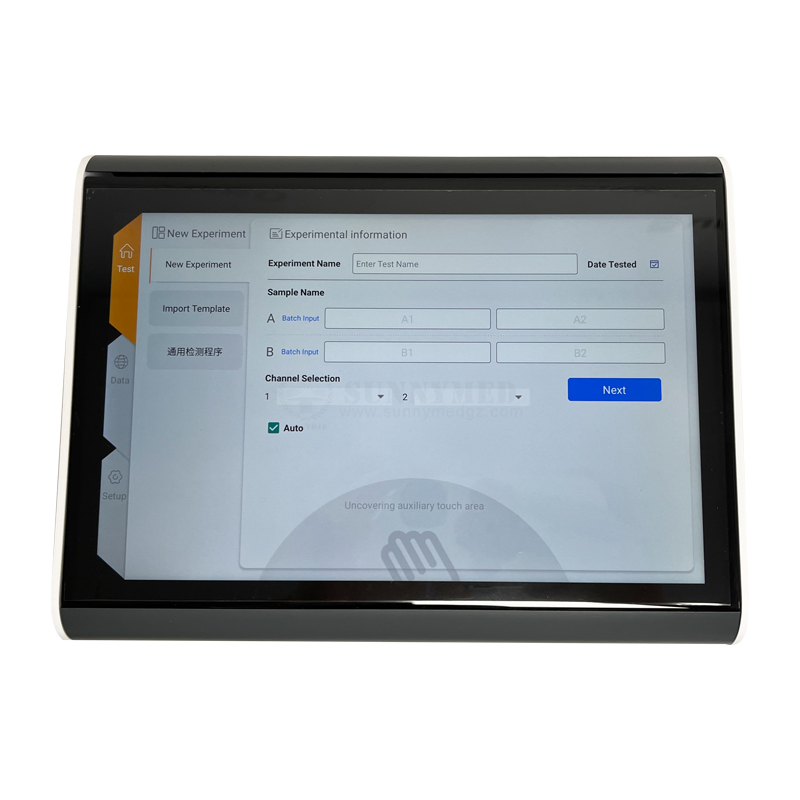

Programming modes	qPCR amplification with touchdown option; isothermal amplification; melting curve analysis; manual fluorescence measurement and quantification
Temperature Uniformity	Within ±0.25°C at annealing stage
