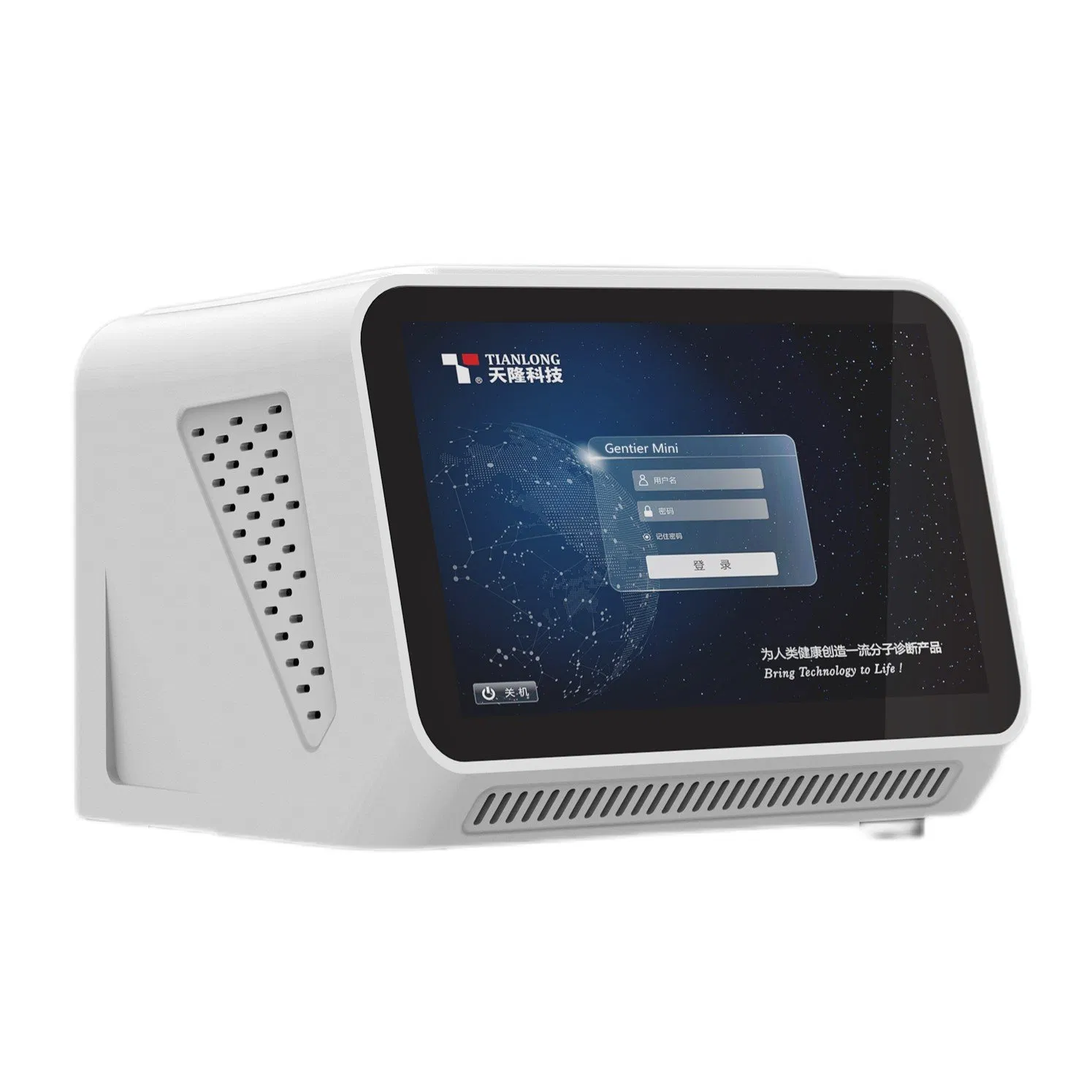

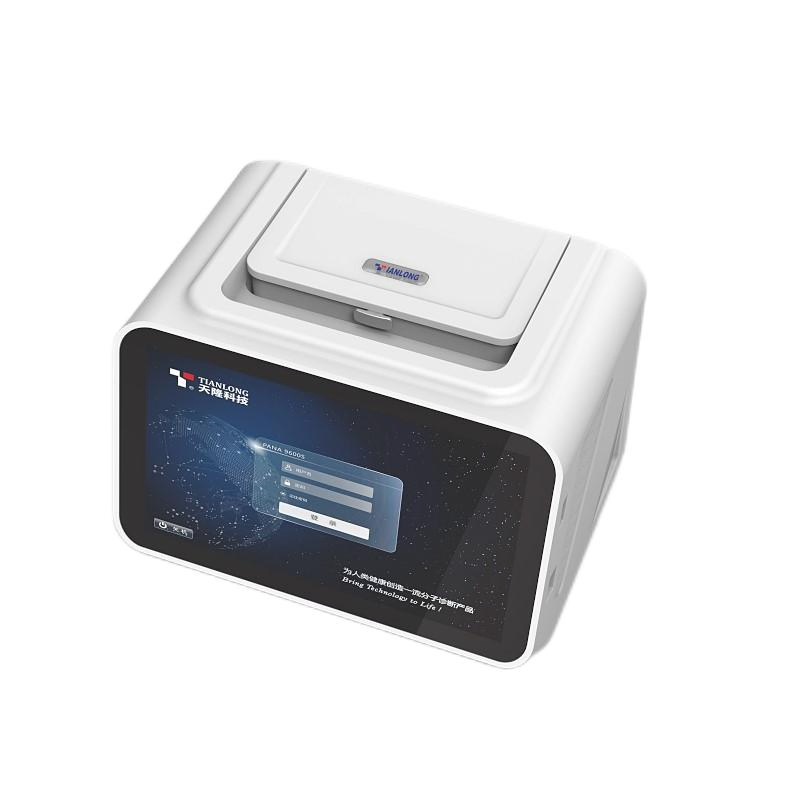

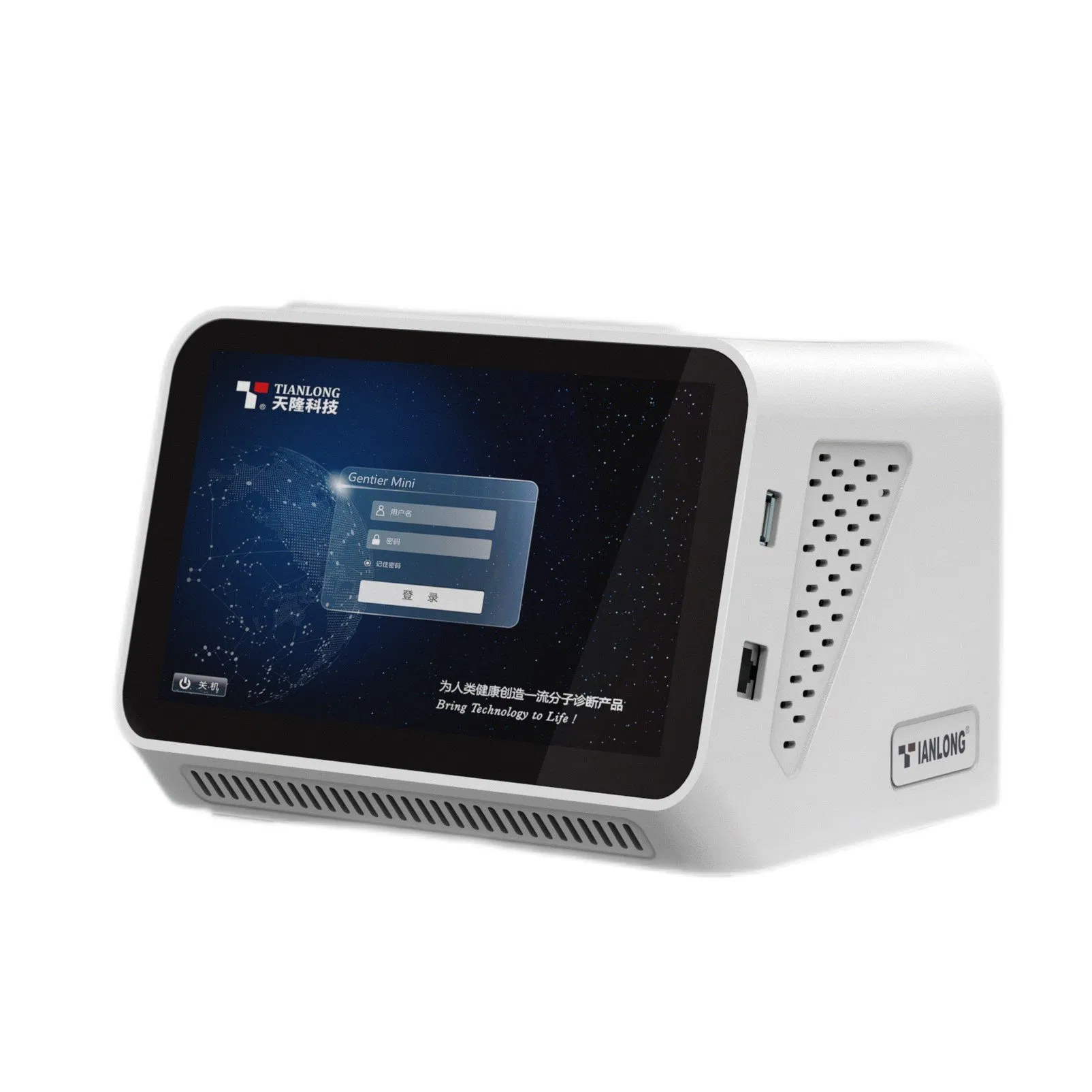

16-well Portable Real Time PCR System RT PCR Machine for Veterinary/ Laboratory

1 / 5

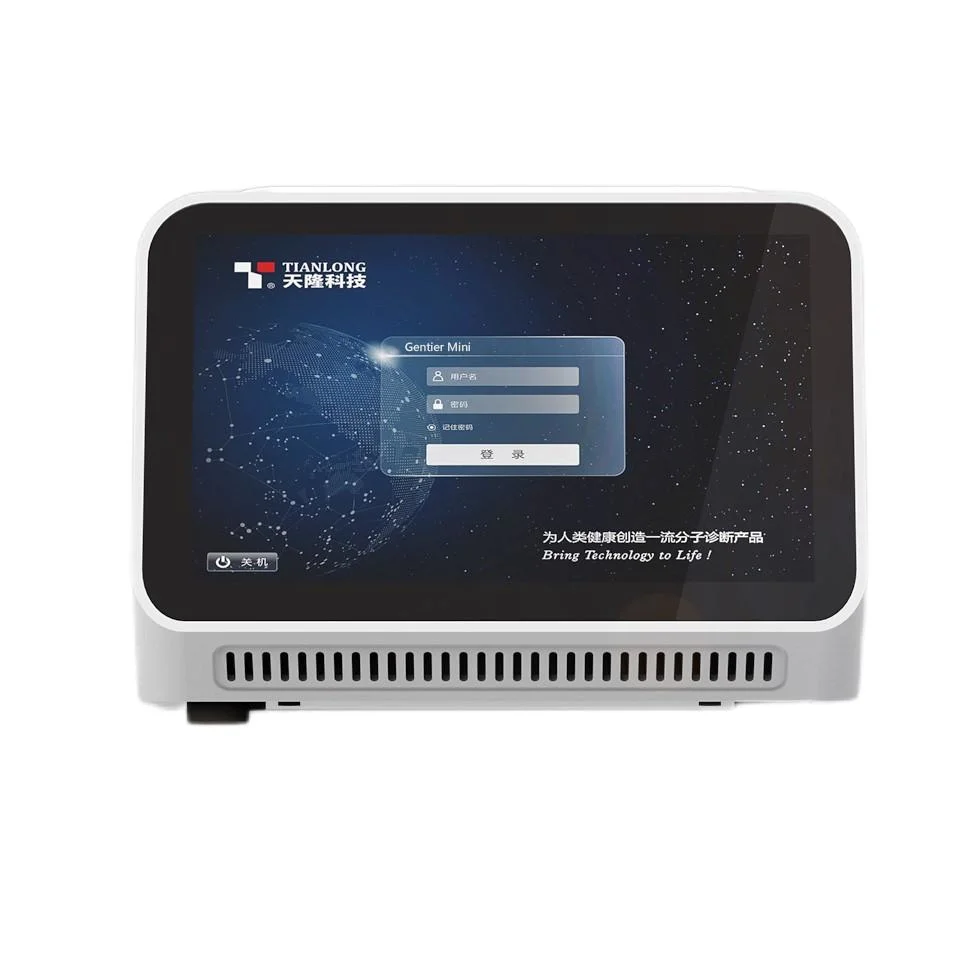

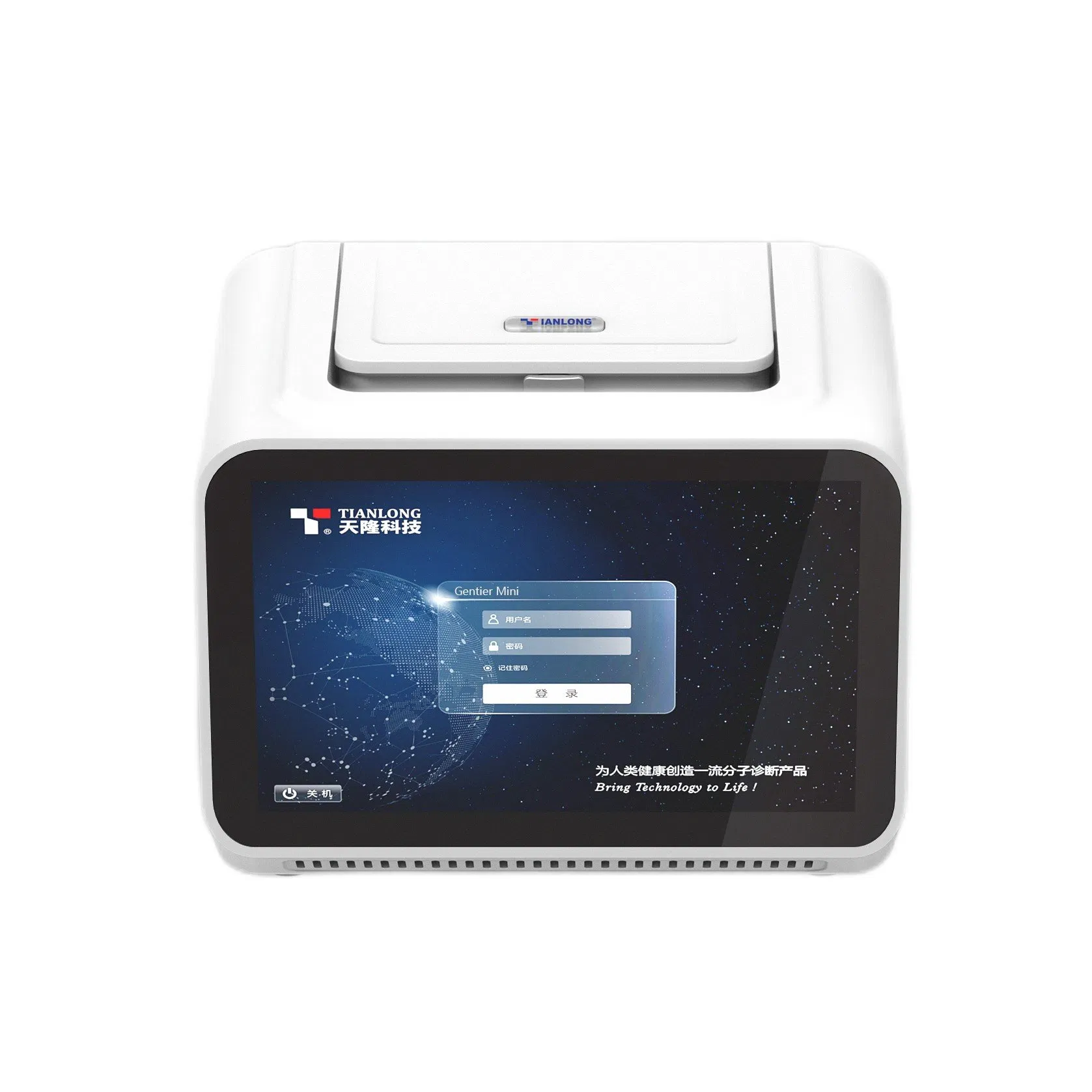

16-well Portable Real Time PCR System RT PCR Machine for Veterinary/ Laboratory

Customization:	Available
Classification:	Biological Diagnostics
Type:	Portable Real-Time PCR System

Send Inquiry

Product Description

Basic Specifications

Model NO.Gentier Mini

CertificationCE, FDA, ISO13485

Warranty2 Years

Weight3.2kg

Fluorescence Channels2

Transport PackagePaper Carton

Specification27.5*19*23 cm

HS Code9027509090

Production Capacity5000 Units/Year

Product Description

Based on years of application-oriented R&D, the Gentier Mini Portable Real-Time PCR System is developed and launched to meet the increasing needs for on-site and rapid testing. This product is compact and portable, easy to use, and offers high efficiency in real-time PCR testing with accurate temperature control, allowing real-time PCR tests out of your labs for all types of fields for your applications.

Designed for mobile, small laboratories or on-site testing, Gentier Mini can be widely applied in food safety, animal disease and infectious disease prevention and control, scientific research, environmental monitoring and other fields, especially animal disease detection. It plays an important role in animal disease detection and solve the problems of limited space and fragmented samples.

Key Features

THOUGHTFUL DESIGN

✔Compact size, 3.2kg, hand-held, easy to carry.
✔7-inch high-definition LCD capacitive touch screen, for your smooth operating experience.
✔Patented design, no need for fluorescent calibration after moving.
✔Instant power failure protection, seamless automatic recovery of the operation.

HIGH-EFFICIENCY TESTING

🚀16-well dual-color fluorescence scanning within 1 second.
🚀Independent temperature control module, supporting touchdown PCR, long-range PCR, melting curve, and SNP site analysis.
🚀Powerful software analysis function to meet diverse testing needs.

EASY TO OPERATE

⚙Special shortcut mode, preset programs for convenient and fast testing.
⚙Various connectivity ways: Internet interface, USB, WiFi.
⚙Stand-alone data analysis with immediate printing support.
⚙Multiple control modes: Stand-alone, PC, and Tablet.

Product Parameters

Item	Parameters
Product Model	Gentier Mini
Sample Throughput	16
Fluorescence Channels	2
Suitable Consumables	0.2mL transparent single tubes and 8-strip tubes
Compatible Fluorophores	CH1: FAM, SYBR Green I, SYTO 9; CH2: HEX, VIC, TET, JOE
Heating Rate	Max 5.09°C/s (Avg 3.39°C/s)
Cooling Rate	Max 4.0°C/s (Avg 3.0°C/s)
Temperature Accuracy	≤0.1ºC
Lightsource	High-brightness, long-life, maintenance-free LED
Detection Duration	Fluorescence acquisition within 1 second for all holes
Hot Lid Temperature	40°C - 110°C
Software Functions	Qualitative, Absolute/Relative Quantitative, SNP, Melting Curve
Display	7-inch full-color HD LCD capacitive touch screen
Network	Internet interface, USB, WiFi
Dimensions & Weight	205mm × 156mm × 153mm; 3.2kg

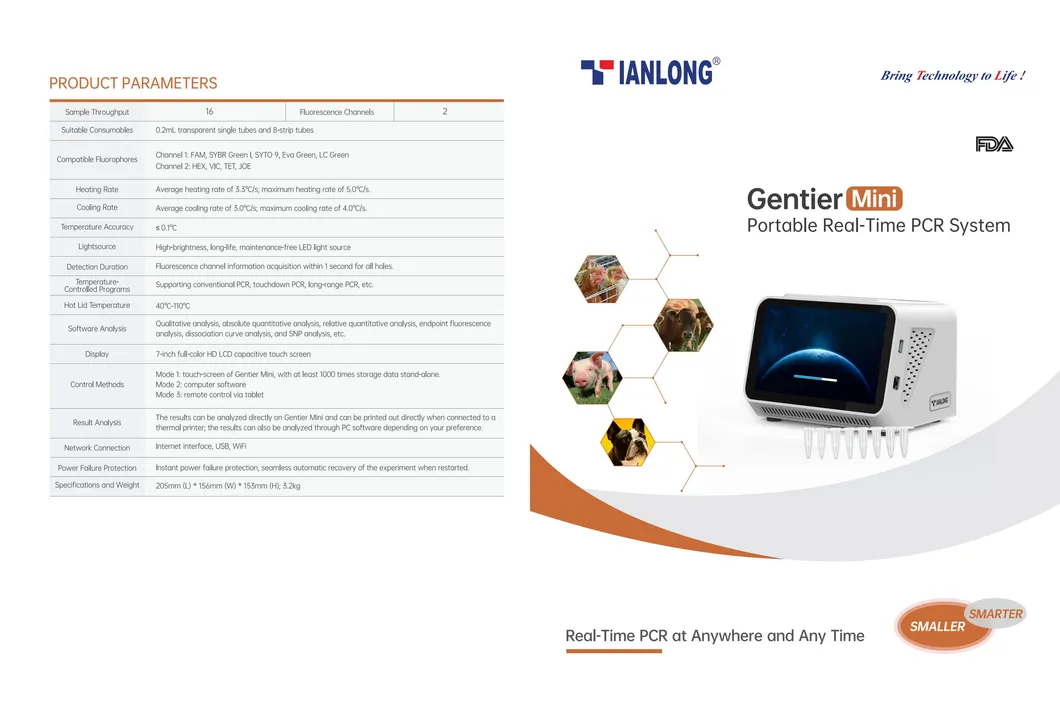

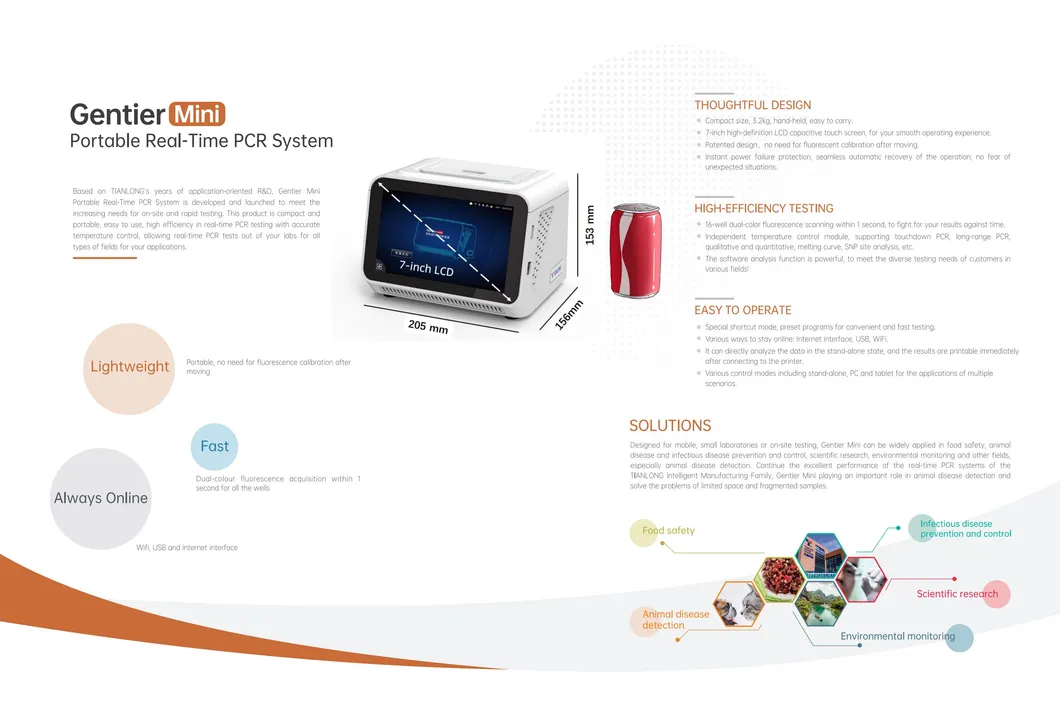

Product Leaflet & Catalogue

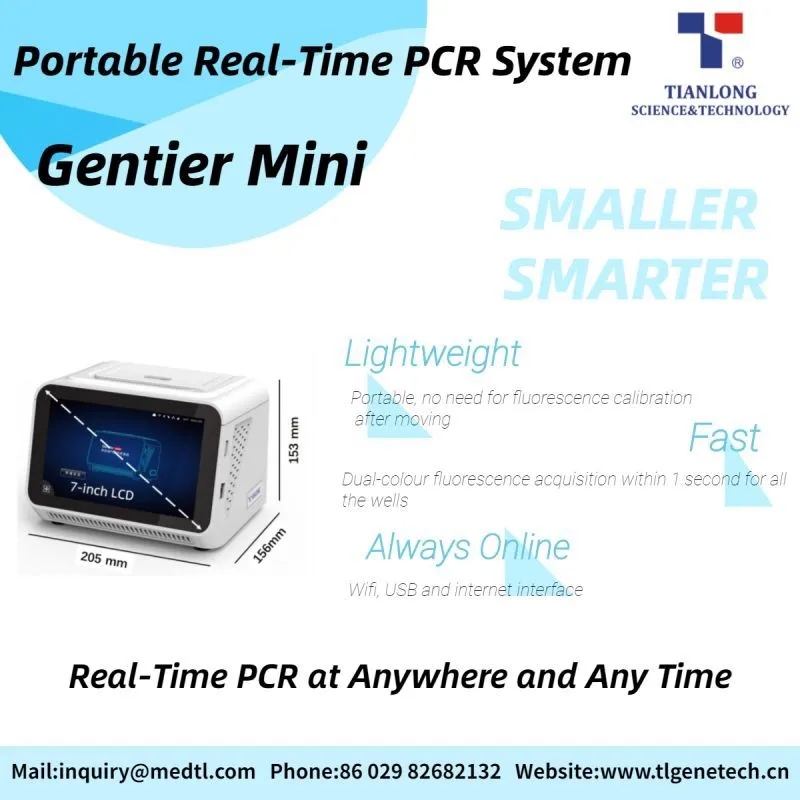

Product Leaflet:

Product Solution

Frequently Asked Questions

How portable is the Gentier Mini for field use?

The Gentier Mini weighs only 3.2kg and features a compact, hand-held design, making it ideal for mobile laboratories and on-site testing.

Does the system require calibration after transport?

No. Thanks to its patented design, the system does not require fluorescent calibration after moving, ensuring it is ready for immediate use.

What happens if there is a sudden power outage?

The system includes instant power failure protection. It allows for seamless automatic recovery of the operation once power is restored.

How many samples can be processed at once?

The system has a 16-well throughput and can perform dual-color fluorescence scanning for all wells within just 1 second.

What control methods are supported?

The Gentier Mini supports three control modes: stand-alone operation via the built-in touch screen, computer software control, or remote control via a tablet.

What types of PCR are compatible with this device?

It supports a wide range of protocols including conventional PCR, touchdown PCR, long-range PCR, qualitative and quantitative analysis, melting curve analysis, and SNP site analysis.
