Portable Sleep Monitoring Device for Sleep Disorder Diagnostic

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
A9
Certification
MSDS, ISO13485
Group
Middle-aged and Old
LED Display
2.8-Inch TFT
Advantage
Suitable and High Accurate
Function
Sleep Apnea Diagnosis
Feature
Compact, Light and Convenient
Weight
176g (Exclude Sensor)
Dimensions
125mmL x 80mmW x 24mmH
Capacity
500 Set/ Month
🔬 Product Description

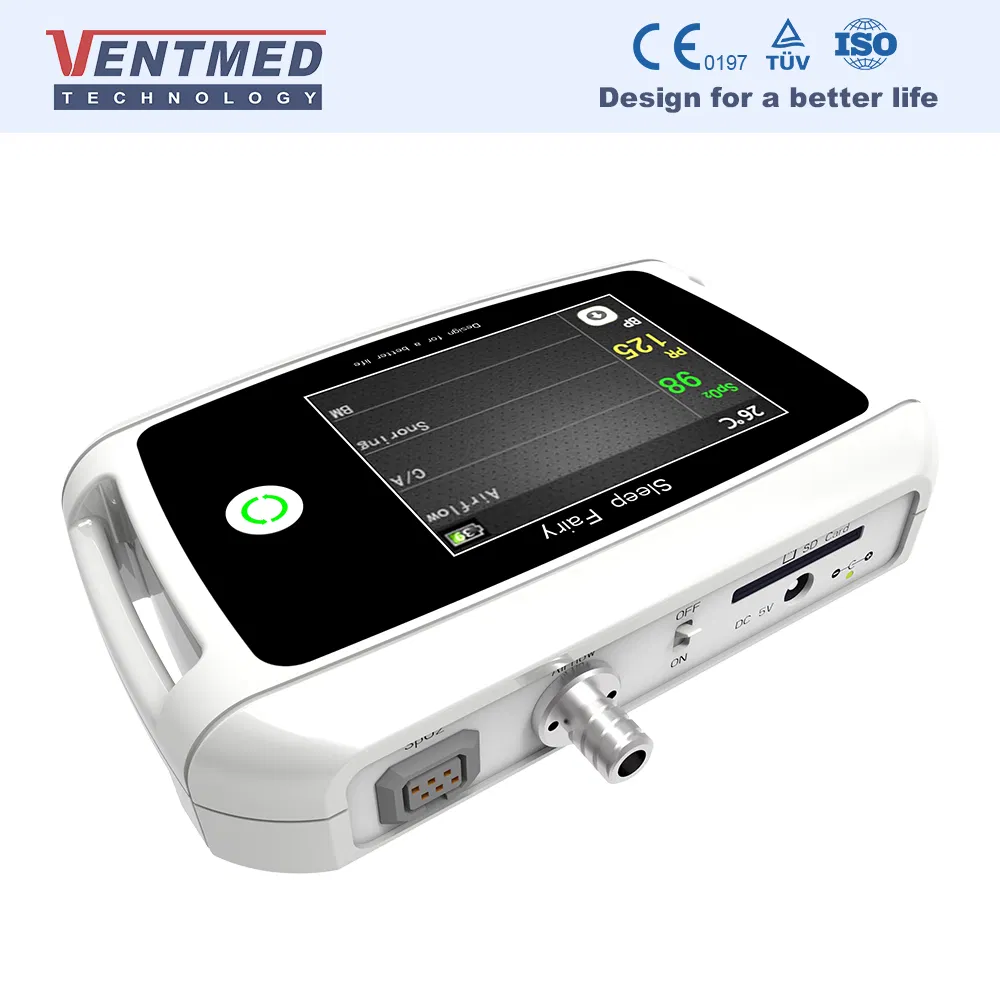

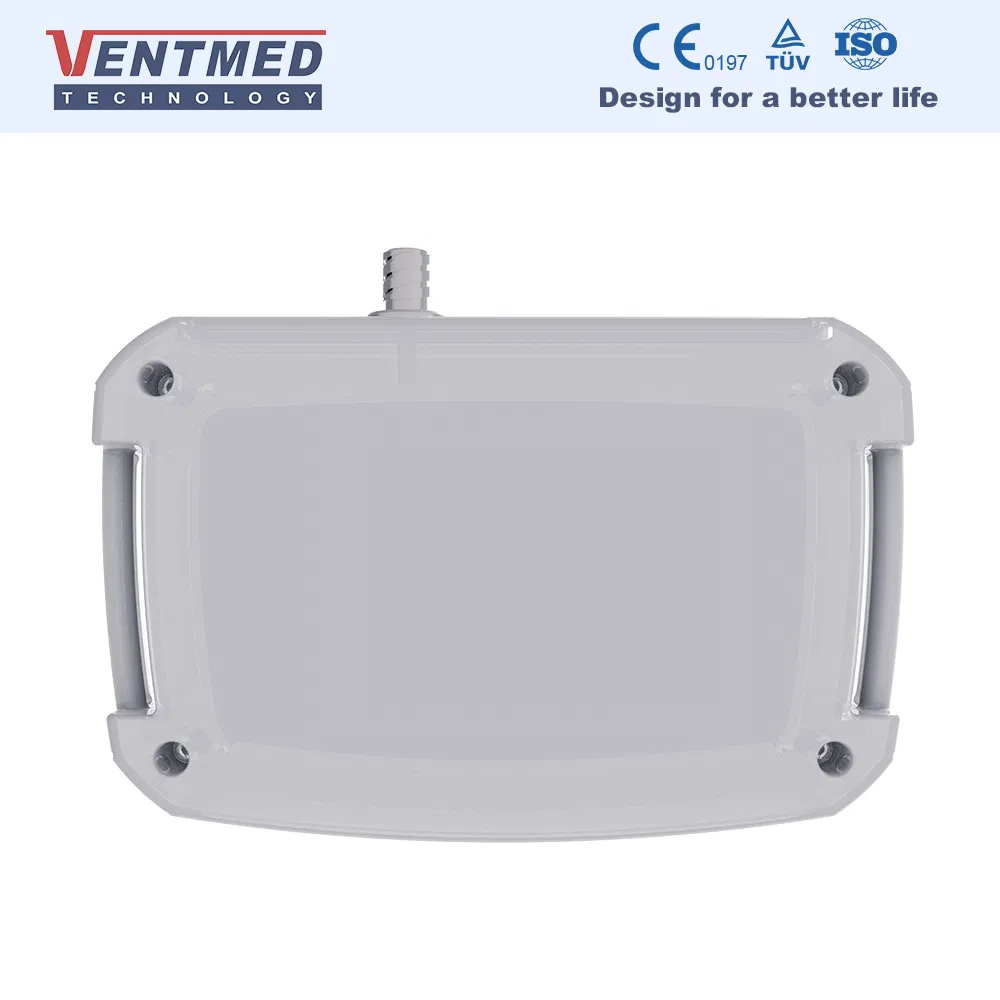

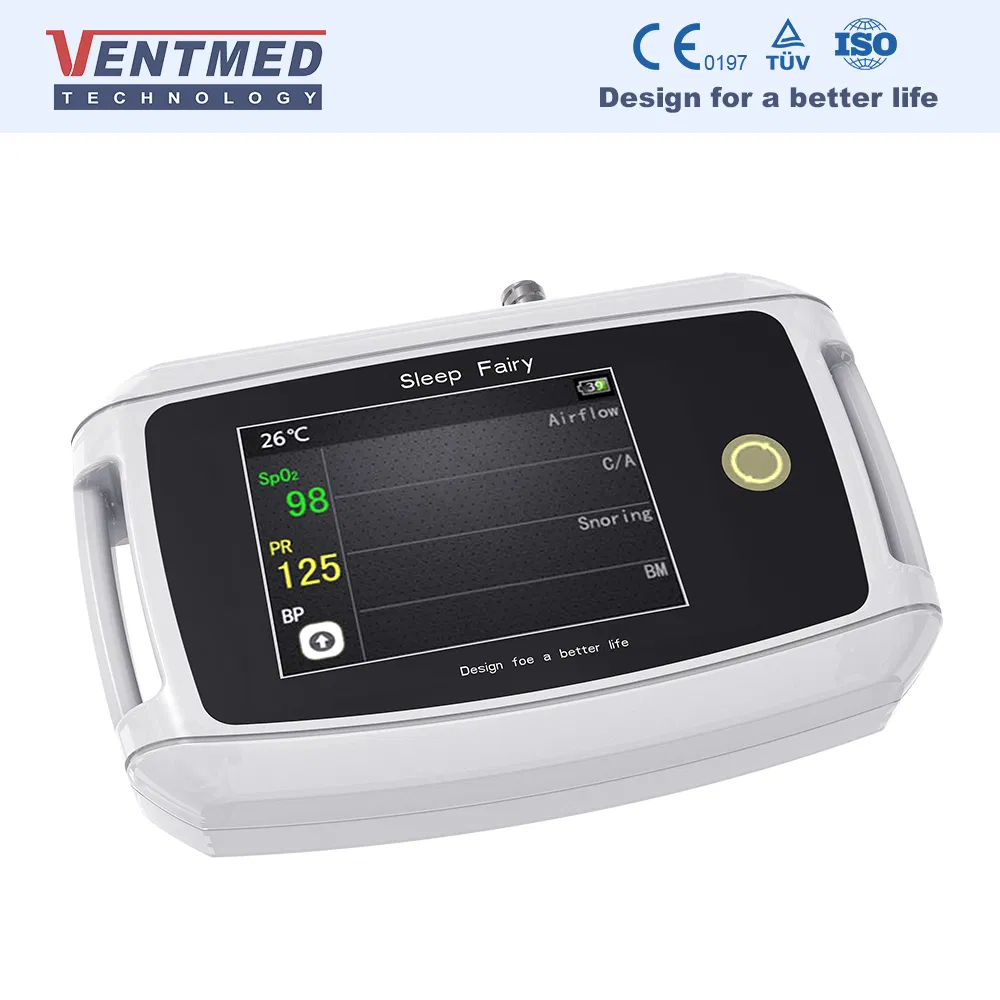

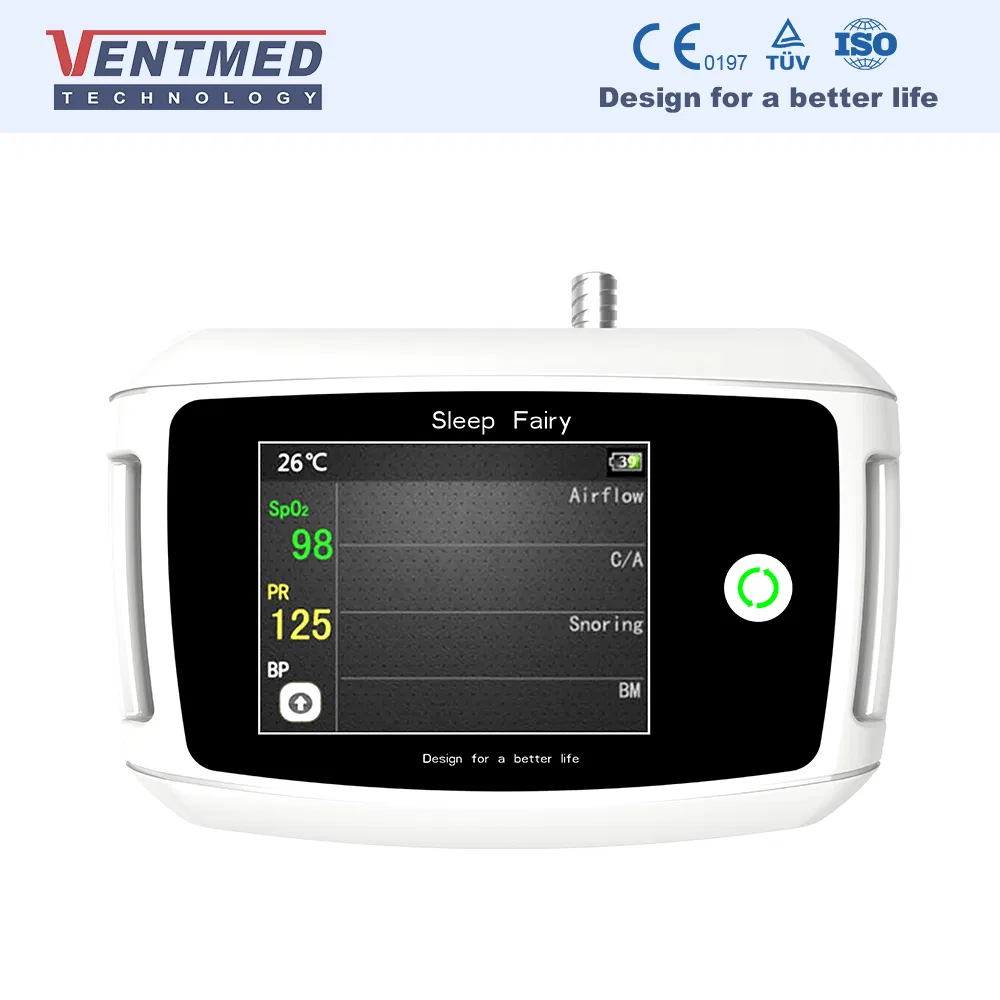

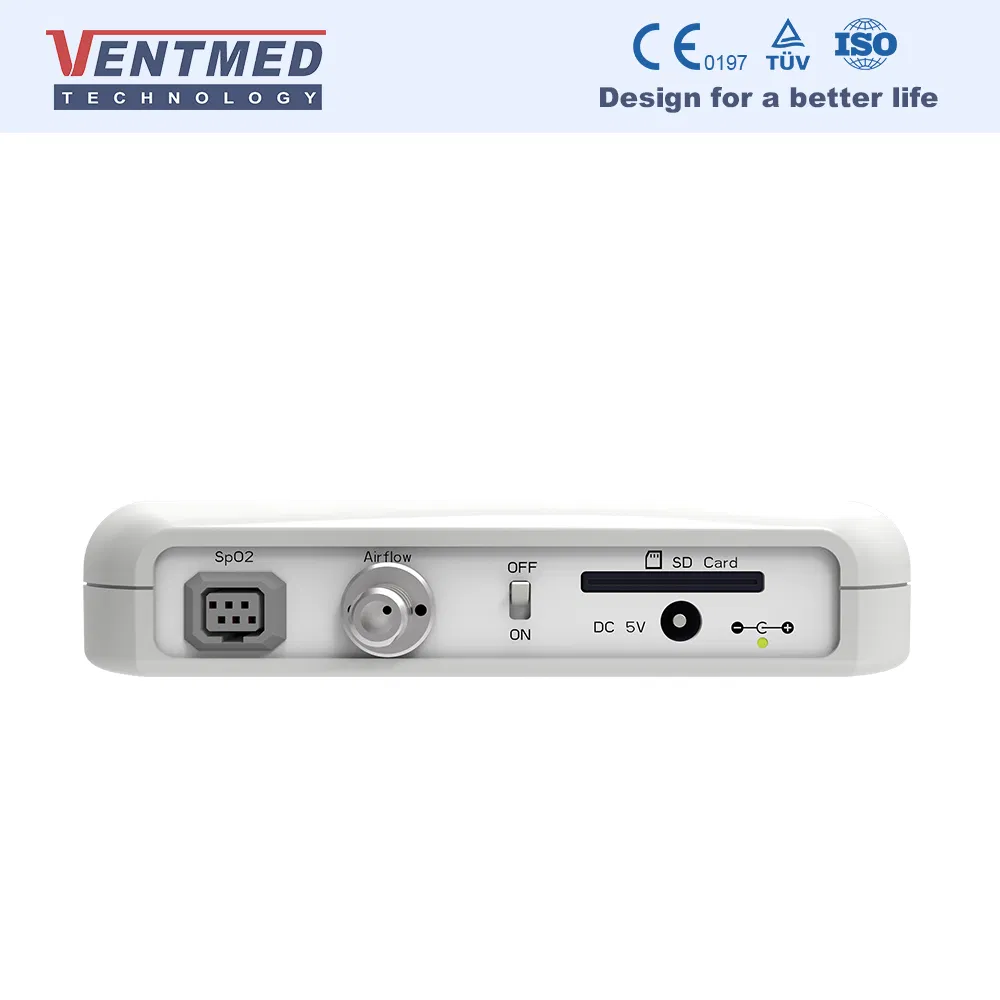

Portable Sleep Monitoring Device for Sleep Disorder Diagnostic

Portable Sleep Monitoring Device

The sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea, which is suitable for clinic, hospital, sleep center, and home usage, especially for the screening of Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and reports for sleep physicians to provide professional treatment proposals and therapy pressure titration.

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep, and improves patient acceptance of test protocols. This device meets all American Academy of Sleep Medicine (AASM) requirements.

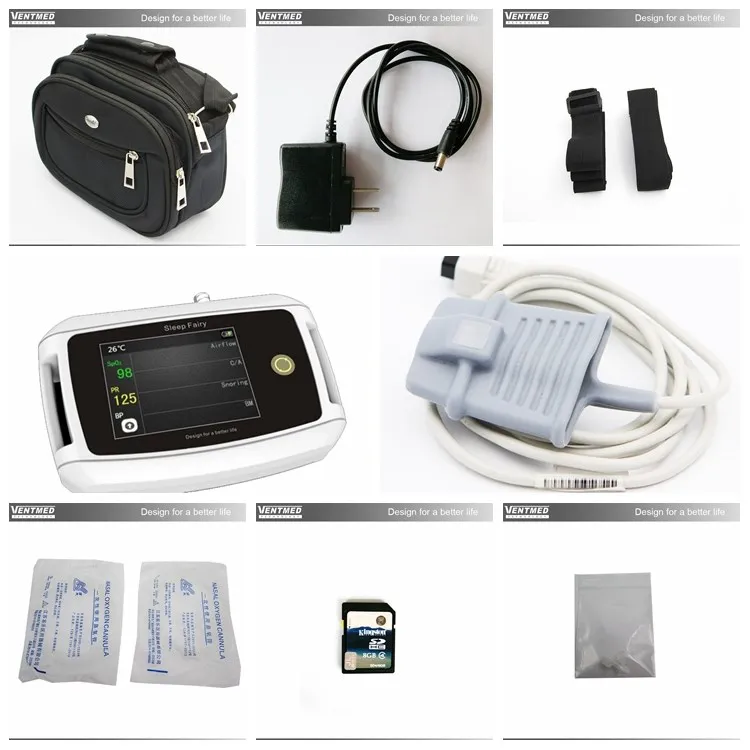

📦 Product Structure
1. Host (1 pcs)
2. Luer Connector (2 pcs)
3. SpO2 sensor (1 pcs)
4. Nasal Oxygen Cannula (2 pcs)
5. Fixing band (2 pcs)
6. SD card & Reader
7. Charger & Carrying bag
Product Structure 1

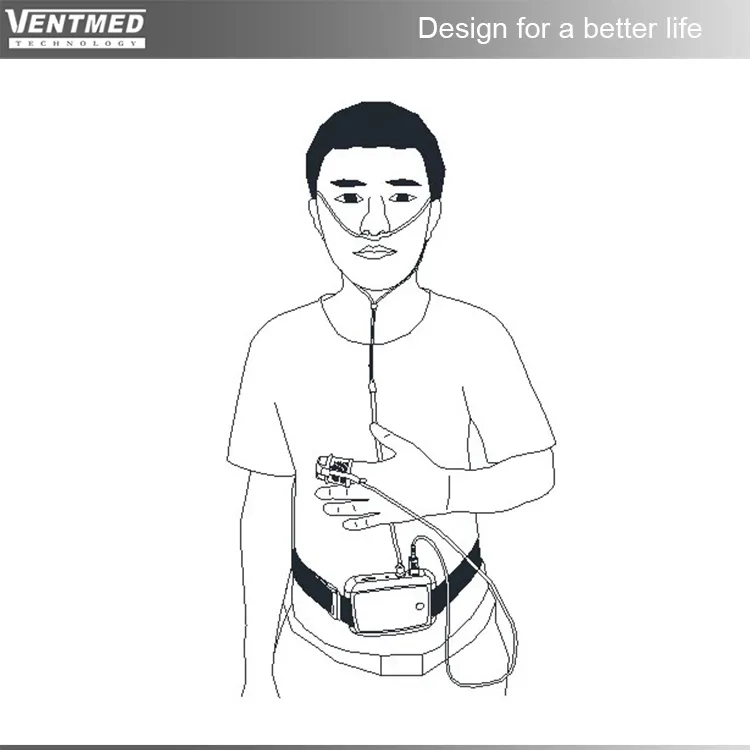

Product Structure 2
⚙️ Technical Specifications
9 Channels
Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data Sampling
AD: 12Bit / Rate: 50-200Hz
Storage
8G SD Card, over 8000 hours data
SpO2 Range
70% - 100%
Pulse Rate
30 - 240 bpm
Battery
2500mAh Lithium Battery (30 hours continuous use)
Screen
2.8 inch TFT, 320 x 240
🌟 Key Features
  • Integrated 3D Sensor: Built-in machine, no need for extra sensors for body movement/position.
  • Single Switch Operation: Extremely easy to operate for all age groups.
  • High Accuracy: Reliably providing extensive, detailed, and accurate sleep clinical data.
  • Professional Software: Sophisticated scoring and diagnostic reporting software included.
  • CPAP Titration: Can link to CPAP devices to titrate patient's pressure effectively.
  • Portable Design: Compact and light (176g) for easy transport and home use.

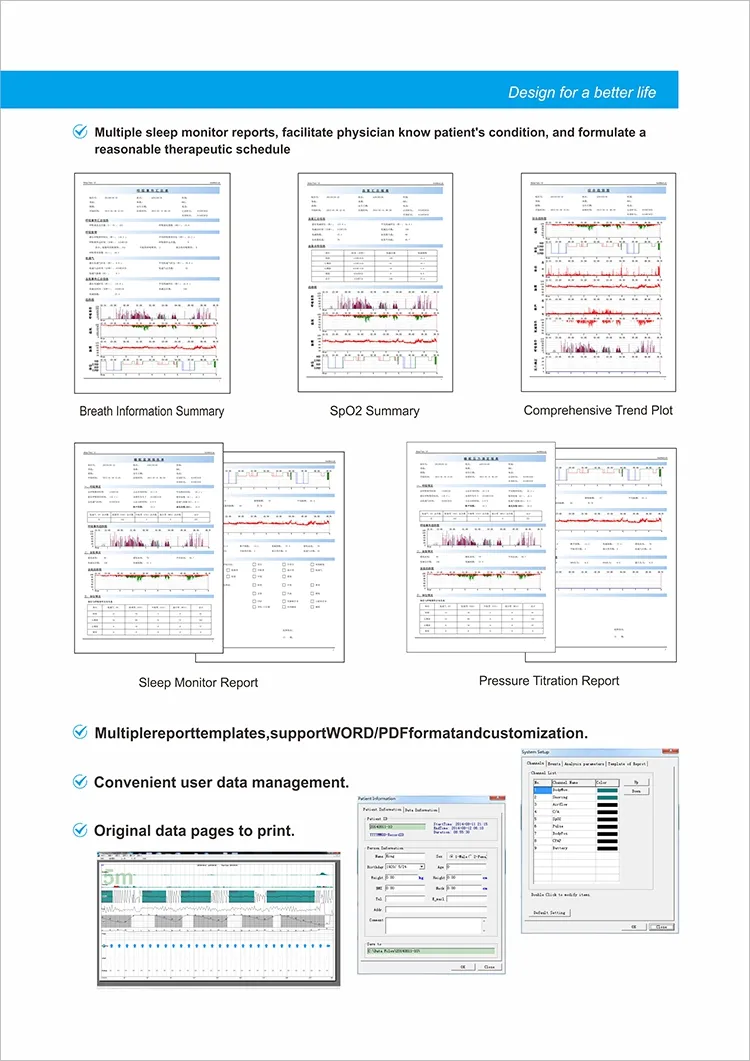

Sleep Monitoring Report
Operation Interface
🛡️ Quality & Services

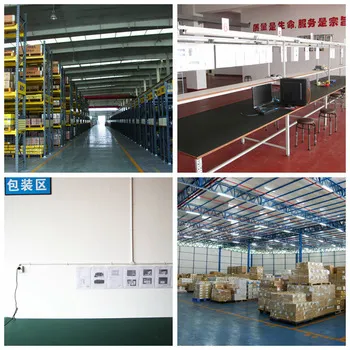

Certificate 1

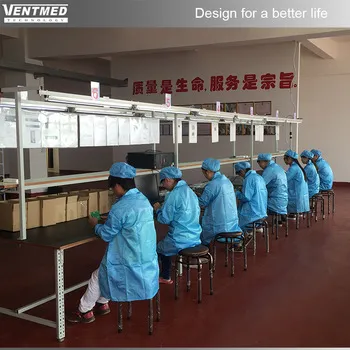

Certificate 2

Design, for a better life! We provide professional sleep & breathing solutions with years of manufacturing experience.

  • 1-year warranty on all devices!
  • OEM/ODM private brand services available.
  • Shortest delivery time and competitive pricing.
  • Long-time maintenance and 24-hour inquiry response.
🌍 Global Presence
Exhibition
Exhibition
Exhibition
Frequently Asked Questions
What is the main purpose of this sleep monitoring device?
It is designed for the screening and diagnosis of sleep disorders, particularly Sleep Apnea Syndrome (SAS), suitable for home, hospital, or sleep center use.
How many channels of data does the A9 model record?
The device monitors 9 essential channels: Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.
Is the device easy for elderly patients to use at home?
Yes, it features a simple one-switch operation and an integrated 3D sensor, reducing the number of external cables and sensors required, making it very user-friendly.
How long does the battery last?
The integrated 2500mAh lithium battery supports up to 30 hours of continuous monitoring, easily covering multiple nights of sleep study.
Can the data be analyzed on a computer?
Yes, data is stored on an 8G SD card and can be read by the included reader and professional software for detailed clinical reporting and image display.
What is the warranty period for the product?
We provide a 1-year warranty and offer long-term maintenance services for all our sleep monitoring products.
