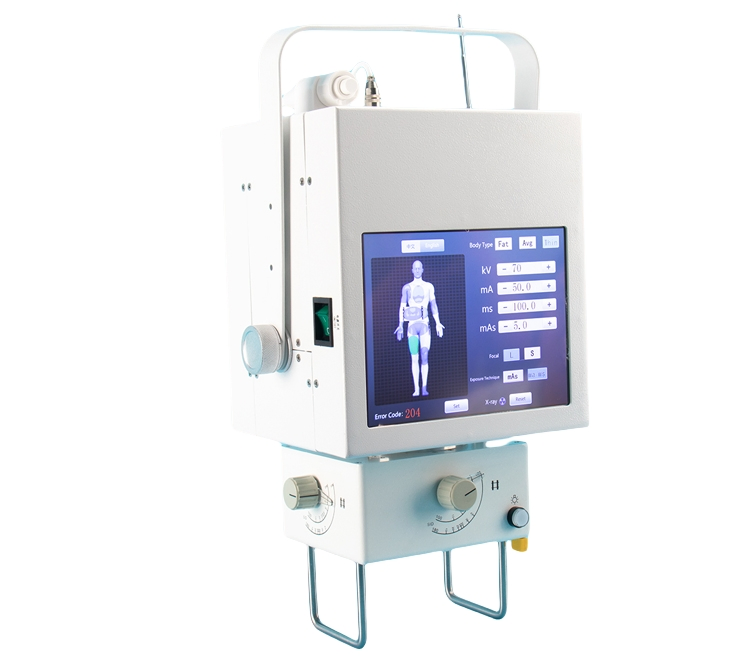

Portable Xray Machines 5kw Veterinary X-ray Machine Diagnostic X-ray

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

📋Basic Information

Model NO.

YJ-BEDX5

Certification

CE, ISO13485

Product Name

Handheld X-ray Machine

Photography MA

10-100mA

Photography KV

40kv-125kv

Column Height

1910mm

Engine Size

265 x 240 x 210mm

Power Options

5kw / 8kw / 3.5kw

🔍Product Overview

The Veterinary Digital X-Ray Machine is specifically engineered for pet clinics and veterinary hospitals. It provides high-quality diagnostic imaging for all levels of veterinary care, covering the head, chest, abdomen, limbs, and skeletal structures. Whether in a standing position, lying position, or for lateral photography, this versatile system ensures precision and clarity.

Designed for multi-functional use, it is suitable for medium to large hospitals, clinics, medical research institutes, and educational universities for teaching and scientific research purposes.

📦System Components

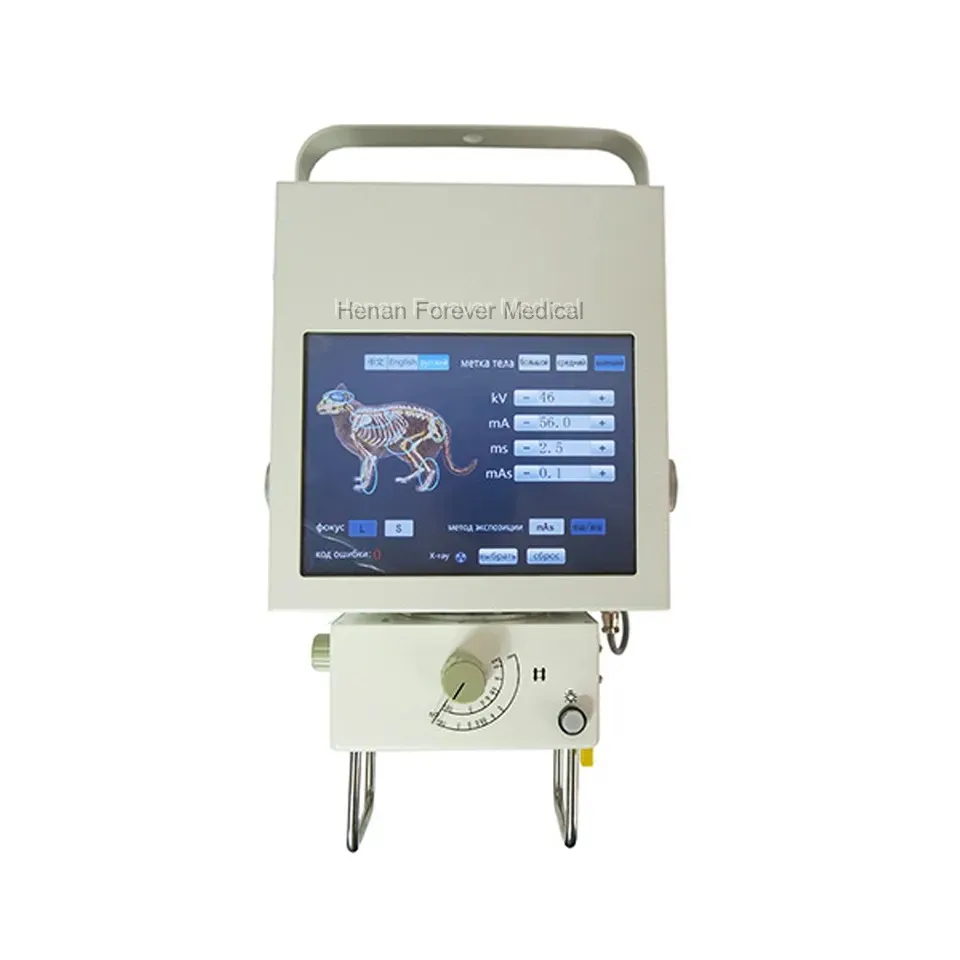

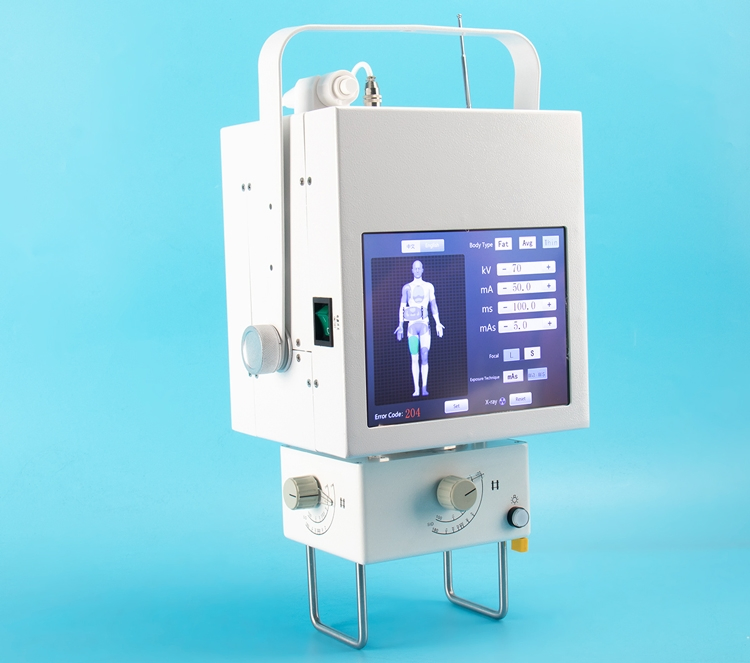

Portable X-ray Unit

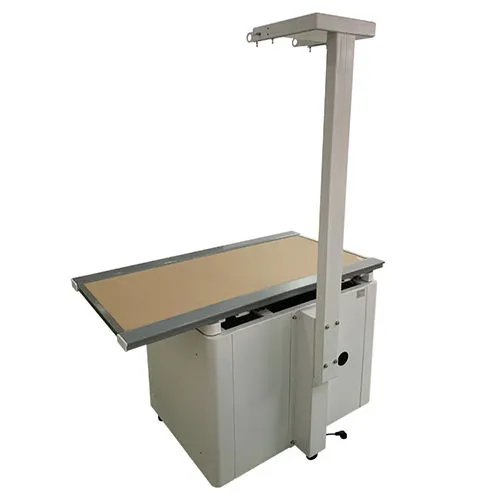

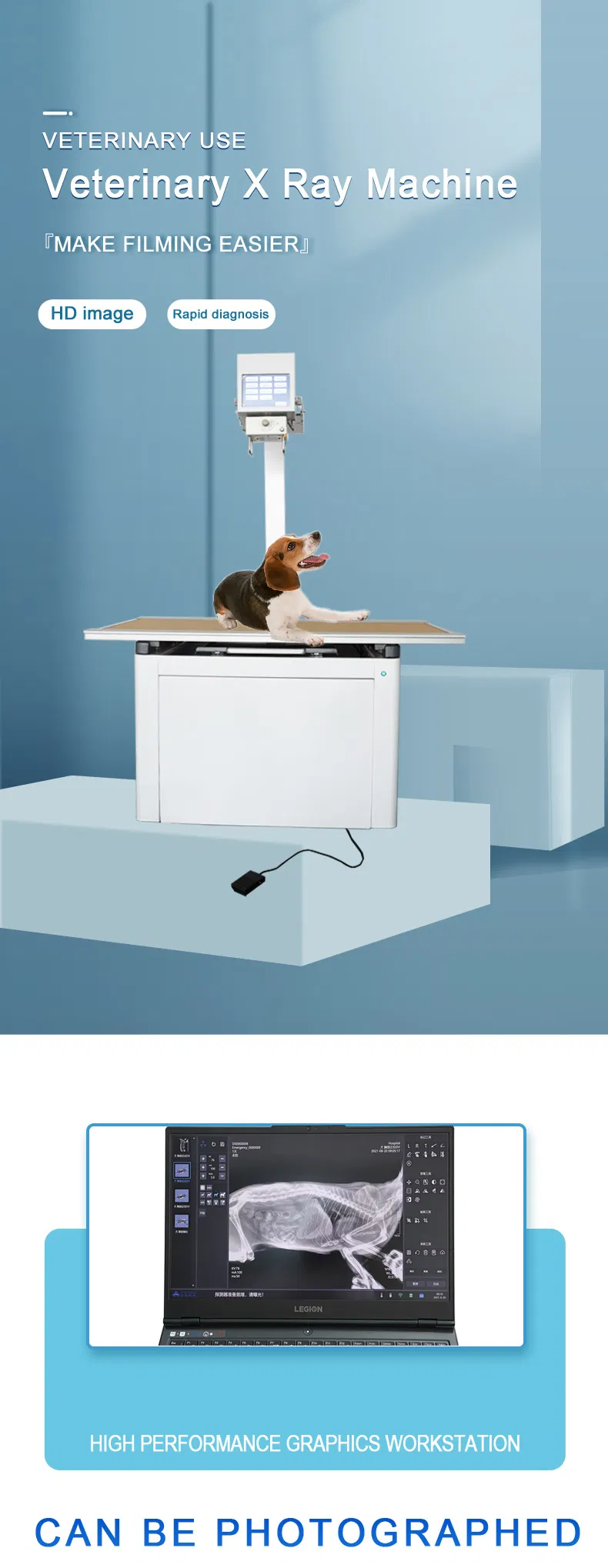

Veterinary X-ray Table

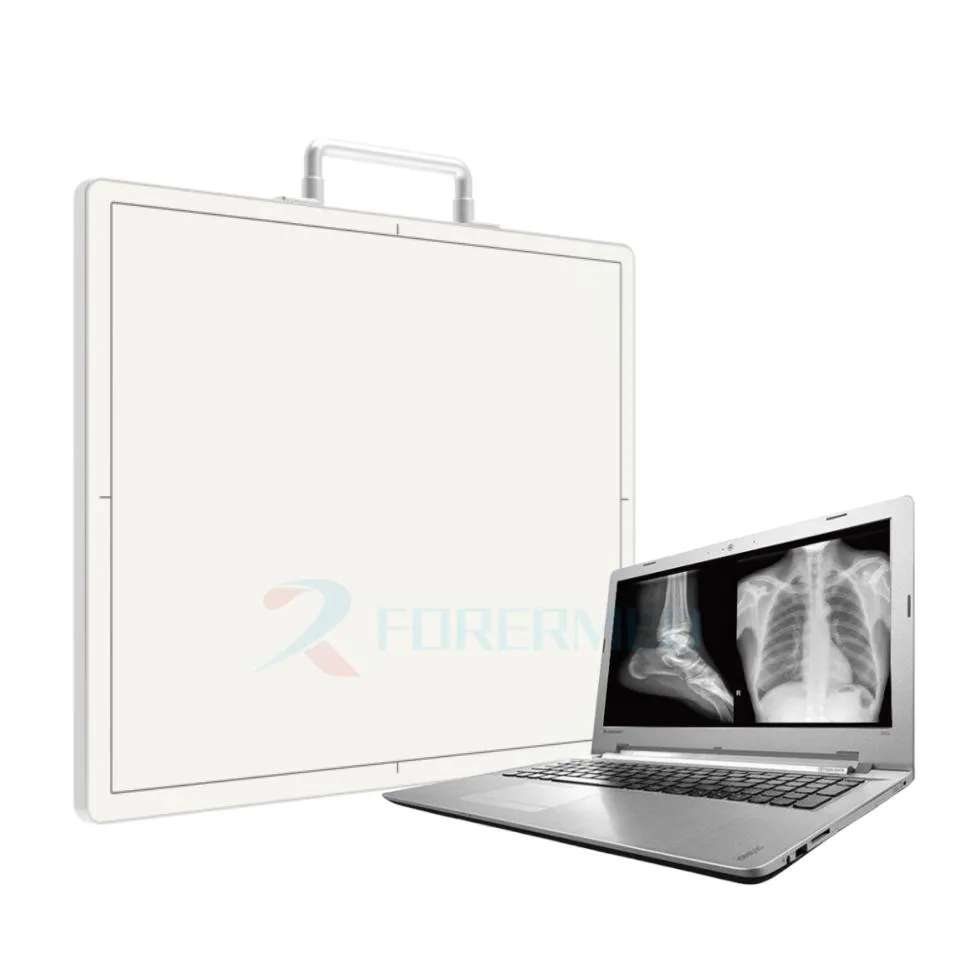

Flat Panel Detector

⭐Key Features

1. Lightweight & Compact Simple structure and small size allow for use without lead-shielded darkrooms. Ideal for fieldwork and special occasions.

2. Versatile Mobile Rack Optional flexible rack meets various station requirements and can be used for bedside shooting in hospital wards.

3. Multiple Control Modes Supports three exposure control methods: remote control and hand brake for safer operation.

4. Intelligent Safety Features fault self-protection and self-diagnosis with high-precision control of tube voltage and current.

5. High Frequency Inverter Advanced inverter technology provides stable high-voltage output for superior image quality.

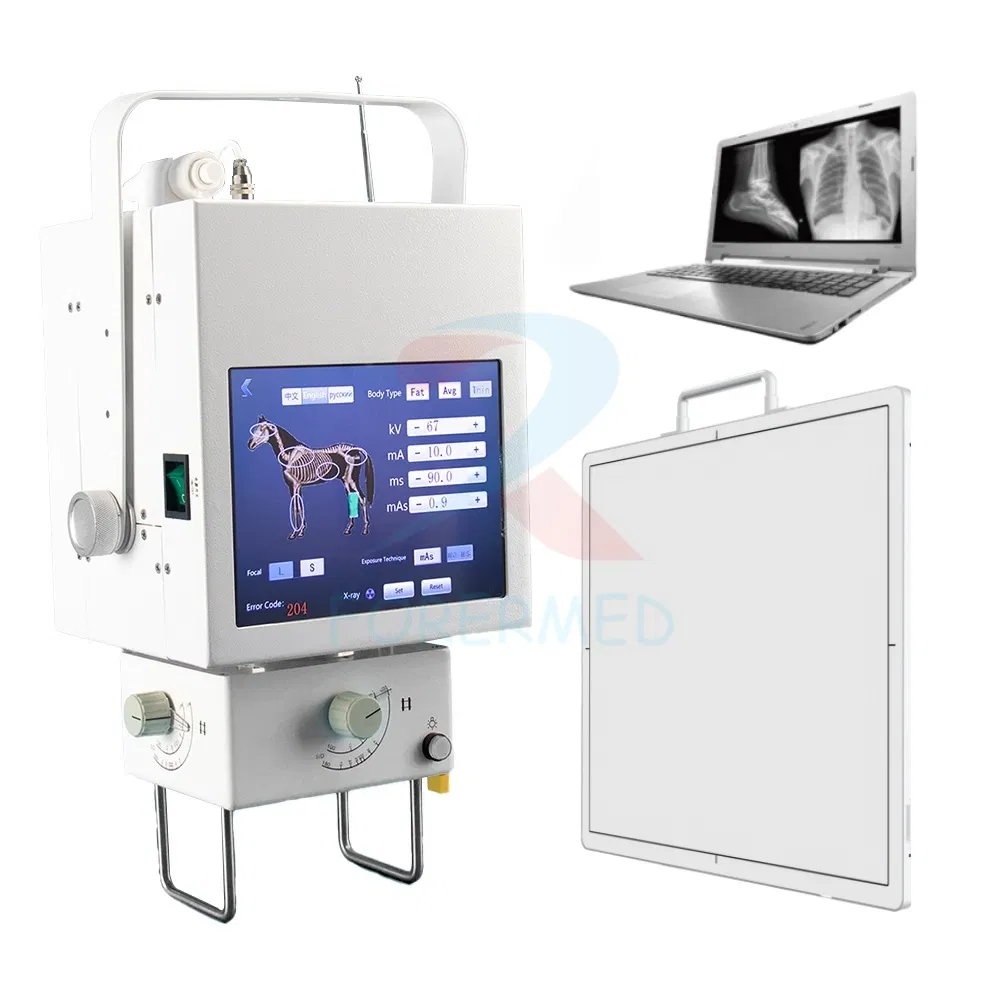

6. Digital DR Compatible Seamlessly integrates with 14"x17" or 17"x17" Flat Panel Detectors for a complete digital diagnostic system.

⚙️Technical Specifications

Bed Surface Size	1360mm × 720mm × 830mm
Column Height	1910mm
Overall Dimensions	1360mm × 720mm × 1910mm
Photography KV Range	40kV - 125kV
Photography mA Range	10 - 100mA
Main Engine Weight	15KG
Power Output	5KW (8KW / 3.5KW Optional)
Main Engine Size	265(L) x 240(W) x 210(H)mm

🖼️Equipment Gallery

❓Frequently Asked Questions

What animal parts can be scanned with this machine?

It is suitable for veterinary diagnostics of the head, chest, abdomen, limbs, and bones for various animals in standing, lying, or lateral positions.

Does this machine require a dedicated darkroom?

No, due to its compact design and high-frequency technology, it does not necessarily require a traditional lead-shielded darkroom, making it ideal for mobile and field use.

What are the power options available for this model?

The standard model is 5KW, but we also offer 3.5KW and 8KW options to meet different clinical requirements.

Can I upgrade this to a full digital DR system later?

Yes, this machine is fully compatible with DR Flat Panel Detectors (standard sizes 14x17 inch or 17x17 inch) to form a complete Digital X-ray system.

How is the exposure controlled for safety?

The system features three exposure control methods, including a remote control and a hand brake, allowing operators to maintain a safe distance.

Is the machine easy to transport?

Absolutely. The main engine weighs only 15KG, and the optional mobile rack is designed for easy maneuverability within clinic wards or different locations.
